Page 83 of 485
Black plate (79,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
2 Instruments and controls
Cockpit...
........................................................................\
................ 2-3
Instrument panel ...
........................................................................\
2-4
Meters and gauges ...
................................................................... 2-5
Meter/ring illumination and needle sweep ...
.................... 2-5
Speedometer and odometer ...
............................................ 2-6
Tachometer ...
........................................................................\
... 2-7
Engine coolant temperature gauge ...
................................ 2-7
Fuel gauge ...
........................................................................\
.... 2-8
Compass (if so equipped) ...
...................................................... 2-8
Zone variation change procedure ...
................................ 2-10
Warning/indicator lights and audible reminders ...
............ 2-11
Checking bulbs ...
................................................................. 2-12
Warning lights ...
................................................................... 2-12
Indicator lights ...
................................................................... 2-16
Audible reminders ...
............................................................ 2-18
Dot matrix liquid crystal display ...
.......................................... 2-18
Operational indicators ...
..................................................... 2-19
Maintenance indicators ...
................................................... 2-22
Trip computer ...
.................................................................... 2-22
Security systems ...
.................................................................... 2-27
Vehicle security system ...
.................................................. 2-27
NISSAN vehicle immobilizer system ...
........................... 2-28
Windshield wiper and washer switch ...
............................... 2-30
Rear window wiper and washer switch ...
........................... 2-31 Rear window and outside mirror defroster switch
...
....... 2-32
Headlight and turn signal switch ...
....................................... 2-32
Xenon headlights (if so equipped) ...
............................ 2-32
Headlight switch ...
............................................................ 2-33
Turn signal switch ...
.......................................................... 2-37
Fog light switch (if so equipped) ...
.............................. 2-37
Horn ...
........................................................................\
.................. 2-38
Heated seats (if so equipped) ...
........................................... 2-38
Blind Spot Warning (BSW) switch (if so equipped) ...
..... 2-39
Vehicle Dynamic Control (VDC) OFF switch ...
................. 2-40
Power outlet ...
........................................................................\
.... 2-40
Storage ...
........................................................................\
............ 2-43
Cup holders ...
..................................................................... 2-43
Sunglasses holder (if so equipped) ...
.......................... 2-45
Glove box ...
........................................................................\
. 2-45
Instrument lower box (if so equipped) ...
..................... 2-46
Console box ...
.................................................................... 2-46
Cargo floor box ...
............................................................... 2-47
Hooks ...
........................................................................\
........ 2-48
Roof rack (if so equipped) ...
.......................................... 2-49
Coat hooks ...
...................................................................... 2-50
Sunshade (if so equipped) ...
................................................. 2-50
Windows ...
........................................................................\
......... 2-51
Power windows ...
.............................................................. 2-51
Condition:
>
Page 109 of 485
Black plate (105,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
Push theswitch*Bto select other menus.
DETAIL:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407This item is available only when a warning is
displayed.
Select this menu to see the details of warnings.
GUID-1DA67D67-9764-4420-8B43-5CA25C056F36
SIC4717
Your vehicle has two types of security systems,
as follows:
. Vehicle security system
. NISSAN Vehicle Immobilizer System
The security condition will be shown by the
security indicator light.
VEHICLE SECURITY SYSTEMGUID-A4B1DF8A-E0E9-47D0-B1DC-2F43B0CC0B71The vehicle security system provides visual and
audio alarm signals if someone opens the doors
or lift gate when the system is armed. It is not,
however, a motion detection type system that
activates when a vehicle is moved or when a
vibration occurs.
The system helps deter vehicle theft but cannot
prevent it, nor can it prevent the theft of interior
or exterior vehicle components in all situations.
Always secure your vehicle even if parking for a
brief period. Never leave your Intelligent Key(s)
in the vehicle, and always lock it when un-
attended. Be aware of your surroundings, and
park in secure, well-lit areas whenever possible.
Many devices offering additional protection,
such as component locks, identification markers,
and tracking systems, are available at auto
supply stores and specialty shops. Your
NISSAN dealer may also offer such equipment.
Check with your insurance company to see if
you may be eligible for discounts for various
theft protection features.
Instruments and controls2-27
SECURITY SYSTEMS
Condition:
Page 110 of 485
Black plate (106,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
2-28Instruments and controls
SIC2045
How to arm the vehicle security systemGUID-8D123C36-E9F9-4871-811D-D6C0C142AF461. Close all windows.The system can be armed even if the
windows are open.
2. Push the ignition switch to the OFF position.
3. Remove the Intelligent Key from the vehicle.
4. Close all doors and lift gate. Lock all doors. The doors can be locked with the Intelligent
Key, door handle request switch, power
door lock switch or mechanical key.
5. Confirm that the security indicator light
comes on. The security indicator light stays
on for about 30 seconds. The vehicle
security system is now pre-armed. After about 30 seconds the vehicle security
system automatically shifts into the armed
phase. The security light begins to flash
once every approximately 3 seconds. If,
during this 30-second pre-arm time period,
the door is unlocked, or the ignition switch is
pushed to ACC or ON, the system will not
arm.
Even when the driver and/or passengers
are in the vehicle, the system will activate
with all doors and lift gate locked with the
ignition switch in the LOCK position. When
pushing the ignition switch to the ACC or
ON position, the system will be released.
Vehicle security system activationGUID-BB38DE0B-6ADD-44EA-821D-7DC2AE8F4E1EThe vehicle security system will give the follow-
ing alarm:
. The headlights blink and the horn sounds
intermittently.
. The alarm automatically turns off after
approximately 1 minute. However, the alarm
reactivates if the vehicle is tampered with
again.
The alarm is activated by:
. Unlocking the door or opening the lift gate
without using the button on the Intelligent
Key, the door handle request switch or the
mechanical key. (Even if the door is opened by releasing the door inside lock knob, the
alarm will activate.)
How to stop an activated alarmGUID-05DDA89B-F7D9-4C65-A192-A1CBC7D96A4FThe alarm will stop by unlocking a door by
pushing the unlock button on the Intelligent Key,
the door handle request switch or using the
mechanical key. The alarm will not stop if the
ignition switch is pushed to the ACC or ON
position.
If the system does not operate as de-
scribed above, have it checked by a
NISSAN dealer.
NISSAN VEHICLE IMMOBILIZER SYS-
TEM
GUID-3F81F329-63EA-4A18-A472-E8D6E2A9B23AThe NISSAN Vehicle Immobilizer System will not
allow the engine to start without the use of the
registered Intelligent Key.
Never leave these
keys in the vehicle.
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, including
interference that may cause undesired
operation.
Condition:
Page 111 of 485
Black plate (107,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
Note: Changes or modifications not ex-
pressly approved by the party responsible
for compliance could void the user’s
authority to operate the equipment.
For Canada:
This device complies with RSS-210 of
Industry Canada. Operation is subject to
the following two conditions:
(1) this device may not cause interference,
and (2) this device must accept any inter-
ference, including interference that may
cause undesired operation of the device.
SIC2045
Security indicator lightGUID-25A364CB-C81A-4EA9-91A8-8EC3F1236ADDThe security indicator light is located on the
meter panel. It indicates the status of the
NISSAN Vehicle Immobilizer System.
The light blinks after the ignition switch is in the
LOCK, ACC or OFF position. This function
indicates the security systems equipped on the
vehicle are operational.
If the NISSAN Vehicle Immobilizer System is
malfunctioning, this light will remain on while the
ignition switch is in the ON position.
If the light still remains on and/or the
engine will not start, see a NISSAN dealer
for NISSAN Vehicle Immobilizer Systemservice as soon as possible. Please bring
all Intelligent Keys that you have when
visiting a NISSAN dealer for service.
Instruments and controls2-29
Condition:
Page 147 of 485
Black plate (143,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
GUID-3AE7A6EF-F9A0-4170-8F25-D2AD88653F67A key number plate is supplied with your keys.
Record the key number and keep it in a safe
place (such as your wallet), not in the vehicle. If
you lose your keys, see a NISSAN dealer for
duplicates by using the key number. NISSAN
does not record any key numbers so it is very
important to keep track of your key number plate.
A key number is only necessary when you have
lost all keys and do not have one to duplicate
from. If you still have a key, this key can be
duplicated by a NISSAN dealer.
SPA2406
Type A
SPA2844
Type B
SPA2845
Type C
1. Master key (2)
2. Mechanical key (inside the key) (2)
3. Key number plate (1)
INTELLIGENT KEY SYSTEMGUID-E1D9BFF8-38D2-4E11-8A34-3242B810AF20Your vehicle can only be driven with the
Intelligent Keys which are registered to your
vehicle’s Intelligent Key system components and
NISSAN Vehicle Immobilizer System compo-
nents. As many as 4 Intelligent Keys can be
registered and used with one vehicle. The new
keys must be registered by a NISSAN dealer
prior to use with the Intelligent Key system and
NISSAN Vehicle Immobilizer System of your
vehicle. Since the registration process requires
erasing all memory in the Intelligent Key compo-
Pre-driving checks and adjustments3-3
KEYS
Condition:

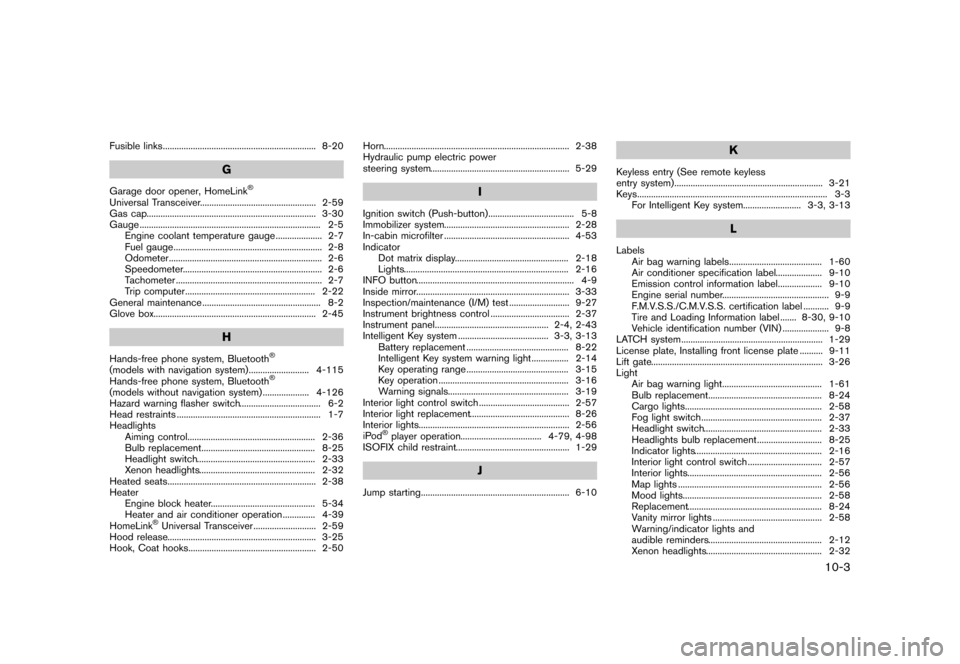

Page 479 of 485
Black plate (475,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
Fusible links...
.................................................................. 8-20
G
Garage door opener, HomeLink®
Universal Transceiver ...
.................................................. 2-59
Gas cap ...
......................................................................... 3-30
Gauge ...
.............................................................................. 2-5
Engine coolant temperature gauge ...
.................... 2-7
Fuel gauge ...
................................................................ 2-8
Odometer ...
.................................................................. 2-6
Speedometer ...
............................................................ 2-6
Tachometer ...
............................................................... 2-7
Trip computer ...
........................................................ 2-22
General maintenance ...
................................................... 8-2
Glove box ...
...................................................................... 2-45
H
Hands-free phone system, Bluetooth®
(models with navigation system) ...
.......................... 4-115
Hands-free phone system, Bluetooth®
(models without navigation system) ...
.................... 4-126
Hazard warning flasher switch ...
................................... 6-2
Head restraints ...
.............................................................. 1-7
Headlights Aiming control ...
....................................................... 2-36
Bulb replacement ...
................................................. 8-25
Headlight switch ...
................................................... 2-33
Xenon headlights ...
.................................................. 2-32
Heated seats ...
................................................................ 2-38
Heater Engine block heater ...
............................................. 5-34
Heater and air conditioner operation ...
.............. 4-39
HomeLink
®Universal Transceiver ...
........................... 2-59
Hood release ...
................................................................ 3-25
Hook, Coat hooks ...
....................................................... 2-50 Horn
...
................................................................................ 2-38
Hydraulic pump electric power
steering system ...
............................................................ 5-29
I
Ignition switch (Push-button) ...
..................................... 5-8
Immobilizer system ...
...................................................... 2-28
In-cabin microfilter ...
...................................................... 4-53
Indicator Dot matrix display ...
................................................. 2-18
Lights ...
....................................................................... 2-16
INFO button ...
.................................................................... 4-9
Inside mirror ...
.................................................................. 3-33
Inspection/maintenance (I/M) test ...
.......................... 9-27
Instrument brightness control ...
.................................. 2-37
Instrument panel ...
................................................. 2-4, 2-43
Intelligent Key system ...
....................................... 3-3, 3-13
Battery replacement ...
............................................ 8-22
Intelligent Key system warning light ...
................ 2-14
Key operating range ...
............................................ 3-15
Key operation ...
........................................................ 3-16
Warning signals ...
.................................................... 3-19
Interior light control switch ...
....................................... 2-57
Interior light replacement ...
........................................... 8-26
Interior lights ...
................................................................. 2-56
iPod
®player operation ...
................................... 4-79, 4-98
ISOFIX child restraint ...
................................................. 1-29
J
Jump starting ...
................................................................ 6-10
K
Keyless entry (See remote keyless
entry system) ...
................................................................ 3-21
Keys ...
.................................................................................. 3-3
For Intelligent Key system ...
......................... 3-3, 3-13
L
Labels
Air bag warning labels ...
........................................ 1-60
Air conditioner specification label ...
.................... 9-10
Emission control information label ...
................... 9-10
Engine serial number ...
.............................................. 9-9
F.M.V.S.S./C.M.V.S.S. certification label ...
........... 9-9
Tire and Loading Information label ...
....... 8-30, 9-10
Vehicle identification number (VIN) ...
.................... 9-8
LATCH system ...
............................................................. 1-29
License plate, Installing front license plate ...
.......... 9-11
Lift gate ...
.......................................................................... 3-26
Light Air bag warning light ...
........................................... 1-61
Bulb replacement ...
................................................. 8-24
Cargo lights ...
........................................................... 2-58
Fog light switch ...
.................................................... 2-37
Headlight switch ...
................................................... 2-33
Headlights bulb replacement ...
............................ 8-25
Indicator lights ...
....................................................... 2-16
Interior light control switch ...
................................ 2-57
Interior lights ...
.......................................................... 2-56
Map lights ...
.............................................................. 2-56
Mood lights ...
............................................................ 2-58
Replacement ...
.......................................................... 8-24
Vanity mirror lights ...
............................................... 2-58
Warning/indicator lights and
audible reminders ...
................................................. 2-12
Xenon headlights ...
.................................................. 2-32
10-3
Condition:
Page 480 of 485
Black plate (476,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

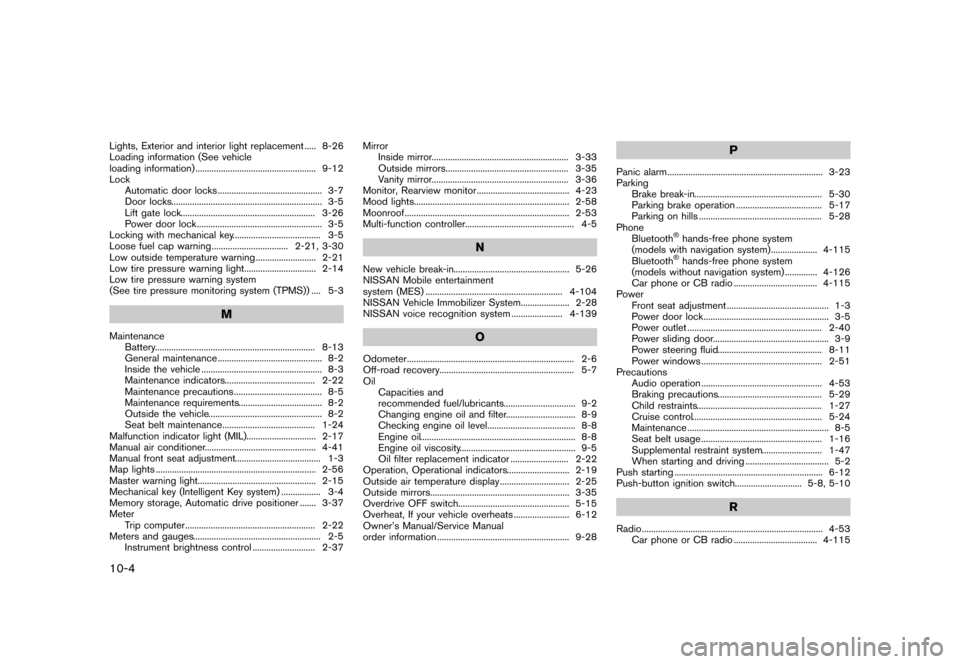

10-4
Lights, Exterior and interior light replacement...
..... 8-26
Loading information (See vehicle
loading information) ...
.................................................... 9-12
Lock Automatic door locks ...
............................................. 3-7
Door locks ...
................................................................. 3-5
Lift gate lock ...
.......................................................... 3-26
Power door lock ...
...................................................... 3-5
Locking with mechanical key ...
...................................... 3-5
Loose fuel cap warning ...
................................. 2-21, 3-30
Low outside temperature warning ...
.......................... 2-21
Low tire pressure warning light ...
............................... 2-14
Low tire pressure warning system
(See tire pressure monitoring system (TPMS)) ...
.... 5-3
M
Maintenance
Battery ...
..................................................................... 8-13
General maintenance ...
............................................. 8-2
Inside the vehicle ...
.................................................... 8-3
Maintenance indicators ...
....................................... 2-22
Maintenance precautions ...
...................................... 8-5
Maintenance requirements ...
.................................... 8-2
Outside the vehicle ...
................................................. 8-2
Seat belt maintenance ...
........................................ 1-24
Malfunction indicator light (MIL) ...
.............................. 2-17
Manual air conditioner ...
................................................ 4-41
Manual front seat adjustment ...
..................................... 1-3
Map lights ...
..................................................................... 2-56
Master warning light ...
................................................... 2-15
Mechanical key (Intelligent Key system) ...
................. 3-4
Memory storage, Automatic drive positioner ...
....... 3-37
Meter Trip computer ...
........................................................ 2-22
Meters and gauges ...
....................................................... 2-5
Instrument brightness control ...
........................... 2-37 Mirror
Inside mirror ...
........................................................... 3-33
Outside mirrors ...
..................................................... 3-35
Vanity mirror ...
........................................................... 3-36
Monitor, Rearview monitor ...
........................................ 4-23
Mood lights ...
................................................................... 2-58
Moonroof ...
....................................................................... 2-53
Multi-function controller ...
............................................... 4-5
N
New vehicle break-in ...
.................................................. 5-26
NISSAN Mobile entertainment
system (MES) ...
........................................................... 4-104
NISSAN Vehicle Immobilizer System ...
..................... 2-28
NISSAN voice recognition system ...
...................... 4-139
O
Odometer ...
........................................................................ 2-6
Off-road recovery ...
.......................................................... 5-7
Oil Capacities and
recommended fuel/lubricants ...
............................... 9-2
Changing engine oil and filter ...
.............................. 8-9
Checking engine oil level ...
...................................... 8-8
Engine oil ...
................................................................... 8-8
Engine oil viscosity ...
.................................................. 9-5
Oil filter replacement indicator ...
......................... 2-22
Operation, Operational indicators ...
........................... 2-19
Outside air temperature display ...
.............................. 2-25
Outside mirrors ...
............................................................ 3-35
Overdrive OFF switch ...
................................................ 5-15
Overheat, If your vehicle overheats ...
........................ 6-12
Owner’s Manual/Service Manual
order information ...
......................................................... 9-28
P
Panic alarm ...
................................................................... 3-23
Parking Brake break-in ...
....................................................... 5-30
Parking brake operation ...
..................................... 5-17
Parking on hills ...
..................................................... 5-28
Phone Bluetooth
®hands-free phone system
(models with navigation system) ...
.................... 4-115
Bluetooth
®hands-free phone system
(models without navigation system) ...
.............. 4-126
Car phone or CB radio ...
.................................... 4-115
Power Front seat adjustment ...
............................................ 1-3
Power door lock ...
...................................................... 3-5
Power outlet ...
.......................................................... 2-40
Power sliding door ...
.................................................. 3-9
Power steering fluid ...
............................................. 8-11
Power windows ...
.................................................... 2-51
Precautions Audio operation ...
.................................................... 4-53
Braking precautions ...
............................................. 5-29
Child restraints ...
...................................................... 1-27
Cruise control ...
........................................................ 5-24
Maintenance ...
............................................................. 8-5
Seat belt usage ...
.................................................... 1-16
Supplemental restraint system ...
.......................... 1-47
When starting and driving ...
.................................... 5-2
Push starting ...
................................................................ 6-12
Push-button ignition switch ...
............................. 5-8, 5-10
R
Radio ...
.............................................................................. 4-53
Car phone or CB radio ...
.................................... 4-115
Condition:
Page 481 of 485
Black plate (477,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
FM-AM radio with Compact Disc
(CD) player...
............................................................ 4-73
FM-AM-SAT radio with Compact Disc
(CD) player ...
............................................................ 4-81
Rapid air pressure loss ...
................................................ 5-7
Readiness for inspection/maintenance
(I/M) test ...
........................................................................ 9-27
Rear personal lights ...
.................................................... 2-56
Rear window and outside mirror
defroster switch ...
........................................................... 2-32
Rear window wiper and washer switch ...
................ 2-31
Rearview monitor ...
......................................................... 4-23
Recorders, Event data ...
............................................... 9-27
Registering your vehicle in another country ...
........... 9-8
Remote controller (DVD) ...
....................................... 4-113
Remote keyless entry system ...
................................... 3-21
Reporting safety defects (US only) ...
........................ 9-26
Rollover ...
............................................................................ 5-6
Roof, Roof rack ...
............................................................ 2-49
S
Safety
Child seat belts ...
.................................................... 1-25
Reporting safety defects (US only) ...
................. 9-26
Towing safety ...
......................................................... 9-20
Satellite radio operation ...
............................................ 4-82
Seat adjustment Front manual seat adjustment ...
.............................. 1-3
Front power seat adjustment ...
............................... 1-3
Front seats ...
................................................................ 1-3
Seat belt(s) Child safety ...
............................................................ 1-25
Infants ...
...................................................................... 1-26
Injured persons ...
..................................................... 1-18
Larger children ...
...................................................... 1-26
Precautions on seat belt usage ...
........................ 1-16 Pregnant women
...
.................................................. 1-18
Seat belt cleaning ...
................................................... 7-6
Seat belt extenders ...
.............................................. 1-24
Seat belt hooks ...
.................................................... 1-24
Seat belt maintenance ...
........................................ 1-24
Seat belt warning light and chime ...
................... 2-15
Seat belts ...
............................................................... 1-16
Seat belts with pretensioners ...
........................... 1-59
Shoulder belt height adjustment ...
...................... 1-23
Small children ...
........................................................ 1-26
Three-point type ...
................................................... 1-18
Seat(s) Driver-side memory ...
.............................................. 3-37
Heated seats ...
......................................................... 2-38
Seats ...
.......................................................................... 1-2
Security system (NISSAN Vehicle Immobilizer
System) , Engine start ...
................................................. 2-28
Security system, Vehicle security system ...
............. 2-27
Selector lever Shift lock release ...
.................................................. 5-16
Servicing air conditioner ...
............................................ 4-52
SETTING button ...
.......................................................... 4-13
Shift lock release, Transmission ...
.............................. 5-16
Shifting, CVT (Continuously
Variable Transmission) ...
............................................... 5-13
Shoulder belt height adjustment ...
............................. 1-23
Sliding doors ...
.................................................................. 3-7
SOURCE select switch ...
.......................................... 4-103
Spare tire ...
.............................................................. 8-38, 9-7
Spark plugs ...
.................................................................. 8-16
Speedometer ...
.................................................................. 2-6
Starting Before starting the engine ...
................................. 5-12
Jump starting ...
......................................................... 6-10
Precautions when starting and driving ...
.............. 5-2
Push starting ...
......................................................... 6-12
Starting the engine ...
.............................................. 5-12 STATUS button
...
.............................................................. 4-8
Status light, Front passenger air bag ...
.................... 1-54
Steering Power steering fluid ...
............................................. 8-11
Steering-wheel-mounted controls
for audio ...
............................................................... 4-102
Tilt/telescopic steering ...
........................................ 3-32
Storage ...
.......................................................................... 2-43
Sun visors ...
..................................................................... 3-33
Sunglasses holder ...
...................................................... 2-45
Supplemental air bag warning labels ...
..................... 1-60
Supplemental air bag warning light ...
............ 1-61, 2-15
Supplemental restraint system ...
................................. 1-47
Precautions on supplemental
restraint system ...
..................................................... 1-47
Switch Autolight switch ...
.................................................... 2-33
Fog light switch ...
.................................................... 2-37
Hazard warning flasher switch ...
............................. 6-2
Headlight aiming control ...
.................................... 2-36
Headlight switch ...
................................................... 2-33
Overdrive OFF switch ...
......................................... 5-15
Power door lock switch ...
......................................... 3-6
Rear window and outside mirror
defroster switch ...
.................................................... 2-32
Turn signal switch ...
................................................ 2-37
Vehicle dynamic control (VDC) off switch ...
..... 2-40
T
Tachometer ...
..................................................................... 2-7
Temperature display ...
.................................................... 2-25
Temperature gauge, Engine coolant
temperature gauge ...
........................................................ 2-7
Theft (NISSAN Vehicle Immobilizer System) ,
Engine start ...
................................................................... 2-28
Three-way catalyst ...
........................................................ 5-3
10-5
Condition:
