2-42Instruments and controls
SIC4725
Power outlet
Pull up the cover and plug in.
After using the power outlet, be sure to turn off
the main switch.
CAUTION
.Make sure that there is no fluid or
other foreign substance in the
power outlet. Also, be sure not to
connect or disconnect the outlet
with wet hands or insert any metal
objects into it. Doing so could result
in an electric shock or malfunction. .
Do not use with accessories that
exceed a 120 volt, 150W (1.25A)
power draw or the power outlet
may switch off automatically. If this
occurs, turn the main switch on the
power outlet off and wait a short
period of time before turning it back
on again. If an electrical appliance
with a wattage of less than 150W is
used, the power outlet will be
usable again.
. Use this power outlet with the
engine running. (If the engine is
stopped, this could result in a dis-
charged battery.)
. When using the outlet for a long
period of time such as when idling
etc., the battery may discharge de-
pending on the vehicle conditions,
even if the engine is running.
. Some electrical appliances with
wattages below 150W, may not
operate normally. For example:
— Electrical appliances which con-
sume a large amount of wattage
when turned on (CRT TVs, elec-
tric tools etc.) — Electrical appliances which have
a switching power frequency
(clocks etc.)
— Electrical appliances that mea- sure precise data (measuring
equipment etc.)
— Certain other electrical appli- ances (electric blankets etc.)
. Depending on the electrical appli-
ance that is in use, some distorted
noise may be audible when using
the TV or radio.
. Be sure to turn the power switch of
the electrical appliance used off
before removing the plug from the
power outlet.
. Do not use an extension cord with
multiple outlets.
Condition:

Black plate (137,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
GUID-2A7177D1-CE10-4F5C-86AD-990CD5A71A4DThe HomeLink®Universal Transceiver provides a
convenient way to consolidate the functions of
up to three individual hand-held transmitters into
one built-in device.
HomeLink
®Universal Transceiver:
. Will operate most Radio Frequency (RF)
devices such as garage doors, gates, home
and office lighting, entry door locks and
security systems.
. Is powered by your vehicle’s battery. No
separate batteries are required. If the
vehicle’s battery is discharged or is dis-
connected, HomeLink
®will retain all pro-
gramming.
When the HomeLink
®Universal Transcei-
ver is programmed, retain the original
transmitter for future programming proce-
dures (Example: new vehicle purchases) .
Upon sale of the vehicle, the programmed
HomeLink
®Universal Transceiver buttons
should be erased for security purposes.
For additional information, refer to “Pro-
gramming HomeLink
®” (P.2-59) .
WARNING
. Do not use the HomeLink®Universal
Transceiver with any garage door
opener that lacks safety stop and reverse features as required by
federal safety standards. (These
standards became effective for
opener models manufactured after
April 1, 1982) . A garage door opener
which cannot detect an object in the
path of a closing garage door and
then automatically stop and reverse,
does not meet current federal safety
standards. Using a garage door
opener without these features in-
creases the risk of serious injury or
death.
. During the programming procedure
your garage door or security gate
will open and close (if the transmit-
ter is within range) . Make sure that
people or objects are clear of the
garage door, gate, etc. that you are
programming.
. Your vehicle’s engine should be
turned off while programming the
HomeLink
®Universal Transceiver.
Do not breathe exhaust gases; they
contain colorless and odorless car-
bon monoxide. Carbon monoxide is
dangerous. It can cause uncon-
sciousness or death.
PROGRAMMING HomeLink®GUID-02EFDA1C-79EA-4993-82FD-A81D310C2B7BIf you have any questions or are having difficulty
programming your HomeLink®buttons, refer to
the HomeLink®web site at: www.homelink.com
or call 1-800-355-3515.
NOTE:
It is also recommended that a new battery
be placed in the hand-held transmitter of
the device being programmed to
HomeLink
®for quicker programming and
accurate transmission of the radio-fre-
quency.
1. Position the end of your hand-held transmit- ter 1-3 in (26-76 mm) away from the
HomeLink
®surface, keeping the HomeLink®
indicator light*1in view.
Instruments and controls2-59
HomeLink®UNIVERSAL
TRANSCEIVER (if so equipped)
Condition:

Black plate (139,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
PROGRAMMING HomeLink®FOR CA-
NADIAN CUSTOMERS AND GATE
OPENERS
GUID-8E685F42-B055-4E0C-9A56-3D217E7A41C9Canadian radio-frequency laws require trans-
mitter signals to “time-out” (or quit) after several
seconds of transmission – which may not be
long enough for HomeLink
®to pick up the signal
during programming. Similar to this Canadian
law, some U.S. gate operators are designed to
“time-out” in the same manner.
If you live in Canada or you are having difficulties
programming a gate operator or garage door
opener by using the “Programming HomeLink
®”
procedures, replace “Programming HomeLink®”
Step 2 with the following:
NOTE:
When programming a garage door opener,
etc., unplug the device during the “cycling”
process to prevent possible damage to the
garage door opener components.
Step 2: Using both hands, simultaneously press
and hold the desired HomeLink
®button and the
hand-held transmitter button. During program-
ming, your hand-held transmitter may automati-
cally stop transmitting. Continue to press and
hold the desired HomeLink
®button while you
press and re-press (“cycle”) your hand-held
transmitter every two seconds until the fre-
quency signal has been learned. The HomeLink
®
indicator light will flash slowly and then rapidly
after several seconds upon successful program-
ming. DO NOT release until the HomeLink
®
indicator light flashes slowly and then rapidly.
When the indicator light flashes rapidly, both
buttons may be released. The rapid flashing
indicates successful programming.
Proceed with “Programming HomeLink
®” step 3
to complete.
Remember to plug the device back in when
programming is completed.
OPERATING THE HomeLink®UNIVER-
SAL TRANSCEIVER
GUID-50FE11E6-5C22-4C06-B685-CE1B460CA8ABThe HomeLink®Universal Transceiver, after it is
programmed, can be used to activate the
programmed device. To operate, simply press
and release the appropriate programmed
HomeLink
®Universal Transceiver button. The
amber indicator light will illuminate while the
signal is being transmitted.
For convenience, the hand-held transmitter of
the device may also be used at any time.
PROGRAMMING TROUBLESHOOT-
ING
GUID-A74B64CF-4A06-448A-A031-4FFBE07569D0If the HomeLink®does not quickly learn the
hand-held transmitter information:
. replace the hand-held transmitter batteries
with new batteries.
. position the hand-held transmitter with its
battery area facing away from the
HomeLink
®surface.
. press and hold both the HomeLink®and
hand-held transmitter buttons without inter-
ruption.
. position the hand-held transmitter 1-3 in
(26-76 mm) away from the HomeLink
®
surface. Hold the transmitter in that position
for up to 15 seconds. If HomeLink®is not
programmed within that time, try holding the
transmitter in another position - keeping the
indicator light in view at all times.
If you have any questions or are having difficulty
programming your HomeLink
®buttons, refer to
the HomeLink®web site at: www.homelink.com
or 1-800-355-3515.
Instruments and controls2-61
Condition:

Black plate (182,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

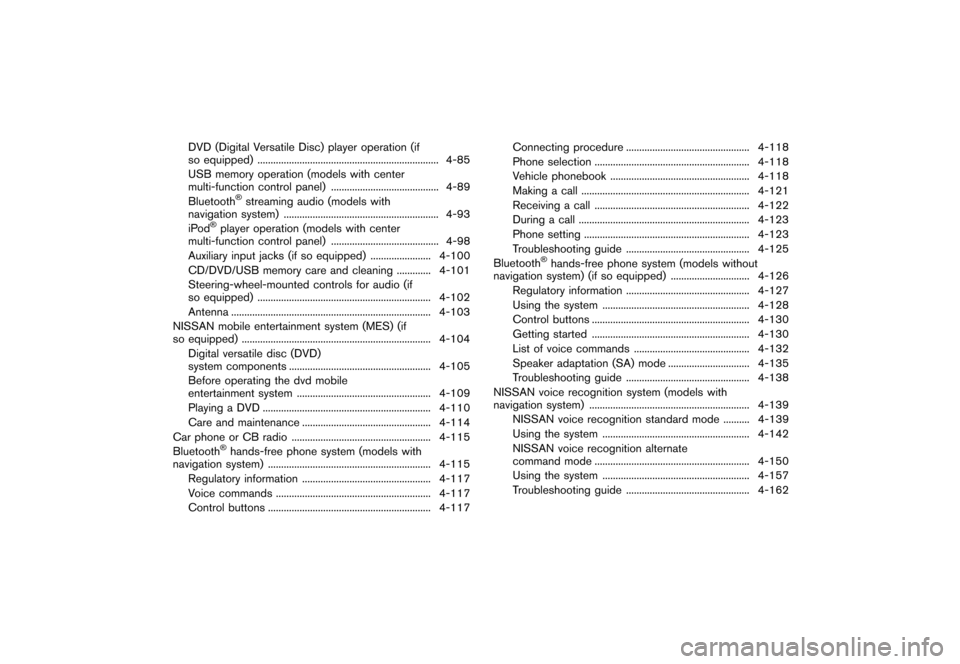

DVD (Digital Versatile Disc) player operation (if
so equipped)...
..................................................................... 4-85
USB memory operation (models with center
multi-function control panel) ...
......................................... 4-89
Bluetooth
®streaming audio (models with
navigation system) ...
........................................................... 4-93
iPod
®player operation (models with center
multi-function control panel) ...
......................................... 4-98
Auxiliary input jacks (if so equipped) ...
....................... 4-100
CD/DVD/USB memory care and cleaning ...
............. 4-101
Steering-wheel-mounted controls for audio (if
so equipped) ...
.................................................................. 4-102
Antenna ...
........................................................................\
.... 4-103
NISSAN mobile entertainment system (MES) (if
so equipped) ...
........................................................................\
4-104
Digital versatile disc (DVD)
system components ...
...................................................... 4-105
Before operating the dvd mobile
entertainment system ...
................................................... 4-109
Playing a DVD ...
................................................................ 4-110
Care and maintenance ...
................................................. 4-114
Car phone or CB radio ...
..................................................... 4-115
Bluetooth
®hands-free phone system (models with
navigation system) ...
.............................................................. 4-115
Regulatory information ...
................................................. 4-117
Voice commands ...
........................................................... 4-117
Control buttons ...
.............................................................. 4-117 Connecting procedure
...
............................................... 4-118
Phone selection ...
........................................................... 4-118
Vehicle phonebook ...
..................................................... 4-118
Making a call ...
................................................................ 4-121
Receiving a call ...
........................................................... 4-122
During a call ...
................................................................. 4-123
Phone setting ...
............................................................... 4-123
Troubleshooting guide ...
............................................... 4-125
Bluetooth
®hands-free phone system (models without
navigation system) (if so equipped) ...
.............................. 4-126
Regulatory information ...
............................................... 4-127
Using the system ...
........................................................ 4-128
Control buttons ...
............................................................ 4-130
Getting started ...
............................................................ 4-130
List of voice commands ...
............................................ 4-132
Speaker adaptation (SA) mode ...
............................... 4-135
Troubleshooting guide ...
............................................... 4-138
NISSAN voice recognition system (models with
navigation system) ...
............................................................. 4-139
NISSAN voice recognition standard mode ...
.......... 4-139
Using the system ...
........................................................ 4-142
NISSAN voice recognition alternate
command mode ...
........................................................... 4-150
Using the system ...
........................................................ 4-157
Troubleshooting guide ...
............................................... 4-162
Condition:

Black plate (254,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
4-74Monitor, heater, air conditioner, audio, phone and voice recognition systems
Audio main operationGUID-109E7E34-C35F-4FD7-87F3-CED59F25A8AA
Head unit:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The auto loudness circuit enhances the low and
high frequency ranges automatically in both
radio reception and CD playback.
PWR/Volume control:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Place the ignition switch in the ACC or ON
position, and then push the PWR button while
the system is off to turn on the last audio source,
which was playing immediately before the
system was turned off. While the system is on,
pushing the PWR button turns the system off.
Turn the VOL control knob to adjust the volume.
SETTING button:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The settings screen will appear when pushing
the SETTING button.
The following items are available in the settings
screen.
.Bass, Treble, Balance and Fade
Controls the sound of the audio system.
Balance adjusts the sound between the left
and right speakers. Fade adjusts the sound
between the front and rear speakers.
Select the "Bass", "Treble", "Balance" or
"Fade" using the TUNE·SCROLL control
knob and then push the ENTER button. Turn the TUNE·SCROLL control knob to
adjust the Bass, Treble, Balance and Fade of
the screen to the preferred level.
. Speed Sens Vol.
To change the Speed Sensitive Volume
(Speed Sens Vol.) level from off (0) to 5,
turn the TUNE·SCROLL control knob.
. AUX Vol.
Controls the volume level of incoming sound
when an auxiliary device is connected to the
system. To change the AUX Vol. level from 0
(off) to 3, turn the TUNE·SCROLL control
knob.
. Brightness and Contrast
Adjust the brightness and contrast of the
screen.
Select the "brightness" or "contrast" using
the TUNE·SCROLL control knob and then
push the ENTER button. Turn the TUNE·SC-
ROLL control knob to adjust the brightness
and contrast of the screen to the preferred
level.
. Clock Adjust
Adjust the clock according to the following
procedure.
JVH0117X
1) Push the SETTING button*1until
“Setting Clock” and “Clock Adjust”
appear on the display.
2) Turn the TUNE·SCROLL control knob
*2to adjust the hour.
3) Push the SETTING button
*1.
4) Turn the TUNE·SCROLL control knob
*2to adjust the minute.
5) Push the SETTING button
*1.
. On-Screen Clock
When this item is turned on, a clock is
always displayed in the upper right corner of
the screen.
Select the "On-Screen Clock" using the
TUNE·SCROLL control knob and then push
Condition:

Black plate (473,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
10 Index
A
A/C (Air Conditioner) operation...
.............................. 4-42
ABS (Anti-lock Braking System) ...
............................ 5-30
Advanced air bag system ...
......................................... 1-53
Aiming control, Headlights ...
........................................ 2-36
Air bag system Advanced air bag system ...
.................................. 1-53
Front passenger air bag and status light ...
....... 1-54
Front-seat mounted side-impact
supplemental air bag system ...
............................ 1-58
Roof-mounted curtain side-impact
supplemental air bag system ...
............................ 1-58
Air bag warning labels ...
............................................... 1-60
Air bag warning light ...
...................................... 1-61, 2-15
Air cleaner housing filter ...
........................................... 8-17
Air conditioner Air conditioner operation ...
.................................... 4-39
Air conditioner service ...
........................................ 4-52
Air conditioner specification label ...
.................... 9-10
Air conditioning system refrigerant and
lubricant recommendations ...
....................... 4-52, 9-6
In-cabin microfilter ...
............................................... 4-53
Alarm, How to stop alarm (see vehicle
security system) ...
........................................................... 2-28
Alcohol, drugs and driving ...
.......................................... 5-8
Antenna ...
....................................................................... 4-103
Anti-lock Braking System (ABS) ...
............................ 5-30
Anti-lock braking system (ABS) warning light ...
..... 2-12
Appearance care Exterior appearance care ...
...................................... 7-2
Interior appearance care ...
....................................... 7-4
Armrests ...
........................................................................ 1-13
Around view
TMmonitor ...
.............................................. 4-29
Audible reminders ...
....................................................... 2-18
Audio operation precautions ...
.................................... 4-53 Audio system
...
................................................................ 4-53
Steering wheel audio controls ...
........................ 4-102
Auto closure ...
................................................................. 3-29
Autolight system ...
.......................................................... 2-33
Automatic Air conditioner ...
....................................................... 4-46
Door locks ...
................................................................. 3-7
Drive positioner ...
..................................................... 3-37
Moonroof ...
................................................................ 2-53
Seat positioner ...
...................................................... 3-37
AUX (Auxiliary) input ...
................................................... 4-77
Avoiding collision and rollover ...
................................... 5-6
B
Back door (See lift gate) ...
.......................................... 3-26
Battery ...
............................................................................ 8-13
Battery saver system ...
........................................... 2-35
Intelligent Key ...
........................................................ 8-22
Variable voltage control system ...
........................ 8-15
Before starting the engine ...
........................................ 5-12
Blind Spot Warning (BSW) system ...
....................... 5-17
Blind Spot Warning (BSW) system
warning light ...
................................................................. 2-12
Bluetooth
®hands-free phone system
(models with navigation system) ...
.......................... 4-115
Bluetooth
®hands-free phone system
(models without navigation system) ...
.................... 4-126
Bluetooth
®streaming audio ...
..................................... 4-93
Booster seats ...
............................................................... 1-43
Brake Anti-lock Braking System (ABS) ...
..................... 5-30
Brake fluid ...
.............................................................. 8-12
Brake system ...
......................................................... 5-29
Parking brake operation ...
..................................... 5-17
Warning light ...
......................................................... 2-12 Break-in schedule
...
....................................................... 5-26
Brightness control Display ON/OFF button ...
........................................ 4-8
Instrument panel ...
................................................... 2-37
Bulb check/instrument panel ...
................................... 2-12
Bulb replacement ...
........................................................ 8-24
C
Cabin air filter ...
............................................................... 4-53
Capacities and recommended fuel/lubricants ...
....... 9-2
Car phone or CB radio ...
.......................................... 4-115
Cargo floor box ...
............................................................ 2-47
Cargo lights ...
.................................................................. 2-58
Catalytic converter, Three way catalyst ...
................... 5-3
CD/CF/USB memory care and cleaning ...
........... 4-101
Center multi-function control panel ...
.......................... 4-3
Child restraints ...
............................................................. 1-27
Booster seats ...
........................................................ 1-43
LATCH system ...
...................................................... 1-29
Precautions on child restraints ...
......................... 1-27
Top tether strap ...
.................................................... 1-31
Child safety ...
................................................................... 1-25
Chimes Audible reminders ...
................................................ 2-18
Seat belt warning light and chime ...
................... 2-15
Circuit breaker, Fusible link ...
...................................... 8-20
Cleaning exterior and interior ...
............................ 7-2, 7-4
Clock ...
.............................................................................. 4-74
Coat hooks ...
................................................................... 2-50
Cockpit ...
............................................................................ 2-3
Cold weather driving ...
.................................................. 5-33
Communication mirror ...
................................................ 3-36
Compact Disc (CD) player (See
audio system) ...
................................................... 4-76, 4-84
Compass ...
......................................................................... 2-8
Condition:

Black plate (474,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
10-2
Console box...
................................................................. 2-46
Continuously Variable Transmission
(CVT) fluid ...
..................................................................... 8-11
Controls, Control panel button ...
.................................. 4-3
Coolant Capacities and
recommended fuel/lubricants ...
............................... 9-2
Changing engine coolant ...
...................................... 8-8
Checking engine coolant level ...
............................. 8-8
Corrosion protection ...
.................................................... 7-6
Cruise control ...
............................................................... 5-24
Cup holders ...
.................................................................. 2-43
CVT, Driving with CVT (Continuously
Variable Transmission) ...
............................................... 5-13
D
Daytime running light system ...
................................... 2-36
Defroster switch, Rear window and outside
mirror defroster switch ...
............................................... 2-32
Dimensions and weights ...
............................................. 9-8
DISP button ...
.................................................................... 4-8
Dot matrix liquid crystal display ...
............................... 2-18
Drive belt ...
....................................................................... 8-15
Drive positioner ...
............................................................ 3-37
Driving Cold weather driving ...
........................................... 5-33
Driving with CVT (Continuously
Variable Transmission) ...
........................................ 5-13
Precautions when starting and driving ...
.............. 5-2
DVD player, NISSAN mobile entertainment ...
...... 4-104
E
ECON button ...
................................................................. 4-9
Economy, Fuel ...
.............................................................. 5-27
Elapsed time ...
................................................................. 2-24 Emission control information label
...
.......................... 9-10
Emission control system warranty ...
........................... 9-25
Engine Before starting the engine ...
................................. 5-12
Break-in schedule ...
................................................ 5-26
Capacities and
recommended fuel/lubricants ...
............................... 9-2
Changing engine coolant ...
...................................... 8-8
Changing engine oil and filter ...
.............................. 8-9
Checking engine coolant level ...
............................. 8-8
Checking engine oil level ...
...................................... 8-8
Coolant temperature gauge ...
................................. 2-7
Emergency engine shut off ...
................................ 5-11
Engine block heater ...
............................................. 5-34
Engine compartment check locations ...
................ 8-6
Engine cooling system ...
........................................... 8-7
Engine oil ...
................................................................... 8-8
Engine oil and oil filter recommendation ...
........... 9-5
Engine oil replacement indicator ...
...................... 2-22
Engine oil viscosity ...
.................................................. 9-5
Engine serial number ...
.............................................. 9-9
Engine specifications ...
............................................. 9-7
Engine start operation indicator ...
....................... 2-19
If your vehicle overheats ...
..................................... 6-12
Starting the engine ...
.............................................. 5-12
Entry/exit function, Automatic drive positioner ...
.... 3-37
Event Data Recorders (EDR) ...
................................... 9-27
Exhaust gas (carbon monoxide) ...
................................ 5-2
Extended storage fuse warning ...
............................... 2-21
F
F.M.V.S.S./C.M.V.S.S. certification label ...
................. 9-9
Filter Air cleaner housing filter ...
.................................... 8-17
Changing engine oil and filter ...
.............................. 8-9
Flashers (See hazard warning flasher switch) ...
....... 6-2 Flat tire
...
............................................................................. 6-3
Flat towing ...
.................................................................... 9-24
Flexible seating ...
............................................................ 1-13
Floor mat cleaning ...
........................................................ 7-5
Fluid Brake fluid ...
.............................................................. 8-12
Capacities and
recommended fuel/lubricants ...
............................... 9-2
Continuously Variable Transmission
(CVT) fluid ...
.............................................................. 8-11
Engine coolant ...
......................................................... 8-7
Engine oil ...
................................................................... 8-8
Power steering fluid ...
............................................. 8-11
Window washer fluid ...
.......................................... 8-13
FM-AM radio with Compact Disc
(CD) player ...
....................................................... 4-69, 4-73
FM-AM-SAT radio with Compact Disc
(CD) player ...
................................................................... 4-81
Fog light switch ...
........................................................... 2-37
Front manual seat adjustment ...
.................................... 1-3
Front passenger air bag and status light ...
.............. 1-54
Front power seat adjustment ...
..................................... 1-3
Front seat, Front seat adjustment ...
............................. 1-3
Front-seat active head restraint ...
............................... 1-10
Fuel Capacities and
recommended fuel/lubricants ...
............................... 9-2
Fuel economy ...
........................................................ 5-27
Fuel economy information (display) ...
................. 4-10
Fuel octane rating ...
................................................... 9-3
Fuel recommendation ...
............................................. 9-3
Fuel-filler cap ...
......................................................... 3-30
Fuel-filler door ...
....................................................... 3-30
Gauge ...
........................................................................ 2-8
LOOSE FUEL CAP warning ...
............................. 3-32
Fuel efficient driving tips ...
........................................... 5-26
Fuses ...
.............................................................................. 8-20
Condition:

Black plate (477,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
FM-AM radio with Compact Disc
(CD) player...
............................................................ 4-73
FM-AM-SAT radio with Compact Disc
(CD) player ...
............................................................ 4-81
Rapid air pressure loss ...
................................................ 5-7
Readiness for inspection/maintenance
(I/M) test ...
........................................................................ 9-27
Rear personal lights ...
.................................................... 2-56
Rear window and outside mirror
defroster switch ...
........................................................... 2-32
Rear window wiper and washer switch ...
................ 2-31
Rearview monitor ...
......................................................... 4-23
Recorders, Event data ...
............................................... 9-27
Registering your vehicle in another country ...
........... 9-8
Remote controller (DVD) ...
....................................... 4-113
Remote keyless entry system ...
................................... 3-21
Reporting safety defects (US only) ...
........................ 9-26
Rollover ...
............................................................................ 5-6
Roof, Roof rack ...
............................................................ 2-49
S
Safety
Child seat belts ...
.................................................... 1-25
Reporting safety defects (US only) ...
................. 9-26
Towing safety ...
......................................................... 9-20
Satellite radio operation ...
............................................ 4-82
Seat adjustment Front manual seat adjustment ...
.............................. 1-3
Front power seat adjustment ...
............................... 1-3
Front seats ...
................................................................ 1-3
Seat belt(s) Child safety ...
............................................................ 1-25
Infants ...
...................................................................... 1-26
Injured persons ...
..................................................... 1-18
Larger children ...
...................................................... 1-26
Precautions on seat belt usage ...
........................ 1-16 Pregnant women
...
.................................................. 1-18
Seat belt cleaning ...
................................................... 7-6
Seat belt extenders ...
.............................................. 1-24
Seat belt hooks ...
.................................................... 1-24
Seat belt maintenance ...
........................................ 1-24
Seat belt warning light and chime ...
................... 2-15
Seat belts ...
............................................................... 1-16
Seat belts with pretensioners ...
........................... 1-59
Shoulder belt height adjustment ...
...................... 1-23
Small children ...
........................................................ 1-26
Three-point type ...
................................................... 1-18
Seat(s) Driver-side memory ...
.............................................. 3-37
Heated seats ...
......................................................... 2-38
Seats ...
.......................................................................... 1-2
Security system (NISSAN Vehicle Immobilizer
System) , Engine start ...
................................................. 2-28
Security system, Vehicle security system ...
............. 2-27
Selector lever Shift lock release ...
.................................................. 5-16
Servicing air conditioner ...
............................................ 4-52
SETTING button ...
.......................................................... 4-13
Shift lock release, Transmission ...
.............................. 5-16
Shifting, CVT (Continuously
Variable Transmission) ...
............................................... 5-13
Shoulder belt height adjustment ...
............................. 1-23
Sliding doors ...
.................................................................. 3-7
SOURCE select switch ...
.......................................... 4-103
Spare tire ...
.............................................................. 8-38, 9-7
Spark plugs ...
.................................................................. 8-16
Speedometer ...
.................................................................. 2-6
Starting Before starting the engine ...
................................. 5-12
Jump starting ...
......................................................... 6-10
Precautions when starting and driving ...
.............. 5-2
Push starting ...
......................................................... 6-12
Starting the engine ...
.............................................. 5-12 STATUS button
...
.............................................................. 4-8
Status light, Front passenger air bag ...
.................... 1-54
Steering Power steering fluid ...
............................................. 8-11
Steering-wheel-mounted controls
for audio ...
............................................................... 4-102
Tilt/telescopic steering ...
........................................ 3-32
Storage ...
.......................................................................... 2-43
Sun visors ...
..................................................................... 3-33
Sunglasses holder ...
...................................................... 2-45
Supplemental air bag warning labels ...
..................... 1-60
Supplemental air bag warning light ...
............ 1-61, 2-15
Supplemental restraint system ...
................................. 1-47
Precautions on supplemental
restraint system ...
..................................................... 1-47
Switch Autolight switch ...
.................................................... 2-33
Fog light switch ...
.................................................... 2-37
Hazard warning flasher switch ...
............................. 6-2
Headlight aiming control ...
.................................... 2-36
Headlight switch ...
................................................... 2-33
Overdrive OFF switch ...
......................................... 5-15
Power door lock switch ...
......................................... 3-6
Rear window and outside mirror
defroster switch ...
.................................................... 2-32
Turn signal switch ...
................................................ 2-37
Vehicle dynamic control (VDC) off switch ...
..... 2-40
T
Tachometer ...
..................................................................... 2-7
Temperature display ...
.................................................... 2-25
Temperature gauge, Engine coolant
temperature gauge ...
........................................................ 2-7
Theft (NISSAN Vehicle Immobilizer System) ,
Engine start ...
................................................................... 2-28
Three-way catalyst ...
........................................................ 5-3
10-5
Condition:
