1. Rear personal light (P.2-56)
2. Coat hooks (P.2-50)
3. Heater/Air conditioner rear controller* (P.4-39)
4. Mobile Entertainment System (MES)* (P.4-104)
5. Door armrest— Power window switch (P.2-51)
— Power door lock switch (P.3-6) — Outside mirror remote control switch
(P.3-35)
6. Automatic drive positioner switch* (P.3-37)
7. Moonroof switch* (P.2-53)
8. Front map lights (P.2-56) — Mood light (P.2-58) 9. Sunglasses holder (P.2-45) or communication
mirror (P.3-36)
10. Sun visors (P.3-33)
11. Inside rearview mirror (P.3-33) — HomeLink
®universal transceiver* (P.2-59)
— Compass* (P.2-8)
12. Cargo area — Cargo floor box (P.2-47)
— Luggage hooks (P.2-48)
— Cargo light (P.2-58)
— Spare tire (P.6-5)
— Power outlet (P.2-40)
13. Hooks (P.2-48)
14. Console box (P.2-46) — Power outlet* (P.2-40)
— Auxiliary input jacks* (P.4-100)
— iPod
®connector* (P.4-79, P.4-98)
— USB connector* (P.4-77, P.4-89)
— Cup holders (P.2-43)
15. Rear moonroof switch* (P.2-54)
*: if so equipped
Illustrated table of contents0-5
PASSENGER COMPARTMENT
Condition:

Black plate (196,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
4-16Monitor, heater, air conditioner, audio, phone and voice recognition systems
SAA2917
Models with navigation system
SAA2079
Models without navigation system
REAR DISPLAY settings (if so equipped)GUID-FB4482FC-D48E-48C7-BA91-1C8CCEB50D2CThe “Rear Display” screen will appear when
pushing the SETTING button, selecting the
“Rear Display” key.
Rear Display (models with navigation sys-
tem)/Rear Display Open (models without
navigation system):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned to ON, the rear display
opens. When the ignition switch is pushed to
the “ACC” or “ON” position, the rear display is
flipped down automatically.
When the ignition switch is pushed to the “OFF”
position, the rear display is closed automatically
if ON is selected.
The rear display can also be opened or closed
using the remote controller. (See “NISSAN
mobile entertainment system (MES)” (P.4-104) .)
SAA2486
Display settings (models with navigation
system)
GUID-DED0FB77-D2FB-44D1-926E-A6B2E9D6B2ABThe display as illustrated will appear when
pushing the SETTING button and selecting the
“Display” key.
Display Adjustment:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To adjust the display settings, select the “Dis-
play Adjustment” key. The following settings are
available.
.Display
To turn off the screen, push the ENTER button
and turn the “Display” indicator off. The other
method is to push and hold the “
OFF”
button for more than 2 seconds.
Condition:

Black plate (232,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
4-52Monitor, heater, air conditioner, audio, phone and voice recognition systems
SAA3517
1. “OFF” button
2. “
” Fan speed control buttons
3. “AUTO” button
4. Display
5. “MODE” button
6. “TEMP” buttons
Rear control buttons:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The rear seat passengers can adjust the rear
automatic air conditioning system using the
control switches located on the ceiling above
the rear seats (models with NISSAN mobile
entertainment system) or on the upper left side
of the second row seat (models without
NISSAN mobile entertainment system) .
The rear control buttons do not function when
“
” is shown on the front display. To activate
the rear control buttons, push the “REAR”
button on the front air conditioner control panel
and cancel the rear air conditioner control mode
(“
” will disappear from the front display) .
“OFF” button: Turns off the rear air conditioning
system.
“
” Fan speed control buttons: Adjust rear
fan speed
“AUTO” button: Turns on/off the automatic
operation mode when rear air conditioning
system is on
“MODE” button: Changes the rear air flow
“TEMP” buttons: Adjust the rear temperature
SERVICING AIR CONDITIONERGUID-49EFA09B-8B66-4996-B958-EB215077419B
WARNING
The air conditioner contains refrigerant
under high pressure. To avoid personal
injury, any air conditioner service
should be done only by an experienced
technician with the proper equipment.
The air conditioner system in your vehicle is
charged with a refrigerant designed with the
environment in mind.
This refrigerant will not harm the earth’s
ozone layer. However, it may contribute in a
small part to global warming.
Special charging equipment and lubricant are
required when servicing your vehicle’s air con-
ditioner. Using improper refrigerants or lubri-
cants will cause severe damage to the air
conditioner system. (See “Air conditioning sys-
tem refrigerant and lubricant recommendations”
(P.9-6) .)
A NISSAN dealer will be able to service your
environmentally friendly air conditioner system.
Condition:

Black plate (284,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
4-104Monitor, heater, air conditioner, audio, phone and voice recognition systems
SAA3602
Satellite antenna (if so equipped)GUID-94401A92-8316-4E58-B736-412213530D97There is a satellite antenna on the rear part of the
vehicle roof.
GUID-0F736F66-7DA7-4286-91A9-EA463D1F96C6This vehicle is equipped with the mobile
entertainment system, which enables you to
play a Digital Versatile Disc (DVD) or USB,
providing the images and sounds both in the
front and rear display screens.
WARNING
.The driver must not attempt to
operate or view the Mobile Enter-
tainment System (MES) while the
vehicle is in motion so that full
attention may be given to vehicle
operation.
. Do not attempt to modify the system
to display a movie on the front
screen while the vehicle is being
driven. Doing so may distract the
driver and may cause a collision and
serious personal injury or death.
CAUTION
.The glass screen on the liquid
crystal display may break if hit with
a hard or sharp object. If the glass
breaks, do not touch the liquid
crystalline material. .
Use a damp, soft cloth when clean-
ing the Mobile Entertainment Sys-
tem components. Do not use
solvents or cleaning solutions.
. Do not attempt to use the system in extreme
temperature conditions [below −48F
(−208C) or above 1588F (708C)].
. To avoid discharging the vehicle battery, do
not operate the system more than 15
minutes without starting the engine.
Movies will not be shown on the front display
while the vehicle is in any drive position to
reduce driver distraction. Audio is available
when a movie is played. To view movies in the
front display, stop the vehicle in a safe location,
move the selector lever to the P (Park) position
and apply the parking brake.
NISSAN MOBILE ENTERTAINMENT
SYSTEM (MES) (if so equipped)
Condition:

Black plate (285,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
SAA3607
DIGITAL VERSATILE DISC (DVD) SYS-
TEM COMPONENTS
GUID-5FB1D909-00A2-4E17-AB46-BB2EFCC4849A
DVD driveGUID-4D956875-F736-4FC5-A527-F8CF590BB438The DVD slot is located on the instrument lower
panel.
Insert a DVD into the slot with the label side
facing up. The DVD will be guided automatically
into the slot.
When ejecting the DVD, push the EJECT button
.
CAUTION
.Do not force a DVD into the slot.
This could cause damage the player.
. Do not use 8 cm (3.1 in) discs.
DisplaysGUID-E350D9CB-3823-4CB1-8C99-1BC70D4DD9A9
WARNING
Park the vehicle in a safe location and
apply the parking brake to view the
images on the front center display
screen using the DVD drive or other
devices connected to the auxiliary input
jacks.
CAUTION
.The glass screen on the liquid
crystal display may break if hit with
a hard or sharp object. If the glass
breaks, do not touch the liquid
crystalline material.
. Use soft, damp cloth when cleaning
the Mobile Entertainment System components. Do not use solvents
or cleaning solutions.
. Be sure to stow the rear display
when it is not used.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-105
Condition:

Black plate (294,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
4-114Monitor, heater, air conditioner, audio, phone and voice recognition systems

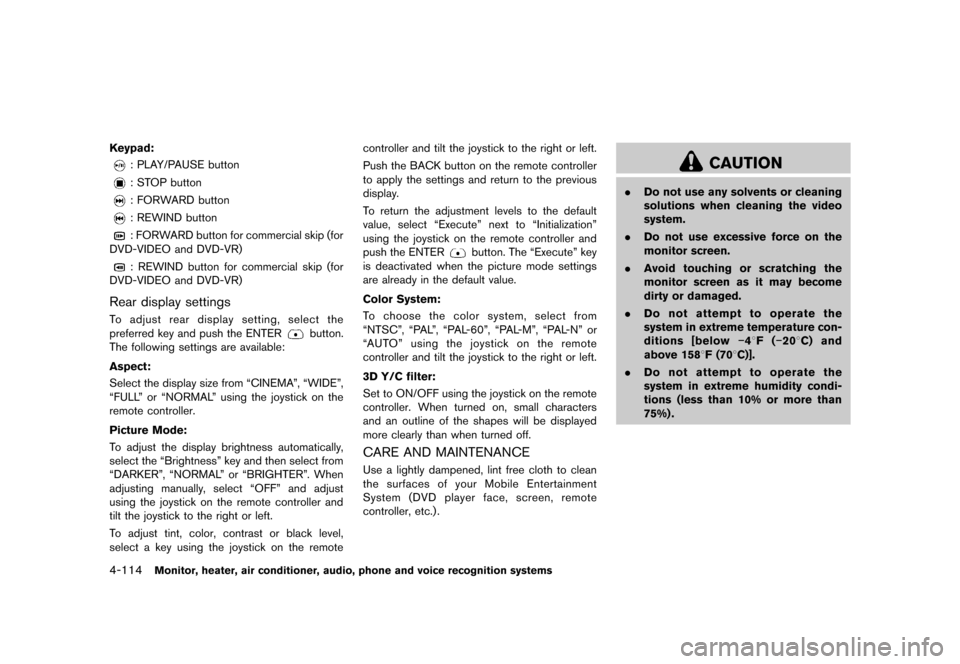

Keypad:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407: PLAY/PAUSE button
: STOP button
: FORWARD button
: REWIND button
: FORWARD button for commercial skip (for
DVD-VIDEO and DVD-VR)
: REWIND button for commercial skip (for
DVD-VIDEO and DVD-VR)
Rear display settingsGUID-00567E6D-1555-4281-8A99-57190FBFC391To adjust rear display setting, select the
preferred key and push the ENTER
button.
The following settings are available:
Aspect:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the display size from “CINEMA”, “WIDE”,
“FULL” or “NORMAL” using the joystick on the
remote controller.
Picture Mode:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To adjust the display brightness automatically,
select the “Brightness” key and then select from
“DARKER”, “NORMAL” or “BRIGHTER”. When
adjusting manually, select “OFF” and adjust
using the joystick on the remote controller and
tilt the joystick to the right or left.
To adjust tint, color, contrast or black level,
select a key using the joystick on the remote controller and tilt the joystick to the right or left.
Push the BACK button on the remote controller
to apply the settings and return to the previous
display.
To return the adjustment levels to the default
value, select “Execute” next to “Initialization”
using the joystick on the remote controller and
push the ENTER
button. The “Execute” key
is deactivated when the picture mode settings
are already in the default value.
Color System:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To choose the color system, select from
“NTSC”, “PAL”, “PAL-60”, “PAL-M”, “PAL-N” or
“AUTO” using the joystick on the remote
controller and tilt the joystick to the right or left.
3D Y/C filter:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Set to ON/OFF using the joystick on the remote
controller. When turned on, small characters
and an outline of the shapes will be displayed
more clearly than when turned off.
CARE AND MAINTENANCEGUID-A7F955DE-E9EA-46F4-9DFB-E580911AB596Use a lightly dampened, lint free cloth to clean
the surfaces of your Mobile Entertainment
System (DVD player face, screen, remote
controller, etc.) .
CAUTION
. Do not use any solvents or cleaning
solutions when cleaning the video
system.
. Do not use excessive force on the
monitor screen.
. Avoid touching or scratching the
monitor screen as it may become
dirty or damaged.
. Do not attempt to operate the
system in extreme temperature con-
ditions [below −48F (−208C) and
above 1588F (708C)].
. Do not attempt to operate the
system in extreme humidity condi-
tions (less than 10% or more than
75%) .
Condition:

Black plate (474,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
10-2
Console box...
................................................................. 2-46
Continuously Variable Transmission
(CVT) fluid ...
..................................................................... 8-11
Controls, Control panel button ...
.................................. 4-3
Coolant Capacities and
recommended fuel/lubricants ...
............................... 9-2
Changing engine coolant ...
...................................... 8-8
Checking engine coolant level ...
............................. 8-8
Corrosion protection ...
.................................................... 7-6
Cruise control ...
............................................................... 5-24
Cup holders ...
.................................................................. 2-43
CVT, Driving with CVT (Continuously
Variable Transmission) ...
............................................... 5-13
D
Daytime running light system ...
................................... 2-36
Defroster switch, Rear window and outside
mirror defroster switch ...
............................................... 2-32
Dimensions and weights ...
............................................. 9-8
DISP button ...
.................................................................... 4-8
Dot matrix liquid crystal display ...
............................... 2-18
Drive belt ...
....................................................................... 8-15
Drive positioner ...
............................................................ 3-37
Driving Cold weather driving ...
........................................... 5-33
Driving with CVT (Continuously
Variable Transmission) ...
........................................ 5-13
Precautions when starting and driving ...
.............. 5-2
DVD player, NISSAN mobile entertainment ...
...... 4-104
E
ECON button ...
................................................................. 4-9
Economy, Fuel ...
.............................................................. 5-27
Elapsed time ...
................................................................. 2-24 Emission control information label
...
.......................... 9-10
Emission control system warranty ...
........................... 9-25
Engine Before starting the engine ...
................................. 5-12
Break-in schedule ...
................................................ 5-26
Capacities and
recommended fuel/lubricants ...
............................... 9-2
Changing engine coolant ...
...................................... 8-8
Changing engine oil and filter ...
.............................. 8-9
Checking engine coolant level ...
............................. 8-8
Checking engine oil level ...
...................................... 8-8
Coolant temperature gauge ...
................................. 2-7
Emergency engine shut off ...
................................ 5-11
Engine block heater ...
............................................. 5-34
Engine compartment check locations ...
................ 8-6
Engine cooling system ...
........................................... 8-7
Engine oil ...
................................................................... 8-8
Engine oil and oil filter recommendation ...
........... 9-5
Engine oil replacement indicator ...
...................... 2-22
Engine oil viscosity ...
.................................................. 9-5
Engine serial number ...
.............................................. 9-9
Engine specifications ...
............................................. 9-7
Engine start operation indicator ...
....................... 2-19
If your vehicle overheats ...
..................................... 6-12
Starting the engine ...
.............................................. 5-12
Entry/exit function, Automatic drive positioner ...
.... 3-37
Event Data Recorders (EDR) ...
................................... 9-27
Exhaust gas (carbon monoxide) ...
................................ 5-2
Extended storage fuse warning ...
............................... 2-21
F
F.M.V.S.S./C.M.V.S.S. certification label ...
................. 9-9
Filter Air cleaner housing filter ...
.................................... 8-17
Changing engine oil and filter ...
.............................. 8-9
Flashers (See hazard warning flasher switch) ...
....... 6-2 Flat tire
...
............................................................................. 6-3
Flat towing ...
.................................................................... 9-24
Flexible seating ...
............................................................ 1-13
Floor mat cleaning ...
........................................................ 7-5
Fluid Brake fluid ...
.............................................................. 8-12
Capacities and
recommended fuel/lubricants ...
............................... 9-2
Continuously Variable Transmission
(CVT) fluid ...
.............................................................. 8-11
Engine coolant ...
......................................................... 8-7
Engine oil ...
................................................................... 8-8
Power steering fluid ...
............................................. 8-11
Window washer fluid ...
.......................................... 8-13
FM-AM radio with Compact Disc
(CD) player ...
....................................................... 4-69, 4-73
FM-AM-SAT radio with Compact Disc
(CD) player ...
................................................................... 4-81
Fog light switch ...
........................................................... 2-37
Front manual seat adjustment ...
.................................... 1-3
Front passenger air bag and status light ...
.............. 1-54
Front power seat adjustment ...
..................................... 1-3
Front seat, Front seat adjustment ...
............................. 1-3
Front-seat active head restraint ...
............................... 1-10
Fuel Capacities and
recommended fuel/lubricants ...
............................... 9-2
Fuel economy ...
........................................................ 5-27
Fuel economy information (display) ...
................. 4-10
Fuel octane rating ...
................................................... 9-3
Fuel recommendation ...
............................................. 9-3
Fuel-filler cap ...
......................................................... 3-30
Fuel-filler door ...
....................................................... 3-30
Gauge ...
........................................................................ 2-8
LOOSE FUEL CAP warning ...
............................. 3-32
Fuel efficient driving tips ...
........................................... 5-26
Fuses ...
.............................................................................. 8-20
Condition:

Black plate (476,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
10-4
Lights, Exterior and interior light replacement...
..... 8-26
Loading information (See vehicle
loading information) ...
.................................................... 9-12
Lock Automatic door locks ...
............................................. 3-7
Door locks ...
................................................................. 3-5
Lift gate lock ...
.......................................................... 3-26
Power door lock ...
...................................................... 3-5
Locking with mechanical key ...
...................................... 3-5
Loose fuel cap warning ...
................................. 2-21, 3-30
Low outside temperature warning ...
.......................... 2-21
Low tire pressure warning light ...
............................... 2-14
Low tire pressure warning system
(See tire pressure monitoring system (TPMS)) ...
.... 5-3
M
Maintenance
Battery ...
..................................................................... 8-13
General maintenance ...
............................................. 8-2
Inside the vehicle ...
.................................................... 8-3
Maintenance indicators ...
....................................... 2-22
Maintenance precautions ...
...................................... 8-5
Maintenance requirements ...
.................................... 8-2
Outside the vehicle ...
................................................. 8-2
Seat belt maintenance ...
........................................ 1-24
Malfunction indicator light (MIL) ...
.............................. 2-17
Manual air conditioner ...
................................................ 4-41
Manual front seat adjustment ...
..................................... 1-3
Map lights ...
..................................................................... 2-56
Master warning light ...
................................................... 2-15
Mechanical key (Intelligent Key system) ...
................. 3-4
Memory storage, Automatic drive positioner ...
....... 3-37
Meter Trip computer ...
........................................................ 2-22
Meters and gauges ...
....................................................... 2-5
Instrument brightness control ...
........................... 2-37 Mirror
Inside mirror ...
........................................................... 3-33
Outside mirrors ...
..................................................... 3-35
Vanity mirror ...
........................................................... 3-36
Monitor, Rearview monitor ...
........................................ 4-23
Mood lights ...
................................................................... 2-58
Moonroof ...
....................................................................... 2-53
Multi-function controller ...
............................................... 4-5
N
New vehicle break-in ...
.................................................. 5-26
NISSAN Mobile entertainment
system (MES) ...
........................................................... 4-104
NISSAN Vehicle Immobilizer System ...
..................... 2-28
NISSAN voice recognition system ...
...................... 4-139
O
Odometer ...
........................................................................ 2-6
Off-road recovery ...
.......................................................... 5-7
Oil Capacities and
recommended fuel/lubricants ...
............................... 9-2
Changing engine oil and filter ...
.............................. 8-9
Checking engine oil level ...
...................................... 8-8
Engine oil ...
................................................................... 8-8
Engine oil viscosity ...
.................................................. 9-5
Oil filter replacement indicator ...
......................... 2-22
Operation, Operational indicators ...
........................... 2-19
Outside air temperature display ...
.............................. 2-25
Outside mirrors ...
............................................................ 3-35
Overdrive OFF switch ...
................................................ 5-15
Overheat, If your vehicle overheats ...
........................ 6-12
Owner’s Manual/Service Manual
order information ...
......................................................... 9-28
P
Panic alarm ...
................................................................... 3-23
Parking Brake break-in ...
....................................................... 5-30
Parking brake operation ...
..................................... 5-17
Parking on hills ...
..................................................... 5-28
Phone Bluetooth
®hands-free phone system
(models with navigation system) ...
.................... 4-115
Bluetooth
®hands-free phone system
(models without navigation system) ...
.............. 4-126
Car phone or CB radio ...
.................................... 4-115
Power Front seat adjustment ...
............................................ 1-3
Power door lock ...
...................................................... 3-5
Power outlet ...
.......................................................... 2-40
Power sliding door ...
.................................................. 3-9
Power steering fluid ...
............................................. 8-11
Power windows ...
.................................................... 2-51
Precautions Audio operation ...
.................................................... 4-53
Braking precautions ...
............................................. 5-29
Child restraints ...
...................................................... 1-27
Cruise control ...
........................................................ 5-24
Maintenance ...
............................................................. 8-5
Seat belt usage ...
.................................................... 1-16
Supplemental restraint system ...
.......................... 1-47
When starting and driving ...
.................................... 5-2
Push starting ...
................................................................ 6-12
Push-button ignition switch ...
............................. 5-8, 5-10
R
Radio ...
.............................................................................. 4-53
Car phone or CB radio ...
.................................... 4-115
Condition:
