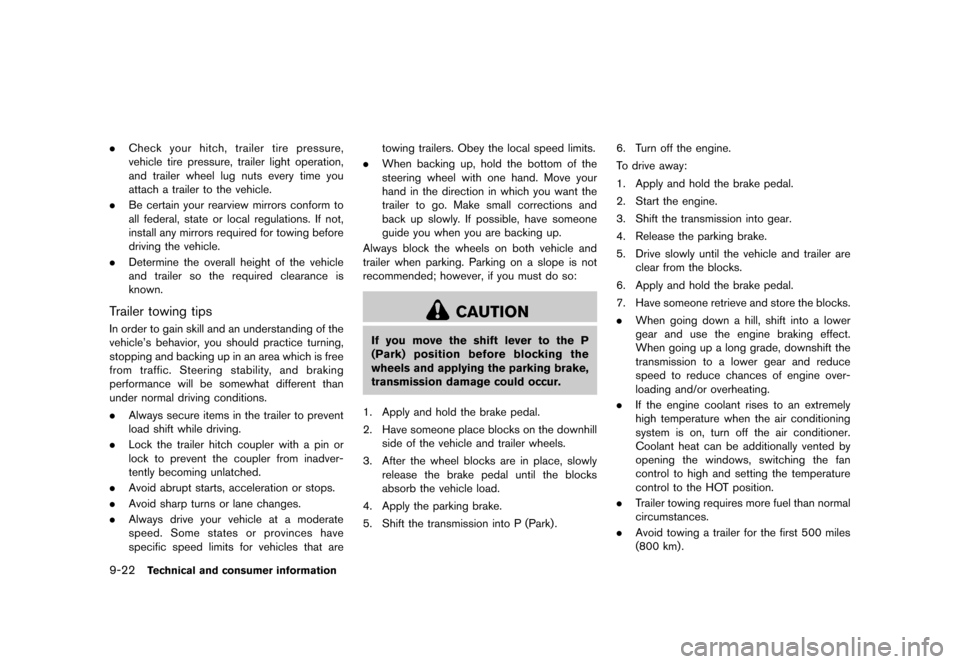

9-22Technical and consumer information
.Check your hitch, trailer tire pressure,
vehicle tire pressure, trailer light operation,
and trailer wheel lug nuts every time you
attach a trailer to the vehicle.
. Be certain your rearview mirrors conform to
all federal, state or local regulations. If not,
install any mirrors required for towing before
driving the vehicle.
. Determine the overall height of the vehicle
and trailer so the required clearance is
known.
Trailer towing tipsGUID-ACF6CBD8-7195-4F1D-83F3-33B857721860In order to gain skill and an understanding of the
vehicle's behavior, you should practice turning,
stopping and backing up in an area which is free
from traffic. Steering stability, and braking
performance will be somewhat different than
under normal driving conditions.
.Always secure items in the trailer to prevent
load shift while driving.
. Lock the trailer hitch coupler with a pin or
lock to prevent the coupler from inadver-
tently becoming unlatched.
. Avoid abrupt starts, acceleration or stops.
. Avoid sharp turns or lane changes.
. Always drive your vehicle at a moderate
speed. Some states or provinces have
specific speed limits for vehicles that are towing trailers. Obey the local speed limits.
. When backing up, hold the bottom of the
steering wheel with one hand. Move your
hand in the direction in which you want the
trailer to go. Make small corrections and
back up slowly. If possible, have someone
guide you when you are backing up.
Always block the wheels on both vehicle and
trailer when parking. Parking on a slope is not
recommended; however, if you must do so:
CAUTION
If you move the shift lever to the P
(Park) position before blocking the
wheels and applying the parking brake,
transmission damage could occur.
1. Apply and hold the brake pedal.
2. Have someone place blocks on the downhill side of the vehicle and trailer wheels.
3. After the wheel blocks are in place, slowly release the brake pedal until the blocks
absorb the vehicle load.
4. Apply the parking brake.
5. Shift the transmission into P (Park) . 6. Turn off the engine.
To drive away:
1. Apply and hold the brake pedal.
2. Start the engine.
3. Shift the transmission into gear.
4. Release the parking brake.
5. Drive slowly until the vehicle and trailer are
clear from the blocks.
6. Apply and hold the brake pedal.
7. Have someone retrieve and store the blocks.
. When going down a hill, shift into a lower
gear and use the engine braking effect.
When going up a long grade, downshift the
transmission to a lower gear and reduce
speed to reduce chances of engine over-
loading and/or overheating.
. If the engine coolant rises to an extremely
high temperature when the air conditioning
system is on, turn off the air conditioner.
Coolant heat can be additionally vented by
opening the windows, switching the fan
control to high and setting the temperature
control to the HOT position.
. Trailer towing requires more fuel than normal
circumstances.
. Avoid towing a trailer for the first 500 miles
(800 km) .
&RQGLWLRQ


> (GLW    0RGHO (' @

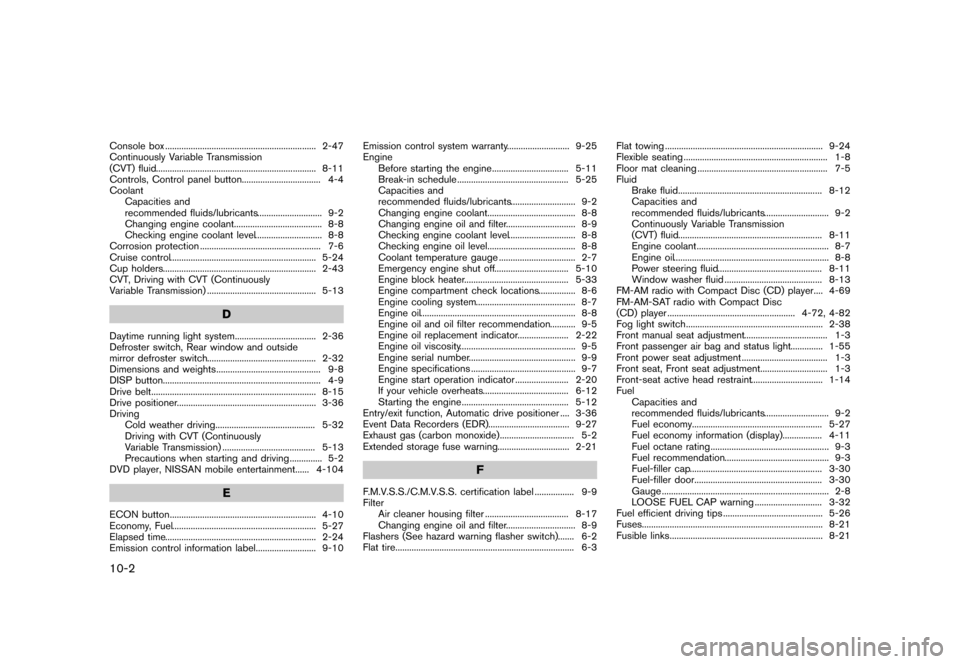

10-2
Console box...
................................................................. 2-47
Continuously Variable Transmission
(CVT) fluid ...
..................................................................... 8-11
Controls, Control panel button ...
.................................. 4-4
Coolant Capacities and
recommended fluids/lubricants ...
............................ 9-2
Changing engine coolant ...
...................................... 8-8
Checking engine coolant level ...
............................. 8-8
Corrosion protection ...
.................................................... 7-6
Cruise control ...
............................................................... 5-24
Cup holders ...
.................................................................. 2-43
CVT, Driving with CVT (Continuously
Variable Transmission) ...
............................................... 5-13
D
Daytime running light system ...
................................... 2-36
Defroster switch, Rear window and outside
mirror defroster switch ...
............................................... 2-32
Dimensions and weights ...
............................................. 9-8
DISP button ...
.................................................................... 4-9
Drive belt ...
....................................................................... 8-15
Drive positioner ...
............................................................ 3-36
Driving Cold weather driving ...
........................................... 5-32
Driving with CVT (Continuously
Variable Transmission) ...
........................................ 5-13
Precautions when starting and driving ...
.............. 5-2
DVD player, NISSAN mobile entertainment ...
...... 4-104
E
ECON button ...
............................................................... 4-10
Economy, Fuel ...
.............................................................. 5-27
Elapsed time ...
................................................................. 2-24
Emission control information label ...
.......................... 9-10 Emission control system warranty
...
........................... 9-25
Engine Before starting the engine ...
................................. 5-11
Break-in schedule ...
................................................ 5-25
Capacities and
recommended fluids/lubricants ...
............................ 9-2
Changing engine coolant ...
...................................... 8-8
Changing engine oil and filter ...
.............................. 8-9
Checking engine coolant level ...
............................. 8-8
Checking engine oil level ...
...................................... 8-8
Coolant temperature gauge ...
................................. 2-7
Emergency engine shut off ...
................................ 5-10
Engine block heater ...
............................................. 5-33
Engine compartment check locations ...
................ 8-6
Engine cooling system ...
........................................... 8-7
Engine oil ...
................................................................... 8-8
Engine oil and oil filter recommendation ...
........... 9-5
Engine oil replacement indicator ...
...................... 2-22
Engine oil viscosity ...
.................................................. 9-5
Engine serial number ...
.............................................. 9-9
Engine specifications ...
............................................. 9-7
Engine start operation indicator ...
....................... 2-20
If your vehicle overheats ...
..................................... 6-12
Starting the engine ...
.............................................. 5-12
Entry/exit function, Automatic drive positioner ...
.... 3-36
Event Data Recorders (EDR) ...
................................... 9-27
Exhaust gas (carbon monoxide) ...
................................ 5-2
Extended storage fuse warning ...
............................... 2-21
F
F.M.V.S.S./C.M.V.S.S. certification label ...
................. 9-9
Filter Air cleaner housing filter ...
.................................... 8-17
Changing engine oil and filter ...
.............................. 8-9
Flashers (See hazard warning flasher switch) ...
....... 6-2
Flat tire ...
............................................................................. 6-3 Flat towing
...
.................................................................... 9-24
Flexible seating ...
.............................................................. 1-8
Floor mat cleaning ...
........................................................ 7-5
Fluid Brake fluid ...
.............................................................. 8-12
Capacities and
recommended fluids/lubricants ...
............................ 9-2
Continuously Variable Transmission
(CVT) fluid ...
.............................................................. 8-11
Engine coolant ...
......................................................... 8-7
Engine oil ...
................................................................... 8-8
Power steering fluid ...
............................................. 8-11
Window washer fluid ...
.......................................... 8-13
FM-AM radio with Compact Disc (CD) player ...
.... 4-69
FM-AM-SAT radio with Compact Disc
(CD) player ...
....................................................... 4-72, 4-82
Fog light switch ...
........................................................... 2-38
Front manual seat adjustment ...
.................................... 1-3
Front passenger air bag and status light ...
.............. 1-55
Front power seat adjustment ...
..................................... 1-3
Front seat, Front seat adjustment ...
............................. 1-3
Front-seat active head restraint ...
............................... 1-14
Fuel Capacities and
recommended fluids/lubricants ...
............................ 9-2
Fuel economy ...
........................................................ 5-27
Fuel economy information (display) ...
................. 4-11
Fuel octane rating ...
................................................... 9-3
Fuel recommendation ...
............................................. 9-3
Fuel-filler cap ...
......................................................... 3-30
Fuel-filler door ...
....................................................... 3-30
Gauge ...
........................................................................ 2-8
LOOSE FUEL CAP warning ...
............................. 3-32
Fuel efficient driving tips ...
........................................... 5-26
Fuses ...
.............................................................................. 8-21
Fusible links ...
.................................................................. 8-21
&RQGLWLRQ


> (GLW    0RGHO (' @

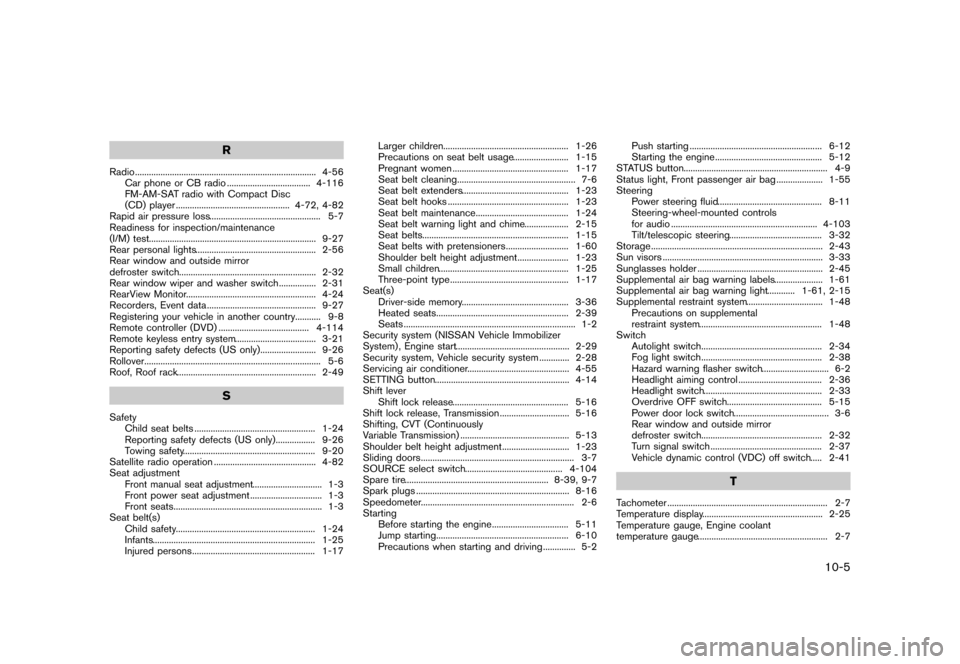

R
Radio...
.............................................................................. 4-56
Car phone or CB radio ...
.................................... 4-116
FM-AM-SAT radio with Compact Disc
(CD) player ...
................................................. 4-72, 4-82
Rapid air pressure loss ...
................................................ 5-7
Readiness for inspection/maintenance
(I/M) test ...
........................................................................ 9-27
Rear personal lights ...
.................................................... 2-56
Rear window and outside mirror
defroster switch ...
........................................................... 2-32
Rear window wiper and washer switch ...
................ 2-31
RearView Monitor ...
........................................................ 4-24
Recorders, Event data ...
............................................... 9-27
Registering your vehicle in another country ...
........... 9-8
Remote controller (DVD) ...
....................................... 4-114
Remote keyless entry system ...
................................... 3-21
Reporting safety defects (US only) ...
........................ 9-26
Rollover ...
............................................................................ 5-6
Roof, Roof rack ...
............................................................ 2-49
S
Safety
Child seat belts ...
.................................................... 1-24
Reporting safety defects (US only) ...
................. 9-26
Towing safety ...
......................................................... 9-20
Satellite radio operation ...
............................................ 4-82
Seat adjustment Front manual seat adjustment ...
.............................. 1-3
Front power seat adjustment ...
............................... 1-3
Front seats ...
................................................................ 1-3
Seat belt(s) Child safety ...
............................................................ 1-24
Infants ...
...................................................................... 1-25
Injured persons ...
..................................................... 1-17 Larger children
...
...................................................... 1-26
Precautions on seat belt usage ...
........................ 1-15
Pregnant women ...
.................................................. 1-17
Seat belt cleaning ...
................................................... 7-6
Seat belt extenders ...
.............................................. 1-23
Seat belt hooks ...
.................................................... 1-23
Seat belt maintenance ...
........................................ 1-24
Seat belt warning light and chime ...
................... 2-15
Seat belts ...
............................................................... 1-15
Seat belts with pretensioners ...
........................... 1-60
Shoulder belt height adjustment ...
...................... 1-23
Small children ...
........................................................ 1-25
Three-point type ...
................................................... 1-17
Seat(s) Driver-side memory ...
.............................................. 3-36
Heated seats ...
......................................................... 2-39
Seats ...
.......................................................................... 1-2
Security system (NISSAN Vehicle Immobilizer
System) , Engine start ...
................................................. 2-29
Security system, Vehicle security system ...
............. 2-28
Servicing air conditioner ...
............................................ 4-55
SETTING button ...
.......................................................... 4-14
Shift lever Shift lock release ...
.................................................. 5-16
Shift lock release, Transmission ...
.............................. 5-16
Shifting, CVT (Continuously
Variable Transmission) ...
............................................... 5-13
Shoulder belt height adjustment ...
............................. 1-23
Sliding doors ...
.................................................................. 3-7
SOURCE select switch ...
.......................................... 4-104
Spare tire ...
.............................................................. 8-39, 9-7
Spark plugs ...
.................................................................. 8-16
Speedometer ...
.................................................................. 2-6
Starting Before starting the engine ...
................................. 5-11
Jump starting ...
......................................................... 6-10
Precautions when starting and driving ...
.............. 5-2 Push starting
...
......................................................... 6-12
Starting the engine ...
.............................................. 5-12
STATUS button ...
.............................................................. 4-9
Status light, Front passenger air bag ...
.................... 1-55
Steering Power steering fluid ...
............................................. 8-11
Steering-wheel-mounted controls
for audio ...
............................................................... 4-103
Tilt/telescopic steering ...
........................................ 3-32
Storage ...
.......................................................................... 2-43
Sun visors ...
..................................................................... 3-33
Sunglasses holder ...
...................................................... 2-45
Supplemental air bag warning labels ...
..................... 1-61
Supplemental air bag warning light ...
............ 1-61, 2-15
Supplemental restraint system ...
................................. 1-48
Precautions on supplemental
restraint system ...
..................................................... 1-48
Switch Autolight switch ...
.................................................... 2-34
Fog light switch ...
.................................................... 2-38
Hazard warning flasher switch ...
............................. 6-2
Headlight aiming control ...
.................................... 2-36
Headlight switch ...
................................................... 2-33
Overdrive OFF switch ...
......................................... 5-15
Power door lock switch ...
......................................... 3-6
Rear window and outside mirror
defroster switch ...
.................................................... 2-32
Turn signal switch ...
................................................ 2-37
Vehicle dynamic control (VDC) off switch ...
..... 2-41
T
Tachometer ...
..................................................................... 2-7
Temperature display ...
.................................................... 2-25
Temperature gauge, Engine coolant
temperature gauge ...
........................................................ 2-7
10-5
&RQGLWLRQ
