NISSAN QUEST 2015 RE52 / 4.G Owners Manual
Manufacturer: NISSAN, Model Year: 2015, Model line: QUEST, Model: NISSAN QUEST 2015 RE52 / 4.GPages: 491, PDF Size: 4.54 MB
Page 431 of 491
> ( G L W 0 R G H O ( ' @
SDI1649

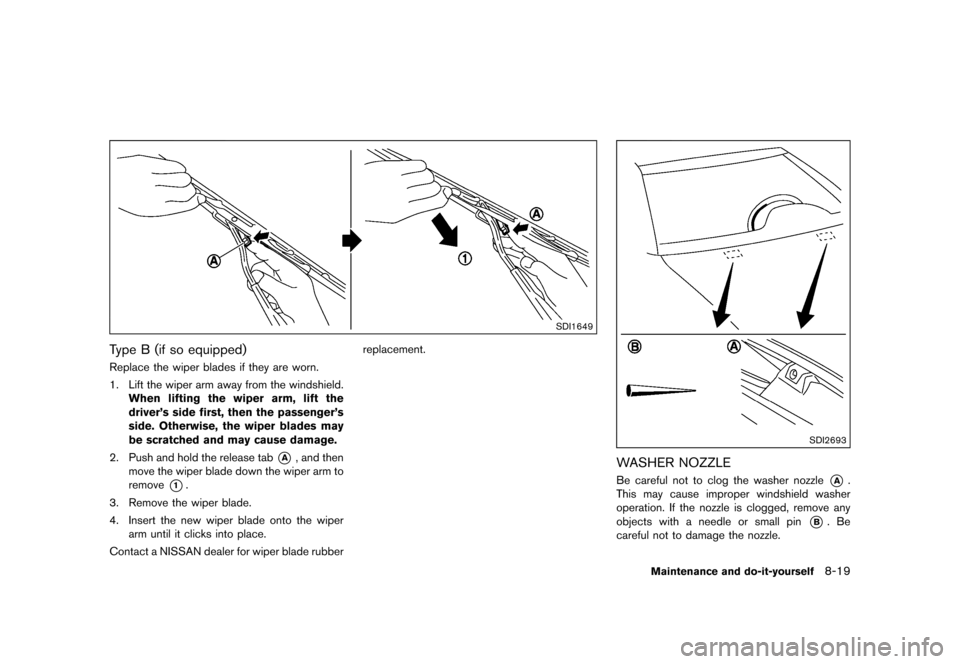

Type B (if so equipped)GUID-1ED733C3-9777-4189-B2C7-C8C88F7EEE2CReplace the wiper blades if they are worn.
1. Lift the wiper arm away from the windshield.When lifting the wiper arm, lift the
driver's side first, then the passenger's
side. Otherwise, the wiper blades may
be scratched and may cause damage.
2. Push and hold the release tab
*A, and then
move the wiper blade down the wiper arm to
remove
*1.
3. Remove the wiper blade.
4. Insert the new wiper blade onto the wiper arm until it clicks into place.
Contact a NISSAN dealer for wiper blade rubber replacement.
SDI2693
WASHER NOZZLEGUID-C60F7E27-E349-49E7-9DD9-3D79F98007EDBe careful not to clog the washer nozzle*A.
This may cause improper windshield washer
operation. If the nozzle is clogged, remove any
objects with a needle or small pin
*B. Be
careful not to damage the nozzle.
Maintenance and do-it-yourself8-19
& R Q G L W L R Q
Page 432 of 491
> ( G L W 0 R G H O ( ' @

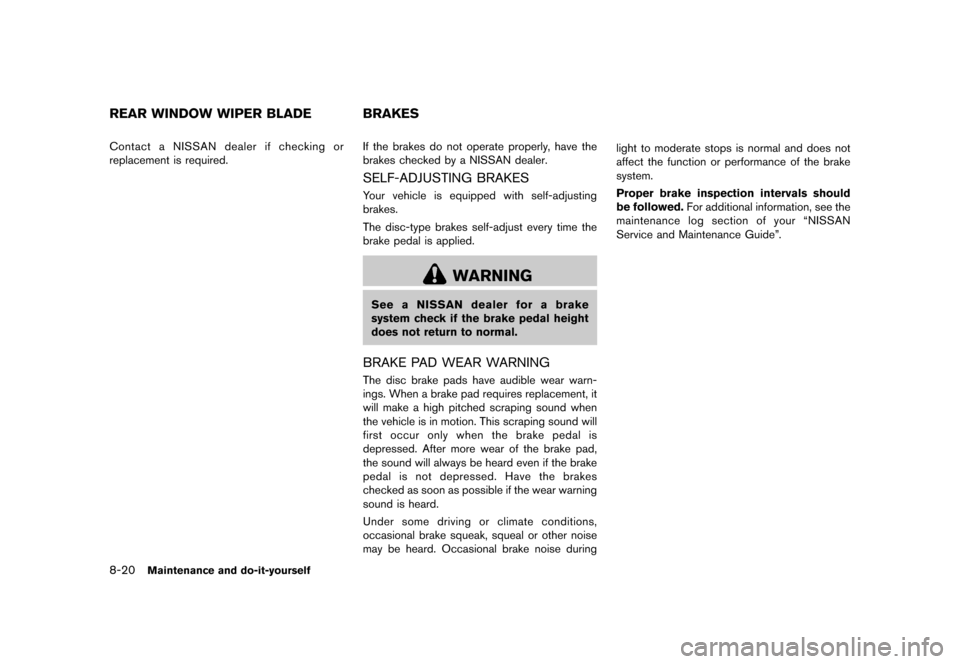

8-20Maintenance and do-it-yourself
GUID-C605529D-EFDF-4D37-AE85-7A15EAD0A5C8Contact a NISSAN dealer if checking or
replacement is required.GUID-86D39641-0FCA-4C25-BFB9-549F76F28C23If the brakes do not operate properly, have the
brakes checked by a NISSAN dealer.
SELF-ADJUSTING BRAKESGUID-EC0A9C2B-3E67-4EA4-B0D9-6AA58C9FD2E1Your vehicle is equipped with self-adjusting
brakes.
The disc-type brakes self-adjust every time the
brake pedal is applied.
WARNING
See a NISSAN dealer for a brake
system check if the brake pedal height
does not return to normal.
BRAKE PAD WEAR WARNINGGUID-54184785-40C9-4F75-95B5-7D0D1533C611The disc brake pads have audible wear warn-
ings. When a brake pad requires replacement, it
will make a high pitched scraping sound when
the vehicle is in motion. This scraping sound will
first occur only when the brake pedal is
depressed. After more wear of the brake pad,
the sound will always be heard even if the brake
pedal is not depressed. Have the brakes
checked as soon as possible if the wear warning
sound is heard.
Under some driving or climate conditions,
occasional brake squeak, squeal or other noise
may be heard. Occasional brake noise duringlight to moderate stops is normal and does not
affect the function or performance of the brake
system.
Proper brake inspection intervals should
be followed.
For additional information, see the
maintenance log section of your ªNISSAN
Service and Maintenance Guideº.
REAR WINDOW WIPER BLADE BRAKES
& R Q G L W L R Q
Page 433 of 491
> ( G L W 0 R G H O ( ' @
GUID-2A7EB98C-06EB-4C49-B4CD-5F466EB75D08
SDI2181

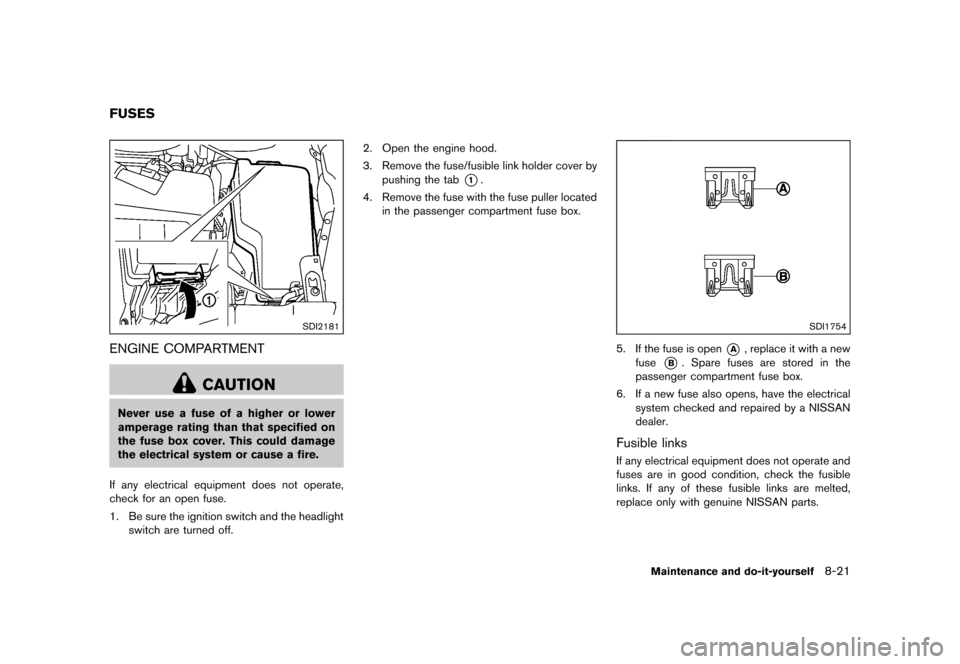

ENGINE COMPARTMENTGUID-CA4EBE21-B3CE-413F-A37D-F2E747557888
CAUTION
Never use a fuse of a higher or lower
amperage rating than that specified on
the fuse box cover. This could damage
the electrical system or cause a fire.
If any electrical equipment does not operate,
check for an open fuse.
1. Be sure the ignition switch and the headlight switch are turned off. 2. Open the engine hood.
3. Remove the fuse/fusible link holder cover by
pushing the tab
*1.
4. Remove the fuse with the fuse puller located in the passenger compartment fuse box.
SDI1754
5. If the fuse is open*A, replace it with a new
fuse
*B. Spare fuses are stored in the
passenger compartment fuse box.
6. If a new fuse also opens, have the electrical system checked and repaired by a NISSAN
dealer.
Fusible linksGUID-35942A92-B8C3-4636-8D6F-137D926C007DIf any electrical equipment does not operate and
fuses are in good condition, check the fusible
links. If any of these fusible links are melted,
replace only with genuine NISSAN parts.
Maintenance and do-it-yourself8-21
FUSES
& R Q G L W L R Q
Page 434 of 491
> ( G L W 0 R G H O ( ' @
8-22Maintenance and do-it-yourself
JVM0187X

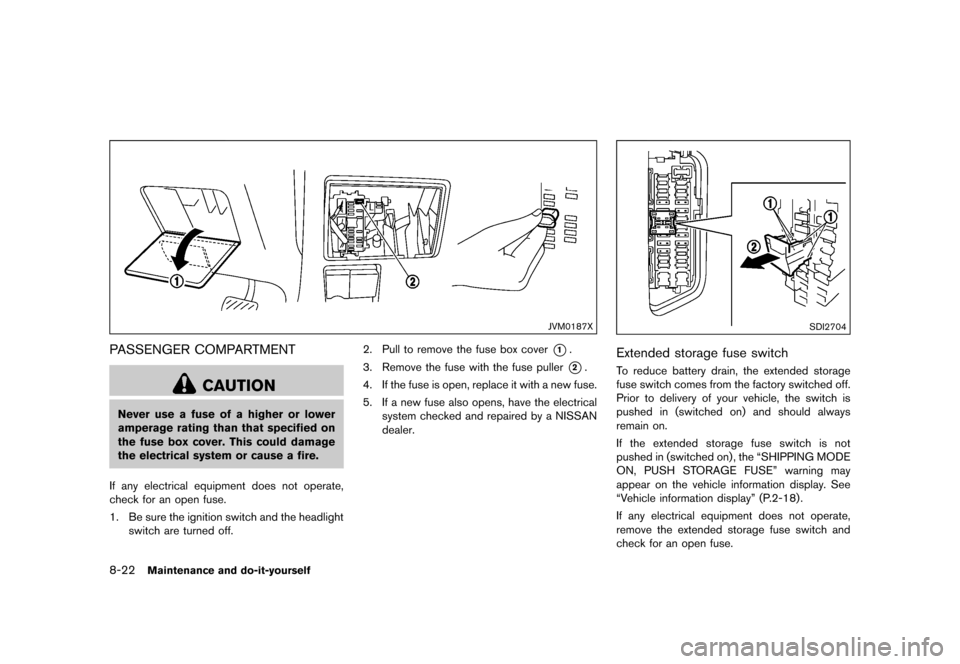

PASSENGER COMPARTMENTGUID-377BDCAB-1F2D-4209-92B3-FFBA626F3776
CAUTION
Never use a fuse of a higher or lower
amperage rating than that specified on
the fuse box cover. This could damage
the electrical system or cause a fire.
If any electrical equipment does not operate,
check for an open fuse.
1. Be sure the ignition switch and the headlight switch are turned off. 2. Pull to remove the fuse box cover
*1.
3. Remove the fuse with the fuse puller
*2.
4. If the fuse is open, replace it with a new fuse.
5. If a new fuse also opens, have the electrical system checked and repaired by a NISSAN
dealer.
SDI2704
Extended storage fuse switchGUID-2BFC6F36-C181-408E-ACC9-7BC9BA96C2A2To reduce battery drain, the extended storage
fuse switch comes from the factory switched off.
Prior to delivery of your vehicle, the switch is
pushed in (switched on) and should always
remain on.
If the extended storage fuse switch is not
pushed in (switched on), the ªSHIPPING MODE
ON, PUSH STORAGE FUSEº warning may
appear on the vehicle information display. See
ªVehicle information displayº (P.2-18) .
If any electrical equipment does not operate,
remove the extended storage fuse switch and
check for an open fuse.
& R Q G L W L R Q

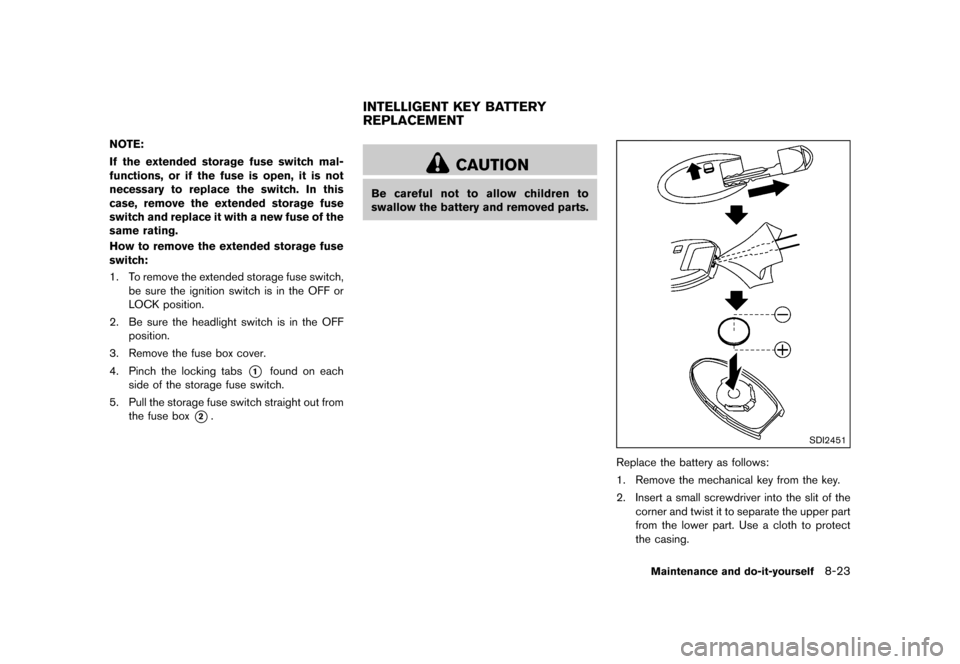

Page 435 of 491
> ( G L W 0 R G H O ( ' @
NOTE:
If the extended storage fuse switch mal-
functions, or if the fuse is open, it is not
necessary to replace the switch. In this
case, remove the extended storage fuse
switch and replace it with a new fuse of the
same rating.
How to remove the extended storage fuse
switch:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C4071. To remove the extended storage fuse switch,be sure the ignition switch is in the OFF or
LOCK position.
2. Be sure the headlight switch is in the OFF position.
3. Remove the fuse box cover.
4. Pinch the locking tabs
*1found on each
side of the storage fuse switch.
5. Pull the storage fuse switch straight out from the fuse box
*2.
GUID-CA8545B0-9BF6-43C6-A676-EFA5AA3A5260
CAUTION
Be careful not to allow children to
swallow the battery and removed parts.
SDI2451
Replace the battery as follows:
1. Remove the mechanical key from the key.
2. Insert a small screwdriver into the slit of thecorner and twist it to separate the upper part
from the lower part. Use a cloth to protect
the casing.
Maintenance and do-it-yourself8-23
INTELLIGENT KEY BATTERY
REPLACEMENT
& R Q G L W L R Q
Page 436 of 491
> ( G L W 0 R G H O ( ' @
8-24Maintenance and do-it-yourself

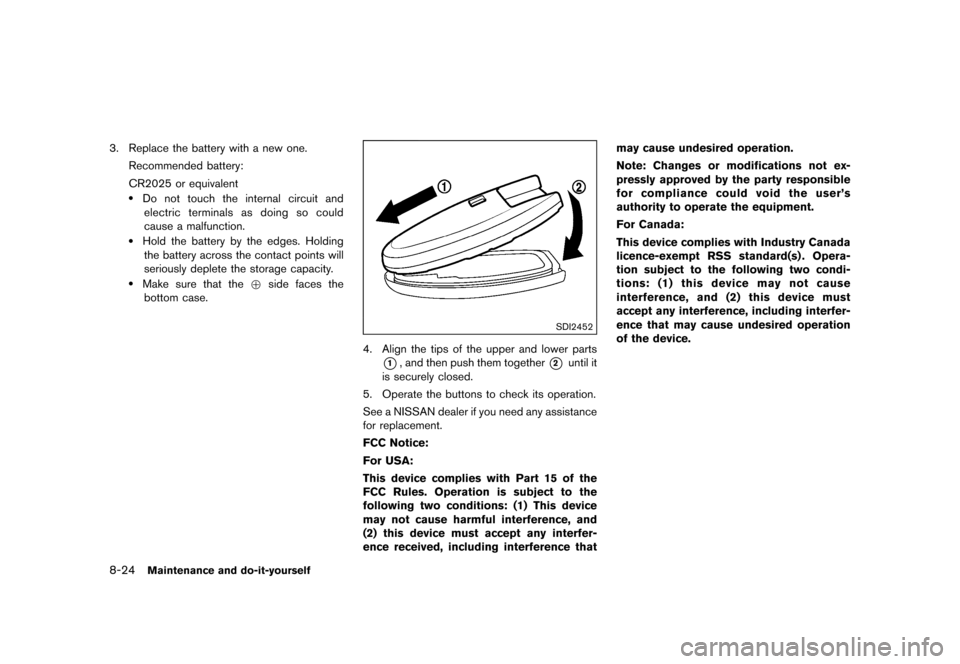

3. Replace the battery with a new one.Recommended battery:
CR2025 or equivalent
.Do not touch the internal circuit andelectric terminals as doing so could
cause a malfunction.
.Hold the battery by the edges. Holdingthe battery across the contact points will
seriously deplete the storage capacity.
.Make sure that the +side faces the
bottom case.
SDI2452
4. Align the tips of the upper and lower parts
*1, and then push them together*2until it
is securely closed.
5. Operate the buttons to check its operation.
See a NISSAN dealer if you need any assistance
for replacement.
FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference that may cause undesired operation.
Note: Changes or modifications not ex-
pressly approved by the party responsible
for compliance could void the user's
authority to operate the equipment.
For Canada:
This device complies with Industry Canada
licence-exempt RSS standard(s) . Opera-
tion subject to the following two condi-
tions: (1) this device may not cause
interference, and (2) this device must
accept any interference, including interfer-
ence that may cause undesired operation
of the device.
& R Q G L W L R Q
Page 437 of 491
> ( G L W 0 R G H O ( ' @
GUID-400A6F1D-F08D-4635-A2B1-88B07B48469D

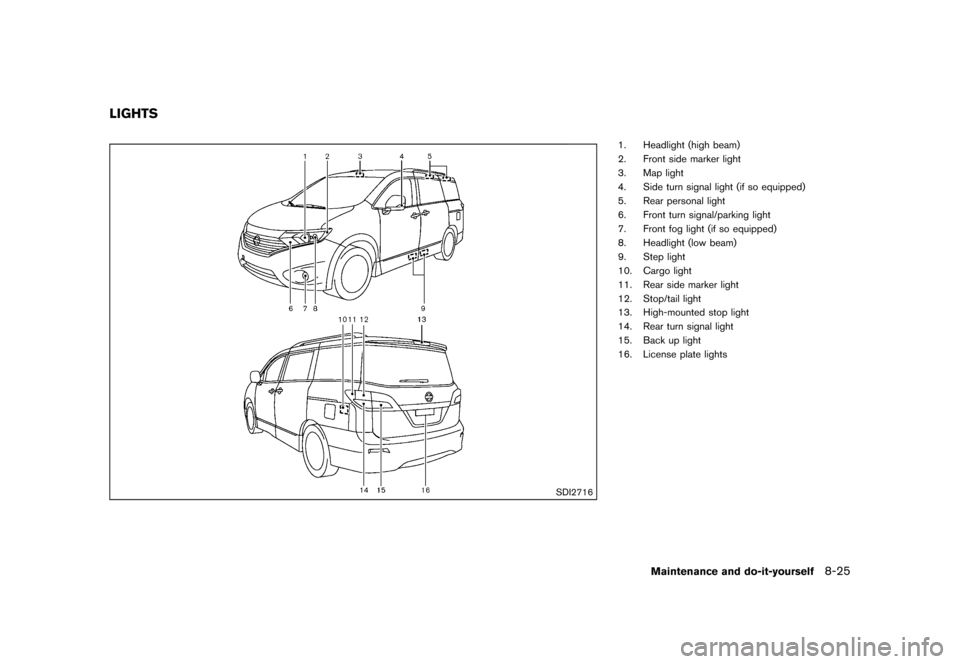

SDI2716
1. Headlight (high beam)
2. Front side marker light
3. Map light
4. Side turn signal light (if so equipped)
5. Rear personal light
6. Front turn signal/parking light
7. Front fog light (if so equipped)
8. Headlight (low beam)
9. Step light
10. Cargo light
11. Rear side marker light
12. Stop/tail light
13. High-mounted stop light
14. Rear turn signal light
15. Back up light
16. License plate lights
Maintenance and do-it-yourself8-25
LIGHTS
& R Q G L W L R Q
Page 438 of 491
> ( G L W 0 R G H O ( ' @
8-26Maintenance and do-it-yourself

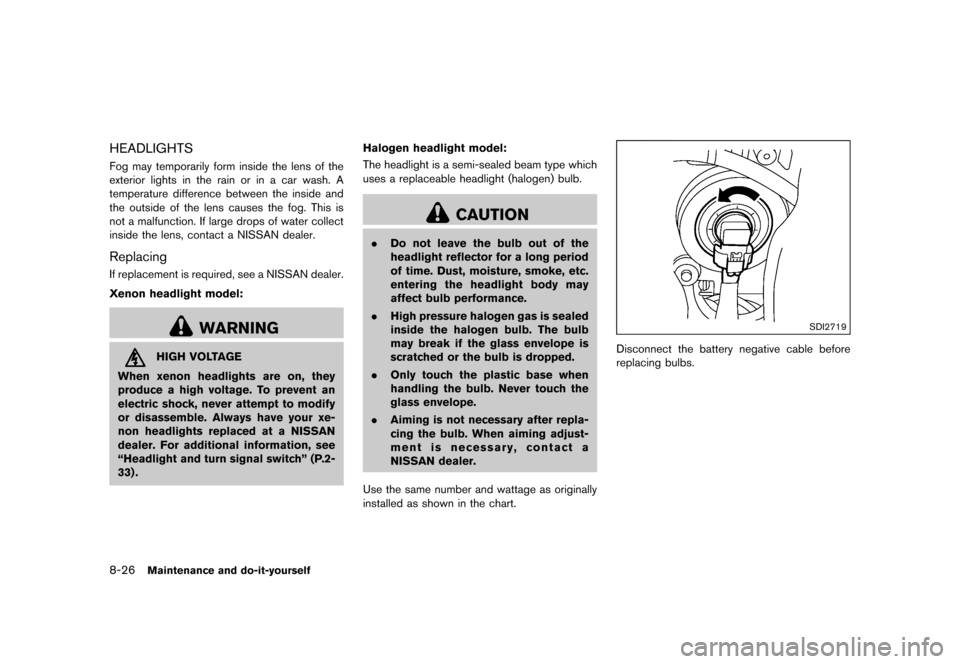

HEADLIGHTSGUID-1DDF8B44-6A31-4E64-A9A2-A7AC87475D78Fog may temporarily form inside the lens of the
exterior lights in the rain or in a car wash. A
temperature difference between the inside and
the outside of the lens causes the fog. This is
not a malfunction. If large drops of water collect
inside the lens, contact a NISSAN dealer.
ReplacingGUID-B4433D6E-5EF8-404D-ABE2-E3D27A5E9E7FIf replacement is required, see a NISSAN dealer.
Xenon headlight model:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
WARNING
HIGH VOLTAGE
When xenon headlights are on, they
produce a high voltage. To prevent an
electric shock, never attempt to modify
or disassemble. Always have your xe-
non headlights replaced at a NISSAN
dealer. For additional information, see
ªHeadlight and turn signal switchº (P.2-
33) . Halogen headlight model:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The headlight is a semi-sealed beam type which
uses a replaceable headlight (halogen) bulb.
CAUTION
.
Do not leave the bulb out of the
headlight reflector for a long period
of time. Dust, moisture, smoke, etc.
entering the headlight body may
affect bulb performance.
. High pressure halogen gas is sealed
inside the halogen bulb. The bulb
may break if the glass envelope is
scratched or the bulb is dropped.
. Only touch the plastic base when
handling the bulb. Never touch the
glass envelope.
. Aiming is not necessary after repla-
cing the bulb. When aiming adjust-
ment is necessary, contact a
NISSAN dealer.
Use the same number and wattage as originally
installed as shown in the chart.
SDI2719
Disconnect the battery negative cable before
replacing bulbs.
& R Q G L W L R Q
Page 439 of 491
> ( G L W 0 R G H O ( ' @

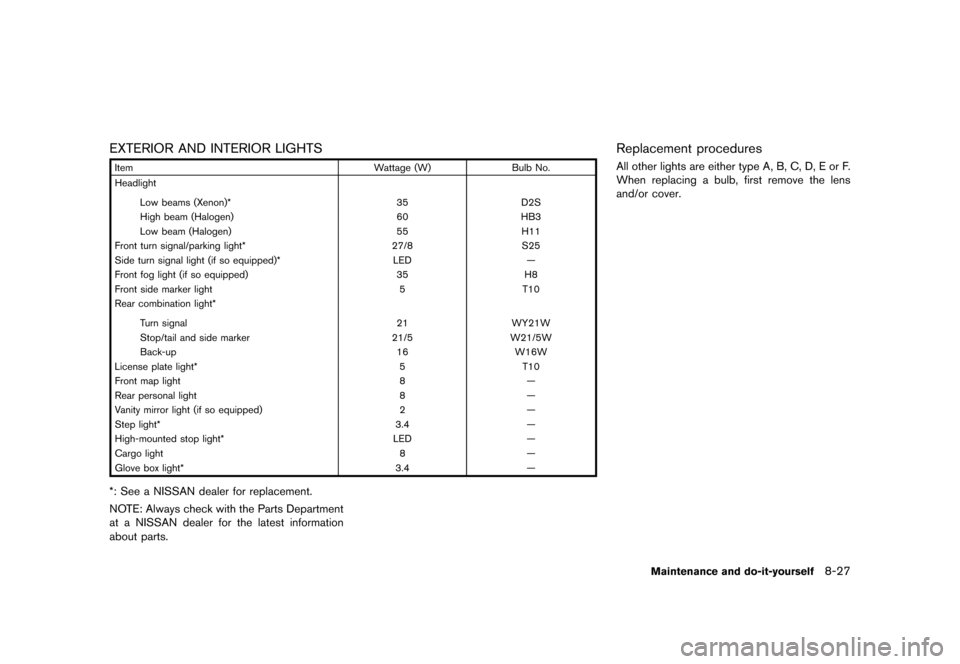

EXTERIOR AND INTERIOR LIGHTSGUID-74DA7277-F276-48A5-BDCF-43B331EA01E6
ItemWattage (W)Bulb No.
Headlight
Low beams (Xenon)* 35D2S
High beam (Halogen) 60HB3
Low beam (Halogen) 55H11
Front turn signal/parking light* 27/8S25
Side turn signal light (if so equipped)* LEDÐ
Front fog light (if so equipped) 35H8
Front side marker light 5T10
Rear combination light*
Turn signal 21WY21W
Stop/tail and side marker 21/5W21/5W
Back-up 16W16W
License plate light* 5T10
Front map light 8Ð
Rear personal light 8Ð
Vanity mirror light (if so equipped) 2Ð
Step light* 3.4Ð
High-mounted stop light* LEDÐ
Cargo light 8Ð
Glove box light* 3.4Ð
*: See a NISSAN dealer for replacement.
NOTE: Always check with the Parts Department
at a NISSAN dealer for the latest information
about parts.
Replacement proceduresGUID-9456DF2D-1ECF-49AE-8081-B2431E050E93All other lights are either type A, B, C, D, E or F.
When replacing a bulb, first remove the lens
and/or cover.
Maintenance and do-it-yourself8-27
& R Q G L W L R Q

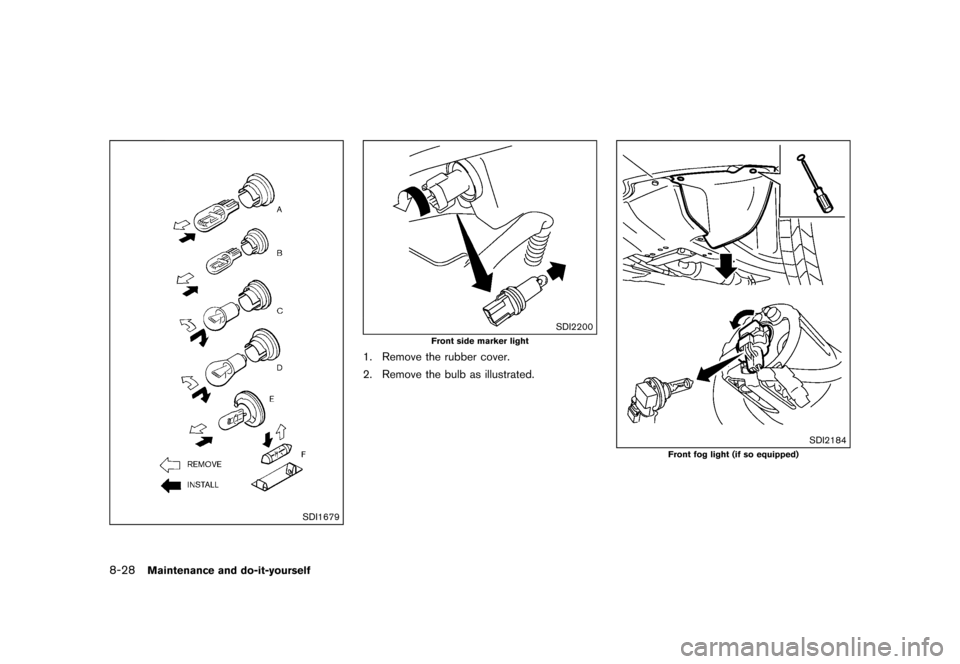

Page 440 of 491
> ( G L W 0 R G H O ( ' @
8-28Maintenance and do-it-yourself
SDI1679
SDI2200
Front side marker light
1. Remove the rubber cover.
2. Remove the bulb as illustrated.
SDI2184
Front fog light (if so equipped)
