Seatbacks
SeatbacksGUID-BE72E849-4191-475F-BEE0-F4E846E68F0AThe hooks are located on the front seatbacks.
To use the hook on the seatbacks, push the
lower side of the hook and pull it out.
CAUTION
Do not apply a total load of more than 9
lb (4 kg) to the hook.
SIC4737
ROOF RACK (if so equipped)GUID-8868EAD9-A82E-4E35-B88D-4326BA738D60Always distribute the luggage evenly on the roof
rack. Do not load more than 99 lb (45 kg) on the
roof rails. Observe the maximum load limit
shown on the crossbars or roof carriers when
you attach them on the roof rails. Contact a
NISSAN dealer for crossbar or other equipment
information. Be careful that your vehicle does
not exceed the Gross Vehicle Weight Rating
(GVWR) or its Gross Axle Weight Rating
(GAWR front and rear) . The GVWR and GAWR
are located on the F.M.V.S.S. or C.V.M.S.S.
certification label (located on the driver's door
pillar) . For more information regarding GVWR
and GAWR, see ªVehicle loading informationº(P.9-12) .
WARNING
.
Drive extra carefully when the vehi-
cle is loaded at or near the cargo
carrying capacity, especially if the
significant portion of that load is
carried on the roof rack.
. Heavy loading of the roof rack has
the potential to affect the vehicle
stability and handling during sud-
den or unusual handling maneuvers.
. Roof rack load should be evenly
distributed.
. Do not exceed maximum roof rack
load weight capacity.
. Properly secure all cargo with ropes
or straps to help prevent it from
sliding or shifting. In a sudden stop
or collision, unsecured cargo could
cause personal injury.
CAUTION
Use care when placing or removing
items from the roof rack. If you cannot
Instruments and controls2-49
&RQGLWLRQ


> (GLW    0RGHO (' @
8-30Maintenance and do-it-yourself
GUID-89F90EC9-1A21-4C1D-B1C6-EA0BAF7C2106If you have a flat tire, see ªFlat tireº (P.6-3) .
TIRE PRESSUREGUID-6E7250AB-AD14-4FBE-A46C-D5F24A0415DC
Tire Pressure Monitoring System (TPMS)GUID-3AC4D70E-6B75-4BF7-9B81-983A94E44C75This vehicle is equipped with the Tire Pressure
Monitoring System (TPMS) . It monitors tire
pressure of all tires except the spare. When
the low tire pressure warning light is lit and the
CHECK TIRE PRESSURE warning appears on
the vehicle information display, one or more of
your tires is significantly under-inflated.
The TPMS will activate only when the vehicle is
driven at speeds above 16 MPH (25 km/h) .
Also, this system may not detect a sudden drop
in tire pressure (for example a flat tire while
driving) .
For more details, see ªLow tire pressure warning
lightº (P.2-14) , ªTire Pressure Monitoring Sys-
tem (TPMS)º (P.5-3) and ªTire Pressure Mon-
itoring System (TPMS)º (P.6-3) .
Tire inflation pressureGUID-B1306429-C2A4-4116-B9C4-C79D19196D15Check the pressure of the tires (including
the spare) often and always prior to long
distance trips. The recommended tire
pressure specifications are shown on the
Tire and Loading Information label under
the ªCold Tire Pressureº heading. The Tire
and Loading Information label is affixed tothe driver side center pillar. Tire pressures
should be checked regularly because:
.Most tires naturally lose air over time.
.Tires can lose air suddenly when driven
over potholes or other objects or if the
vehicle strikes a curb while parking.
The tire pressures should be checked
when the tires are cold. The tires are
considered COLD after the vehicle has
been parked for 3 or more hours, or driven
less than 1 mile (1.6 km) at moderate
speeds.
The TPMS with Easy Fill Tire Alert provides
visual and audible signals outside the
vehicle for inflating the tires to the recom-
mended COLD tire pressure. (See ªTPMS
with Easy Fill Tire Alertº (P.5-6) .)
Incorrect tire pressure, including un-
der inflation, may adversely affect tire
life and vehicle handling.
WARNING
.Improperly inflated tires can fail
suddenly and cause an accident.
.The Gross Vehicle Weight rating
(GVWR) is located on the F.M.V.
S.S./C.M.V.S.S. certification la-
bel. The vehicle weight capacity
is indicated on the Tire and
Loading Information label. Do
not load your vehicle beyond
this capacity. Overloading your
vehicle may result in reduced
tire life, unsafe operating condi-
tions due to premature tire fail-
ure, or unfavorable handling
characteristics and could also
lead to a serious accident. Load-
ing beyond the specified capa-
city may also result in failure of
other vehicle components.
.Before taking a long trip, or
whenever you heavily load your
vehicle, use a tire pressure
gauge to ensure that the tire
pressures are at the specified
level.
.For additional information re-
garding tires, refer to ªImportant
Tire Safety Informationº (US) or
WHEELS AND TIRES
&RQGLWLRQ


> (GLW    0RGHO (' @
ªTire Safety Informationº (Cana-
da) in the Warranty Information
Booklet.
SDI2197
Tire and Loading Information labelGUID-F769ACFA-6743-412C-BA4F-C2F1B56720AD*1Seating capacity: The maximum num-
ber of occupants that can be seated in
the vehicle.
*2Vehicle load limit: See ªVehicle load-
ing informationº (P.9-12) .
*3Original size: The size of the tires
originally installed on the vehicle at the
factory.
*4Cold tire pressure: Inflate the tires to
this pressure when the tires are cold.
Tires are considered COLD after the
vehicle has been parked for 3 or more
Maintenance and do-it-yourself8-31
&RQGLWLRQ


> (GLW    0RGHO (' @
8-38Maintenance and do-it-yourself
SDI1663
Tire wear and damageGUID-A43C4E26-3367-4FA1-B45A-ADEC0212A0551.Wear indicator
2.Wear indicator location mark
WARNING
.Tires should be periodically in-
spected for wear, cracking, bul-
ging or objects caught in the
tread. If excessive wear, cracks,
bulging or deep cuts are found,
the tire(s) should be replaced. .
The original tires have built-in
tread wear indicators. When
wear indicators are visible, the
tire(s) should be replaced.
. Tires degrade with age and use.
Have tires, including the spare,
over 6 years old checked by a
qualified technician, because
some tire damage may not be
obvious. Replace the tires as
necessary to prevent tire failure
and possible personal injury.
. Improper service of the spare
tire may result in serious perso-
nal injury. If it is necessary to
repair the spare tire, contact a
NISSAN dealer.
. For additional information re-
garding tires, refer to ªImportant
Tire Safety Informationº (US) or
ªTire Safety Informationº (Cana-
da) in the Warranty Information
Booklet.
Replacing wheels and tiresGUID-4F418467-44EC-486D-947C-EDD2EE0CF562When replacing a tire, use the same size, tread
design, speed rating and load carrying capacity
as originally equipped. (See ªSpecificationsº
(P.9-7) for recommended types and sizes of
tires and wheels.)
WARNING
. The use of tires other than those
recommended or the mixed use of
tires of different brands, construc-
tion (bias, bias-belted or radial) , or
tread patterns can adversely affect
the ride, braking, handling, ground
clearance, body-to-tire clearance,
tire chain clearance, speedometer
calibration, headlight aim and bum-
per height. Some of these effects
may lead to accidents and could
result in serious personal injury.
. If your vehicle was originally
equipped with 4 tires that were the
same size and you are only repla-
cing 2 of the 4 tires, install the new
tires on the rear axle. Placing new
tires on the front axle may cause
loss of vehicle control in some
driving conditions and cause an
&RQGLWLRQ


> (GLW    0RGHO (' @

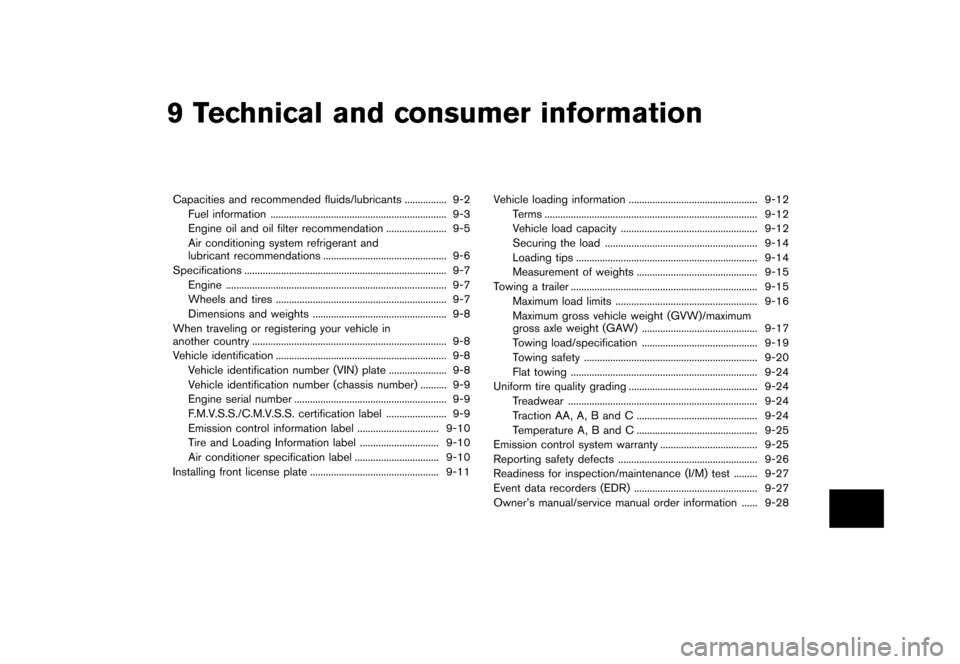

9 Technical and consumer information
Capacities and recommended fluids/lubricants...
................ 9-2
Fuel information ...
................................................................... 9-3
Engine oil and oil filter recommendation ...
....................... 9-5
Air conditioning system refrigerant and
lubricant recommendations ...
............................................... 9-6
Specifications ...
........................................................................\
..... 9-7
Engine ...
........................................................................\
............ 9-7
Wheels and tires ...
................................................................. 9-7
Dimensions and weights ...
................................................... 9-8
When traveling or registering your vehicle in
another country ...
........................................................................\
.. 9-8
Vehicle identification ...
................................................................. 9-8
Vehicle identification number (VIN) plate ...
...................... 9-8
Vehicle identification number (chassis number) ...
.......... 9-9
Engine serial number ...
.......................................................... 9-9
F.M.V.S.S./C.M.V.S.S. certification label ...
....................... 9-9
Emission control information label ...
............................... 9-10
Tire and Loading Information label ...
.............................. 9-10
Air conditioner specification label ...
................................ 9-10
Installing front license plate ...
................................................. 9-11 Vehicle loading information
...
................................................. 9-12
Terms ...
........................................................................\
......... 9-12
Vehicle load capacity ...
.................................................... 9-12
Securing the load ...
.......................................................... 9-14
Loading tips ...
..................................................................... 9-14
Measurement of weights ...
.............................................. 9-15
Towing a trailer ...
....................................................................... 9-15
Maximum load limits ...
...................................................... 9-16
Maximum gross vehicle weight (GVW)/maximum
gross axle weight (GAW) ...
............................................ 9-17
Towing load/specification ...
............................................ 9-19
Towing safety ...
.................................................................. 9-20
Flat towing ...
....................................................................... 9-24
Uniform tire quality grading ...
................................................. 9-24
Treadwear ...
........................................................................\
9-24
Traction AA, A, B and C ...
.............................................. 9-24
Temperature A, B and C ...
.............................................. 9-25
Emission control system warranty ...
..................................... 9-25
Reporting safety defects ...
..................................................... 9-26
Readiness for inspection/maintenance (I/M) test ...
......... 9-27
Event data recorders (EDR) ...
............................................... 9-27
Owner's manual/service manual order information ...
...... 9-28
&RQGLWLRQ


> (GLW    0RGHO (' @
9-12Technical and consumer information
GUID-1D4342D4-F12B-4CF9-A8CF-B91B78B59D41
WARNING
.It is extremely dangerous to ride
in a cargo area inside the vehi-
cle. In a collision, people riding
in these areas are more likely to
be seriously injured or killed.
.Do not allow people to ride in
any area of your vehicle that is
not equipped with seats and
seat belts.
.Be sure everyone in your vehicle
is in a seat and using a seat belt
properly.

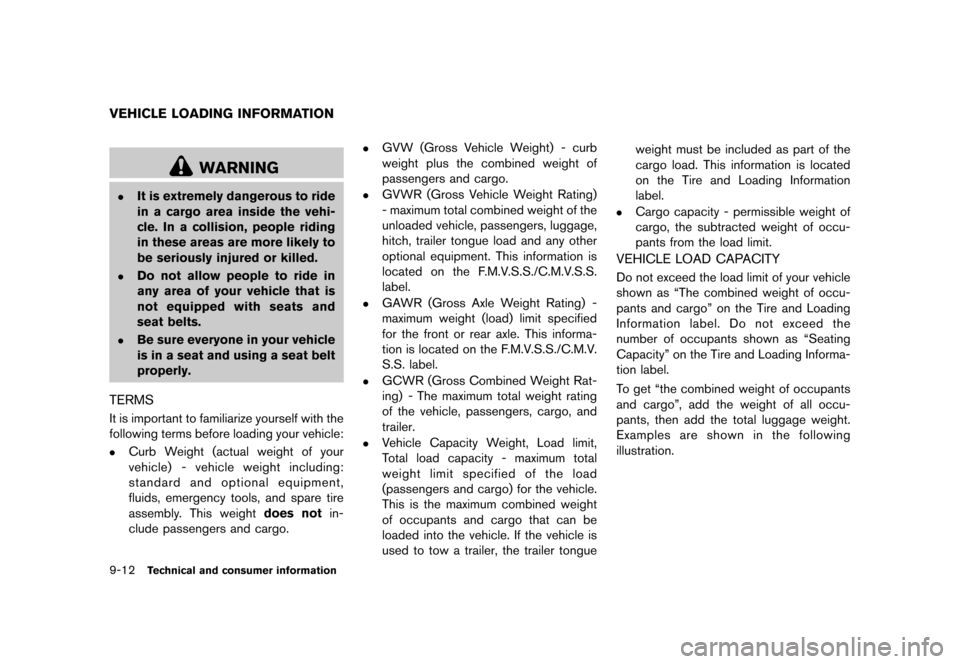

TERMSGUID-3E1140D5-7853-495F-AFA0-7635D7F2B1D0It is important to familiarize yourself with the
following terms before loading your vehicle:
.Curb Weight (actual weight of your
vehicle) - vehicle weight including:
standard and optional equipment,
fluids, emergency tools, and spare tire
assembly. This weightdoes notin-
clude passengers and cargo.
.GVW (Gross Vehicle Weight) - curb
weight plus the combined weight of
passengers and cargo.
.GVWR (Gross Vehicle Weight Rating)
- maximum total combined weight of the
unloaded vehicle, passengers, luggage,
hitch, trailer tongue load and any other
optional equipment. This information is
located on the F.M.V.S.S./C.M.V.S.S.
label.
.GAWR (Gross Axle Weight Rating) -
maximum weight (load) limit specified
for the front or rear axle. This informa-
tion is located on the F.M.V.S.S./C.M.V.
S.S. label.
.GCWR (Gross Combined Weight Rat-
ing) - The maximum total weight rating
of the vehicle, passengers, cargo, and
trailer.
.Vehicle Capacity Weight, Load limit,
Total load capacity - maximum total
weight limit specified of the load
(passengers and cargo) for the vehicle.
This is the maximum combined weight
of occupants and cargo that can be
loaded into the vehicle. If the vehicle is
used to tow a trailer, the trailer tongue weight must be included as part of the
cargo load. This information is located
on the Tire and Loading Information
label.
.Cargo capacity - permissible weight of
cargo, the subtracted weight of occu-
pants from the load limit.
VEHICLE LOAD CAPACITYGUID-5DBAD818-A78F-4E04-8828-E459DF25B5B5Do not exceed the load limit of your vehicle
shown as ªThe combined weight of occu-
pants and cargoº on the Tire and Loading
Information label. Do not exceed the
number of occupants shown as ªSeating
Capacityº on the Tire and Loading Informa-
tion label.
To get ªthe combined weight of occupants
and cargoº, add the weight of all occu-
pants, then add the total luggage weight.
Examples are shown in the following
illustration.
VEHICLE LOADING INFORMATION
&RQGLWLRQ


> (GLW    0RGHO (' @
STI0445

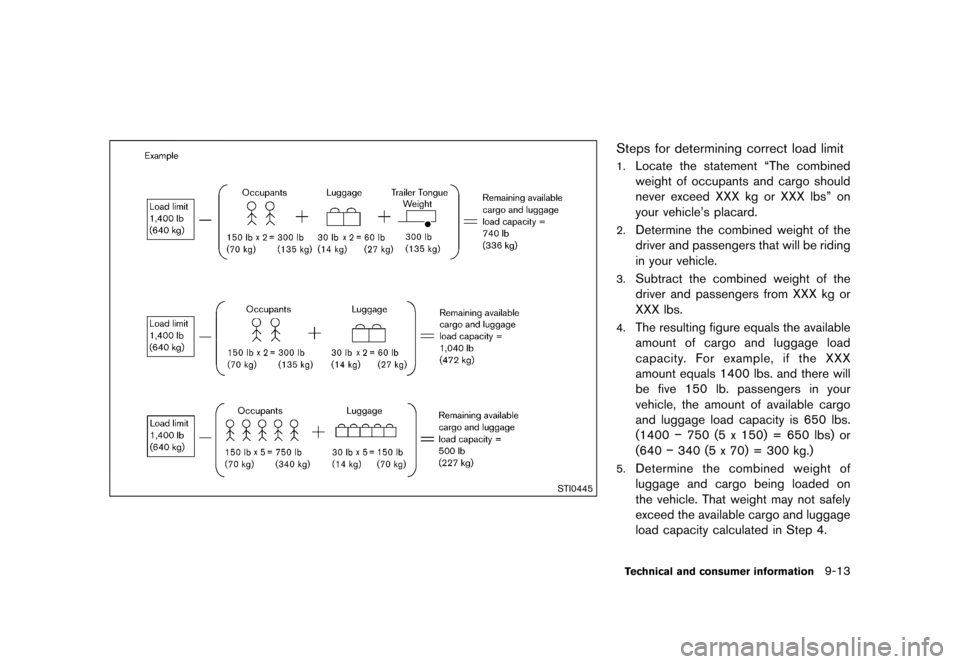

Steps for determining correct load limitGUID-251C8238-3BA6-4BEF-8C37-1EC12A8CB1131.Locate the statement ªThe combined
weight of occupants and cargo should
never exceed XXX kg or XXX lbsº on
your vehicle's placard.
2.Determine the combined weight of the
driver and passengers that will be riding
in your vehicle.
3.Subtract the combined weight of the
driver and passengers from XXX kg or
XXX lbs.
4.The resulting figure equals the available
amount of cargo and luggage load
capacity. For example, if the XXX
amount equals 1400 lbs. and there will
be five 150 lb. passengers in your
vehicle, the amount of available cargo
and luggage load capacity is 650 lbs.
(1400


> (GLW    0RGHO (' @
9-14Technical and consumer information
6.If your vehicle will be towing a trailer,
load from your trailer will be transferred
to your vehicle. Consult this manual to
determine how this reduces the avail-
able cargo and luggage load capacity
of your vehicle.
Before driving a loaded vehicle, confirm
that you do not exceed the Gross Vehicle
Weight Rating (GVWR) or the Gross Axle
Weight Rating (GAWR) for your vehicle.
(See ªMeasurement of weightsº (P.9-15) .)
Also check tires for proper inflation pres-
sures. See the Tire and Loading Information
label.
SIC4732

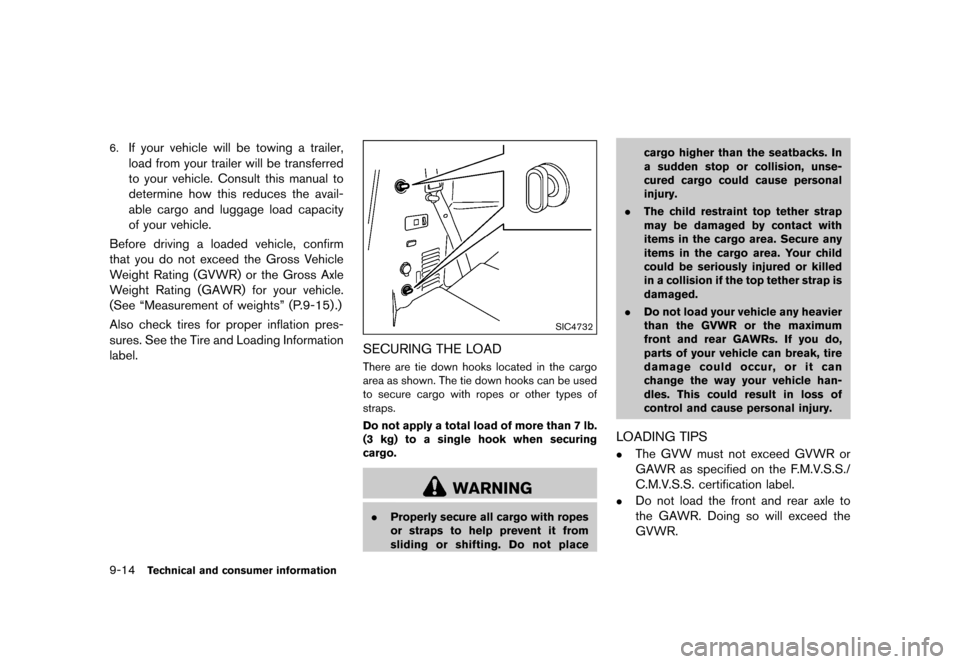

SECURING THE LOADGUID-62499E75-6BEE-41A6-A986-39B66C3809D5There are tie down hooks located in the cargo
area as shown. The tie down hooks can be used
to secure cargo with ropes or other types of
straps.
Do not apply a total load of more than 7 lb.
(3 kg) to a single hook when securing
cargo.
WARNING
. Properly secure all cargo with ropes
or straps to help prevent it from
sliding or shifting. Do not place cargo higher than the seatbacks. In
a sudden stop or collision, unse-
cured cargo could cause personal
injury.
. The child restraint top tether strap
may be damaged by contact with
items in the cargo area. Secure any
items in the cargo area. Your child
could be seriously injured or killed
in a collision if the top tether strap is
damaged.
. Do not load your vehicle any heavier
than the GVWR or the maximum
front and rear GAWRs. If you do,
parts of your vehicle can break, tire
damage could occur, or it can
change the way your vehicle han-
dles. This could result in loss of
control and cause personal injury.
LOADING TIPSGUID-19077255-F6E4-407A-8BF7-85AEC73EA9D2.The GVW must not exceed GVWR or
GAWR as specified on the F.M.V.S.S./
C.M.V.S.S. certification label.
.Do not load the front and rear axle to
the GAWR. Doing so will exceed the
GVWR.
&RQGLWLRQ


> (GLW    0RGHO (' @
9-18Technical and consumer information
required to achieve the rating. Additional pas-
sengers, cargo and/or optional equipment, such
as the trailer hitch, will add weight to the vehicle
and reduce your vehicle's maximum towing
capacity and trailer tongue load.
The vehicle and trailer need to be weighed to
confirm the vehicle is within the GVWR, Front
GAWR, Rear GAWR, Gross Combined Weight
Rating (GCWR) and Towing capacity.
All vehicle and trailer weights can be measured
using platform type scales commonly found at
truck stops, highway weigh stations, building
supply centers or salvage yards.
To determine the available payload capacity for
tongue load, use the following procedure.
1. Locate the GVWR on the F.M.V.S.S./C.M.V.S.S. certification label.
2. Weigh your vehicle on the scale with all of the passengers and cargo that are normally
in the vehicle when towing a trailer.
3. Subtract the actual vehicle weight from the GVWR. The remaining amount is the avail-
able maximum tongue load.
To determine the available towing capacity, use
the following procedure.
1. Find the GCWR for your vehicle on the ªTowing Load/Specificationº chart found
later in this section. 2. Subtract the actual vehicle weight from the
GCWR. The remaining amount is the avail-
able maximum towing capacity.
To determine the Gross Trailer Weight, weigh
your trailer on a scale with all equipment and
cargo, that are normally in the trailer when it is
towed. Make sure the Gross trailer weight is not
more than the Gross Trailer Weight Rating
shown on the trailer and is not more than the
calculated available maximum towing capacity.
Also weigh the front and rear axles on the scale
to make sure the Front Gross Axle Weight and
Rear Gross Axle Weight are not more than Front
Gross Axle Weight and Rear Gross Axle Weight
on the F.M.V.S.S./C.M.V.S.S. certification label.
The cargo in the trailer and vehicle may need to
be moved or removed to meet the specified
ratings.
Example:
. Gross Vehicle Weight (GVW) as weighed
on a scale - including passengers, cargo
and hitch - 5,520 lb. (2,503 kg) .
. Gross Vehicle Weight Rating (GVWR) from
F.M.V.S.S./C.M.V.S.S. certification label -
5,818 lb. (2,639 kg) .
. Gross Combined Weight Rating (GCWR)
from ªTowing Load/Specificationº chart -
8,500 lb. (3,856 kg) . .
Maximum Trailer towing capacity from ªTow-
ing Load/Specificationº chart - 3,500 lb.
(1,588 kg) .
5,818 lb. (2,639 kg) GVWR
