2-22Instruments and controls
SIC4237

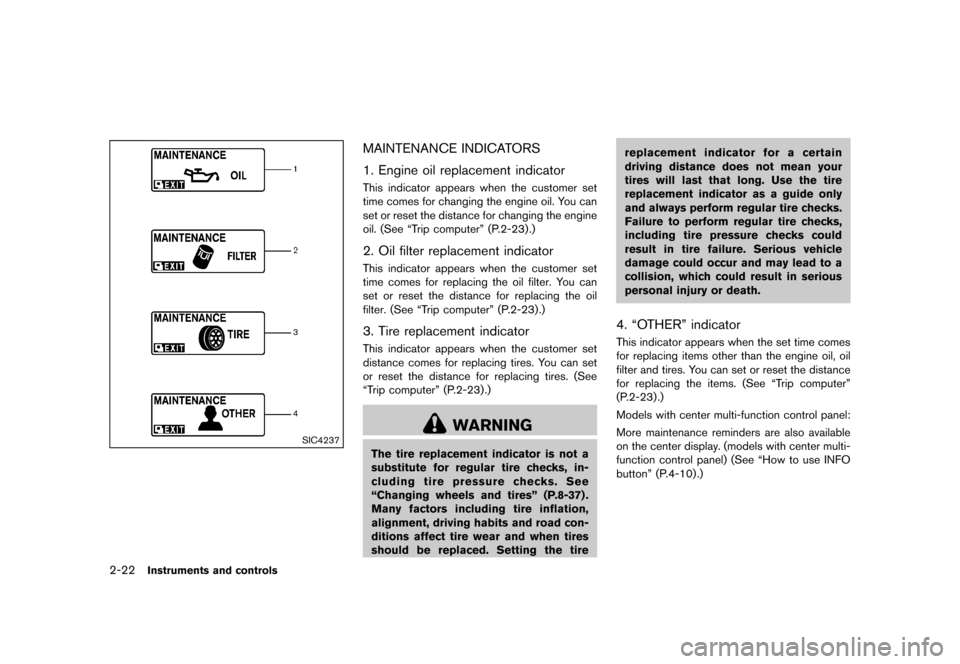

MAINTENANCE INDICATORSGUID-FA009BEE-2E37-4E85-BAC3-65B2871DE287
1. Engine oil replacement indicatorGUID-B49EC615-22D1-4111-845C-214CE38146A9This indicator appears when the customer set
time comes for changing the engine oil. You can
set or reset the distance for changing the engine
oil. (See ªTrip computerº (P.2-23) .)
2. Oil filter replacement indicatorGUID-8EC15863-1C70-4332-BAFA-4C2E8EE6FBFCThis indicator appears when the customer set
time comes for replacing the oil filter. You can
set or reset the distance for replacing the oil
filter. (See ªTrip computerº (P.2-23).)
3. Tire replacement indicatorGUID-83F3C488-F446-4361-92F6-CBED0996F98CThis indicator appears when the customer set
distance comes for replacing tires. You can set
or reset the distance for replacing tires. (See
ªTrip computerº (P.2-23) .)
WARNING
The tire replacement indicator is not a
substitute for regular tire checks, in-
cluding tire pressure checks. See
ªChanging wheels and tiresº (P.8-37) .
Many factors including tire inflation,
alignment, driving habits and road con-
ditions affect tire wear and when tires
should be replaced. Setting the tirereplacement indicator for a certain
driving distance does not mean your
tires will last that long. Use the tire
replacement indicator as a guide only
and always perform regular tire checks.
Failure to perform regular tire checks,
including tire pressure checks could
result in tire failure. Serious vehicle
damage could occur and may lead to a
collision, which could result in serious
personal injury or death.
4. ªOTHERº indicatorGUID-3F118BD8-4E3B-4C42-83AA-190A2A80C162This indicator appears when the set time comes
for replacing items other than the engine oil, oil
filter and tires. You can set or reset the distance
for replacing the items. (See ªTrip computerº
(P.2-23) .)
Models with center multi-function control panel:
More maintenance reminders are also available
on the center display. (models with center multi-
function control panel) (See ªHow to use INFO
buttonº (P.4-10).)
&RQGLWLRQ


> (GLW    0RGHO (' @
2-26Instruments and controls
SIC3678

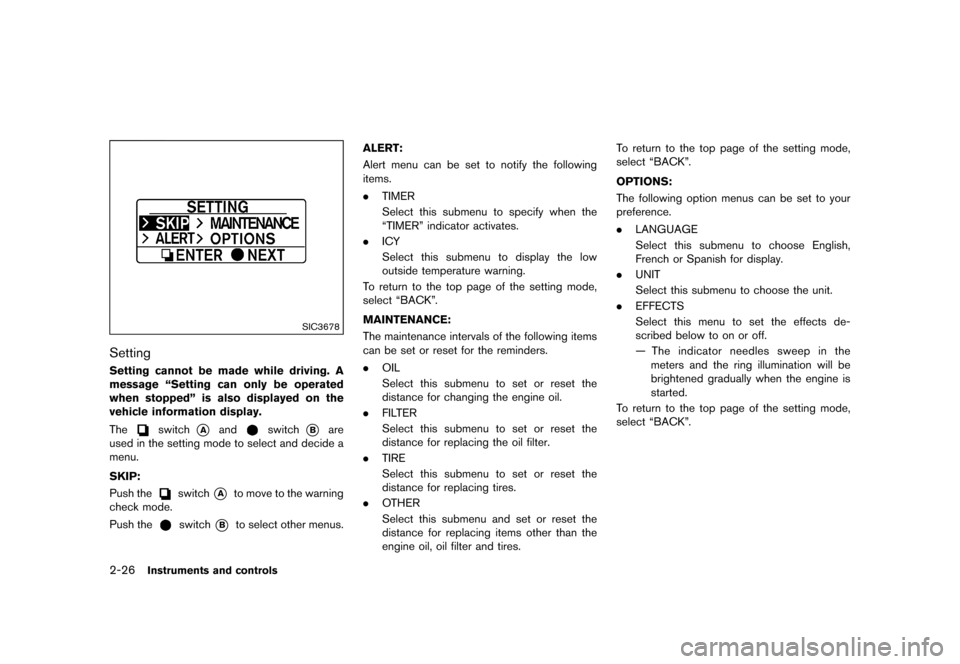

SettingGUID-81BEB78D-5B29-43BA-9378-A6E18A1FD1E5Setting cannot be made while driving. A
message ªSetting can only be operated
when stoppedº is also displayed on the
vehicle information display.
The
switch*Aandswitch*Bare
used in the setting mode to select and decide a
menu.
SKIP:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push theswitch*Ato move to the warning
check mode.
Push the
switch*Bto select other menus. ALERT:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Alert menu can be set to notify the following
items.
.
TIMER
Select this submenu to specify when the
ªTIMERº indicator activates.
. ICY
Select this submenu to display the low
outside temperature warning.
To return to the top page of the setting mode,
select ªBACKº.
MAINTENANCE:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The maintenance intervals of the following items
can be set or reset for the reminders.
. OIL
Select this submenu to set or reset the
distance for changing the engine oil.
. FILTER
Select this submenu to set or reset the
distance for replacing the oil filter.
. TIRE
Select this submenu to set or reset the
distance for replacing tires.
. OTHER
Select this submenu and set or reset the
distance for replacing items other than the
engine oil, oil filter and tires. To return to the top page of the setting mode,
select ªBACKº.
OPTIONS:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The following option menus can be set to your
preference.
.
LANGUAGE
Select this submenu to choose English,
French or Spanish for display.
. UNIT
Select this submenu to choose the unit.
. EFFECTS
Select this menu to set the effects de-
scribed below to on or off.
Ð The indicator needles sweep in the
meters and the ring illumination will be
brightened gradually when the engine is
started.
To return to the top page of the setting mode,
select ªBACKº.
