NISSAN ROGUE 2009 Owner´s Manual

Black plate (8,1)
Model "S35-D" EDITED: 2008/ 7/ 24
SIC3470
1. Side ventilator (P.4-2)
2. Headlight, fog light* and turn signal switch
(P.2-25)
3. Paddle shifter* (P.5-15)4. Steering-wheel-mounted controls (left side)*
— Audio control* (P.4-23)
— Bluetooth
®Hands-Free Phone System control*
(P.4-25)
5. Steering wheel
— Horn (P.2-30)
— Driver supplemental air bag (P.1-38)
— Electric power steering system (P.5-26)6. Meters and gauges (P.2-3)
7. Steering-wheel-mounted controls (right side)
— Cruise control switches (P.5-19)
8. Wiper and washer switch (P.2-22)
9. Center ventilator (P.4-2)
10. Hazard warning flasher switch (P.2-29)
11. Audio system (P.4-6)
— Clock (P.2-31)
12. Front passenger supplemental air bag (P.1-38)
13. Outside remote mirror control switch (P.3-26)
14. Headlight aiming control* (P.2-27)
15. All-Wheel Drive (AWD) LOCK switch* (P.5-22)
16. Fuse box cover (P.8-20)
17. Vehicle Dynamic Control (VDC) OFF switch
(P.2-31, 5-28)
18. Hood release handle (P.3-20)
19. Tilting steering wheel lever (P.3-24)
20. Parking brake (P.5-18)
21. Ignition switch (P.5-9)
22. Heated seat switch* (P.2-30)
23. Power outlet (P.2-32)
24. Heater/air conditioner control (P.4-2)
25. Selector lever (P.5-13)
26. Front passenger air bag status light (P.1-45)
27. Rear window and outside mirror* defroster switch
(P.2-24)
28. Glove box (P.2-35)
*: if so equipped
INSTRUMENT PANEL0-6
Illustrated table of contents

Black plate (9,1)
Model "S35-D" EDITED: 2008/ 7/ 24
SIC3471
1. Tachometer (P.2-5)
2. Fuel gauge (P.2-6)
3. Vehicle information display (P.2-6)
— Odometer/twin trip odometer (P.2-4)
— Trip computer* (P.2-7)
— Outside air temperature* (P.2-6)
— Continuously Variable Transmission (CVT)position indicator (P.2-7)
4. Engine coolant temperature gauge (P.2-5)
5. Speedometer (P.2-4)
6. Warning/indicator lights (P.2-11)
7. Instrument brightness control knob (P.2-28)8. RESET switch for trip odometer (P.2-4)/Trip
computer* mode switch (P.2-7)
*: if so equipped
METERS AND GAUGES
Illustrated table of contents
0-7

Black plate (10,1)
Model "S35-D" EDITED: 2008/ 7/ 24
SDI2127
QR25DE ENGINE1. Engine oil filler cap (P.8-8)
2. Brake fluid reservoir (P.8-11)
3. Air cleaner (P.8-16)
4. Engine coolant reservoir (P.8-8)
5. Window washer fluid reservoir (P.8-12)6. Engine drive belt location (P.8-14)
7. Engine oil dipstick (P.8-8)
8. Radiator filler cap (P.8-7)
— Vehicle overheat (P.6-11)
9. Battery (P.8-13)
— Jump starting (P.6-9)
10. Fuse/fusible link holder (P.8-19)ENGINE COMPARTMENT0-8
Illustrated table of contents

Black plate (4,1)

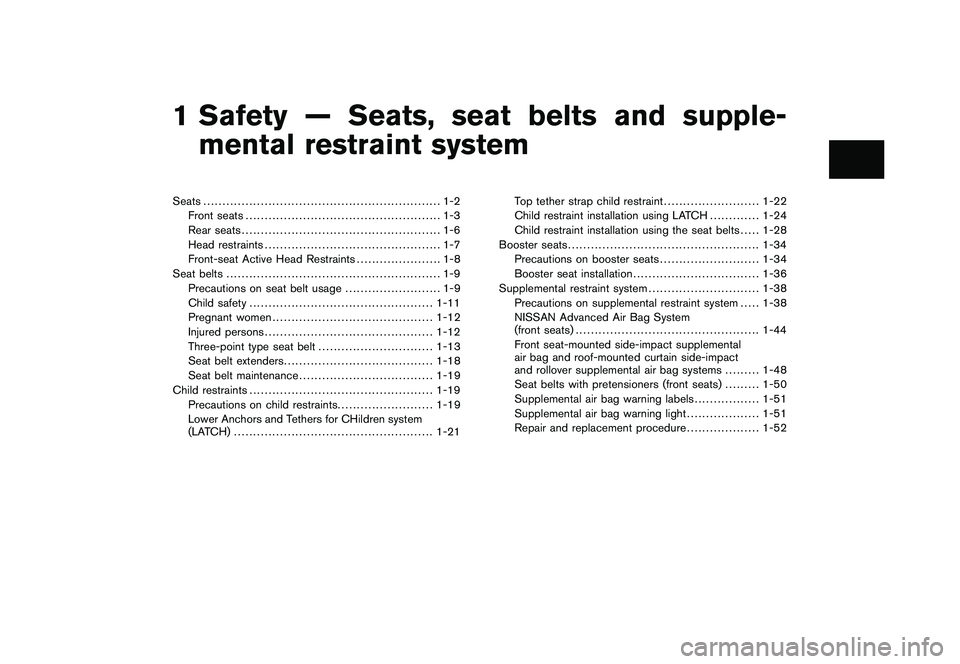

1 Safety — Seats, seat belts and supple-
mental restraint system
Model "S35-D" EDITED: 2008/ 6/ 3
Seats.............................................................. 1-2
Front seats................................................... 1-3
Rear seats.................................................... 1-6
Head restraints.............................................. 1-7
Front-seat Active Head Restraints...................... 1-8
Seat belts........................................................ 1-9
Precautions on seat belt usage......................... 1-9
Child safety................................................ 1-11
Pregnant women.......................................... 1-12
Injured persons............................................ 1-12
Three-point type seat belt.............................. 1-13
Seat belt extenders....................................... 1-18
Seat belt maintenance................................... 1-19
Child restraints................................................ 1-19
Precautions on child restraints......................... 1-19
Lower Anchors and Tethers for CHildren system
(LATCH) .................................................... 1-21Top tether strap child restraint......................... 1-22
Child restraint installation using LATCH............. 1-24
Child restraint installation using the seat belts ..... 1-28
Booster seats.................................................. 1-34
Precautions on booster seats.......................... 1-34
Booster seat installation................................. 1-36
Supplemental restraint system............................. 1-38
Precautions on supplemental restraint system ..... 1-38
NISSAN Advanced Air Bag System
(front seats)................................................ 1-44
Front seat-mounted side-impact supplemental
air bag and roof-mounted curtain side-impact
and rollover supplemental air bag systems......... 1-48
Seat belts with pretensioners (front seats)......... 1-50
Supplemental air bag warning labels................. 1-51
Supplemental air bag warning light................... 1-51
Repair and replacement procedure................... 1-52

Black plate (14,1)
Model "S35-D" EDITED: 2008/ 7/ 28
SSS0133
WARNING
.Do not ride in a moving vehicle
when the seatback is reclined. This
can be dangerous. The shoulder belt
will not be against your body. In an
accident, you could be thrown into it
and receive neck or other serious
injuries. You could also slide under
the lap belt and receive serious
internal injuries.
. For the most effective protection
when the vehicle is in motion, the
seat should be upright. Always sit well back in the seat with both feet
on the floor and adjust the seat
properly. See “PRECAUTIONS ON
SEAT BELT USAGE” later in this
section.
. After adjustment, gently rock in the
seat to make sure it is securely
locked.
. Do not leave children unattended
inside the vehicle. They could un-
knowingly activate switches or con-
trols. Unattended children could
become involved in serious acci-
dents. .
Do not adjust the driver’s seat while
driving so full attention may be
given to vehicle operation. The seat
may move suddenly and could
cause loss of control of the vehicle.
. The seatback should not be reclined
any more than needed for comfort.
Seat belts are most effective when
the passenger sits well back and
straight up in the seat. If the seat-
back is reclined, the risk of sliding
under the lap belt and being injured
is increased.
CAUTION
.When adjusting the seat positions,
be sure not to contact any moving
parts to avoid possible injuries and/
or damages.
. Avoid contact with the underside of
the seat when retrieving items or
cleaning underneath it. There may
be sharp objects on the underside
of the seat which may cause injury.
SEATS1-2
Safety — Seats, seat belts and supplemental restraint system

Black plate (15,1)
Model "S35-D" EDITED: 2008/ 7/ 24
SSS0792
FRONT SEATS
Front manual seat adjustmentForward and backward:
Pull the lever
*1
up and hold it while you slide
the seat forward or backward to the desired
position. Release the lever to lock the seat in
position.
Reclining:
To recline the seatback, pull the lever
*2
up and
lean back. To bring the seatback forward, pull
the lever up and lean your body forward. Release
the lever to lock the seatback in position.The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. (See “PRECAUTIONS ON SEAT BELT
USAGE” later in this section.) Also, the seatback
can be reclined to allow occupants to rest when
the vehicle is stopped and the transmission in
the P (Park) position with the parking brake fully
applied.
SSS0793
Seat lifter (if so equipped):
Pull up or push down the adjusting lever to
adjust the seat height until the desired position
is achieved.
Safety — Seats, seat belts and supplemental restraint system
1-3

Black plate (16,1)
Model "S35-D" EDITED: 2008/ 7/ 24
Front power seat adjustmentOperating tips:
.The seat motor has an auto-reset overload
protection circuit. If the motor stops during
operation, wait for a while, then reactivate
the switch.
.Do not operate the power seat for a long
period of time when the engine is off. This
will discharge the battery.
SSS0661
Forward and backward:
Moving the switch
*1
forward or backward will
slide the seat forward or backward to the
desired position.
Reclining:
Move the recline switch*2
backward until the
desired angle is obtained. To bring the seatback
forward again, move the switch
*2
forward.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. (See “PRECAUTIONS ON SEAT BELT
USAGE” later in this section.) Also, the seatback
can be reclined to allow occupants to rest whenthe vehicle is stopped and the transmission in
the P (Park) position with the parking brake fully
applied.
1-4
Safety — Seats, seat belts and supplemental restraint system

Black plate (17,1)
Model "S35-D" EDITED: 2008/ 7/ 24
SSS0794

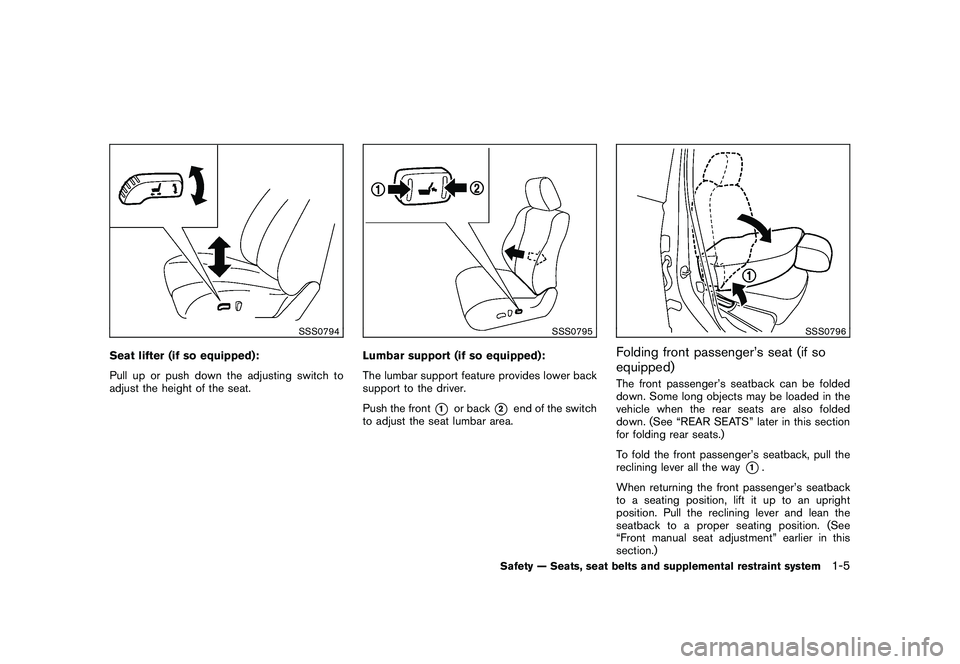

Seat lifter (if so equipped):
Pull up or push down the adjusting switch to
adjust the height of the seat.
SSS0795
Lumbar support (if so equipped):
The lumbar support feature provides lower back
support to the driver.
Push the front
*1
or back
*2
end of the switch
to adjust the seat lumbar area.
SSS0796
Folding front passenger’s seat (if so
equipped)The front passenger’s seatback can be folded
down. Some long objects may be loaded in the
vehicle when the rear seats are also folded
down. (See “REAR SEATS” later in this section
for folding rear seats.)
To fold the front passenger’s seatback, pull the
reclining lever all the way
*1.
When returning the front passenger’s seatback
to a seating position, lift it up to an upright
position. Pull the reclining lever and lean the
seatback to a proper seating position. (See
“Front manual seat adjustment” earlier in this
section.)
Safety — Seats, seat belts and supplemental restraint system
1-5

Black plate (18,1)
Model "S35-D" EDITED: 2008/ 7/ 24
WARNING
.If you fold the front passenger’s
seatback down to carry longer ob-
jects, be sure this cargo is properly
secured and not near an air bag. In a
crash, an inflating air bag might
force that object toward a person.
This could cause severe injury or
even death. Secure objects away
from the area in which an air bag
would inflate. See “PRECAUTIONS
ON SUPPLEMENTAL RESTRAINT
SYSTEM” later in this section.
.Never allow anyone to ride in the
cargo area or on the front passen-
ger’s seat when it is in the fold-
down position. Use of these areas
by passengers could result in ser-
ious injury in an accident or sudden
stop.
SSS0797
REAR SEATS
FoldingBefore folding the rear seats:
.Secure the seat belts on the seat belt hooks
on the side wall. (See “Seat belt hooks” later
in this section.)
.Release the connector tongue of the rear
center seat belt from the buckle, and store
the connector and seat belt tongues into the
retractor base on the ceiling. (See “Rear
center seat belt” later in this section.)
To fold down the seatback of each rear seat, pull
the adjusting knob
*A
.To return the seatback to the seating position, lift
up each seatback and push it to the upright
position until it is latched.

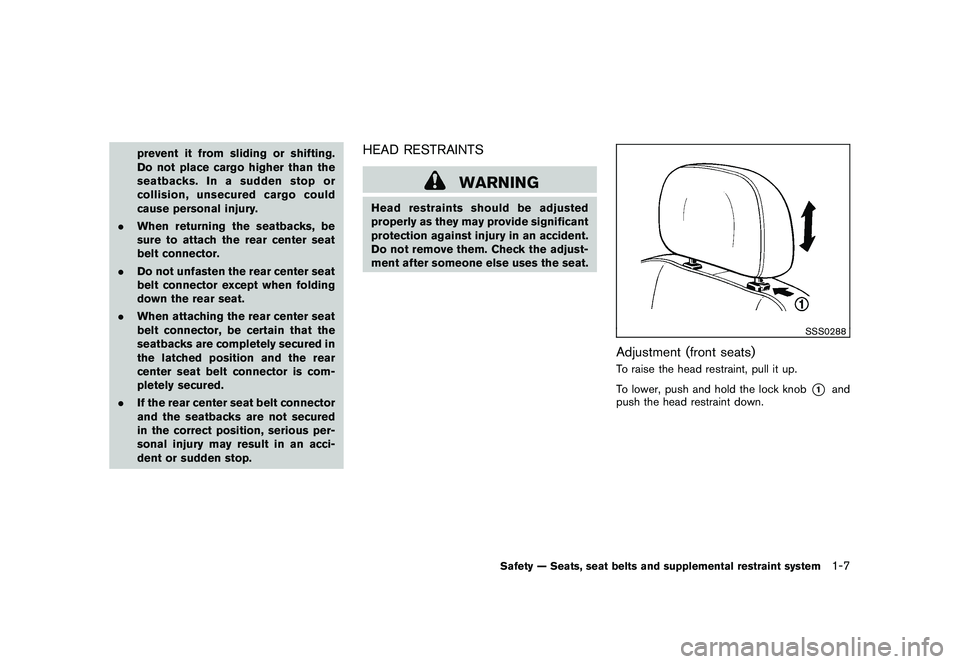

WARNING
.Never allow anyone to ride in the
cargo area or on the rear seats
when they are in the fold-down
position. In a collision, people riding
in these areas are more likely to be
seriously injured or killed.
.Do not allow people to ride in any
area of your vehicle that is not
equipped with seats and seat belts.
Be sure everyone in your vehicle is
in a seat and using a seat belt
properly.
.Do not fold down the rear seats
when occupants are in the rear seat
area or any luggage is on the rear
seats.
.When returning the seatbacks to the
upright position, be certain they are
completely secured in the latched
position. If they are not completely
secured, passengers may be injured
in an accident or sudden stop.
.Properly secure all cargo to help
1-6
Safety — Seats, seat belts and supplemental restraint system

Black plate (19,1)
Model "S35-D" EDITED: 2008/ 7/ 24
prevent it from sliding or shifting.
Do not place cargo higher than the
seatbacks. In a sudden stop or
collision, unsecured cargo could
cause personal injury.
.When returning the seatbacks, be
sure to attach the rear center seat
belt connector.
.Do not unfasten the rear center seat
belt connector except when folding
down the rear seat.
.When attaching the rear center seat
belt connector, be certain that the
seatbacks are completely secured in
the latched position and the rear
center seat belt connector is com-
pletely secured.
.If the rear center seat belt connector
and the seatbacks are not secured
in the correct position, serious per-
sonal injury may result in an acci-
dent or sudden stop.
HEAD RESTRAINTS
WARNING
Head restraints should be adjusted
properly as they may provide significant
protection against injury in an accident.
Do not remove them. Check the adjust-
ment after someone else uses the seat.
SSS0288
Adjustment (front seats)To raise the head restraint, pull it up.
To lower, push and hold the lock knob
*1
and
push the head restraint down.
Safety — Seats, seat belts and supplemental restraint system
1-7
