fuel NISSAN ROGUE 2009 Owner´s Manual

Black plate (6,1)
Model "S35-D" EDITED: 2008/ 7/ 24
SSI0350
1. Lift gate (P.3-21)
— Intelligent Key system* (P.3-8)
2. Rear window wiper and washer
— Switch operation (P.2-23)
— Window washer fluid (P.8-12)
3. Rear window defroster (P.2-24)4. High-mounted stop light
— Bulb replacement (P.8-26)
5. Antenna (P.4-24)
— Satellite radio antenna* (P.4-7)
6. Back-up light
— Bulb replacement (P.8-26)7. Rear combination light
— Bulb replacement (P.8-26)
8. Fuel-filler door
— Operation (P.3-22)
— Fuel recommendation (P.9-3)
*: if so equippedEXTERIOR REAR0-4
Illustrated table of contents

Black plate (9,1)
Model "S35-D" EDITED: 2008/ 7/ 24
SIC3471
1. Tachometer (P.2-5)
2. Fuel gauge (P.2-6)
3. Vehicle information display (P.2-6)
— Odometer/twin trip odometer (P.2-4)
— Trip computer* (P.2-7)
— Outside air temperature* (P.2-6)
— Continuously Variable Transmission (CVT)position indicator (P.2-7)
4. Engine coolant temperature gauge (P.2-5)
5. Speedometer (P.2-4)
6. Warning/indicator lights (P.2-11)
7. Instrument brightness control knob (P.2-28)8. RESET switch for trip odometer (P.2-4)/Trip
computer* mode switch (P.2-7)
*: if so equipped
METERS AND GAUGES
Illustrated table of contents
0-7

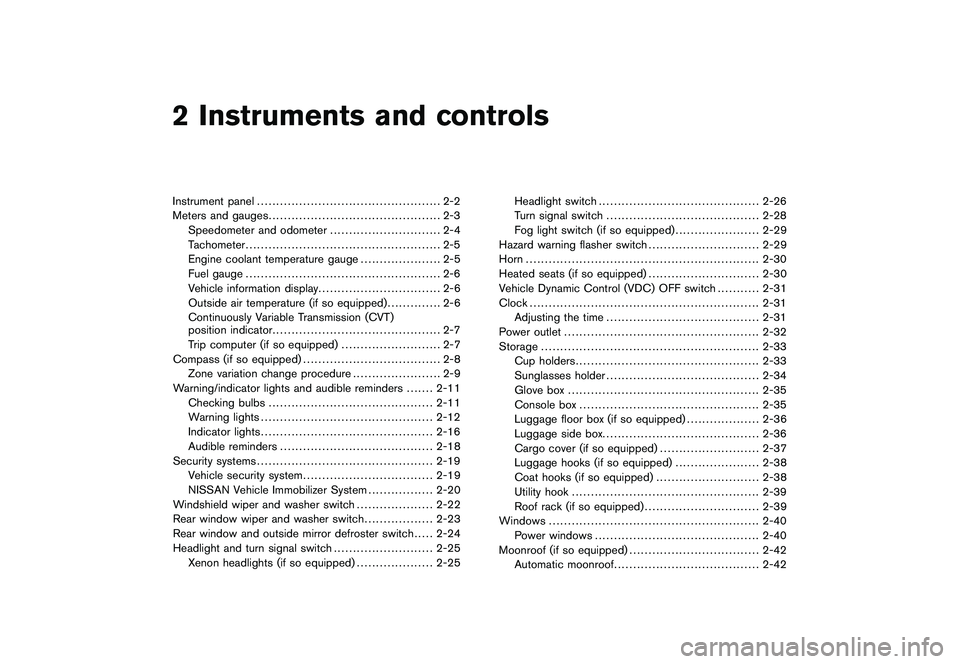

Black plate (7,1)
2 Instruments and controls
Model "S35-D" EDITED: 2008/ 6/ 3
Instrument panel................................................ 2-2
Meters and gauges............................................. 2-3
Speedometer and odometer............................. 2-4
Tachometer................................................... 2-5
Engine coolant temperature gauge..................... 2-5
Fuel gauge................................................... 2-6
Vehicle information display................................ 2-6
Outside air temperature (if so equipped).............. 2-6
Continuously Variable Transmission (CVT)
position indicator............................................ 2-7
Trip computer (if so equipped).......................... 2-7
Compass (if so equipped).................................... 2-8
Zone variation change procedure....................... 2-9
Warning/indicator lights and audible reminders....... 2-11
Checking bulbs........................................... 2-11
Warning lights............................................. 2-12
Indicator lights............................................. 2-16
Audible reminders........................................ 2-18
Security systems.............................................. 2-19
Vehicle security system.................................. 2-19
NISSAN Vehicle Immobilizer System................. 2-20
Windshield wiper and washer switch.................... 2-22
Rear window wiper and washer switch.................. 2-23
Rear window and outside mirror defroster switch..... 2-24
Headlight and turn signal switch.......................... 2-25
Xenon headlights (if so equipped).................... 2-25Headlight switch.......................................... 2-26
Turn signal switch........................................ 2-28
Fog light switch (if so equipped)...................... 2-29
Hazard warning flasher switch............................. 2-29
Horn............................................................. 2-30
Heated seats (if so equipped)............................. 2-30
Vehicle Dynamic Control (VDC) OFF switch........... 2-31
Clock............................................................ 2-31
Adjusting the time........................................ 2-31
Power outlet................................................... 2-32
Storage......................................................... 2-33
Cup holders................................................ 2-33
Sunglasses holder........................................ 2-34
Glove box.................................................. 2-35
Console box............................................... 2-35
Luggage floor box (if so equipped)................... 2-36
Luggage side box......................................... 2-36
Cargo cover (if so equipped).......................... 2-37
Luggage hooks (if so equipped)...................... 2-38
Coat hooks (if so equipped)........................... 2-38
Utility hook................................................. 2-39
Roof rack (if so equipped).............................. 2-39
Windows....................................................... 2-40
Power windows........................................... 2-40
Moonroof (if so equipped).................................. 2-42
Automatic moonroof...................................... 2-42

Black plate (69,1)
Model "S35-D" EDITED: 2008/ 7/ 24
SIC3471
1. Tachometer
2. Fuel gauge
3. Vehicle information display
— Odometer/twin trip odometer
— Trip computer*
— Outside air temperature*
— Continuously Variable Transmission (CVT)position indicator
4. Engine coolant temperature gauge
5. Speedometer
6. Warning/indicator lights
7. Instrument brightness control knob
8. RESET switch for trip odometer/Trip computer*
mode switch
*: if so equipped
The needle indicators may move slightly
after the ignition switch is turned to the
LOCK position. This is not a malfunction.
METERS AND GAUGES
Instruments and controls
2-3

Black plate (72,1)
Model "S35-D" EDITED: 2008/ 7/ 24
SIC3954
FUEL GAUGEThe gauge
*1
indicates theapproximatefuel
level in the tank.
The gauge may move slightly during braking,
turning, acceleration, or going up or down hills.
Refill the fuel tank before the gauge
registers E (Empty) .
The low fuel warning light
illuminates when
the fuel tank is getting low. Refuel as soon as it
is convenient, preferably before the gauge
reaches E. There will be a small reserve of fuel
in the tank when the fuel gauge reaches E.
The
indicates that the fuel-filler door islocated on the passenger’s side of the vehicle.
CAUTION
.If the vehicle runs out of fuel, the
malfunction indicator light
(MIL) may come on. Refuel as soon
as possible. After a few driving trips,
the
light should turn off. If the
light remains on after a few driving
trips, have the vehicle inspected by
a NISSAN dealer.
.For additional information, see
“Malfunction Indicator Light (MIL)”
later in this section.
SIC3951
VEHICLE INFORMATION DISPLAYWhen the ignition switch is turned to the ON
position, the vehicle information display shows
the following information:1. Outside air temperature (if so equipped)
2. Continuously Variable Transmission (CVT) posi-
tion indicator
3. Odometer/Instrument brightness control display
4. Twin trip odometer/Trip computer (if so equipped)OUTSIDE AIR TEMPERATURE (if so
equipped)The outside air temperature is displayed in8For
8C.
2-6
Instruments and controls

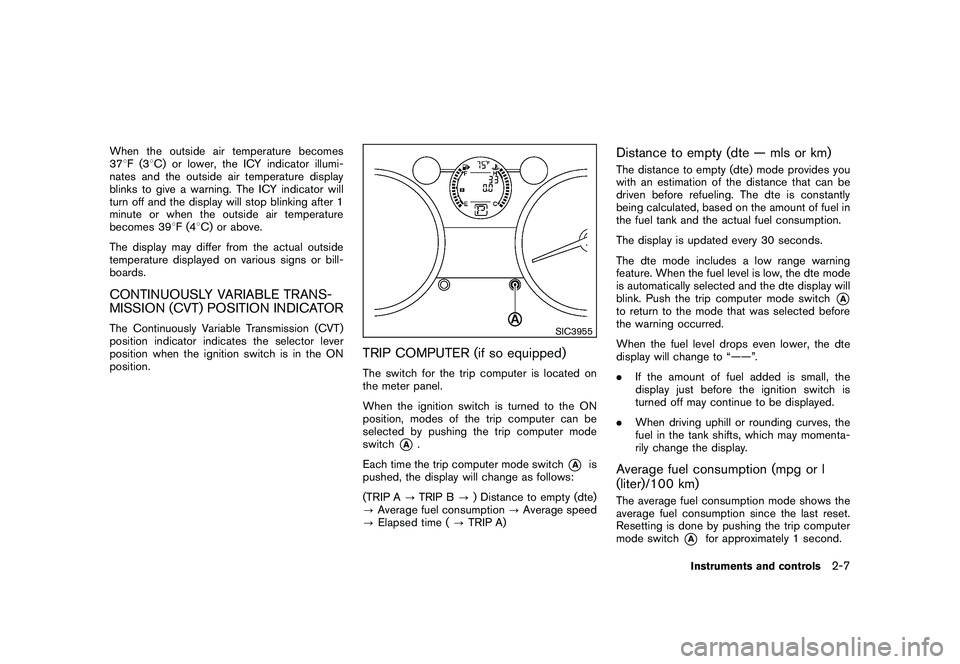

Black plate (73,1)
Model "S35-D" EDITED: 2008/ 7/ 24
When the outside air temperature becomes
378F(38C) or lower, the ICY indicator illumi-
nates and the outside air temperature display
blinks to give a warning. The ICY indicator will
turn off and the display will stop blinking after 1
minute or when the outside air temperature
becomes 398F(48C) or above.
The display may differ from the actual outside
temperature displayed on various signs or bill-
boards.CONTINUOUSLY VARIABLE TRANS-
MISSION (CVT) POSITION INDICATORThe Continuously Variable Transmission (CVT)
position indicator indicates the selector lever
position when the ignition switch is in the ON
position.
SIC3955
TRIP COMPUTER (if so equipped)The switch for the trip computer is located on
the meter panel.
When the ignition switch is turned to the ON
position, modes of the trip computer can be
selected by pushing the trip computer mode
switch
*A
.
Each time the trip computer mode switch
*A
is
pushed, the display will change as follows:
(TRIP A?TRIP B?) Distance to empty (dte)
?Average fuel consumption?Average speed
?Elapsed time (?TRIP A)
Distance to empty (dte — mls or km)The distance to empty (dte) mode provides you
with an estimation of the distance that can be
driven before refueling. The dte is constantly
being calculated, based on the amount of fuel in
the fuel tank and the actual fuel consumption.
The display is updated every 30 seconds.
The dte mode includes a low range warning
feature. When the fuel level is low, the dte mode
is automatically selected and the dte display will
blink. Push the trip computer mode switch
*A
to return to the mode that was selected before
the warning occurred.
When the fuel level drops even lower, the dte
display will change to “——”.
.If the amount of fuel added is small, the
display just before the ignition switch is
turned off may continue to be displayed.
.When driving uphill or rounding curves, the
fuel in the tank shifts, which may momenta-
rily change the display.Average fuel consumption (mpg or l
(liter)/100 km)The average fuel consumption mode shows the
average fuel consumption since the last reset.
Resetting is done by pushing the trip computer
mode switch
*A
for approximately 1 second.
Instruments and controls
2-7

Black plate (74,1)
Model "S35-D" EDITED: 2008/ 7/ 24
The display is updated every 30 seconds. At
about the first 1/3 mile (500 m) after a reset, the
display shows “——”.Average speed (mph or km/h)The average speed mode shows the average
vehicle speed since the last reset. Resetting is
done by pushing the trip computer mode switch*A
for approximately 1 second.
The display is updated every 30 seconds. The
first 30 seconds after a reset, the display shows
“——”.
Elapsed timeThe elapsed time mode shows the time since
the last reset. The displayed time can be reset
by pushing the trip computer mode switch
*A
for approximately 1 second.Resetting displaysPush the trip computer mode switch
*A
for
longer than 3 seconds. The average fuel
consumption, average speed, elapsed time and
trip odometer (TRIP B only) displays will be reset
at the same time.
SIC3181
When the ignition switch is turned to the ON
position, the compass display
*B
will indicate
the direction of the vehicle’s heading.
If the display reads “C”, calibrate the compass
by driving the vehicle in 3 complete circles at
less than 5 MPH (8 km/h). You can also
calibrate the compass by driving your vehicle
on your everyday route. The compass will be
calibrated once it has tracked 3 complete
circles.
To turn on and off the compass manually, push
the
switch
*A
while the ignition switch is in
the ON position.
COMPASS (if so equipped)
2-8
Instruments and controls

Black plate (77,1)
Model "S35-D" EDITED: 2008/ 7/ 24
All-Wheel Drive (AWD) warning light (AWD
models)*
Low fuel warning light
High beam indicator light (Blue)
Anti-lock Braking System (ABS) warning
light
Low tire pressure warning light
Malfunction Indicator Light (MIL)
Low washer fluid warning light*
Overdrive off indicator light*
Brake warning light
P position selecting warning light*
Security indicator light
Seat belt warning light
Slip indicator light
Charge warning light
Supplemental air bag warning light
Small light indicator light
Door open warning light
Front passenger air bag status light
Turn signal/hazard indicator lights
Electric power steering warning light
All-Wheel Drive (AWD) LOCK indicator light
(AWD models)*
Vehicle Dynamic Control (VDC) off indicator
light
Engine oil pressure warning light
Cruise main switch indicator light
Intelligent Key system warning light*
Cruise set indicator light
*: if so equipped
CHECKING BULBSWith all doors closed, apply the parking brake
and turn the ignition switch to the ON position
without starting the engine. The following lights
will come on:
,
or
,
,
,
,
,
The following lights come on briefly and then go
off (if so equipped):
,
or
,
,
,
,
,
,
,
If any light does not come on, it may indicate a
burned-out bulb or an open circuit in the
electrical system. Have the system checked by
a NISSAN dealer.
WARNING/INDICATOR LIGHTS AND
AUDIBLE REMINDERS
Instruments and controls
2-11

Black plate (80,1)
Model "S35-D" EDITED: 2008/ 7/ 24
yourself” section.)
CAUTION
Running the engine with the engine oil
pressure warning light on could cause
serious damage to the engine almost
immediately. Such damage is not cov-
ered by warranty. Turn off the engine as
soon as it is safe to do so.
Intelligent Key system warning light
(if so equipped)
This light illuminates in green when it is possible
to turn the ignition switch.
When the light illuminates in red, it is not
possible to turn the ignition switch.
.The warning light blinks in red when the
Intelligent Key is outside the vehicle with the
ignition switch in the ACC or ON position.
Confirm the location of the key as soon as
possible when the warning light blinks in
red. Be sure to carry the Intelligent Key with
you while driving the vehicle.
.The warning light turns off about 10
seconds after the Intelligent Key is brought
inside the vehicle.See “INTELLIGENT KEY SYSTEM” in the “3.
Pre-driving checks and adjustments” section.
Low fuel warning light
This light illuminates when the fuel in the tank is
getting low. Refuel as soon as it is convenient,
preferably before the fuel gauge reaches the E
(Empty) position.
There will be a small reserve of fuel
remaining in the tank when the fuel gauge
reaches E.
Low tire pressure warning light
Your vehicle is equipped with a Tire Pressure
Monitoring System (TPMS) that monitors the tire
pressure of all tires except the spare.
The low tire pressure warning light warns of low
tire pressure or indicates that the TPMS is not
functioning properly.
After the ignition switch is turned ON, this light
illuminates for about 1 second and turns off.
Low tire pressure warning:
If the vehicle is being driven with low tire
pressure, the warning light will illuminate.
When the low tire pressure warning light
illuminates, you should stop and adjust the tire
pressure to the recommended COLD tirepressure shown on the Tire and Loading
Information label. The low tire pressure warning
light does not automatically turn off when the tire
pressure is adjusted. After the tire is inflated to
the recommended pressure, the vehicle must be
driven at speeds above 16 MPH (25 km/h) to
activate the TPMS and turn off the low tire
pressure warning light. Use a tire pressure
gauge to check the tire pressure.
For additional information, see “TIRE PRES-
SURE MONITORING SYSTEM (TPMS)” in the
“5. Starting and driving” section and “TIRE
PRESSURE MONITORING SYSTEM (TPMS)”
in the “6. In case of emergency” section.
TPMS malfunction:
If the TPMS is not functioning properly, the low
tire pressure warning light will flash for approxi-
mately 1 minute when the ignition switch is
turned ON. The light will remain on after 1
minute. Have the system checked by a NISSAN
dealer.
For additional information, see “TIRE PRES-
SURE MONITORING SYSTEM (TPMS)” in the
“5. Starting and driving” section.
WARNING
.If the light does not illuminate with
the ignition switch turned ON, have
2-14
Instruments and controls

Black plate (83,1)
Model "S35-D" EDITED: 2008/ 7/ 24
Seats, seat belts and supplemental restraint
system” section of this manual.
High beam indicator light (Blue)
This light illuminates when the headlight high
beam is on and goes out when the low beam is
selected.
Malfunction Indicator Light (MIL)
If the malfunction indicator light illuminates
steady or blinks while the engine is running, it
may indicate a potential emission control and/or
Continuously Variable Transmission (CVT) mal-
function.
The malfunction indicator light may also illumi-
nate steady if the fuel-filler cap is loose or
missing, or if the vehicle runs out of fuel. Check
to make sure the fuel-filler cap is installed and
closed tightly, and that the vehicle has at least 3
US gallons (11.4 liters) of fuel in the fuel tank.
After a few driving trips, the
light should
turn off if no other potential emission control
system malfunction exists.
If this indicator light remains on for 20 seconds
and then blinks for 10 seconds when the engine
is not running, it indicates that the vehicle is not
ready for an emission control system inspection/
maintenance test. (See “READINESS FORINSPECTION/MAINTENANCE (I/M) TEST” in
the “9. Technical and consumer information”
section.)
Operation:
The malfunction indicator light will illuminate in
one of two ways:
.Malfunction indicator light illuminated steady
— An emission control system and/or CVT
malfunction has been detected. Check the
fuel-filler cap. If the fuel-filler cap is loose or
missing, tighten or install the cap and
continue to drive the vehicle. The
light
should turn off after a few driving trips. If the
light does not turn off after a few
driving trips, have the vehicle inspected by a
NISSAN dealer. You do not need to have
your vehicle towed to the dealer.
.Malfunction indicator light blinking — An
engine misfire has been detected which may
damage the emission control system.
To reduce or avoid emission control system
damage:
a) Do not drive at speeds above 45 MPH
(72 km/h) .
b) Avoid hard acceleration or deceleration.
c) Avoid steep uphill grades.
d) If possible, reduce the amount of cargobeing hauled or towed.
The malfunction indicator light may stop
blinking and remain illuminated.
Have the vehicle inspected by a NISSAN
dealer. You do not need to have your vehicle
towed to the dealer.
CAUTION
Continued vehicle operation without
having the emission control system
and/or CVT system checked and re-
paired as necessary could lead to poor
driveability, reduced fuel economy, and
possible damage to the emission con-
trol system.
Overdrive off indicator light (if so
equipped)
The overdrive off indicator light illuminates when
the overdrive off mode is selected.
For additional information, see ““CONTINU-
OUSLY VARIABLE TRANSMISSION (CVT)” in
the “5. Starting and driving” section of this
manual.
Instruments and controls
2-17
