NISSAN ROGUE 2013 2.G Owners Manual

Black plate (279,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]

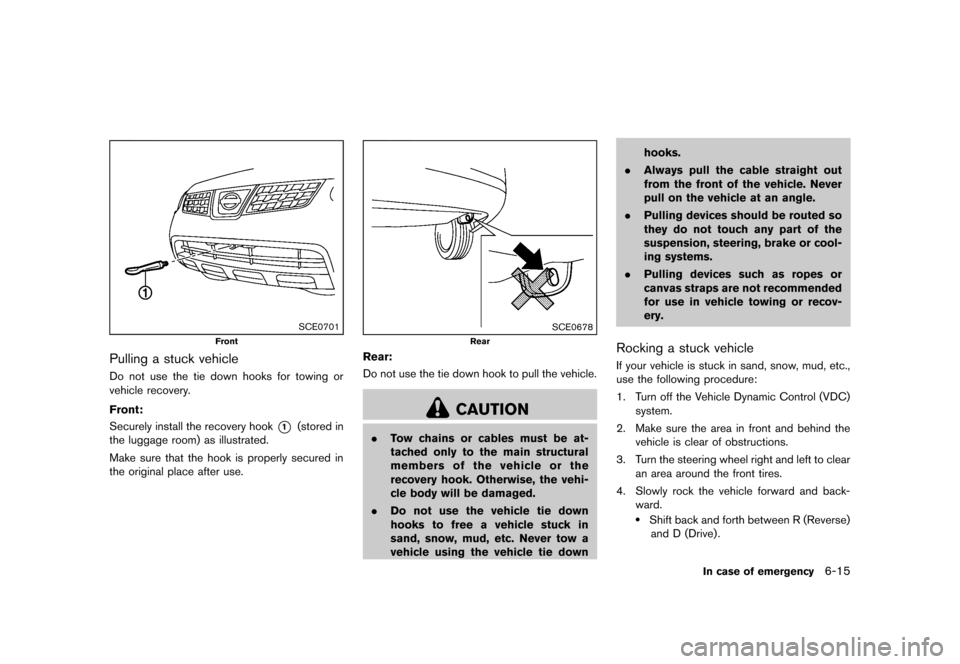

SCE0701
Front
Pulling a stuck vehicleGUID-241C46D0-D4CF-4356-A55F-CB3B28F345C7Do not use the tie down hooks for towing or
vehicle recovery.
Front:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Securely install the recovery hook*1(stored in
the luggage room) as illustrated.
Make sure that the hook is properly secured in
the original place after use.
SCE0678
Rear
Rear:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Do not use the tie down hook to pull the vehicle.
CAUTION
. Tow chains or cables must be at-
tached only to the main structural
members of the vehicle or the
recovery hook. Otherwise, the vehi-
cle body will be damaged.
. Do not use the vehicle tie down
hooks to free a vehicle stuck in
sand, snow, mud, etc. Never tow a
vehicle using the vehicle tie down hooks.
. Always pull the cable straight out
from the front of the vehicle. Never
pull on the vehicle at an angle.
. Pulling devices should be routed so
they do not touch any part of the
suspension, steering, brake or cool-
ing systems.
. Pulling devices such as ropes or
canvas straps are not recommended
for use in vehicle towing or recov-
ery.
Rocking a stuck vehicleGUID-B828A8FE-C292-4C20-9C57-2AEA4FCB8CE2If your vehicle is stuck in sand, snow, mud, etc.,
use the following procedure:
1. Turn off the Vehicle Dynamic Control (VDC)
system.
2. Make sure the area in front and behind the vehicle is clear of obstructions.
3. Turn the steering wheel right and left to clear an area around the front tires.
4. Slowly rock the vehicle forward and back- ward.
.Shift back and forth between R (Reverse)and D (Drive).
In case of emergency6-15

Black plate (280,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]

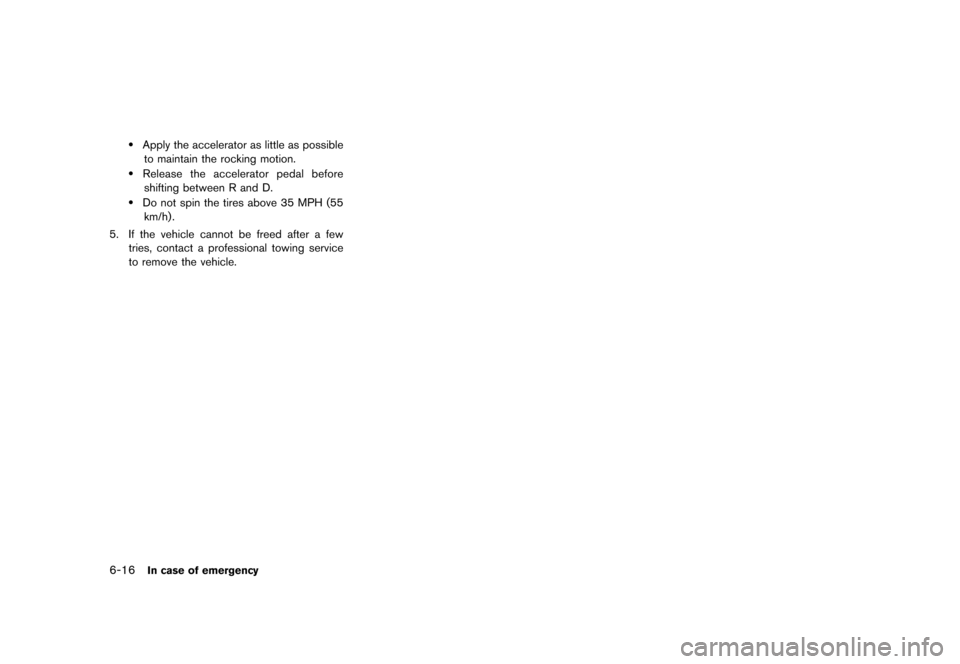

6-16In case of emergency
.Apply the accelerator as little as possibleto maintain the rocking motion.
.Release the accelerator pedal beforeshifting between R and D.
.Do not spin the tires above 35 MPH (55 km/h).
5. If the vehicle cannot be freed after a few tries, contact a professional towing service
to remove the vehicle.

Black plate (281,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]

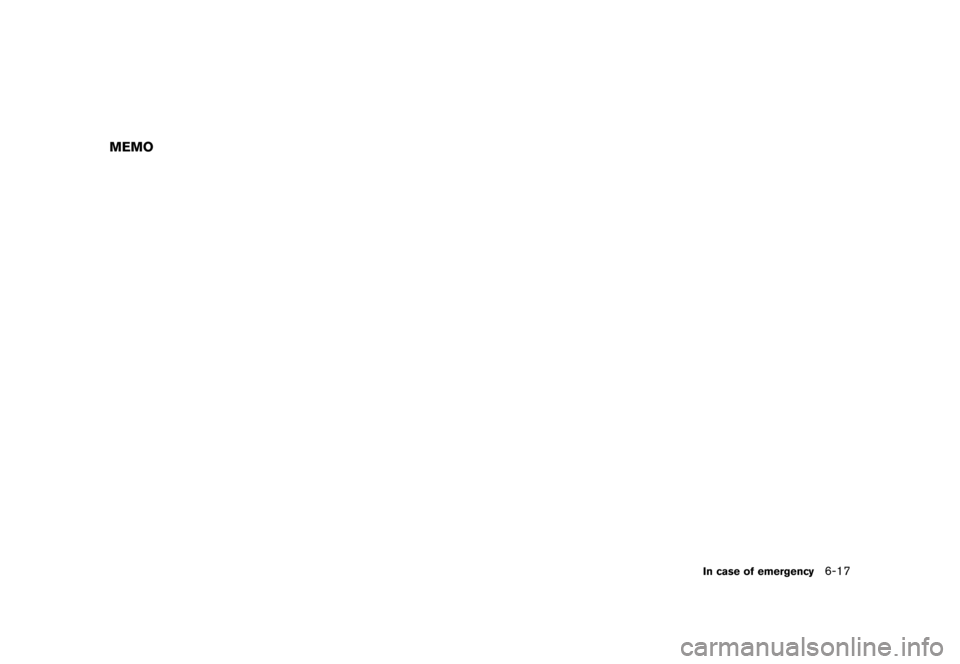

MEMO
In case of emergency6-17

Black plate (282,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]

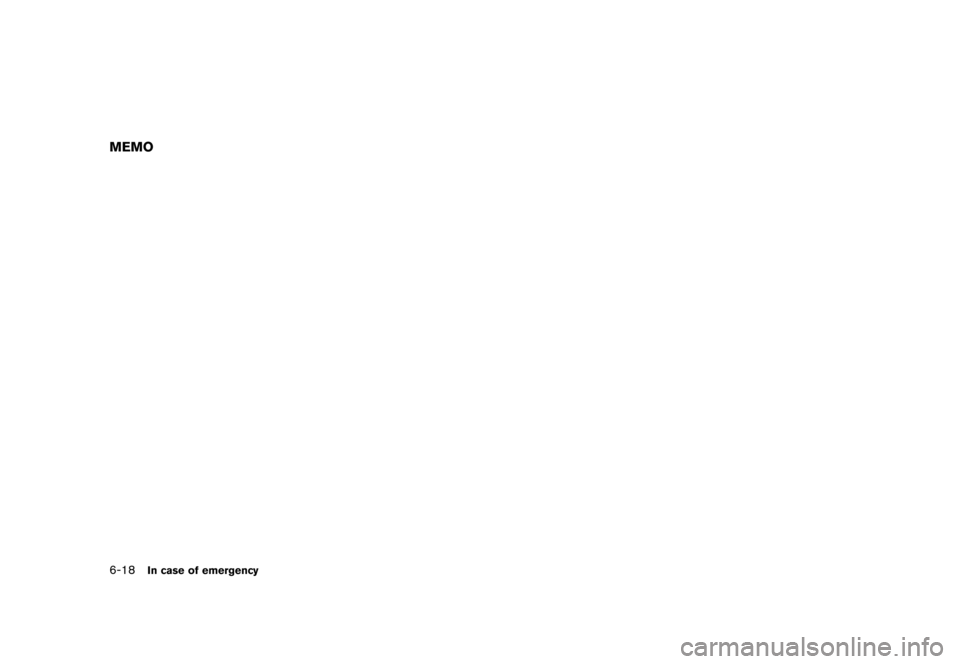

6-18In case of emergency
MEMO

Black plate (283,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]

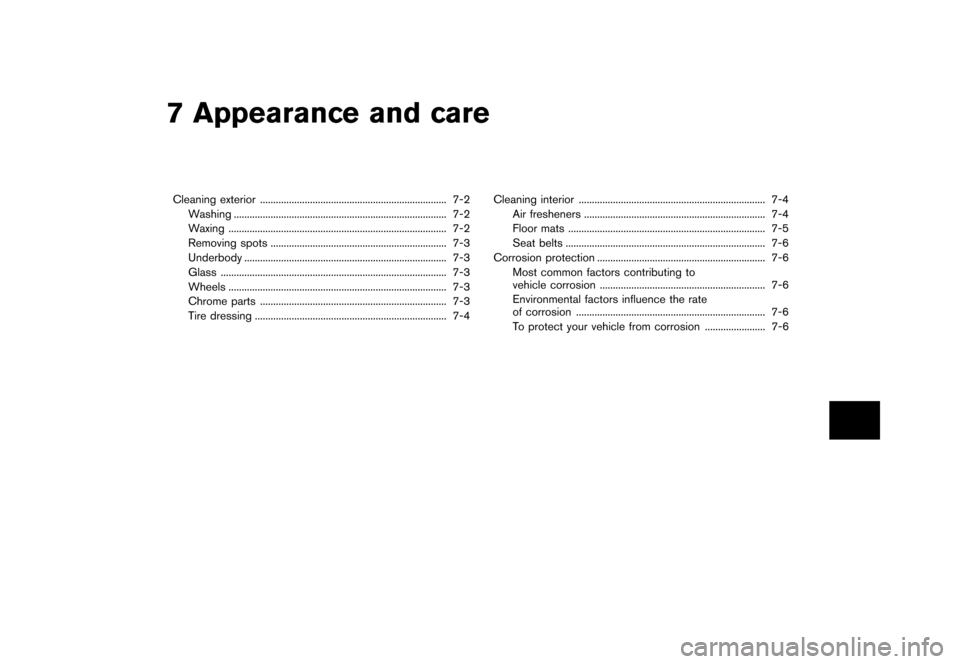

7 Appearance and care
Cleaning exterior...
....................................................................... 7-2
Washing ...
........................................................................\
......... 7-2
Waxing ...
........................................................................\
........... 7-2
Removing spots ...
................................................................... 7-3
Underbody ...
........................................................................\
..... 7-3
Glass ...
........................................................................\
.............. 7-3
Wheels ...
........................................................................\
........... 7-3
Chrome parts ...
....................................................................... 7-3
Tire dressing ...
........................................................................\
. 7-4 Cleaning interior
...
....................................................................... 7-4
Air fresheners ...
..................................................................... 7-4
Floor mats ...
........................................................................\
... 7-5
Seat belts ...
........................................................................\
.... 7-6

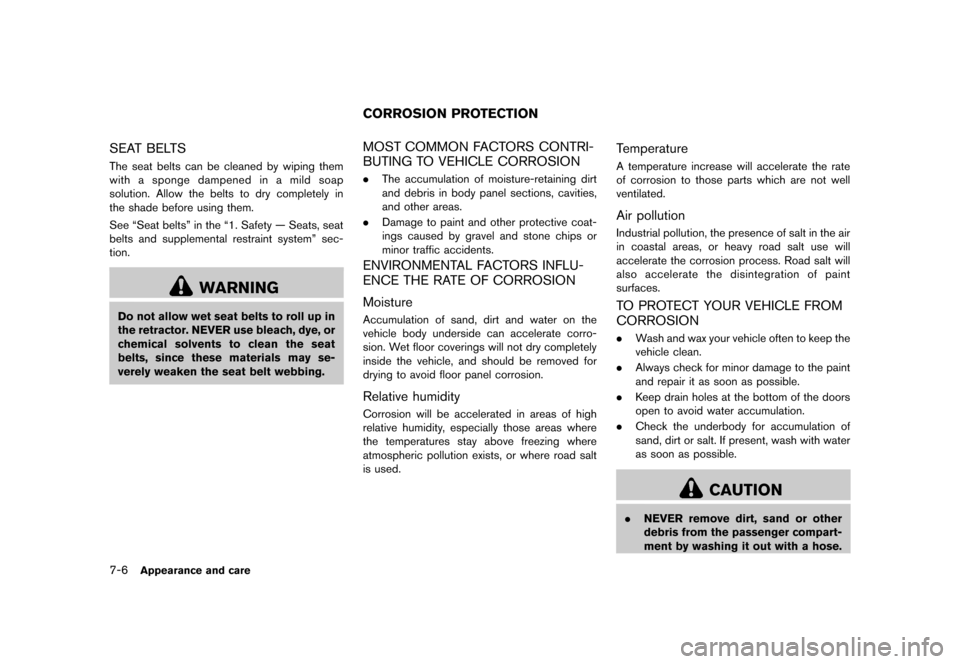

Corrosion protection ...
................................................................ 7-6
Most common factors contributing to
vehicle corrosion ...
............................................................... 7-6
Environmental factors influence the rate
of corrosion ...
........................................................................\
7-6
To protect your vehicle from corrosion ...
....................... 7-6

Black plate (284,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]

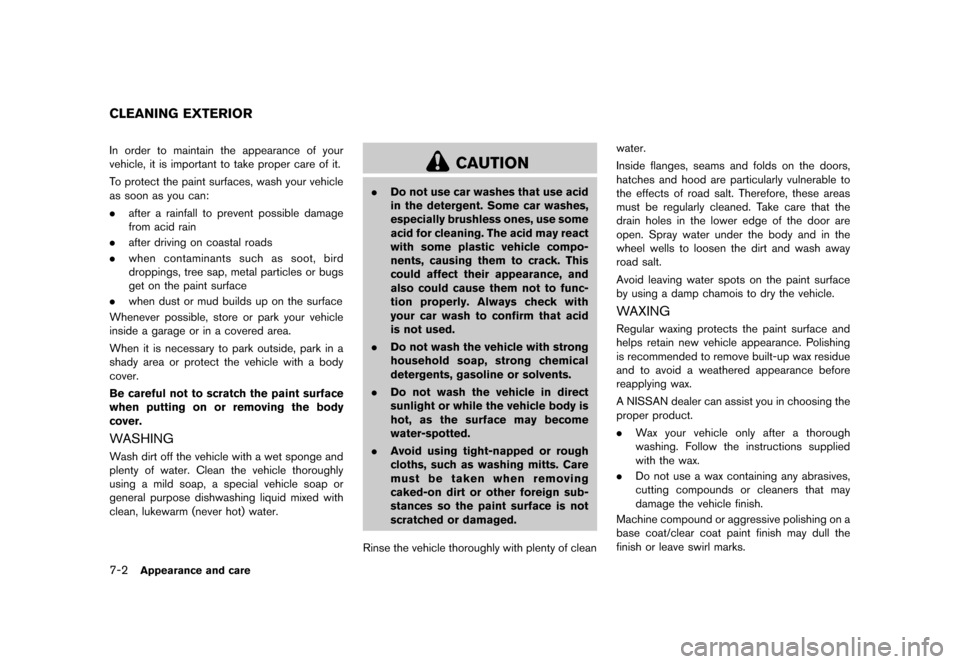

7-2Appearance and care
S35-D-110201-97E652FB-6FC1-4CAF-A36B-BA819E8B9785In order to maintain the appearance of your
vehicle, it is important to take proper care of it.
To protect the paint surfaces, wash your vehicle
as soon as you can:
.after a rainfall to prevent possible damage
from acid rain
. after driving on coastal roads
. when contaminants such as soot, bird
droppings, tree sap, metal particles or bugs
get on the paint surface
. when dust or mud builds up on the surface
Whenever possible, store or park your vehicle
inside a garage or in a covered area.
When it is necessary to park outside, park in a
shady area or protect the vehicle with a body
cover.
Be careful not to scratch the paint surface
when putting on or removing the body
cover.
WASHINGS35-D-110201-F8B4AFF1-6753-4718-95B3-A25D459BF1B1Wash dirt off the vehicle with a wet sponge and
plenty of water. Clean the vehicle thoroughly
using a mild soap, a special vehicle soap or
general purpose dishwashing liquid mixed with
clean, lukewarm (never hot) water.
CAUTION
. Do not use car washes that use acid
in the detergent. Some car washes,
especially brushless ones, use some
acid for cleaning. The acid may react
with some plastic vehicle compo-
nents, causing them to crack. This
could affect their appearance, and
also could cause them not to func-
tion properly. Always check with
your car wash to confirm that acid
is not used.
. Do not wash the vehicle with strong
household soap, strong chemical
detergents, gasoline or solvents.
. Do not wash the vehicle in direct
sunlight or while the vehicle body is
hot, as the surface may become
water-spotted.
. Avoid using tight-napped or rough
cloths, such as washing mitts. Care
must be taken when removing
caked-on dirt or other foreign sub-
stances so the paint surface is not
scratched or damaged.
Rinse the vehicle thoroughly with plenty of clean water.
Inside flanges, seams and folds on the doors,
hatches and hood are particularly vulnerable to
the effects of road salt. Therefore, these areas
must be regularly cleaned. Take care that the
drain holes in the lower edge of the door are
open. Spray water under the body and in the
wheel wells to loosen the dirt and wash away
road salt.
Avoid leaving water spots on the paint surface
by using a damp chamois to dry the vehicle.
WAXINGS35-D-110201-7B44DE95-705F-4A49-ACA1-F7408FA91BFARegular waxing protects the paint surface and
helps retain new vehicle appearance. Polishing
is recommended to remove built-up wax residue
and to avoid a weathered appearance before
reapplying wax.
A NISSAN dealer can assist you in choosing the
proper product.
.
Wax your vehicle only after a thorough
washing. Follow the instructions supplied
with the wax.
. Do not use a wax containing any abrasives,
cutting compounds or cleaners that may
damage the vehicle finish.
Machine compound or aggressive polishing on a
base coat/clear coat paint finish may dull the
finish or leave swirl marks.
CLEANING EXTERIOR

Black plate (285,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]

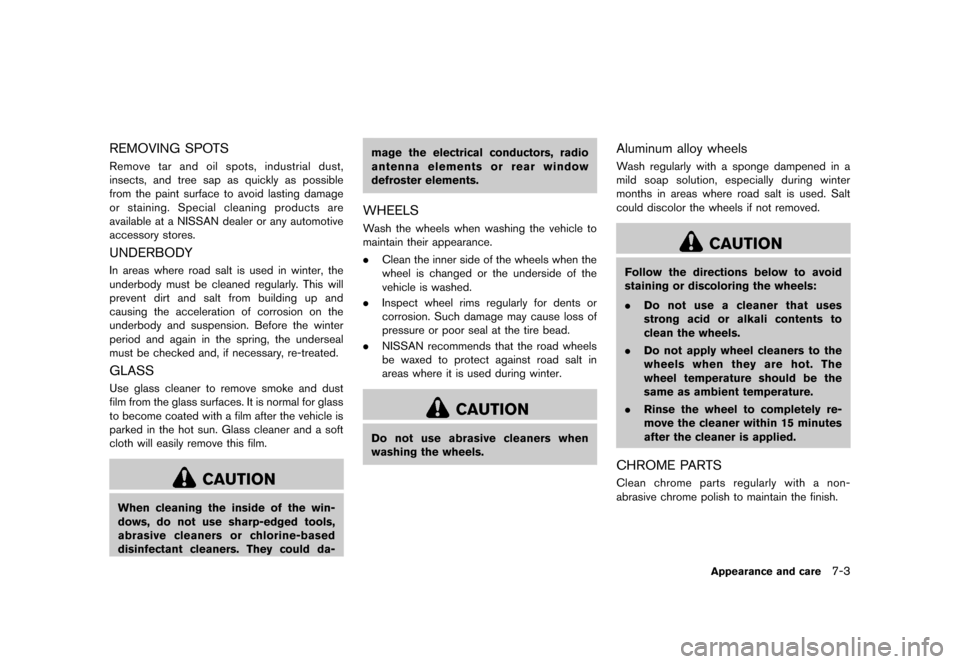

REMOVING SPOTSS35-D-110201-AF18F2E1-E555-466D-9323-0EAEAC5C0420Remove tar and oil spots, industrial dust,
insects, and tree sap as quickly as possible
from the paint surface to avoid lasting damage
or staining. Special cleaning products are
available at a NISSAN dealer or any automotive
accessory stores.
UNDERBODYS35-D-110201-F3F949ED-94FF-4B80-A59C-E2371D129B96In areas where road salt is used in winter, the
underbody must be cleaned regularly. This will
prevent dirt and salt from building up and
causing the acceleration of corrosion on the
underbody and suspension. Before the winter
period and again in the spring, the underseal
must be checked and, if necessary, re-treated.
GLASSS35-D-110201-E54A40AE-67AC-4FD4-B3EA-7A763A8EA337Use glass cleaner to remove smoke and dust
film from the glass surfaces. It is normal for glass
to become coated with a film after the vehicle is
parked in the hot sun. Glass cleaner and a soft
cloth will easily remove this film.
CAUTION
When cleaning the inside of the win-
dows, do not use sharp-edged tools,
abrasive cleaners or chlorine-based
disinfectant cleaners. They could da-mage the electrical conductors, radio
antenna elements or rear window
defroster elements.
WHEELSS35-D-110201-00E2038C-B5F0-4782-A428-93796F0E20A8Wash the wheels when washing the vehicle to
maintain their appearance.
.
Clean the inner side of the wheels when the
wheel is changed or the underside of the
vehicle is washed.
. Inspect wheel rims regularly for dents or
corrosion. Such damage may cause loss of
pressure or poor seal at the tire bead.
. NISSAN recommends that the road wheels
be waxed to protect against road salt in
areas where it is used during winter.
CAUTION
Do not use abrasive cleaners when
washing the wheels.
Aluminum alloy wheelsS35-D-110201-EB480337-BFBD-4E83-93DC-ACC1E16621EFWash regularly with a sponge dampened in a
mild soap solution, especially during winter
months in areas where road salt is used. Salt
could discolor the wheels if not removed.
CAUTION
Follow the directions below to avoid
staining or discoloring the wheels:
.Do not use a cleaner that uses
strong acid or alkali contents to
clean the wheels.
. Do not apply wheel cleaners to the
wheels when they are hot. The
wheel temperature should be the
same as ambient temperature.
. Rinse the wheel to completely re-
move the cleaner within 15 minutes
after the cleaner is applied.
CHROME PARTSS35-D-110201-7E5A50BC-120C-4BD7-B2A8-3446E4E5284FClean chrome parts regularly with a non-
abrasive chrome polish to maintain the finish.
Appearance and care7-3

Black plate (286,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
7-4Appearance and care

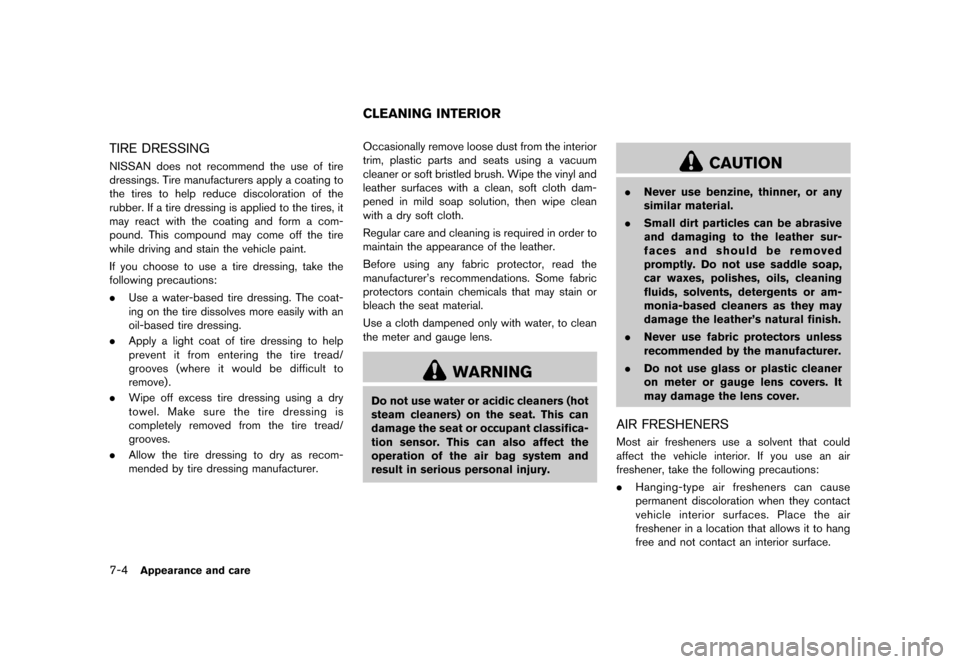

TIRE DRESSINGGUID-AAEE2877-2189-40B9-920D-DCBC9F09133DNISSAN does not recommend the use of tire
dressings. Tire manufacturers apply a coating to
the tires to help reduce discoloration of the
rubber. If a tire dressing is applied to the tires, it
may react with the coating and form a com-
pound. This compound may come off the tire
while driving and stain the vehicle paint.
If you choose to use a tire dressing, take the
following precautions:
.Use a water-based tire dressing. The coat-
ing on the tire dissolves more easily with an
oil-based tire dressing.
. Apply a light coat of tire dressing to help
prevent it from entering the tire tread/
grooves (where it would be difficult to
remove) .
. Wipe off excess tire dressing using a dry
towel. Make sure the tire dressing is
completely removed from the tire tread/
grooves.
. Allow the tire dressing to dry as recom-
mended by tire dressing manufacturer.
S35-D-110201-587845C9-6398-4952-B930-68C63A2662F7Occasionally remove loose dust from the interior
trim, plastic parts and seats using a vacuum
cleaner or soft bristled brush. Wipe the vinyl and
leather surfaces with a clean, soft cloth dam-
pened in mild soap solution, then wipe clean
with a dry soft cloth.
Regular care and cleaning is required in order to
maintain the appearance of the leather.
Before using any fabric protector, read the
manufacturer’s recommendations. Some fabric
protectors contain chemicals that may stain or
bleach the seat material.
Use a cloth dampened only with water, to clean
the meter and gauge lens.
WARNING
Do not use water or acidic cleaners (hot
steam cleaners) on the seat. This can
damage the seat or occupant classifica-
tion sensor. This can also affect the
operation of the air bag system and
result in serious personal injury.
CAUTION
.Never use benzine, thinner, or any
similar material.
. Small dirt particles can be abrasive
and damaging to the leather sur-
faces and should be removed
promptly. Do not use saddle soap,
car waxes, polishes, oils, cleaning
fluids, solvents, detergents or am-
monia-based cleaners as they may
damage the leather’s natural finish.
. Never use fabric protectors unless
recommended by the manufacturer.
. Do not use glass or plastic cleaner
on meter or gauge lens covers. It
may damage the lens cover.
AIR FRESHENERSGUID-C3B241D4-0516-4BEC-97AC-5483C90DD06DMost air fresheners use a solvent that could
affect the vehicle interior. If you use an air
freshener, take the following precautions:
.Hanging-type air fresheners can cause
permanent discoloration when they contact
vehicle interior surfaces. Place the air
freshener in a location that allows it to hang
free and not contact an interior surface.
CLEANING INTERIOR

Black plate (287,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
.Liquid-type air fresheners typically clip on
the vents. These products can cause
immediate damage and discoloration when
spilled on interior surfaces.
Carefully read and follow the manufacturer’s
instructions before using air fresheners.
FLOOR MATSS35-D-110201-B2E74394-B3E1-4495-9910-3041A54BCA20
WARNING
To avoid potential pedal interference
that may result in a collision or injury:
. NEVER place a floor mat on top of
another floor mat in the driver front
position.
. Use only genuine NISSAN floor
mats specifically designed for use
in your vehicle model. See your
NISSAN dealer for more informa-
tion.
. Properly position the mats in the
floorwell using the floor mat posi-
tioning aid. See “Floor mat posi-
tioning aid (driver’s side only)” later
in this section.
The use of genuine NISSAN floor mats can
extend the life of your vehicle carpet and make it easier to clean the interior. Mats should be
maintained with regular cleaning and replaced if
they become excessively worn.
SAI0038
Floor mat positioning aid (driver’s side
only)
S35-D-110201-6BE4BC91-9348-4906-A18E-C294E0C5E93AThis vehicle includes front floor mat brackets to
act as floor mat positioning aid. NISSAN floor
mats have been specially designed for your
vehicle model. The driver’s side floor mat has
grommet holes in it. To install, position the mat
by placing the floor mat bracket hook through
the floor mat grommet hole while centering the
mat in the floorwell.
Periodically check to make certain that the mats
are properly positioned.
Appearance and care7-5

Black plate (288,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
7-6Appearance and care
SEAT BELTSS35-D-110201-C770D13E-C383-46EE-A06C-46D1543B0A62The seat belts can be cleaned by wiping them
with a sponge dampened in a mild soap
solution. Allow the belts to dry completely in
the shade before using them.
See “Seat belts” in the “1. Safety — Seats, seat
belts and supplemental restraint system” sec-
tion.
WARNING
Do not allow wet seat belts to roll up in
the retractor. NEVER use bleach, dye, or
chemical solvents to clean the seat
belts, since these materials may se-
verely weaken the seat belt webbing.
S35-D-110201-F44B796D-CF5C-45AD-A73C-62C26924B2AFMOST COMMON FACTORS CONTRI-
BUTING TO VEHICLE CORROSION
S35-D-110201-445B63E4-1AAA-434C-9044-B3020018D404.The accumulation of moisture-retaining dirt
and debris in body panel sections, cavities,
and other areas.
. Damage to paint and other protective coat-
ings caused by gravel and stone chips or
minor traffic accidents.
ENVIRONMENTAL FACTORS INFLU-
ENCE THE RATE OF CORROSION
S35-D-110201-69B386BA-615F-4B49-A4C8-910975B562E2
MoistureS35-D-110201-B65B2839-2AB8-424B-AB21-FD3BD4D02E89Accumulation of sand, dirt and water on the
vehicle body underside can accelerate corro-
sion. Wet floor coverings will not dry completely
inside the vehicle, and should be removed for
drying to avoid floor panel corrosion.
Relative humidityS35-D-110201-A7199B6A-97DE-4938-84D8-1900B1E54AB3Corrosion will be accelerated in areas of high
relative humidity, especially those areas where
the temperatures stay above freezing where
atmospheric pollution exists, or where road salt
is used.
TemperatureS35-D-110201-661832A3-A326-4D3F-8EC4-669D839F9197A temperature increase will accelerate the rate
of corrosion to those parts which are not well
ventilated.
Air pollutionS35-D-110201-7FC55DDC-7BED-4DB0-B4B7-1A27762C50A3Industrial pollution, the presence of salt in the air
in coastal areas, or heavy road salt use will
accelerate the corrosion process. Road salt will
also accelerate the disintegration of paint
surfaces.
TO PROTECT YOUR VEHICLE FROM
CORROSION
S35-D-110201-A8AB3EBD-C334-46B0-9E9A-F382191A3E60.Wash and wax your vehicle often to keep the
vehicle clean.
. Always check for minor damage to the paint
and repair it as soon as possible.
. Keep drain holes at the bottom of the doors
open to avoid water accumulation.
. Check the underbody for accumulation of
sand, dirt or salt. If present, wash with water
as soon as possible.
CAUTION
.NEVER remove dirt, sand or other
debris from the passenger compart-
ment by washing it out with a hose.
CORROSION PROTECTION
