FRONT SEATSS35-D-110201-0B2F8171-4FBB-4017-8E6D-A2ADBA98B68B
Front manual seat adjustmentS35-D-110201-39869990-85F6-41BF-8D6F-13366F5484E7
Forward and backward:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pull the lever*1up and hold it while you slide
the seat forward or backward to the desired
position. Release the lever to lock the seat in
position.
Reclining:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To recline the seatback, pull the lever*2up and
lean back. To bring the seatback forward, pull
the lever up and lean your body forward. Release
the lever to lock the seatback in position.
The reclining feature allows adjustment of the seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. (See “Precautions on seat belt usage”
later in this section.) Also, the seatback can be
reclined to allow occupants to rest when the
vehicle is stopped and the transmission in the P
(Park) position with the parking brake fully
applied.
SSS0793
Seat lifter (if so equipped):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pull up or push down the adjusting lever to
adjust the seat height until the desired position
is achieved.
Front power seat adjustmentS35-D-110201-E3D911AF-69FD-43AC-9099-E36EA61A5234
Operating tips:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407.
The seat motor has an auto-reset overload
protection circuit. If the motor stops during
operation, wait for a while, then reactivate
the switch.
. Do not operate the power seat for a long
period of time when the engine is off. This
will discharge the battery.
Safety — Seats, seat belts and supplemental restraint system1-3
Page 22 of 371
Black plate (20,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
1-4Safety — Seats, seat belts and supplemental restraint system
SSS1051
Forward and backward:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Moving the switch*1forward or backward will
slide the seat forward or backward to the
desired position.
Reclining:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Move the recline switch*2backward until the
desired angle is obtained. To bring the seatback
forward again, move the switch
*2forward.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. (See “Precautions on seat belt usage”
later in this section.) Also, the seatback can be
reclined to allow occupants to rest when the vehicle is stopped and the transmission in the P
(Park) position with the parking brake fully
applied.
SSS1052
Seat lifter (if so equipped):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pull up or push down the adjusting switch to
adjust the height of the seat.
Page 23 of 371
Black plate (21,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
SSS1053
Lumbar support (if so equipped):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The lumbar support feature provides lower back
support to the driver.
Push the front or back end of the switch to
adjust the seat lumbar area.
SSS0796
Folding front passenger’s seat (if so
equipped)
S35-D-110201-C19042A4-37EC-4F5E-A2F3-CC2DCE9D4829The front passenger’s seatback can be folded
down. Some long objects may be loaded in the
vehicle when the rear seats are also folded
down. (See “Rear seats” later in this section for
folding rear seats.)
To fold the front passenger’s seatback, pull the
reclining lever all the way
*1.
When returning the front passenger’s seatback
to a seating position, lift it up to an upright
position. Pull the reclining lever and lean the
seatback to a proper seating position. (See
“Front manual seat adjustment” earlier in this section.)
WARNING
.
If you fold the front passenger’s
seatback down to carry longer ob-
jects, be sure this cargo is properly
secured and not near an air bag. In a
crash, an inflating air bag might
force that object toward a person.
This could cause severe injury or
even death. Secure objects away
from the area in which an air bag
would inflate. See “Precautions on
Supplemental Restraint System” la-
ter in this section.
. Never allow anyone to ride in the
cargo area or on the front passen-
ger’s seat when it is in the fold-
down position. Use of these areas
by passengers could result in ser-
ious injury in an accident or sudden
stop.
Safety — Seats, seat belts and supplemental restraint system1-5
Page 24 of 371
Black plate (22,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
1-6Safety — Seats, seat belts and supplemental restraint system
SSS0797
REAR SEATSS35-D-110201-F1069FCA-D94F-46E4-9FA4-8088C2EFB096
FoldingS35-D-110201-F3098F1C-3843-46A3-9934-E20A6D0E0E98
Before folding the rear seats:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407.Secure the seat belts on the seat belt hooks
on the side wall. (See “Seat belt hooks” later
in this section.)
. Release the connector tongue of the rear
center seat belt from the buckle, and store
the connector and seat belt tongues into the
retractor base on the ceiling. (See “Rear
center seat belt” later in this section.)
. If necessary, move the front seats forward to
provide enough clearance so that the rear
seats can be folded down completely. To fold down the seatback of each rear seat, pull
the adjusting knob
*A.
To return the seatback to the seating position, lift
up each seatback and push it to the upright
position until it is latched.
WARNING
. Do not use the rear seat belts when
the buckles are stowed in the seat
pockets. Failure to do so may re-
duce the effectiveness of the entire
restraint system and increase the
chance or severity of injury in an
accident.
. Do not fold down the rear seats
when occupants are in the rear seat
area or any objects are on the rear
seats.
. Never allow anyone to ride in the
cargo area or on the rear seats
when they are in the fold-down
position. Use of these areas by
passengers without proper re-
straints could result in serious injury
in an accident or sudden stop.
. Properly secure all cargo with ropes
or straps to help prevent it from sliding or shifting. Do not place
cargo higher than the seatbacks. In
a sudden stop or collision, unse-
cured cargo could cause personal
injury.
. When returning the seatbacks to the
upright position, be certain they are
completely secured in the latched
position. If they are not completely
secured, passengers may be injured
in an accident or sudden stop.
HEAD RESTRAINTSS35-D-110201-8707514E-311A-4F34-AD80-2FBAE21FA9C7
WARNING
Head restraints supplement the other
vehicle safety systems. They may pro-
vide additional protection against injury
in certain rear end collisions. Adjust the
head restraints properly, as specified in
this section. Check the adjustment after
someone else uses the seat. Do not
attach anything to the head restraint
stalks or remove the head restraint. Do
not use the seat if the head restraint
has been removed. If the head restraint
was removed, install and properly ad-
just the head restraint before an occu-
Page 25 of 371
Black plate (23,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
pant uses the seating position. Failure
to follow these instructions can reduce
the effectiveness of the head restraints.
This may increase the risk of serious
injury or death in a collision.
SSS1019
The illustration shows the seating positions
equipped with head restraints. The head re-
straints are adjustable.
Indicates the seating position is equipped
with a head restraint.
SSS0992
ComponentsGUID-DDD8B264-2306-4776-B3E1-9A8CEBB2AF8D1. Head restraint
2. Adjustment notches
3. Lock knob
4. Stalks
Safety — Seats, seat belts and supplemental restraint system1-7
Page 26 of 371
Black plate (24,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
1-8Safety — Seats, seat belts and supplemental restraint system
SSS0997

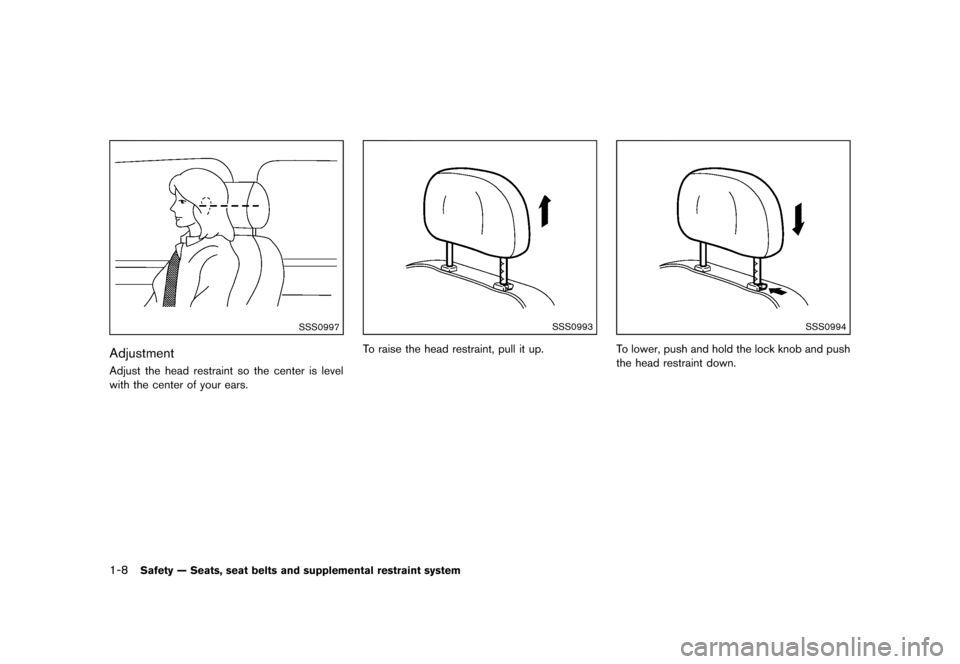

AdjustmentS35-D-110201-805BC978-8292-4E16-AEC0-DF1F8262FAB3Adjust the head restraint so the center is level
with the center of your ears.
SSS0993
To raise the head restraint, pull it up.
SSS0994
To lower, push and hold the lock knob and push
the head restraint down.
Page 27 of 371
Black plate (25,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
SSS0995

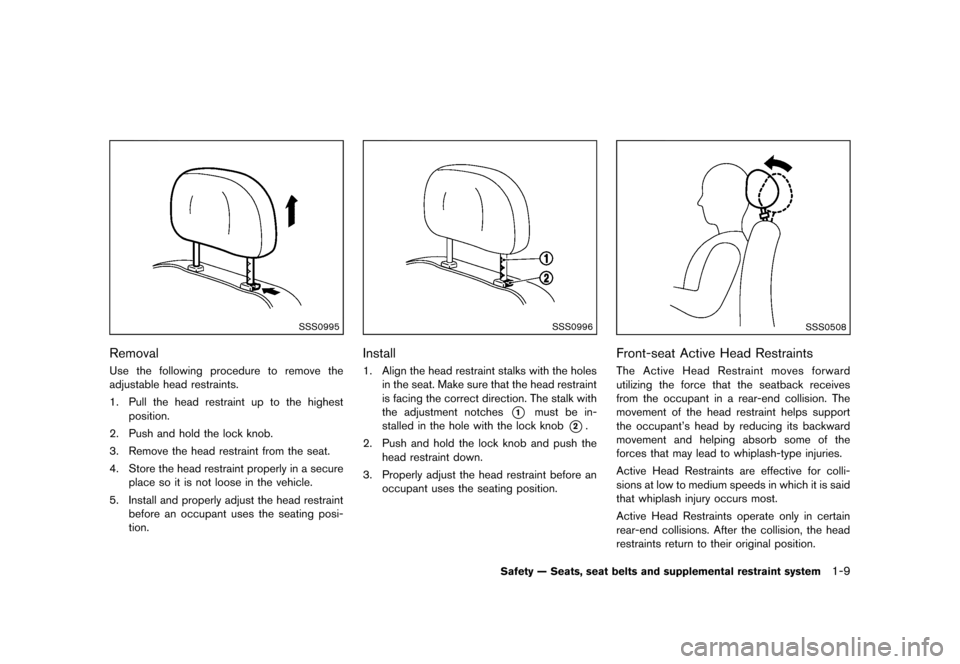

RemovalGUID-C561A9AF-CBB2-4542-89D6-BD973A7B3031Use the following procedure to remove the
adjustable head restraints.
1. Pull the head restraint up to the highestposition.
2. Push and hold the lock knob.
3. Remove the head restraint from the seat.
4. Store the head restraint properly in a secure place so it is not loose in the vehicle.
5. Install and properly adjust the head restraint before an occupant uses the seating posi-
tion.
SSS0996
InstallGUID-6FFAC965-3169-4B2F-AEA8-863C33C198E21. Align the head restraint stalks with the holesin the seat. Make sure that the head restraint
is facing the correct direction. The stalk with
the adjustment notches
*1must be in-
stalled in the hole with the lock knob
*2.
2. Push and hold the lock knob and push the head restraint down.
3. Properly adjust the head restraint before an occupant uses the seating position.
SSS0508
Front-seat Active Head RestraintsGUID-807E7618-FD6F-421A-A613-6003E38F8273The Active Head Restraint moves forward
utilizing the force that the seatback receives
from the occupant in a rear-end collision. The
movement of the head restraint helps support
the occupant’s head by reducing its backward
movement and helping absorb some of the
forces that may lead to whiplash-type injuries.
Active Head Restraints are effective for colli-
sions at low to medium speeds in which it is said
that whiplash injury occurs most.
Active Head Restraints operate only in certain
rear-end collisions. After the collision, the head
restraints return to their original position.
Safety — Seats, seat belts and supplemental restraint system1-9
Page 28 of 371
Black plate (26,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
1-10Safety — Seats, seat belts and supplemental restraint system

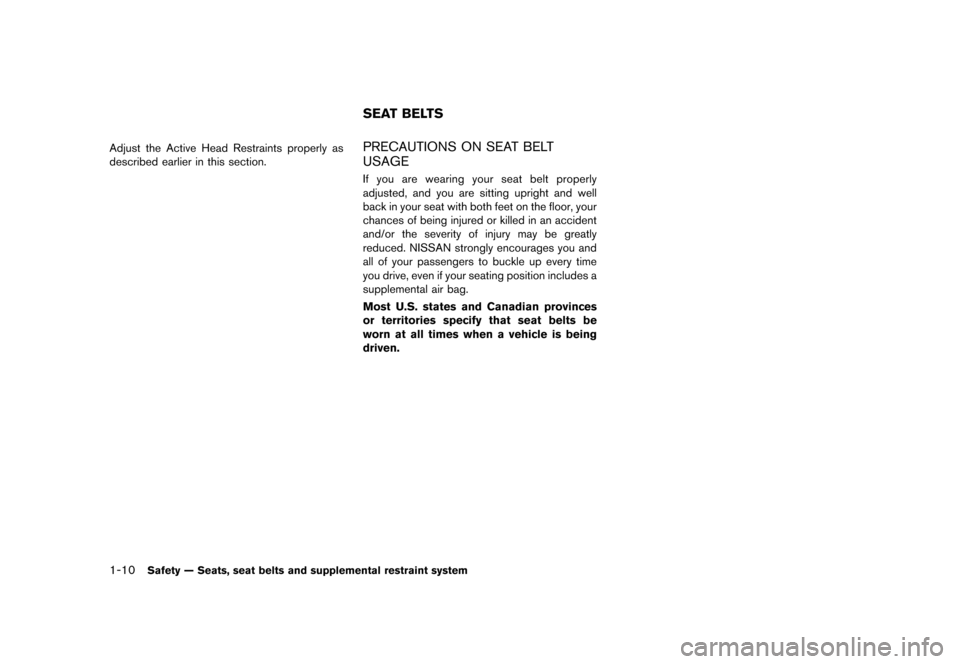

Adjust the Active Head Restraints properly as
described earlier in this section.
S35-D-110201-AC80E8BC-300A-4AA0-B891-3F74F65091FCPRECAUTIONS ON SEAT BELT
USAGE
S35-D-110201-EF0341D0-1574-4F9D-8E0C-2681E0EC6E69If you are wearing your seat belt properly
adjusted, and you are sitting upright and well
back in your seat with both feet on the floor, your
chances of being injured or killed in an accident
and/or the severity of injury may be greatly
reduced. NISSAN strongly encourages you and
all of your passengers to buckle up every time
you drive, even if your seating position includes a
supplemental air bag.
Most U.S. states and Canadian provinces
or territories specify that seat belts be
worn at all times when a vehicle is being
driven.
SEAT BELTS
Page 29 of 371
Black plate (27,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]

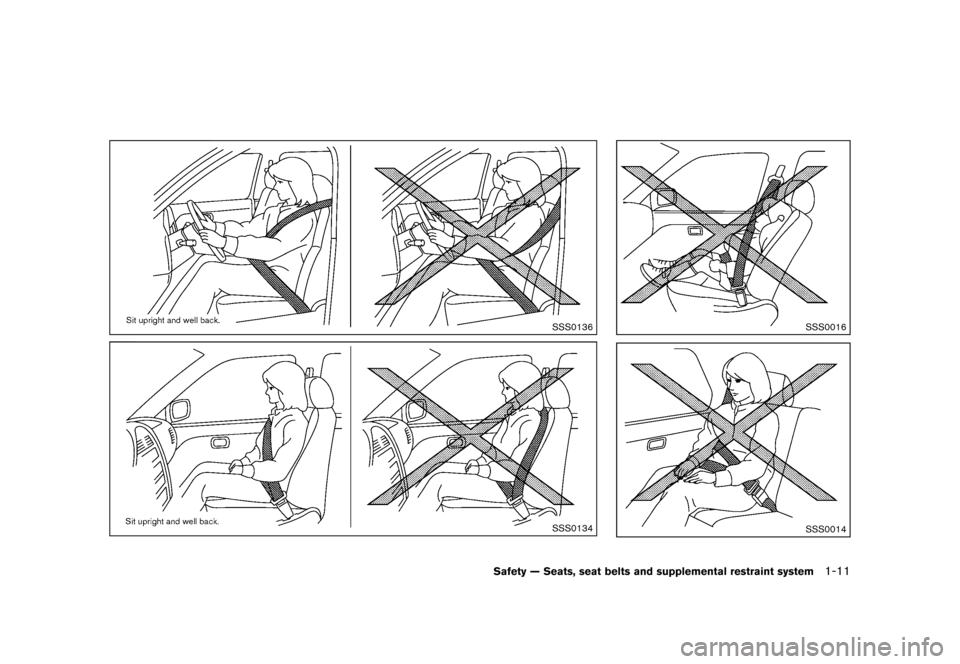

SSS0136
SSS0134
SSS0016
SSS0014
Safety — Seats, seat belts and supplemental restraint system1-11
Page 30 of 371
Black plate (28,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
1-12Safety — Seats, seat belts and supplemental restraint system

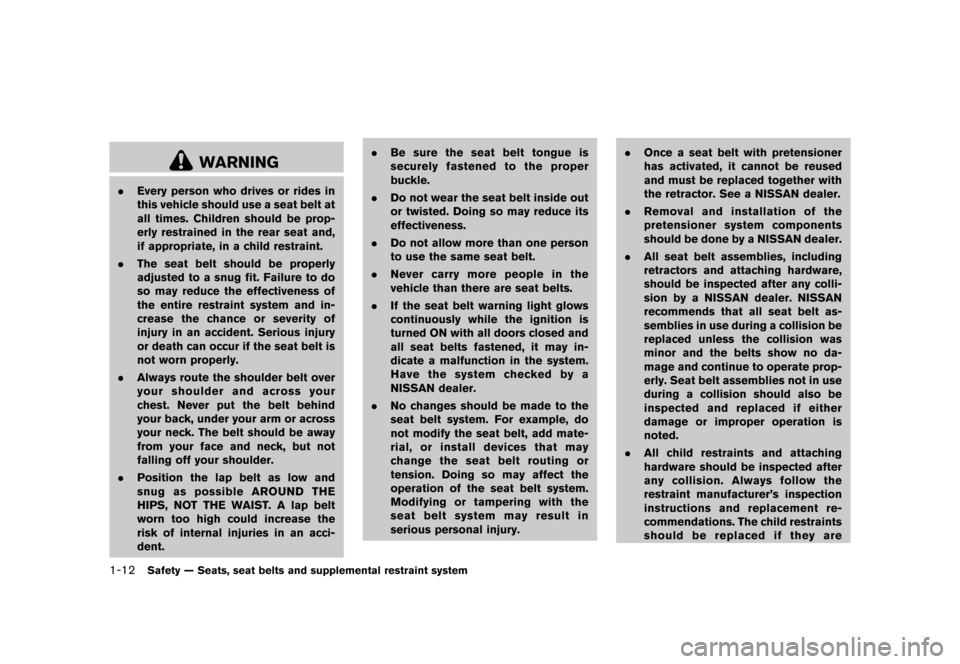

WARNING
.Every person who drives or rides in
this vehicle should use a seat belt at
all times. Children should be prop-
erly restrained in the rear seat and,
if appropriate, in a child restraint.
. The seat belt should be properly
adjusted to a snug fit. Failure to do
so may reduce the effectiveness of
the entire restraint system and in-
crease the chance or severity of
injury in an accident. Serious injury
or death can occur if the seat belt is
not worn properly.
. Always route the shoulder belt over
your shoulder and across your
chest. Never put the belt behind
your back, under your arm or across
your neck. The belt should be away
from your face and neck, but not
falling off your shoulder.
. Position the lap belt as low and
snug as possible AROUND THE
HIPS, NOT THE WAIST. A lap belt
worn too high could increase the
risk of internal injuries in an acci-
dent. .
Be sure the seat belt tongue is
securely fastened to the proper
buckle.
. Do not wear the seat belt inside out
or twisted. Doing so may reduce its
effectiveness.
. Do not allow more than one person
to use the same seat belt.
. Never carry more people in the
vehicle than there are seat belts.
. If the seat belt warning light glows
continuously while the ignition is
turned ON with all doors closed and
all seat belts fastened, it may in-
dicate a malfunction in the system.
Have the system checked by a
NISSAN dealer.
. No changes should be made to the
seat belt system. For example, do
not modify the seat belt, add mate-
rial, or install devices that may
change the seat belt routing or
tension. Doing so may affect the
operation of the seat belt system.
Modifying or tampering with the
seat belt system may result in
serious personal injury. .
Once a seat belt with pretensioner
has activated, it cannot be reused
and must be replaced together with
the retractor. See a NISSAN dealer.
. Removal and installation of the
pretensioner system components
should be done by a NISSAN dealer.
. All seat belt assemblies, including
retractors and attaching hardware,
should be inspected after any colli-
sion by a NISSAN dealer. NISSAN
recommends that all seat belt as-
semblies in use during a collision be
replaced unless the collision was
minor and the belts show no da-
mage and continue to operate prop-
erly. Seat belt assemblies not in use
during a collision should also be
inspected and replaced if either
damage or improper operation is
noted.
. All child restraints and attaching
hardware should be inspected after
any collision. Always follow the
restraint manufacturer’s inspection
instructions and replacement re-
commendations. The child restraints
should be replaced if they are
