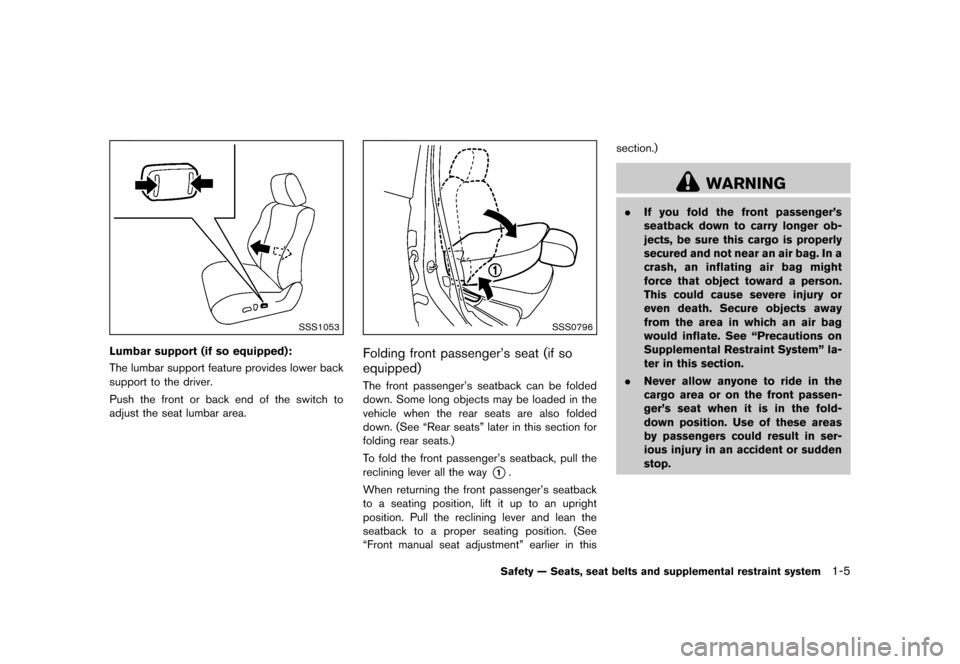

Page 23 of 371
Black plate (21,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
SSS1053
Lumbar support (if so equipped):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The lumbar support feature provides lower back
support to the driver.
Push the front or back end of the switch to
adjust the seat lumbar area.
SSS0796
Folding front passenger’s seat (if so
equipped)
S35-D-110201-C19042A4-37EC-4F5E-A2F3-CC2DCE9D4829The front passenger’s seatback can be folded
down. Some long objects may be loaded in the
vehicle when the rear seats are also folded
down. (See “Rear seats” later in this section for
folding rear seats.)
To fold the front passenger’s seatback, pull the
reclining lever all the way
*1.
When returning the front passenger’s seatback
to a seating position, lift it up to an upright
position. Pull the reclining lever and lean the
seatback to a proper seating position. (See
“Front manual seat adjustment” earlier in this section.)
WARNING
.
If you fold the front passenger’s
seatback down to carry longer ob-
jects, be sure this cargo is properly
secured and not near an air bag. In a
crash, an inflating air bag might
force that object toward a person.
This could cause severe injury or
even death. Secure objects away
from the area in which an air bag
would inflate. See “Precautions on
Supplemental Restraint System” la-
ter in this section.
. Never allow anyone to ride in the
cargo area or on the front passen-
ger’s seat when it is in the fold-
down position. Use of these areas
by passengers could result in ser-
ious injury in an accident or sudden
stop.
Safety — Seats, seat belts and supplemental restraint system1-5

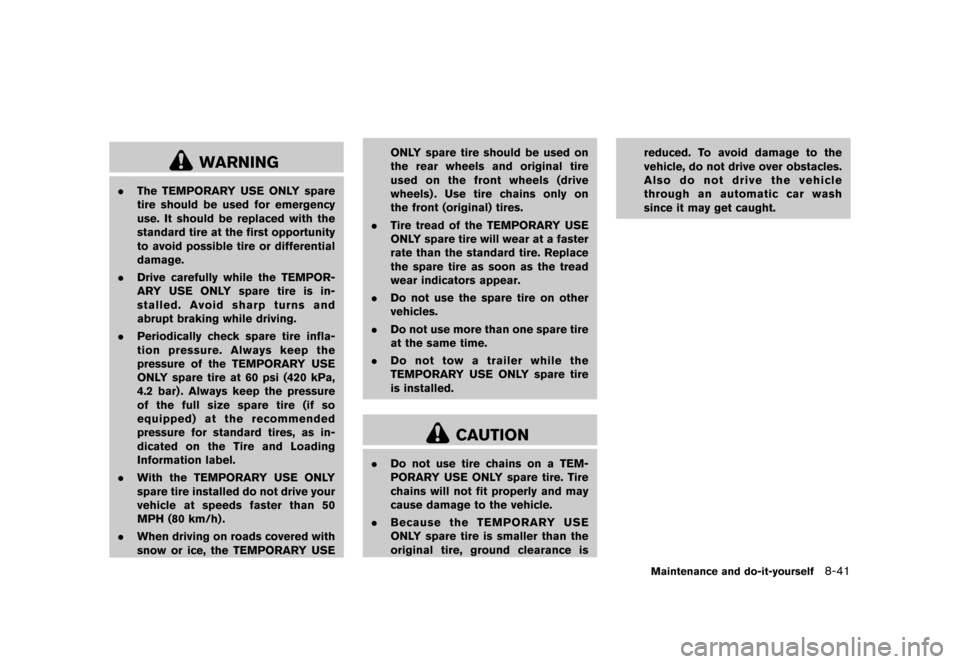

Page 333 of 371
Black plate (331,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
WARNING
.The TEMPORARY USE ONLY spare
tire should be used for emergency
use. It should be replaced with the
standard tire at the first opportunity
to avoid possible tire or differential
damage.
. Drive carefully while the TEMPOR-
ARY USE ONLY spare tire is in-
stalled. Avoid sharp turns and
abrupt braking while driving.
. Periodically check spare tire infla-
tion pressure. Always keep the
pressure of the TEMPORARY USE
ONLY spare tire at 60 psi (420 kPa,
4.2 bar) . Always keep the pressure
of the full size spare tire (if so
equipped) at the recommended
pressure for standard tires, as in-
dicated on the Tire and Loading
Information label.
. With the TEMPORARY USE ONLY
spare tire installed do not drive your
vehicle at speeds faster than 50
MPH (80 km/h) .
. When driving on roads covered with
snow or ice, the TEMPORARY USE ONLY spare tire should be used on
the rear wheels and original tire
used on the front wheels (drive
wheels) . Use tire chains only on
the front (original) tires.
. Tire tread of the TEMPORARY USE
ONLY spare tire will wear at a faster
rate than the standard tire. Replace
the spare tire as soon as the tread
wear indicators appear.
. Do not use the spare tire on other
vehicles.
. Do not use more than one spare tire
at the same time.
. Do not tow a trailer while the
TEMPORARY USE ONLY spare tire
is installed.
CAUTION
.Do not use tire chains on a TEM-
PORARY USE ONLY spare tire. Tire
chains will not fit properly and may
cause damage to the vehicle.
. Because the TEMPORARY USE
ONLY spare tire is smaller than the
original tire, ground clearance is reduced. To avoid damage to the
vehicle, do not drive over obstacles.
Also do not drive the vehicle
through an automatic car wash
since it may get caught.
Maintenance and do-it-yourself8-41
