Seat belt with pretensioners (front
seats)
WARNING
●The pretensioners cannot be reused af-
ter activation. They must be replaced
together with the retractor and buckle
as a unit.
● If the vehicle becomes involved in a
collision but pretensioners are not acti-
vated, be sure to have the pretensioner
system checked and, if necessary, re-
placed by a NISSAN dealer.
● No unauthorized changes should be
made to any components or wiring of
the pretensioner system. This is to pre-
vent damage to or accidental activation
of the pretensioners. Tampering with
the pretensioner system may result in
serious personal injury.
● Work around and on the pretensioner
system should be done by a NISSAN
dealer. Installation of electrical equip-
ment should also be done by a NISSAN
dealer. Unauthorized electrical test
equipment and probing devices should
not be used on the pretensioner system. ●
If you need to dispose of the preten-
sioners or scrap the vehicle, contact a
NISSAN dealer. Incorrect disposal pro-
cedures could cause personal injury.
The pretensioner system may activate with the
supplemental air bag system in certain types of
collisions. Working with the seat belt retractor,
the pretensioners help tighten the seat belt when
the vehicle becomes involved in certain types of
collisions, helping to restrain front seat occu-
pants.
The pretensioners are encased within the seat
belt retractor and to the seat belt anchor affixed
to the floor of the vehicle. These seat belts are
used the same way as conventional seat belts.
When pretensioners activate, smoke is released
and a loud noise may be heard. This smoke is not
harmful and does not indicate a fire. Care should
be taken not to inhale it, as it may cause irritation
and choking. Those with a history of a breathing
condition should get fresh air promptly.
After the pretensioners’ activation, load limiters
allow the seat belt to release webbing (if neces-
sary) to reduce forces against the chest. The supplemental air bag warning light
is
used to indicate malfunctions in the pretensioner
system. For additional information, refer to
Supplemental air bag warning light in this sec-
tion. If the operation of the supplemental air bag
warning light indicates there is a malfunction,
have the system checked by a NISSAN dealer.
When selling your vehicle, we request that you
inform the buyer about the pretensioner system
and guide the buyer to the appropriate sections
in this Owner’s Manual.
1-62Safety—Seats, seat belts and supplemental restraint system

1. SRS Air Bag Warning LabelsThe warning labels are located on the sur-
face of the sun visor.
SUPPLEMENTAL AIR BAG
WARNING LABELS
Warning labels about the supplemental front-
impact air bag system are placed in the vehicle as
shown in the illustration.
WARNING
Extreme Hazard! Do not use a rearward
facing child restraint on a seat protected
by an air bag in front of it!
SUPPLEMENTAL AIR BAG
WARNING LIGHT
The supplemental air bag warning light,
displaying
in the instrument panel, moni-
tors the circuits for the air bag systems, preten-
sioners and all related wiring.
When the ignition switch is placed in the ON
position, the supplemental air bag warning light
illuminates for about 7 seconds and then turns
off. This means the system is operational.
WRS0885LRS0100
Safety—Seats, seat belts and supplemental restraint system1-63

If any of the following conditions occur, the front
air bag, side air bag, curtain air bag and preten-
sioner systems need servicing:● The supplemental air bag warning light re-
mains on after approximately 7 seconds.
● The supplemental air bag warning light
flashes intermittently.
● The supplemental air bag warning light does
not come on at all.
Under these conditions, the front air bag, side air
bag, curtain air bag or pretensioner systems may
not operate properly. They must be checked and
repaired. Take your vehicle to the nearest
NISSAN dealer.
WARNING
If the supplemental air bag warning light
is on, it could mean that the front air bag,
side air bag, curtain air bag and/or preten-
sioner systems will not operate in an acci-
dent. To help avoid injury to yourself or
others, have your vehicle checked by a
NISSAN dealer as soon as possible.
Repair and replacement procedure
The front air bags, side air bags, curtain air bags
and pretensioners are designed to inflate on a
one-time-only basis. As a reminder, unless it is
damaged, the supplemental air bag warning light
remains illuminated after inflation has occurred.
Repair and replacement of these supplemental
air bag systems should be done only by a
NISSAN dealer.
When maintenance work is required on the ve-
hicle, the front air bags, side air bags, curtain air
bags, pretensioners and related parts should be
pointed out to the person performing the mainte-
nance. The ignition switch should always be
placed in the LOCK position when working under
the hood or inside the vehicle.
WARNING
● Once a front air bag, side air bag, or
curtain air bag has inflated, the air bag
module will not function again and
must be replaced. Additionally, the acti-
vated pretensioners must also be re-
placed. The air bag module and preten-
sioners should be replaced by a
NISSAN dealer. The air bag module and
pretensioners cannot be repaired. ●
The front air bag, side air bag, curtain
air bag systems and the pretensioner
system should be inspected by a
NISSAN dealer if there is any damage to
the front end or side portion of the
vehicle.
● If you need to dispose of the supple-
mental air bag or pretensioner systems
or scrap the vehicle, contact a NISSAN
dealer. Incorrect disposal procedures
could cause personal injury.
● If there is an impact to your vehicle from
any direction, your Occupant Classifica-
tion Sensor (OCS) should be checked
by a NISSAN dealer to verify it is still
functioning correctly. The OCS should
be checked even if no air bags deploy as
a result of the impact. Failure to verify
proper OCS function may result in an
improper air bag deployment resulting
in injury or death.
1-64Safety—Seats, seat belts and supplemental restraint system

MEMO
Safety—Seats, seat belts and supplemental restraint system1-65

2 Instruments and controls
Instrument panel...................................2-2
Meters and gauges ................................2-3
Speedometer and odometer .....................2-4
Tachometer ....................................2-5
Engine coolant temperature gauge ...............2-5
Fuel gauge ....................................2-6
Warning/indicator lights and audible reminders .......2-7
Checking bulbs ................................2-8
Warning lights .................................2-8
Indicator lights ................................ 2-12
Audible reminders ............................. 2-15
Vehicle Information Display ........................2-15
How to use the vehicle information display .......2-16
Startup display ................................ 2-16
Settings ...................................... 2-16
Vehicle information display warnings and
indicators ..................................... 2-26
Security systems ................................. 2-29
Vehicle security system ......................... 2-29
NISSAN vehicle immobilizer system .............2-30
Windshield wiper and washer switch ...............2-31
Switch operation .............................. 2-32
Rear window wiper and washer switch ..............2-33Rear window and outside mirror (if so equipped)
defroster switch
.................................. 2-34
Headlight and turn signal switch ....................2-34
Headlight control switch ........................ 2-34
Daytime running light system ....................2-36
Instrument brightness control ...................2-37
Turn signal switch ............................. 2-37
Fog light switch (if so equipped) ................2-38
Horn ............................................ 2-38
Heated seats (if so equipped) ......................2-39
Vehicle Dynamic Control (VDC) off switch ...........2-40
All-wheel drive (AWD) lock switch (if so equipped) . . . 2-40
SPORT mode switch ............................. 2-40
Hill descent control switch (if so equipped) ..........2-41
Warning systems switch (if so equipped) ............2-42
Power outlets .................................... 2-42
12v outlets ................................... 2-42
Storage ......................................... 2-44
Seatback

pockets............................. 2-44
Sunglasses holder ............................. 2-44
Cup holders .................................. 2-45
Glove box .................................... 2-47
Console box .................................. 2-47

Luggage hooks................................ 2-48
Cargo area storage bin (if so equipped) ..........2-49
Roof rack (if so equipped) ......................2-49
Divide-n-hide® adjustable floor
(if so equipped) ............................... 2-50
Windows ........................................ 2-51

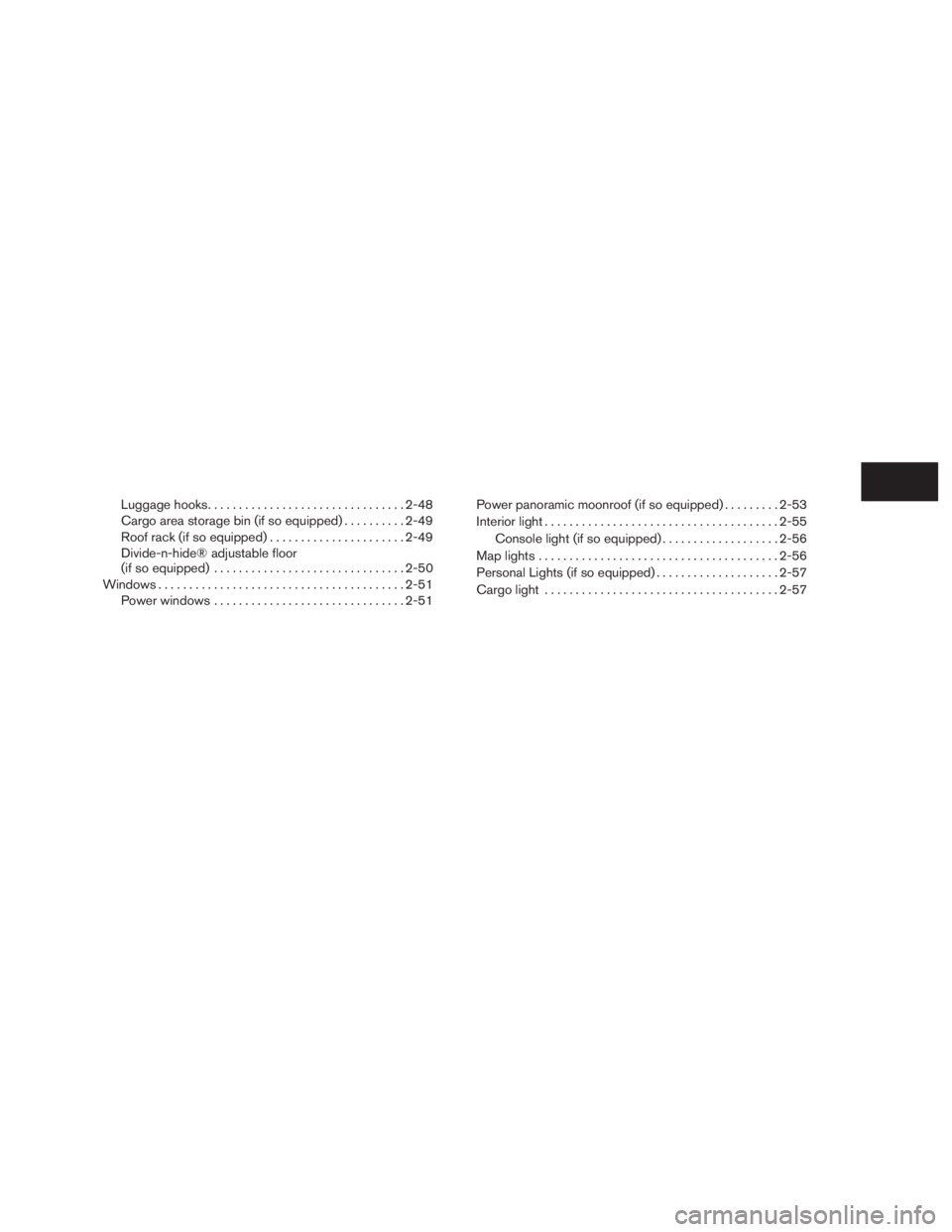

Power windows ............................... 2-51Power panoramic moonroof (if so equipped)
.........2-53
Interior light ...................................... 2-55
Console light (if so equipped) ...................2-56
Map lights ....................................... 2-56
Personal Lights (if so equipped) ....................2-57
Cargo light ...................................... 2-57

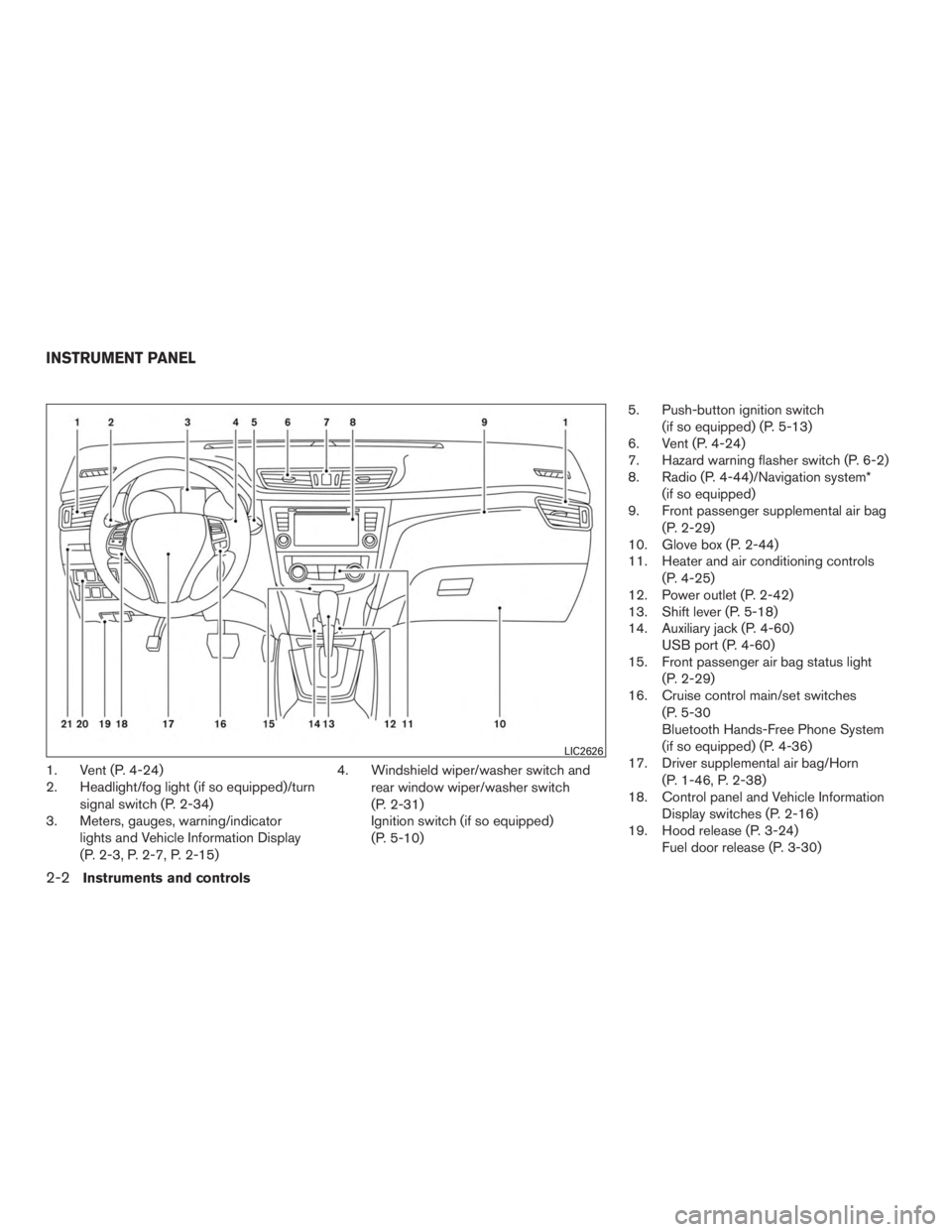

1. Vent (P. 4-24)
2. Headlight/fog light (if so equipped)/turnsignal switch (P. 2-34)
3. Meters, gauges, warning/indicator
lights and Vehicle Information Display
(P. 2-3, P. 2-7, P. 2-15) 4. Windshield wiper/washer switch and
rear window wiper/washer switch
(P. 2-31)
Ignition switch (if so equipped)
(P. 5-10) 5. Push-button ignition switch
(if so equipped) (P. 5-13)
6. Vent (P. 4-24)
7. Hazard warning flasher switch (P. 6-2)
8. Radio (P. 4-44)/Navigation system*
(if so equipped)
9. Front passenger supplemental air bag
(P. 2-29)
10. Glove box (P. 2-44)
11. Heater and air conditioning controls
(P. 4-25)
12. Power outlet (P. 2-42)
13. Shift lever (P. 5-18)
14. Auxiliary jack (P. 4-60) USB port (P. 4-60)
15. Front passenger air bag status light
(P. 2-29)
16. Cruise control main/set switches
(P. 5-30
Bluetooth Hands-Free Phone System
(if so equipped) (P. 4-36)
17. Driver supplemental air bag/Horn
(P. 1-46, P. 2-38)
18. Control panel and Vehicle Information
Display switches (P. 2-16)
19. Hood release (P. 3-24) Fuel door release (P. 3-30)
LIC2626
INSTRUMENT PANEL
2-2Instruments and controls

20. Vehicle Dynamic Control (VDC) OFFswitch (P. 2-40)
Sport mode switch (P. 2-40)
ECO mode switch (if so equipped)
(P. 5-22)
Power liftgate switch (if so equipped)
(P.3-28)
Power liftgate main switch
(if so equipped) (P. 3-28)
Warning systems switch (if so
equipped) (P. 2-42)
All-Wheel Drive (AWD) lock switch
(if so equipped) (P. 2-40)
Hill descent control switch
(if so equipped) (P. 2-41)

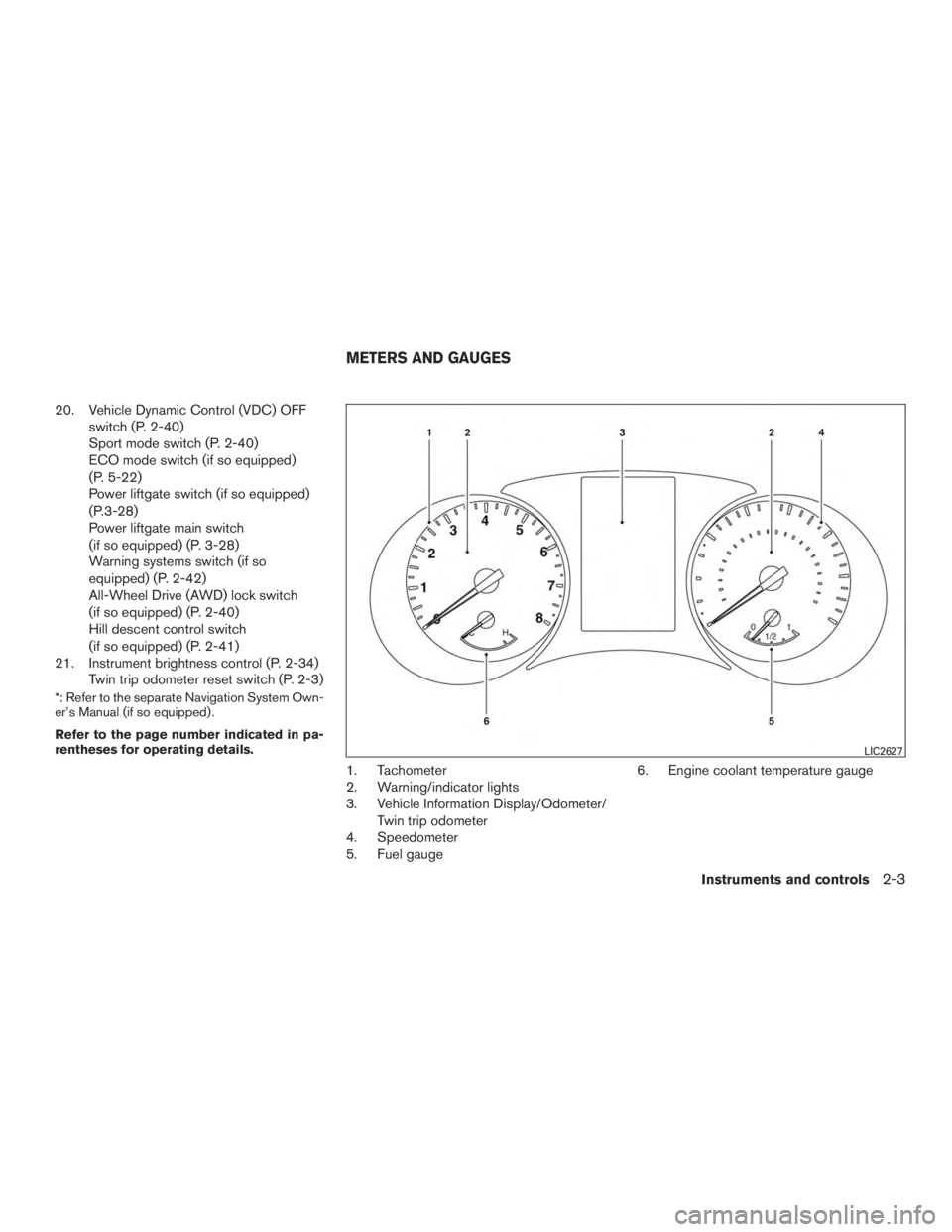

21. Instrument brightness control (P. 2-34) Twin trip odometer reset switch (P. 2-3)
*: Refer to the separate Navigation System Own-
er’s Manual (if so equipped) .
Refer to the page number indicated in pa-
rentheses for operating details.
1. Tachometer
2. Warning/indicator lights
3. Vehicle Information Display/Odometer/
Twin trip odometer
4. Speedometer
5. Fuel gauge 6. Engine coolant temperature gauge
LIC2627
METERS AND GAUGES
Instruments and controls2-3

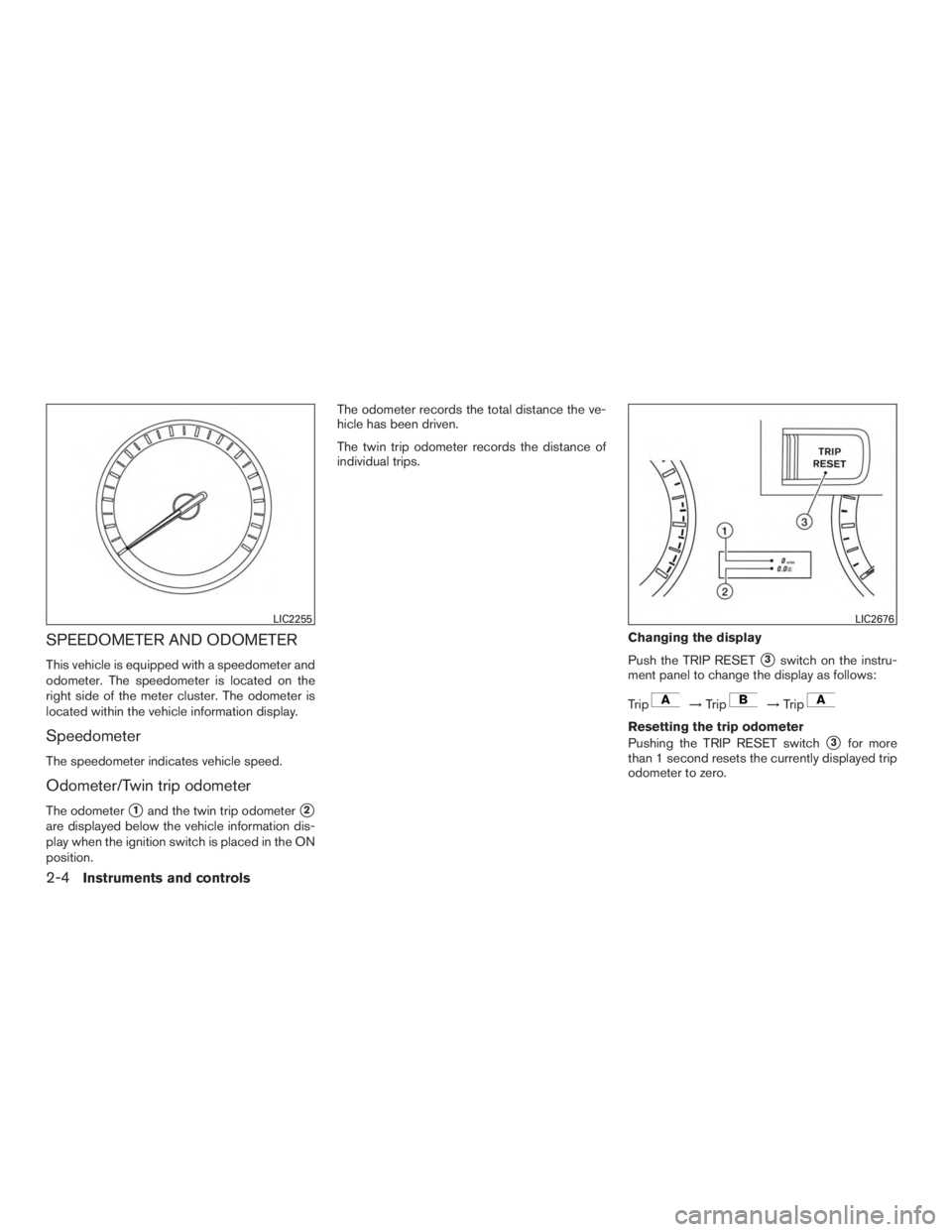

SPEEDOMETER AND ODOMETER
This vehicle is equipped with a speedometer and
odometer. The speedometer is located on the
right side of the meter cluster. The odometer is
located within the vehicle information display.
Speedometer
The speedometer indicates vehicle speed.
Odometer/Twin trip odometer
The odometer1and the twin trip odometer2
are displayed below the vehicle information dis-
play when the ignition switch is placed in the ON
position.The odometer records the total distance the ve-
hicle has been driven.
The twin trip odometer records the distance of
individual trips.
Changing the display
Push the TRIP RESET
3switch on the instru-
ment panel to change the display as follows:
Trip
→ Trip→Trip
Resetting the trip odometer
Pushing the TRIP RESET switch
3for more
than 1 second resets the currently displayed trip
odometer to zero.
LIC2255LIC2676
2-4Instruments and controls

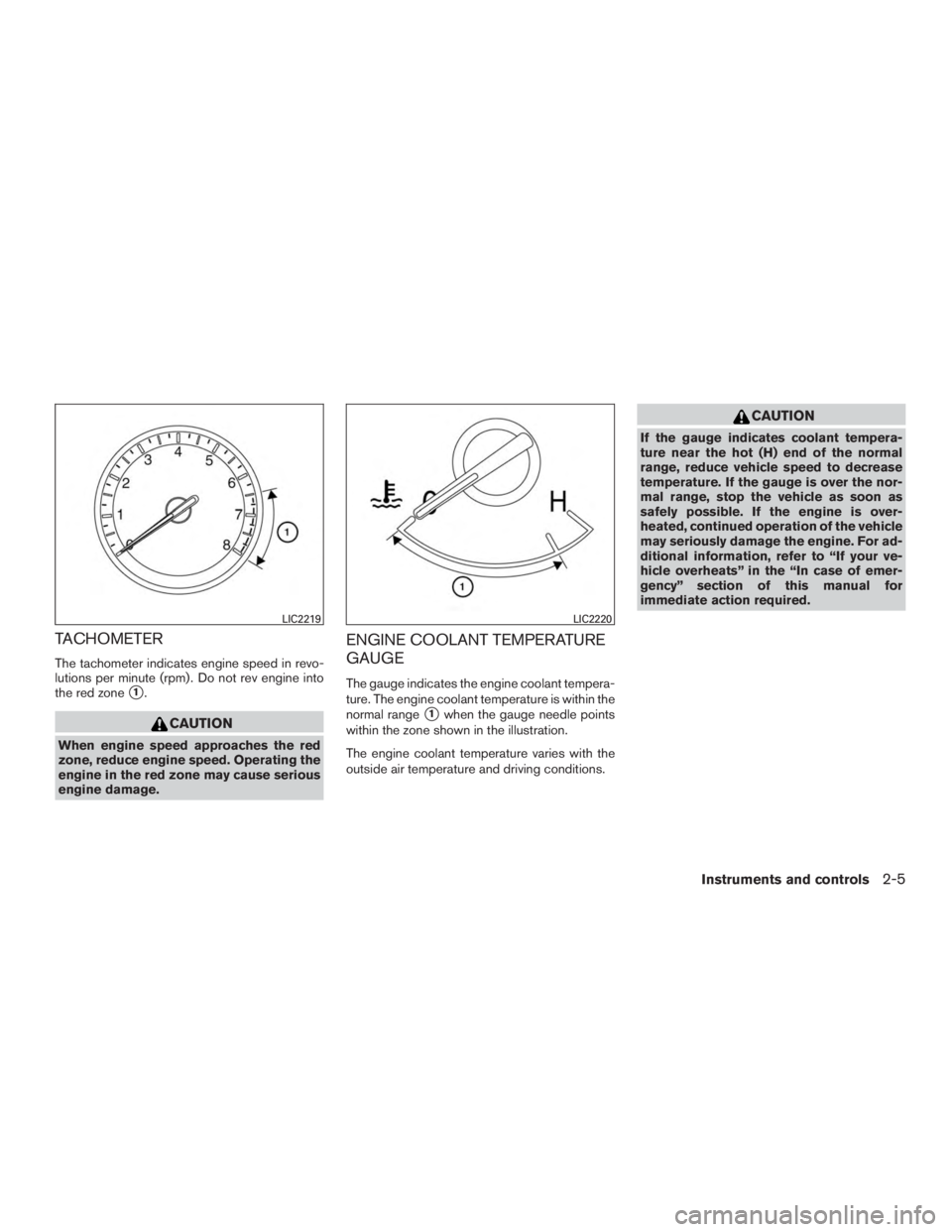

TACHOMETER
The tachometer indicates engine speed in revo-
lutions per minute (rpm) . Do not rev engine into
the red zone
1.
CAUTION
When engine speed approaches the red
zone, reduce engine speed. Operating the
engine in the red zone may cause serious
engine damage.
ENGINE COOLANT TEMPERATURE
GAUGE
The gauge indicates the engine coolant tempera-
ture. The engine coolant temperature is within the
normal range
1when the gauge needle points
within the zone shown in the illustration.
The engine coolant temperature varies with the
outside air temperature and driving conditions.
CAUTION
If the gauge indicates coolant tempera-
ture near the hot (H) end of the normal
range, reduce vehicle speed to decrease
temperature. If the gauge is over the nor-
mal range, stop the vehicle as soon as
safely possible. If the engine is over-
heated, continued operation of the vehicle
may seriously damage the engine. For ad-
ditional information, refer to “If your ve-
hicle overheats” in the “In case of emer-
gency” section of this manual for
immediate action required.
LIC2219LIC2220
Instruments and controls2-5
