Page 401 of 478

NISSAN ROGUE 2016 2.G Owners Manual CAUTION
Be careful not to allow children to swallow
the battery or removed parts.
KEY FOB (if so equipped)
Replace the battery in the key fob as follows:1. Remove the screw
A. 2. Insert a small screw

Page 402 of 478

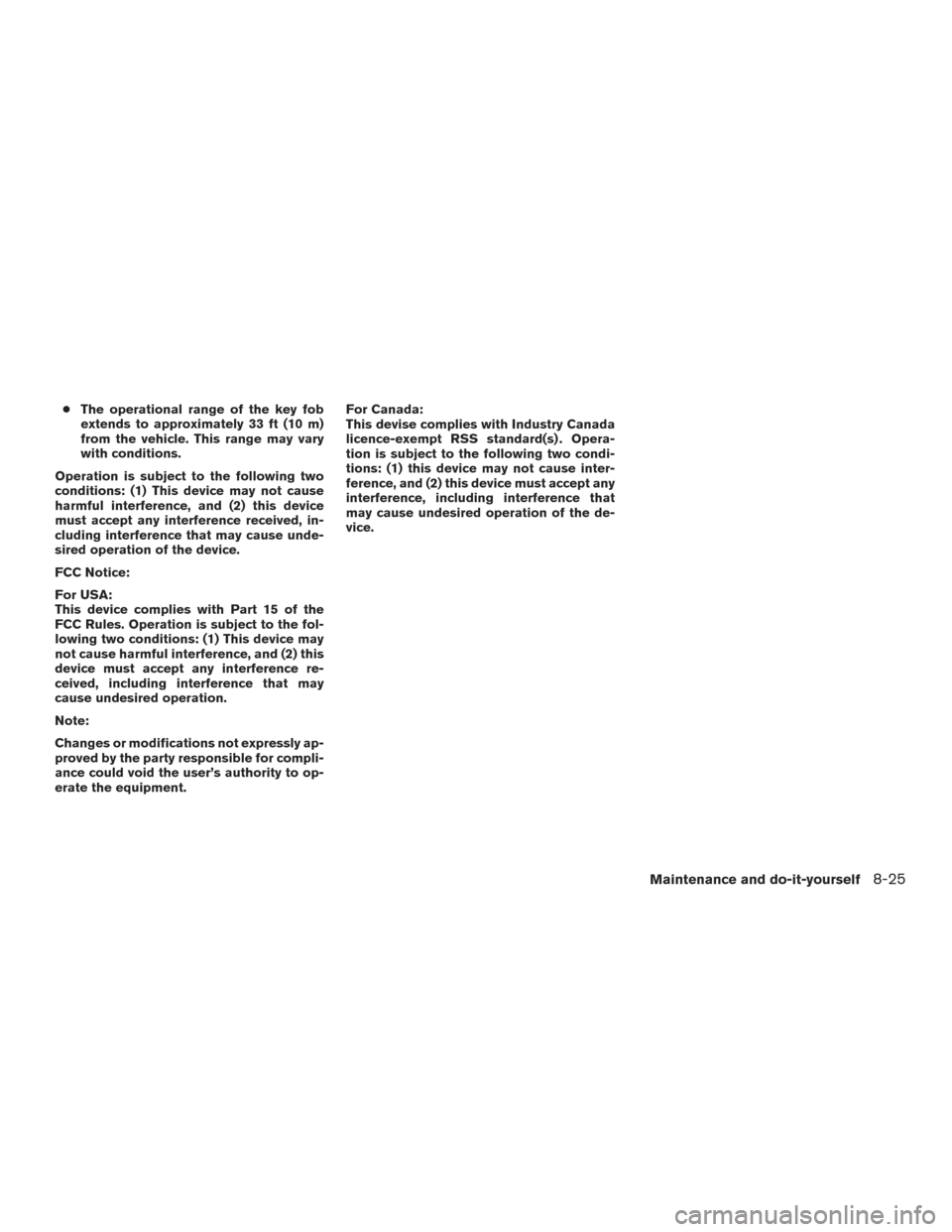

NISSAN ROGUE 2016 2.G Owners Manual ●The operational range of the key fob
extends to approximately 33 ft (10 m)
from the vehicle. This range may vary
with conditions.
Operation is subject to the following two
conditions: (1) This devi

Page 403 of 478

NISSAN ROGUE 2016 2.G Owners Manual NISSAN JACKKNIFE KEY (if so
equipped)
Replace the battery in the jackknife key as fol-
lows:
1Hold jackknife key button side up. Insert a
small screwdriver into the slit of the corner
and twist it to

Page 404 of 478

NISSAN ROGUE 2016 2.G Owners Manual FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device may
not cause harmful interference, and (2) this
device

Page 405 of 478

NISSAN ROGUE 2016 2.G Owners Manual 3. Replace the battery with a new one.Recommended battery: CR2032 or equiva-
lent.
●Do not touch the internal circuit and elec-
tric terminals as doing so could cause a
malfunction.
● Hold the bat

Page 406 of 478

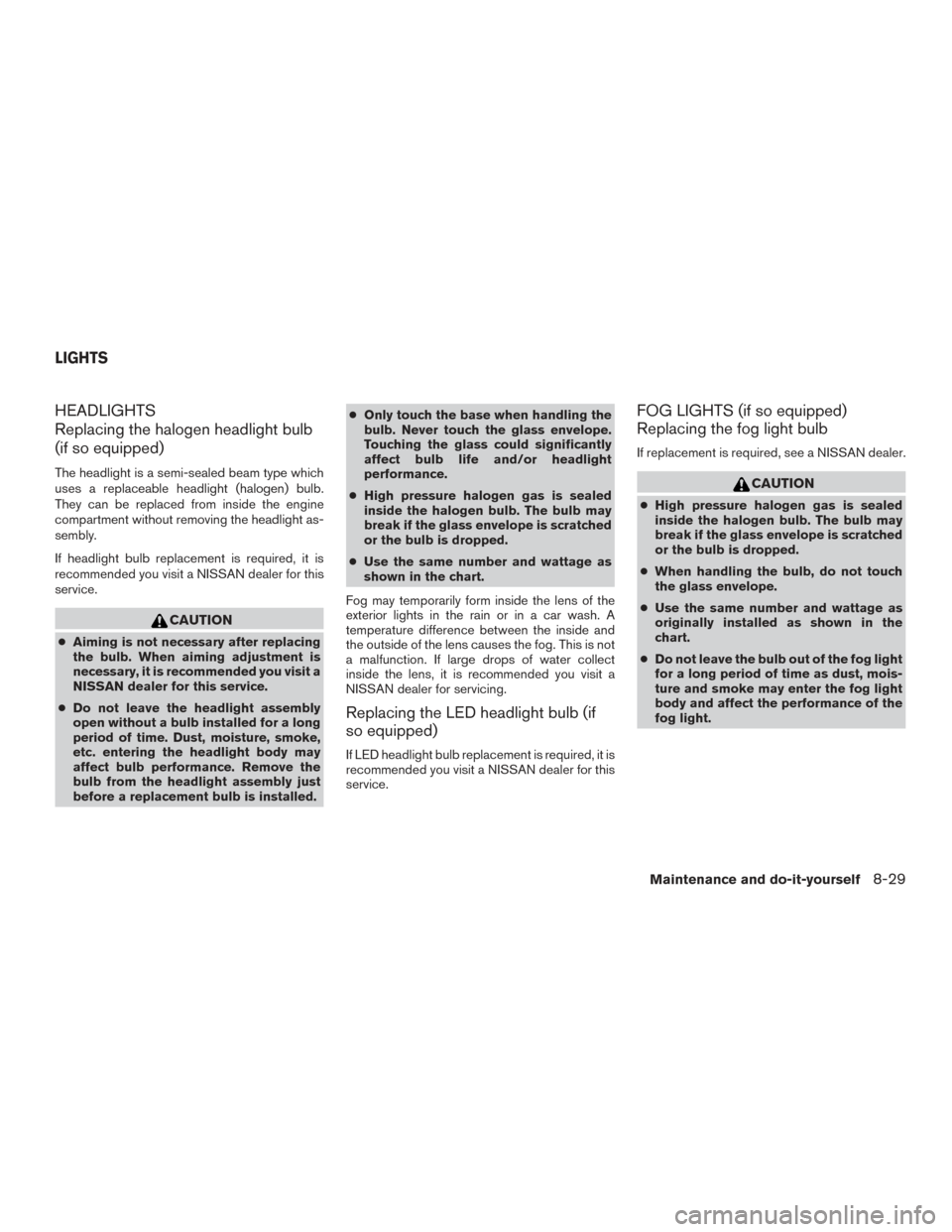

NISSAN ROGUE 2016 2.G Owners Manual HEADLIGHTS
Replacing the halogen headlight bulb
(if so equipped)
The headlight is a semi-sealed beam type which
uses a replaceable headlight (halogen) bulb.
They can be replaced from inside the engine

Page 407 of 478

NISSAN ROGUE 2016 2.G Owners Manual EXTERIOR AND INTERIOR LIGHTS
ItemWattage (W)Bulb No.
Headlight assembly (Type A) (if so equipped)* High 65H9
Low 55H11
Turn 28/87444NR
Side marker 5W5W
Headlight assembly (Type B) (if so equipped)* Hi

Page 408 of 478

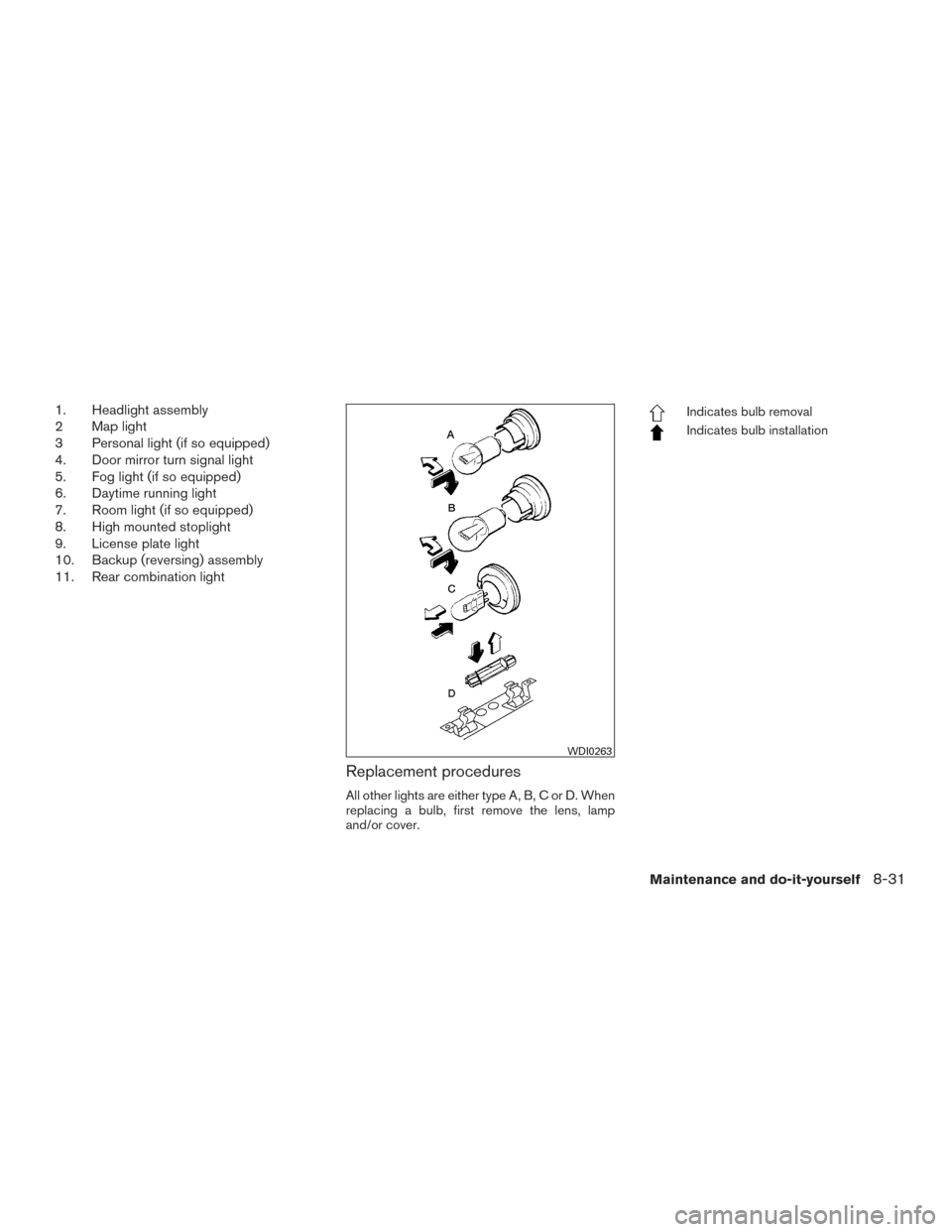

NISSAN ROGUE 2016 2.G Owners Manual 1. Headlight assembly
2 Map light
3 Personal light (if so equipped)
4. Door mirror turn signal light
5. Fog light (if so equipped)
6. Daytime running light
7. Room light (if so equipped)
8. High mount

Page 409 of 478

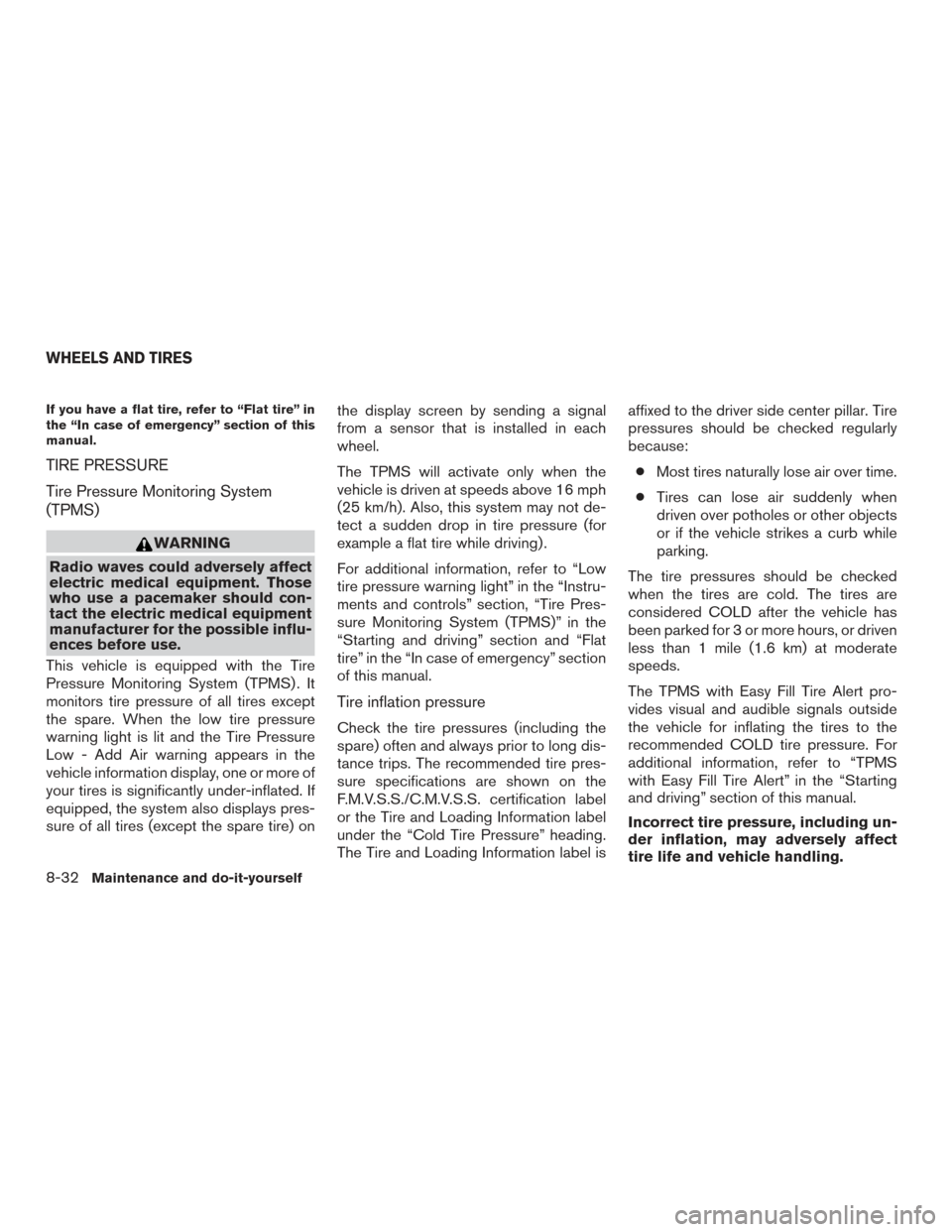

NISSAN ROGUE 2016 2.G Owners Manual If you have a flat tire, refer to “Flat tire” in
the “In case of emergency” section of this
manual.
TIRE PRESSURE
Tire Pressure Monitoring System
(TPMS)
WARNING
Radio waves could adversely aff

Page 410 of 478

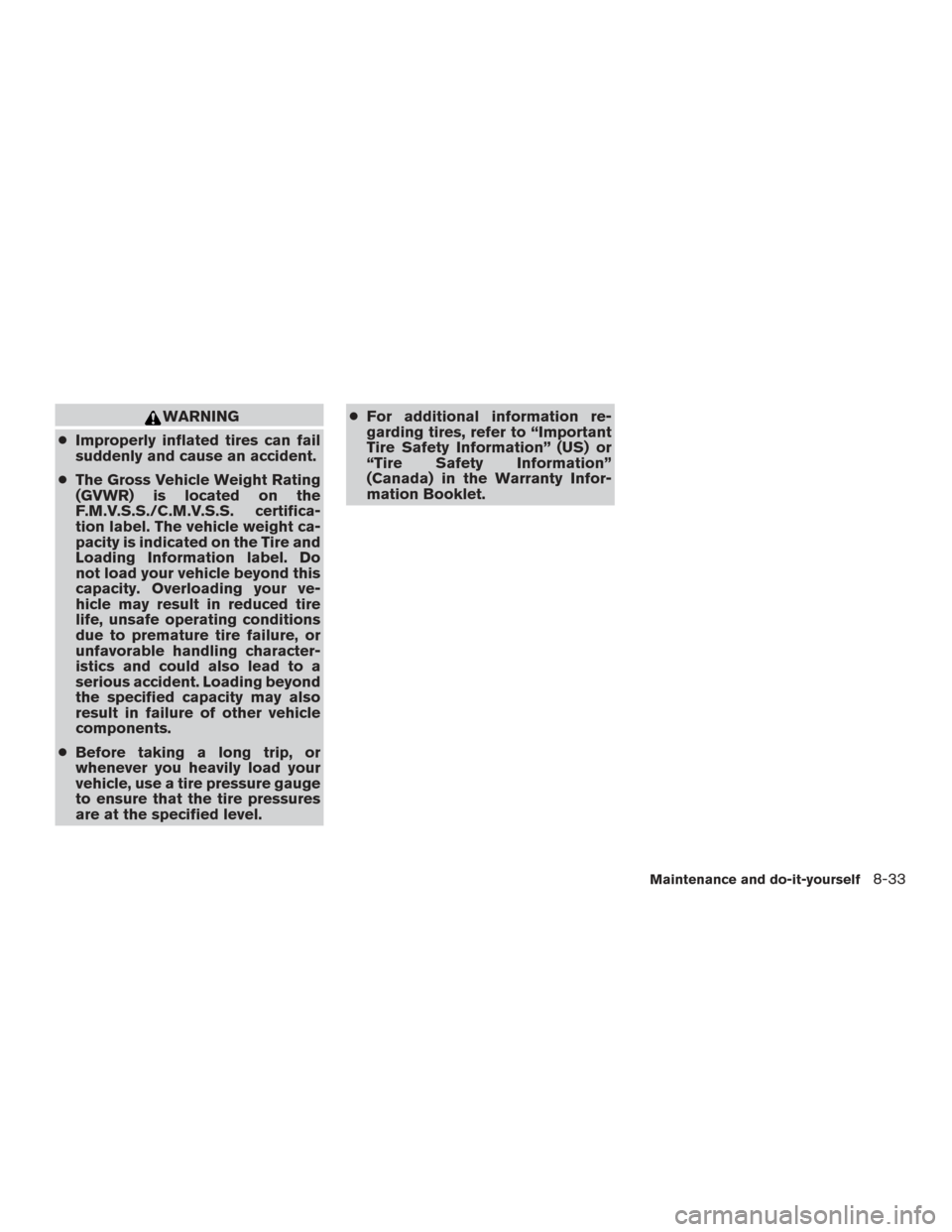

NISSAN ROGUE 2016 2.G Owners Manual WARNING
● Improperly inflated tires can fail
suddenly and cause an accident.
● The Gross Vehicle Weight Rating
(GVWR) is located on the
F.M.V.S.S./C.M.V.S.S. certifica-
tion label. The vehicle wei
