HOW TO ENABLE/DISABLE THE
RCTA SYSTEM
Perform the following steps to enable or disable
the RCTA system.1. Press the
button until “Settings” dis-
plays in the vehicle information display and
then press OK. Use the
button to
select “Driver Assistance.” Then press the
OK button.
2. Select “Parking Aids” and press the OK button.
3. Select “Cross Traffic” and press the OK button.
4. Use the OK button to enable or disable the system.
NOTE:
When enabling/disabling the system, the
system setting will be retained even if the
engine is restarted.
LSD2678
5-50Starting and driving

RCTA SYSTEM LIMITATIONS
WARNING
Listed below are the system limitations for
the RCTA system. Failure to operate the
vehicle in accordance with these system
limitations could result in serious injury or
death.
●Always check surroundings and turn to
check what is behind you before back-
ing up. The radar sensors detect ap-
proaching (moving) vehicles. The radar
sensors cannot detect every object such
as:
– Pedestrians, bicycles, motorcycles, animals or child-operated toy
vehicles
– A vehicle that is passing at speeds greater than approximately 19 mph
(30 km/h)
– A vehicle that is passing at speeds lower than approximately 5 mph
(8 km/h)
● The radar sensors may not detect ap-
proaching vehicles in certain situations:
– Illustration a: When a vehicle parked next to you obstructs the beam of the
radar sensor.
LSD2173
Starting and driving5-51

– Illustration b: When the vehicle isparked in an angled parking space.
– Illustration c: When the vehicle is parked on inclined ground.
– Illustration d: When an approaching vehicle turns into your vehicle’s park-
ing lot aisle.
– Illustration e: When the angle formed by your vehicle and approaching ve-
hicle is small
● The following conditions may reduce
the ability of the radar to detect other
vehicles:
– Severe weather
– Road spray
– Ice/frost/snow build-up on the vehicle
– Dirt build- up on the vehicle
● Do not attach stickers (including trans-
parent material) , install accessories or
apply additional paint near the radar
sensors. These conditions may reduce
the ability of the radar to detect other
vehicles ●
Excessive noise (e.g. audio system vol-
ume, open vehicle window) will inter-
fere with the chime sound, and it may
not be heard.
NOTE:
In the case of several vehicles approaching
in a row (Illustration 1) or in the opposite
direction (Illustration 2) , a chime may not
be sounded by the RCTA system after the
first vehicle passes the sensors.
Illustration 1
LSD2043
5-52Starting and driving

Illustration 2
LSD2044
LSD2735
Starting and driving5-53

SYSTEM TEMPORARILY
UNAVAILABLE
When radar blockage is detected, the system will
be deactivated automatically. The “Side Radar
Obstruction” warning message will appear in the
vehicle information display.
The systems are not available until the conditions
no longer exist.
The radar sensors may be blocked by temporary
ambient conditions such as splashing water, mist
or fog.
The blocked condition may also be caused by
objects such as ice, frost or dirt obstructing the
radar sensors.
NOTE:
If the BSW system stops working, the RCTA
system (if so equipped) will also stop work-
ing.
Action to take
When the above conditions no longer exist, the
system will resume automatically.
Malfunction
When the RCTA system malfunctions, it will turn
off automatically. The system malfunction warn-
ing message will appear in the vehicle information
display.
NOTE:
If the BSW system stops working, the RCTA
system (if so equipped) will also stop work-
ing.
Action to take
Stop the vehicle in a safe location, place the
vehicle in the P (Park) position, turn the engine off
and restart the engine. If the message continues
to appear, have the system checked. It is recom-
mended that you visit a NISSAN dealer for this
service.
SYSTEM MAINTENANCE
The two radar sensors1for the BSW and
RCTA systems are located near the rear bumper.
Always keep the area near the radar sensors
clean.
The radar sensors may be blocked by temporary
ambient conditions such as splashing water, mist
or fog.
The blocked condition may also be caused by
objects such as ice, frost or dirt obstructing the
radar sensors.
Check for and remove objects obstructing the
area around the radar sensors.
LSD2439
5-54Starting and driving

Do not attach stickers (including transparent ma-
terial) , install accessories or apply additional
paint near the radar sensors.
Do not strike or damage the area around the
radar sensors. It is recommended that you visit a
NISSAN dealer if the area around the radar sen-
sors is damaged due to a collision.
Radio frequency statement
For USA
FCC : OAYSRR3B
This device complies with part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions:
(1) This device may not cause harmful inter-
ference, and (2) this device must accept any
interference received, including interfer-
ence that may cause undesired operation.
FCC Warning
Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to op-
erate the equipmentFor Canada
Applicable law: Canada 310
This device complies with Industry Canada
licence-exempt RSS standard(s) . Opera-
tion is subject to the following two condi-
tions: (1) this device may not cause inter-
ference, and (2) this device must accept any
interference, including interference that
may cause undesired operation of the de-
vice.
Frequency bands: 24.05 – 24.25GHz
Output power: less than 20 milliwatts
PRECAUTIONS ON CRUISE
CONTROL
1. CANCEL switch
2. RES/+ switch
3. SET/- switch
4. CRUISE ON/OFF switch
● If the cruise control system malfunctions, it
cancels automatically. The
indicator
light in the vehicle information display then
blinks to warn the driver.
LSD2722
CRUISE CONTROL
Starting and driving5-55

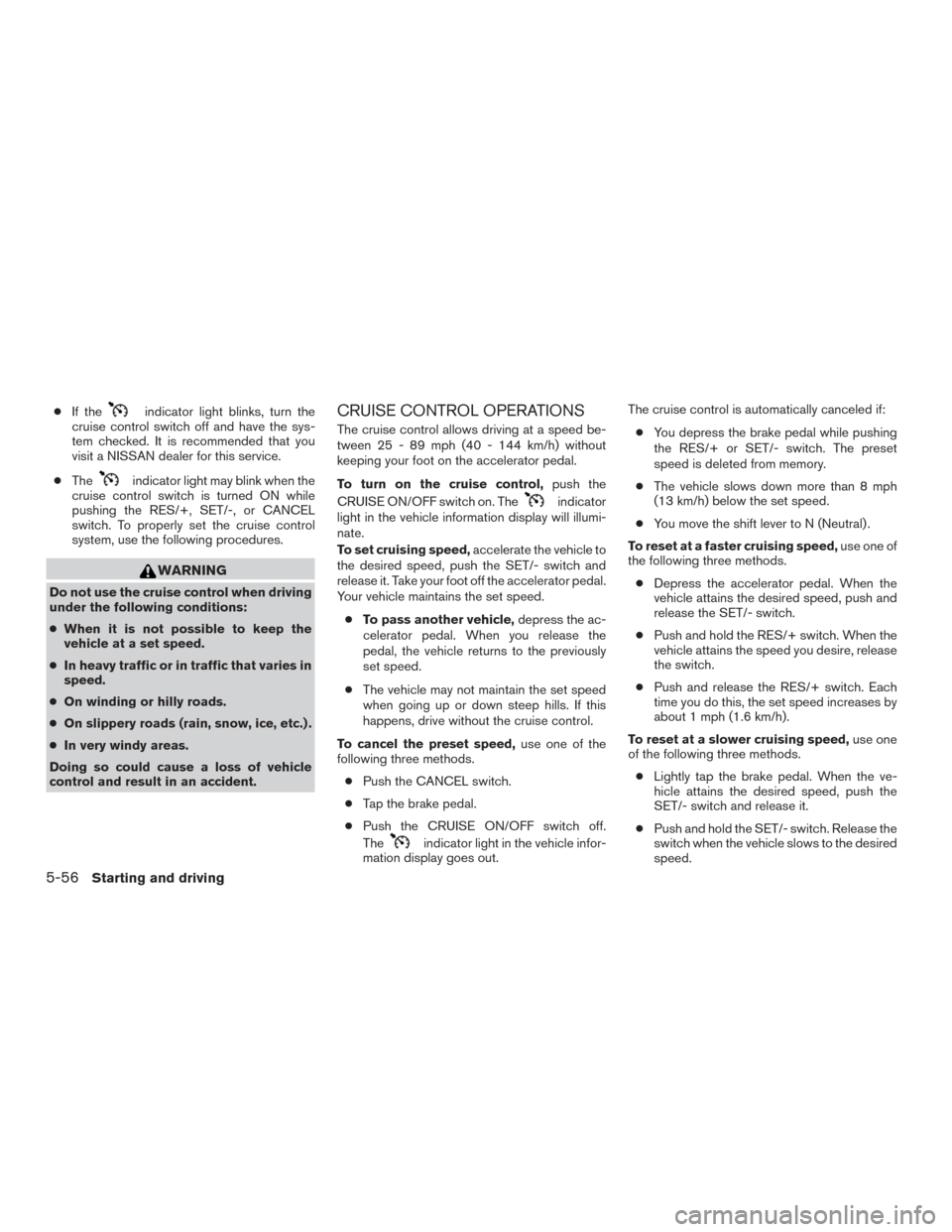

●If theindicator light blinks, turn the
cruise control switch off and have the sys-
tem checked. It is recommended that you
visit a NISSAN dealer for this service.
● The
indicator light may blink when the
cruise control switch is turned ON while
pushing the RES/+, SET/-, or CANCEL
switch. To properly set the cruise control
system, use the following procedures.
WARNING
Do not use the cruise control when driving
under the following conditions:
● When it is not possible to keep the
vehicle at a set speed.
● In heavy traffic or in traffic that varies in
speed.
● On winding or hilly roads.
● On slippery roads (rain, snow, ice, etc.) .
● In very windy areas.
Doing so could cause a loss of vehicle
control and result in an accident.
CRUISE CONTROL OPERATIONS
The cruise control allows driving at a speed be-
tween 25 - 89 mph (40 - 144 km/h) without
keeping your foot on the accelerator pedal.
To turn on the cruise control, push the
CRUISE ON/OFF switch on. The
indicator
light in the vehicle information display will illumi-
nate.
To set cruising speed, accelerate the vehicle to
the desired speed, push the SET/- switch and
release it. Take your foot off the accelerator pedal.
Your vehicle maintains the set speed.
● To pass another vehicle, depress the ac-
celerator pedal. When you release the
pedal, the vehicle returns to the previously
set speed.
● The vehicle may not maintain the set speed
when going up or down steep hills. If this
happens, drive without the cruise control.
To cancel the preset speed, use one of the
following three methods.
● Push the CANCEL switch.
● Tap the brake pedal.
● Push the CRUISE ON/OFF switch off.
The
indicator light in the vehicle infor-
mation display goes out. The cruise control is automatically canceled if:
● You depress the brake pedal while pushing
the RES/+ or SET/- switch. The preset
speed is deleted from memory.
● The vehicle slows down more than 8 mph
(13 km/h) below the set speed.
● You move the shift lever to N (Neutral) .
To reset at a faster cruising speed, use one of
the following three methods.
● Depress the accelerator pedal. When the
vehicle attains the desired speed, push and
release the SET/- switch.
● Push and hold the RES/+ switch. When the
vehicle attains the speed you desire, release
the switch.
● Push and release the RES/+ switch. Each
time you do this, the set speed increases by
about 1 mph (1.6 km/h).
To reset at a slower cruising speed, use one
of the following three methods.
● Lightly tap the brake pedal. When the ve-
hicle attains the desired speed, push the
SET/- switch and release it.
● Push and hold the SET/- switch. Release the
switch when the vehicle slows to the desired
speed.
5-56Starting and driving

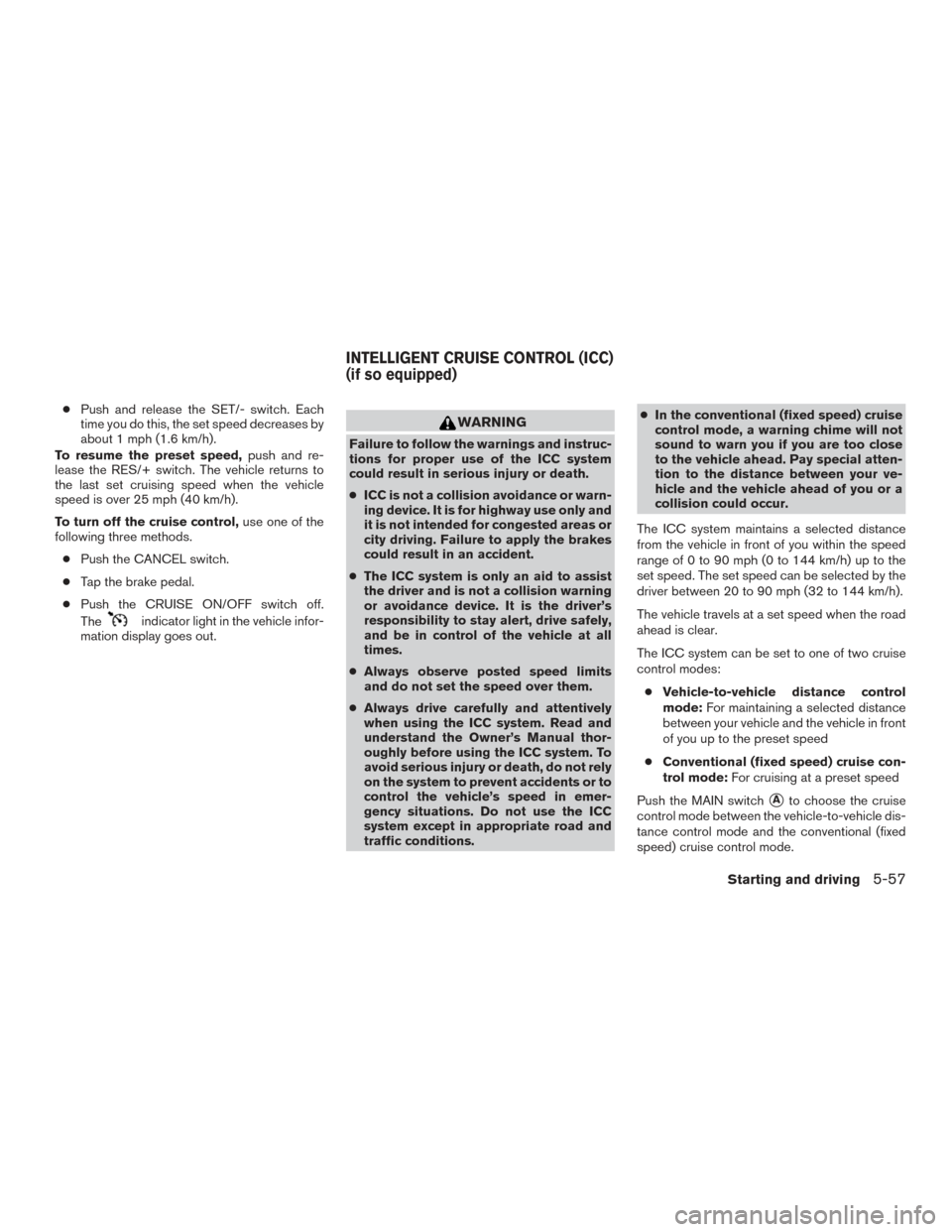

●Push and release the SET/- switch. Each
time you do this, the set speed decreases by
about 1 mph (1.6 km/h).
To resume the preset speed, push and re-
lease the RES/+ switch. The vehicle returns to
the last set cruising speed when the vehicle
speed is over 25 mph (40 km/h).
To turn off the cruise control, use one of the
following three methods.
● Push the CANCEL switch.
● Tap the brake pedal.
● Push the CRUISE ON/OFF switch off.
The
indicator light in the vehicle infor-
mation display goes out.
WARNING
Failure to follow the warnings and instruc-
tions for proper use of the ICC system
could result in serious injury or death.
● ICC is not a collision avoidance or warn-
ing device. It is for highway use only and
it is not intended for congested areas or
city driving. Failure to apply the brakes
could result in an accident.
● The ICC system is only an aid to assist
the driver and is not a collision warning
or avoidance device. It is the driver’s
responsibility to stay alert, drive safely,
and be in control of the vehicle at all
times.
● Always observe posted speed limits
and do not set the speed over them.
● Always drive carefully and attentively
when using the ICC system. Read and
understand the Owner’s Manual thor-
oughly before using the ICC system. To
avoid serious injury or death, do not rely
on the system to prevent accidents or to
control the vehicle’s speed in emer-
gency situations. Do not use the ICC
system except in appropriate road and
traffic conditions. ●
In the conventional (fixed speed) cruise
control mode, a warning chime will not
sound to warn you if you are too close
to the vehicle ahead. Pay special atten-
tion to the distance between your ve-
hicle and the vehicle ahead of you or a
collision could occur.
The ICC system maintains a selected distance
from the vehicle in front of you within the speed
range of 0 to 90 mph (0 to 144 km/h) up to the
set speed. The set speed can be selected by the
driver between 20 to 90 mph (32 to 144 km/h).
The vehicle travels at a set speed when the road
ahead is clear.
The ICC system can be set to one of two cruise
control modes: ● Vehicle-to-vehicle distance control
mode: For maintaining a selected distance
between your vehicle and the vehicle in front
of you up to the preset speed
● Conventional (fixed speed) cruise con-
trol mode: For cruising at a preset speed
Push the MAIN switch
Ato choose the cruise
control mode between the vehicle-to-vehicle dis-
tance control mode and the conventional (fixed
speed) cruise control mode.
INTELLIGENT CRUISE CONTROL (ICC)
(if so equipped)
Starting and driving5-57

Once a control mode is activated, it cannot be
changed to the other cruise control mode. To
change the mode, push the MAIN switch
A
once to turn the system off. Then push the MAIN
switch
Aagain to turn the system back on and
select the desired cruise control mode.
Always confirm the setting in the ICC system
display.
For the vehicle-to-vehicle distance control mode,
refer to “Vehicle-to-vehicle distance control
mode” in this section.
For the conventional (fixed speed) cruise control
mode, refer to “Conventional (fixed speed) cruise
control mode” in this section.
AMAIN (ON/OFF) switch
LSD2728
5-58Starting and driving

HOW TO SELECT THE CRUISE
CONTROL MODE
Selecting the vehicle-to-vehicle distance
control mode:To choose the vehicle-to-vehicle
distance control mode
1, quickly push and re-
lease the MAIN switch
A.
Selecting the conventional (fixed speed)
cruise control mode: To choose the conven-
tional (fixed speed) cruise control mode
2, push
and hold the MAIN switch
Afor longer than
approximately 1.5 seconds. For additional infor-
mation, refer to “Conventional (fixed speed)
cruise control mode” in this section.
VEHICLE-TO-VEHICLE DISTANCE
CONTROL MODE
In the vehicle-to-vehicle distance control mode,
the ICC system automatically maintains a se-
lected distance from the vehicle traveling in front
of you according to that vehicle’s speed (up to
the set speed) , or at the set speed when the road
ahead is clear.
The ICC system is intended to enhance the op-
eration of the vehicle when following a vehicle
traveling in the same lane and direction.
If the radar sensor
Bdetects a slower moving
vehicle ahead, the system will reduce the vehicle
LSD2727LSD2731
Starting and driving5-59
