NISSAN ROGUE 2017 Owner´s Manual

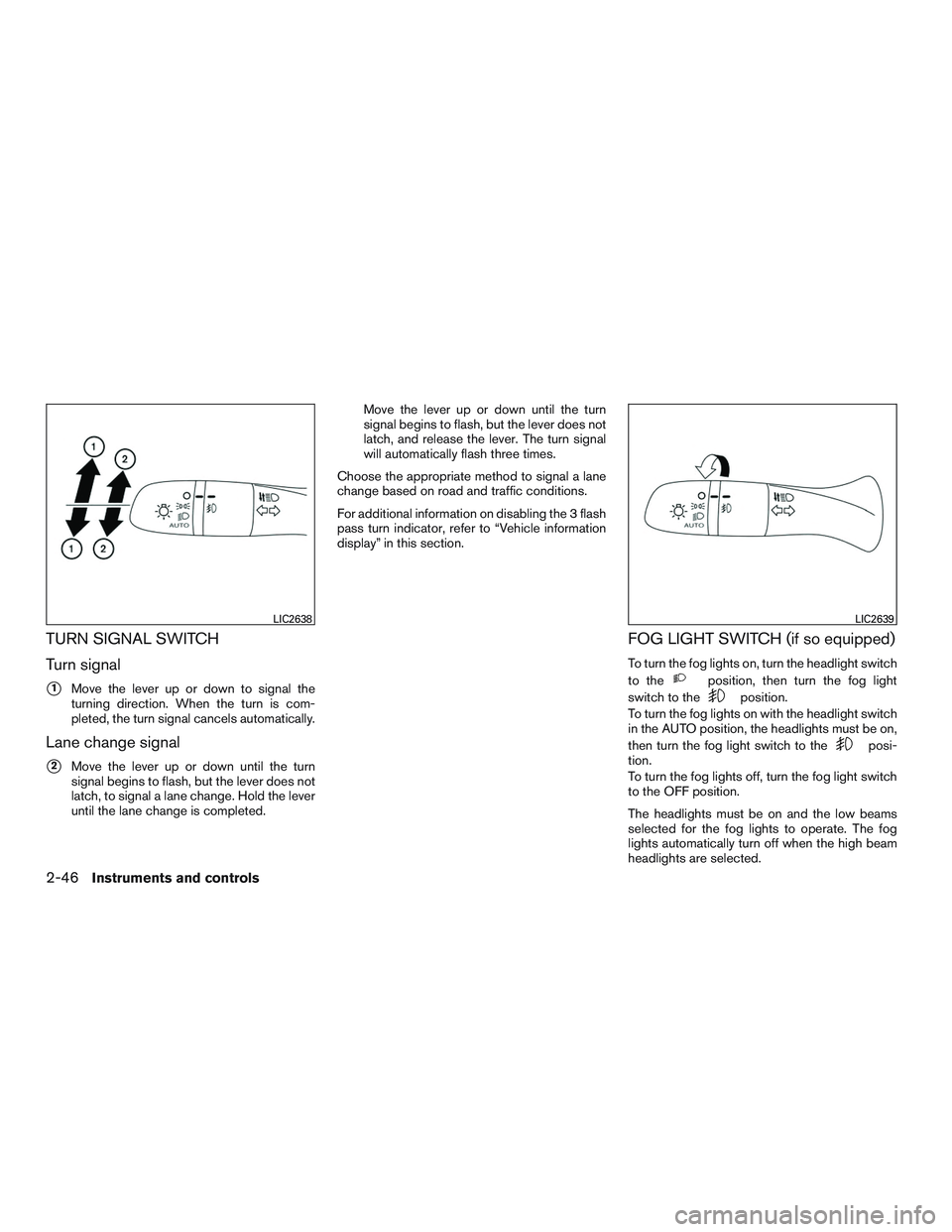

TURN SIGNAL SWITCH
Turn signal
1Move the lever up or down to signal the
turning direction. When the turn is com-
pleted, the turn signal cancels automatically.
Lane change signal
2Move the lever up or down until the turn
signal begins to flash, but the lever does not
latch, to signal a lane change. Hold the lever
until the lane change is completed. Move the lever up or down until the turn
signal begins to flash, but the lever does not
latch, and release the lever. The turn signal
will automatically flash three times.
Choose the appropriate method to signal a lane
change based on road and traffic conditions.
For additional information on disabling the 3 flash
pass turn indicator, refer to “Vehicle information
display” in this section.
FOG LIGHT SWITCH (if so equipped)
To turn the fog lights on, turn the headlight switch
to the
position, then turn the fog light
switch to the
position.
To turn the fog lights on with the headlight switch
in the AUTO position, the headlights must be on,
then turn the fog light switch to the
posi-
tion.
To turn the fog lights off, turn the fog light switch
to the OFF position.
The headlights must be on and the low beams
selected for the fog lights to operate. The fog
lights automatically turn off when the high beam
headlights are selected.
LIC2638LIC2639
2-46Instruments and controls

To sound the horn, push near the horn icon on the
steering wheel.
WARNING
Do not disassemble the horn. Doing so
could affect proper operation of the
supplemental front air bag system. Tam-
pering with the supplemental front air bag
system may result in serious personal
injury.
WARNING
Do not use or allow occupants to use the
seat heater if you or the occupants cannot
monitor elevated seat temperatures or
have an inability to feel pain in body parts
that contact the seat. Use of the seat
heater by such people could result in seri-
ous injury.
CAUTION
●The battery could run down if the seat
heater is operated while the engine is
not running.
● Do not use the seat heater for extended
periods or when no one is using the
seat.
● Do not put anything on the seat which
insulates heat, such as a blanket, cush-
ion, seat cover, etc. Otherwise, the seat
may become overheated.
● Do not place anything hard or heavy on
the seat or pierce it with a pin or similar
object. This may result in damage to the
heater.
● Any liquid spilled on the heated seat
should be removed immediately with a
dry cloth. ●
When cleaning the seat, never use
gasoline, benzine, thinner, or any simi-
lar materials.
● If any malfunctions are found or the
heated seat does not operate, turn the
switch off and have the system checked.
It is recommended that you visit a
NISSAN dealer for this service.
LIC3568
HORN HEATED SEAT SWITCHES (if so
equipped)
Instruments and controls2-47

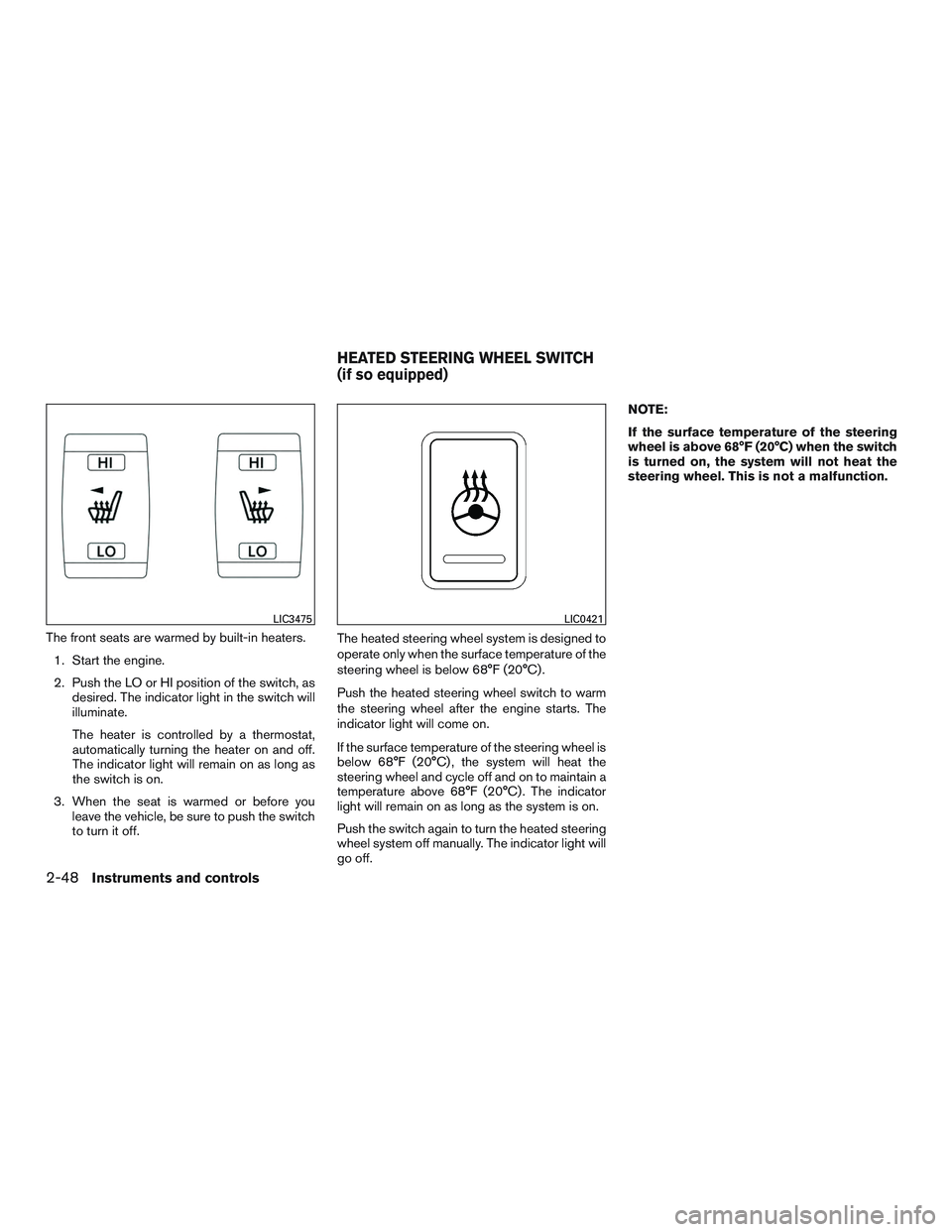

The front seats are warmed by built-in heaters.1. Start the engine.
2. Push the LO or HI position of the switch, as desired. The indicator light in the switch will
illuminate.
The heater is controlled by a thermostat,
automatically turning the heater on and off.
The indicator light will remain on as long as
the switch is on.
3. When the seat is warmed or before you leave the vehicle, be sure to push the switch
to turn it off. The heated steering wheel system is designed to
operate only when the surface temperature of the
steering wheel is below 68°F (20°C) .
Push the heated steering wheel switch to warm
the steering wheel after the engine starts. The
indicator light will come on.
If the surface temperature of the steering wheel is
below 68°F (20°C) , the system will heat the
steering wheel and cycle off and on to maintain a
temperature above 68°F (20°C) . The indicator
light will remain on as long as the system is on.
Push the switch again to turn the heated steering
wheel system off manually. The indicator light will
go off. NOTE:
If the surface temperature of the steering
wheel is above 68°F (20°C) when the switch
is turned on, the system will not heat the
steering wheel. This is not a malfunction.
LIC3475LIC0421
HEATED STEERING WHEEL SWITCH
(if so equipped)
2-48Instruments and controls

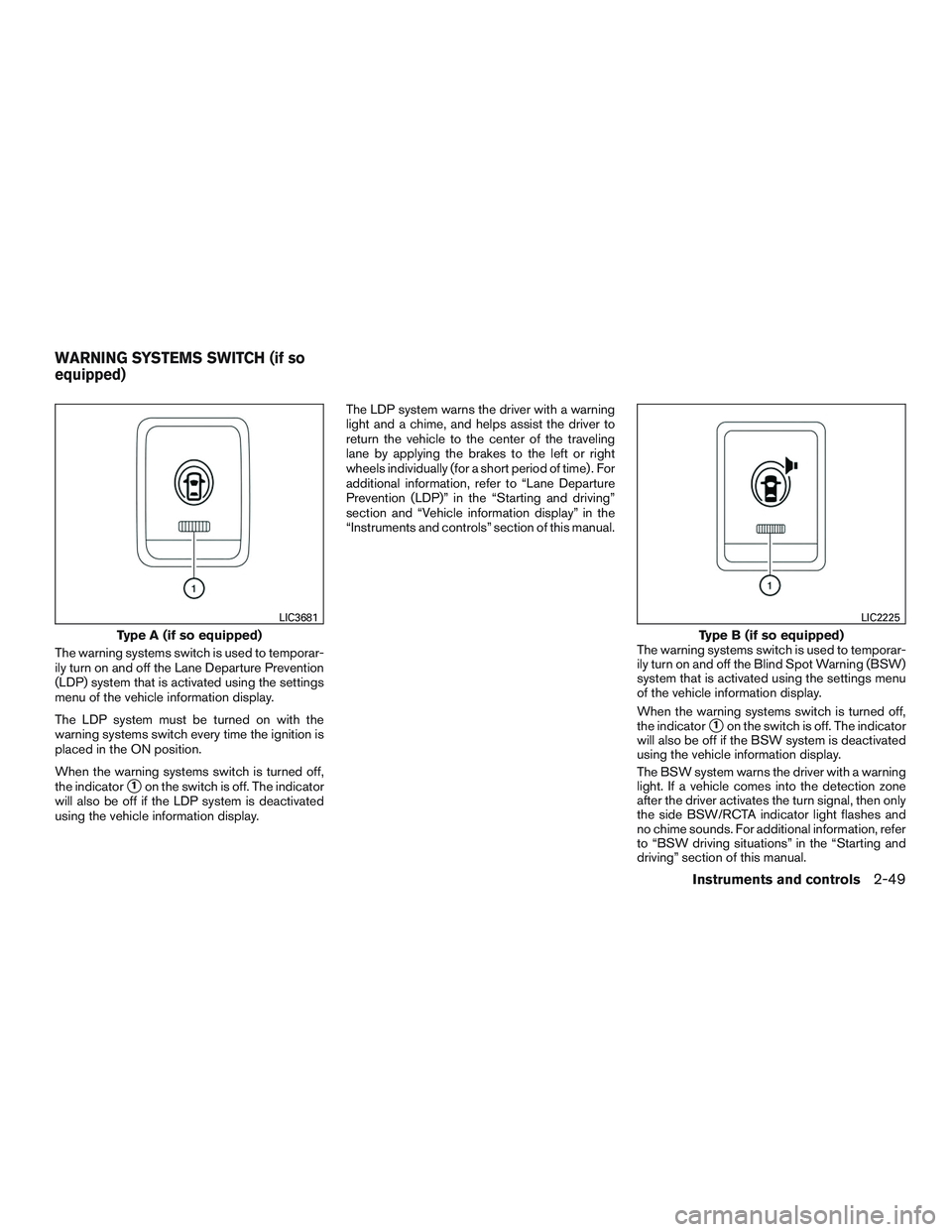

The warning systems switch is used to temporar-
ily turn on and off the Lane Departure Prevention
(LDP) system that is activated using the settings
menu of the vehicle information display.
The LDP system must be turned on with the
warning systems switch every time the ignition is
placed in the ON position.
When the warning systems switch is turned off,
the indicator
1on the switch is off. The indicator
will also be off if the LDP system is deactivated
using the vehicle information display. The LDP system warns the driver with a warning
light and a chime, and helps assist the driver to
return the vehicle to the center of the traveling
lane by applying the brakes to the left or right
wheels individually (for a short period of time) . For
additional information, refer to “Lane Departure
Prevention (LDP)” in the “Starting and driving”
section and “Vehicle information display” in the
“Instruments and controls” section of this manual.
The warning systems switch is used to temporar-
ily turn on and off the Blind Spot Warning (BSW)
system that is activated using the settings menu
of the vehicle information display.
When the warning systems switch is turned off,
the indicator
1on the switch is off. The indicator
will also be off if the BSW system is deactivated
using the vehicle information display.
The BSW system warns the driver with a warning
light. If a vehicle comes into the detection zone
after the driver activates the turn signal, then only
the side BSW/RCTA indicator light flashes and
no chime sounds. For additional information, refer
to “BSW driving situations” in the “Starting and
driving” section of this manual.
Type A (if so equipped)
LIC3681
Type B (if so equipped)
LIC2225
WARNING SYSTEMS SWITCH (if so
equipped)
Instruments and controls2-49

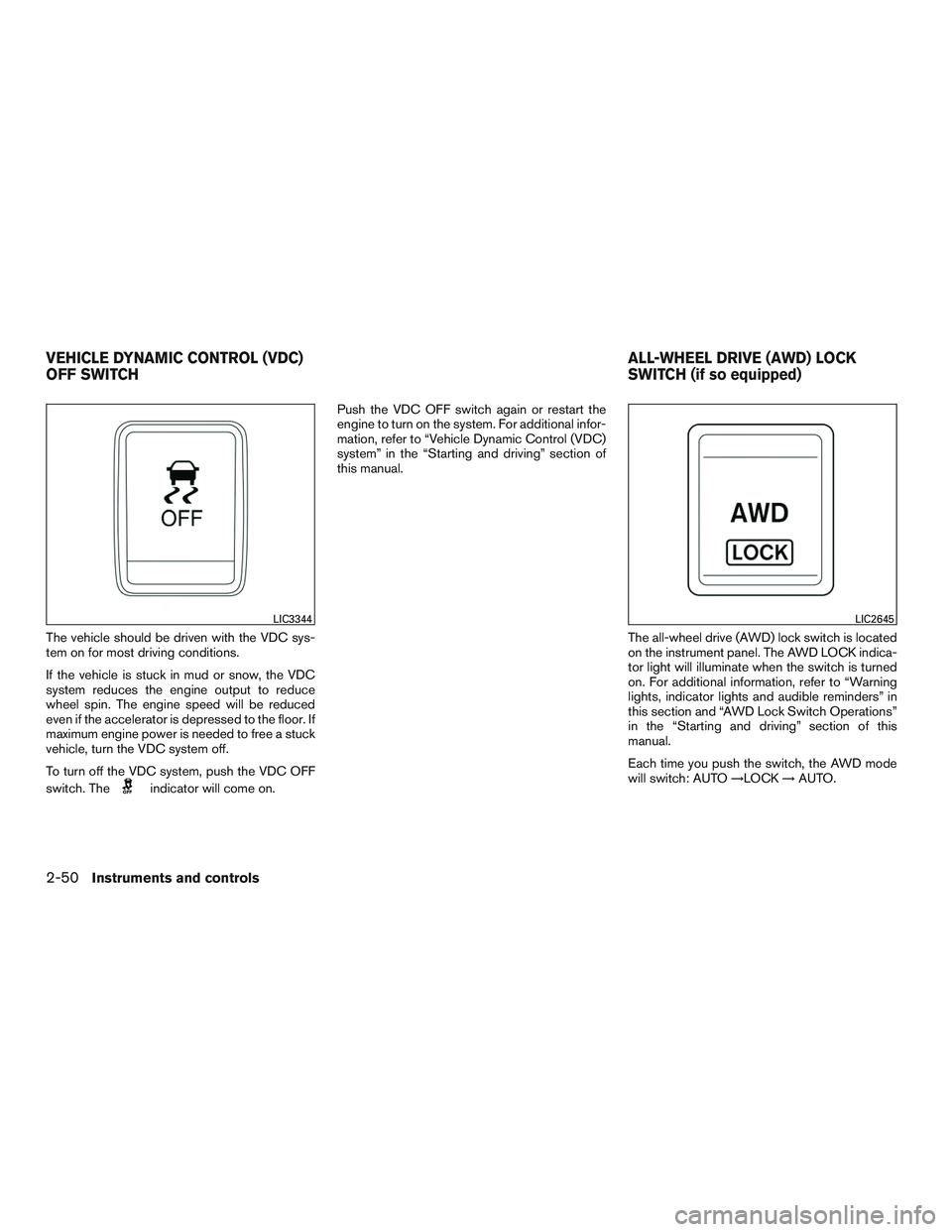

The vehicle should be driven with the VDC sys-
tem on for most driving conditions.
If the vehicle is stuck in mud or snow, the VDC
system reduces the engine output to reduce
wheel spin. The engine speed will be reduced
even if the accelerator is depressed to the floor. If
maximum engine power is needed to free a stuck
vehicle, turn the VDC system off.
To turn off the VDC system, push the VDC OFF
switch. The
indicator will come on.Push the VDC OFF switch again or restart the
engine to turn on the system. For additional infor-
mation, refer to “Vehicle Dynamic Control (VDC)
system” in the “Starting and driving” section of
this manual.
The all-wheel drive (AWD) lock switch is located
on the instrument panel. The AWD LOCK indica-
tor light will illuminate when the switch is turned
on. For additional information, refer to “Warning
lights, indicator lights and audible reminders” in
this section and “AWD Lock Switch Operations”
in the “Starting and driving” section of this
manual.
Each time you push the switch, the AWD mode
will switch: AUTO→LOCK→AUTO.
LIC3344LIC2645
VEHICLE DYNAMIC CONTROL (VDC)
OFF SWITCH ALL-WHEEL DRIVE (AWD) LOCK
SWITCH (if so equipped)
2-50Instruments and controls

The E-call (SOS) system switch is used in com-
bination with a NissanConnectSMServices sub-
scription to call for assistance in case of an
emergency.
Pushing the switch will (with a paid subscription)
reach a Response Specialist that will provide
assistance based on the situation described by
the vehicle’s occupant. For additional informa-
tion, or to enroll your vehicle, refer to
www.NissanUSA.com/connect,
www.Nissan.ca/NissanConnect, or
www.Nissan.ca/NissanConnect/fr or call
855–426–6628.12V OUTLETS
The power outlets are for powering electrical
accessories such as cellular telephones. They
are rated at 12 volt, 120W (10A) maximum.
The front and center console power outlets are
powered only when the ignition switch is in the
ON position, or while the accessory power is
active. NOTE:
● When the ignition is in the OFF position, the
front and center console power outlets stop
delivering power one minute after the door is
opened and stays open.
● If the door remains closed after the ignition is
placed in the OFF position, the front and
center console power outlets continue to
deliver power until the accessory power
timer has elapsed.
● The cargo area power outlet(s) continues to
deliver power normally.
LIC3357
Instrument Panel
LIC2615
E-CALL (SOS) SWITCH (if so
equipped) POWER OUTLETS
Instruments and controls2-51

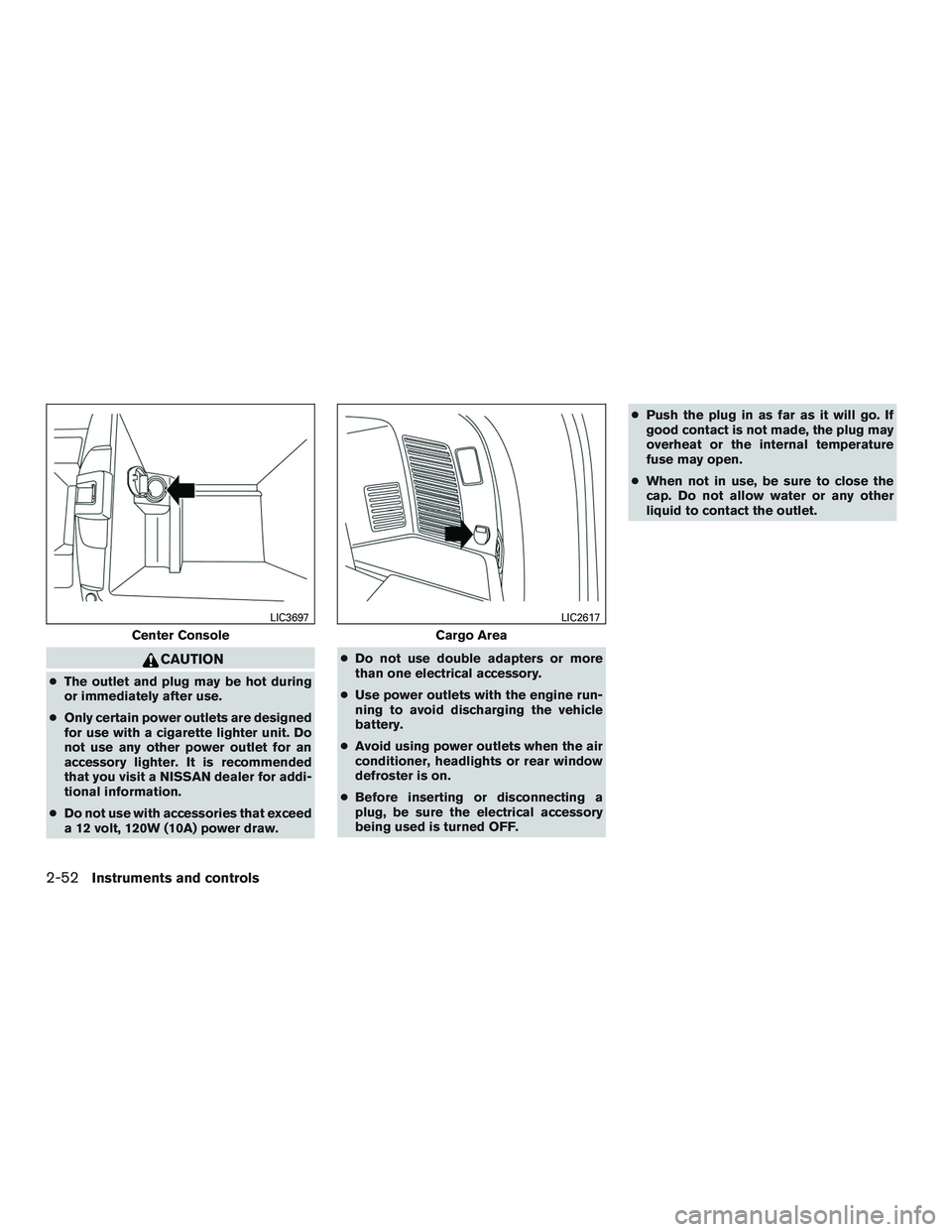

CAUTION
●The outlet and plug may be hot during
or immediately after use.
● Only certain power outlets are designed
for use with a cigarette lighter unit. Do
not use any other power outlet for an
accessory lighter. It is recommended
that you visit a NISSAN dealer for addi-
tional information.
● Do not use with accessories that exceed
a 12 volt, 120W (10A) power draw. ●
Do not use double adapters or more
than one electrical accessory.
● Use power outlets with the engine run-
ning to avoid discharging the vehicle
battery.
● Avoid using power outlets when the air
conditioner, headlights or rear window
defroster is on.
● Before inserting or disconnecting a
plug, be sure the electrical accessory
being used is turned OFF. ●
Push the plug in as far as it will go. If
good contact is not made, the plug may
overheat or the internal temperature
fuse may open.
● When not in use, be sure to close the
cap. Do not allow water or any other
liquid to contact the outlet.
Center Console
LIC3697
Cargo Area
LIC2617
2-52Instruments and controls

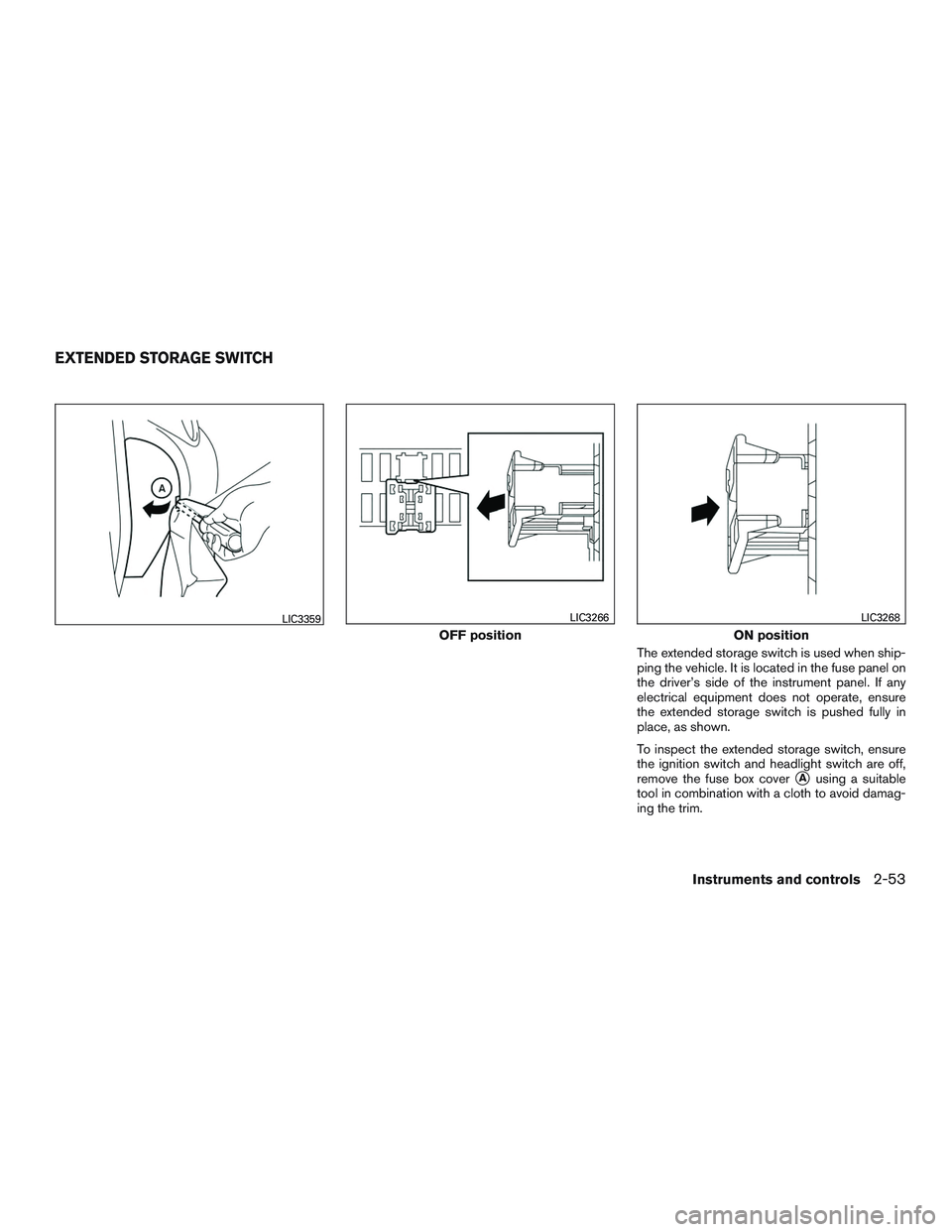

The extended storage switch is used when ship-
ping the vehicle. It is located in the fuse panel on
the driver’s side of the instrument panel. If any
electrical equipment does not operate, ensure
the extended storage switch is pushed fully in
place, as shown.
To inspect the extended storage switch, ensure
the ignition switch and headlight switch are off,
remove the fuse box cover
Ausing a suitable
tool in combination with a cloth to avoid damag-
ing the trim.
LIC3359
OFF position
LIC3266
ON position
LIC3268
EXTENDED STORAGE SWITCH
Instruments and controls2-53

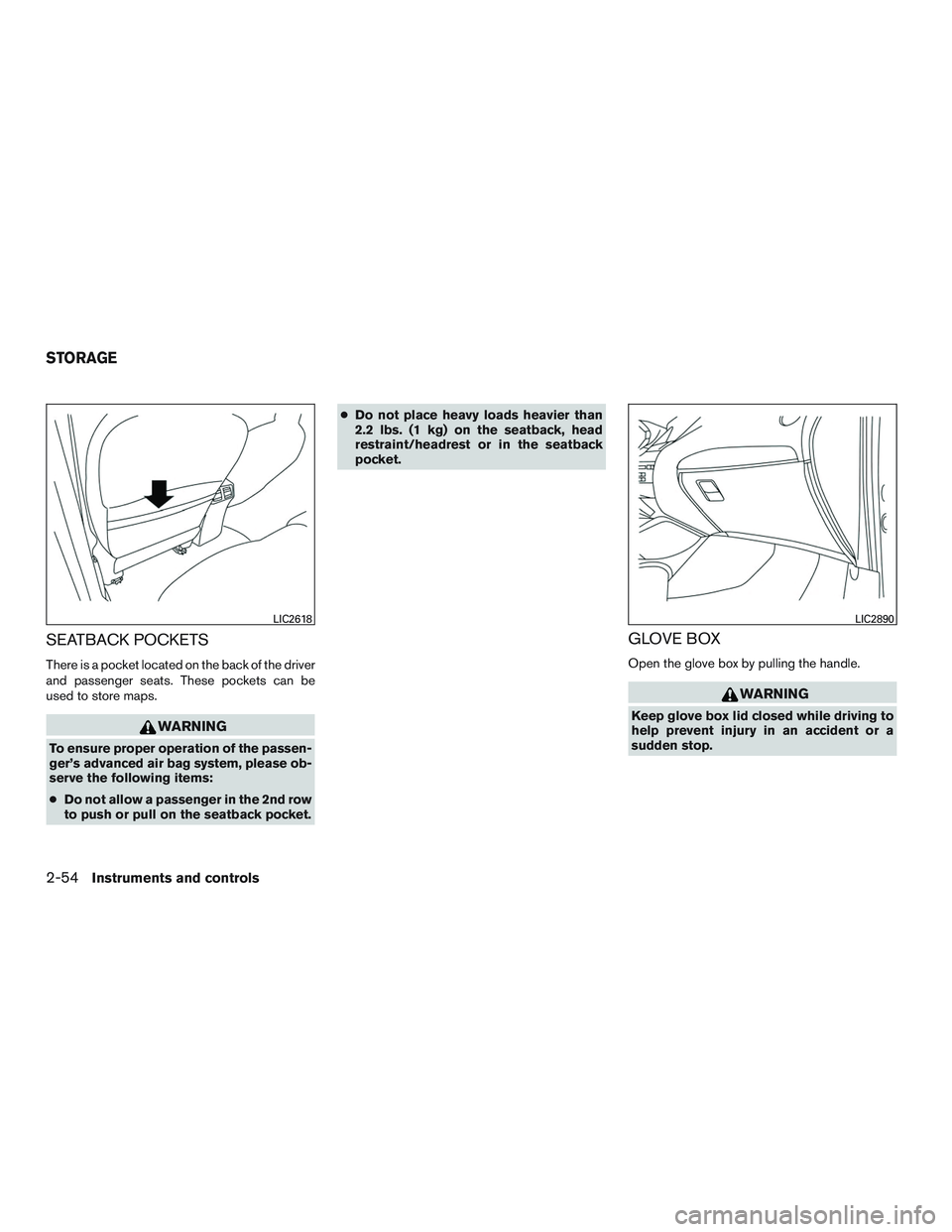

SEATBACK POCKETS
There is a pocket located on the back of the driver
and passenger seats. These pockets can be
used to store maps.
WARNING
To ensure proper operation of the passen-
ger’s advanced air bag system, please ob-
serve the following items:
●Do not allow a passenger in the 2nd row
to push or pull on the seatback pocket. ●
Do not place heavy loads heavier than
2.2 lbs. (1 kg) on the seatback, head
restraint/headrest or in the seatback
pocket.
GLOVE BOX
Open the glove box by pulling the handle.
WARNING
Keep glove box lid closed while driving to
help prevent injury in an accident or a
sudden stop.
LIC2618LIC2890
STORAGE
2-54Instruments and controls

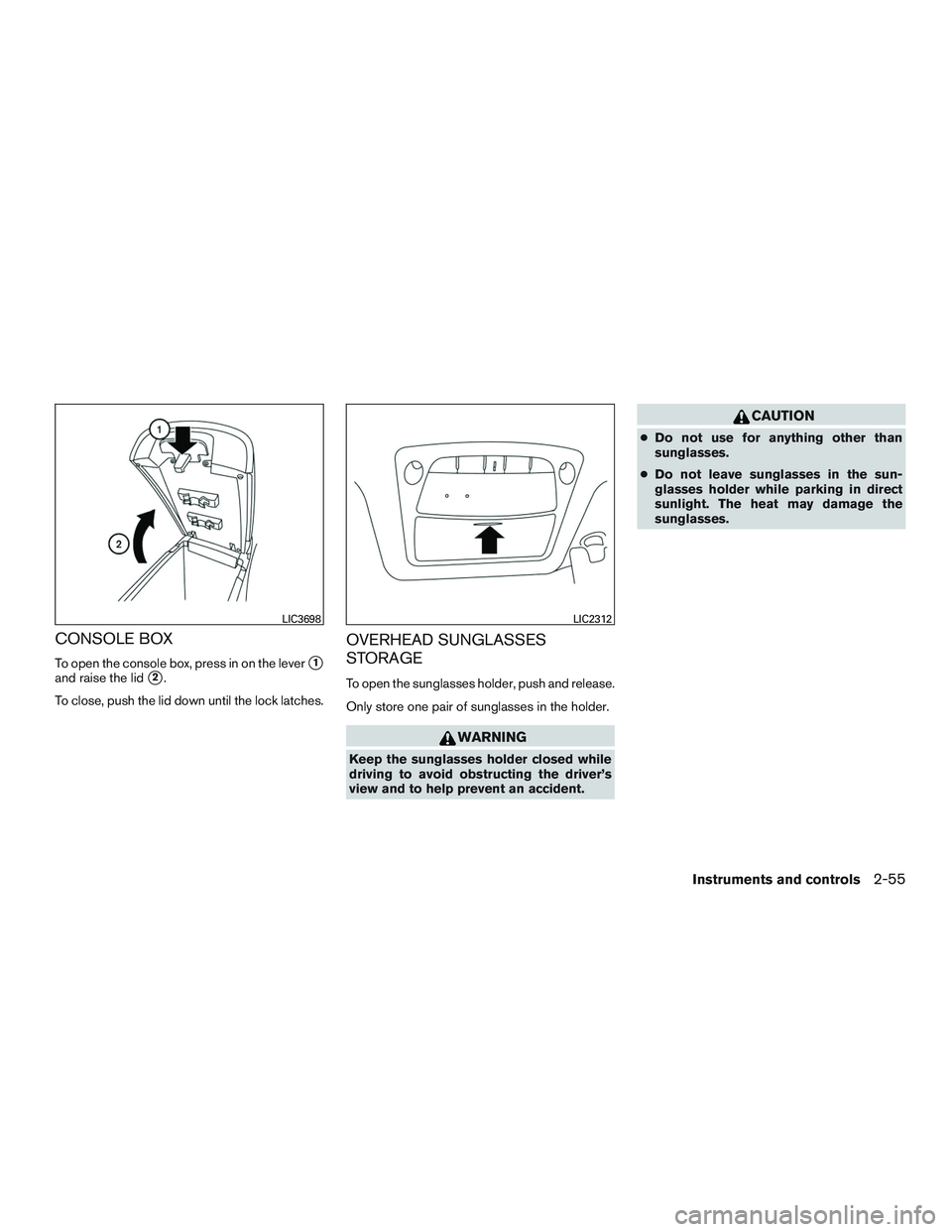

CONSOLE BOX
To open the console box, press in on the lever1
and raise the lid2.
To close, push the lid down until the lock latches.
OVERHEAD SUNGLASSES
STORAGE
To open the sunglasses holder, push and release.
Only store one pair of sunglasses in the holder.
WARNING
Keep the sunglasses holder closed while
driving to avoid obstructing the driver’s
view and to help prevent an accident.
CAUTION
● Do not use for anything other than
sunglasses.
● Do not leave sunglasses in the sun-
glasses holder while parking in direct
sunlight. The heat may damage the
sunglasses.
LIC3698LIC2312
Instruments and controls2-55
