NISSAN ROGUE 2019 Owner´s Manual

WARNING
When the LED DRL system is active, tail
lights on your vehicle are not on. It is
necessary at dusk to turn on your head-
lights. Failure to do so could cause an
accident injuring yourself and others.

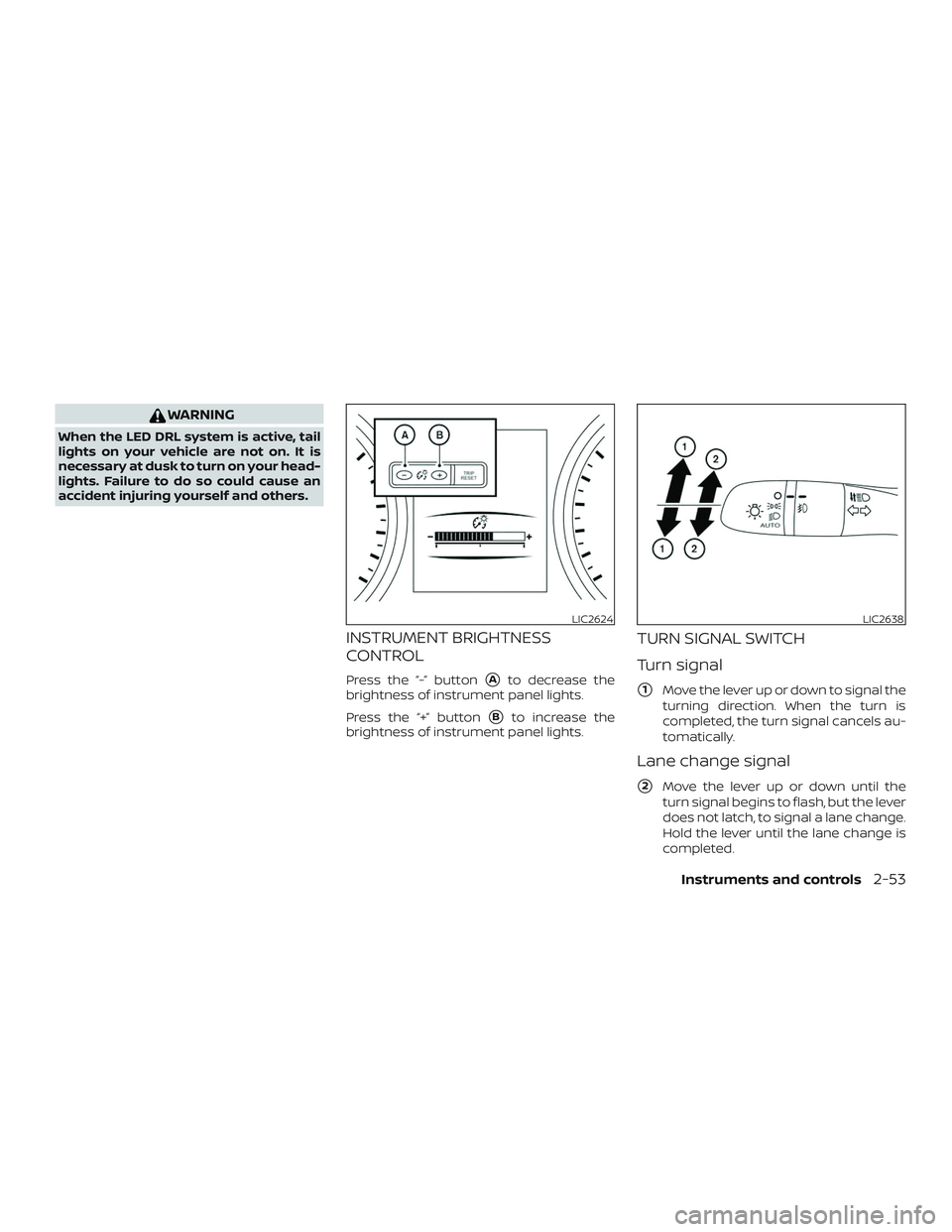

INSTRUMENT BRIGHTNESS
CONTROL
Press the “-” buttonAto decrease the
brightness of instrument panel lights.
Press the “+” button
Bto increase the
brightness of instrument panel lights.
TURN SIGNAL SWITCH
Turn signal
1Move the lever up or down to signal the
turning direction. When the turn is
completed, the turn signal cancels au-
tomatically.
Lane change signal
2Move the lever up or down until the
turn signal begins to flash, but the lever
does not latch, to signal a lane change.
Hold the lever until the lane change is
completed.
LIC2624LIC2638
Instruments and controls2-53

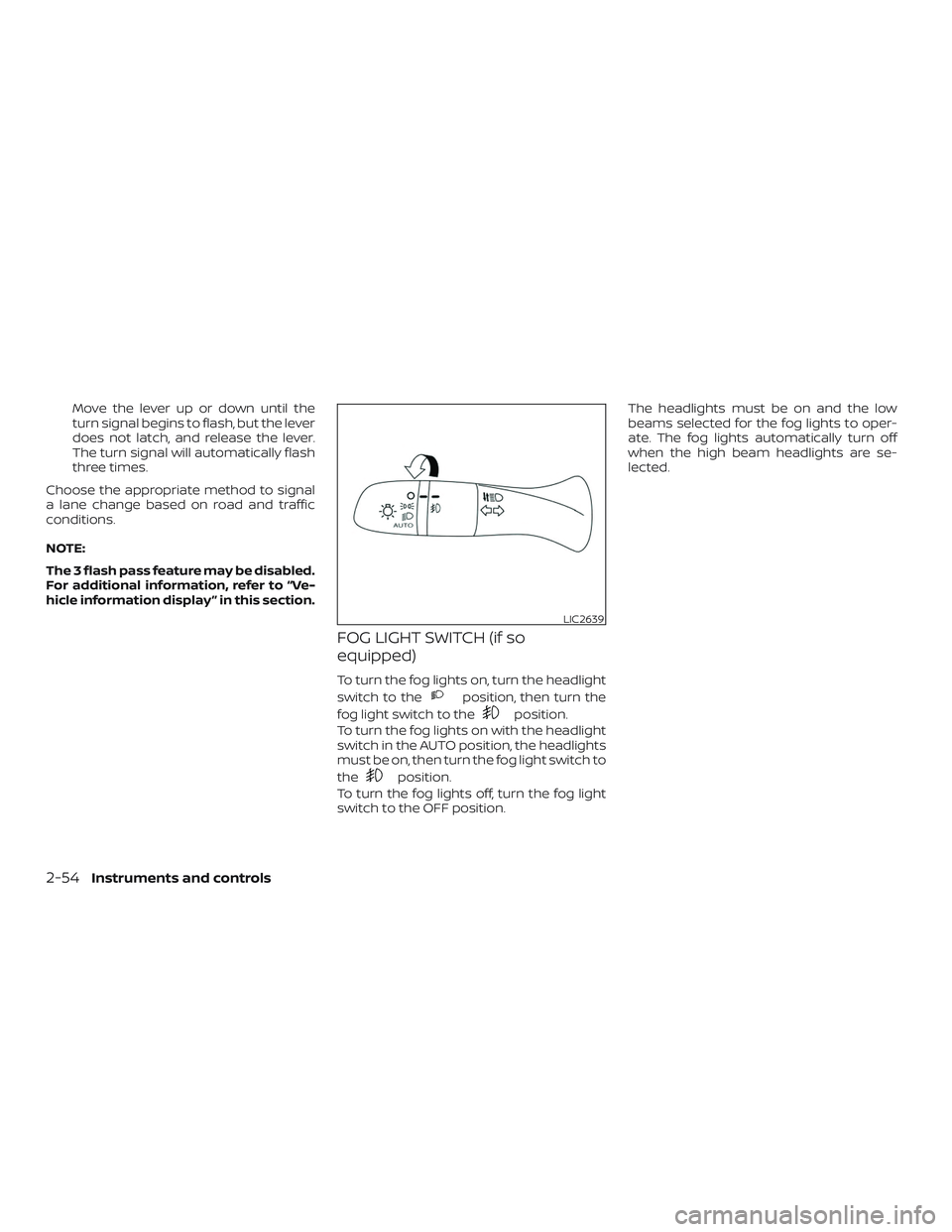

Move the lever up or down until the
turn signal begins to flash, but the lever
does not latch, and release the lever.
The turn signal will automatically flash
three times.
Choose the appropriate method to signal
a lane change based on road and traffic
conditions.
NOTE:
The 3 flash pass feature may be disabled.
For additional information, refer to “Ve-
hicle information display ” in this section.
FOG LIGHT SWITCH (if so
equipped)
To turn the fog lights on, turn the headlight
switch to the
position, then turn the
fog light switch to the
position.
To turn the fog lights on with the headlight
switch in the AUTO position, the headlights
must be on, then turn the fog light switch to
the
position.
To turn the fog lights off, turn the fog light
switch to the OFF position. The headlights must be on and the low
beams selected for the fog lights to oper-
ate. The fog lights automatically turn off
when the high beam headlights are se-
lected.
LIC2639
2-54Instruments and controls

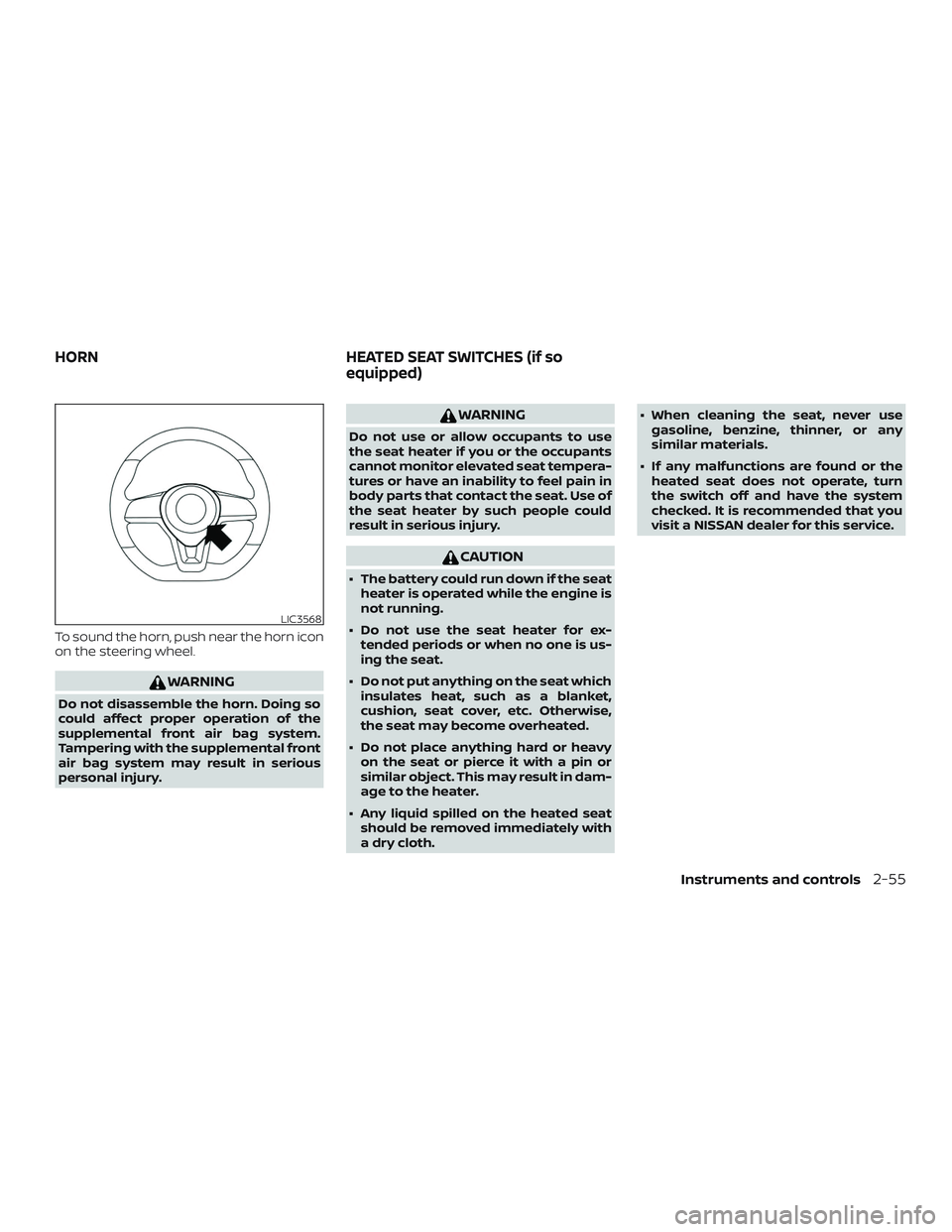

To sound the horn, push near the horn icon
on the steering wheel.
WARNING
Do not disassemble the horn. Doing so
could affect proper operation of the
supplemental front air bag system.
Tampering with the supplemental front
air bag system may result in serious
personal injury.
WARNING
Do not use or allow occupants to use
the seat heater if you or the occupants
cannot monitor elevated seat tempera-
tures or have an inability to feel pain in
body parts that contact the seat. Use of
the seat heater by such people could
result in serious injury.
CAUTION
∙ The battery could run down if the seatheater is operated while the engine is
not running.
∙ Do not use the seat heater for ex- tended periods or when no one is us-
ing the seat.
∙ Do not put anything on the seat which insulates heat, such as a blanket,
cushion, seat cover, etc. Otherwise,
the seat may become overheated.
∙ Do not place anything hard or heavy on the seat or pierce it with a pin or
similar object. This may result in dam-
age to the heater.
∙ Any liquid spilled on the heated seat should be removed immediately with
a dry cloth. ∙ When cleaning the seat, never use
gasoline, benzine, thinner, or any
similar materials.
∙ If any malfunctions are found or the heated seat does not operate, turn
the switch off and have the system
checked. It is recommended that you
visit a NISSAN dealer for this service.
LIC3568
HORN HEATED SEAT SWITCHES (if so
equipped)
Instruments and controls2-55

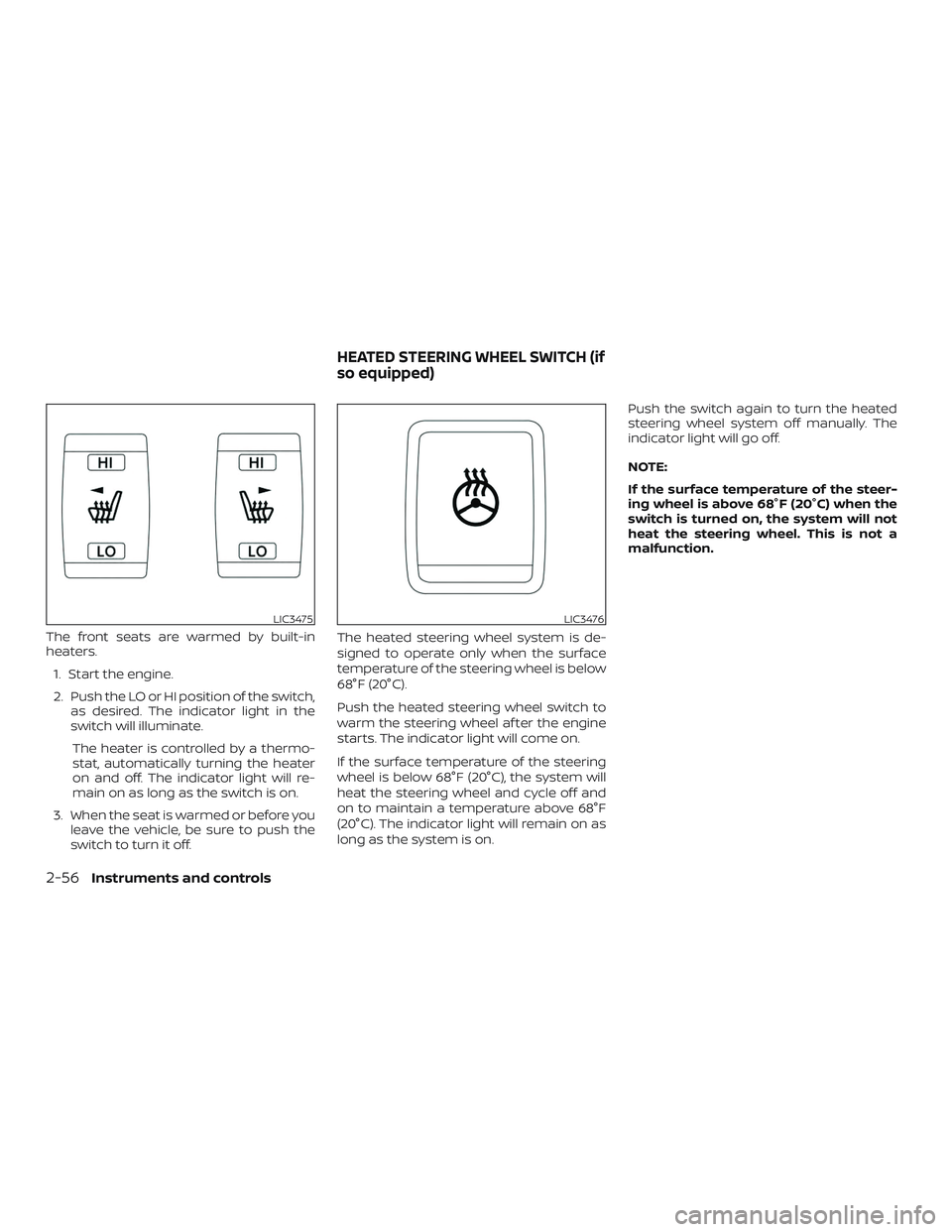

The front seats are warmed by built-in
heaters.1. Start the engine.
2. Push the LO or HI position of the switch, as desired. The indicator light in the
switch will illuminate.
The heater is controlled by a thermo-
stat, automatically turning the heater
on and off. The indicator light will re-
main on as long as the switch is on.
3. When the seat is warmed or before you leave the vehicle, be sure to push the
switch to turn it off. The heated steering wheel system is de-
signed to operate only when the surface
temperature of the steering wheel is below
68°F (20°C).
Push the heated steering wheel switch to
warm the steering wheel af ter the engine
starts. The indicator light will come on.
If the surface temperature of the steering
wheel is below 68°F (20°C), the system will
heat the steering wheel and cycle off and
on to maintain a temperature above 68°F
(20°C). The indicator light will remain on as
long as the system is on. Push the switch again to turn the heated
steering wheel system off manually. The
indicator light will go off.
NOTE:
If the surface temperature of the steer-
ing wheel is above 68°F (20°C) when the
switch is turned on, the system will not
heat the steering wheel. This is not a
malfunction.
LIC3475LIC3476
HEATED STEERING WHEEL SWITCH (if
so equipped)
2-56Instruments and controls

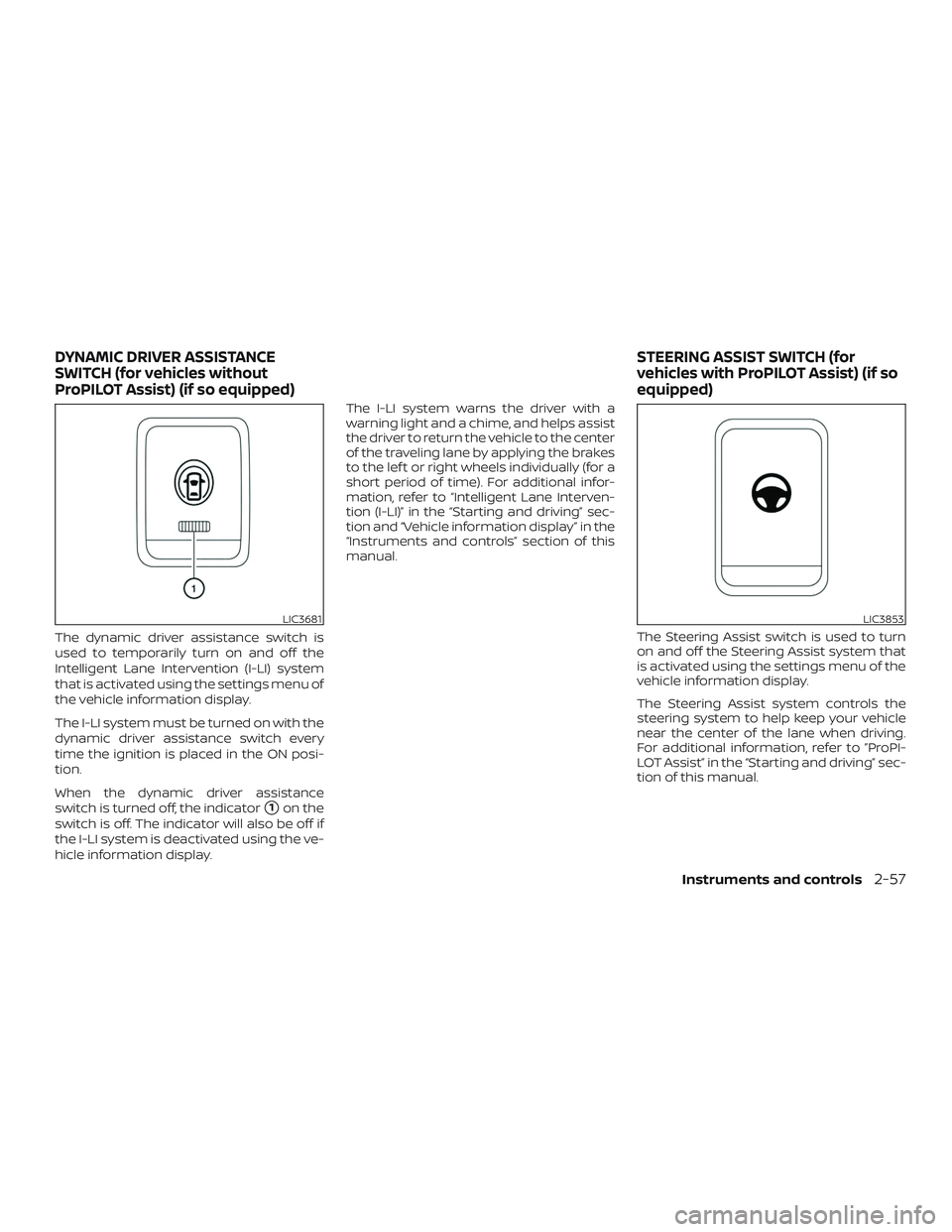

The dynamic driver assistance switch is
used to temporarily turn on and off the
Intelligent Lane Intervention (I-LI) system
that is activated using the settings menu of
the vehicle information display.
The I-LI system must be turned on with the
dynamic driver assistance switch every
time the ignition is placed in the ON posi-
tion.
When the dynamic driver assistance
switch is turned off, the indicator
1on the
switch is off. The indicator will also be off if
the I-LI system is deactivated using the ve-
hicle information display. The I-LI system warns the driver with a
warning light and a chime, and helps assist
the driver to return the vehicle to the center
of the traveling lane by applying the brakes
to the lef t or right wheels individually (for a
short period of time). For additional infor-
mation, refer to “Intelligent Lane Interven-
tion (I-LI)” in the “Starting and driving” sec-
tion and “Vehicle information display” in the
“Instruments and controls” section of this
manual.
The Steering Assist switch is used to turn
on and off the Steering Assist system that
is activated using the settings menu of the
vehicle information display.
The Steering Assist system controls the
steering system to help keep your vehicle
near the center of the lane when driving.
For additional information, refer to ”ProPI-
LOT Assist” in the “Starting and driving” sec-
tion of this manual.
LIC3681LIC3853
DYNAMIC DRIVER ASSISTANCE
SWITCH (for vehicles without
ProPILOT Assist) (if so equipped) STEERING ASSIST SWITCH (for
vehicles with ProPILOT Assist) (if so
equipped)
Instruments and controls2-57

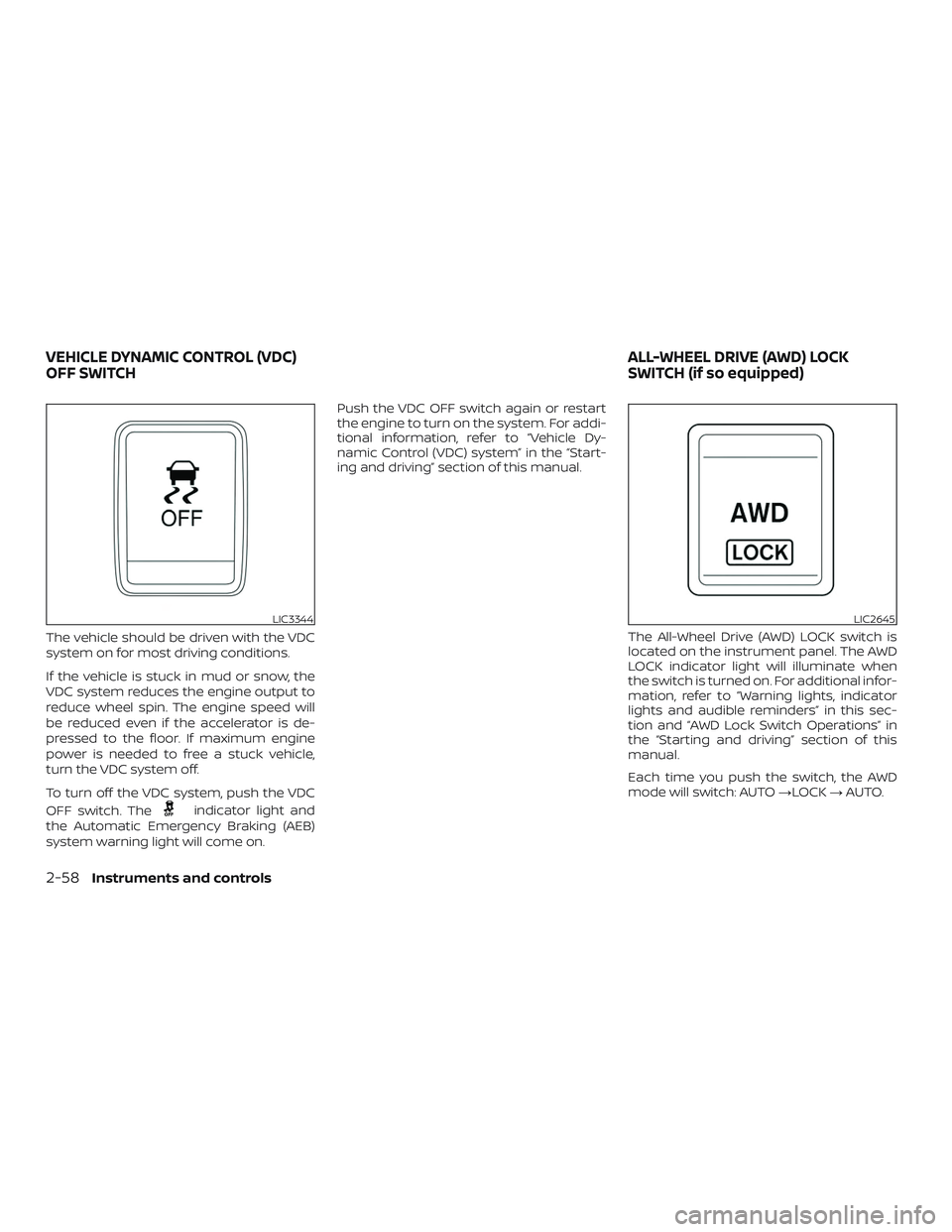

The vehicle should be driven with the VDC
system on for most driving conditions.
If the vehicle is stuck in mud or snow, the
VDC system reduces the engine output to
reduce wheel spin. The engine speed will
be reduced even if the accelerator is de-
pressed to the floor. If maximum engine
power is needed to free a stuck vehicle,
turn the VDC system off.
To turn off the VDC system, push the VDC
OFF switch. The
indicator light and
the Automatic Emergency Braking (AEB)
system warning light will come on. Push the VDC OFF switch again or restart
the engine to turn on the system. For addi-
tional information, refer to “Vehicle Dy-
namic Control (VDC) system” in the “Start-
ing and driving” section of this manual.
The All-Wheel Drive (AWD) LOCK switch is
located on the instrument panel. The AWD
LOCK indicator light will illuminate when
the switch is turned on. For additional infor-
mation, refer to “Warning lights, indicator
lights and audible reminders” in this sec-
tion and “AWD Lock Switch Operations” in
the “Starting and driving” section of this
manual.
Each time you push the switch, the AWD
mode will switch: AUTO→LOCK→AUTO.
LIC3344LIC2645
VEHICLE DYNAMIC CONTROL (VDC)
OFF SWITCH ALL-WHEEL DRIVE (AWD) LOCK
SWITCH (if so equipped)
2-58Instruments and controls

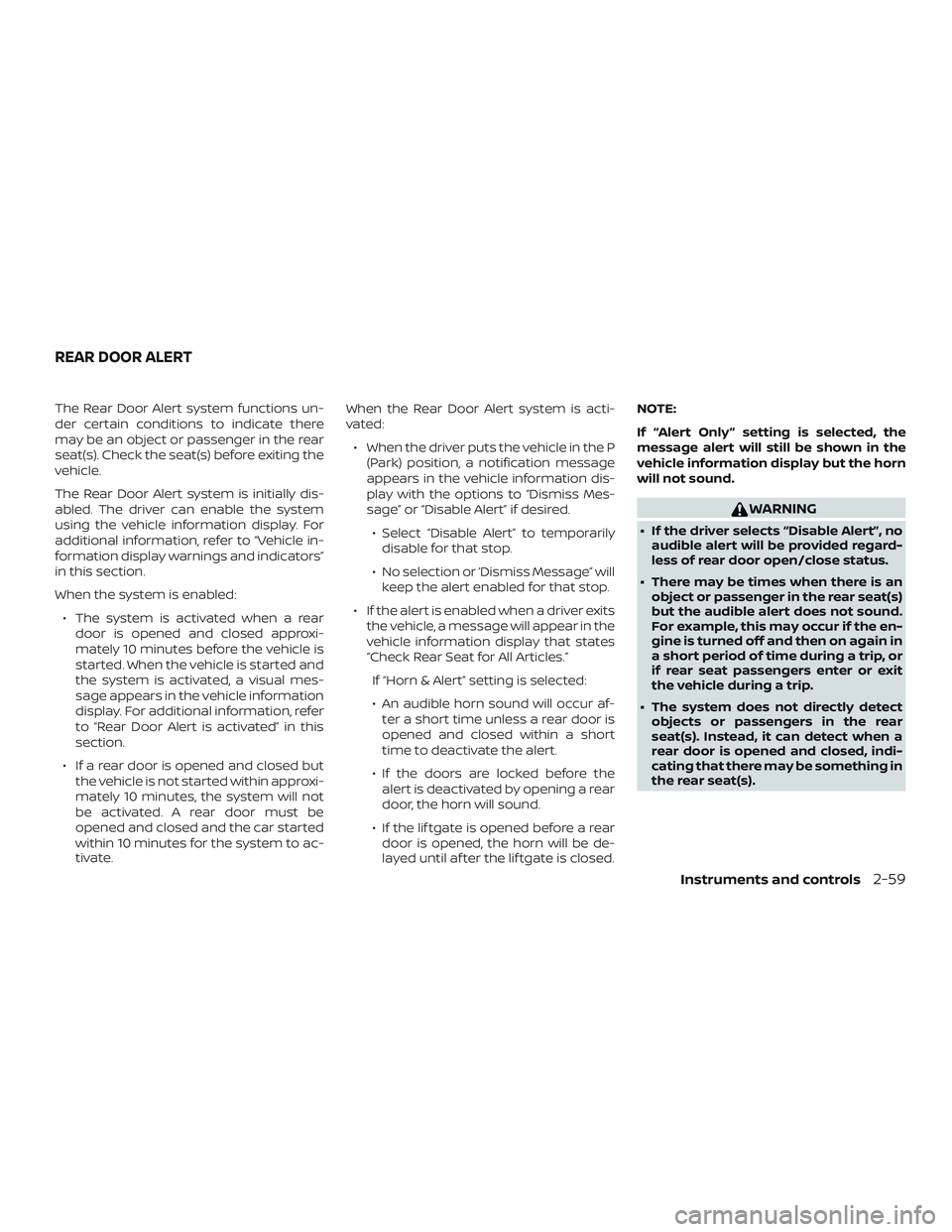

The Rear Door Alert system functions un-
der certain conditions to indicate there
may be an object or passenger in the rear
seat(s). Check the seat(s) before exiting the
vehicle.
The Rear Door Alert system is initially dis-
abled. The driver can enable the system
using the vehicle information display. For
additional information, refer to “Vehicle in-
formation display warnings and indicators”
in this section.
When the system is enabled:∙ The system is activated when a rear door is opened and closed approxi-
mately 10 minutes before the vehicle is
started. When the vehicle is started and
the system is activated, a visual mes-
sage appears in the vehicle information
display. For additional information, refer
to “Rear Door Alert is activated” in this
section.
∙ If a rear door is opened and closed but the vehicle is not started within approxi-
mately 10 minutes, the system will not
be activated. A rear door must be
opened and closed and the car started
within 10 minutes for the system to ac-
tivate. When the Rear Door Alert system is acti-
vated:
∙ When the driver puts the vehicle in the P (Park) position, a notification message
appears in the vehicle information dis-
play with the options to “Dismiss Mes-
sage” or “Disable Alert” if desired.
∙ Select “Disable Alert” to temporarily disable for that stop.
∙ No selection or ‘Dismiss Message” will keep the alert enabled for that stop.
∙ If the alert is enabled when a driver exits the vehicle, a message will appear in the
vehicle information display that states
“Check Rear Seat for All Articles.”
If “Horn & Alert” setting is selected:
∙ An audible horn sound will occur af- ter a short time unless a rear door is
opened and closed within a short
time to deactivate the alert.
∙ If the doors are locked before the alert is deactivated by opening a rear
door, the horn will sound.
∙ If the lif tgate is opened before a rear door is opened, the horn will be de-
layed until af ter the lif tgate is closed. NOTE:
If “Alert Only ” setting is selected, the
message alert will still be shown in the
vehicle information display but the horn
will not sound.
WARNING
∙ If the driver selects “Disable Alert”, no
audible alert will be provided regard-
less of rear door open/close status.
∙ There may be times when there is an object or passenger in the rear seat(s)
but the audible alert does not sound.
For example, this may occur if the en-
gine is turned off and then on again in
a short period of time during a trip, or
if rear seat passengers enter or exit
the vehicle during a trip.
∙ The system does not directly detect objects or passengers in the rear
seat(s). Instead, it can detect when a
rear door is opened and closed, indi-
cating that there may be something in
the rear seat(s).
REAR DOOR ALERT
Instruments and controls2-59

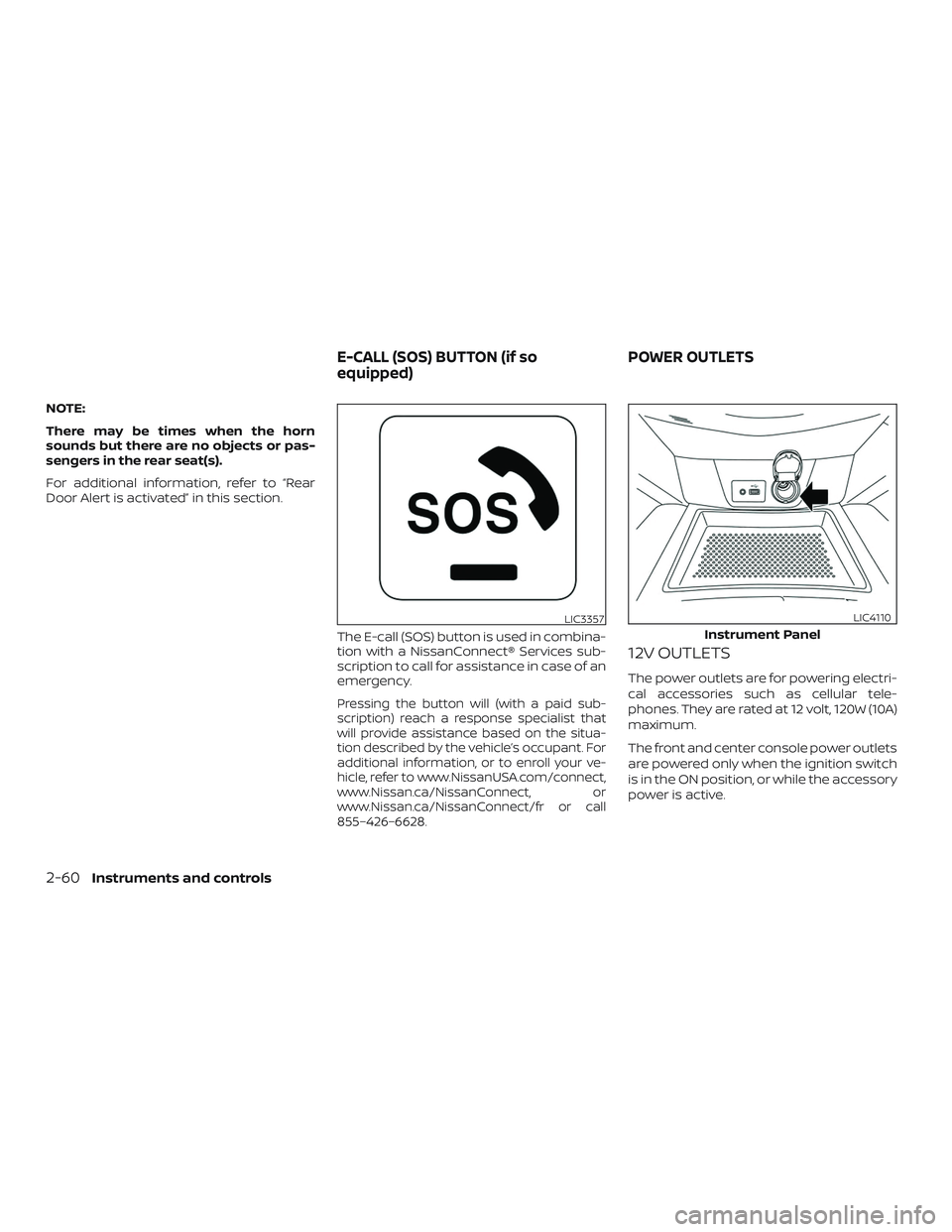

NOTE:
There may be times when the horn
sounds but there are no objects or pas-
sengers in the rear seat(s).
For additional information, refer to “Rear
Door Alert is activated” in this section.The E-call (SOS) button is used in combina-
tion with a NissanConnect® Services sub-
scription to call for assistance in case of an
emergency.
Pressing the button will (with a paid sub-
scription) reach a response specialist that
will provide assistance based on the situa-
tion described by the vehicle’s occupant. For
additional information, or to enroll your ve-
hicle, refer to www.NissanUSA.com/connect,
www.Nissan.ca/NissanConnect, or
www.Nissan.ca/NissanConnect/fr or call
855–426–6628.

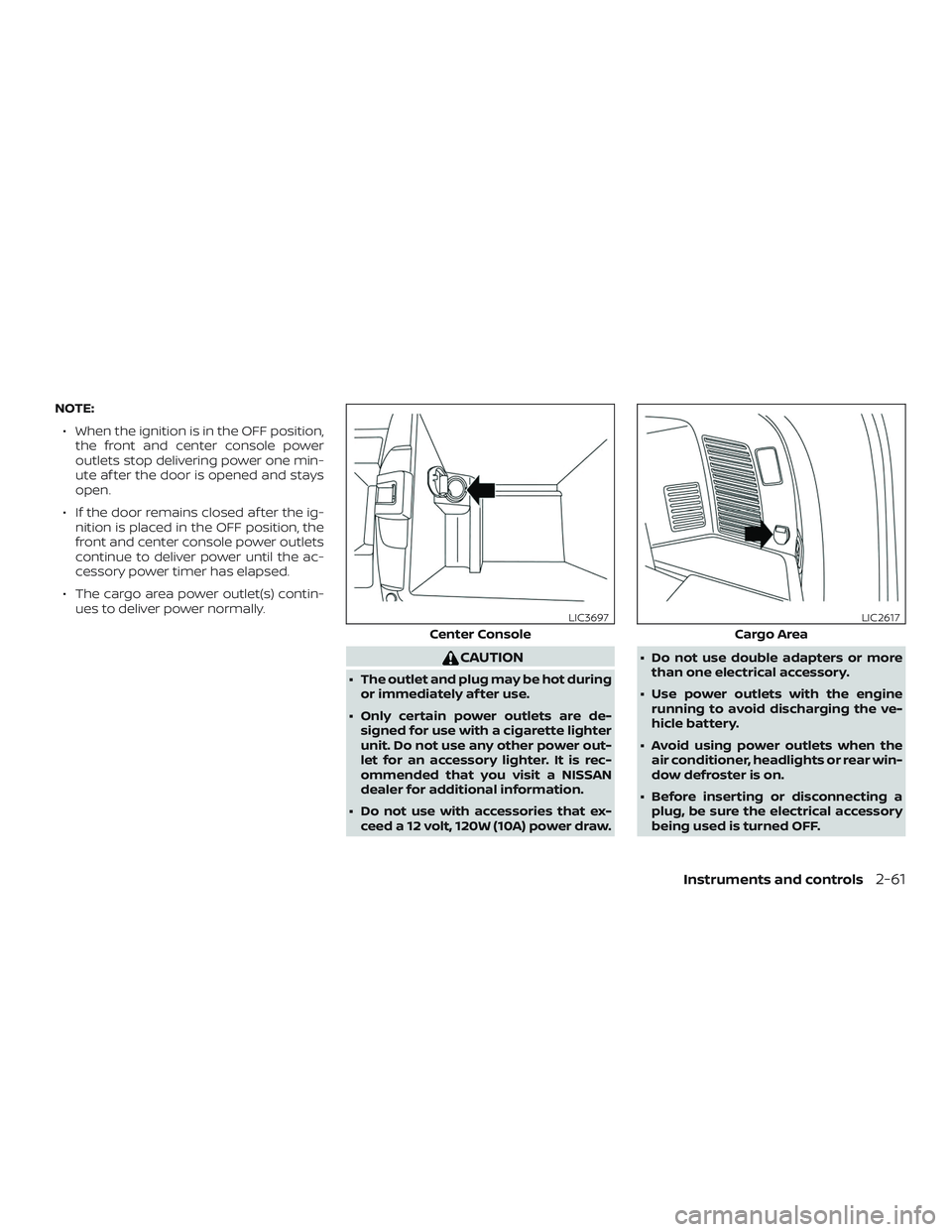

12V OUTLETS
The power outlets are for powering electri-
cal accessories such as cellular tele-
phones. They are rated at 12 volt, 120W (10A)
maximum.
The front and center console power outlets
are powered only when the ignition switch
is in the ON position, or while the accessory
power is active.
LIC3357
Instrument Panel
LIC4110
E-CALL (SOS) BUTTON (if so
equipped)POWER OUTLETS
2-60Instruments and controls

NOTE:∙ When the ignition is in the OFF position, the front and center console power
outlets stop delivering power one min-
ute af ter the door is opened and stays
open.
∙ If the door remains closed af ter the ig- nition is placed in the OFF position, the
front and center console power outlets
continue to deliver power until the ac-
cessory power timer has elapsed.
∙ The cargo area power outlet(s) contin- ues to deliver power normally.
CAUTION
∙ The outlet and plug may be hot duringor immediately af ter use.
∙ Only certain power outlets are de- signed for use with a cigarette lighter
unit. Do not use any other power out-
let for an accessory lighter. It is rec-
ommended that you visit a NISSAN
dealer for additional information.
∙ Do not use with accessories that ex- ceed a 12 volt, 120W (10A) power draw. ∙ Do not use double adapters or more
than one electrical accessory.
∙ Use power outlets with the engine running to avoid discharging the ve-
hicle battery.
∙ Avoid using power outlets when the air conditioner, headlights or rear win-
dow defroster is on.
∙ Before inserting or disconnecting a plug, be sure the electrical accessory
being used is turned OFF.
Center Console
LIC3697
Cargo Area
LIC2617
Instruments and controls2-61

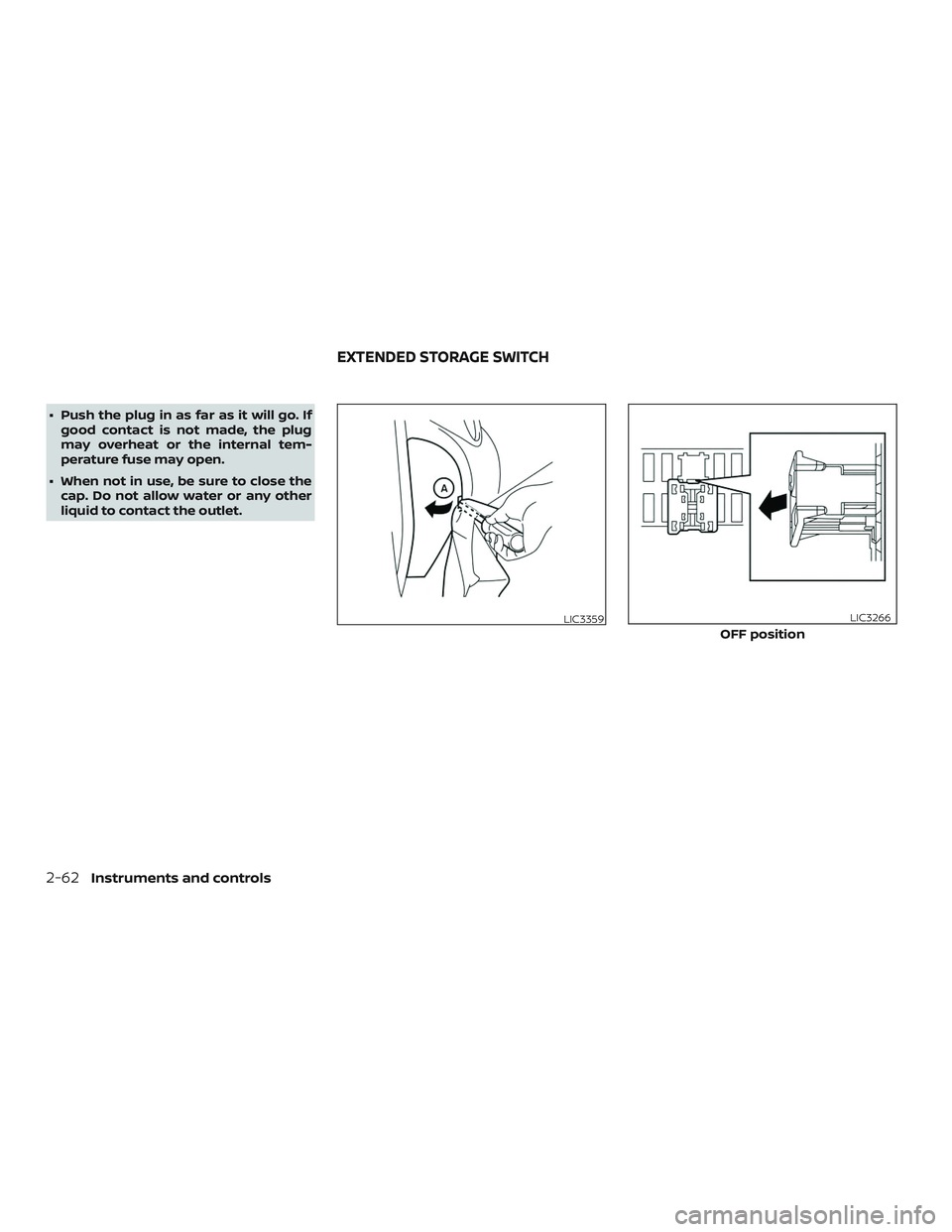

∙ Push the plug in as far as it will go. Ifgood contact is not made, the plug
may overheat or the internal tem-
perature fuse may open.
∙ When not in use, be sure to close the cap. Do not allow water or any other
liquid to contact the outlet.
LIC3359
OFF position
LIC3266
EXTENDED STORAGE SWITCH
2-62Instruments and controls
