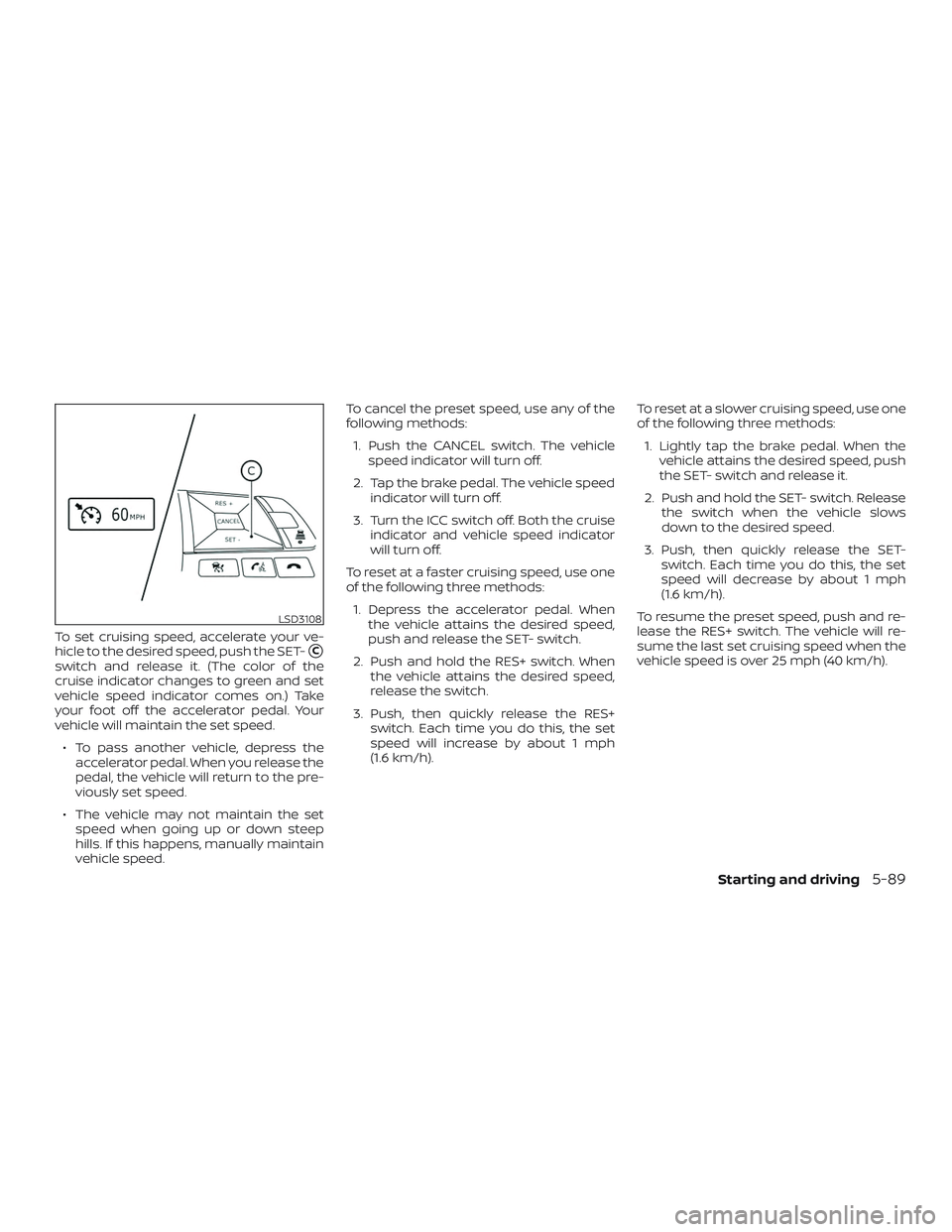

To set cruising speed, accelerate your ve-
hicle to the desired speed, push the SET-
C
switch and release it. (The color of the
cruise indicator changes to green and set
vehicle speed indicator comes on.) Take
your foot off the accelerator pedal. Your
vehicle will maintain the set speed.∙ To pass another vehicle, depress the accelerator pedal. When you release the
pedal, the vehicle will return to the pre-
viously set speed.
∙ The vehicle may not maintain the set speed when going up or down steep
hills. If this happens, manually maintain
vehicle speed. To cancel the preset speed, use any of the
following methods:
1. Push the CANCEL switch. The vehicle speed indicator will turn off.
2. Tap the brake pedal. The vehicle speed indicator will turn off.
3. Turn the ICC switch off. Both the cruise indicator and vehicle speed indicator
will turn off.
To reset at a faster cruising speed, use one
of the following three methods: 1. Depress the accelerator pedal. When the vehicle attains the desired speed,
push and release the SET- switch.
2. Push and hold the RES+ switch. When the vehicle attains the desired speed,
release the switch.
3. Push, then quickly release the RES+ switch. Each time you do this, the set
speed will increase by about 1 mph
(1.6 km/h). To reset at a slower cruising speed, use one
of the following three methods:
1. Lightly tap the brake pedal. When the vehicle attains the desired speed, push
the SET- switch and release it.
2. Push and hold the SET- switch. Release the switch when the vehicle slows
down to the desired speed.
3. Push, then quickly release the SET- switch. Each time you do this, the set
speed will decrease by about 1 mph
(1.6 km/h).
To resume the preset speed, push and re-
lease the RES+ switch. The vehicle will re-
sume the last set cruising speed when the
vehicle speed is over 25 mph (40 km/h).
LSD3108
Starting and driving5-89

System temporarily unavailable
A chime sounds under the following condi-
tions and the control is automatically can-
celed:∙ When the vehicle slows down more than 8 mph (13 km/h) below the set
speed
∙ When the shif t lever is not in the D (Drive) or manual shif t mode
∙ When the parking brake is applied
∙ When the VDC operates (including the traction control system)
∙ When a wheel slips
When the system is not operating properly,
the chime sounds and the color of the
cruise indicator will change to orange.
Action to take
If the color of the cruise indicator changes
to orange, stop the vehicle in a safe place
and place the shif t lever in the P (Park) po-
sition. Turn the engine off, restart the en-
gine, resume driving, and then perform the
setting again.
LSD2684
5-90Starting and driving

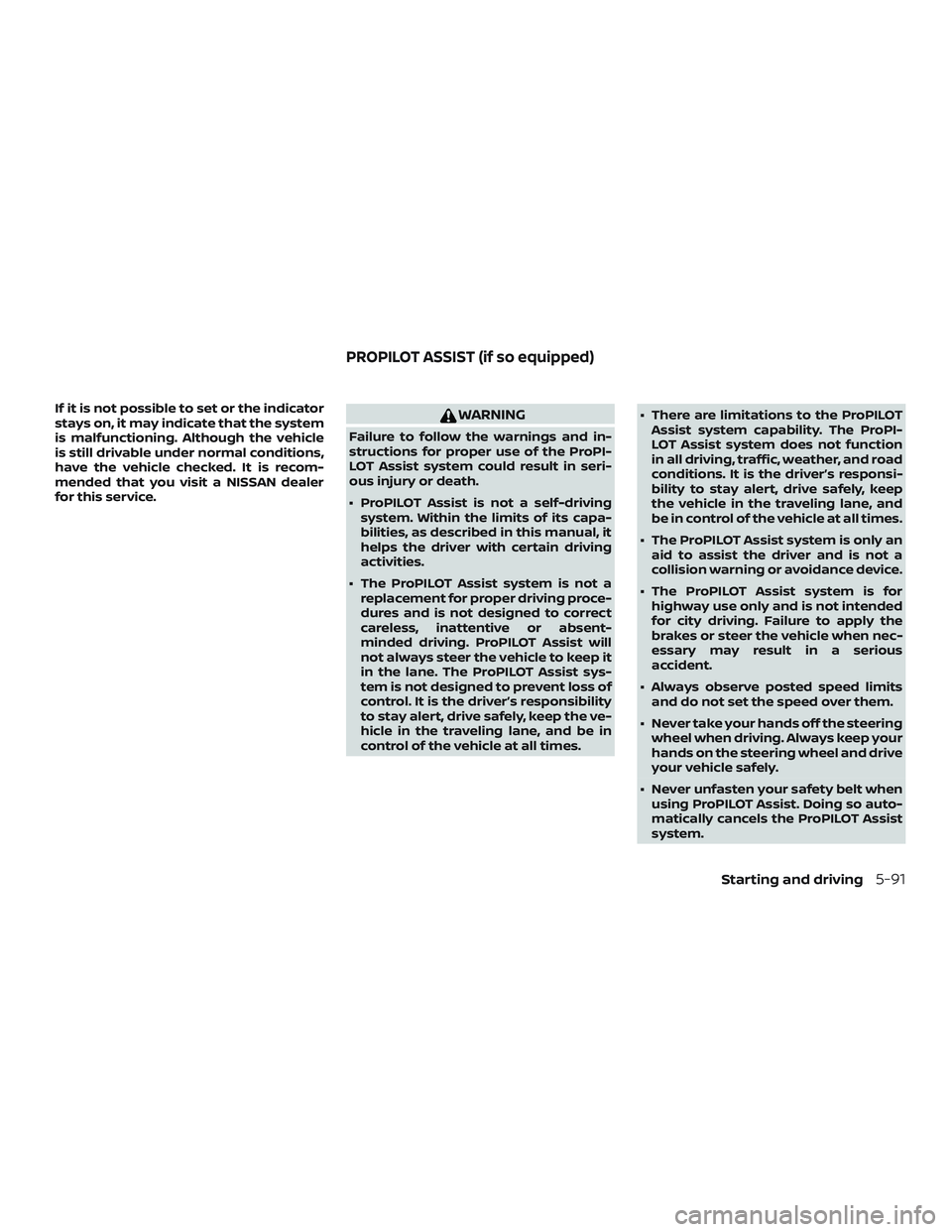

If it is not possible to set or the indicator
stays on, it may indicate that the system
is malfunctioning. Although the vehicle
is still drivable under normal conditions,
have the vehicle checked. It is recom-
mended that you visit a NISSAN dealer
for this service.WARNING
Failure to follow the warnings and in-
structions for proper use of the ProPI-
LOT Assist system could result in seri-
ous injury or death.
∙ ProPILOT Assist is not a self-drivingsystem. Within the limits of its capa-
bilities, as described in this manual, it
helps the driver with certain driving
activities.
∙ The ProPILOT Assist system is not a replacement for proper driving proce-
dures and is not designed to correct
careless, inattentive or absent-
minded driving. ProPILOT Assist will
not always steer the vehicle to keep it
in the lane. The ProPILOT Assist sys-
tem is not designed to prevent loss of
control. It is the driver’s responsibility
to stay alert, drive safely, keep the ve-
hicle in the traveling lane, and be in
control of the vehicle at all times. ∙ There are limitations to the ProPILOT
Assist system capability. The ProPI-
LOT Assist system does not function
in all driving, traffic, weather, and road
conditions. It is the driver’s responsi-
bility to stay alert, drive safely, keep
the vehicle in the traveling lane, and
be in control of the vehicle at all times.
∙ The ProPILOT Assist system is only an aid to assist the driver and is not a
collision warning or avoidance device.
∙ The ProPILOT Assist system is for highway use only and is not intended
for city driving. Failure to apply the
brakes or steer the vehicle when nec-
essary may result in a serious
accident.
∙ Always observe posted speed limits and do not set the speed over them.
∙ Never take your hands off the steering wheel when driving. Always keep your
hands on the steering wheel and drive
your vehicle safely.
∙ Never unfasten your safety belt when using ProPILOT Assist. Doing so auto-
matically cancels the ProPILOT Assist
system.
PROPILOT ASSIST (if so equipped)
Starting and driving5-91

∙ The ProPILOT Assist system does notreact to stationary and slow moving
vehicles.
∙ Always drive carefully and attentively when using the ProPILOT Assist sys-
tem. Read and understand the Own-
er’s Manual thoroughly before using
the ProPILOT Assist system. To avoid
serious injury or death, do not rely on
the system to prevent accidents or to
control the vehicle’s speed in emer-
gency situations. Do not use the Pro-
PILOT Assist system except in appro-
priate road and traffic conditions.
The ProPILOT Assist system is intended to
enhance the operation of the vehicle when
following a vehicle traveling in the same
lane and direction.
The ProPILOT Assist system uses a multi-
sensing front camera
Ainstalled behind
the windshield and a radar sensor located
on the front of the vehicle
Bto measure
the distance to the vehicle ahead in the
same lane and to monitor the lane mark-
ers. If the vehicle detects a slower moving
vehicle ahead, the system will reduce the
vehicle speed so that your vehicle follows
the vehicle in front at the selected distance.
The system will also help keep the vehicle centered in the traveling lane when clear
lane markings are detected.
LSD2799
5-92Starting and driving

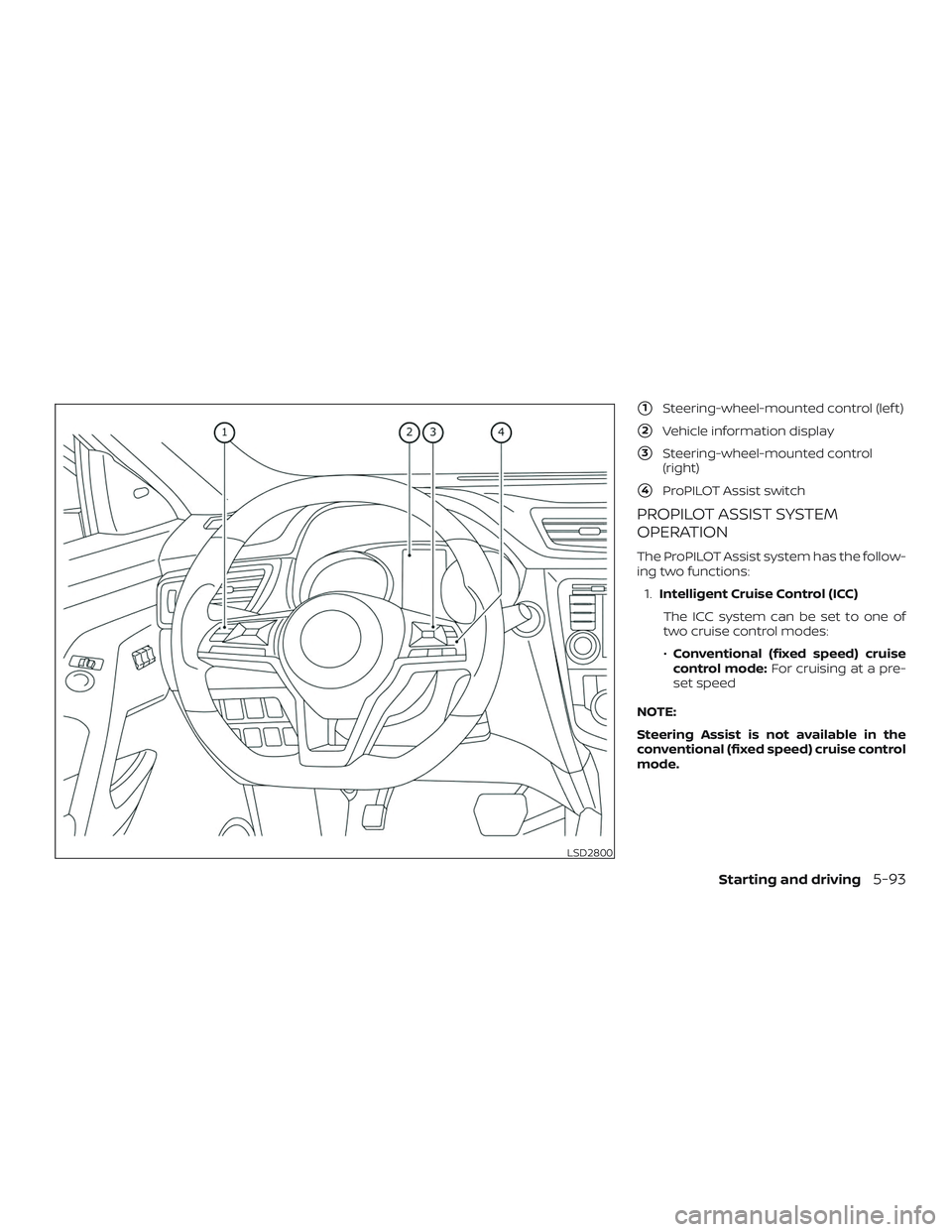

1Steering-wheel-mounted control (lef t)
2Vehicle information display
3Steering-wheel-mounted control
(right)
4ProPILOT Assist switch
PROPILOT ASSIST SYSTEM
OPERATION
The ProPILOT Assist system has the follow-
ing two functions:
1. Intelligent Cruise Control (ICC)
The ICC system can be set to one of
two cruise control modes:
∙ Conventional (fixed speed) cruise
control mode: For cruising at a pre-
set speed
NOTE:
Steering Assist is not available in the
conventional (fixed speed) cruise control
mode.
LSD2800
Starting and driving5-93

∙Vehicle-to-vehicle distance control
mode: The ICC system maintains a
selected distance from the vehicle in
front of you within the speed range of
0 to 90 mph (0 to 144 km/h) up to the
set speed. The set speed can be se-
lected by the driver between 20 to
90 mph (32 to 144 km/h). When the
vehicle ahead slows to a stop, your
vehicle gradually decelerates to a
standstill. When the vehicle is
stopped, the ICC system maintains
braking force to keep your vehicle
stopped.
NOTE:
When your vehicle is stopped for less
than 3 seconds and the vehicle ahead
begins to move, your vehicle will start
moving again automatically. – When your vehicle is at a standstillfor more than 3 seconds and the
vehicle ahead begins to accelerate,
push the RES+ switch or lightly de-
press the accelerator pedal. The ICC
system starts to follow the vehicle
ahead. – When no vehicle is detected ahead
within the driver selected distance,
the vehicle travels at the speed set
by the driver. The speed must be
above 20 mph (32 km/h) to use this
function.
NOTE:
Even if the Automatic Emergency Brak-
ing (AEB) setting is turned off by the
driver using the “Settings” menu in the
vehicle information display, AEB will be
automatically turned on when ICC is
used. 2. Steering Assist
The Steering Assist function controls
the steering system to help keep your
vehicle within the traveling lane.
When there is no vehicle ahead, Steer-
ing Assist is not available at speeds
under 37 mph (60 km/h).
ProPILOT Assist switches
1DISTANCE switch:
– Long
– Middle
– Short
2RES+ switch:Resumes set speed or increases
speed incrementally
3CANCEL switch:
Deactivates the ProPILOT Assist system
LSD3272
5-94Starting and driving

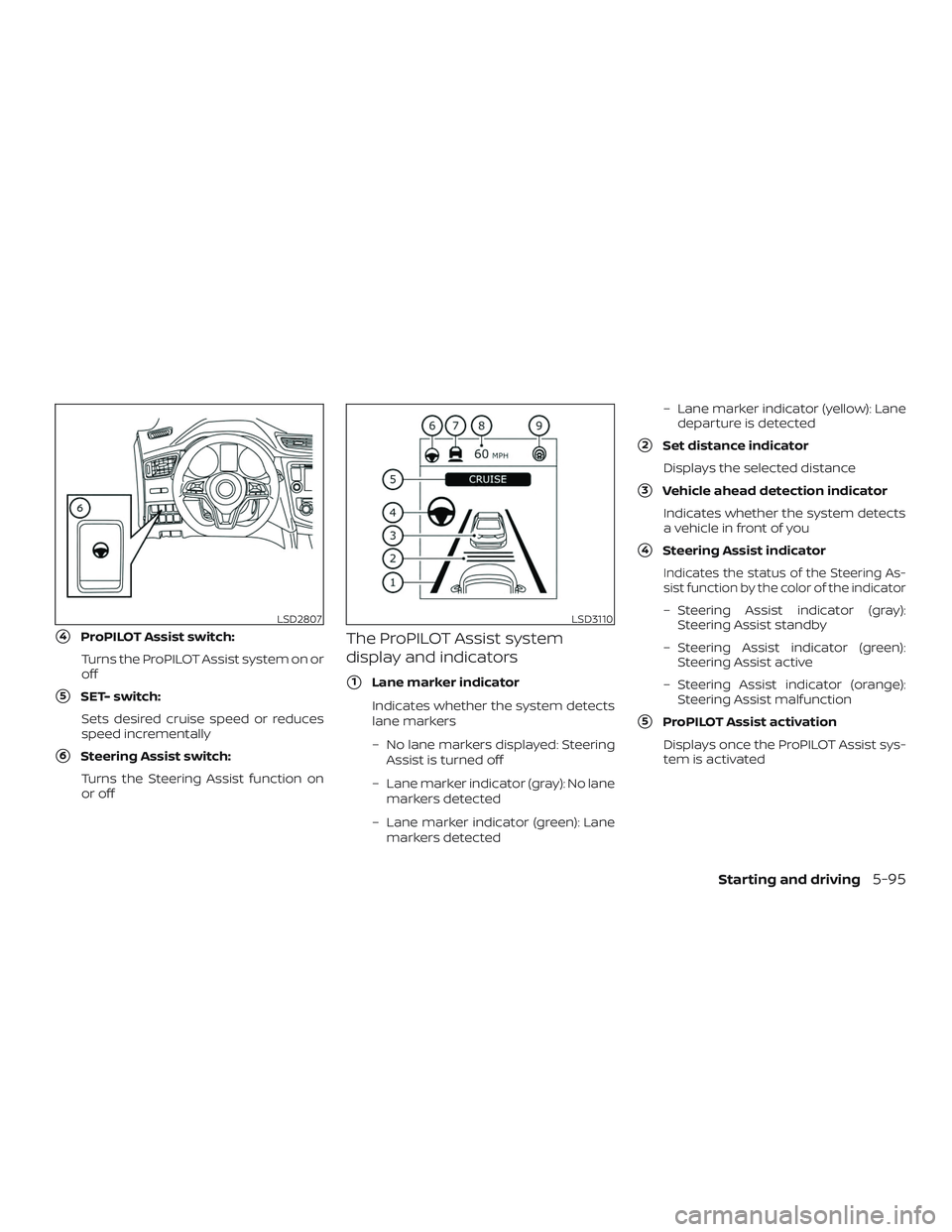

4ProPILOT Assist switch:Turns the ProPILOT Assist system on or
off
5SET- switch:Sets desired cruise speed or reduces
speed incrementally
6Steering Assist switch:Turns the Steering Assist function on
or off
The ProPILOT Assist system
display and indicators
1Lane marker indicator
Indicates whether the system detects
lane markers
– No lane markers displayed: Steering Assist is turned off
– Lane marker indicator (gray): No lane markers detected
– Lane marker indicator (green): Lane markers detected – Lane marker indicator (yellow): Lane
departure is detected
2Set distance indicator
Displays the selected distance
3Vehicle ahead detection indicatorIndicates whether the system detects
a vehicle in front of you
4Steering Assist indicator
Indicates the status of the Steering As-
sist function by the color of the indicator
– Steering Assist indicator (gray): Steering Assist standby
– Steering Assist indicator (green): Steering Assist active
– Steering Assist indicator (orange): Steering Assist malfunction
5ProPILOT Assist activation
Displays once the ProPILOT Assist sys-
tem is activated
LSD2807LSD3110
Starting and driving5-95

6Steering Assist status
indicator/warning
Displays the status of the Steering As-
sist by the color of the
indicator/warning
– No Steering Assist status indicator displayed: Steering Assist is turned
off
– Steering Assist indicator (gray): Steering Assist standby
– Steering Assist indicator (green): Steering Assist active
– Steering Assist indicator (orange): Steering Assist malfunction
7Speed control status
indicator/warning
Displays the status of speed control by
the color and shape of the
indicator/warning
– Speed control status indicator/warning (gray): ICC
standby – Speed control status
indicator/warning (solid
green
): ICC (distance control
mode) is active (vehicle detected
ahead). Your vehicle matches the
speed of the vehicle ahead.
– Speed control status indicator/warning (green
outline
): ICC (maintain speed
control mode) is active (no vehicle
detected ahead). Your vehicle main-
tains the driver-selected set speed.
– Speed control status indicator/warning (orange): Indi-
cates an ICC malfunction
8Set vehicle speed indicator
Indicates the set vehicle speed
9ProPILOT Assist status indicatorIndicates the status of the ProPILOT
Assist system by the color of the indi-
cator
– ProPILOT Assist status indicator (white): ProPILOT Assist is on but in
standby.
– ProPILOT Assist status indicator (blue): ProPILOT Assist active
TURNING THE CONVENTIONAL
(fixed speed) CRUISE CONTROL
MODE ON
NOTE:
ProPILOT Assist provides no approach
warnings, automatic braking, or steering
assist in the conventional (fixed speed)
cruise control mode.
To choose the conventional (fixed speed)
cruise control mode, push and hold the
ProPILOT Assist switch for longer than ap-
proximately 1.5 seconds. For additional in-
formation, refer to “Conventional (fixed
speed) cruise control mode” in this section.
5-96Starting and driving

1. Automatic Emergency Braking (AEB)
2. Lane Departure Warning (LDW) whenshaded and Intelligent Lane Interven-
tion (I-LI) when solid
3. Blind Spot Warning (BSW)OPERATING PROPILOT ASSIST

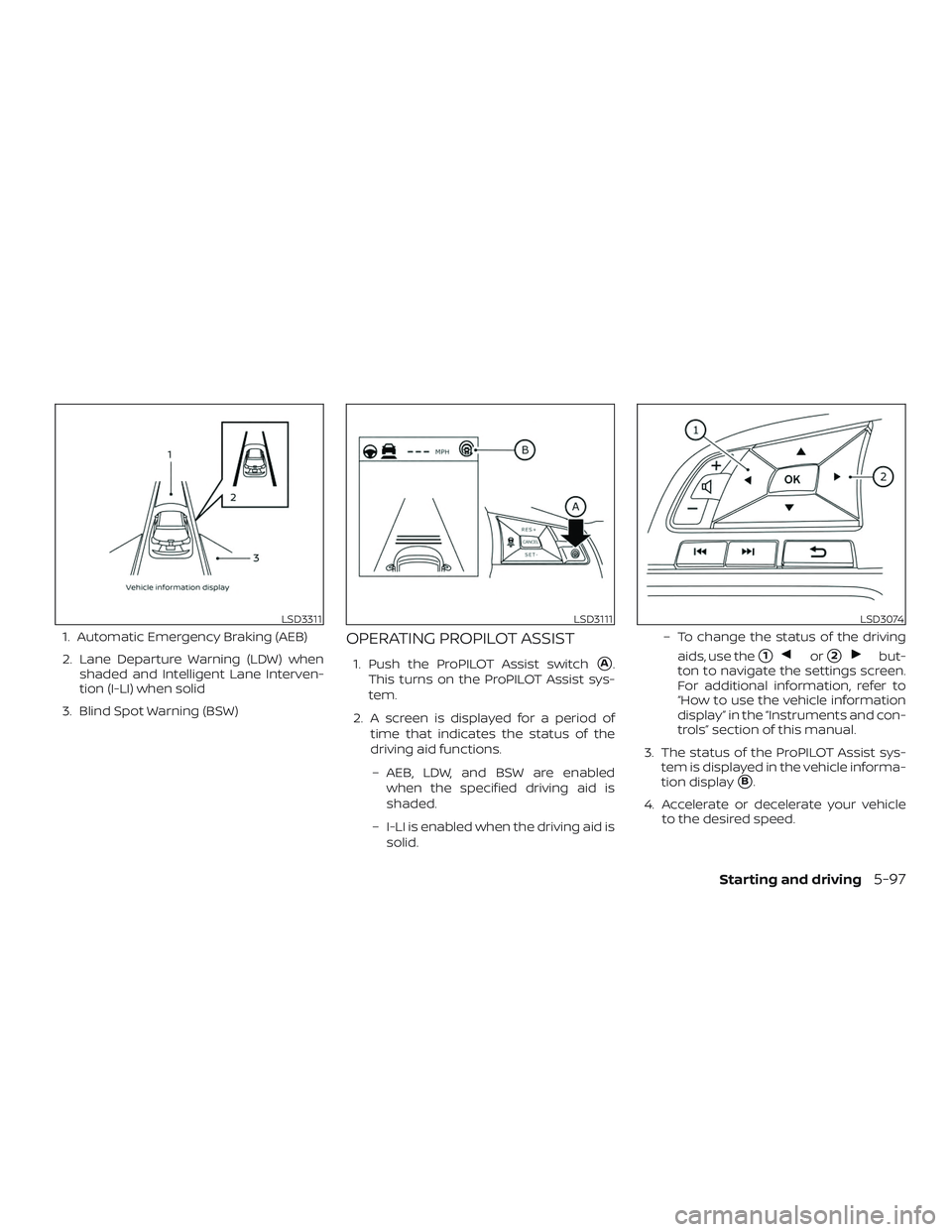

1. Push the ProPILOT Assist switchA.
This turns on the ProPILOT Assist sys-
tem.
2. A screen is displayed for a period of time that indicates the status of the
driving aid functions.
– AEB, LDW, and BSW are enabled when the specified driving aid is
shaded.
– I-LI is enabled when the driving aid is solid. – To change the status of the driving
aids, use the1or2but-
ton to navigate the settings screen.
For additional information, refer to
“How to use the vehicle information
display” in the “Instruments and con-
trols” section of this manual.
3. The status of the ProPILOT Assist sys- tem is displayed in the vehicle informa-
tion display
B.
4. Accelerate or decelerate your vehicle to the desired speed.
LSD3311LSD3111LSD3074
Starting and driving5-97

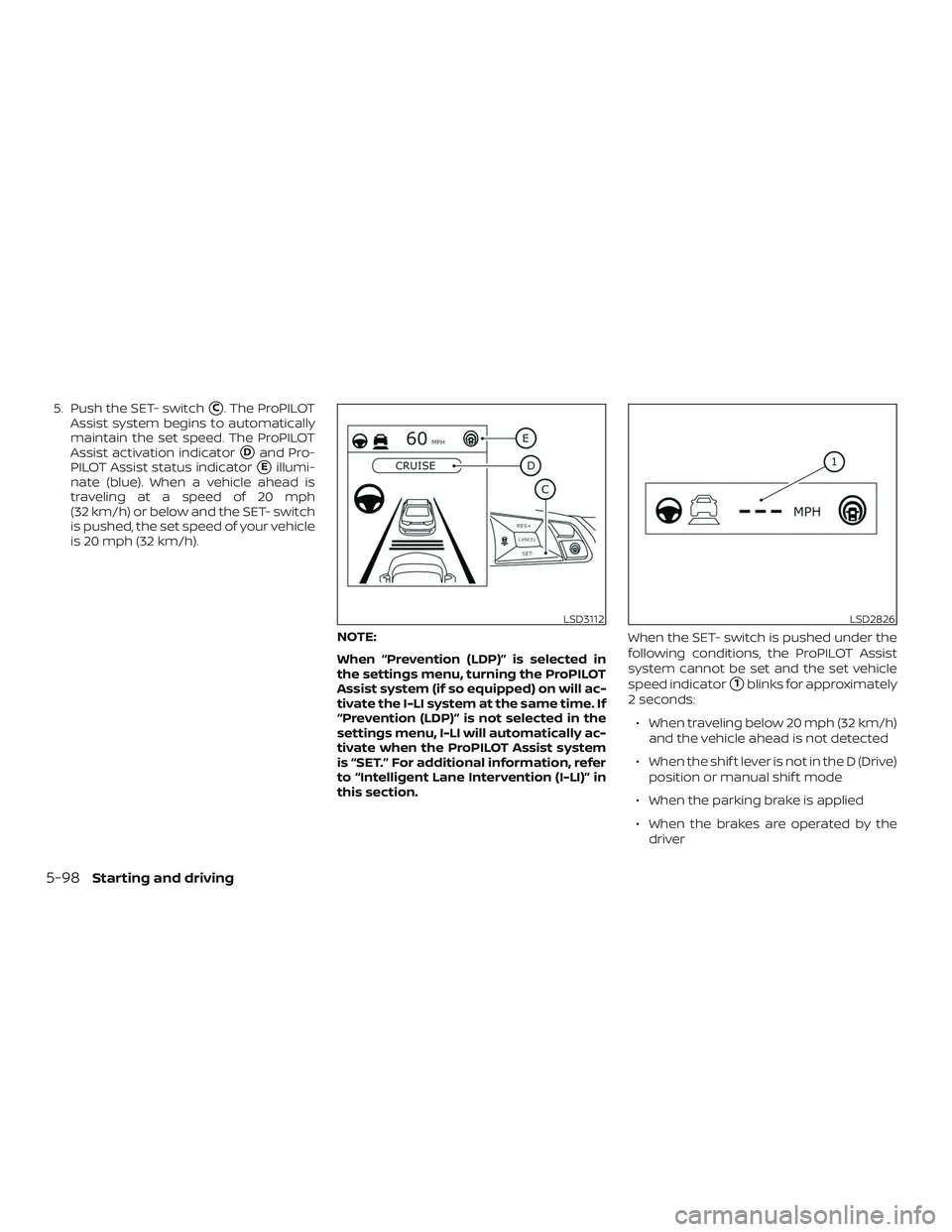

5. Push the SET- switchC. The ProPILOT
Assist system begins to automatically
maintain the set speed. The ProPILOT
Assist activation indicator
Dand Pro-
PILOT Assist status indicator
Eillumi-
nate (blue). When a vehicle ahead is
traveling at a speed of 20 mph
(32 km/h) or below and the SET- switch
is pushed, the set speed of your vehicle
is 20 mph (32 km/h).
NOTE:
When “Prevention (LDP)” is selected in
the settings menu, turning the ProPILOT
Assist system (if so equipped) on will ac-
tivate the I-LI system at the same time. If
“Prevention (LDP)” is not selected in the
settings menu, I-LI will automatically ac-
tivate when the ProPILOT Assist system
is “SET.” For additional information, refer
to “Intelligent Lane Intervention (I-LI)” in
this section. When the SET- switch is pushed under the
following conditions, the ProPILOT Assist
system cannot be set and the set vehicle
speed indicator
1blinks for approximately
2 seconds:
∙ When traveling below 20 mph (32 km/h) and the vehicle ahead is not detected
∙ When the shif t lever is not in the D (Drive) position or manual shif t mode
∙ When the parking brake is applied
∙ When the brakes are operated by the driver
LSD3112LSD2826
5-98Starting and driving
