NISSAN ROGUE 2020 Owner´s Manual

NOTE:
There may be times when the horn
sounds but there are no objects or pas-
sengers in the rear seat(s).
For additional information, refer to “Rear
Door Alert is activated” in this section.The E-call (SOS) button is used in combina-
tion with a NissanConnect® Services sub-
scription to call for assistance in case of an
emergency.
Pressing the button will (with a paid sub-
scription) reach a response specialist that
will provide assistance based on the situa-
tion described by the vehicle’s occupant.
For additional information, or to enroll your
vehicle, refer to www.NissanUSA.com/
connect, www.Nissan.ca/NissanConnect,
or www.Nissan.ca/NissanConnect/fr or
call 855–426–6628.
12V OUTLETS
The power outlets are for powering electri-
cal accessories such as cellular tele-
phones. They are rated at 12 volt, 120W (10A)
maximum.
The front and center console power outlets
are powered only when the ignition switch
is in the ON position, or while the accessory
power is active.
LIC3357
Instrument Panel
LIC4110
E-CALL (SOS) BUTTON (if so
equipped)POWER OUTLETS
2-60Instruments and controls

NOTE:∙ When the ignition is in the OFF position, the front and center console power
outlets stop delivering power one min-
ute af ter the door is opened and stays
open.
∙ If the door remains closed af ter the ig- nition is placed in the OFF position, the
front and center console power outlets
continue to deliver power until the ac-
cessory power timer has elapsed.
∙ The cargo area power outlet(s) contin- ues to deliver power normally.
CAUTION
∙ The outlet and plug may be hot duringor immediately af ter use.
∙ Only certain power outlets are de- signed for use with a cigarette lighter
unit. Do not use any other power out-
let for an accessory lighter. It is rec-
ommended that you visit a NISSAN
dealer for additional information.
∙ Do not use with accessories that ex- ceed a 12 volt, 120W (10A) power draw. ∙ Do not use double adapters or more
than one electrical accessory.
∙ Use power outlets with the engine running to avoid discharging the ve-
hicle battery.
∙ Avoid using power outlets when the air conditioner, headlights or rear win-
dow defroster is on.
∙ Before inserting or disconnecting a plug, be sure the electrical accessory
being used is turned OFF.
Center Console
LIC3697
Cargo Area
LIC2617
Instruments and controls2-61

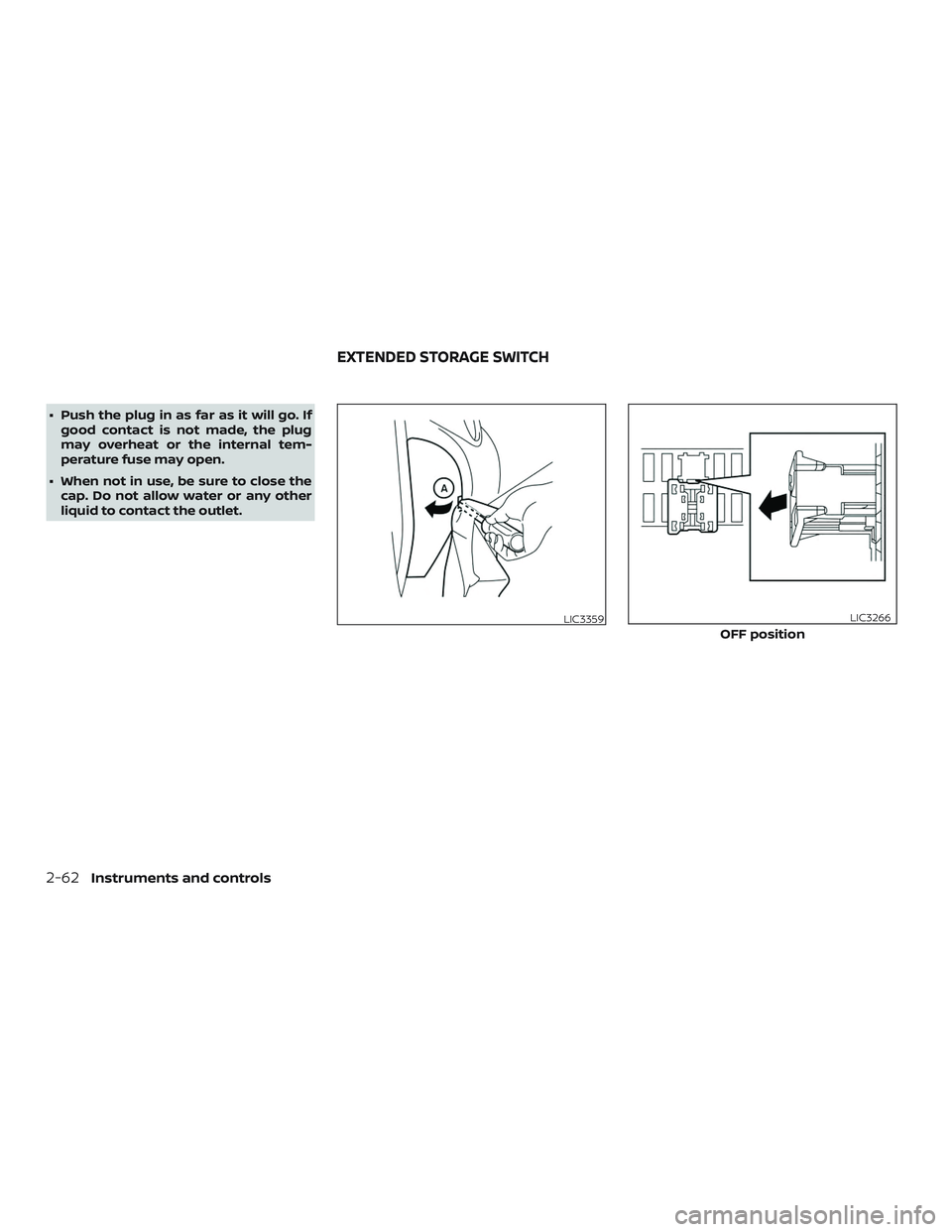

∙ Push the plug in as far as it will go. Ifgood contact is not made, the plug
may overheat or the internal tem-
perature fuse may open.
∙ When not in use, be sure to close the cap. Do not allow water or any other
liquid to contact the outlet.
LIC3359
OFF position
LIC3266
EXTENDED STORAGE SWITCH
2-62Instruments and controls

The extended storage switch is used when
shipping the vehicle. It is located in the fuse
panel on the driver’s side of the instrument
panel. If any electrical equipment does not
operate, ensure the extended storage
switch is pushed fully in place, as shown.
To inspect the extended storage switch,
ensure the ignition switch and headlight
switch are off, remove the fuse box cover
Ausing a suitable tool in combination
with a cloth to avoid damaging the trim.
FRONT-DOOR POCKETS SEATBACK POCKETS
There is a pocket located on the back of the
driver and passenger seats. These pockets
can be used to store maps.
WARNING
To ensure proper operation of the pas-
senger’s advanced air bag system,
please observe the following items:
∙ Do not allow a passenger in the 2nd
row to push or pull on the seatback
pocket.
ON position
LIC3268LIC2308LIC2618
STORAGE
Instruments and controls2-63

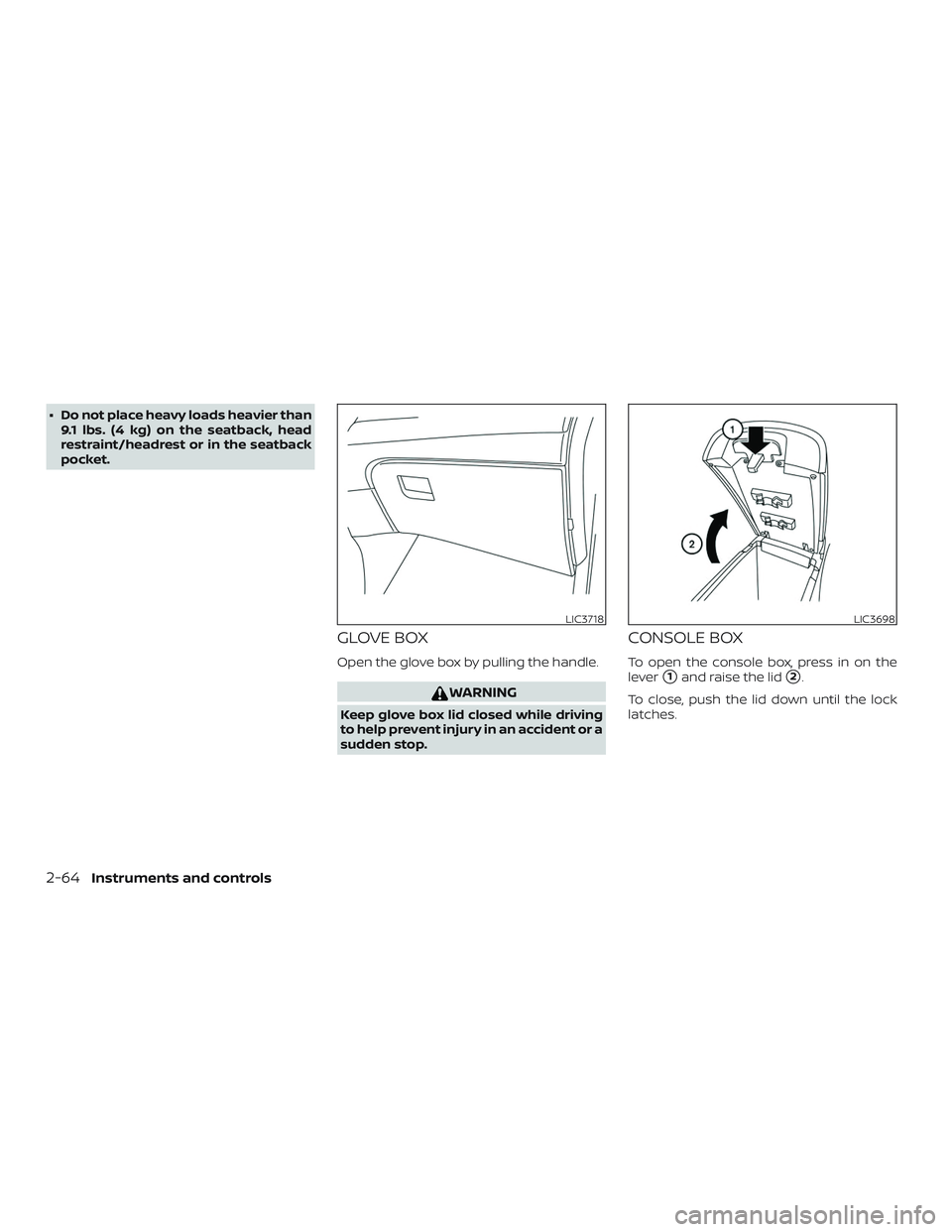

∙ Do not place heavy loads heavier than9.1 lbs. (4 kg) on the seatback, head
restraint/headrest or in the seatback
pocket.
GLOVE BOX
Open the glove box by pulling the handle.
WARNING
Keep glove box lid closed while driving
to help prevent injury in an accident or a
sudden stop.
CONSOLE BOX
To open the console box, press in on the
lever
1and raise the lid2.
To close, push the lid down until the lock
latches.
LIC3718LIC3698
2-64Instruments and controls

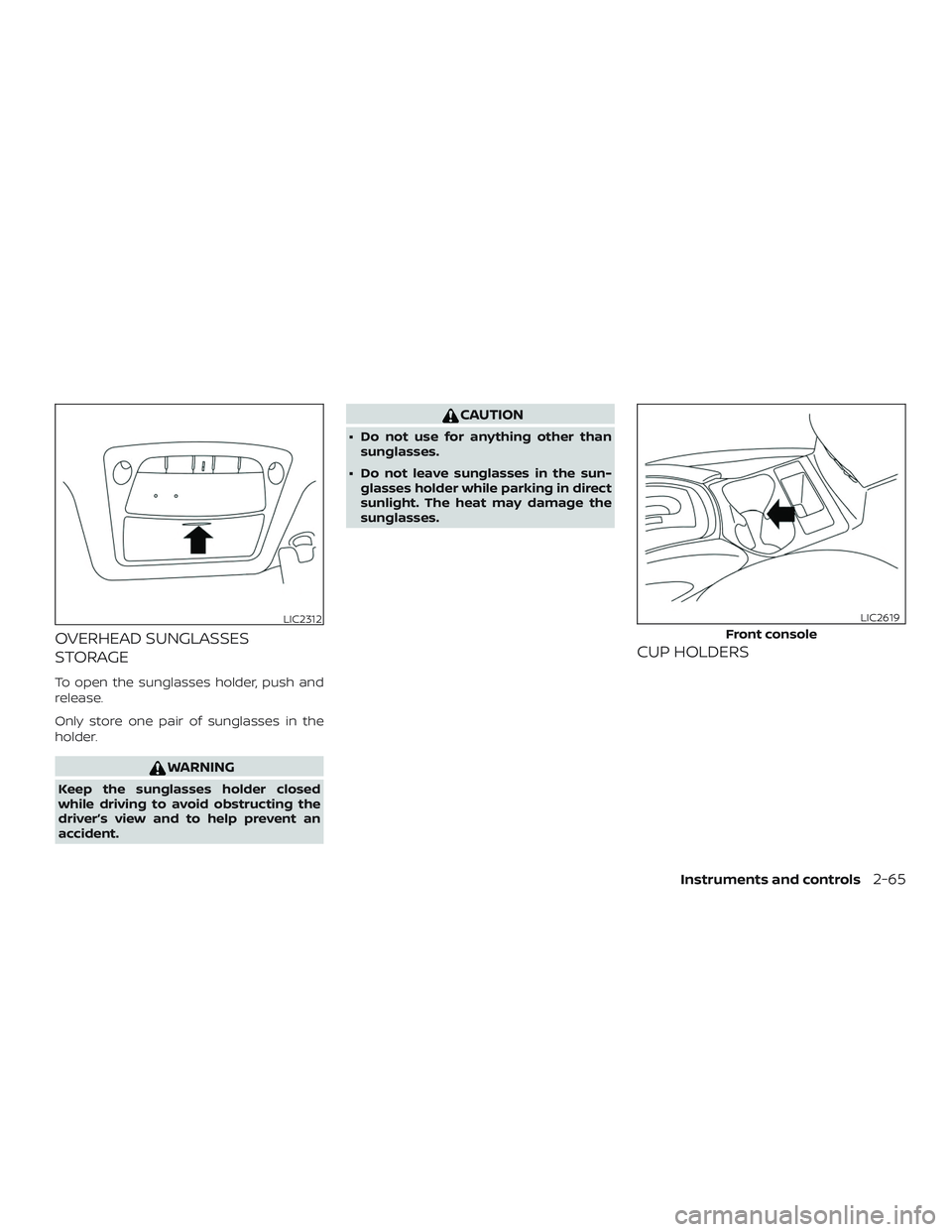

OVERHEAD SUNGLASSES
STORAGE
To open the sunglasses holder, push and
release.
Only store one pair of sunglasses in the
holder.
WARNING
Keep the sunglasses holder closed
while driving to avoid obstructing the
driver’s view and to help prevent an
accident.
CAUTION
∙ Do not use for anything other thansunglasses.
∙ Do not leave sunglasses in the sun- glasses holder while parking in direct
sunlight. The heat may damage the
sunglasses.
CUP HOLDERS
LIC2312
Front console
LIC2619
Instruments and controls2-65

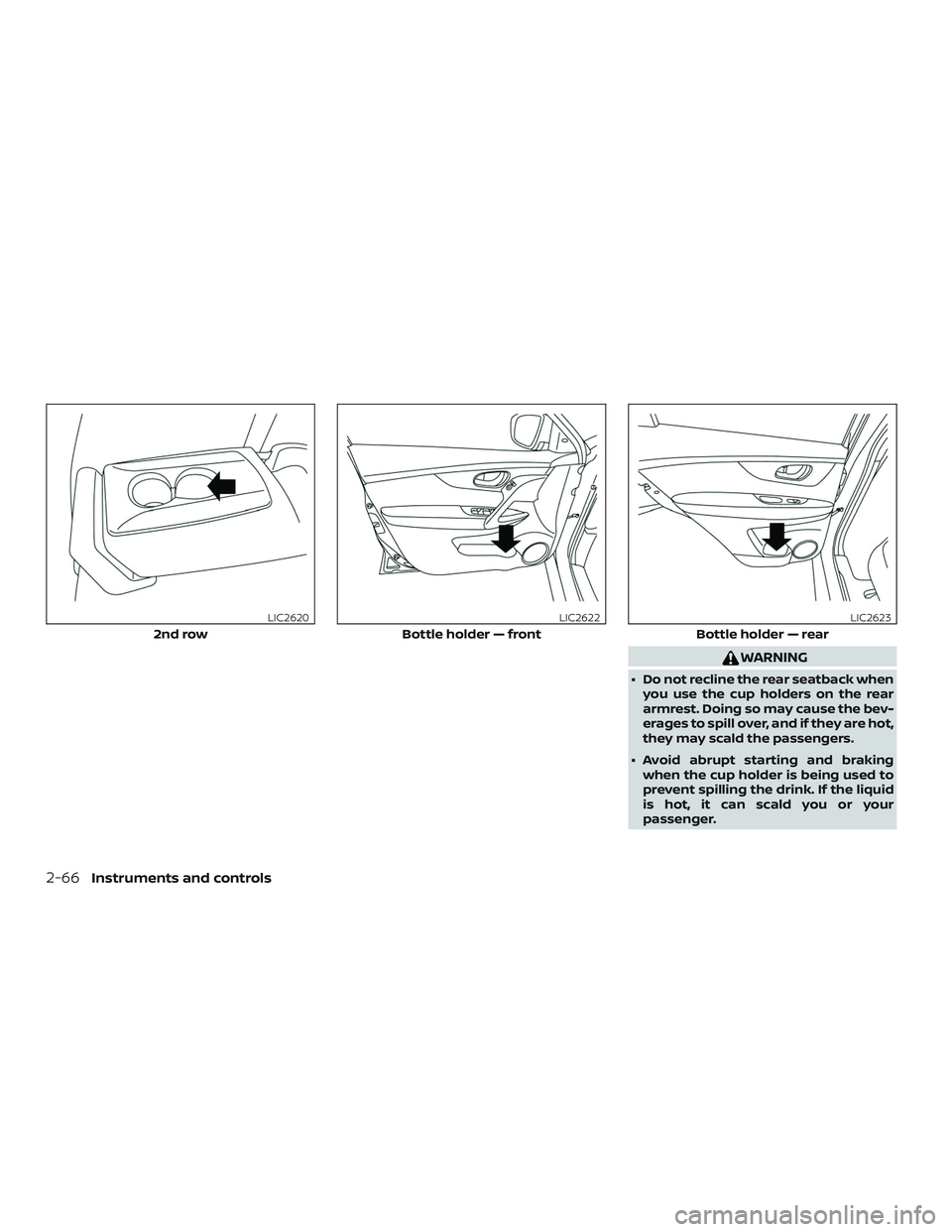

WARNING
∙ Do not recline the rear seatback whenyou use the cup holders on the rear
armrest. Doing so may cause the bev-
erages to spill over, and if they are hot,
they may scald the passengers.
∙ Avoid abrupt starting and braking when the cup holder is being used to
prevent spilling the drink. If the liquid
is hot, it can scald you or your
passenger.
2nd row
LIC2620
Bottle holder — front
LIC2622
Bottle holder — rear
LIC2623
2-66Instruments and controls

CAUTION
Use only sof t cups in the cup holder.
Hard objects can injure you in an
accident
CAUTION
∙ Do not use bottle holder for any otherobjects that could be thrown about in
the vehicle and possibly injure people
during sudden braking or an accident.
∙ Do not use bottle holder for open liq- uid containers.
DIVIDE-N-HIDE® ADJUSTABLE
FLOOR
WARNING
Do not put objects heavier than 165 lbs.
(75 kg) on the Divide-N-Hide® while in
the mid position. In the upper position,
objects should not weigh more than
30 lbs. (14 kg).
There are multiple positions for the ad-
justable floor. The upper position allows
for additional storage below the adjust-
able floor. To move the adjustable floor from the
lower position to the upper position:
1. Use the handle to lif t the adjustable floor.
2. Move the adjustable floor to the upper guide track and ensure it is secure in
place.
LIC2646LIC2647
Instruments and controls2-67

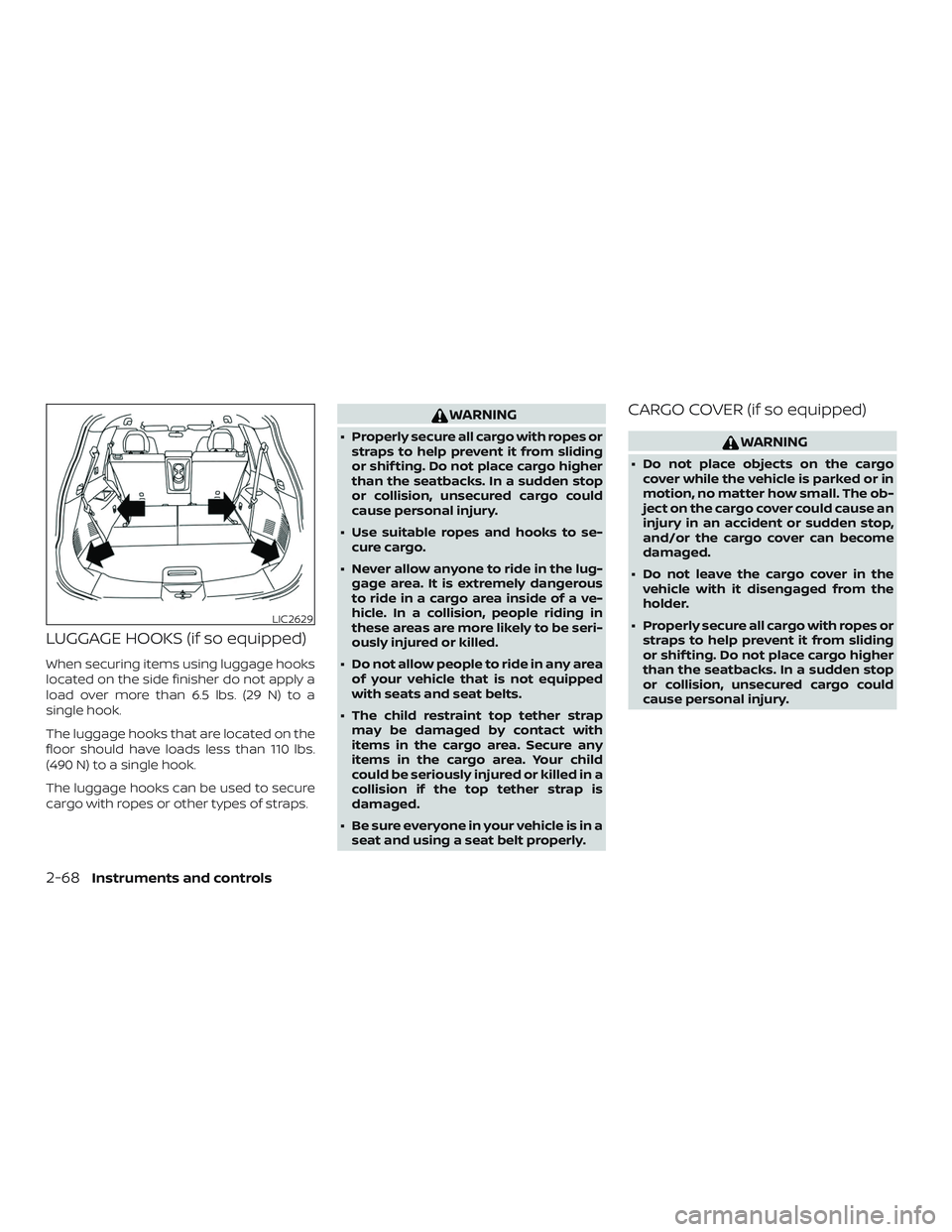

LUGGAGE HOOKS (if so equipped)
When securing items using luggage hooks
located on the side finisher do not apply a
load over more than 6.5 lbs. (29 N) to a
single hook.
The luggage hooks that are located on the
floor should have loads less than 110 lbs.
(490 N) to a single hook.
The luggage hooks can be used to secure
cargo with ropes or other types of straps.
WARNING
∙ Properly secure all cargo with ropes orstraps to help prevent it from sliding
or shif ting. Do not place cargo higher
than the seatbacks. In a sudden stop
or collision, unsecured cargo could
cause personal injury.
∙ Use suitable ropes and hooks to se- cure cargo.
∙ Never allow anyone to ride in the lug- gage area. It is extremely dangerous
to ride in a cargo area inside of a ve-
hicle. In a collision, people riding in
these areas are more likely to be seri-
ously injured or killed.
∙ Do not allow people to ride in any area of your vehicle that is not equipped
with seats and seat belts.
∙ The child restraint top tether strap may be damaged by contact with
items in the cargo area. Secure any
items in the cargo area. Your child
could be seriously injured or killed in a
collision if the top tether strap is
damaged.
∙ Be sure everyone in your vehicle is in a seat and using a seat belt properly.
CARGO COVER (if so equipped)
WARNING
∙ Do not place objects on the cargocover while the vehicle is parked or in
motion, no matter how small. The ob-
ject on the cargo cover could cause an
injury in an accident or sudden stop,
and/or the cargo cover can become
damaged.
∙ Do not leave the cargo cover in the vehicle with it disengaged from the
holder.
∙ Properly secure all cargo with ropes or straps to help prevent it from sliding
or shif ting. Do not place cargo higher
than the seatbacks. In a sudden stop
or collision, unsecured cargo could
cause personal injury.
LIC2629
2-68Instruments and controls

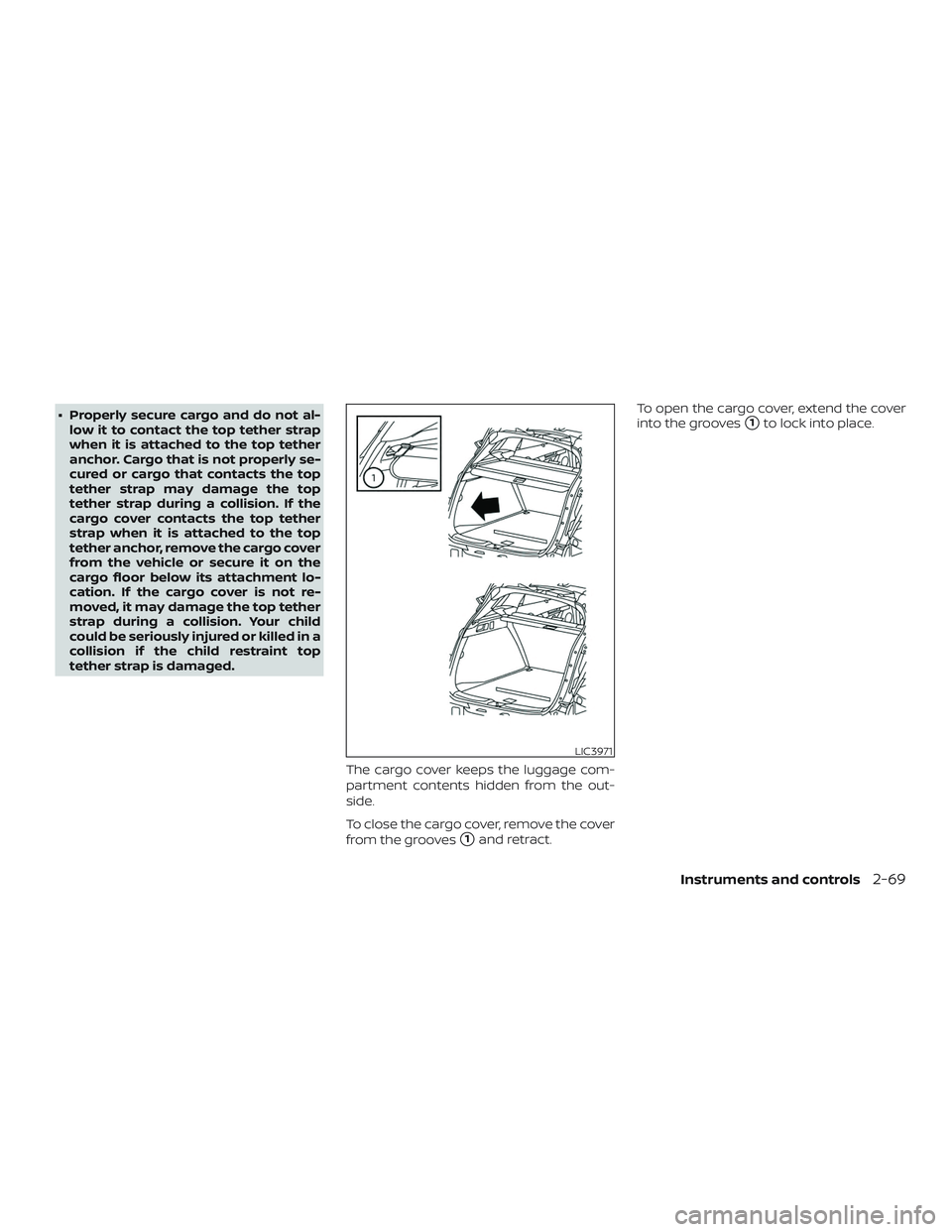

∙ Properly secure cargo and do not al-low it to contact the top tether strap
when it is attached to the top tether
anchor. Cargo that is not properly se-
cured or cargo that contacts the top
tether strap may damage the top
tether strap during a collision. If the
cargo cover contacts the top tether
strap when it is attached to the top
tether anchor, remove the cargo cover
from the vehicle or secure it on the
cargo floor below its attachment lo-
cation. If the cargo cover is not re-
moved, it may damage the top tether
strap during a collision. Your child
could be seriously injured or killed in a
collision if the child restraint top
tether strap is damaged.
The cargo cover keeps the luggage com-
partment contents hidden from the out-
side.
To close the cargo cover, remove the cover
from the grooves
1and retract.To open the cargo cover, extend the cover
into the grooves
1to lock into place.
LIC3971
Instruments and controls2-69
