window NISSAN ROGUE 2020 Owner´s Manual

1. Engine hood (P. 3-25)
2. Wiper and washer switch (P. 2-45)Wiper blades (P. 8-20)
3. Windshield (P. 8-20) Windshield-washer fluid (P. 8-11)
4. Front camera (if so equipped)
(P. 5-35, 5-40, 5-124, 5-132)
5. Power windows (P. 2-71)
6. Door locks (P. 3-5) NISSAN Intelligent Key®
(if so equipped) (P. 3-10)
Remote Keyless Entry (P. 3-2, 3-8)
Keys (P. 3-2)
7. Mirrors (P. 3-38) Side view camera (if so equipped)
(P. 4-11)
8. Tire pressure (P. 8-32) Flat tire (P. 6-3)
Tire chains (P. 8-32)
9. Fog light switch (if so equipped)
(P. 2-48)
10. Headlight and turn signal switch
(P. 2-48)
Replacing bulbs (P. 8-28)
LED Daytime Running Lights (DRL)
system (P. 2-48)
11. Front view camera (if so equipped)
(P. 4-11)
Front radar (P. 5-124, 5-132)
Refer to the page number indicated in
parentheses for operating details.LII2612
EXTERIOR FRONT
Illustrated table of contents0-3

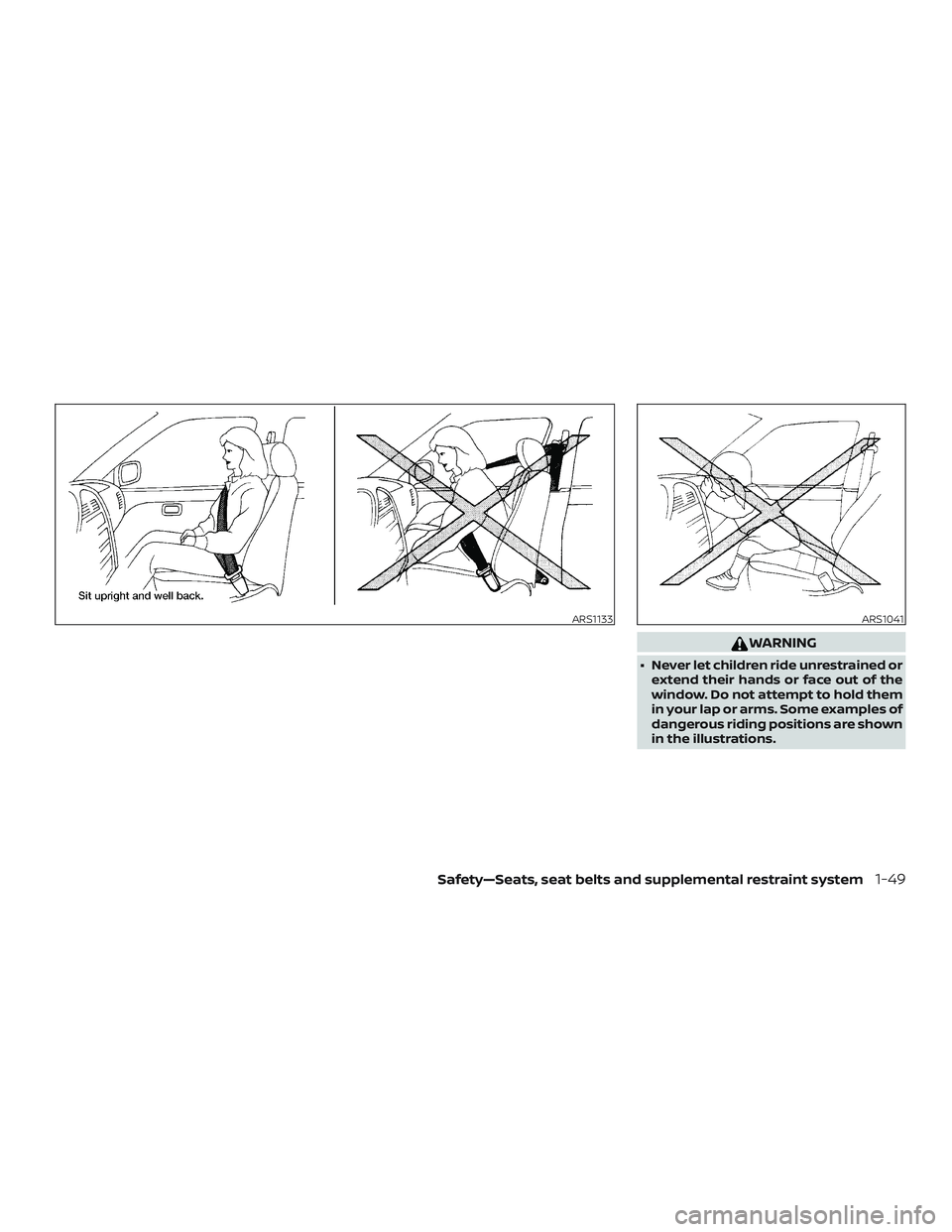

WARNING
∙ Never let children ride unrestrained orextend their hands or face out of the
window. Do not attempt to hold them
in your lap or arms. Some examples of
dangerous riding positions are shown
in the illustrations.
ARS1133ARS1041
Safety—Seats, seat belts and supplemental restraint system1-49

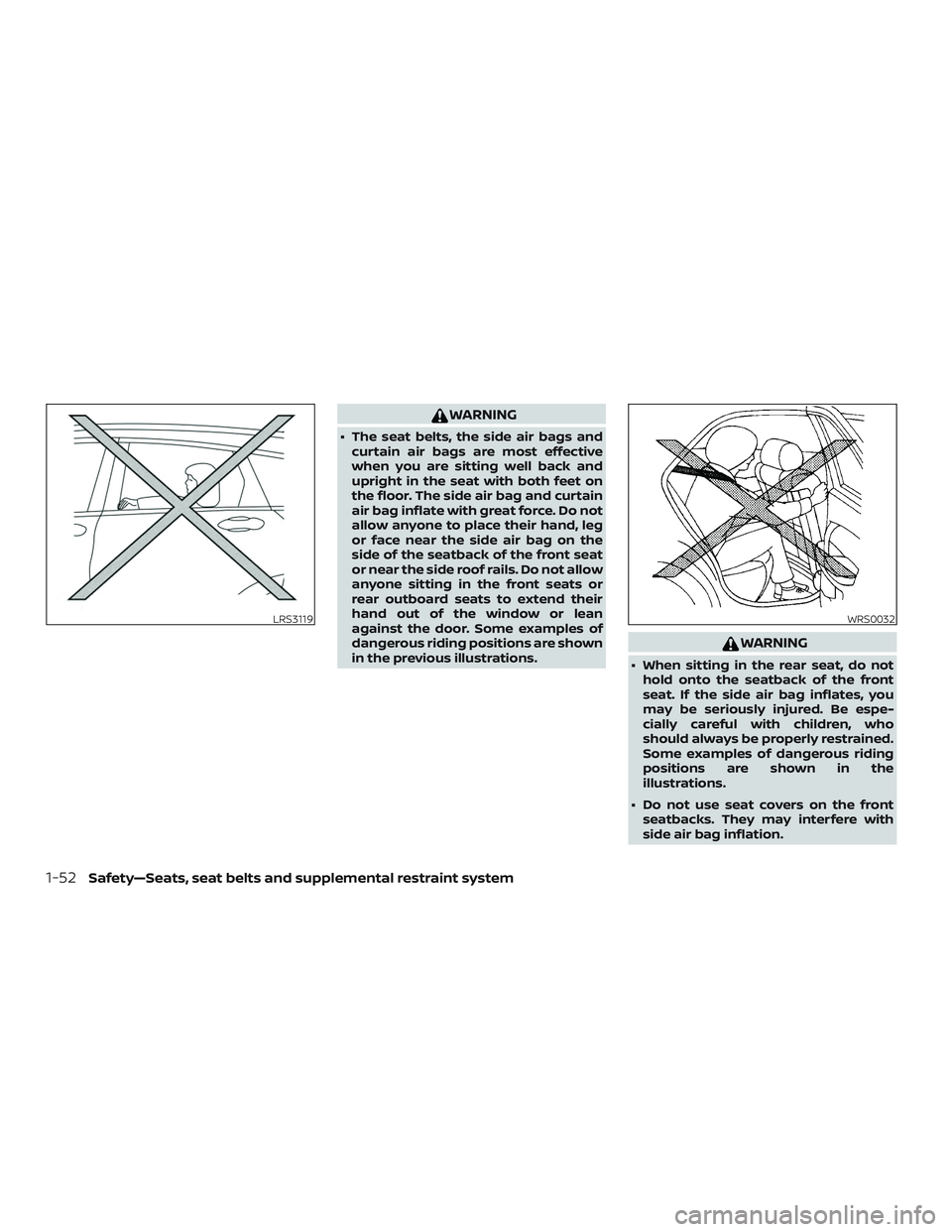

WARNING
∙ The seat belts, the side air bags andcurtain air bags are most effective
when you are sitting well back and
upright in the seat with both feet on
the floor. The side air bag and curtain
air bag inflate with great force. Do not
allow anyone to place their hand, leg
or face near the side air bag on the
side of the seatback of the front seat
or near the side roof rails. Do not allow
anyone sitting in the front seats or
rear outboard seats to extend their
hand out of the window or lean
against the door. Some examples of
dangerous riding positions are shown
in the previous illustrations.
WARNING
∙ When sitting in the rear seat, do nothold onto the seatback of the front
seat. If the side air bag inflates, you
may be seriously injured. Be espe-
cially careful with children, who
should always be properly restrained.
Some examples of dangerous riding
positions are shown in the
illustrations.
∙ Do not use seat covers on the front seatbacks. They may interfere with
side air bag inflation.
LRS3119WRS0032
1-52Safety—Seats, seat belts and supplemental restraint system

2 Instruments and controls
Instrument panel................................2-2
Meters and gauges ..............................2-4
Speedometer and odometer .................2-4
Tachometer ..................................2-6
Engine coolant temperature gauge ..........2-6
Fuel gauge ................................... 2-7
Distance To Empty (DTE) ...................... 2-7
Compass (if so equipped) .......................2-8
Compass display .............................2-8
Warning lights, indicator lights and audible
reminders ....................................... 2-11
Checking lights .............................. 2-12
Warning lights ............................... 2-12
Indicator lights .............................. 2-17
Audible reminders ........................... 2-20
Vehicle information display .....................2-21
How to use the vehicle information
display ...................................... 2-22
Startup display .............................. 2-22
Resetting the drive computer ................2-23
Settings ..................................... 2-23
Vehicle information display warnings
and indicators ............................... 2-34Security systems
............................... 2-42
Vehicle security system .....................2-42
NISSAN Vehicle Immobilizer System .........2-44
Wiper and washer switch .......................2-45
Switch operation ............................ 2-45
Rear switch operation .......................2-46
Rear window and outside mirror
(if so equipped) defroster switch ................2-47
Headlight and turn signal switch ...............2-48
Headlight control switch .....................2-48
LED Daytime Running Lights (DRL)
system ...................................... 2-52
Instrument brightness control ...............2-53
Turn signal switch ........................... 2-53
Fog light switch (if so equipped) .............2-54
Horn ........................................... 2-55
Heated seat switches (if so equipped) ..........2-55
Heated steering wheel switch (if so equipped) . . 2-56
Dynamic driver assistance switch
(f or

vehicles without ProPILOT Assist)
(if so equipped) ................................. 2-57
Steering Assist switch (for vehicles with
ProPILOT Assist) (if so equipped) ................2-57

Vehicle Dynamic Control (VDC) OFF switch......2-58
All-Wheel Drive (AWD) LOCK switch
(if so equipped) ................................. 2-58
Rear Door Alert ................................. 2-59
E-call (SOS) button (if so equipped) .............2-60
Power outlets .................................. 2-60
12v outlets ................................... 2-60
Extended storage switch .......................2-62
Storage ........................................ 2-63
Front-door pockets .......................... 2-63
Seatback pockets ........................... 2-63
Glovebox.................................... 2-64
Console box ................................. 2-64
Overhead sunglasses storage ...............2-65
Cup holders ................................. 2-65
Divide-N-Hide® adjustable floor ..............2-67
Luggage hooks (if so equipped) .............2-68
Cargo cover (if so equipped) .................2-68
Roof rack (if so equipped) ....................2-70
Windows ....................................... 2-71Power windows
............................. 2-71
Power moonroof (if so equipped) ...............2-73
Interior lights ................................... 2-75
Console light ................................ 2-76
Map lights ................................... 2-76
Personal lights (if so equipped) ..............2-77
Room light (if so equipped) ..................2-77
Luggage compartment light ................2-78
HomeLink® Universal Transceiver
(if so equipped) ................................. 2-78
Programming HomeLink® ...................2-79
Programming HomeLink® for Canadian
customers and gate openers ................2-81
Operating the HomeLink® Universal
Transceiver .................................. 2-81
Programming trouble-diagnosis ............2-81
Clearing the programmed information ......2-82
Reprogramming a single HomeLink®
b u

tton....................................... 2-82
If your vehicle is stolen .......................2-82

The system helps deter vehicle thef t but
cannot prevent it, nor can it prevent the
thef t of interior or exterior vehicle compo-
nents in all situations. Always secure your
vehicle even if parking for a brief period.
Never leave your keys in the vehicle, and
always lock the vehicle when unattended.
Be aware of your surroundings, and park in
secure, well-lit areas whenever possible.
Many devices offering additional protec-
tion, such as component locks, identifica-
tion markers, and tracking systems, are
available at auto supply stores and spe-
cialty shops. A NISSAN dealer may also offer
such equipment. Check with your insur-
ance company to see if you may be eligible
for discounts for various thef t protection
features.
How to arm the vehicle security
system
1. Close all windows.(The system can be
armed even if the windows are open.)
2. Remove the keys from the vehicle.
3. Close all doors and lif tgate. Lock all doors. The doors can be locked with
the key fob (if so equipped), Intelligent
Key (if so equipped), or door handle re-
quest switch. 4. Confirm that the
security indica-
tor light stays on for about 30 seconds.
The vehicle security system is now pre-
armed. The vehicle security system will
automatically shif t into the armed
phase. The
security light begins
to flash once every three seconds. If
during the pre-armed phase one of the
following occurs, the system will not
arm:
∙ Any door is unlocked with the key fob (if so equipped), the Intelligent Key (if so
equipped), or door request switch.
∙ Ignition switch is placed in the ON posi- tion.
∙ Even when the driver and/or passen-
gers are in the vehicle, the system will
activate with all the doors, hood and
lif tgate locked with the ignition
switch placed in the LOCK position.
When placing the ignition switch in
the ON position, the system will be
released.
Vehicle security system activation
The vehicle security system will give the
following alarm:
∙ The headlights blink and the horn sounds intermittently but synchro-
nously.
∙ The alarm automatically turns off af ter a period of time. However, the alarm
reactivates if the vehicle is tampered
with again.
The alarm is activated by: ∙ opening any door or the lif tgate without using the key fob (if so equipped) or In-
telligent Key (if so equipped) (even if the
door is unlocked by releasing the door
inside lock knob).
How to stop an activated alarm
The alarm stops only by unlocking a door
or the lif tgate with the key fob (if so
equipped), pressing the
button on
the Intelligent Key (if so equipped), or push-
ing the request switch on the driver’s or
passenger’s door with the Intelligent Key (if
so equipped) in range of the door handle.
Instruments and controls2-43

NOTE:
If the windshield wiper operation is in-
terrupted by snow or ice, the wiper may
stop moving to protect its motor. If this
occurs, turn the wiper switch to the OFF
position and remove the snow or ice that
is on and around the wiper arms. In ap-
proximately 1 minute, turn the switch on
again to operate the wiper.
The windshield wiper and washer operates
when the ignition switch is in the ON posi-
tion.
Push the lever down to operate the wiper
at the following speed:
1Intermittent — intermittent operation
can be adjusted by turning the knob
toward
A(Slower) orB(Faster). Also,
the intermittent operation speed var-
ies in accordance with the vehicle
speed. (For example, when the vehicle
speed is high, the intermittent opera-
tion speed will be faster.)
2Low — continuous low speed opera-
tion
3High — continuous high speed opera-
tion
Lif t the lever up
4to have one sweep op-
eration (MIST) of the wiper. Pull the lever toward you
5to operate the
washer. The wiper will also operate several
times.
Af ter a short delay the drip wipe function
will operate the wiper once more to clear
remaining windshield-washer fluid from
the windshield.
NOTE:
The Speed Dependent feature and Drip
Wipe feature may be disabled. For addi-
tional information, refer to “Vehicle in-
formation display ” in this section.
REAR SWITCH OPERATION
WARNING
In freezing temperatures the washer
solution may freeze on the window and
obscure your vision. Warm the rear win-
dow with the defroster before you wash
the rear window.
LIC2662
2-46Instruments and controls

CAUTION
∙ Do not operate the washer continu-ously for more than 30 seconds.
∙ Do not operate the washer if the windshield-washer fluid reservoir is
empty.
∙ Do not fill the windshield-washer fluid reservoir with windshield-washer
fluid concentrates at full strength.
Some methyl alcohol based
windshield-washer fluid concen-
trates may permanently stain the
grille if spilled while filling the
windshield-washer fluid reservoir.
∙ Pre-mix windshield-washer fluid con- centrates with water to the manufac-
turer’s recommended levels before
pouring the fluid into the windshield-
washer fluid reservoir. Do not use the
windshield-washer fluid reservoir to
mix the windshield-washer fluid con-
centrate and water. NOTE:
If the rear window wiper operation is in-
terrupted by snow, etc., the wiper may
stop moving to protect its motor. If this
occurs, turn the wiper switch to OFF and
remove the snow, etc. on and around the
wiper arms. Af ter about 1 minute, turn
the switch on again to operate the wiper.
The rear window wiper and washer oper-
ate when the ignition switch is in the ON
position. Turn the switch clockwise from
the OFF position to operate the wiper.
1Intermittent — intermittent operation
(not adjustable)
2Low — continuous low speed opera-
tion
Push the switch forward
3to operate the
washer. The wiper will also operate several
times.
NOTE:
The Reverse Link feature may be dis-
abled. For additional information, refer
to “Vehicle information display ” in this
section. To defrost the rear window glass and out-
side mirrors (if so equipped), start the en-
gine and push the rear window defroster
switch on. The rear window defroster indi-
cator light on the switch comes on. Push
the switch again to turn the defroster off.
The rear window defroster automatically
turns off af ter approximately 15 minutes.
CAUTION
When cleaning the inner side of the rear
window, be careful not to scratch or
damage the rear window defroster.
Type A (if so equipped)
LIC2614
REAR WINDOW AND OUTSIDE
MIRROR (if so equipped)
DEFROSTER SWITCH
Instruments and controls2-47

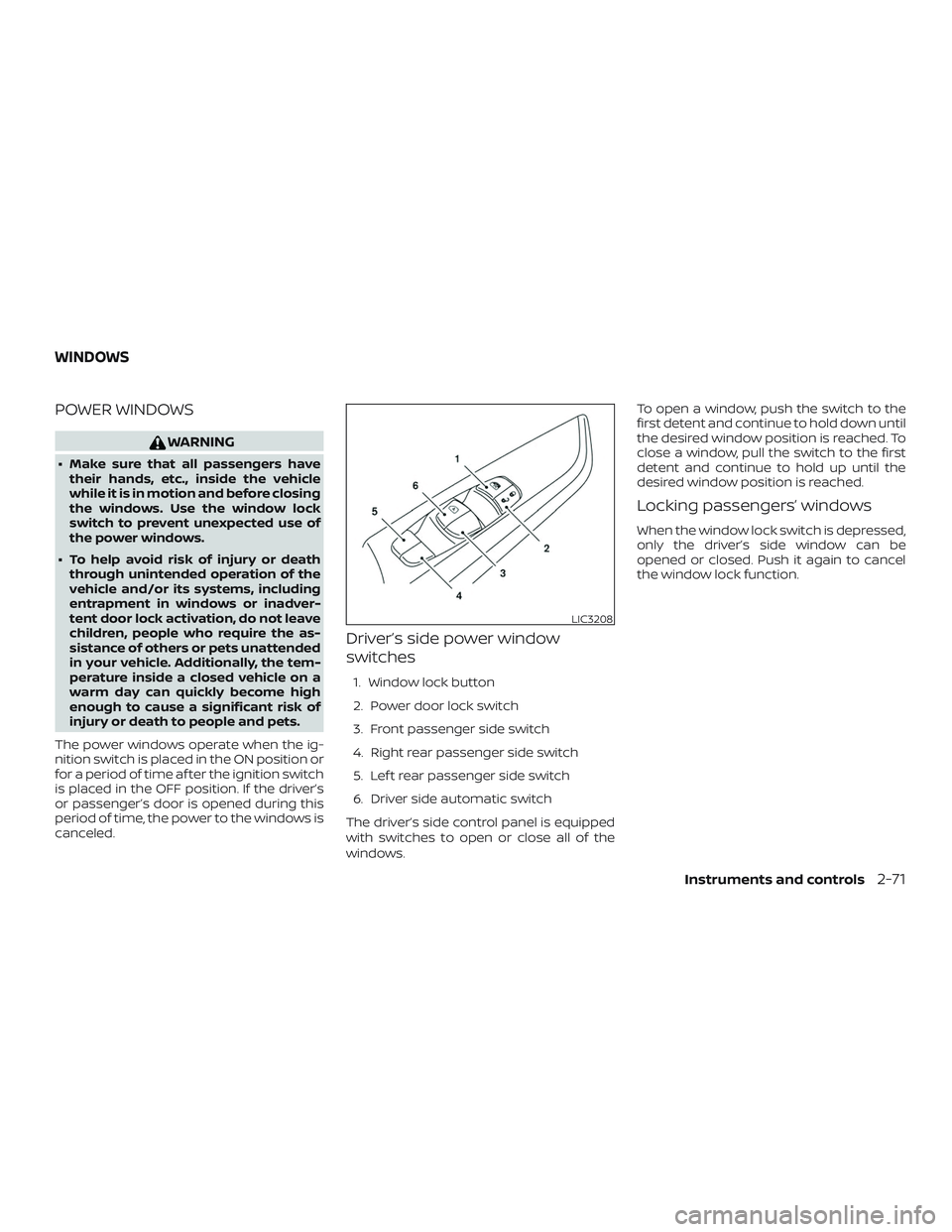

POWER WINDOWS
WARNING
∙ Make sure that all passengers havetheir hands, etc., inside the vehicle
while it is in motion and before closing
the windows. Use the window lock
switch to prevent unexpected use of
the power windows.
∙ To help avoid risk of injury or death through unintended operation of the
vehicle and/or its systems, including
entrapment in windows or inadver-
tent door lock activation, do not leave
children, people who require the as-
sistance of others or pets unattended
in your vehicle. Additionally, the tem-
perature inside a closed vehicle on a
warm day can quickly become high
enough to cause a significant risk of
injury or death to people and pets.
The power windows operate when the ig-
nition switch is placed in the ON position or
for a period of time af ter the ignition switch
is placed in the OFF position. If the driver’s
or passenger’s door is opened during this
period of time, the power to the windows is
canceled.
Driver’s side power window
switches
1. Window lock button
2. Power door lock switch
3. Front passenger side switch
4. Right rear passenger side switch
5. Lef t rear passenger side switch
6. Driver side automatic switch
The driver’s side control panel is equipped
with switches to open or close all of the
windows. To open a window, push the switch to the
first detent and continue to hold down until
the desired window position is reached. To
close a window, pull the switch to the first
detent and continue to hold up until the
desired window position is reached.
Locking passengers’ windows
When the window lock switch is depressed,
only the driver’s side window can be
opened or closed. Push it again to cancel
the window lock function.
LIC3208
WINDOWS
Instruments and controls2-71

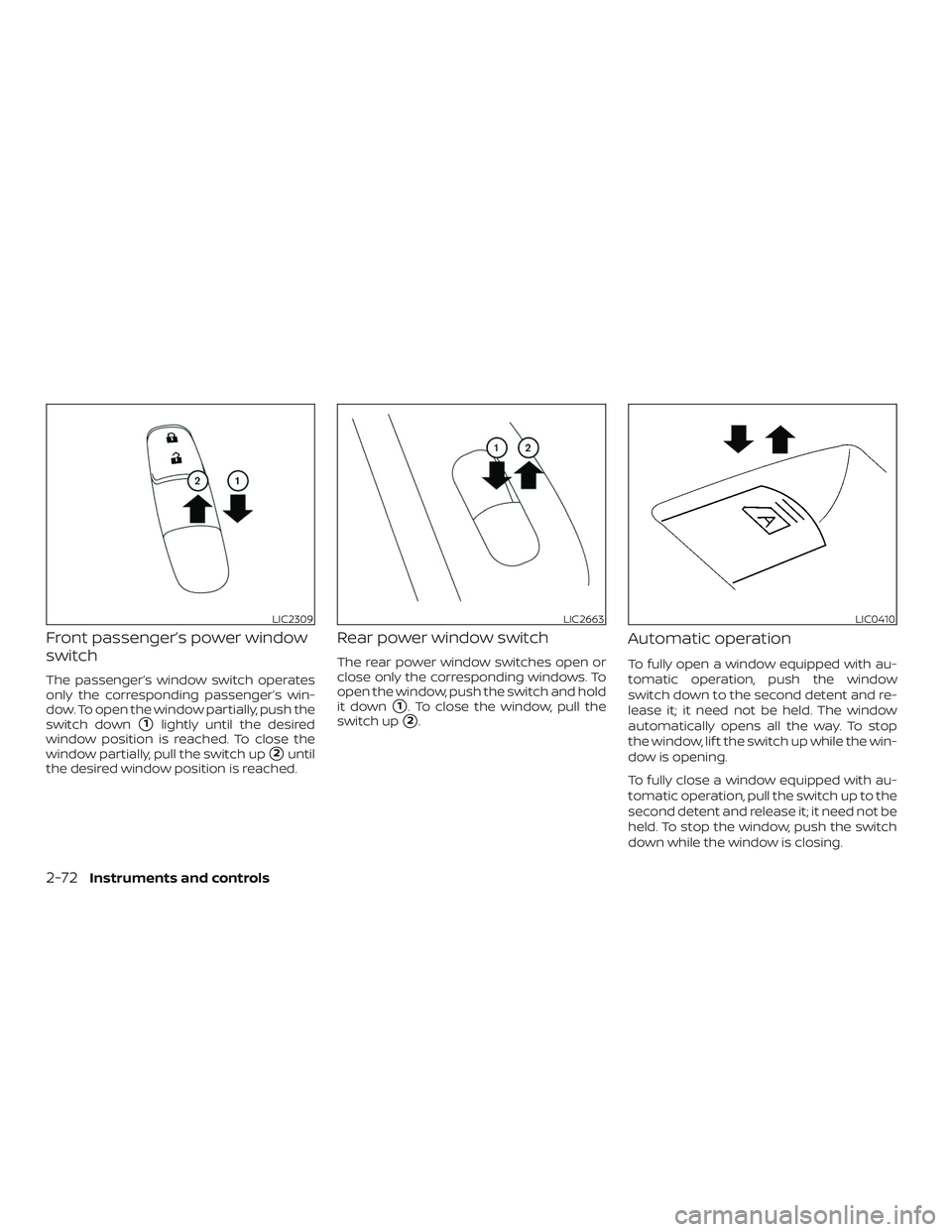

Front passenger’s power window
switch
The passenger’s window switch operates
only the corresponding passenger’s win-
dow. To open the window partially, push the
switch down
1lightly until the desired
window position is reached. To close the
window partially, pull the switch up
2until
the desired window position is reached.
Rear power window switch
The rear power window switches open or
close only the corresponding windows. To
open the window, push the switch and hold
it down
1. To close the window, pull the
switch up
2.
Automatic operation
To fully open a window equipped with au-
tomatic operation, push the window
switch down to the second detent and re-
lease it; it need not be held. The window
automatically opens all the way. To stop
the window, lif t the switch up while the win-
dow is opening.
To fully close a window equipped with au-
tomatic operation, pull the switch up to the
second detent and release it; it need not be
held. To stop the window, push the switch
down while the window is closing.
LIC2309LIC2663LIC0410
2-72Instruments and controls
