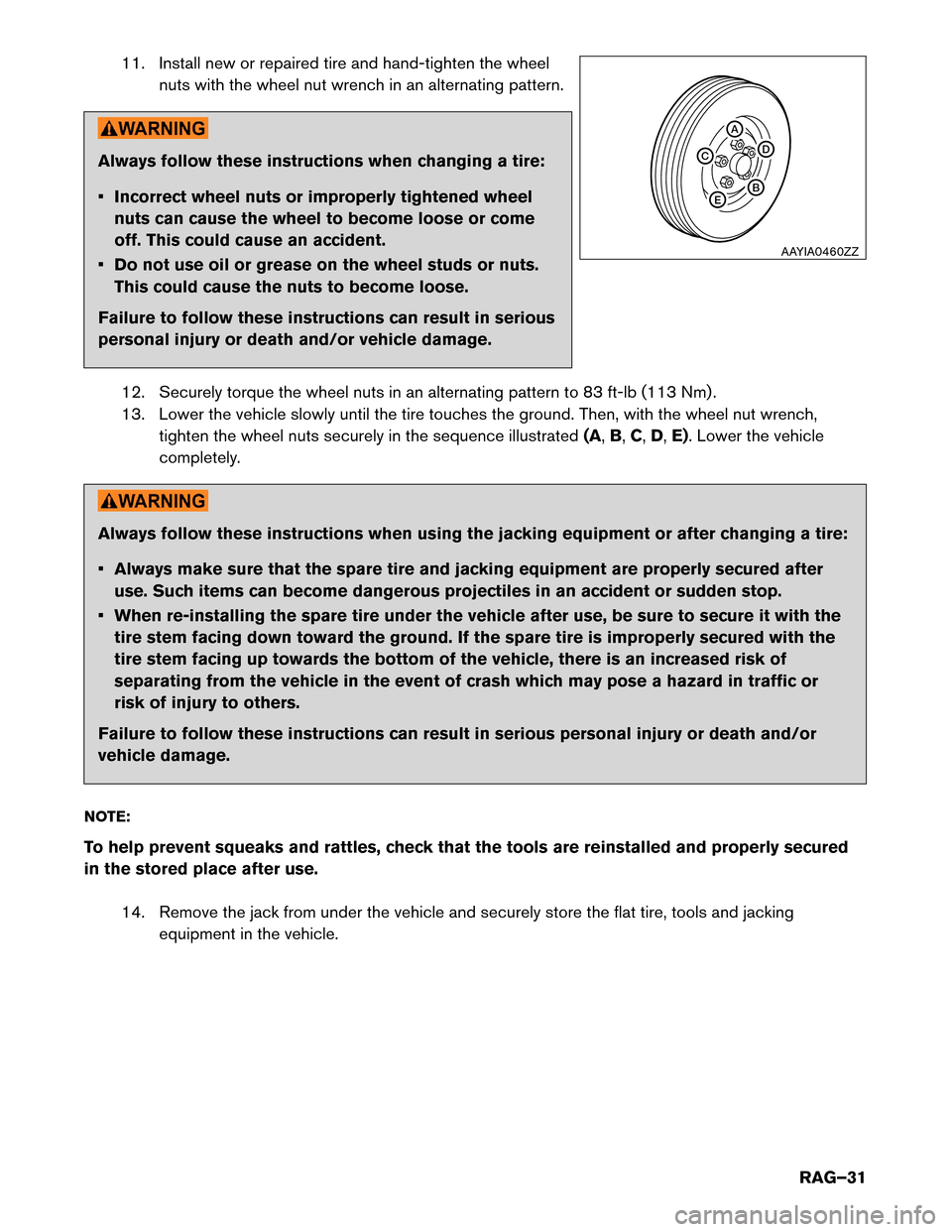

11. Install new or repaired tire and hand-tighten the wheel
nuts with the wheel nut wrench in an alternating pattern. Always follow these instructions when changing a tire:
•
Incorrect wheel nuts or improperly tightened wheel
nuts can cause the wheel to become loose or come
off. This could cause an accident.
• Do not use oil or grease on the wheel studs or nuts. This could cause the nuts to become loose.
Failure to follow these instructions can result in serious
personal injury or death and/or vehicle damage.
12. Securely torque the wheel nuts in an alternating pattern to 83 ft-lb (113 Nm) .
13. Lower the vehicle slowly until the tire touches the ground. Then, with the wheel nut wrench, tighten the wheel nuts securely in the sequence illustrated (A,B,C,D, E). Lower the vehicle
completely. Always follow these instructions when using the jacking equipment or after changing a tire:
•
Always make sure that the spare tire and jacking equipment are properly secured after
use. Such items can become dangerous projectiles in an accident or sudden stop.
• When re-installing the spare tire under the vehicle after use, be sure to secure it with the tire stem facing down toward the ground. If the spare tire is improperly secured with the
tire stem facing up towards the bottom of the vehicle, there is an increased risk of
separating from the vehicle in the event of crash which may pose a hazard in traffic or
risk of injury to others.
Failure to follow these instructions can result in serious personal injury or death and/or
vehicle damage.
NOTE:
To help prevent squeaks and rattles, check that the tools are reinstalled and properly secured
in the stored place after use. 14. Remove the jack from under the vehicle and securely store the flat tire, tools and jacking equipment in the vehicle. A
B
E D
C
AAYIA0460ZZ
RAG–31
Page 32 of 38

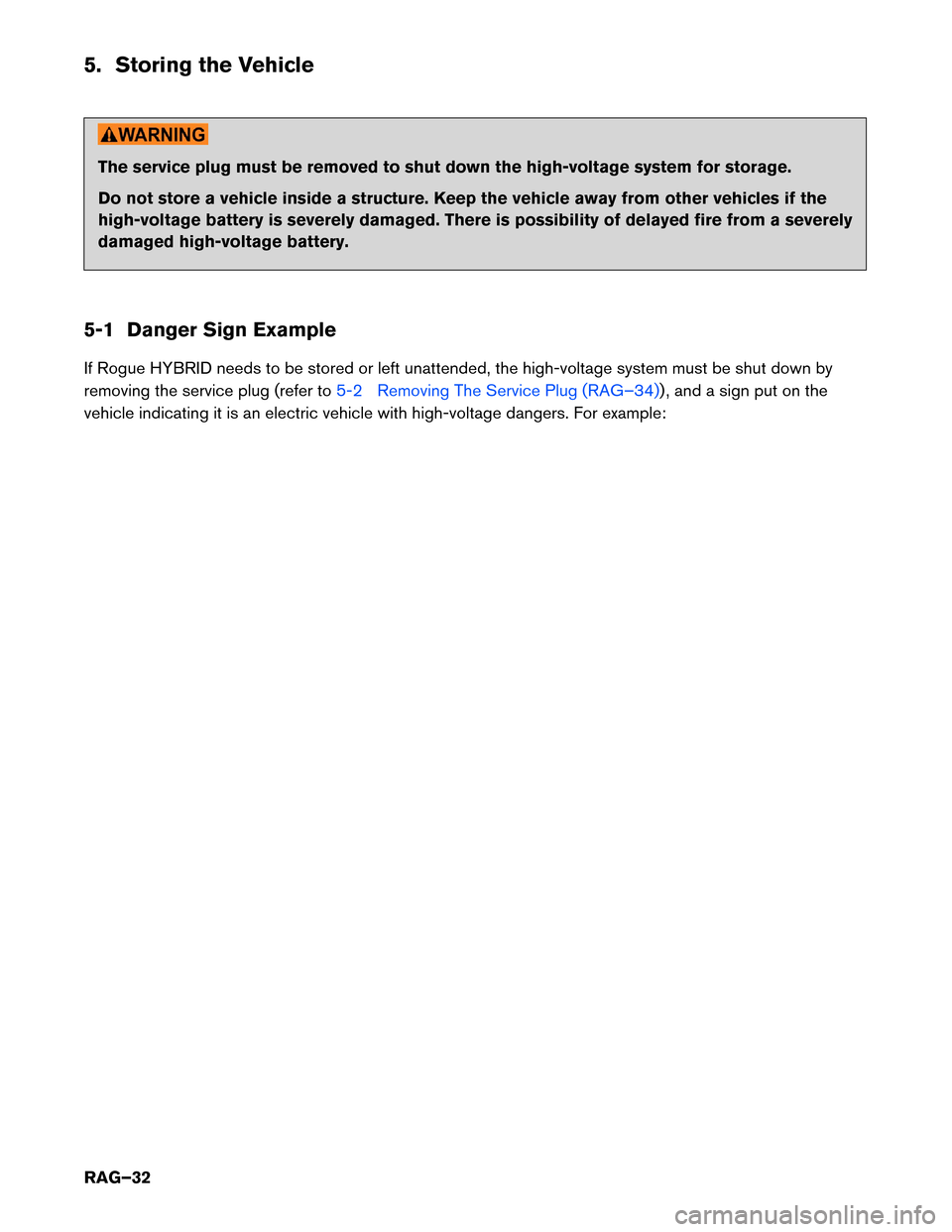

5. Storing the Vehicle
The service plug must be removed to shut down the high-voltage system for storage.
Do
not store a vehicle inside a structure. Keep the vehicle away from other vehicles if the
high-voltage battery is severely damaged. There is possibility of delayed fire from a severely
damaged high-voltage battery.

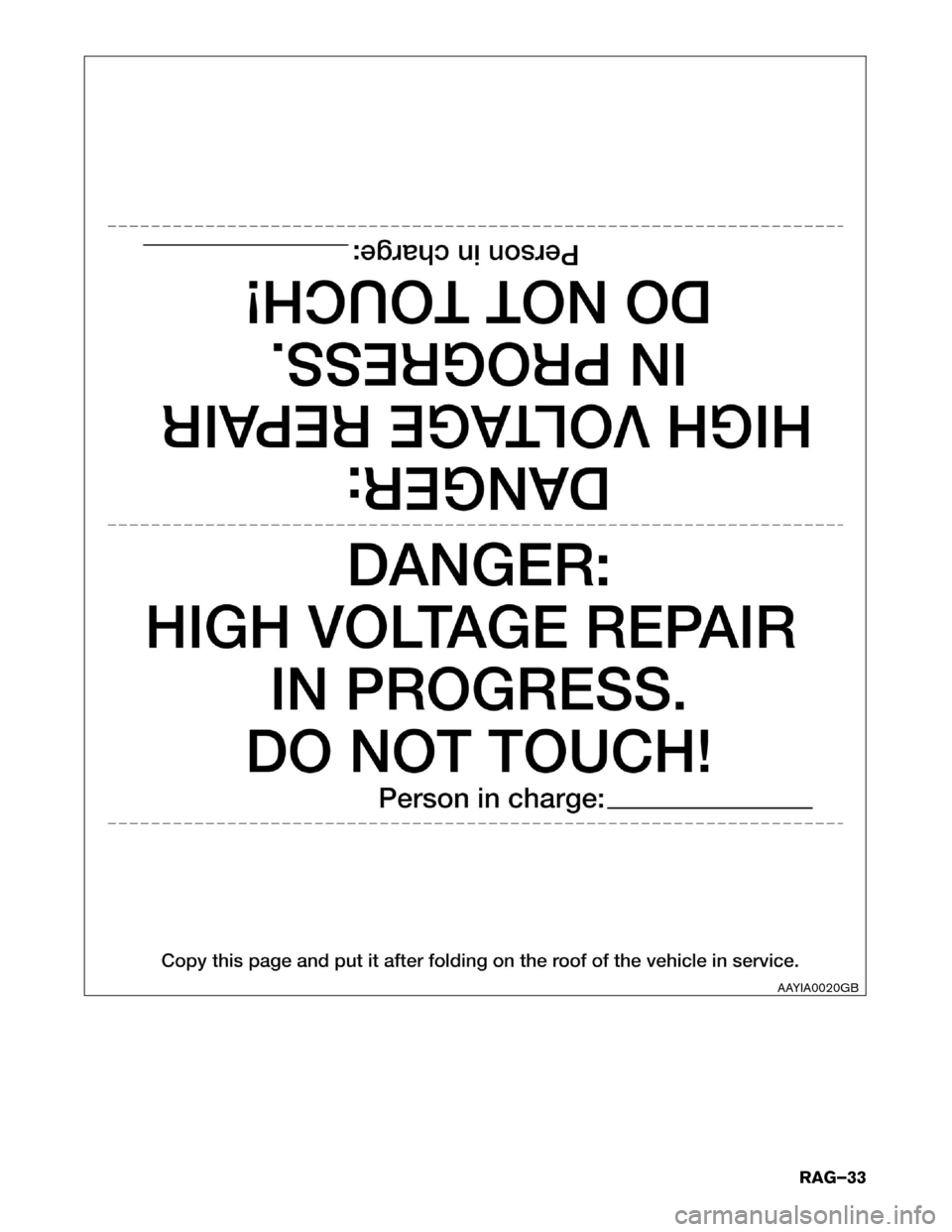

5-1 Danger Sign Example
If Rogue HYBRID needs to be stored or left unattended, the high-voltage system must be shut down by
removing the service plug (refer to 5-2 Removing The Service Plug (RAG–34)) , and a sign put on the
vehicle
indicating it is an electric vehicle with high-voltage dangers. For example:
RAG–32
Page 33 of 38
AAYIA0020GB
RAG–33
Page 34 of 38

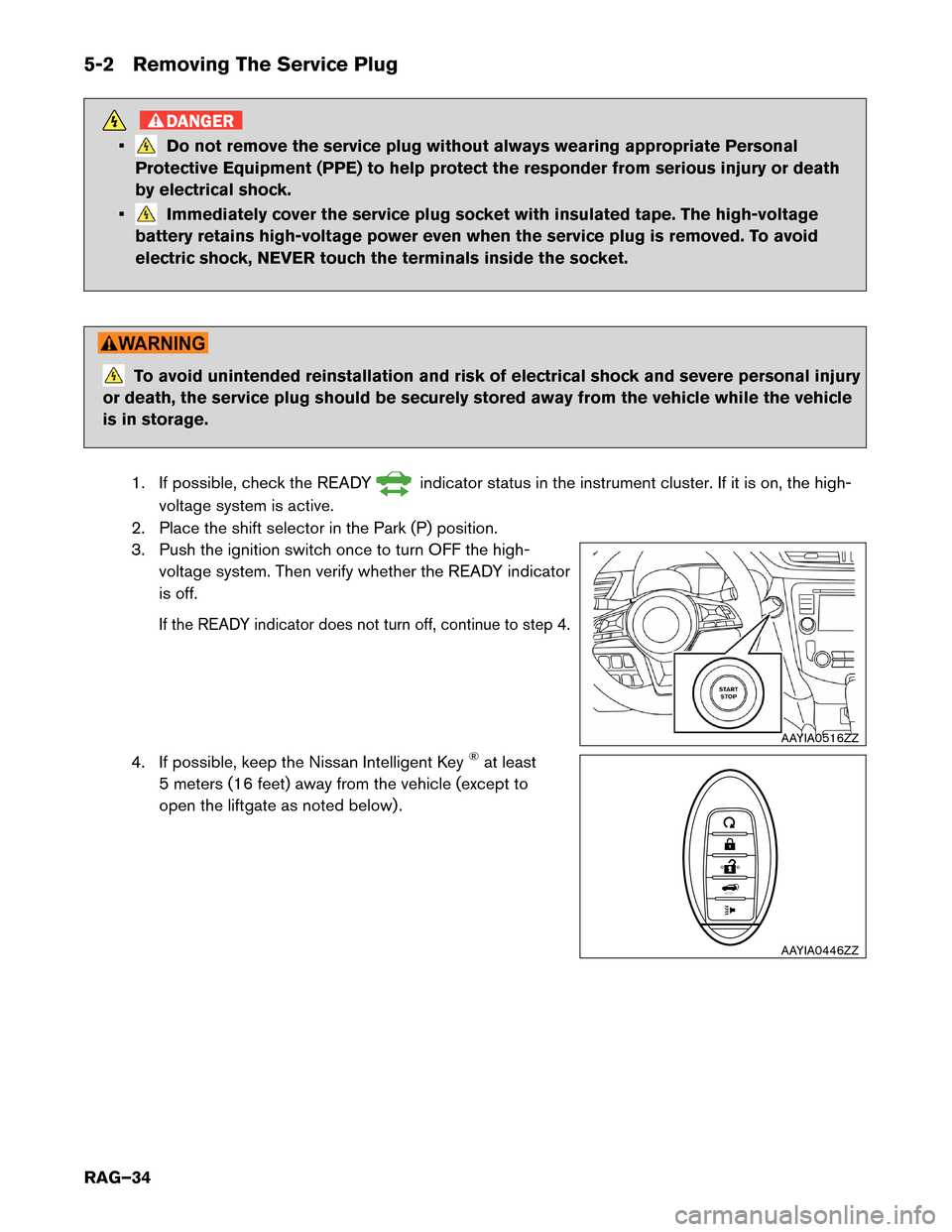

5-2 Removing The Service Plug
DANGER
• Do not remove the service plug without always wearing appropriate Personal
Protective Equipment (PPE) to help protect the responder from serious injury or death
by electrical shock.
• Immediately cover the service plug socket with insulated tape. The high-voltage
battery
retains high-voltage power even when the service plug is removed. To avoid
electric shock, NEVER touch the terminals inside the socket. To avoid unintended reinstallation and risk of electrical shock and severe personal injury
or
death, the service plug should be securely stored away from the vehicle while the vehicle
is in storage.
1. If possible, check the READY indicator status in the instrument cluster. If it is on, the high-
voltage
system is active.
2. Place the shift selector in the Park (P) position.
3. Push the ignition switch once to turn OFF the high- voltage system. Then verify whether the READY indicator
is off.
If the READY indicator does not turn off, continue to step 4.
4. If possible, keep the Nissan Intelligent Key®at least
5 meters (16 feet) away from the vehicle (except to
open the liftgate as noted below) . AAYIA0516ZZ
HOLD
AAYIA0446ZZ
RAG–34
Page 35 of 38

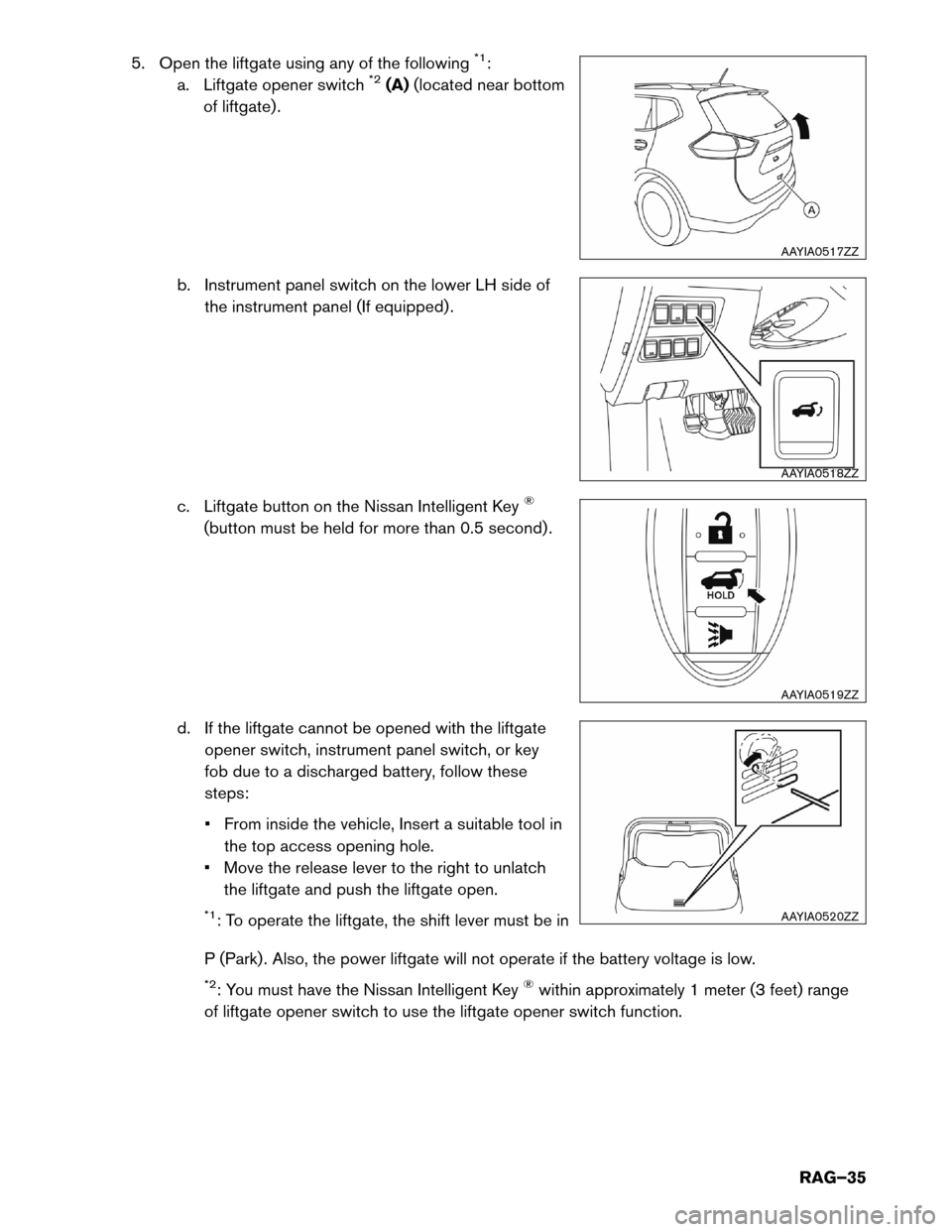

5. Open the liftgate using any of the following*1:
a. Liftgate opener switch*2(A) (located near bottom
of liftgate) .
b. Instrument panel switch on the lower LH side of the instrument panel (If equipped) .
c. Liftgate button on the Nissan Intelligent Key
®
(button must be held for more than 0.5 second) .
d. If the liftgate cannot be opened with the liftgate opener switch, instrument panel switch, or key
fob due to a discharged battery, follow these
steps:
• From inside the vehicle, Insert a suitable tool inthe top access opening hole.
• Move the release lever to the right to unlatch the liftgate and push the liftgate open.
*1: To operate the liftgate, the shift lever must be in
P (Park) . Also, the power liftgate will not operate if the battery voltage is low.
*2: You must have the Nissan Intelligent Key®within approximately 1 meter (3 feet) range
of liftgate opener switch to use the liftgate opener switch function. AAYIA0517ZZ
AAYIA0518ZZ
AAYIA0519ZZ
AAYIA0520ZZ
RAG–35
Page 36 of 38

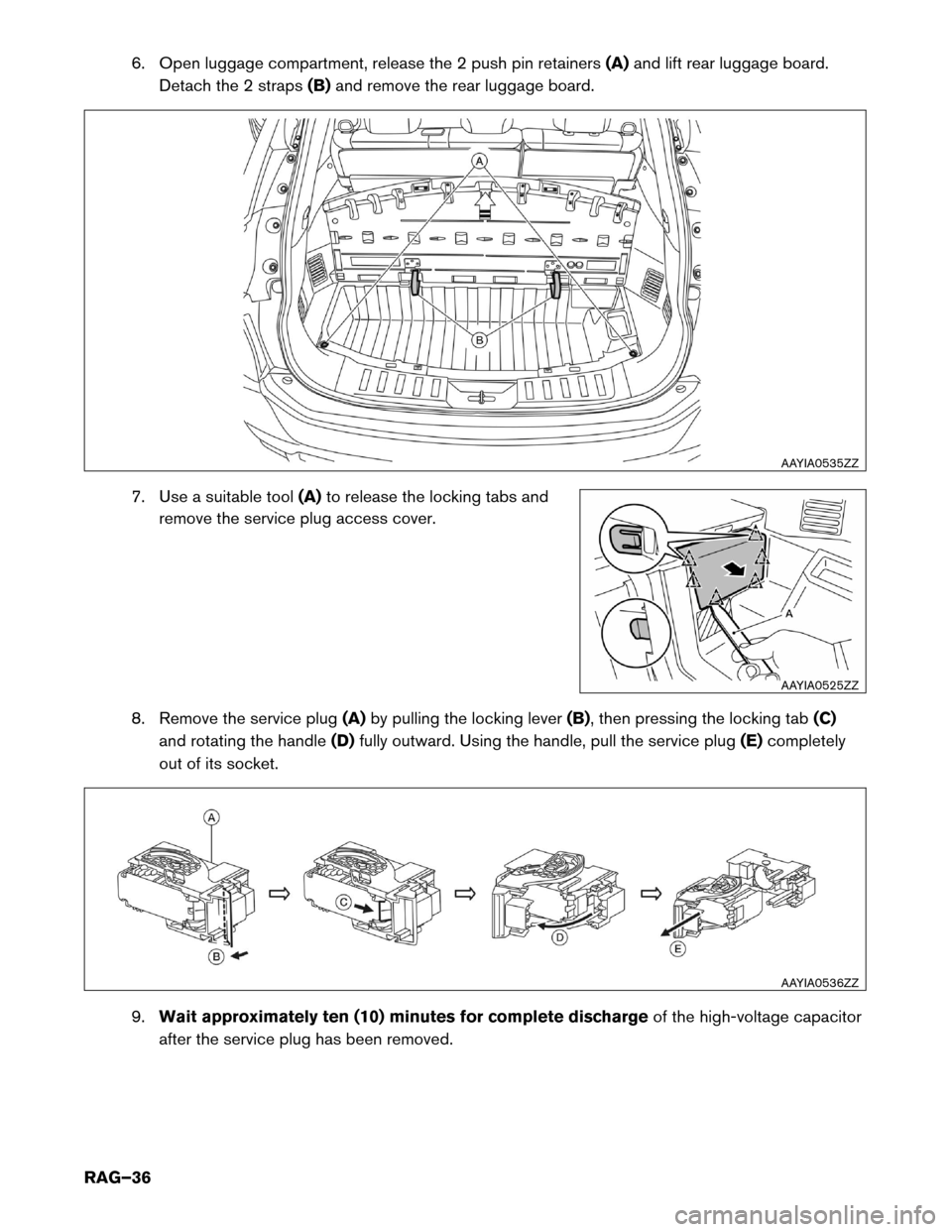

6. Open luggage compartment, release the 2 push pin retainers
(A)and lift rear luggage board.
Detach the 2 straps (B)and remove the rear luggage board.
7. Use a suitable tool (A)to release the locking tabs and
remove the service plug access cover.
8. Remove the service plug (A)by pulling the locking lever (B), then pressing the locking tab (C)
and rotating the handle (D)fully outward. Using the handle, pull the service plug (E)completely
out of its socket.
9. Wait approximately ten (10) minutes for complete discharge of the high-voltage capacitor
after the service plug has been removed. AAYIA0535ZZ
AAYIA0525ZZ
AAYIA0536ZZ
RAG–36
Page 37 of 38

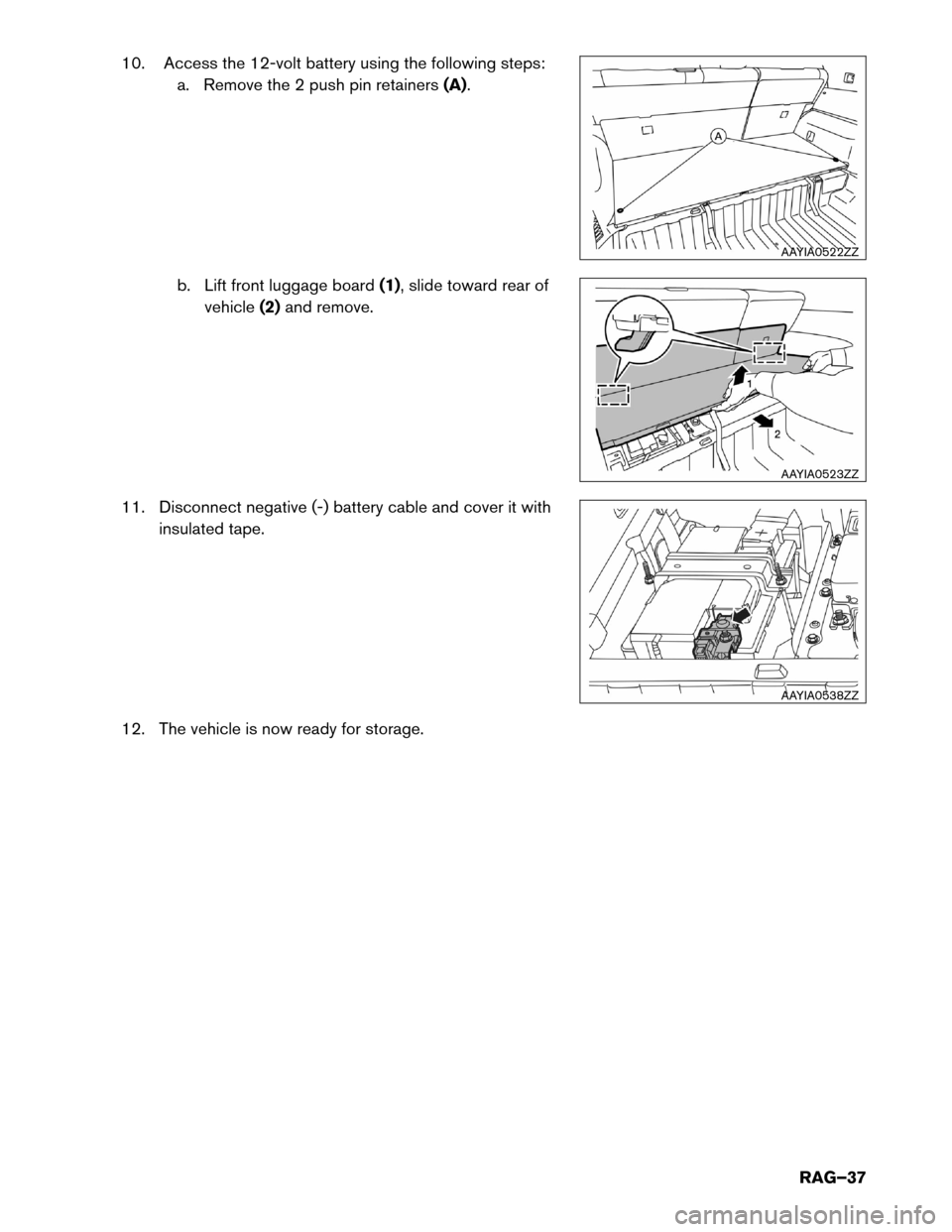

10. Access the 12-volt battery using the following steps:
a. Remove the 2 push pin retainers (A).
b. Lift front luggage board (1), slide toward rear of
vehicle (2)and remove.
11. Disconnect negative (-) battery cable and cover it with insulated tape.
12. The vehicle is now ready for storage. AAYIA0522ZZ
AAYIA0523ZZ
AAYIA0538ZZ
RAG–37
Page 38 of 38
