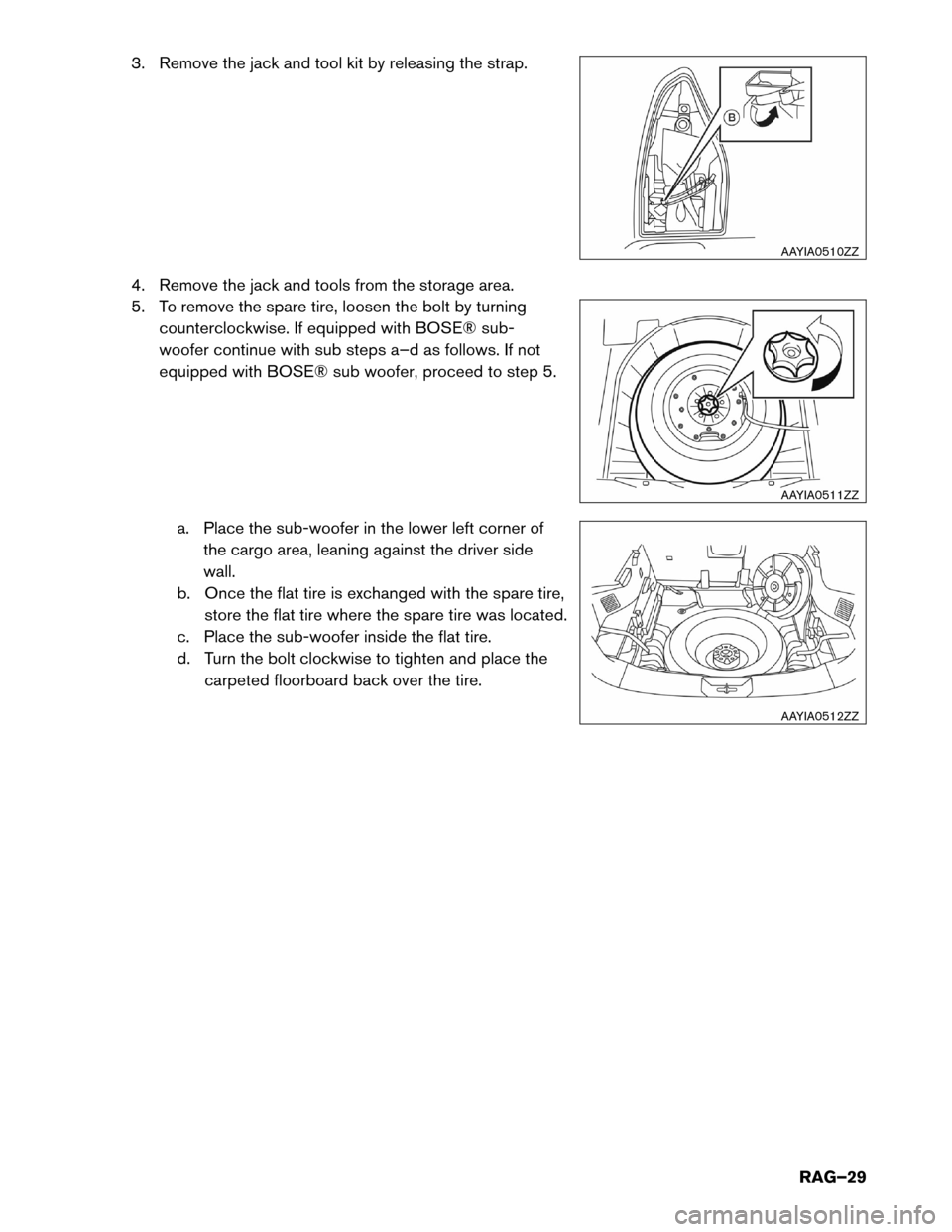

3. Remove the jack and tool kit by releasing the strap.
4.
Remove the jack and tools from the storage area.
5. To remove the spare tire, loosen the bolt by turning counterclockwise. If equipped with BOSE® sub-
woofer continue with sub steps a–d as follows. If not
equipped with BOSE® sub woofer, proceed to step 5.
a. Place the sub-woofer in the lower left corner of the cargo area, leaning against the driver side
wall.
b. Once the flat tire is exchanged with the spare tire, store the flat tire where the spare tire was located.
c. Place the sub-woofer inside the flat tire.
d. Turn the bolt clockwise to tighten and place the carpeted floorboard back over the tire. AAYIA0510ZZ
AAYIA0511ZZ
AAYIA0512ZZ
RAG–29

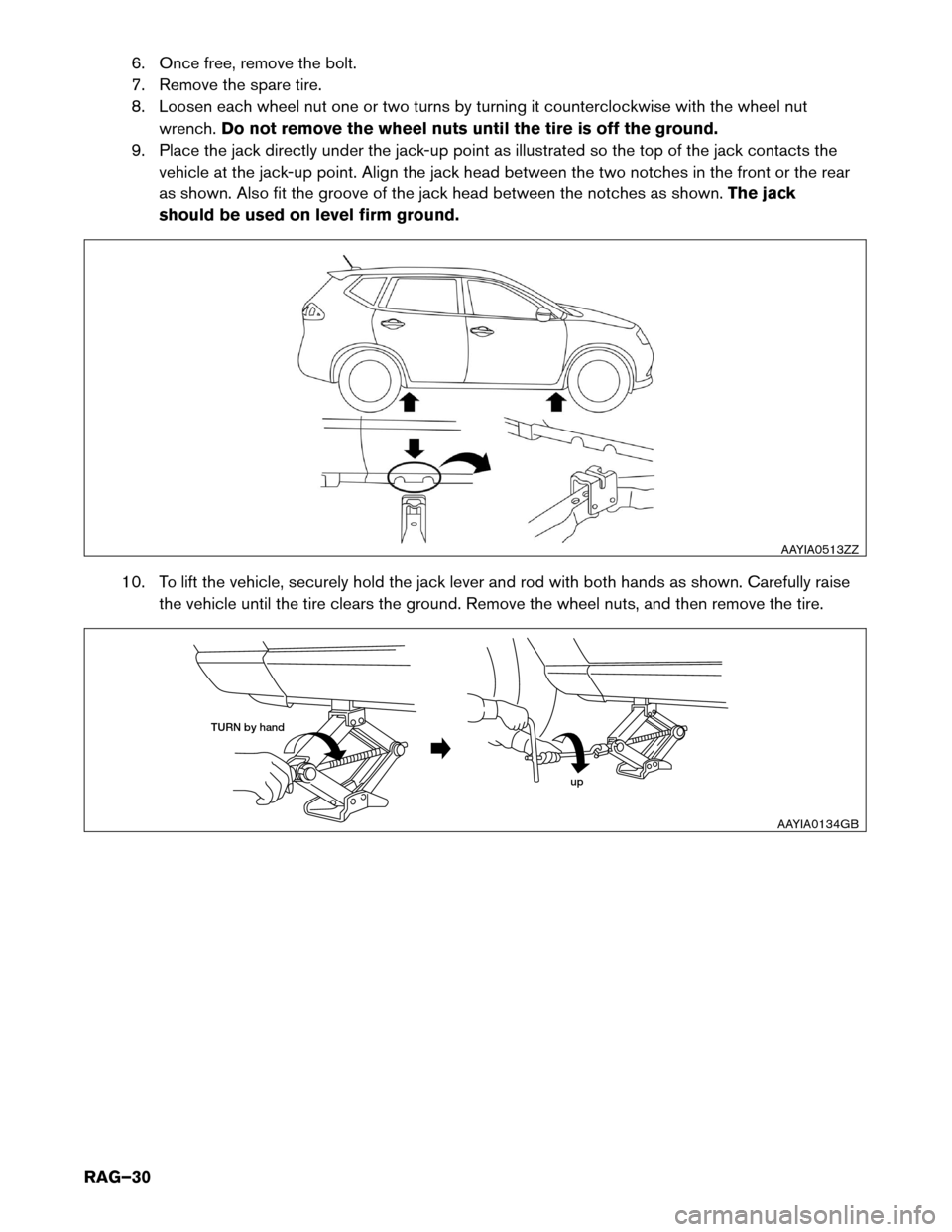

6. Once free, remove the bolt.
7.
Remove the spare tire.
8. Loosen each wheel nut one or two turns by turning it counterclockwise with the wheel nut wrench. Do not remove the wheel nuts until the tire is off the ground.
9. Place the jack directly under the jack-up point as illustrated so the top of the jack contacts the vehicle at the jack-up point. Align the jack head between the two notches in the front or the rear
as shown. Also fit the groove of the jack head between the notches as shown. The jack
should be used on level firm ground.
10. To lift the vehicle, securely hold the jack lever and rod with both hands as shown. Carefully raise the vehicle until the tire clears the ground. Remove the wheel nuts, and then remove the tire. AAYIA0513ZZ
TURN by hand
upAAYIA0134GB
RAG–30
