Page 111 of 482

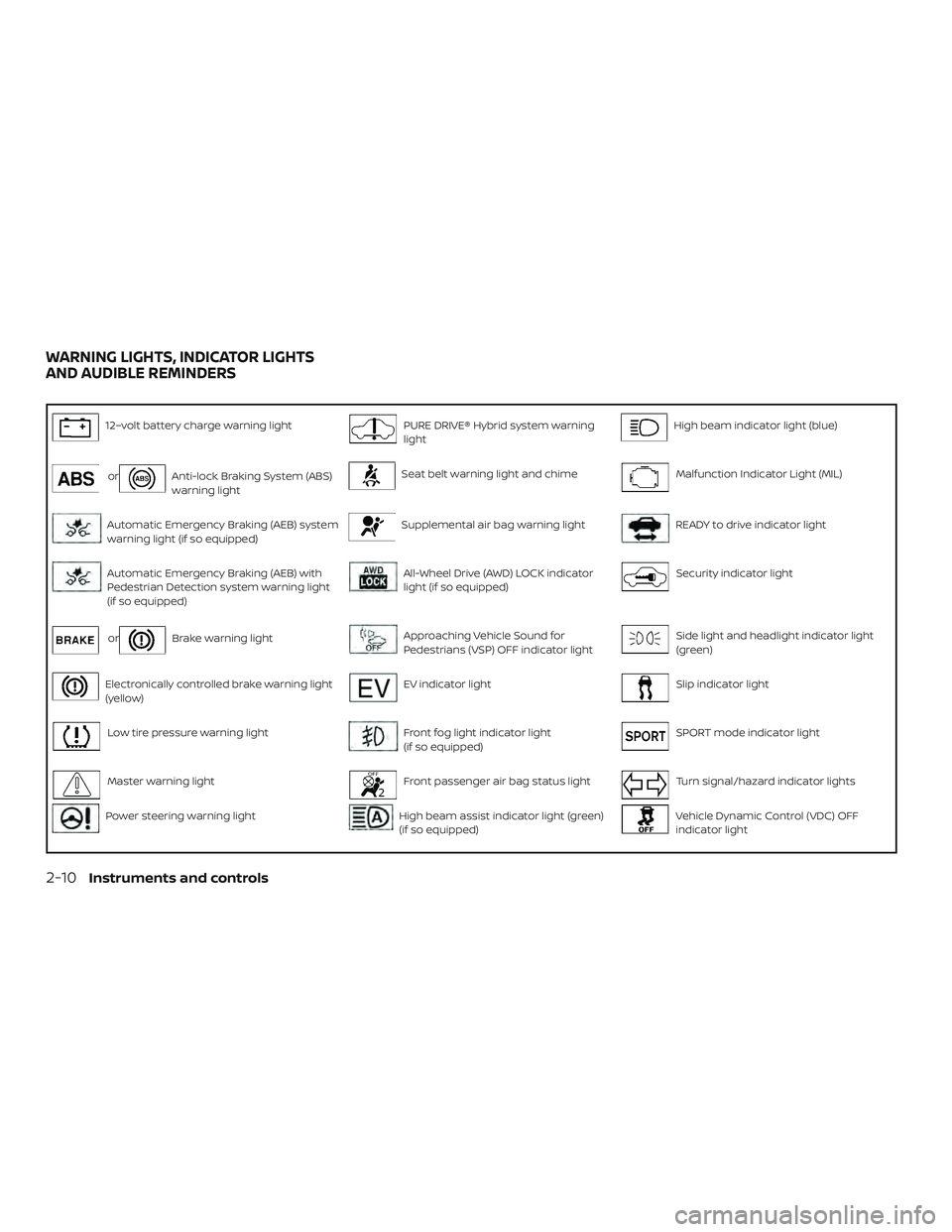

NISSAN ROGUE HYBRID 2018  Owners Manual 12–volt battery charge warning lightPURE DRIVE® Hybrid system warning
lightHigh beam indicator light (blue)
orAnti-lock Braking System (ABS)
warning lightSeat belt warning light and chimeMalfunctio

Page 112 of 482

NISSAN ROGUE HYBRID 2018  Owners Manual CHECKING LIGHTS
With all doors closed, apply the parking
brake, fasten the seat belts and place the
ignition switch in the ON position without
starting the hybrid system. The following
lights (if so e

Page 113 of 482

NISSAN ROGUE HYBRID 2018  Owners Manual This light illuminates when the AEB system
is set to OFF on the vehicle information
display.
If the light illuminates when the AEB sys-
tem is on, it may indicate that the system is
unavailable. For a

Page 114 of 482

NISSAN ROGUE HYBRID 2018  Owners Manual It is recommended that you visit a NISSAN
dealer for this service. Avoid high-speed
driving and abrupt braking. For additional
information, refer to “Anti-lock Braking Sys-
tem (ABS) warning light

Page 115 of 482

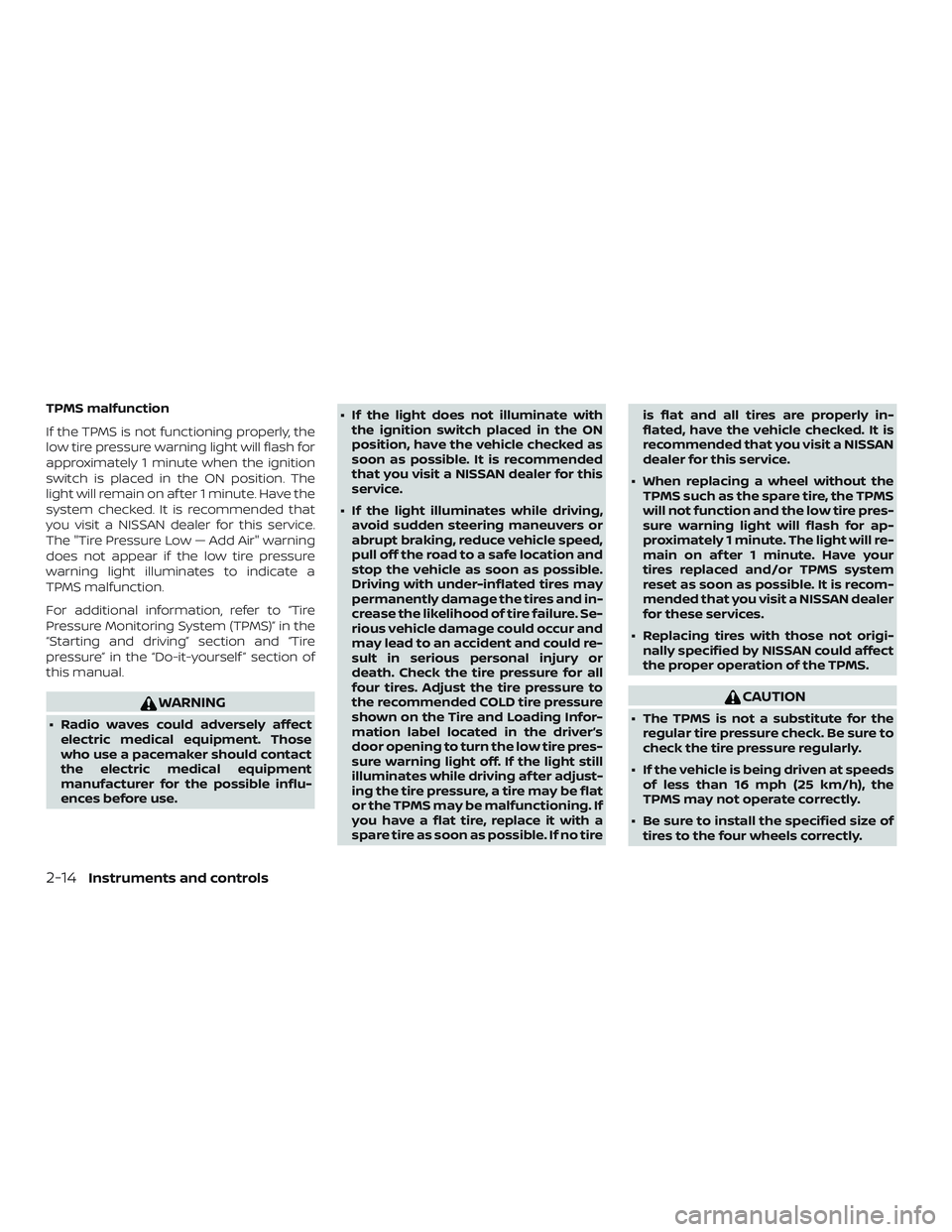

NISSAN ROGUE HYBRID 2018  Owners Manual TPMS malfunction
If the TPMS is not functioning properly, the
low tire pressure warning light will flash for
approximately 1 minute when the ignition
switch is placed in the ON position. The
light wil

Page 116 of 482

NISSAN ROGUE HYBRID 2018  Owners Manual Master warning light
When the ignition is in the ON position, the
master warning light illuminates if any of
the following are displayed on the vehicle
information display.∙ All-Wheel Drive (AWD) Ti

Page 117 of 482

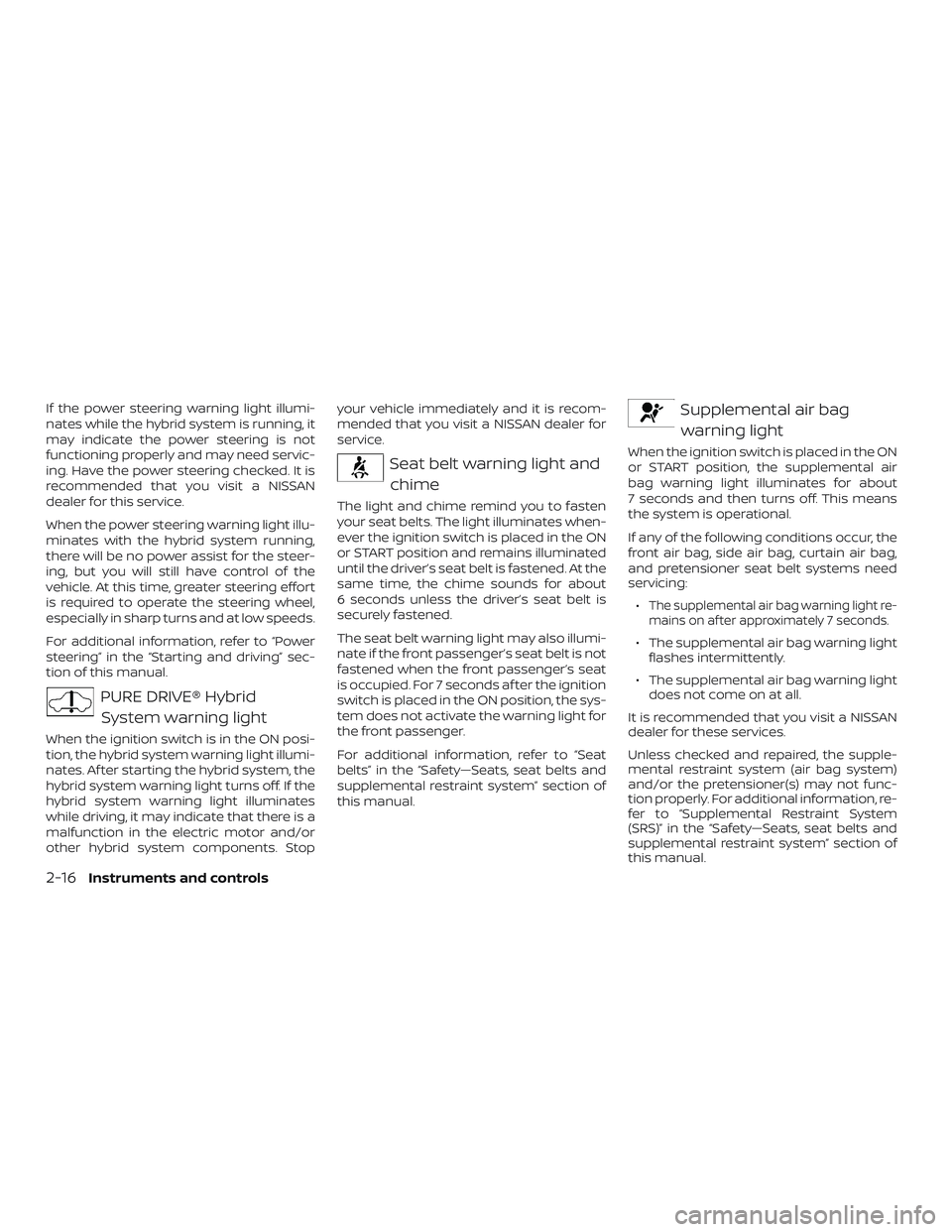

NISSAN ROGUE HYBRID 2018  Owners Manual If the power steering warning light illumi-
nates while the hybrid system is running, it
may indicate the power steering is not
functioning properly and may need servic-
ing. Have the power steering c

Page 118 of 482

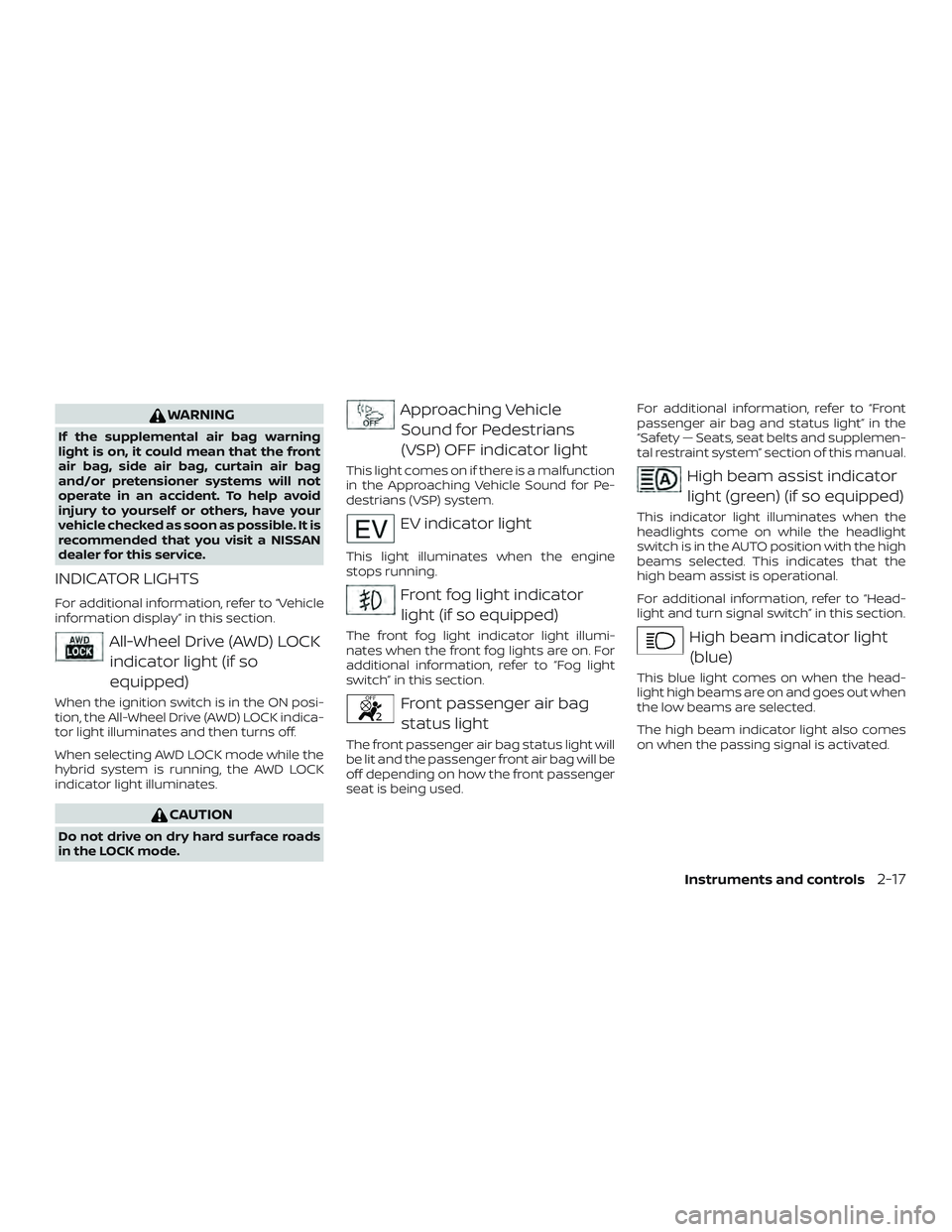

NISSAN ROGUE HYBRID 2018  Owners Manual WARNING
If the supplemental air bag warning
light is on, it could mean that the front
air bag, side air bag, curtain air bag
and/or pretensioner systems will not
operate in an accident. To help avoid

Page 119 of 482

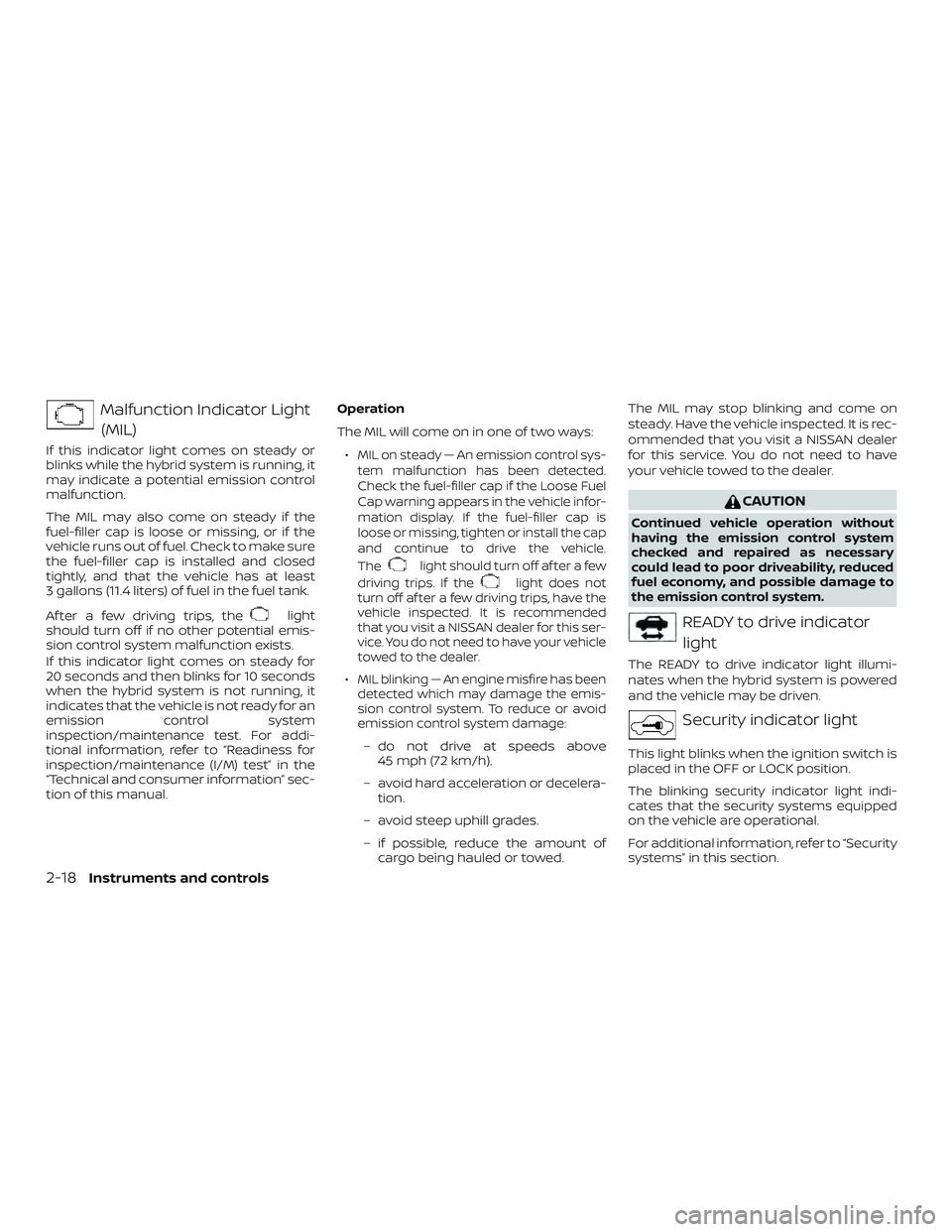

NISSAN ROGUE HYBRID 2018  Owners Manual Malfunction Indicator Light(MIL)
If this indicator light comes on steady or
blinks while the hybrid system is running, it
may indicate a potential emission control
malfunction.
The MIL may also come o

Page 120 of 482

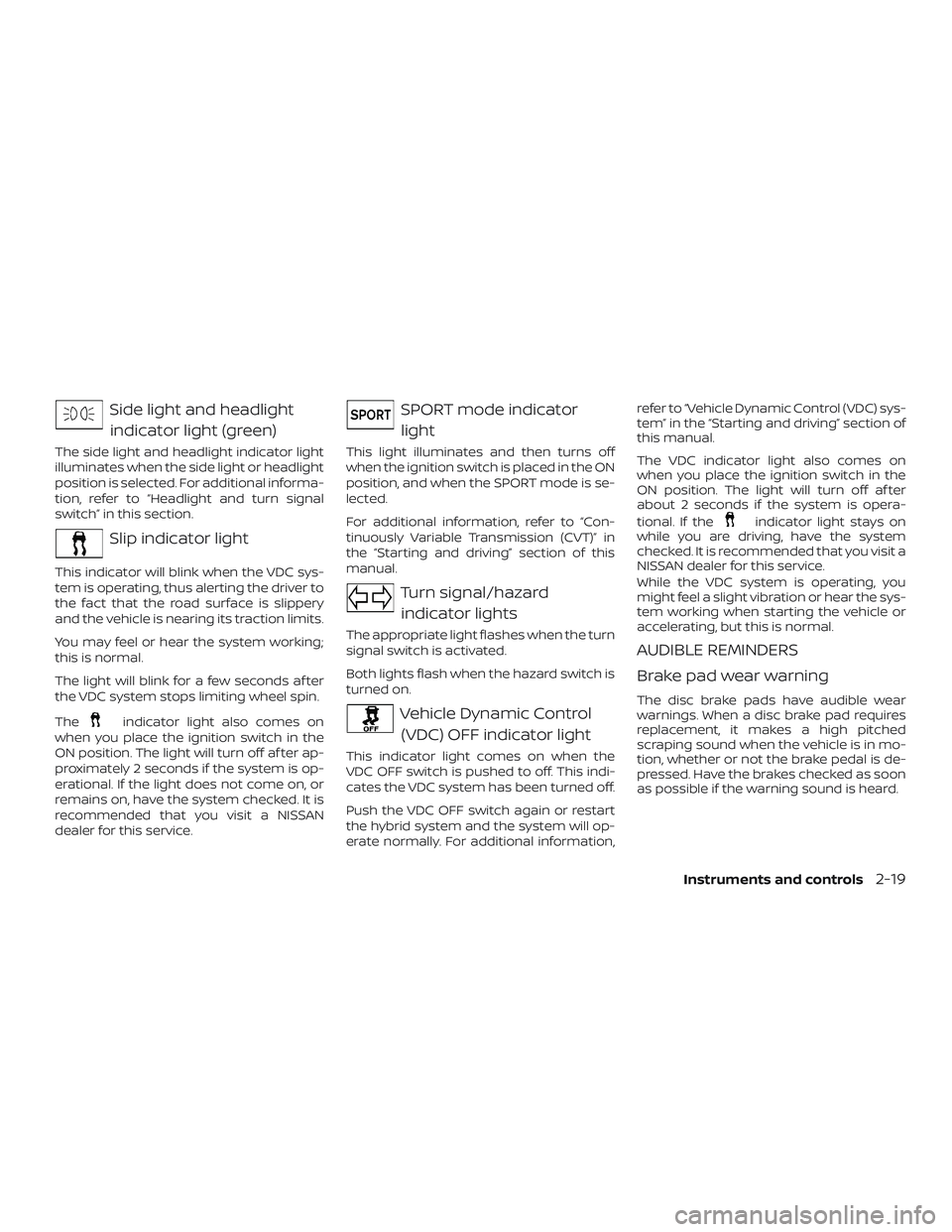

NISSAN ROGUE HYBRID 2018  Owners Manual Side light and headlightindicator light (green)
The side light and headlight indicator light
illuminates when the side light or headlight
position is selected. For additional informa-
tion, refer to
