NISSAN ROGUE HYBRID 2019 Owner's Guide

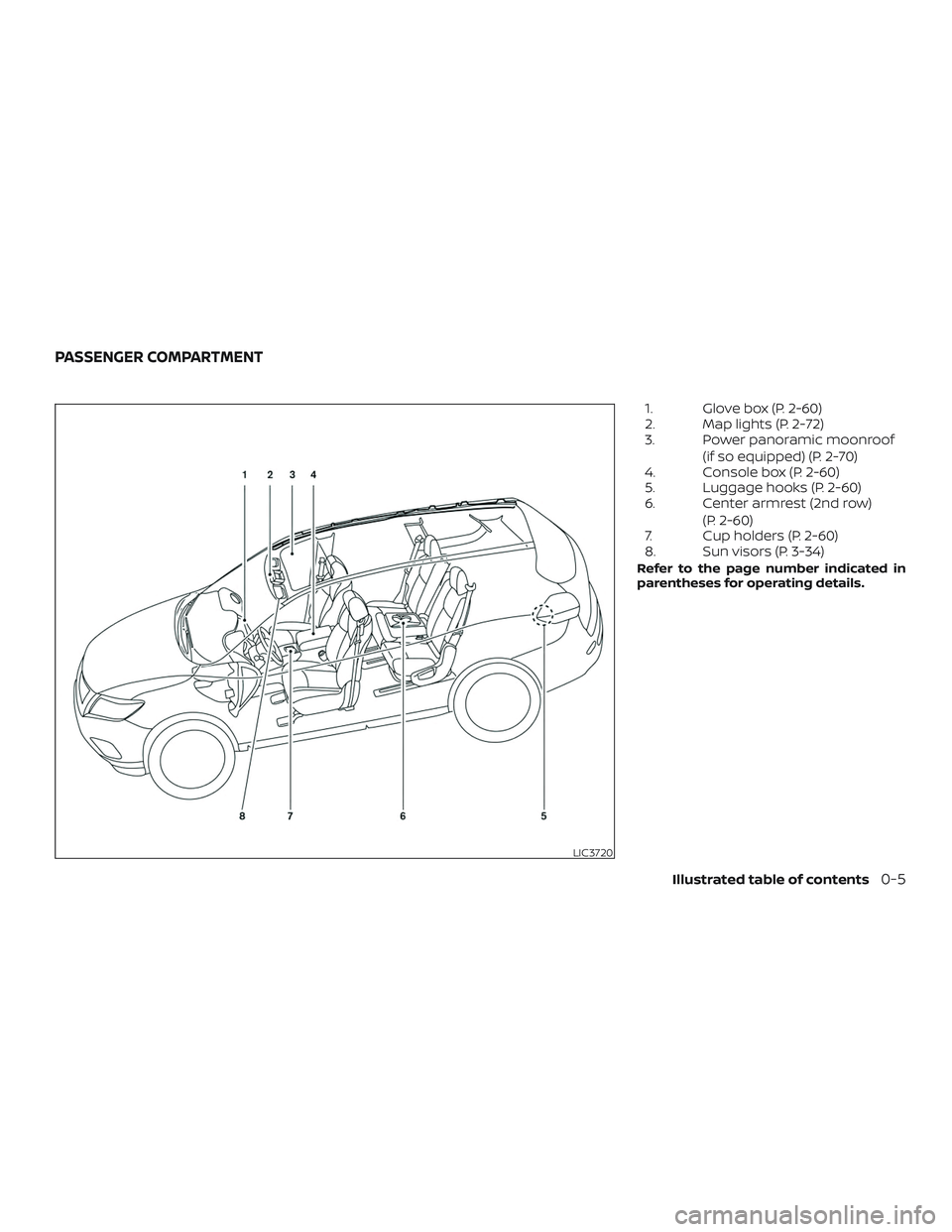

1. Glove box (P. 2-60)
2. Map lights (P. 2-72)
3. Power panoramic moonroof(if so equipped) (P. 2-70)
4. Console box (P. 2-60)
5. Luggage hooks (P. 2-60)
6. Center armrest (2nd row)
(P. 2-60)
7. Cup holders (P. 2-60)
8. Sun visors (P. 3-34)
Refer to the page number indicated in
parentheses for operating details.
LIC3720
PASSENGER COMPARTMENT
Illustrated table of contents0-5

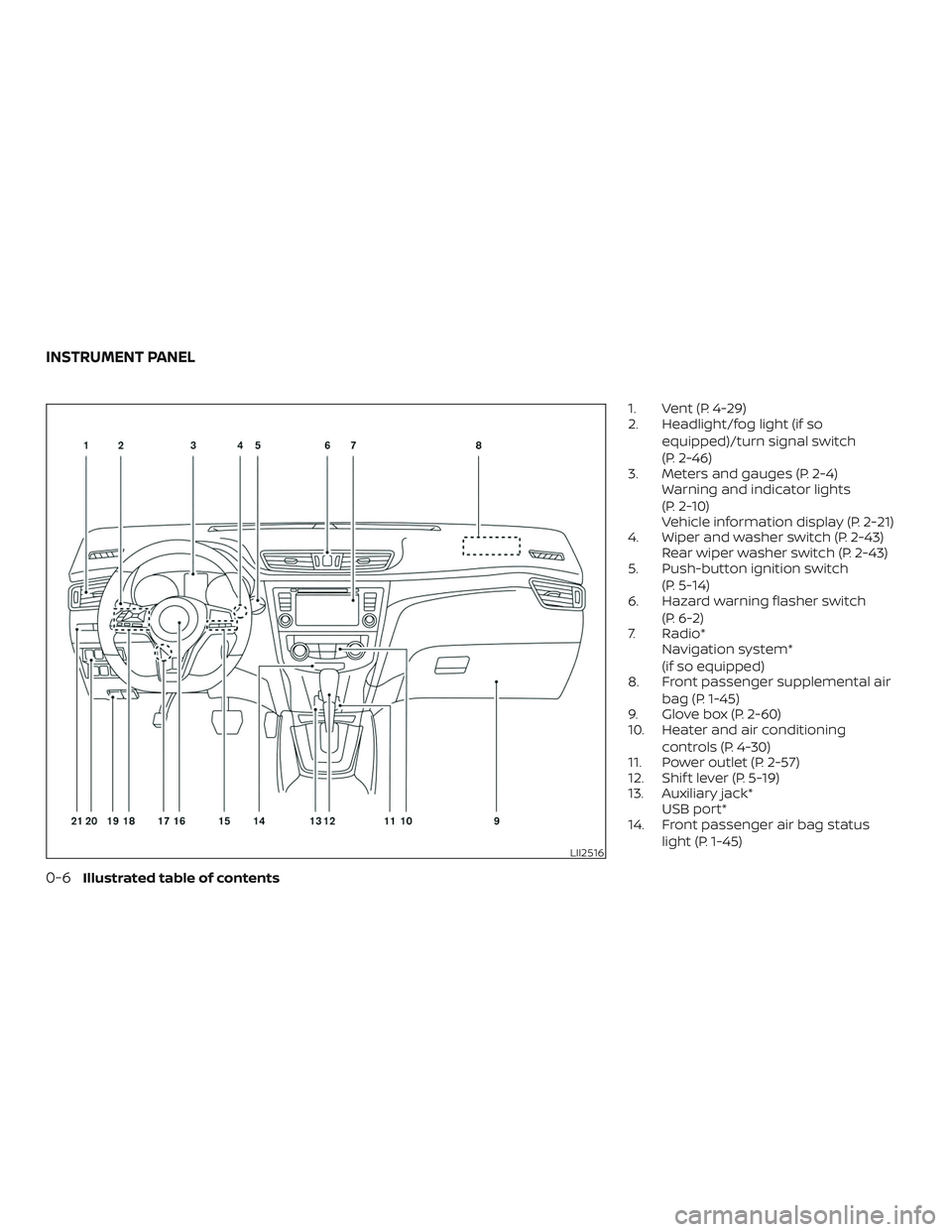

1. Vent (P. 4-29)
2. Headlight/fog light (if soequipped)/turn signal switch
(P. 2-46)
3. Meters and gauges (P. 2-4) Warning and indicator lights
(P. 2-10)
Vehicle information display (P. 2-21)
4. Wiper and washer switch (P. 2-43) Rear wiper washer switch (P. 2-43)
5. Push-button ignition switch
(P. 5-14)
6. Hazard warning flasher switch
(P. 6-2)
7. Radio* Navigation system*
(if so equipped)
8. Front passenger supplemental air
bag (P. 1-45)
9. Glove box (P. 2-60)
10. Heater and air conditioning
controls (P. 4-30)
11. Power outlet (P. 2-57)
12. Shif t lever (P. 5-19)
13. Auxiliary jack* USB port*
14. Front passenger air bag status
light (P. 1-45)
LII2516
INSTRUMENT PANEL
0-6Illustrated table of contents

15. Cruise control switches(if so equipped) (P. 5-55)
Intelligent Cruise Control (ICC)
switches (if so equipped) (P. 5-57)
Bluetooth® Hands-Free Phone
System*
16. Driver supplemental air bag
(P. 1-45)
Horn (P. 2-52)
17. Tilt and telescopic steering (P. 3-34)
18. Control panel and vehicle informa-
tion display switches (P. 2-21)
19. Hood release (P. 3-23)
20. SPORT mode switch (P. 5-25) Fuel door release (P. 3-31)
ECO mode switch (P. 5-25)
Lif tgate instrument panel switch
(if so equipped) (P. 3-24)
All-Wheel Drive (AWD) LOCK switch
(if so equipped) (P. 2-56)
Vehicle Dynamic Control (VDC) OFF
switch (P. 2-55)
Heated steering wheel switch
(if so equipped) (P. 2-54)
Dynamic driver assistance switch
(if so equipped) (P. 2-54) 21. Instrument brightness control
(P. 2-51)
Twin trip odometer reset switch
(P. 2-5)
*: Refer to the separate NissanConnect®
Owner’s Manual.
Refer to the page number indicated in
parentheses for operating details.
Illustrated table of contents0-7

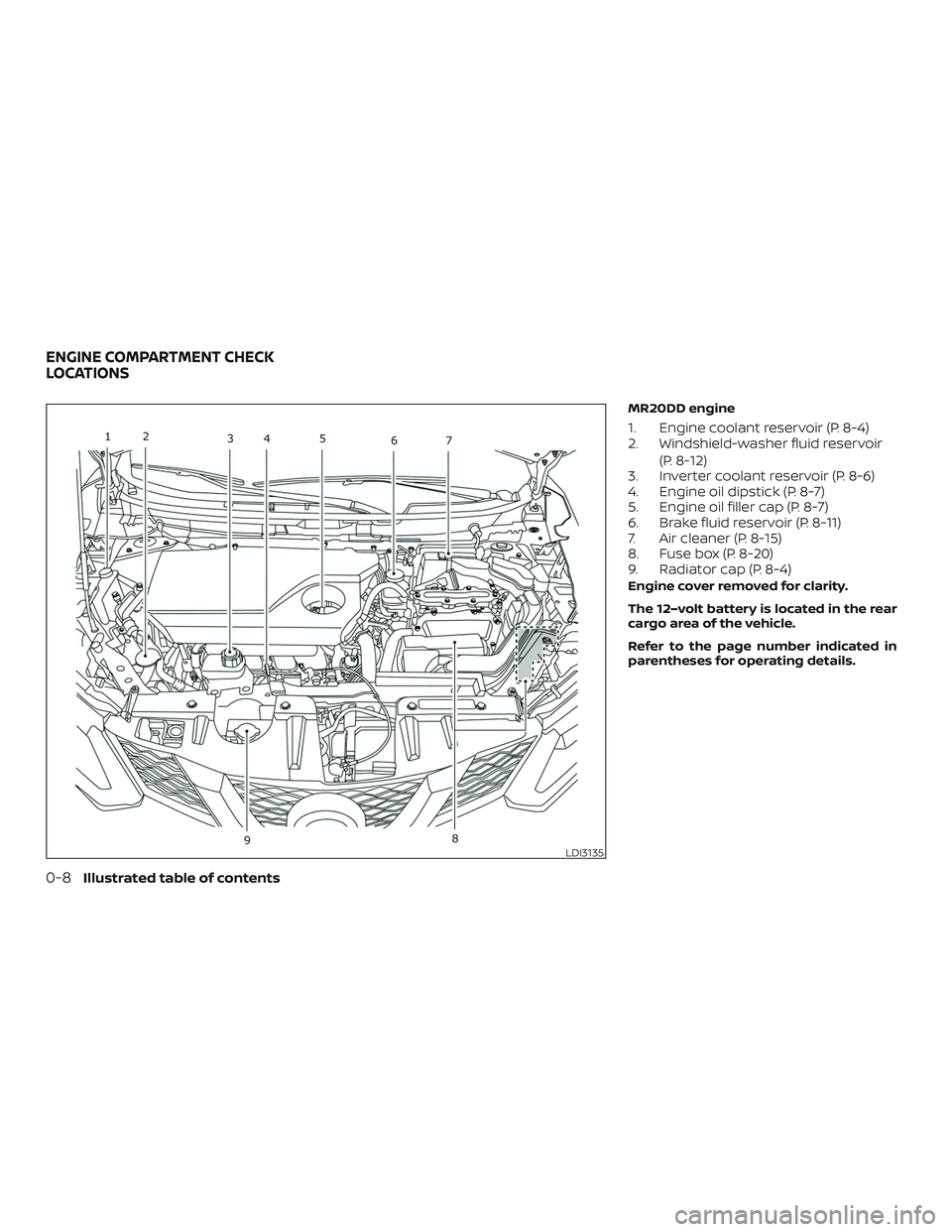

MR20DD engine
1. Engine coolant reservoir (P. 8-4)
2. Windshield-washer fluid reservoir(P. 8-12)
3. Inverter coolant reservoir (P. 8-6)
4. Engine oil dipstick (P. 8-7)
5. Engine oil filler cap (P. 8-7)
6. Brake fluid reservoir (P. 8-11)
7. Air cleaner (P. 8-15)
8. Fuse box (P. 8-20)
9. Radiator cap (P. 8-4)
Engine cover removed for clarity.
The 12–volt battery is located in the rear
cargo area of the vehicle.
Refer to the page number indicated in
parentheses for operating details.
LDI3135
ENGINE COMPARTMENT CHECK
LOCATIONS
0-8Illustrated table of contents

Warninglight Name Page
12–volt battery
charge warning
light 2-11
or
Anti-lock Braking
System (ABS)
warning light2-11
Automatic Emer-
gency Braking
(AEB) system
warning light (if so
equipped)2-11
Automatic Emer-
gency Braking
(AEB) with Pedes-
trian Detection
system warning
light (if so
equipped)2-12
Warning
light Name Page
or
Brake warning
light (red) 2-12
Electronically
controlled brake
warning light (yel-
low)2-12
Low tire pressure
warning light
2-13
Master warning
light2-15
Power steering
warning light2-15
PURE DRIVE® Hy-
brid system
warning light2-16
Warning
light Name Page
Rear Automatic
Braking (RAB)
warning light (if so
equipped) 2-16
Seat belt warning
light and chime
2-16
Supplemental air
bag warning light2-16
Indicator
light Name Page
All-Wheel Drive
(AWD) LOCK indi-
cator light (if so
equipped) 2-17
Approaching Ve-
hicle Sound for
Pedestrians (VSP)
OFF indicator
light2-17
WARNING AND INDICATOR LIGHTS
Illustrated table of contents0-9

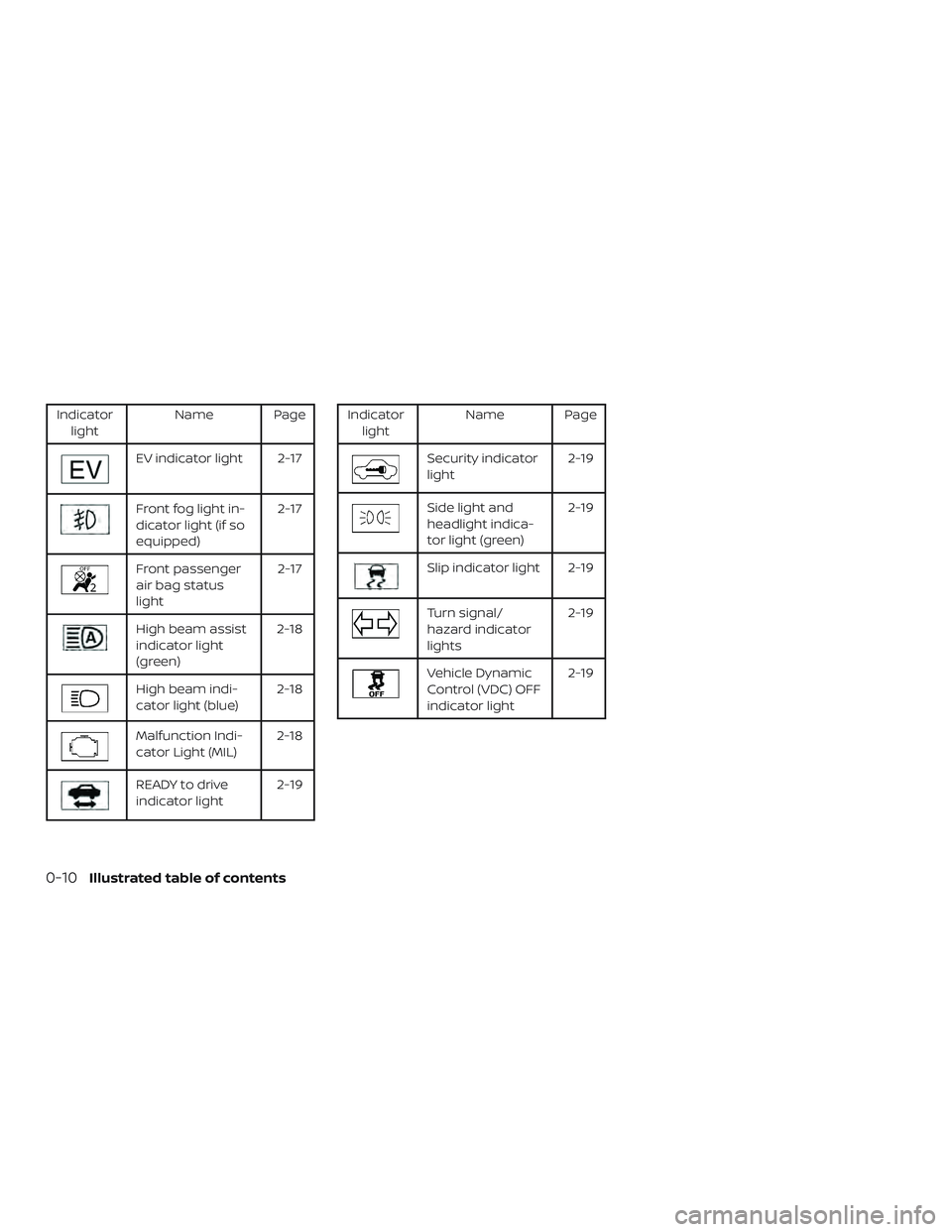

Indicatorlight Name Page
EV indicator light 2-17
Front fog light in-
dicator light (if so
equipped) 2-17
Front passenger
air bag status
light2-17
High beam assist
indicator light
(green)2-18
High beam indi-
cator light (blue)
2-18
Malfunction Indi-
cator Light (MIL)2-18
READY to drive
indicator light 2-19
Indicator
light Name Page
Security indicator
light 2-19
Side light and
headlight indica-
tor light (green)2-19
Slip indicator light 2-19
Turn signal/
hazard indicator
lights2-19
Vehicle Dynamic
Control (VDC) OFF
indicator light2-19
0-10Illustrated table of contents

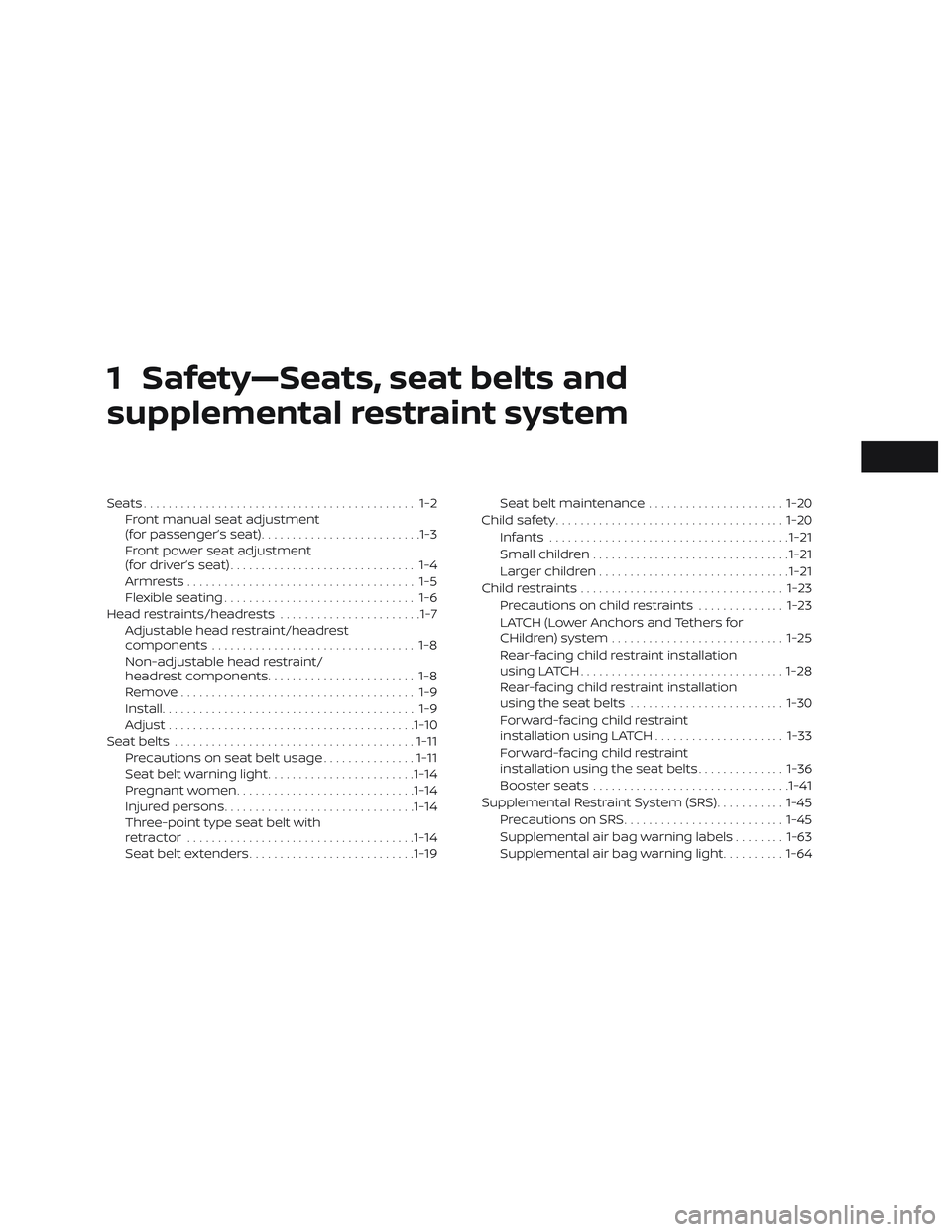

1 Safety—Seats, seat belts and
supplemental restraint system
Seats............................................ 1-2Front manual seat adjustment
(for passenger’s seat) ..........................1-3
Front power seat adjustment
(for driver’s seat) .............................. 1-4
Armrests ..................................... 1-5
Flexible seating ............................... 1-6
Head restraints/headrests .......................1-7
Adjustable head restraint/headrest
components ................................. 1-8
Non-adjustable head restraint/
headrest components ........................ 1-8
Remove...................................... 1-9
Install ......................................... 1-9
Adjust ........................................ 1-10
Seatbelts ....................................... 1-11
Precautions on seat belt usage ...............1-11
Seat belt warning light ........................ 1-14
Pregnant women ............................. 1-14
Injured persons ............................... 1-14
Three-point type seat belt with
retractor ..................................... 1-14
Seat belt extenders ........................... 1-19Seat belt maintenance
......................1-20
Child safety ..................................... 1-20
Infants ....................................... 1-21
Small children ................................ 1-21
Larger children ............................... 1-21
Child restraints ................................. 1-23
Precautions on child restraints ..............1-23
LATCH (Lower Anchors and Tethers for
CHildren) system ............................ 1-25
Rear-facing child restraint installation
using LATCH ................................. 1-28
Rear-facing child restraint installation
using the seat belts ......................... 1-30
Forward-facing child restraint
installation using LATCH .....................1-33
Forward-facing child restraint
installation using the seat belts ..............1-36
Booster seats ................................ 1-41
Supplemental Restraint System (SRS) ...........1-45
Precautions on SRS .......................... 1-45
Supplemental air bag warning labels ........1-63
Supplemental air bag warning light ..........1-64

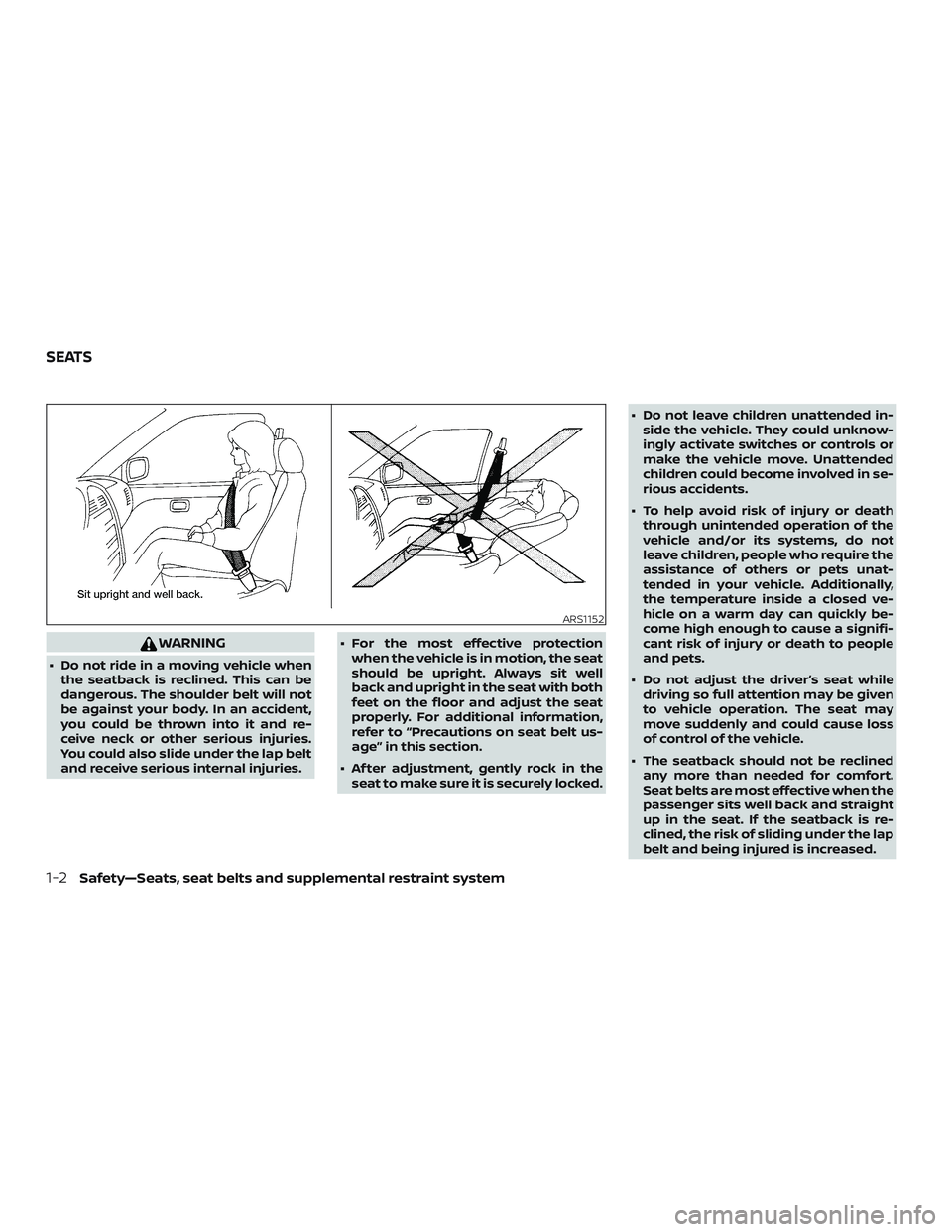

WARNING
∙ Do not ride in a moving vehicle whenthe seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and re-
ceive neck or other serious injuries.
You could also slide under the lap belt
and receive serious internal injuries. ∙ For the most effective protection
when the vehicle is in motion, the seat
should be upright. Always sit well
back and upright in the seat with both
feet on the floor and adjust the seat
properly. For additional information,
refer to “Precautions on seat belt us-
age” in this section.
∙ Af ter adjustment, gently rock in the seat to make sure it is securely locked. ∙ Do not leave children unattended in-
side the vehicle. They could unknow-
ingly activate switches or controls or
make the vehicle move. Unattended
children could become involved in se-
rious accidents.
∙ To help avoid risk of injury or death through unintended operation of the
vehicle and/or its systems, do not
leave children, people who require the
assistance of others or pets unat-
tended in your vehicle. Additionally,
the temperature inside a closed ve-
hicle on a warm day can quickly be-
come high enough to cause a signifi-
cant risk of injury or death to people
and pets.
∙ Do not adjust the driver’s seat while driving so full attention may be given
to vehicle operation. The seat may
move suddenly and could cause loss
of control of the vehicle.
∙ The seatback should not be reclined any more than needed for comfort.
Seat belts are most effective when the
passenger sits well back and straight
up in the seat. If the seatback is re-
clined, the risk of sliding under the lap
belt and being injured is increased.
ARS1152
SEATS
1-2Safety—Seats, seat belts and supplemental restraint system

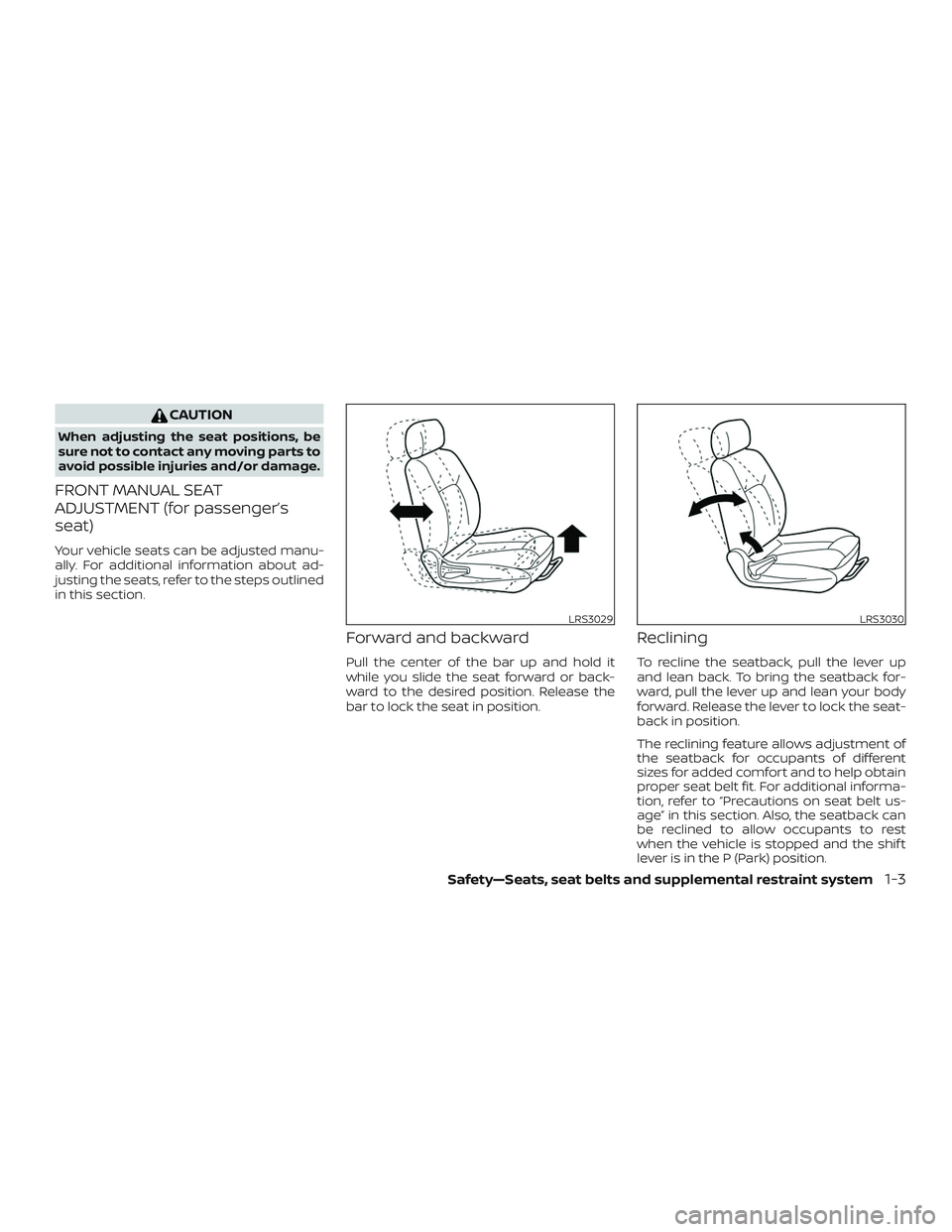

CAUTION
When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or damage.
FRONT MANUAL SEAT
ADJUSTMENT (for passenger’s
seat)
Your vehicle seats can be adjusted manu-
ally. For additional information about ad-
justing the seats, refer to the steps outlined
in this section.
Forward and backward
Pull the center of the bar up and hold it
while you slide the seat forward or back-
ward to the desired position. Release the
bar to lock the seat in position.
Reclining
To recline the seatback, pull the lever up
and lean back. To bring the seatback for-
ward, pull the lever up and lean your body
forward. Release the lever to lock the seat-
back in position.
The reclining feature allows adjustment of
the seatback for occupants of different
sizes for added comfort and to help obtain
proper seat belt fit. For additional informa-
tion, refer to “Precautions on seat belt us-
age” in this section. Also, the seatback can
be reclined to allow occupants to rest
when the vehicle is stopped and the shif t
lever is in the P (Park) position.
LRS3029LRS3030
Safety—Seats, seat belts and supplemental restraint system1-3

FRONT POWER SEAT ADJUSTMENT
(for driver’s seat)
Operating tips
∙ The power seat motor has an auto-reset overload protection circuit. If the
motor stops during operation, wait
30 seconds, then reactivate the switch.
∙ Do not operate the power seat switch for a long period of time when the Hy-
brid System is not in the READY mode.
This will discharge the vehicle battery. For additional information, refer to “Auto-
matic drive positioner” in “Pre-driving
checks and adjustments” section of this
manual.Forward and backward
Moving the switch as shown will slide the
seat forward or backward to the desired
position.
Reclining
Move the recline switch as shown until the
desired angle is obtained. The reclining feature allows adjustment of
the seatback for occupants of different
sizes for added comfort and to help obtain
proper seat belt fit. For additional informa-
tion, refer to “Precautions on seat belt us-
age” in this section. Also, the seatback can
be reclined to allow occupants to rest
when the vehicle is stopped and the shif t
lever is in P (Park).
LRS2662
1-4Safety—Seats, seat belts and supplemental restraint system
