key NISSAN ROGUE SELECT 2014 2.G User Guide

Black plate (117,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
3 Pre-driving checks and adjustments
Keys...
........................................................................\
...................... 3-2
NISSAN Vehicle Immobilizer System keys ...
................... 3-2
Doors ...
........................................................................\
.................... 3-3
Locking with key ...
.................................................................. 3-3
Locking with inside lock knob ...
.......................................... 3-3
Locking with power door lock switch ...
............................ 3-4
Automatic door locks ...
......................................................... 3-4
Child safety rear door lock ...
............................................... 3-5
Remote keyless entry system ...
................................................ 3-5
How to use remote keyless entry system ...
..................... 3-6
Hood ...
........................................................................\
..................... 3-9 Lift gate
...
........................................................................\
............ 3-10
Lift gate release ...
.............................................................. 3-10
Fuel-filler door ...
........................................................................\
3-11
Opening the fuel-filler door ...
......................................... 3-11
Fuel-filler cap ...
.................................................................. 3-11
Steering wheel ...
....................................................................... 3-13
Tilt operation ...
................................................................... 3-13
Sun visors ...
........................................................................\
........ 3-13
Mirrors ...
........................................................................\
.............. 3-14
Inside mirror ...
..................................................................... 3-14
Outside mirrors ...
............................................................... 3-14
Vanity mirror ...
..................................................................... 3-15
Condition:

Black plate (118,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
3-2Pre-driving checks and adjustments
S35-D-110201-DE70668C-DA04-469B-B5C4-09EB700CFDF7A key number plate is supplied with your keys.
Record the key number and keep it in a safe
place (such as your wallet), not in the vehicle. If
you lose your keys, see a NISSAN dealer for
duplicates by using the key number. NISSAN
does not record any key numbers so it is very
important to keep track of your key number plate.
A key number is only necessary when you have
lost all keys and do not have one to duplicate
from. If you still have a key, this key can be
duplicated by a NISSAN dealer.
SPA2405
1. Master key (2)
2. Key number plate (1)
NISSAN VEHICLE IMMOBILIZER SYS-
TEM KEYS
S35-D-110201-9A9F7A26-2A31-4E79-9589-56D7FD9A686EYour vehicle can only be driven with the master
keys which are registered to the NISSAN
Vehicle Immobilizer System components in your
vehicle. These keys have a transponder chip in
the key head.
Never leave these keys in the vehicle.
Additional or replacement keys:
If you still have a key, the key number is not
necessary when you need extra NISSAN Vehicle
Immobilizer System keys. Your dealer canduplicate your existing key. As many as 5 keys
can be used with one vehicle. You should bring
all the registered keys that you have to a
NISSAN dealer for registration. This is because
the registration process will erase the memory of
all key codes previously registered into the
NISSAN Vehicle Immobilizer System. After the
registration process, these components will only
recognize keys coded into the NISSAN Vehicle
Immobilizer System during registration. Any key
that is not given to your dealer at the time of
registration will no longer be able to start your
vehicle.
CAUTION
Do not allow the NISSAN Vehicle Im-
mobilizer System key, which contains
an electrical transponder, to come in
contact with salt water. This could
cause the system to malfunction.
KEYS
Condition:

Black plate (119,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
S35-D-110201-11F4111D-00C7-425A-8CBE-258C29021D15
WARNING
.Always have the doors locked while
driving. Along with the use of seat
belts, this provides greater safety in
the event of an accident by helping
to prevent persons from being
thrown from the vehicle. This also
helps keep children and others from
unintentionally opening the doors,
and will help keep out intruders.
. Before opening any door, always
look for and avoid oncoming traffic.
. Do not leave children unattended
inside the vehicle. They could un-
knowingly activate switches or con-
trols. Unattended children could
become involved in serious acci-
dents.
SPA2394
LOCKING WITH KEYS35-D-110201-EA701736-2D62-4FE5-9A07-3E66A223B473The power door lock system allows you to lock
or unlock all doors simultaneously.
.Turning the driver’s door key cylinder to the
front of the vehicle
*1will lock all doors and
the lift gate.
. Turning the driver’s door key cylinder once
to the rear of the vehicle
*2will unlock the
driver’s door. After returning the key to the
neutral position, turning it to the rear again
within 5 seconds will unlock all doors and
the lift gate.
SPA1814
LOCKING WITH INSIDE LOCK KNOBS35-D-110201-F596BA5E-9604-428A-990B-ACE1BA5124FATo lock the door without the key, move the inside
lock knob to the lock position
*1then close the
door.
To unlock, move the inside lock knob to the
unlock position
*2.
When locking the door without a key, be
sure not to leave the key inside the vehicle.
Pre-driving checks and adjustments3-3
DOORS
Condition:

Black plate (120,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
3-4Pre-driving checks and adjustments
SPA2300
LOCKING WITH POWER DOOR LOCK
SWITCH
S35-D-110201-CBDF94BB-B871-4D60-9710-B678FE8875EEOperating the power door lock switch will lock
or unlock all the doors. The switches are located
on the driver’s and front passenger’s door
armrests.
To lock the doors, push the power door lock
switch to the lock position
*1with the driver’s
or front passenger’s door open, then close the
door.
When locking the door this way, be sure
not to leave the key inside the vehicle.
To unlock the doors, push the power door lock
switch to the unlock position
*2.
Lockout protectionS35-D-110201-D9159B01-8C96-4797-ADA7-C072902F1545When the power door lock switch (driver or front
passenger) is moved to the lock position with
the key in the ignition switch and any door open,
all doors will lock and unlock automatically.
This function helps to prevent the keys from
being accidentally locked inside the vehicle.
AUTOMATIC DOOR LOCKSS35-D-110201-9792C716-DB41-40DC-A515-5B1BB12E9151. All doors lock automatically when the vehicle
speed reaches 15 MPH (24 km/h) .
. All doors unlock automatically when the
ignition switch is placed in the OFF position
or when the key is removed from the ignition
switch.
The automatic unlock function can be
deactivated or activated. To deactivate or
activate the automatic door unlock system,
perform the following procedure:
1. Close all doors.
2. Place the ignition switch in the ON position.
3. Within 20 seconds of performing Step 2,
push and hold the power door lock switch to
the
position (UNLOCK) for more than 5
seconds.
4. When activated, the hazard indicator will flash twice. When deactivated, the hazard
indicator will flash once. 5. The ignition switch must be placed in the
OFF and ON position again between each
setting change.
When the automatic door unlock system is
deactivated, the doors do not unlock when the
ignition switch is placed in the OFF position. To
unlock the door manually, use the inside lock
knob or the power door lock switch (driver’s or
front passenger’s side).
Condition:

Black plate (121,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
SPA2037
CHILD SAFETY REAR DOOR LOCKS35-D-110201-E7140EBB-C56B-4EFA-B4A0-B356D8C49F31Child safety rear door locks help prevent the rear
doors from being opened accidentally, espe-
cially when small children are in the vehicle.
When the levers are in the lock position
*1, the rear doors can be opened only
from the outside.
To disengage, move the levers to the unlock
position
*2.
S35-D-110201-1E00637E-1C0B-4FEB-811E-9997F446A105It is possible to lock/unlock all doors (including
the lift gate) , and activate the panic alarm by
using the keyfob from outside the vehicle.
Before locking the doors, make sure the
key is not left in the vehicle.
The keyfob can operate at a distance of
approximately 33 ft (10 m) from the vehicle.
(The effective distance depends upon the
conditions around the vehicle.)
As many as 5 keyfobs can be used with one
vehicle. For information concerning the pur-
chase and use of additional keyfobs, contact a
NISSAN dealer.
The keyfob will not function:
. When the keyfob is not within the opera-
tional range.
. When the doors are open or not closed
securely.
. When the key is in the ignition switch.
. When the battery is discharged.
WARNING
The remote keyless entry keyfob trans-
mits radio waves when the buttons are
pushed. The FAA advises that the radio
waves may affect aircraft navigation
and communication systems. Do not operate the keyfob while on an air-
plane. Make sure the buttons are not
operated unintentionally when the unit
is stored during a flight.
CAUTION
The following conditions or occur-
rences will damage the keyfob.
.
Do not allow the keyfob to become
wet.
. Do not drop the keyfob.
. Do not strike the keyfob sharply
against another object.
. If the outside temperature is below
148F (-108C) degrees, the battery of
keyfob may not function properly.
. Do not place the keyfob for an
extended period in an area where
temperatures exceed 1408F (608C) .
If a keyfob is lost or stolen, NISSAN
recommends erasing the ID code of that
keyfob. This will prevent the keyfob
from unauthorized use to unlock the
vehicle. For information regarding the
erasing procedure, please contact a
Pre-driving checks and adjustments3-5
REMOTE KEYLESS ENTRY SYSTEM
Condition:

Black plate (122,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]

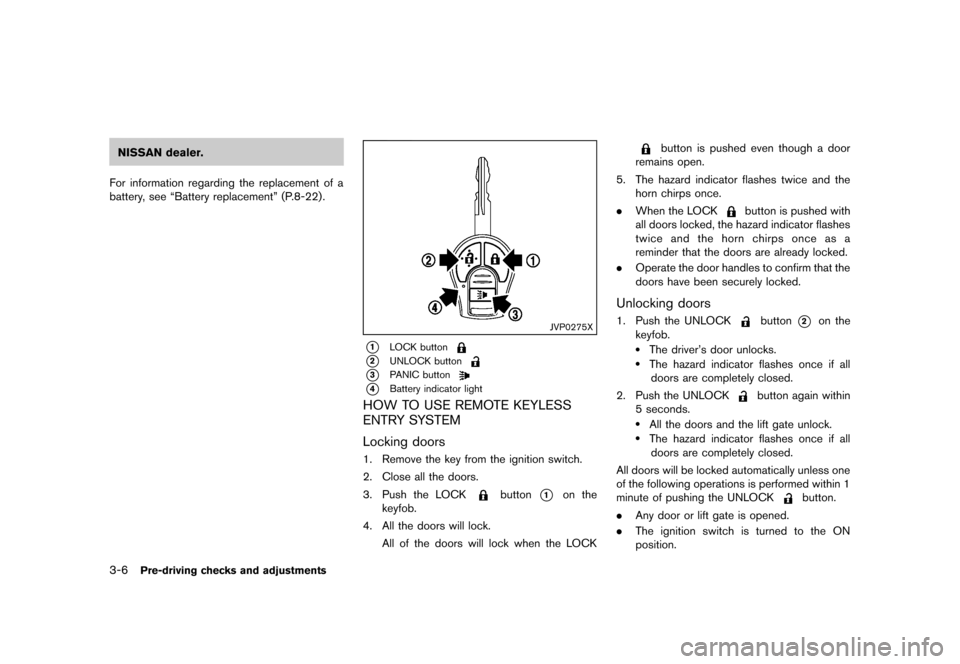

3-6Pre-driving checks and adjustments
NISSAN dealer.
For information regarding the replacement of a
battery, see “Battery replacement” (P.8-22).
JVP0275X
*1LOCK button
*2UNLOCK button
*3PANIC button
*4Battery indicator light
HOW TO USE REMOTE KEYLESS
ENTRY SYSTEM
S35-D-110201-CA37B8F2-FD76-4255-B48E-4F80A3B5B847
Locking doorsS35-D-110201-6A487745-4220-4149-BAAE-6CE6914737691. Remove the key from the ignition switch.
2. Close all the doors.
3. Push the LOCK
button*1on the
keyfob.
4. All the doors will lock. All of the doors will lock when the LOCK
button is pushed even though a door
remains open.
5. The hazard indicator flashes twice and the horn chirps once.
. When the LOCK
button is pushed with
all doors locked, the hazard indicator flashes
twice and the horn chirps once as a
reminder that the doors are already locked.
. Operate the door handles to confirm that the
doors have been securely locked.
Unlocking doorsS35-D-110201-29B39298-D051-4CAC-95C7-6FD65C0E8B701. Push the UNLOCKbutton*2on the
keyfob.
.The driver’s door unlocks..The hazard indicator flashes once if all doors are completely closed.
2. Push the UNLOCK
button again within
5 seconds.
.All the doors and the lift gate unlock..The hazard indicator flashes once if all doors are completely closed.
All doors will be locked automatically unless one
of the following operations is performed within 1
minute of pushing the UNLOCK
button.
. Any door or lift gate is opened.
. The ignition switch is turned to the ON
position.
Condition:

Black plate (123,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
Using panic alarmS35-D-110201-1BFE353E-D31D-455C-84CE-1BA2297CF9C6If you are near your vehicle and feel threatened,
you may activate the alarm to call attention as
follows:
1. Push the PANIC
button*3on the
keyfob for more than 1 second.
2. The theft warning alarm and headlights will stay on for 25 seconds.
3. The panic alarm stops when:
.It has run for 25 seconds, or.Any of the buttons on the keyfob is pushed. (Note: the PANIC button must
be pushed for more than 1 second.)
Battery indicator lightGUID-4BEFDF18-3946-464F-9CD9-A429F59D8F97The battery indicator light*4illuminates when
you push any button. If the light does not
illuminate, the battery is weak or needs replace-
ment. For information regarding replacement of
a battery, see “Battery replacement” (P.8-22) .
Setting hazard indicator and horn modeS35-D-110201-9248839D-3D23-438A-9E35-5533D7B6AFCAThis vehicle is set in hazard indicator and horn
mode when you first receive the vehicle.
In hazard indicator and horn mode, when the
LOCK
button*1is pushed, the hazard
indicator flashes twice and the horn chirps once.
When the UNLOCK
button*2is pushed,
the hazard indicator flashes once.
If the horn chirp is not necessary, you can switch
to hazard indicator only mode by following the
switching procedure.
In hazard indicator only mode, when the LOCK
button is pushed, the hazard indicator
flashes twice. When the UNLOCK
button is
pushed, neither the hazard indicator nor the horn
operates.
Pre-driving checks and adjustments3-7
Condition:

Black plate (124,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
3-8Pre-driving checks and adjustments
Mode (Pushing theorbutton)DOOR LOCK DOOR UNLOCK
Hazard indicator and horn mode HAZARD -
twice
HORN - once HAZARD -
once
HORN - none
Hazard indicator mode HAZARD - twiceHAZARD - noneSwitching procedure:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To switch the hazard indicator and horn opera-
tion, push the LOCK
*1and UNLOCK
*2buttons on the keyfob simultaneously
for more than 2 seconds.
. When the hazard indicator mode is set, the
hazard indicator flashes 3 times.
. When the hazard indicator and horn mode is
set, the hazard indicator flashes once and
the horn chirps once.
NOS1695
Condition:

Black plate (126,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
3-10Pre-driving checks and adjustments
S35-D-110201-3B6AEB5E-E690-4213-A96C-BD4949D8360D
WARNING
.Always be sure the lift gate has
been closed securely to prevent it
from opening while driving.
. Do not drive with the lift gate open.
This could allow dangerous exhaust
gases to be drawn into the vehicle.
See “Exhaust gas (carbon monox-
ide)” (P.5-2) of this manual.
. Make sure that all passengers have
their hands, etc. inside the vehicle
before closing the lift gate.
SPA2413
To open the lift gate, unlock it and push the
opener switch
*A. Pull up the lift gate to open.
The lift gate can be unlocked by:
. pushing the unlock button
on the
keyfob twice.
. pushing the power door lock switch to the
unlock position.
. inserting the key into the driver’s door key
cylinder and turning it to the rear of the
vehicle twice.
To close the lift gate, pull down until it securely
locks.
SPA2414
LIFT GATE RELEASES35-D-110201-B8DEF828-77B2-4BDA-90BB-EAF054BB537FIf the lift gate cannot be opened due to a
discharged battery, follow these steps.
1. Remove the cover inside of the lift gate with a suitable tool.
2. Move the lever toward the direction
*Aas
illustrated to open the lift gate.
Have the vehicle checked by a NISSAN dealer.
LIFT GATE
Condition:

Black plate (177,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
GETTING STARTEDS35-D-110201-363B3716-4171-4E1D-92BB-B6C8C2F728ADThe following procedures will help you get
started using the Bluetooth®Hands-Free Phone
System with NISSAN Voice Recognition. For
additional command options, refer to “List of
voice commands” (P.4-46) .
Choosing a languageS35-D-110201-9ED1490B-F9A5-48AB-ADF8-DA6C6BE9BBA1You can interact with the Bluetooth®Hands-
Free Phone System using English, Spanish or
French.
To change the language, perform the following.
1. Push and hold the
button for more than
5 seconds.
2. The system announces: “Push the PHONE SEND (
) button for the hands-free
phone system to enter the speaker adapta-
tion mode or push the PHONE END (
)
button to select a different language.”
3. Push the
button.
For information on speaker adaptation, see
“Speaker Adaptation (SA) mode” (P.4-50) .
4. The system announces the current language and gives you the option to change the
language to Spanish (in Spanish) or French
(in French). Use the following chart to select
the language. NOTE:
You must push the
button or the
button within 5 seconds to change
the language.
Current lan- guage Push(TALK/
PHONE SEND) to select Push(MODE/
PHONE END) to select
English Spanish French
Spanish English French French English Spanish
5. If you decide not to change the language, do
not push either button. After 5 seconds, the
VR session will end, and the language will
not be changed.
Connecting procedureS35-D-110201-70B0342B-394D-4E2C-ACD1-017AECE46CD1NOTE:
The connecting procedure must be per-
formed when the vehicle is stationary. If
the vehicle starts moving during the pro-
cedure, the procedure will be cancelled.
NOS2623
1. Push thebutton on the steering wheel.
The system announces the available com-
mands.
2. Say: “Connect Phone”
*A. The system
acknowledges the command and an-
nounces the next set of available commands.
3. Say: “Add phone”
*B. The system acknowl-
edges the command and asks you to initiate
pairing from the phone handset
*C.
The connecting procedure of the cellular
phone varies according to each cellular
phone. See the cellular phone Owner’s
Manual for details. You can also visit www.
nissanusa.com/bluetooth for instructions on
connecting NISSAN recommended cellular
phones.
When prompted for a Passkey code, enter
“1234” from the handset. The Passkey code
“1234” has been assigned by NISSAN and
cannot be changed.
4. The system asks you to say a name for the phone
*D.
If the name is too long or too short, the
system tells you, then prompts you for a
name again.
Also, if more than one phone is connected
and the name sounds too much like a name
already used, the system tells you, then
Heater, air conditioner, audio, phone and voice recognition systems4-45
Condition:
