check engine NISSAN ROGUE SELECT 2014 2.G Owners Manual

Black plate (71,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
2 Instruments and controls
Instrument panel...
........................................................................\
2-3
Meters and gauges ...
................................................................... 2-4
Speedometer ...
........................................................................\
2-5
Odometer/twin trip odometer ...
.......................................... 2-5
Tachometer ...
........................................................................\
... 2-6
Engine coolant temperature gauge ...
................................ 2-6
Fuel gauge ...
........................................................................\
.... 2-7
Instrument brightness control ...
.......................................... 2-8
Warning/indicator lights and audible reminders ...
............... 2-9
Checking bulbs ...
................................................................. 2-10
Warning lights ...
................................................................... 2-10
Indicator lights ...
................................................................... 2-14
Audible reminders ...
............................................................ 2-16
Vehicle information display ...
.................................................. 2-17
Outside air temperature ...
.................................................. 2-17
Indicators for operation ...
................................................... 2-19
Indicators for maintenance ...
............................................. 2-21
Trip computer ...
.................................................................... 2-22
Continuously Variable Transmission (CVT)
position indicator ...
.............................................................. 2-25
Security systems ...
.................................................................... 2-26
Vehicle Security System ...
................................................. 2-26
NISSAN Vehicle Immobilizer System ...
.......................... 2-27 Windshield wiper and washer switch
...
.............................. 2-28
Rear window wiper and washer switch ...
.......................... 2-29
Rear window defroster switch ...
........................................... 2-30
Headlight and turn signal switch ...
....................................... 2-31
Headlight switch ...
............................................................ 2-31
Turn signal switch ...
.......................................................... 2-32
Fog light switch (if so equipped) ...
.............................. 2-32
Horn ...
........................................................................\
.................. 2-33
Vehicle Dynamic Control (VDC) OFF switch ...
................. 2-33
Power outlet ...
........................................................................\
.... 2-33
Storage ...
........................................................................\
............ 2-34
Cup holders ...
..................................................................... 2-34
Sunglasses holder ...
......................................................... 2-35
Glove box ...
........................................................................\
. 2-36
Console box ...
.................................................................... 2-37
Luggage floor box (if so equipped) ...
.......................... 2-37
Luggage side box ...
.......................................................... 2-38
Cargo cover (if so equipped) ...
..................................... 2-38
Luggage hooks ...
............................................................... 2-39
Coat hooks ...
...................................................................... 2-40
Utility hook ...
....................................................................... 2-40
Roof rack (if so equipped) ...
.......................................... 2-40
Condition:
>

Black plate (80,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
2-10Instruments and controls
CHECKING BULBSS35-D-110201-509763A1-1CD5-4013-B64B-BA38C7221423With all doors closed, apply the parking brake
and turn the ignition switch to the ON position
without starting the engine. The following lights
will come on:
,,,,,,
The following lights come on briefly and then go
off (if so equipped):
,,,,,,
If any light does not come on, it may indicate a
burned-out bulb or an open circuit in the
electrical system. Have the system checked by
a NISSAN dealer.
Some indicators and warnings are also dis-
played on the vehicle information display be-
tween the speedometer and tachometer. (See
“Vehicle information display” (P.2-17) .)
WARNING LIGHTSS35-D-110201-B0BCAF7C-D090-4C01-8D57-DB3AE4D3CA95
All-Wheel Drive (AWD) warning
light (AWD models)
S35-D-110201-355E3C0A-32CD-480B-B487-AC5E7170D1C5The light illuminates when the ignition switch is
turned to the ON position. It turns off after the
engine is started.
If the All-Wheel Drive (AWD) system malfunc-
tions, or the diameter of the front and the rear
wheels are different, the warning light will either
remain illuminated or blink. (See “All-Wheel
Drive (AWD)” (P.5-21).)
CAUTION
. If the warning light comes on while
driving there may be a malfunction
in the AWD system. Reduce the
vehicle speed and have your vehicle
checked by a NISSAN dealer as
soon as possible.
. If the AWD warning light blinks
while driving:
— blinks rapidly (about twice a
second):
Pull off the road in a safe area,
and idle the engine. The driving
mode will change to 2WD to
prevent the AWD system from malfunctioning. If the warning
light turns off, you can drive
again.
— blinks slowly (about once every 2 seconds):
Pull off the road in a safe area,
and idle the engine. Check that
all tire sizes are the same, tire
pressure is correct and tires are
not worn.
. If the warning light is still on after
the above operations, have your
vehicle checked by a NISSAN dealer
as soon as possible.Anti-lock Braking System (ABS)
warning light
S35-D-110201-1E759848-5414-4A25-BA81-86C4D2F42713When the ignition switch is in the ON position,
the Anti-lock Braking System (ABS) warning
light illuminates and then turns off. This indicates
the ABS is operational.
If the ABS warning light illuminates while the
engine is running, or while driving, it may
indicate the ABS is not functioning properly.
Have the system checked by a NISSAN dealer.
If an ABS malfunction occurs, the anti-lock
function is turned off. The brake system then
operates normally, but without anti-lock assis-
Condition:

Black plate (81,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
tance. (See “Brake system” (P.5-25).)
Brake warning lightS35-D-110201-FAC4FDDE-38CB-4A48-8813-E0FC7230DB1AThis light functions for both the parking brake
and the foot brake systems.
Parking brake indicator:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the ignition switch is in the ON position,
the light illuminates when the parking brake is
applied.
Low brake fluid warning light:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the ignition switch is in the ON position,
the light warns of a low brake fluid level. If the
light illuminates while the engine is running with
the parking brake not applied, stop the vehicle
and perform the following:
1. Check the brake fluid level. Add brake fluidas necessary. (See “Brake fluid” (P.8-11) .)
2. If the brake fluid level is correct, have the warning system checked by a NISSAN
dealer.
Anti-lock Braking System (ABS) warning
indicator:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the parking brake is released and the
brake fluid level is sufficient, if both the brake
warning light and the Anti-lock Braking System
(ABS) warning light illuminate, it may indicate
the ABS is not functioning properly. Have the
brake system checked, and if necessary re- paired, by a NISSAN dealer promptly. (See
“Anti-lock Braking System (ABS) warning light”
(P.2-10) .)
WARNING
.
Your brake system may not be
working properly if the warning light
is on. Driving could be dangerous. If
you judge it to be safe, drive care-
fully to the nearest service station
for repairs. Otherwise, have your
vehicle towed because driving it
could be dangerous.
. Pressing the brake pedal with the
engine stopped and/or low brake
fluid level may increase your stop-
ping distance and braking will re-
quire greater pedal effort as well as
pedal travel.
. If the brake fluid level is below the
minimum or MIN mark on the brake
fluid reservoir, do not drive until the
brake system has been checked at a
NISSAN dealer.
Charge warning lightS35-D-110201-B5291C9A-3089-486D-840B-2926E436A0BEIf the light illuminates while the engine is running,
it may indicate the charging system is not
functioning properly. Turn the engine off and
check the alternator belt. If the belt is loose,
broken, missing or if the light remains on, see a
NISSAN dealer immediately.
CAUTION
Do not continue driving if the alternator
belt is loose, broken or missing.
Electric power steering warning
light
S35-D-110201-88542F69-8229-41AA-9C73-2BE953D6B595When the ignition switch is in the ON position,
the electric power steering warning light illumi-
nates. After starting the engine, the electric
power steering warning light turns off. This
indicates the electric power steering system is
operational.
If the electric power steering warning light
illuminates while the engine is running, it may
indicate the electric power steering system is
not functioning properly and may need servicing.
Have the electric power steering system
checked by a NISSAN dealer.
When the electric power steering warning light
Instruments and controls2-11
Condition:

Black plate (82,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
2-12Instruments and controls
illuminates with the engine running, the power
assist to the steering will cease operation but
you will still have control of the vehicle. At this
time, greater steering efforts are required to
operate the steering wheel, especially in sharp
turns and at low speeds.
See “Electric power steering system” (P.5-25) .
Engine oil pressure warning lightS35-D-110201-C80220D1-03E9-488E-BDF8-81593D799430This light warns of low engine oil pressure. If the
light flickers or illuminates during normal driving,
pull off the road in a safe area, stop the engine
immediatelyand call a NISSAN dealer or other
authorized repair shop.
The engine oil pressure warning light is
not designed to indicate a low oil level.
Use the dipstick to check the oil level. (See
“Engine oil” (P.8-9).)
CAUTION
Running the engine with the engine oil
pressure warning light on could cause
serious damage to the engine almost
immediately. Such damage is not cov-
ered by warranty. Turn off the engine as
soon as it is safe to do so.
Low fuel warning lightS35-D-110201-883DEE8B-A008-4DC5-AE18-F92E410CAE65This light illuminates when the fuel in the tank is
getting low. Refuel as soon as it is convenient,
preferably before the fuel gauge reaches the 0
position.
There will be a small reserve of fuel
remaining in the tank when the fuel gauge
reaches E.
Low tire pressure warning lightGUID-2B04969B-D277-451A-A047-99EE83E91ECCYour vehicle is equipped with a Tire Pressure
Monitoring System (TPMS) that monitors the tire
pressure of all tires except the spare.
The low tire pressure warning light warns of low
tire pressure or indicates that the TPMS is not
functioning properly.
After the ignition switch is turned ON, this light
illuminates for about 1 second and turns off.
Low tire pressure warning:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407If the vehicle is being driven with low tire
pressure, the warning light will illuminate. A
CHECK TIRE PRESSURE warning also appears
in the vehicle information display.
When the low tire pressure warning light
illuminates, you should stop and adjust the tire
pressure to the recommended COLD tire
pressure shown on the Tire and Loading
Information label. The low tire pressure warning light does not automatically turn off when the tire
pressure is adjusted. After the tire is inflated to
the recommended pressure, the vehicle must be
driven at speeds above 16 MPH (25 km/h) to
activate the TPMS and turn off the low tire
pressure warning light. Use a tire pressure
gauge to check the tire pressure.
The CHECK TIRE PRESSURE warning appears
for a period of time each time the ignition switch
is placed in the ON position as long as the low
tire pressure warning light remains illuminated.
For additional information, see “Vehicle informa-
tion display” (P.2-17) , “Tire Pressure Monitoring
System (TPMS)” (P.5-3) and “Tire Pressure
Monitoring System (TPMS)” (P.6-2) .
TPMS malfunction:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407If the TPMS is not functioning properly, the low
tire pressure warning light will flash for approxi-
mately 1 minute when the ignition switch is
turned ON. The light will remain on after 1
minute. Have the system checked by a NISSAN
dealer. The CHECK TIRE PRESSURE warning
does not appear if the low tire pressure warning
light illuminates to indicate a TPMS malfunction.
For additional information, see “Tire Pressure
Monitoring System (TPMS)” (P.5-3) .
Condition:

Black plate (84,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
2-14Instruments and controls
switch is in the ON position, the system does
not activate the warning light for the front
passenger.
See “Seat belts” (P.1-9) for precautions on seat
belt usage.
Supplemental air bag warning lightGUID-0BCEC56A-5310-4561-AD7B-B9A0E3518B42After turning the ignition switch to the ON
position, the supplemental air bag warning light
will illuminate. The supplemental air bag warning
light will turn off after about 7 seconds if the
supplemental front air bag and supplemental
side air bag, curtain side-impact air bag systems
and/or pretensioner seat belt are operational.
If any of the following conditions occur, the front
air bag, side air bag, curtain air bag and
pretensioner systems need servicing and your
vehicle must be taken to your nearest NISSAN
dealer.
.The supplemental air bag warning light
remains on after approximately 7 seconds.
. The supplemental air bag warning light
flashes intermittently.
. The supplemental air bag warning light does
not illuminate at all.
Unless checked and repaired, the Supplemental
Restraint Systems and/or the pretensioners may
not function properly.
For additional information, see “Supplemental Restraint System” (P.1-39) .
WARNING
If the supplemental air bag warning
light is on, it could mean that the front
air bag, side air bag, curtain air bag
and/or pretensioner systems will not
operate in an accident. To help avoid
injury to yourself or others, have your
vehicle checked by a NISSAN dealer as
soon as possible.
Vehicle Dynamic Control (VDC)
warning light
GUID-A2AB8C35-82AD-4A90-9170-49ABF8331549The light will blink when the Vehicle Dynamic
Control (VDC) system or the traction control
system is operating, thus alerting the driver that
the vehicle is nearing its traction limits. The road
surface may be slippery.
If the VDC warning light illuminates while the
VDC system is on, this light alerts the driver to
the fact that the VDC system’s fail-safe mode is
operating, for example the VDC system may not
be functioning properly. Have the system
checked by a NISSAN dealer. If a malfunction
occurs in the system, the VDC system function
will be canceled but the vehicle is still driveable. For additional information, see “Vehicle Dynamic
Control (VDC) system” (P.5-27) of this manual.
INDICATOR LIGHTSS35-D-110201-93D8A153-4B41-4643-9F4D-4E46D2B6B569
All-Wheel Drive (AWD) LOCK
indicator light (AWD models)
S35-D-110201-FC7B00D5-9770-487E-BFC5-E6D3A121AAFBThis light illuminates when the ignition switch is
turned to the ON position, and turns off within 1
second.
When selecting the LOCK mode while the
engine is running, this light will illuminate. (See
“All-Wheel Drive (AWD)” (P.5-21) .)
Exterior light indicatorS35-D-110201-983C926F-208B-45A5-A6A7-8EE1E1B71861This indicator illuminates when the headlight
switch is turned to the
orposition and
the front parking lights, instrument panel lights,
rear combination lights, license plate lights or
headlights are on. The indicator turns off when
these lights are turned off.
Front passenger air bag status lightS35-D-110201-CE599749-7443-4418-9473-AB9574042550The front passenger air bag status light will be lit
and the passenger front air bag will be OFF
depending on how the front passenger seat is
being used.
For front passenger air bag status light opera-
tion, see “NISSAN Advanced Air Bag System
(front seats)” (P.1-45) of this manual.
Condition:

Black plate (85,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
High beam indicator lightS35-D-110201-07BD5427-AE0D-485E-80A5-812FA0319F8EThis light illuminates when the headlight high
beam is on and goes out when the low beam is
selected.
Malfunction Indicator Light (MIL)S35-D-110201-F2AAEA88-0C31-456F-B0D1-06BE0BA285F5If the malfunction indicator light illuminates
steady or blinks while the engine is running, it
may indicate a potential emission control and/or
Continuously Variable Transmission (CVT) mal-
function.
The malfunction indicator light may also illumi-
nate steady if the fuel-filler cap is loose or
missing, or if the vehicle runs out of fuel. Check
to make sure the fuel-filler cap is installed and
closed tightly, and that the vehicle has at least 3
US gallons (11.4 liters) of fuel in the fuel tank.
After a few driving trips, the
light should
turn off if no other potential emission control
system malfunction exists.
If this indicator light remains on for 20 seconds
and then blinks for 10 seconds when the engine
is not running, it indicates that the vehicle is not
ready for an emission control system inspection/
maintenance test. (See “Readiness for Inspec-
tion/Maintenance (I/M) test” (P.9-27) .) Operation:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The malfunction indicator light will illuminate in
one of two ways:
.
Malfunction indicator light illuminated steady
— An emission control system and/or CVT
malfunction has been detected. Check the
fuel-filler cap if the LOOSE FUEL CAP
warning appears in the vehicle information
display. If the fuel-filler cap is loose or
missing, tighten or install the cap and
continue to drive the vehicle. The
light
should turn off after a few driving trips. If the
light does not turn off after a few driving
trips, have the vehicle inspected by a
NISSAN dealer. You do not need to have
your vehicle towed to the dealer.
. Malfunction indicator light blinking — An
engine misfire has been detected which may
damage the emission control system.
To reduce or avoid emission control system
damage:
— Do not drive at speeds above 45 MPH
(72 km/h).
— Avoid hard acceleration or deceleration.
— Avoid steep uphill grades.
— If possible, reduce the amount of cargo being hauled or towed.
The malfunction indicator light may stop
blinking and remain illuminated. Have the vehicle inspected by a NISSAN
dealer. You do not need to have your vehicle
towed to the dealer.
CAUTION
Continued vehicle operation without
having the emission control system
and/or CVT system checked and re-
paired as necessary could lead to poor
driveability, reduced fuel economy, and
possible damage to the emission con-
trol system.
Overdrive off indicator lightS35-D-110201-DB3484E2-4E19-4E8D-8653-05337ABAC493The overdrive off indicator light illuminates when
the overdrive off mode is selected.
For additional information, see “Continuously
Variable Transmission (CVT)” (P.5-10) of this
manual.
Security indicator lightS35-D-110201-96187D83-25D7-49DD-B539-C22AB5E56EECThe light blinks when the ignition switch is in the
ACC, OFF or LOCK position. This function
indicates the security system equipped on the
vehicle is operational.
If the security system is malfunctioning, this light
will remain on while the ignition switch is in the
Instruments and controls2-15
Condition:

Black plate (88,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]

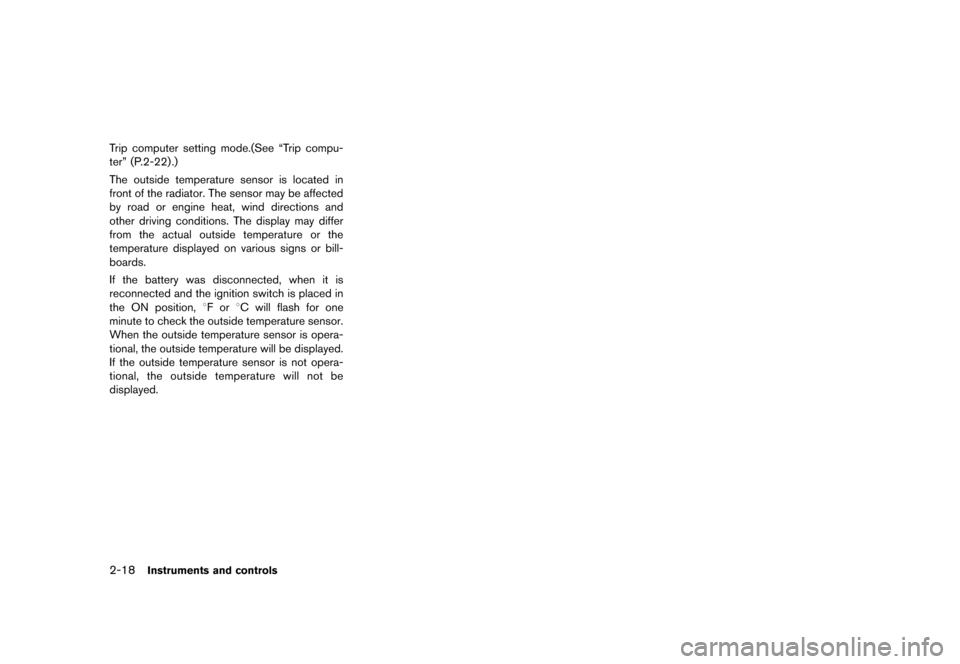

2-18Instruments and controls
Trip computer setting mode.(See “Trip compu-
ter” (P.2-22) .)
The outside temperature sensor is located in
front of the radiator. The sensor may be affected
by road or engine heat, wind directions and
other driving conditions. The display may differ
from the actual outside temperature or the
temperature displayed on various signs or bill-
boards.
If the battery was disconnected, when it is
reconnected and the ignition switch is placed in
the ON position,8F or8C will flash for one
minute to check the outside temperature sensor.
When the outside temperature sensor is opera-
tional, the outside temperature will be displayed.
If the outside temperature sensor is not opera-
tional, the outside temperature will not be
displayed.
Condition:

Black plate (90,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
2-20Instruments and controls
period of time. (See “Low tire pressure warning
light” (P.2-12) and “Tire Pressure Monitoring
System (TPMS)” (P.5-3) .)
5. Parking brake release warningGUID-FD53AB45-3AC7-4816-8C9B-02CE195475FCThis warning appears when the vehicle speed is
above 4 MPH (7 km/h) and the parking brake is
applied.
6. Setting menu operation warningGUID-A8A654A3-3FED-4E7E-8D4D-5F2ADBF361F9The warning appears when you try to operate
the setting menu while driving. The setting menu
can only be entered when the vehicle is
stationary.
7. Low outside temperature warningGUID-FAB680DE-B0C2-402C-8E2B-4AFE508F4736This warning appears if the outside temperature
drops below 378F (38C) with the ignition switch
in the ON position. The outside temperature
display flashes at the same time. These warning
features can be turned off. (See “Trip computer”
(P.2-22) .)
8. Low fuel warningGUID-865D9FDA-A98A-4836-829E-6E8F45765521This warning appears when the fuel level in the
tank is getting low. Refuel as soon as it is
convenient, preferably before the fuel gauge
reaches the empty (0) position.
There is a small reserve of fuel remaining
in the tank when the fuel gauge reaches
the empty (0) position.
9. Driver alertGUID-DBAABE18-07F0-45C6-8584-E84930538F2CThis warning appears when the previously set
time for a break is reached. You can set the time
for up to 6 hours in the setting menu. (See “Trip
computer” (P.2-22).)
10. Cruise control indicator (if so
equipped)
GUID-FCFF80D9-8140-4384-9DF4-A8C02BDBC40DThe cruise main switch indicator (CRUISE) is
displayed when the cruise control main switch is
pushed. When the main switch is pushed again,
the CRUISE indicator disappears. When the
CRUISE indicator is displayed, the cruise
control system is operational.
The cruise control set indicator (SET) is
displayed while the vehicle speed is controlled
by the cruise control system. If the SET indicator
blinks while the engine is running, it may indicate
that the cruise control system is not functioning
properly. Have the system checked by a
NISSAN dealer.
For more details, see “Cruise control” (P.5-17) .
11. Extended storage fuse warning (if so
equipped)
GUID-3831575A-2EC6-4A63-977A-1D5FE195F8A0This warning may appear if the extended storage
fuse switch is not pushed in (switched on) .
When this warning appears, push in (switch on)
the extended storage fuse switch to turn off thewarning. For more information, see “Extended
storage fuse switch” (P.8-21) .
Condition:

Black plate (91,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
SIC4538
INDICATORS FOR MAINTENANCES35-D-110201-800F6ACB-DB84-4028-98D1-DAACB7798F91
1. Service due indicatorS35-D-110201-CFD2A761-A4C9-4CF4-8BE3-496BCDE236ACThis indicator appears when the customer set
distance comes for service due, for example, for
engine oil and oil filter. You can set or reset the
distance for service due. (See “Trip computer”
(P.2-22) .) For scheduled maintenance items and
intervals, see your NISSAN Service and Main-
tenance Guide.
2. Tire replacement indicatorS35-D-110201-CE0B87AB-634A-4111-8740-7919E54C2B20This indicator appears when the customer set
distance comes for replacing tires. You can set
or reset the distance for replacing tires. (See
“Trip computer” (P.2-22) .)
WARNING
The tire replacement indicator is not a
substitute for regular tire checks, in-
cluding tire pressure checks. See
“Changing wheels and tires” (P.8-36) .
Many factors including tire inflation,
alignment, driving habits and road con-
ditions affect tire wear and when tires
should be replaced. Setting the tire
replacement indicator for a certain
driving distance does not mean your
tires will last that long. Use the tirereplacement indicator as a guide only
and always perform regular tire checks.
Failure to perform regular tire checks,
including tire pressure checks could
result in tire failure. Serious vehicle
damage could occur and may lead to a
collision, which could result in serious
personal injury or death.
3. “OTHER” indicatorS35-D-110201-ED731025-DFE8-493E-8EAF-5AFA33B448D9This indicator appears when the customer set
distance comes for checking or replacing
maintenance items other than the engine oil, oil
filter and tires. Other maintenance items can
include such things as air filter or tire rotation.
You can set or reset the distance for checking or
replacing the items. (See “Trip computer” (P.2-
22).) For scheduled maintenance items and
intervals, see your NISSAN Service and Main-
tenance Guide.
Instruments and controls2-21
Condition:

Black plate (97,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
security system is now pre-armed. After
about 30 seconds the vehicle security
system automatically shifts into the armed
phase. The security light begins to flash
once every approximately 3 seconds. If,
during this 30-second pre-arm time period,
the door is unlocked, or the ignition switch is
turned to the ACC or ON position, the
system will not arm.
Even when the driver and/or passengers
are in the vehicle, the system will activate
with all doors locked with the ignition
switch in the LOCK position. When turning
the ignition switch to the ACC or ON
position, the system will be released.
Vehicle security system activationGUID-E0994200-F9B0-476C-AF5D-4AFA2F5FF981The vehicle security system will give the follow-
ing alarm:
. The headlights blink and the horn sounds
intermittently.
. The alarm automatically turns off after
approximately 50 seconds. However, the
alarm reactivates if the vehicle is tampered
with again.
The alarm is activated by:
. Unlocking the door without using the keyfob,
or the key. (Even if the door is opened by
releasing the door inside lock knob, the alarm will activate.)
How to stop an activated alarmGUID-22EF1D00-401F-445E-9D49-7B8AEBA716D0The alarm will stop by unlocking a door by
pushing the unlock button
on the keyfob, or
using the key. The alarm will not stop if the
ignition switch is turned to the ACC or ON
position.
If the system does not operate as de-
scribed above, have it checked by a
NISSAN dealer.
NISSAN VEHICLE IMMOBILIZER SYS-
TEM
GUID-52296442-4547-4FA1-9662-0A05BE6E48F5The NISSAN Vehicle Immobilizer System will not
allow the engine to start without the use of the
registered key.
If the engine fails to start using the registered
key, it may be due to interference caused by
another registered key, an automated toll road
device or automated payment device on the key
ring. Restart the engine using the following
procedures:
1. Leave the ignition switch in the ON position for approximately 5 seconds.
2. Turn the ignition switch to the OFF or LOCK position and wait approximately 10 seconds.
3. Repeat step 1 and 2 again. 4. Restart the engine while holding the device
(which may have caused the interference)
separate from the registered key.
If this procedure allows the engine to start,
NISSAN recommends placing the regis-
tered key on a separate key ring to avoid
interference from other devices.
Statement related to section 15 of FCC
rules for NISSAN Vehicle Immobilizer
System (CONT ASSY-BCM. ANT ASSY-
IMMOBILISER)
FCC Notice:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference that
may cause undesired operation.
NOTE:
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s authority
to operate the equipment.
Instruments and controls2-27
Condition:
