display NISSAN ROGUE SELECT 2014 2.G Owners Manual

Black plate (13,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
S35-D-110201-BA7643A9-5590-4C58-9A41-1AA8C68ABF1F
JVC0301X
1. Tachometer (P.2-6)
2. Warning/indicator lights (P.2-9)
3. Vehicle information display (P.2-17)
4. Speedometer (P.2-5)
5. Engine coolant temperature gauge (P.2-6)
6.
switch (twin trip odometer control and
brightness control) (P.2-5, P.2-8) 7.
switch (settings control and trip computer
control) (P.2-17)
8. Fuel gauge (P.2-7)
Illustrated table of contents0-7
METERS AND GAUGES
Condition:

Black plate (69,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
SPA1097
SUPPLEMENTAL AIR BAG WARNING
LIGHT
GUID-10351182-5327-4A48-81C2-1CEB9FDA3F20The supplemental air bag warning light, display-
ing
in the instrument panel, monitors the
circuits for the air bag systems, pretensioners
and all related writing.
When the ignition switch is in the ON position,
the supplemental air bag warning light illumi-
nates for about 7 seconds and then turns off.
This means the system is operational.
If any of the following conditions occur, the air
bag and/or pretensioner systems.
. The supplemental air bag warning light
remains on after approximately 7 seconds. .
The supplemental air bag warning light
flashes intermittently.
. The supplemental air bag warning light does
not come on at all.
Under these conditions, the air bag and/or
pretensioner systems may not operate properly.
They must be checked and repaired. Take your
vehicle to the nearest NISSAN dealer.
WARNING
If the supplemental air bag warning
light is on, it could mean that the front
air bag, side air bag, curtain air bag
and/or pretensioner systems will not
operate in an accident. To help avoid
injury to yourself or others, have your
vehicle checked by a NISSAN dealer as
soon as possible.
REPAIR AND REPLACEMENT PRO-
CEDURE
S35-D-110201-893056AA-962B-4966-BF1A-CC8E22C7E775The front air bags, side air bags, curtain air bags
and pretensioners are designed to activate on a
one-time-only basis. As a reminder, unless it is
damaged, the supplemental air bag warning light
will remain illuminated after inflation has oc-
curred. Repair and replacement of these sys-
tems should be done only by a NISSAN dealer. When maintenance work is required on the
vehicle, the front air bags, side air bags, curtain
air bags and pretensioners and related parts
should be pointed out to the person performing
the maintenance. The ignition switch should
always be in the LOCK position when working
under the hood or inside the vehicle.
WARNING
.
Once a front air bag, side air bag or
curtain air bag has inflated, the air
bag module will not function again
and must be replaced. Additionally,
the activated pretensioners must
also be replaced. The air bag mod-
ule and pretensioner system should
be replaced by a NISSAN dealer.
The air bag modules and preten-
sioner system cannot be repaired.
. The front air bag, side air bag and
curtain air bag systems, and preten-
sioner system should be inspected
by a NISSAN dealer if there is any
damage to the front end or side
portion of the vehicle.
. If you need to dispose of a supple-
mental air bag or pretensioner, or
scrap the vehicle, contact a NISSAN
Safety — Seats, seat belts and supplemental restraint system1-53
Condition:

Black plate (71,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
2 Instruments and controls
Instrument panel...
........................................................................\
2-3
Meters and gauges ...
................................................................... 2-4
Speedometer ...
........................................................................\
2-5
Odometer/twin trip odometer ...
.......................................... 2-5
Tachometer ...
........................................................................\
... 2-6
Engine coolant temperature gauge ...
................................ 2-6
Fuel gauge ...
........................................................................\
.... 2-7
Instrument brightness control ...
.......................................... 2-8
Warning/indicator lights and audible reminders ...
............... 2-9
Checking bulbs ...
................................................................. 2-10
Warning lights ...
................................................................... 2-10
Indicator lights ...
................................................................... 2-14
Audible reminders ...
............................................................ 2-16
Vehicle information display ...
.................................................. 2-17
Outside air temperature ...
.................................................. 2-17
Indicators for operation ...
................................................... 2-19
Indicators for maintenance ...
............................................. 2-21
Trip computer ...
.................................................................... 2-22
Continuously Variable Transmission (CVT)
position indicator ...
.............................................................. 2-25
Security systems ...
.................................................................... 2-26
Vehicle Security System ...
................................................. 2-26
NISSAN Vehicle Immobilizer System ...
.......................... 2-27 Windshield wiper and washer switch
...
.............................. 2-28
Rear window wiper and washer switch ...
.......................... 2-29
Rear window defroster switch ...
........................................... 2-30
Headlight and turn signal switch ...
....................................... 2-31
Headlight switch ...
............................................................ 2-31
Turn signal switch ...
.......................................................... 2-32
Fog light switch (if so equipped) ...
.............................. 2-32
Horn ...
........................................................................\
.................. 2-33
Vehicle Dynamic Control (VDC) OFF switch ...
................. 2-33
Power outlet ...
........................................................................\
.... 2-33
Storage ...
........................................................................\
............ 2-34
Cup holders ...
..................................................................... 2-34
Sunglasses holder ...
......................................................... 2-35
Glove box ...
........................................................................\
. 2-36
Console box ...
.................................................................... 2-37
Luggage floor box (if so equipped) ...
.......................... 2-37
Luggage side box ...
.......................................................... 2-38
Cargo cover (if so equipped) ...
..................................... 2-38
Luggage hooks ...
............................................................... 2-39
Coat hooks ...
...................................................................... 2-40
Utility hook ...
....................................................................... 2-40
Roof rack (if so equipped) ...
.......................................... 2-40
Condition:
>

Black plate (74,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]

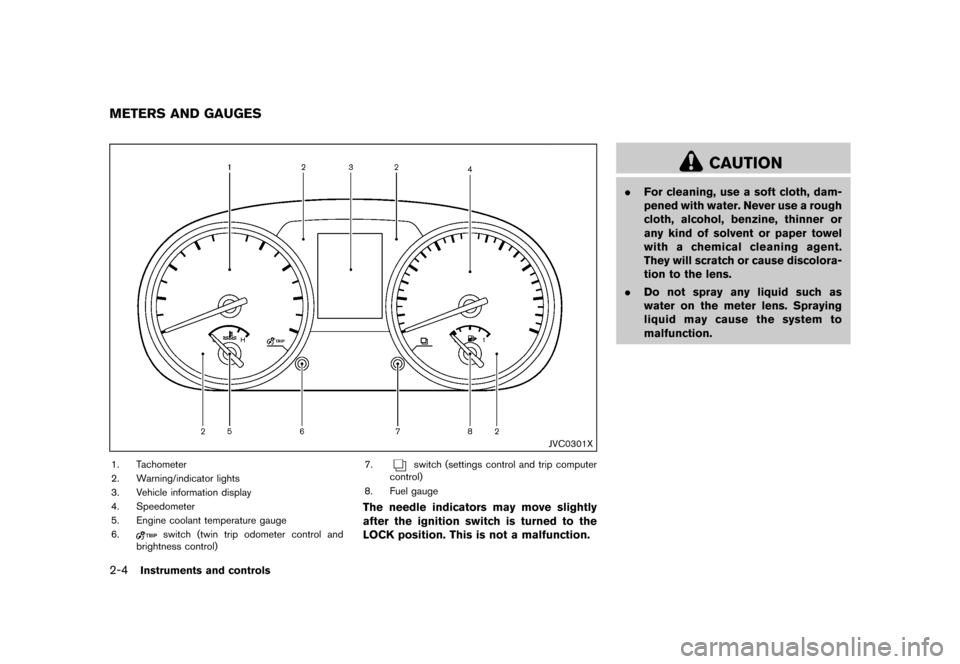

2-4Instruments and controls
S35-D-110201-F221FA22-5C18-4A37-B124-E6F61E733E4B
JVC0301X
1. Tachometer
2. Warning/indicator lights
3. Vehicle information display
4. Speedometer
5. Engine coolant temperature gauge
6.
switch (twin trip odometer control and
brightness control) 7.
switch (settings control and trip computer
control)
8. Fuel gauge
The needle indicators may move slightly
after the ignition switch is turned to the
LOCK position. This is not a malfunction.
CAUTION
. For cleaning, use a soft cloth, dam-
pened with water. Never use a rough
cloth, alcohol, benzine, thinner or
any kind of solvent or paper towel
with a chemical cleaning agent.
They will scratch or cause discolora-
tion to the lens.
. Do not spray any liquid such as
water on the meter lens. Spraying
liquid may cause the system to
malfunction.
METERS AND GAUGES
Condition:

Black plate (75,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
SIC4534
SPEEDOMETERS35-D-110201-C9945ABD-2549-458F-908F-CB27BD1CA5A3
SpeedometerS35-D-110201-60576567-9CF2-4129-A4A9-9B5C4699383DThe speedometer indicates vehicle speed in
miles per hour (MPH) or kilometers per hour
(km/h) .
SIC4575
ODOMETER/TWIN TRIP ODOMETERS35-D-110201-2BE450E5-2630-467B-84F7-2D3A478E020EThe odometer and twin trip odometer are
displayed on the vehicle information display
when the ignition switch is in the ON position.
OdometerS35-D-110201-8DFDDE94-809B-4D2D-AA93-E378AFA980E9The odometer*Arecords the total distance the
vehicle has been driven.
Twin trip odometerS35-D-110201-D6A1AD54-C687-4B93-91DA-22BF83CE3F84The twin trip odometer*Brecords the distance
of 2 individual trips (TRIP A and TRIP B) .
Changing the display:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Briefly push theswitch*Cto change the
display as follows.
TRIP A ?TRIP B ?TRIP A
Resetting the trip odometer:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push and hold theswitch for approximately
1 second to reset the selected trip (TRIP A or
TRIP B) .
Instruments and controls2-5
Condition:

Black plate (77,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
SIC4511
FUEL GAUGES35-D-110201-1F9776FA-11AF-431D-8547-74A51ADB5779The gauge*Aindicates theapproximate fuel
level in the tank.
The gauge may move slightly during braking,
turning, acceleration, or going up or down hills.
Refill the fuel tank before the gauge
registers 0.
The low fuel warning light
illuminates and
low fuel warning appears on the vehicle
information display when the fuel tank is getting
low. Refuel as soon as it is convenient,
preferably before the gauge reaches the empty
(0) position. There is a small reserve of fuel in the
tank when the fuel gauge reaches the empty (0) position.
The
indicates that the fuel-filler door is
located on the passenger’s side of the vehicle.
CAUTION
. If the vehicle runs out of fuel, the
malfunction indicator light (MIL)
may come on. Refuel as soon as
possible. After a few driving trips,
the
light should turn off. If the
light remains on after a few driving
trips, have the vehicle inspected by
a NISSAN dealer.
. For additional information, see
“Malfunction Indicator Light (MIL)”
(P.2-15) .
SIC4596
SIC4508
Instruments and controls2-7
Condition:

Black plate (78,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
2-8Instruments and controls
INSTRUMENT BRIGHTNESS CON-
TROL
S35-D-110201-942D1E32-EA3F-452B-B723-C16268B42967The instrument brightness control operates
when the headlight switch is in the
or
position.
Turn the control
*Ato adjust the brightness of
the meter panel and the instrument panel lights.
The brightness indicator
*Bwill be shown
briefly in the vehicle information display when
the control is turned.
When the brightness level reaches the maximum
or minimum, a beep will sound.
When the brightness level reaches the minimum,
the meter panel and the instrument panel lights
will be turned off.
After the ignition switch is turned to the OFF
position, the brightness indicator
*Bis dis-
played for 30 seconds.
Condition:

Black plate (80,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
2-10Instruments and controls
CHECKING BULBSS35-D-110201-509763A1-1CD5-4013-B64B-BA38C7221423With all doors closed, apply the parking brake
and turn the ignition switch to the ON position
without starting the engine. The following lights
will come on:
,,,,,,
The following lights come on briefly and then go
off (if so equipped):
,,,,,,
If any light does not come on, it may indicate a
burned-out bulb or an open circuit in the
electrical system. Have the system checked by
a NISSAN dealer.
Some indicators and warnings are also dis-
played on the vehicle information display be-
tween the speedometer and tachometer. (See
“Vehicle information display” (P.2-17) .)
WARNING LIGHTSS35-D-110201-B0BCAF7C-D090-4C01-8D57-DB3AE4D3CA95
All-Wheel Drive (AWD) warning
light (AWD models)
S35-D-110201-355E3C0A-32CD-480B-B487-AC5E7170D1C5The light illuminates when the ignition switch is
turned to the ON position. It turns off after the
engine is started.
If the All-Wheel Drive (AWD) system malfunc-
tions, or the diameter of the front and the rear
wheels are different, the warning light will either
remain illuminated or blink. (See “All-Wheel
Drive (AWD)” (P.5-21).)
CAUTION
. If the warning light comes on while
driving there may be a malfunction
in the AWD system. Reduce the
vehicle speed and have your vehicle
checked by a NISSAN dealer as
soon as possible.
. If the AWD warning light blinks
while driving:
— blinks rapidly (about twice a
second):
Pull off the road in a safe area,
and idle the engine. The driving
mode will change to 2WD to
prevent the AWD system from malfunctioning. If the warning
light turns off, you can drive
again.
— blinks slowly (about once every 2 seconds):
Pull off the road in a safe area,
and idle the engine. Check that
all tire sizes are the same, tire
pressure is correct and tires are
not worn.
. If the warning light is still on after
the above operations, have your
vehicle checked by a NISSAN dealer
as soon as possible.Anti-lock Braking System (ABS)
warning light
S35-D-110201-1E759848-5414-4A25-BA81-86C4D2F42713When the ignition switch is in the ON position,
the Anti-lock Braking System (ABS) warning
light illuminates and then turns off. This indicates
the ABS is operational.
If the ABS warning light illuminates while the
engine is running, or while driving, it may
indicate the ABS is not functioning properly.
Have the system checked by a NISSAN dealer.
If an ABS malfunction occurs, the anti-lock
function is turned off. The brake system then
operates normally, but without anti-lock assis-
Condition:

Black plate (82,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
2-12Instruments and controls
illuminates with the engine running, the power
assist to the steering will cease operation but
you will still have control of the vehicle. At this
time, greater steering efforts are required to
operate the steering wheel, especially in sharp
turns and at low speeds.
See “Electric power steering system” (P.5-25) .
Engine oil pressure warning lightS35-D-110201-C80220D1-03E9-488E-BDF8-81593D799430This light warns of low engine oil pressure. If the
light flickers or illuminates during normal driving,
pull off the road in a safe area, stop the engine
immediatelyand call a NISSAN dealer or other
authorized repair shop.
The engine oil pressure warning light is
not designed to indicate a low oil level.
Use the dipstick to check the oil level. (See
“Engine oil” (P.8-9).)
CAUTION
Running the engine with the engine oil
pressure warning light on could cause
serious damage to the engine almost
immediately. Such damage is not cov-
ered by warranty. Turn off the engine as
soon as it is safe to do so.
Low fuel warning lightS35-D-110201-883DEE8B-A008-4DC5-AE18-F92E410CAE65This light illuminates when the fuel in the tank is
getting low. Refuel as soon as it is convenient,
preferably before the fuel gauge reaches the 0
position.
There will be a small reserve of fuel
remaining in the tank when the fuel gauge
reaches E.
Low tire pressure warning lightGUID-2B04969B-D277-451A-A047-99EE83E91ECCYour vehicle is equipped with a Tire Pressure
Monitoring System (TPMS) that monitors the tire
pressure of all tires except the spare.
The low tire pressure warning light warns of low
tire pressure or indicates that the TPMS is not
functioning properly.
After the ignition switch is turned ON, this light
illuminates for about 1 second and turns off.
Low tire pressure warning:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407If the vehicle is being driven with low tire
pressure, the warning light will illuminate. A
CHECK TIRE PRESSURE warning also appears
in the vehicle information display.
When the low tire pressure warning light
illuminates, you should stop and adjust the tire
pressure to the recommended COLD tire
pressure shown on the Tire and Loading
Information label. The low tire pressure warning light does not automatically turn off when the tire
pressure is adjusted. After the tire is inflated to
the recommended pressure, the vehicle must be
driven at speeds above 16 MPH (25 km/h) to
activate the TPMS and turn off the low tire
pressure warning light. Use a tire pressure
gauge to check the tire pressure.
The CHECK TIRE PRESSURE warning appears
for a period of time each time the ignition switch
is placed in the ON position as long as the low
tire pressure warning light remains illuminated.
For additional information, see “Vehicle informa-
tion display” (P.2-17) , “Tire Pressure Monitoring
System (TPMS)” (P.5-3) and “Tire Pressure
Monitoring System (TPMS)” (P.6-2) .
TPMS malfunction:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407If the TPMS is not functioning properly, the low
tire pressure warning light will flash for approxi-
mately 1 minute when the ignition switch is
turned ON. The light will remain on after 1
minute. Have the system checked by a NISSAN
dealer. The CHECK TIRE PRESSURE warning
does not appear if the low tire pressure warning
light illuminates to indicate a TPMS malfunction.
For additional information, see “Tire Pressure
Monitoring System (TPMS)” (P.5-3) .
Condition:

Black plate (83,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
WARNING
.If the light does not illuminate with
the ignition switch turned ON, have
the vehicle checked by a NISSAN
dealer as soon as possible.
. If the light illuminates while driving,
avoid sudden steering maneuvers or
abrupt braking, reduce vehicle
speed, pull off the road to a safe
location and stop the vehicle as
soon as possible. Driving with un-
der-inflated tires may permanently
damage the tires and increase the
likelihood of tire failure. Serious
vehicle damage could occur and
may lead to an accident and could
result in serious personal injury.
Check the tire pressure for all four
tires. Adjust the tire pressure to the
recommended COLD tire pressure
shown on the Tire and Loading
Information label to turn the low
tire pressure warning light OFF. If
the light stays on after adjusting the
tire pressure and driving over 16
MPH (25 km/h) , have the system
checked by a NISSAN dealer. If you
have a flat tire, replace it with a spare tire as soon as possible.
. When a spare tire is mounted or a
wheel is replaced, the TPMS will not
function and the low tire pressure
warning light will flash for approxi-
mately 1 minute. The light will
remain on after 1 minute. Contact
your NISSAN dealer as soon as
possible for tire replacement and/
or system resetting.
. Replacing tires with those not ori-
ginally specified by NISSAN could
affect the proper operation of the
TPMS.
CAUTION
.The TPMS is not a substitute for the
regular tire pressure check. Be sure
to check the tire pressure regularly.
. If the vehicle is being driven at
speeds of less than 16 MPH (25
km/h) , the TPMS may not operate
correctly.
. Be sure to install the specified size
of tires to the front and rear.
Master warning lightS35-D-110201-B0903750-6B3F-4490-9C34-E79202140256When the ignition switch is in the ON position,
the master warning light illuminates if any of the
following are displayed on the vehicle informa-
tion display.
.Low fuel warning
. Parking brake release warning
. Door open warning
. Lift gate open warning
. Loose fuel cap warning
. Check tire pressure warning
. Setting menu operation warning
. Extended storage fuse warning (if so
equipped)
See “Vehicle information display” (P.2-17) .
Seat belt warning lightS35-D-110201-DFCBA132-B95A-44A5-9B3E-E0FBB8D293E7The light and chime remind you to fasten seat
belts. The light illuminates whenever the ignition
switch is turned to the ON position, and will
remain illuminated until the driver’s seat belt is
fastened. At the same time, the chime will sound
for about 6 seconds unless the driver’s seat belt
is securely fastened.
The seat belt warning light for the front
passenger will illuminate if the seat belt is not
fastened when the front passenger’s seat is
occupied. For about 5 seconds after the ignition
Instruments and controls2-13
Condition:
