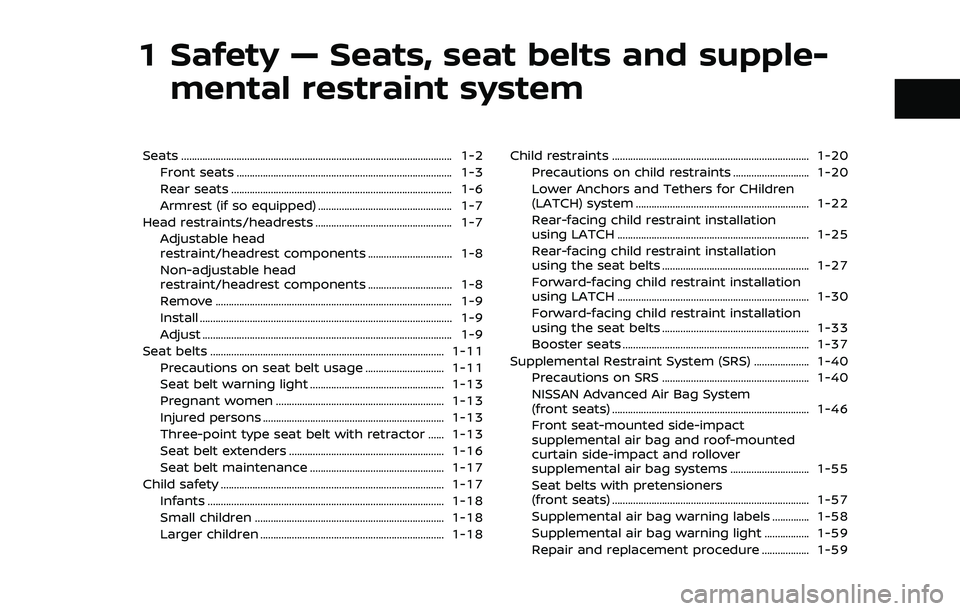

NISSAN ROGUE SPORT 2019 Owner's Manual

1 Safety — Seats, seat belts and supple-mental restraint system
Seats ........................................................................\
............................... 1-2
Front seats ........................................................................\
.......... 1-3
Rear seats ........................................................................\
............ 1-6
Armrest (if so equipped) ................................................... 1-7
Head restraints/headrests .................................................... 1-7 Adjustable head
restraint/headrest components ................................ 1-8
Non-adjustable head
restraint/headrest components ................................ 1-8
Remove ........................................................................\
.................. 1-9
Install ........................................................................\
........................ 1-9
Adjust ........................................................................\
....................... 1-9
Seat belts ........................................................................\
................. 1-11
Precautions on seat belt usage .............................. 1-11
Seat belt warning light ................................................... 1-13
Pregnant women ................................................................ 1-13
Injured persons ..................................................................... 1-13
Three-point type seat belt with retractor ...... 1-13
Seat belt extenders ........................................................... 1-16
Seat belt maintenance ................................................... 1-17
Child safety ........................................................................\
............. 1-17 Infants ........................................................................\
.................. 1-18
Small children ........................................................................\
1-18
Larger children ...................................................................... 1-18 Child restraints ........................................................................\
... 1-20
Precautions on child restraints ............................. 1-20
Lower Anchors and Tethers for CHildren
(LATCH) system .................................................................. 1-22
Rear-facing child restraint installation
using LATCH ........................................................................\
. 1-25
Rear-facing child restraint installation
using the seat belts ........................................................ 1-27
Forward-facing child restraint installation
using LATCH ........................................................................\
. 1-30
Forward-facing child restraint installation
using the seat belts ........................................................ 1-33
Booster seats ....................................................................... 1-37
Supplemental Restraint System (SRS) ..................... 1-40 Precautions on SRS ........................................................ 1-40
NISSAN Advanced Air Bag System
(front seats) ........................................................................\
... 1-46
Front seat-mounted side-impact
supplemental air bag and roof-mounted
curtain side-impact and rollover
supplemental air bag systems .............................. 1-55
Seat belts with pretensioners
(front seats) ........................................................................\
... 1-57
Supplemental air bag warning labels .............. 1-58
Supplemental air bag warning light ................. 1-59
Repair and replacement procedure .................. 1-59

1-2Safety — Seats, seat belts and supplemental restraint system

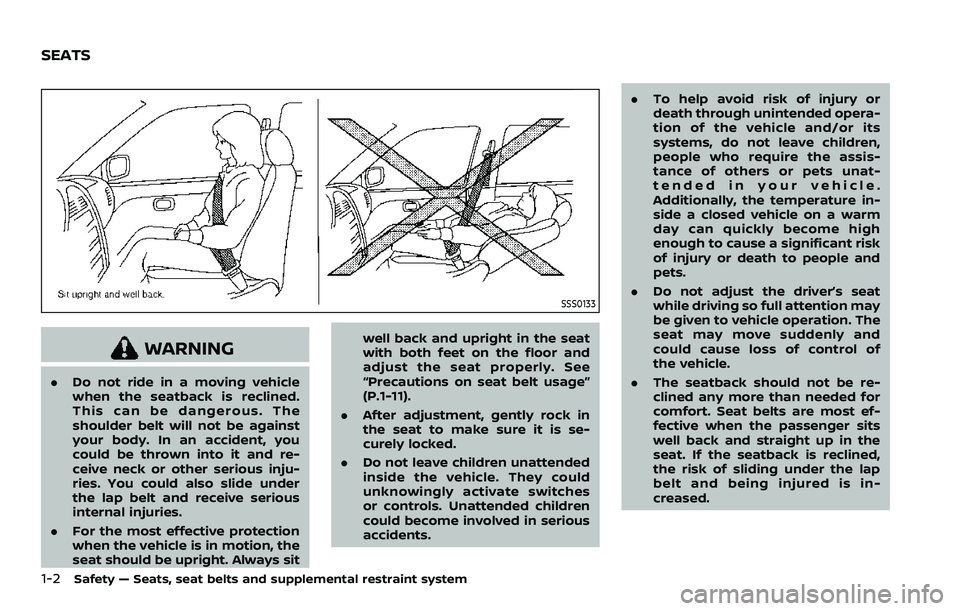

SSS0133
WARNING
.Do not ride in a moving vehicle
when the seatback is reclined.
This can be dangerous. The
shoulder belt will not be against
your body. In an accident, you
could be thrown into it and re-
ceive neck or other serious inju-
ries. You could also slide under
the lap belt and receive serious
internal injuries.
. For the most effective protection
when the vehicle is in motion, the
seat should be upright. Always sit well back and upright in the seat
with both feet on the floor and
adjust the seat properly. See
“Precautions on seat belt usage”
(P.1-11).
. After adjustment, gently rock in
the seat to make sure it is se-
curely locked.
. Do not leave children unattended
inside the vehicle. They could
unknowingly activate switches
or controls. Unattended children
could become involved in serious
accidents. .
To help avoid risk of injury or
death through unintended opera-
tion of the vehicle and/or its
systems, do not leave children,
people who require the assis-
tance of others or pets unat-
tended in your vehicle.
Additionally, the temperature in-
side a closed vehicle on a warm
day can quickly become high
enough to cause a significant risk
of injury or death to people and
pets.
. Do not adjust the driver’s seat
while driving so full attention may
be given to vehicle operation. The
seat may move suddenly and
could cause loss of control of
the vehicle.
. The seatback should not be re-
clined any more than needed for
comfort. Seat belts are most ef-
fective when the passenger sits
well back and straight up in the
seat. If the seatback is reclined,
the risk of sliding under the lap
belt and being injured is in-
creased.
SEATS

CAUTION
When adjusting the seat positions,
be sure not to contact any moving
parts to avoid possible injuries and/
or damage.

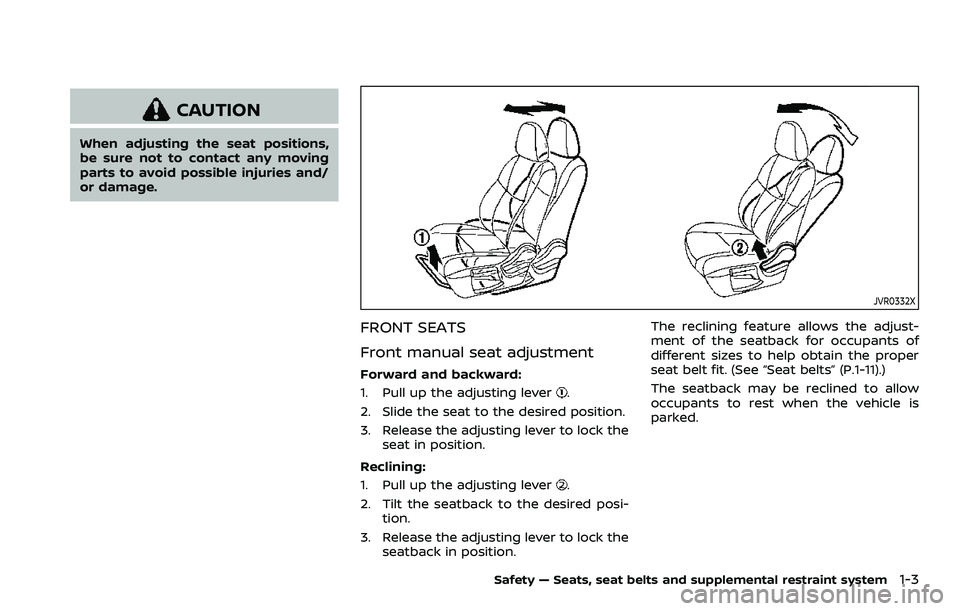

JVR0332X
FRONT SEATS
Front manual seat adjustment
Forward and backward:
1. Pull up the adjusting lever
.
2. Slide the seat to the desired position.
3. Release the adjusting lever to lock the seat in position.
Reclining:
1. Pull up the adjusting lever
.
2. Tilt the seatback to the desired posi- tion.
3. Release the adjusting lever to lock the seatback in position. The reclining feature allows the adjust-
ment of the seatback for occupants of
different sizes to help obtain the proper
seat belt fit. (See “Seat belts” (P.1-11).)
The seatback may be reclined to allow
occupants to rest when the vehicle is
parked.
Safety — Seats, seat belts and supplemental restraint system1-3

1-4Safety — Seats, seat belts and supplemental restraint system

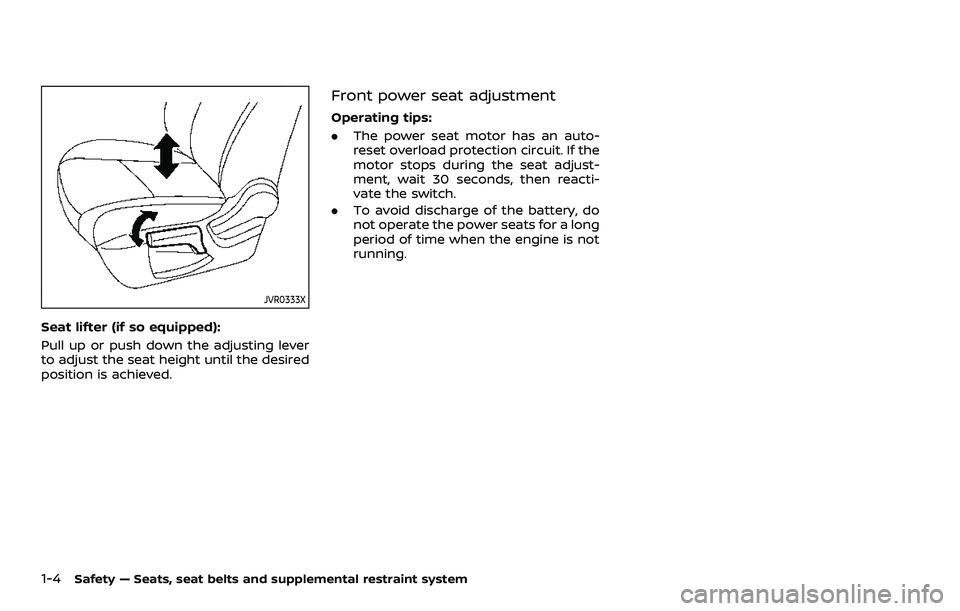

JVR0333X
Seat lifter (if so equipped):
Pull up or push down the adjusting lever
to adjust the seat height until the desired
position is achieved.
Front power seat adjustment
Operating tips:
.The power seat motor has an auto-
reset overload protection circuit. If the
motor stops during the seat adjust-
ment, wait 30 seconds, then reacti-
vate the switch.
. To avoid discharge of the battery, do
not operate the power seats for a long
period of time when the engine is not
running.

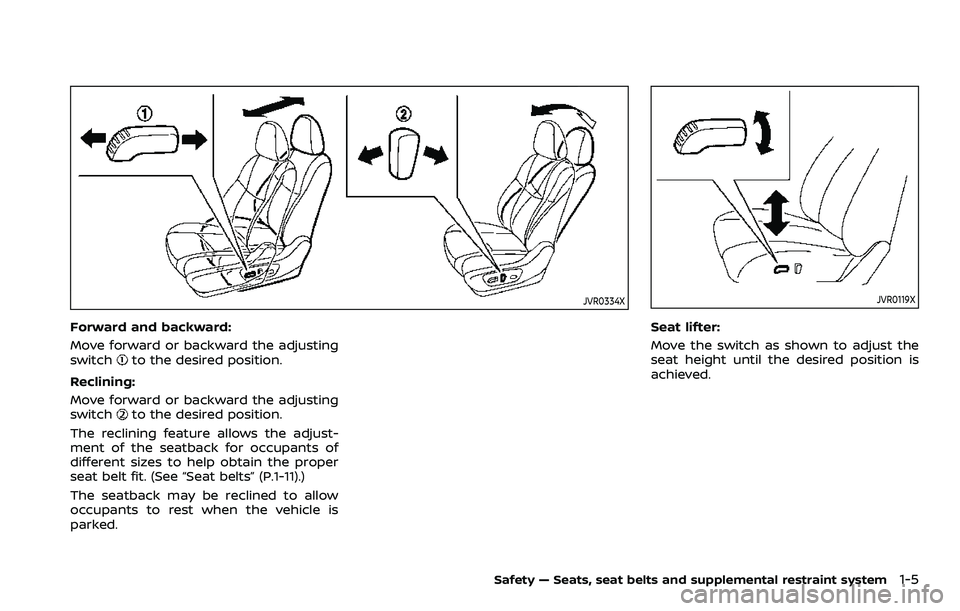

JVR0334X
Forward and backward:
Move forward or backward the adjusting
switch
to the desired position.
Reclining:
Move forward or backward the adjusting
switch
to the desired position.
The reclining feature allows the adjust-
ment of the seatback for occupants of
different sizes to help obtain the proper
seat belt fit. (See “Seat belts” (P.1-11).)
The seatback may be reclined to allow
occupants to rest when the vehicle is
parked.
JVR0119X
Seat lifter:
Move the switch as shown to adjust the
seat height until the desired position is
achieved.
Safety — Seats, seat belts and supplemental restraint system1-5

1-6Safety — Seats, seat belts and supplemental restraint system

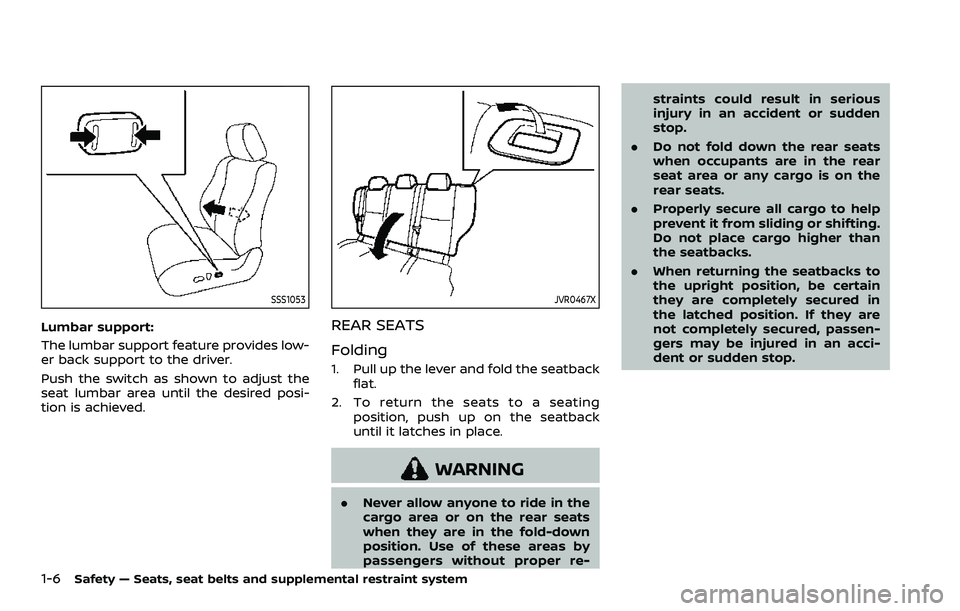

SSS1053
Lumbar support:
The lumbar support feature provides low-
er back support to the driver.
Push the switch as shown to adjust the
seat lumbar area until the desired posi-
tion is achieved.
JVR0467X
REAR SEATS
Folding
1. Pull up the lever and fold the seatbackflat.
2. To return the seats to a seating position, push up on the seatback
until it latches in place.
WARNING
. Never allow anyone to ride in the
cargo area or on the rear seats
when they are in the fold-down
position. Use of these areas by
passengers without proper re- straints could result in serious
injury in an accident or sudden
stop.
. Do not fold down the rear seats
when occupants are in the rear
seat area or any cargo is on the
rear seats.
. Properly secure all cargo to help
prevent it from sliding or shifting.
Do not place cargo higher than
the seatbacks.
. When returning the seatbacks to
the upright position, be certain
they are completely secured in
the latched position. If they are
not completely secured, passen-
gers may be injured in an acci-
dent or sudden stop.

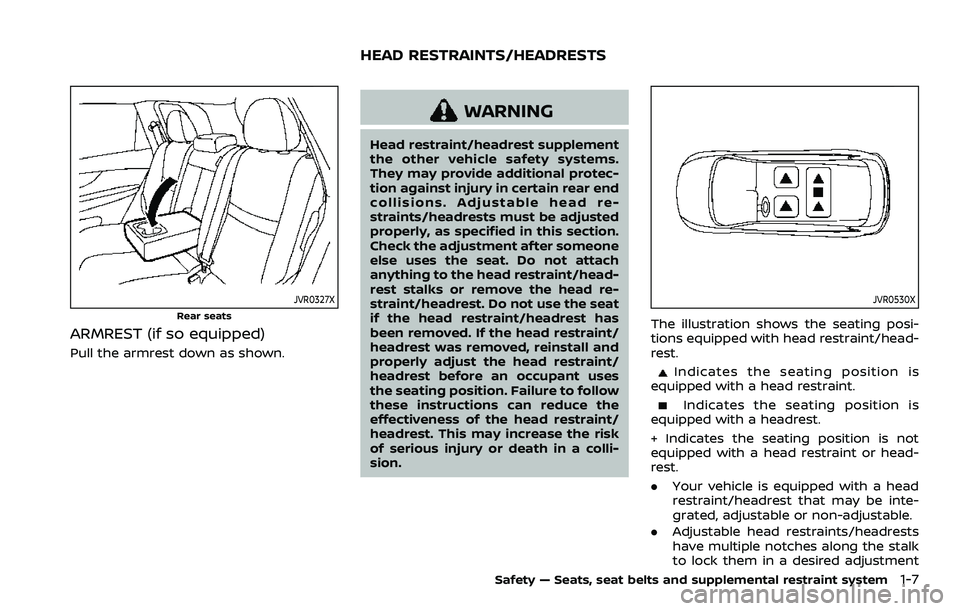

JVR0327X
Rear seats
ARMREST (if so equipped)
Pull the armrest down as shown.
WARNING
Head restraint/headrest supplement
the other vehicle safety systems.
They may provide additional protec-
tion against injury in certain rear end
collisions. Adjustable head re-
straints/headrests must be adjusted
properly, as specified in this section.
Check the adjustment after someone
else uses the seat. Do not attach
anything to the head restraint/head-
rest stalks or remove the head re-
straint/headrest. Do not use the seat
if the head restraint/headrest has
been removed. If the head restraint/
headrest was removed, reinstall and
properly adjust the head restraint/
headrest before an occupant uses
the seating position. Failure to follow
these instructions can reduce the
effectiveness of the head restraint/
headrest. This may increase the risk
of serious injury or death in a colli-
sion.
JVR0530X
The illustration shows the seating posi-
tions equipped with head restraint/head-
rest.
Indicates the seating position is
equipped with a head restraint.
Indicates the seating position is
equipped with a headrest.
+ Indicates the seating position is not
equipped with a head restraint or head-
rest.
. Your vehicle is equipped with a head
restraint/headrest that may be inte-
grated, adjustable or non-adjustable.
. Adjustable head restraints/headrests
have multiple notches along the stalk
to lock them in a desired adjustment
Safety — Seats, seat belts and supplemental restraint system1-7
HEAD RESTRAINTS/HEADRESTS

1-8Safety — Seats, seat belts and supplemental restraint system
position.
. The non-adjustable head restraints/
headrests have a single locking notch
to secure them to the seat frame.
. Proper Adjustment:
— For the adjustable type, align the
head restraint/headrest so the
center of your ear is approximately
level with the center of the head
restraint/headrest.
— If your ear position is still higher than the recommended alignment,
place the head restraint/headrest
at the highest position.
. If the head restraint/headrest has
been removed, ensure that it is re-
installed and locked in place before
riding in that designated seating posi-
tion.

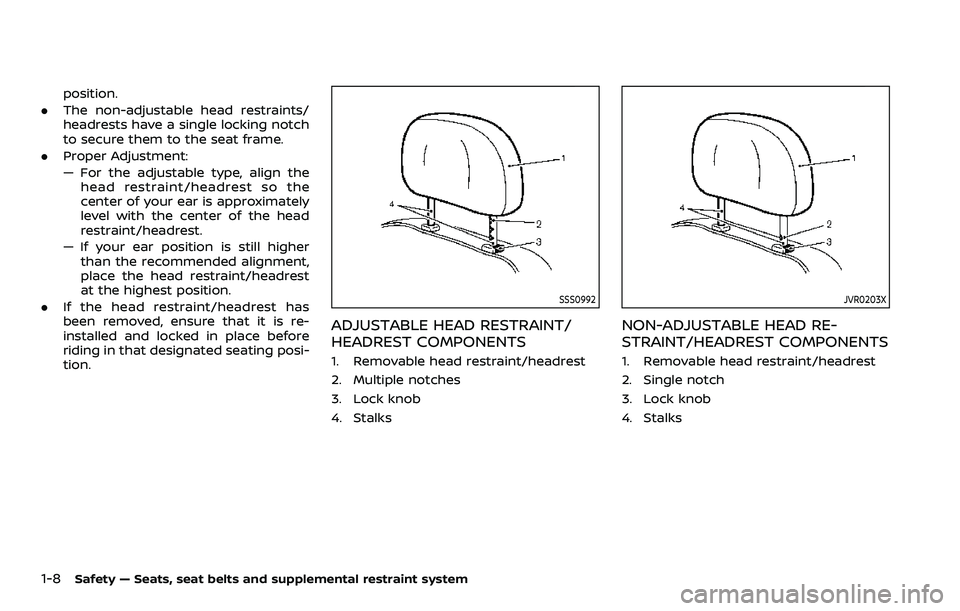

SSS0992
ADJUSTABLE HEAD RESTRAINT/
HEADREST COMPONENTS
1. Removable head restraint/headrest
2. Multiple notches
3. Lock knob
4. Stalks
JVR0203X
NON-ADJUSTABLE HEAD RE-
STRAINT/HEADREST COMPONENTS
1. Removable head restraint/headrest
2. Single notch
3. Lock knob
4. Stalks

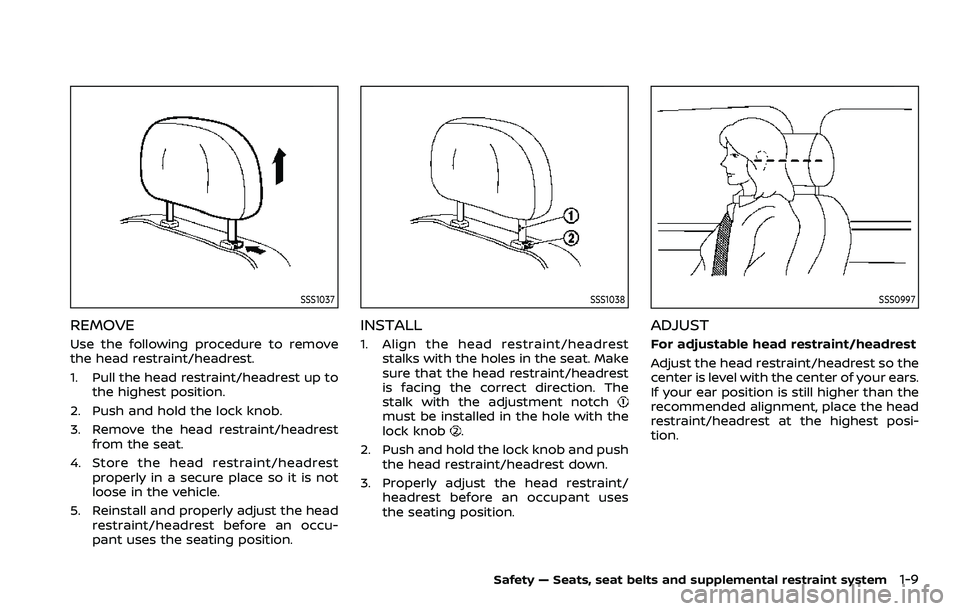

SSS1037
REMOVE
Use the following procedure to remove
the head restraint/headrest.
1. Pull the head restraint/headrest up tothe highest position.
2. Push and hold the lock knob.
3. Remove the head restraint/headrest from the seat.
4. Store the head restraint/headrest properly in a secure place so it is not
loose in the vehicle.
5. Reinstall and properly adjust the head restraint/headrest before an occu-
pant uses the seating position.
SSS1038
INSTALL
1. Align the head restraint/headreststalks with the holes in the seat. Make
sure that the head restraint/headrest
is facing the correct direction. The
stalk with the adjustment notch
must be installed in the hole with the
lock knob.
2. Push and hold the lock knob and push the head restraint/headrest down.
3. Properly adjust the head restraint/ headrest before an occupant uses
the seating position.
SSS0997
ADJUST
For adjustable head restraint/headrest
Adjust the head restraint/headrest so the
center is level with the center of your ears.
If your ear position is still higher than the
recommended alignment, place the head
restraint/headrest at the highest posi-
tion.
Safety — Seats, seat belts and supplemental restraint system1-9

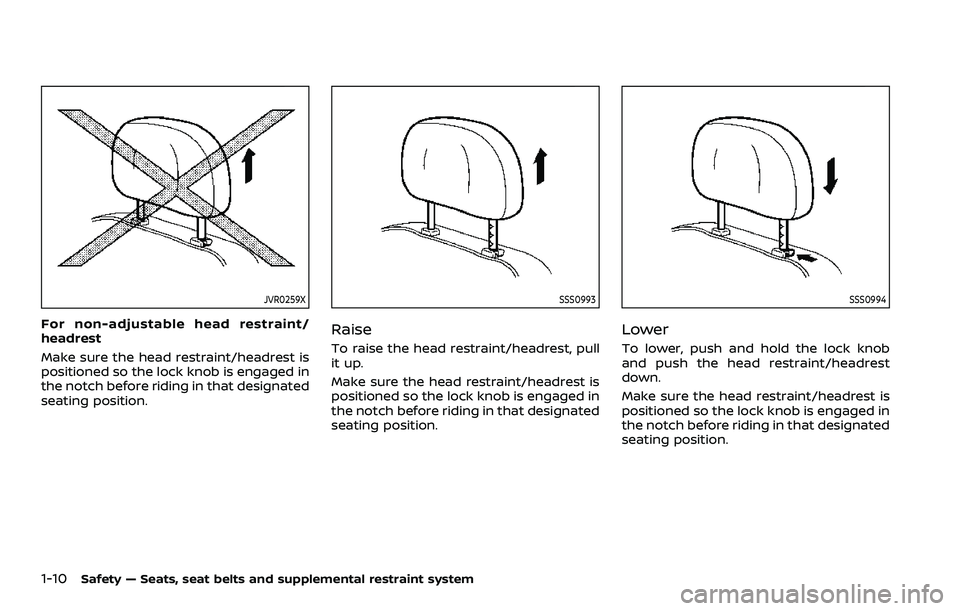

1-10Safety — Seats, seat belts and supplemental restraint system
JVR0259X
For non-adjustable head restraint/
headrest
Make sure the head restraint/headrest is
positioned so the lock knob is engaged in
the notch before riding in that designated
seating position.
SSS0993
Raise
To raise the head restraint/headrest, pull
it up.
Make sure the head restraint/headrest is
positioned so the lock knob is engaged in
the notch before riding in that designated
seating position.
SSS0994
Lower
To lower, push and hold the lock knob
and push the head restraint/headrest
down.
Make sure the head restraint/headrest is
positioned so the lock knob is engaged in
the notch before riding in that designated
seating position.
