1. Rear seat (P. 1-3)
2. Moonroof (if so equipped) (P. 2-35)
3. Interior lights, illuminated entry,
moonroof switch (if so equipped)
(P. 2-37, P. 2-20, P. 2-35)
4. Sun visors (P. 3-26)
5. Rearview mirror (P. 3-27)
6. Glove box (P. 2-28)
7. Cup holders (P. 2-27)
8. Parking brake, parking on hills
(P. 5-19, P. 5-22)
9. Front seat (P. 1-2)
10. Front console (P. 2-29)
11. Rear armrest, cup holders
(if so equipped) (P. 1-7, P 2-27)
See the page number indicated in paren-
theses for operating details.
LII0091
PASSENGER COMPARTMENT
Illustrated table of contents0-5
REVIEW COPY—2009 Sentra(sen)
Owners Manual—USA_English(nna)
10/27/08—tbrooks
Page 12 of 326
1. Headlight/fog light (if so equipped)/
turn signal switch (P. 2-20); Manual
shift paddles (if so equipped) (P.5-14 )
2. Steering wheel switch for audio control
and BluetoothHands-Free Phone
System (if so equipped) (P. 4-37, 4-39)3. Driver’s supplemental air bag/Horn
(P. 1-40, 2-23)
4. Meters and gauges (P. 2-3)
5. Instrument brightness control (P. 2-21)
6. Cruise control main/set switches
(if so equipped) (P. 5-19)7.
Windshield wiper/washer switch (P. 2-18)8. Storage bin (if so equipped) (P. 2-25)
9. Audio system (P. 4-16)
10. Center ventilator (P. 4-7)
11. Passenger’s supplemental air bag
(P. 1-40)
12. Side ventilator (P. 4-7)
13. Control panel display (if so equipped)
(P. 4-2)
14. Engine oil pressure gauge
(if so equipped) (P. 2-6)
15. g (gravity) -force gauge (if so equipped)
(P. 2-5)
16. Hazard warning flasher switch
(if so equipped) (P. 2-22)
17. Hazard warning flasher switch
(if so equipped) (P. 2-22); Manual shift
mode switch (if so equipped) (P.5-14 )
18. Glove box (P. 2-28)
19. Front passenger air bag status light
(P. 1-40)
20. Climate control (P. 4-7)
21. Shift selector (P. 5-12)
22. Power outlet (P. 2-24)
23. Ignition switch (P. 5-7)
24. Tilt steering (P.3-26)
25. Storage bin (P. 2-25)
26. Hood release lever (P. 3-22)
See the page number indicated in paren-
theses for operating details.
WIC1486
INSTRUMENT PANEL
0-6Illustrated table of contents
REVIEW COPY—2009 Sentra(sen)
Owners Manual—USA_English(nna)
10/27/08—tbrooks
Page 13 of 326
MR20DE engine
1. Engine coolant reservoir (P. 8-8)
2. Engine oil filler cap (P. 8-9)
3. Brake fluid reservoir/Clutch fluid
reservoir (M/T model) (P. 8-13)
4. Battery (P. 8-15)
5. Air cleaner (P. 8-19)
6. Fuse/fusible link box (P. 8-22)
7. Radiator cap (P. 8-8)
8. Engine oil dipstick (P. 8-9)
9. Drive belt location (P.8-17)
10. Windshield washer fluid reservoir
(P. 8-14)
See the page number indicated in paren-
theses for operating details.
WDI0587
ENGINE COMPARTMENT CHECK
LOCATIONS
Illustrated table of contents0-7
REVIEW COPY—2009 Sentra(sen)
Owners Manual—USA_English(nna)
10/27/08—tbrooks
Page 14 of 326
QR25DE engine
1. Engine coolant reservoir (P. 8-8)
2. Engine oil filler cap (P. 8-9)
3. Brake fluid reservoir/Clutch fluid
reservoir (M/T model) (P. 8-13)
4. Battery (P. 8-15)
5. Air cleaner (P. 8-19)
6. Fuse/fusible link box (P. 8-22)
7. Radiator cap (P. 8-8)
8. Engine oil dipstick (P. 8-9)
9. Drive belt location (P.8-17)
10. Windshield washer fluid reservoir
(P. 8-14)
*Engine cover removed for clarity.
See the page number indicated in paren-
theses for operating details.
WDI0637
0-8Illustrated table of contents
REVIEW COPY—2009 Sentra(sen)
Owners Manual—USA_English(nna)
10/27/08—tbrooks
Page 15 of 326
Warning
lightName Page
or
Anti-lock Braking
System (ABS) warn-
ing light (if so
equipped)2-9
or
Brake warning light 2-9
Charge warning light 2-10
Door open warning
light2-10
Electric power
steering warning
light2-10
Engine oil pressure
warning light2-10
Low fuel warning
light2-10
Warning
lightName Page
Low tire pressure
warning light (if so
equipped)2-11
Low windshield
washer fluid warning
light (if so equipped)2-12
NISSAN Intelligent
Key™ warning light
(if so equipped)3-3
P position selecting
warning light (CVT
models) (if so
equipped)2-12
Seat belt warning
light and chime2-12
Supplemental air
bag warning light2-13
Indicator
lightName Page
Continuously Vari-
able Transmission
(CVT) position indi-
cator light (CVT
models)2-13
Cruise main switch
indicator light (if so
equipped)2-13
Cruise set switch
indicator light (if so
equipped)2-13
or
Front passenger air
bag status light2-13
High beam indicator
light (blue)2-13
Malfunction Indica-
tor Light (MIL)2-14
WARNING/INDICATOR LIGHTS
Illustrated table of contents0-9
REVIEW COPY—2009 Sentra(sen)
Owners Manual—USA_English(nna)
10/27/08—tbrooks
Page 16 of 326
Indicator
lightName Page
Overdrive off indica-
tor light (CVT mod-
els)2-14
Security indicator
light2-14
Turn signal/hazard
indicator lights2-15
0-10Illustrated table of contents
REVIEW COPY—2009 Sentra(sen)
Owners Manual—USA_English(nna)
10/27/08—tbrooks
Page 17 of 326

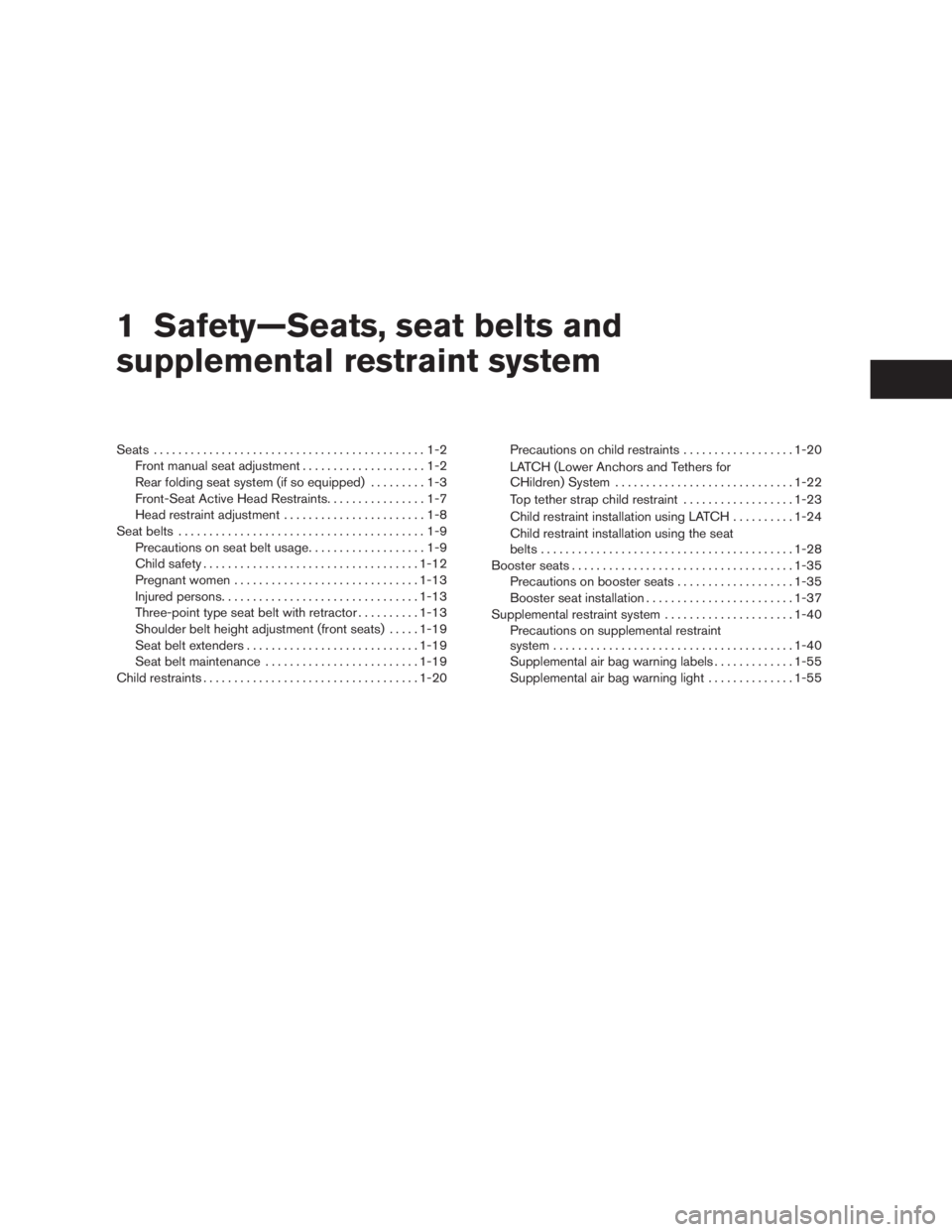

1 Safety—Seats, seat belts and
supplemental restraint system
Seats............................................1-2
Front manual seat adjustment....................1-2
Rear folding seat system (if so equipped).........1-3
Front-Seat Active Head Restraints................1-7
Head restraint adjustment.......................1-8
Seat belts........................................1-9
Precautions on seat belt usage...................1-9
Child safety...................................1-12
Pregnant women..............................1-13
Injured persons................................1-13
Three-point type seat belt with retractor..........1-13
Shoulder belt height adjustment (front seats).....1-19
Seat belt extenders............................1-19
Seat belt maintenance.........................1-19
Child restraints...................................1-20Precautions on child restraints..................1-20
LATCH (Lower Anchors and Tethers for
CHildren) System.............................1-22
Top tether strap child restraint..................1-23
Child restraint installation using LATCH..........1-24
Child restraint installation using the seat
belts.........................................1-28
Booster seats....................................1-35
Precautions on booster seats...................1-35
Booster seat installation........................1-37
Supplemental restraint system.....................1-40
Precautions on supplemental restraint
system.......................................1-40
Supplemental air bag warning labels.............1-55
Supplemental air bag warning light..............1-55
REVIEW COPY—2009 Sentra(sen)
Owners Manual—USA_English(nna)
10/27/08—tbrooks
Page 18 of 326
WARNING
●Do not ride in a moving vehicle when
the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and receive
neck or other serious injuries. You
could also slide under the lap belt and
receive serious internal injuries.●For the most effective protection when
the vehicle is in motion, the seat should
be upright. Always sit well back in the
seat with both feet on the floor and
adjust the seat properly. See “Precau-
tions on seat belt usage” later in this
section.
●After adjustment, gently rock in the seat
to make sure it is securely locked.
●Do not leave children unattended inside
the vehicle. They could unknowingly ac-
tivate switches or controls. Unattended
children could become involved in seri-
ous accidents.●The seatback should not be reclined
any more than needed for comfort. Seat
belts are most effective when the pas-
senger sits well back and straight up in
the seat. If the seatback is reclined, the
risk of sliding under the lap belt and
being injured is increased.
CAUTION
When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or damage.
FRONT MANUAL SEAT
ADJUSTMENTARS1152
SEATS
1-2Safety—Seats, seat belts and supplemental restraint system
REVIEW COPY—2009 Sentra(sen)
Owners Manual—USA_English(nna)
10/23/08—debbie
Page 19 of 326
Forward and backward
Pull the center of the bar up and hold it while you
slide the seat forward or backward to the desired
position. Release the bar to lock the seat in
position.
Reclining
To recline the seatback, pull the lever up and lean
back. To bring the seatback forward, pull the lever
up and lean your body forward. Release the lever
to lock the seatback in position.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. See “Precautions on seat belt usage” later
in this section. Also, the seatback can be reclined
to allow occupants to rest when the vehicle is
stopped and the shift selector (CVT) is in P (Park)
or the manual transmission is in N (Neutral) with
the parking brake applied.
Seat lifter (if so equipped for driver’s
seat)
Pull up or push down the adjusting lever to adjust
the seat height until the desired position is
achieved.
REAR FOLDING SEAT SYSTEM (if so
equipped)
WRS0719WRS0720WRS0721
Safety—Seats, seat belts and supplemental restraint system1-3
REVIEW COPY—2009 Sentra(sen)
Owners Manual—USA_English(nna)
10/23/08—debbie
Page 20 of 326
Interior trunk access (if so equipped)
The trunk can be accessed from the rear seat for
loading and unloading, as shown.
1. Stow outboard seat belts with clip before
folding rear seatbacks.
When folding the passenger’s side rear seat-
back, first disconnect and stow the center seat
belt. See “Stowing the rear center seat belt” later
in this section.2. Pull up on the strap
Alocated on the top
outboard side of the seat to be folded.
3. Fold seatback down.
WARNING
●Never allow anyone to ride in the cargo
area or on the rear seat when it is in the
fold-down position. Use of these areas
by passengers without proper restraints
could result in serious injury in an acci-
dent or sudden stop.●Properly secure all cargo with ropes or
straps to help prevent it from sliding or
shifting. Do not place cargo higher than
the seatbacks. In a sudden stop or col-
lision, unsecured cargo could cause
personal injury.
●When returning the seatbacks to the
upright position, be certain they are
completely secured in the latched posi-
tion. If they are not completely secured,
passengers may be injured in an acci-
dent or sudden stop.
●Closely supervise children when they
are around cars to prevent them from
playing and becoming locked in the
trunk where they could be seriously in-
jured. Keep the car locked, with the rear
seatback and trunk lid securely latched
when not in use, and prevent children’s
access to car keys.
LRS0728WRS0726
1-4Safety—Seats, seat belts and supplemental restraint system
REVIEW COPY—2009 Sentra(sen)
Owners Manual—USA_English(nna)
10/23/08—debbie
