Page 271 of 326

NISSAN SENTRA 2009  Owner´s Manual CAUTION
Be careful not to allow children to swallow
the battery or removed parts.
KEYFOB
Replace the battery in the keyfob as follows:
1Open the lid using a coinA.
2Remove the batteryB.
3Install

Page 272 of 326

NISSAN SENTRA 2009  Owner´s Manual ●Do not touch the internal circuit and electric
terminals as it could cause a malfunction.
Recommended battery: CR2025 or equivalent.
4Close the lid securely.
5. Press the
button, then thebutton tw

Page 273 of 326

NISSAN SENTRA 2009  Owner´s Manual NISSAN INTELLIGENT KEY™
Replace the battery in the Intelligent Key as fol-
lows:
1. Remove the mechanical key from the Intelli-
gent Key.
2. Insert a small screwdriver
Ainto the slitB
of the corne

Page 274 of 326

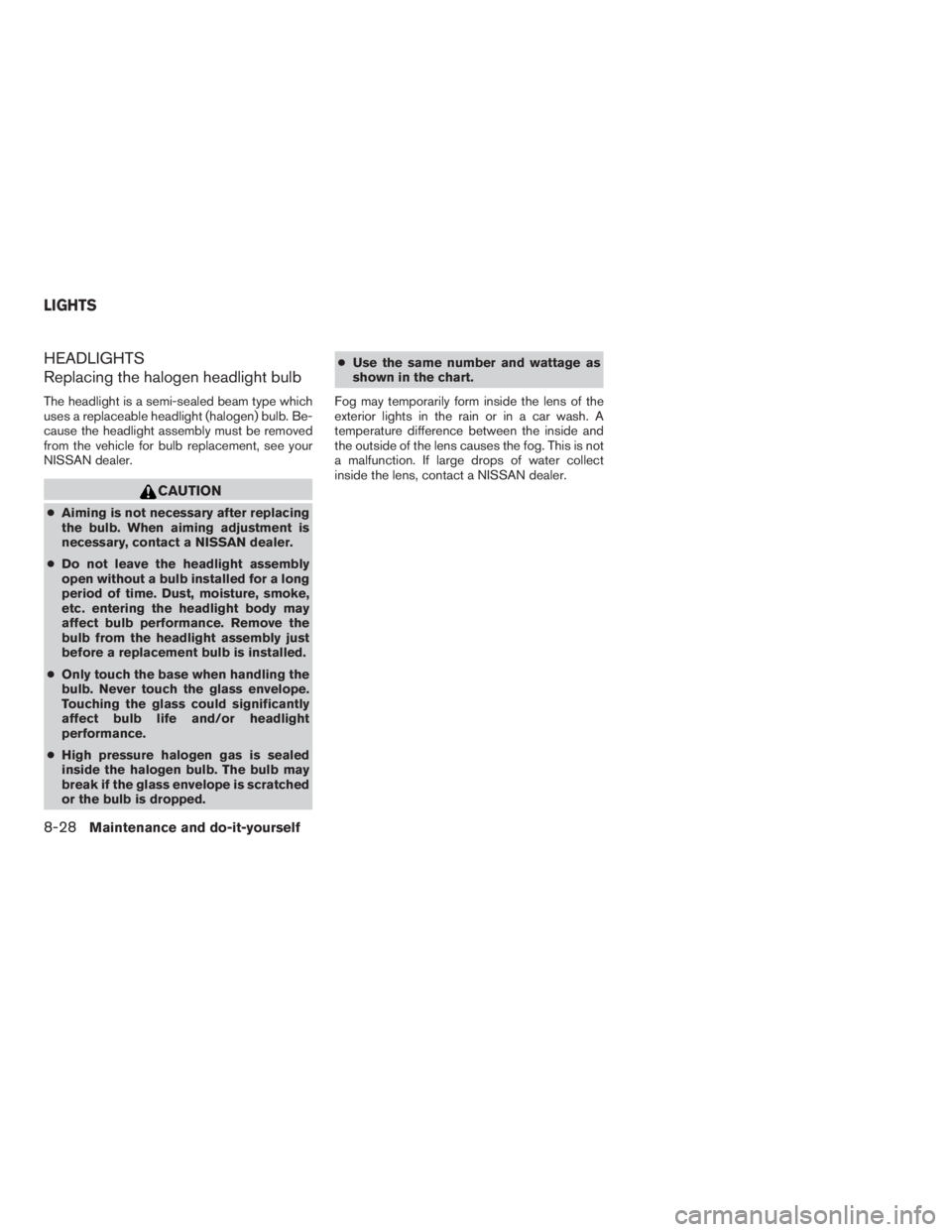

NISSAN SENTRA 2009  Owner´s Manual HEADLIGHTS
Replacing the halogen headlight bulb
The headlight is a semi-sealed beam type which
uses a replaceable headlight (halogen) bulb. Be-
cause the headlight assembly must be removed
from the ve

Page 275 of 326

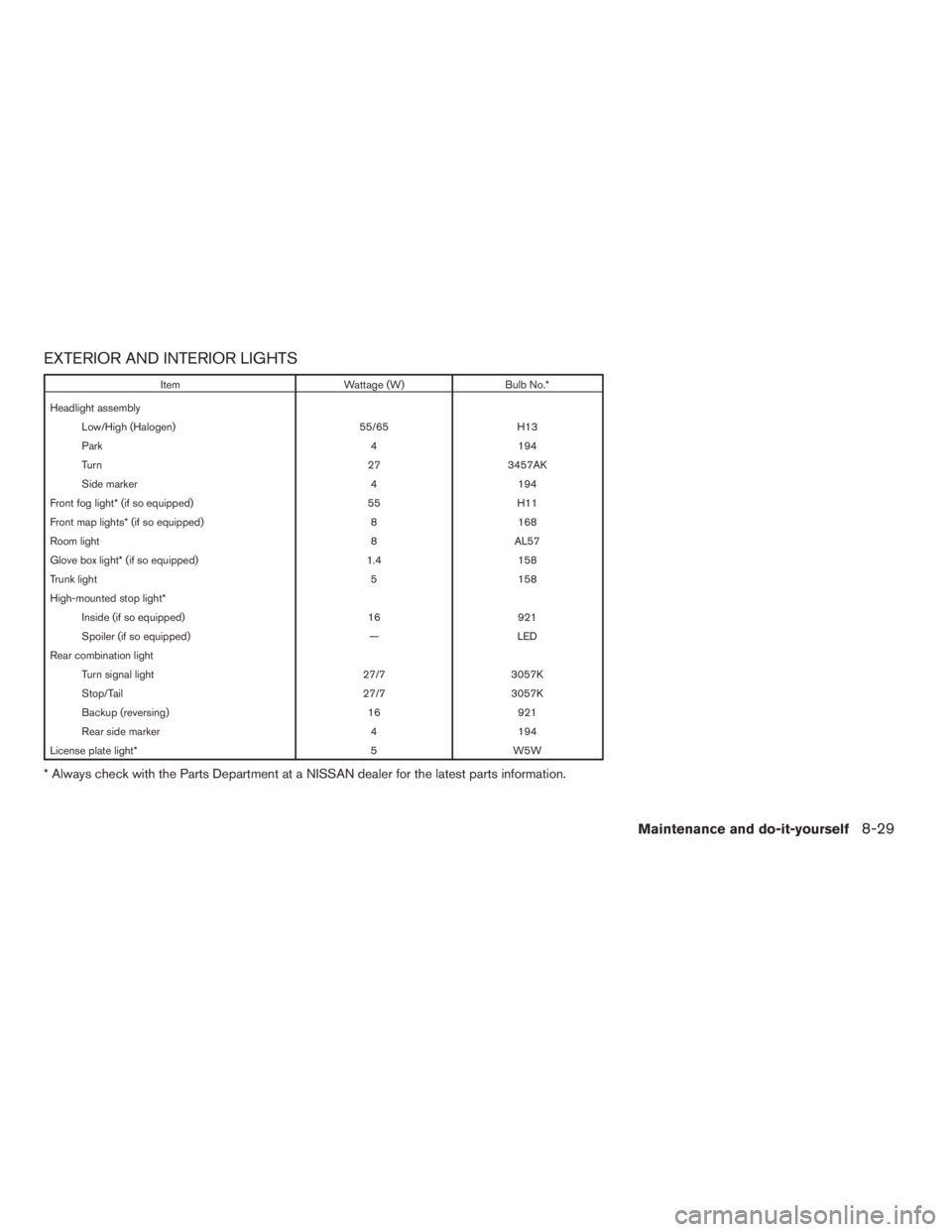

NISSAN SENTRA 2009  Owner´s Manual EXTERIOR AND INTERIOR LIGHTS
Item Wattage (W) Bulb No.*
Headlight assembly
Low/High (Halogen) 55/65 H13
Park 4 194
Turn 27 3457AK
Side marker 4 194
Front fog light* (if so equipped) 55 H11
Front map l

Page 276 of 326

NISSAN SENTRA 2009  Owner´s Manual 1. Front map lights
2. Room light
3. Headlight assembly
4. Front fog light (if so equipped)
5. High-mounted stop light (if so
equipped)
6. Spoiler mounted stop light (if so
equipped)
7. License plate

Page 277 of 326

NISSAN SENTRA 2009  Owner´s Manual Use a cloth1to protect the interior light hous-
ing.Use a clothAto protect the light housing.If you have a flat tire, see the “In case of
emergency” section of this manual.
TIRE PRESSURE
Tire Pr

Page 278 of 326

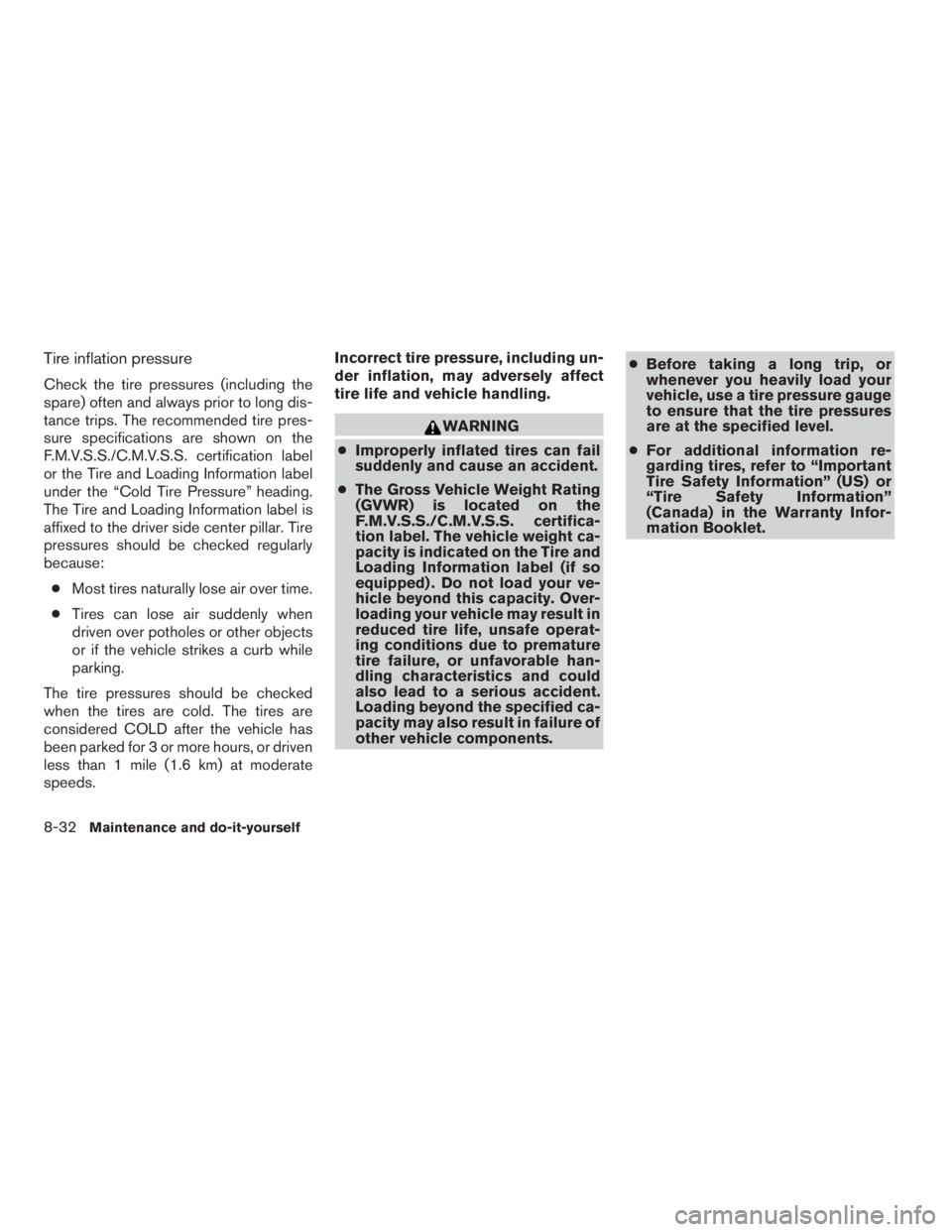

NISSAN SENTRA 2009  Owner´s Manual Tire inflation pressure
Check the tire pressures (including the
spare) often and always prior to long dis-
tance trips. The recommended tire pres-
sure specifications are shown on the
F.M.V.S.S./C.M.V

Page 279 of 326

NISSAN SENTRA 2009  Owner´s Manual Tire and loading information label
1Seating capacity: The maximum num-
ber of occupants that can be seated
in the vehicle.
2Vehicle load limit: See loading infor-
mation in the “Technical and con-

Page 280 of 326

NISSAN SENTRA 2009  Owner´s Manual Checking tire pressure
1. Remove the valve stem cap from the
tire.
2. Press the pressure gauge squarely
onto the valve stem. Do not press too
hard or force the valve stem side-
ways, or air will escap
