1. Trunk lid (P. 3-25)
2. High mount stop light (P. 8-26)
3. Replacing bulbs (P. 8-26)
4. Rear window defroster switch (P. 2-24)
5. Child safety rear door lock (P. 3-6)
6. Fuel-filler door (P. 3-26) , Fuel-filler cap,fuel recommendation (P. 3-26, P. 9-3)
7. Rear view camera (if so equipped)
(P. 4-9)
8. Exterior trunk lid release
(if so equipped) (P. 3-16) , Interior trunk
lid release (if so equipped) (P. 3-25)
See the page number indicated in paren-
theses for operating details.
LII2052
EXTERIOR REAR
0-4Illustrated table of contents
Page 12 of 372
1. Grocery hook (P. 2-36)
2. Interior lights (if so equipped) (P. 2-42)
3. Power window switch, Power door lockswitch (P. 2-37, 3-6)
4. Sun visors (P. 3-29)
5. Moonroof switch (if so equipped)
(P. 2-40)
6. Map lights (P. 2-43)
7. Sunglasses holder (P. 2-33)
8. Rearview mirror (P. 3-30)
9. Rear armrest, cup holders
(P. 1-4, P 2-34)
10. Console box (P. 2-35)
11. Front cup holders (P. 2-34)
LII2053
PASSENGER COMPARTMENT
Illustrated table of contents0-5
Page 13 of 372
1. Headlight/fog light (if so equipped)/turnsignal switch (P. 2-25)
2. Steering wheel switch for trip
computer, audio control and
Bluetooth® Hands-Free Phone System
(if so equipped) (P. 4-64, 4-66, 4-81) 3. Driver’s supplemental air bag/Horn
(P. 1-41, 2-28)
4. Meters and gauges (P. 2-3)
5. Cruise control main/set switches
(if so equipped) (P. 5-24) 6. Windshield wiper/washer switch
(P. 2-23)
7. Ventilator (P. 4-15)
8. Hazard warning flasher switch (P. 6-2)
9. Audio system (P. 4-26)
10. Passenger’s supplemental air bag
(P. 1-41)
11. Glove box (P. 2-35)
12. Shift selector (P. 5-17)
13. Climate control (P. 4-15, 4-23)
14. Ignition switch (if so equipped) (P. 5-8)
15. Tilt steering (P.3-28)
16. Hood release (P. 3-24)
17. Fuel filler door release (P. 3-26)
18. ECO mode switch (if so equipped)
(P. 5-23); SPORT mode switch (if so
equipped) (P.5-22); Vehicle dynamic
control (VDC) OFF switch (P.2-30)
19. Instrument brightness control (P. 2-27);
Power mirror switch (if so equipped)
(P.3-31); Trunk release (P.3-25)* Refer to the separate Navigation System Own-
er’s Manual (if so equipped) .
See the page number indicated in paren-
theses for operating details.LIC2439
INSTRUMENT PANEL
0-6Illustrated table of contents
Page 14 of 372
MRA8DE engine
1. Engine oil filler cap (P. 8-9)
2. Brake and clutch (if so equipped) fluidreservoir (P. 8-12)
3. Air cleaner (P. 8-17)
4. Battery (P. 8-13)
5. Fuse/fusible link box (P. 8-20)
6. Engine coolant reservoir (P. 8-7)
7. Radiator cap (P. 8-7)
8. Engine oil dipstick (P. 8-9)
9. Drive belt location (P. 8-16)
10. Windshield-washer fluid reservoir
(P. 8-12)
LDI2166
ENGINE COMPARTMENT CHECK
LOCATIONS
Illustrated table of contents0-7
Page 15 of 372

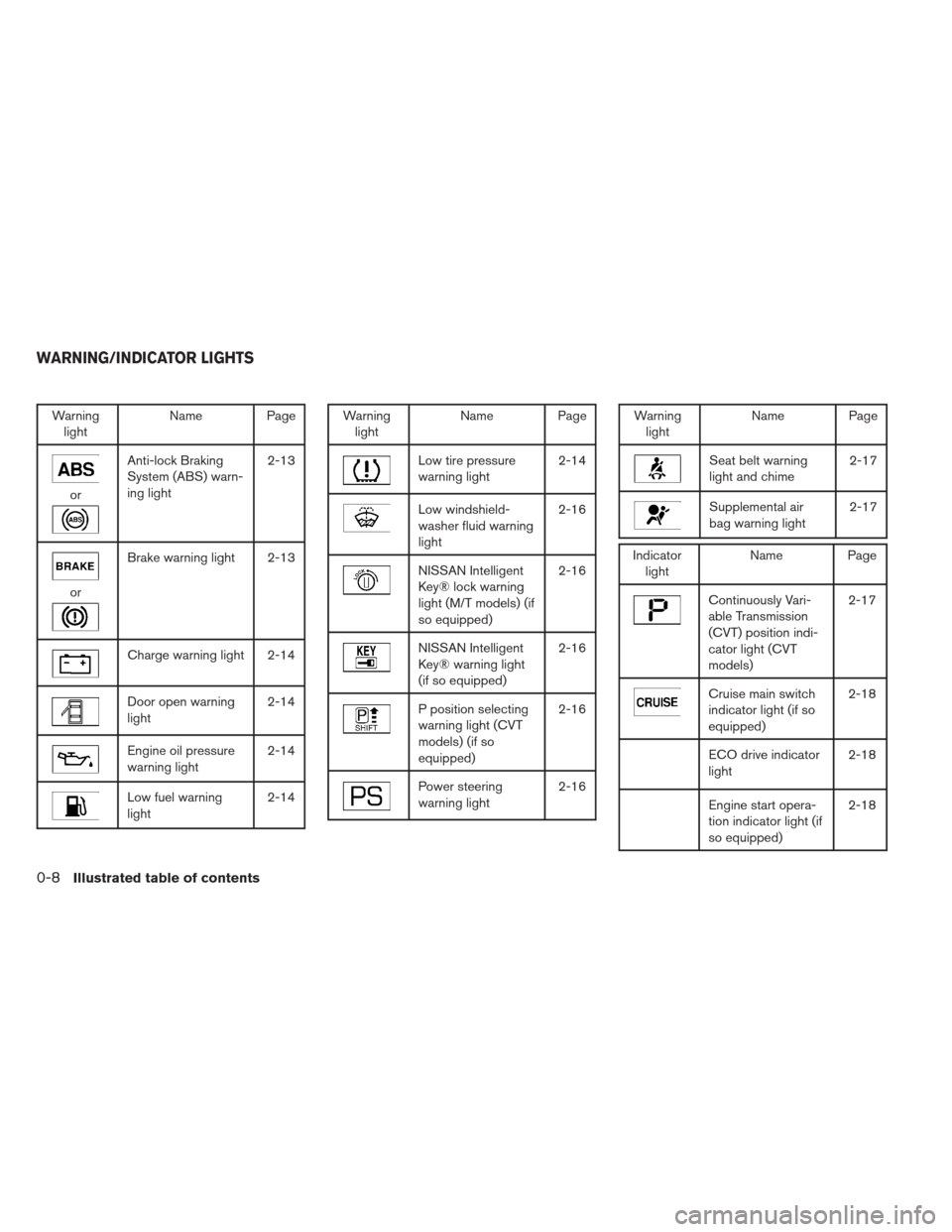

Warninglight Name Page
or
Anti-lock Braking
System (ABS) warn-
ing light 2-13
or
Brake warning light 2-13
Charge warning light 2-14
Door open warning
light
2-14
Engine oil pressure
warning light2-14
Low fuel warning
light2-14
Warning
light Name Page
Low tire pressure
warning light 2-14
Low windshield-
washer fluid warning
light2-16
NISSAN Intelligent
Key® lock warning
light (M/T models) (if
so equipped)2-16
NISSAN Intelligent
Key® warning light
(if so equipped)
2-16
P position selecting
warning light (CVT
models) (if so
equipped)2-16
Power steering
warning light
2-16
Warning
light Name Page
Seat belt warning
light and chime 2-17
Supplemental air
bag warning light2-17
Indicator
light Name Page
Continuously Vari-
able Transmission
(CVT) position indi-
cator light (CVT
models) 2-17
Cruise main switch
indicator light (if so
equipped)
2-18
ECO drive indicator
light
2-18
Engine start opera-
tion indicator light (if
so equipped)2-18
WARNING/INDICATOR LIGHTS
0-8Illustrated table of contents
Page 16 of 372
Indicatorlight Name Page
Front fog light indi-
cator light (if so
equipped) 2-18
Front passenger air
bag status light
2-18
High beam indicator
light (blue)2-18
Malfunction Indica-
tor Light (MIL)2-18
Overdrive off indica-
tor light (CVT mod-
els)2-19
Security indicator
light
2-19
Side light and head-
light indicator light
(green)2-19
Indicator
light Name Page
Slip indicator light 2-19
SPORT mode indi-
cator light (if so
equipped) 2-20
Turn signal/hazard
indicator lights
2-20
Vehicle Dynamic
Control (VDC) off
indicator light2-20
Illustrated table of contents0-9
Page 17 of 372
MEMO
0-10Illustrated table of contents
Page 18 of 372

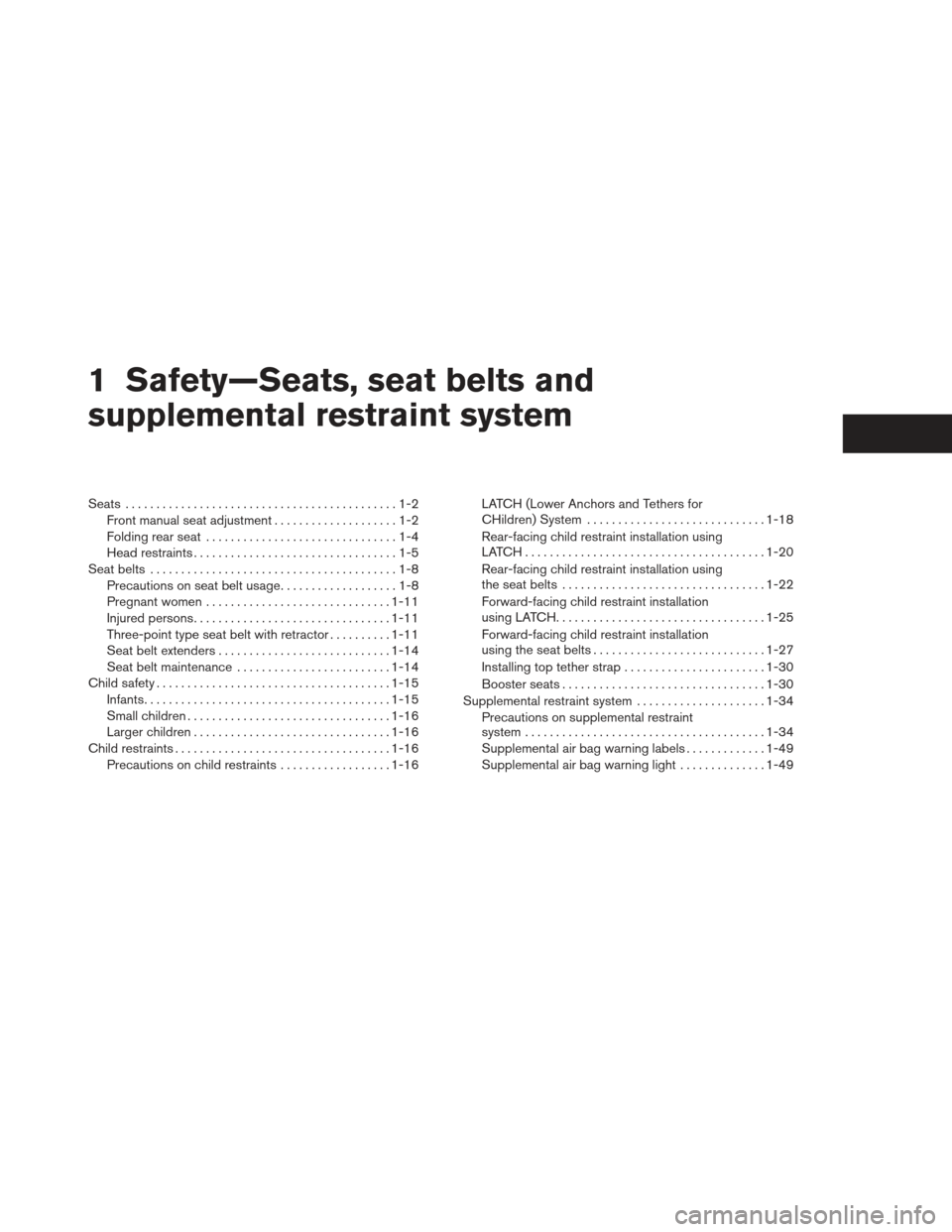

1 Safety—Seats, seat belts and
supplemental restraint system
Seats ............................................1-2
Front manual seat adjustment ....................1-2
Folding rear seat ...............................1-4
Head restraints .................................1-5
Seat belts ........................................1-8
Precautions on seat belt usage ...................1-8
Pregnant women .............................. 1-11
Injured persons ................................ 1-11
Three-point type seat belt with retractor ..........1-11
Seat belt extenders ............................ 1-14
Seat belt maintenance ......................... 1-14
Child safety ...................................... 1-15
Infants ........................................ 1-15
Small children ................................. 1-16
Larger children ................................ 1-16
Child restraints ................................... 1-16
Precautions on child restraints ..................1-16LATCH (Lower Anchors and Tethers for
CHildren) System
............................. 1-18
Rear-facing child restraint installation using
LATCH....................................... 1-20
Rear-facing child restraint installation using
the seat belts . . ............................... 1-22
Forward-facing child restraint installation
using LATCH. . . ............................... 1-25
Forward-facing child restraint installation
using the seat belts ............................ 1-27
Installing top tether strap .......................1-30
Booster seats ................................. 1-30
Supplemental restraint system .....................1-34
Precautions on supplemental restraint
system ....................................... 1-34
Supplemental air bag warning labels .............1-49
Supplemental air bag warning light ..............1-49
Page 19 of 372

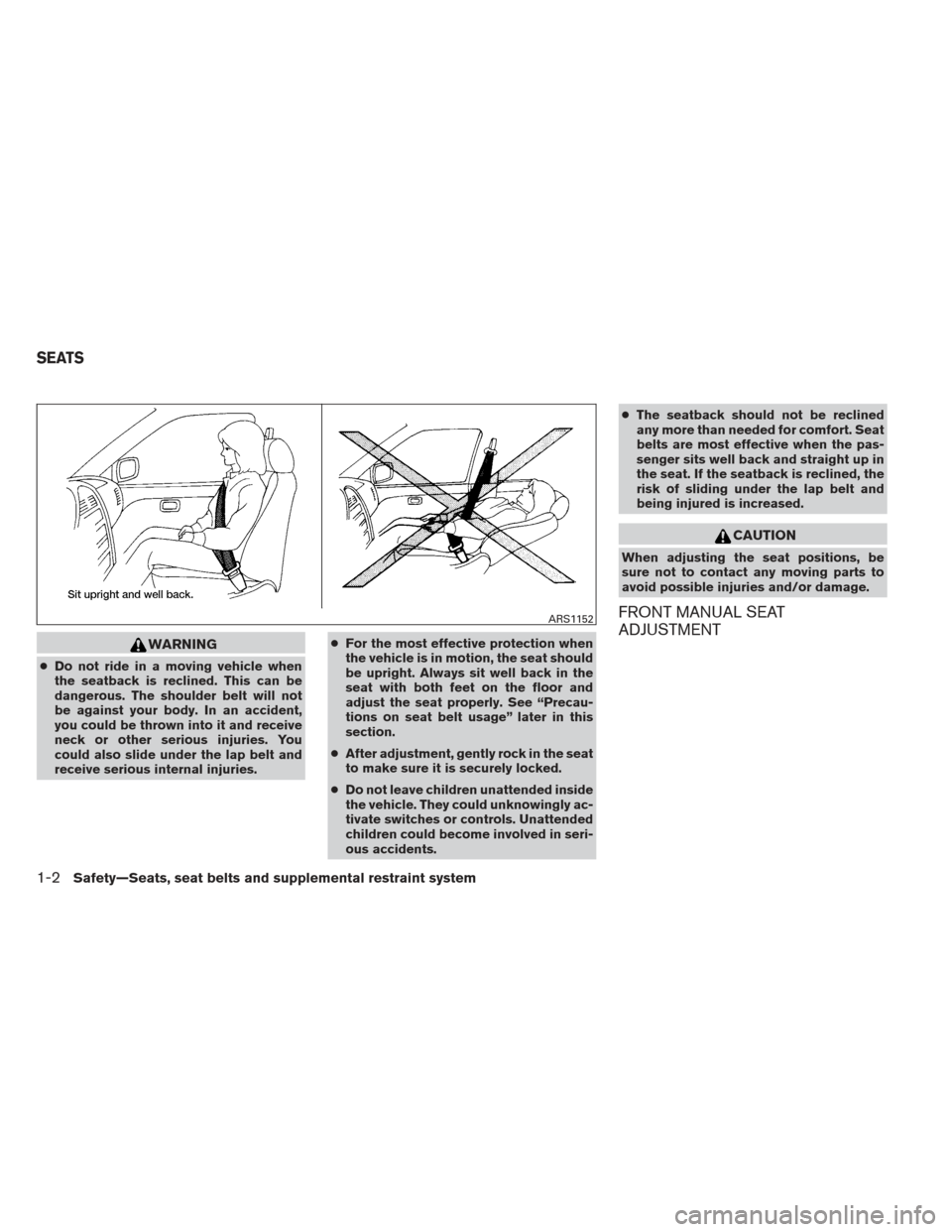

WARNING
●Do not ride in a moving vehicle when
the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and receive
neck or other serious injuries. You
could also slide under the lap belt and
receive serious internal injuries. ●
For the most effective protection when
the vehicle is in motion, the seat should
be upright. Always sit well back in the
seat with both feet on the floor and
adjust the seat properly. See “Precau-
tions on seat belt usage” later in this
section.
● After adjustment, gently rock in the seat
to make sure it is securely locked.
● Do not leave children unattended inside
the vehicle. They could unknowingly ac-
tivate switches or controls. Unattended
children could become involved in seri-
ous accidents. ●
The seatback should not be reclined
any more than needed for comfort. Seat
belts are most effective when the pas-
senger sits well back and straight up in
the seat. If the seatback is reclined, the
risk of sliding under the lap belt and
being injured is increased.
CAUTION
When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or damage.
FRONT MANUAL SEAT
ADJUSTMENTARS1152
SEATS
1-2Safety—Seats, seat belts and supplemental restraint system
Page 20 of 372

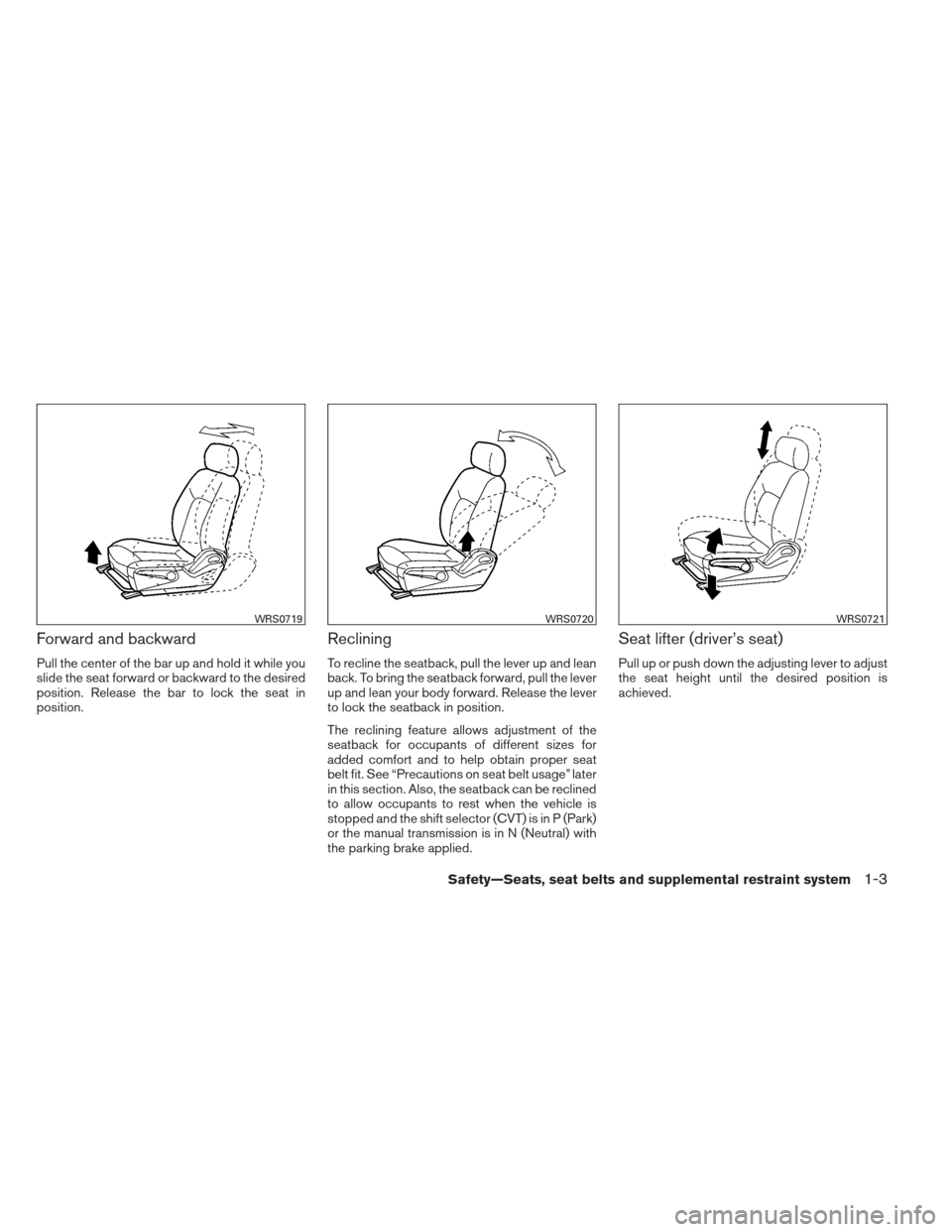

Forward and backward
