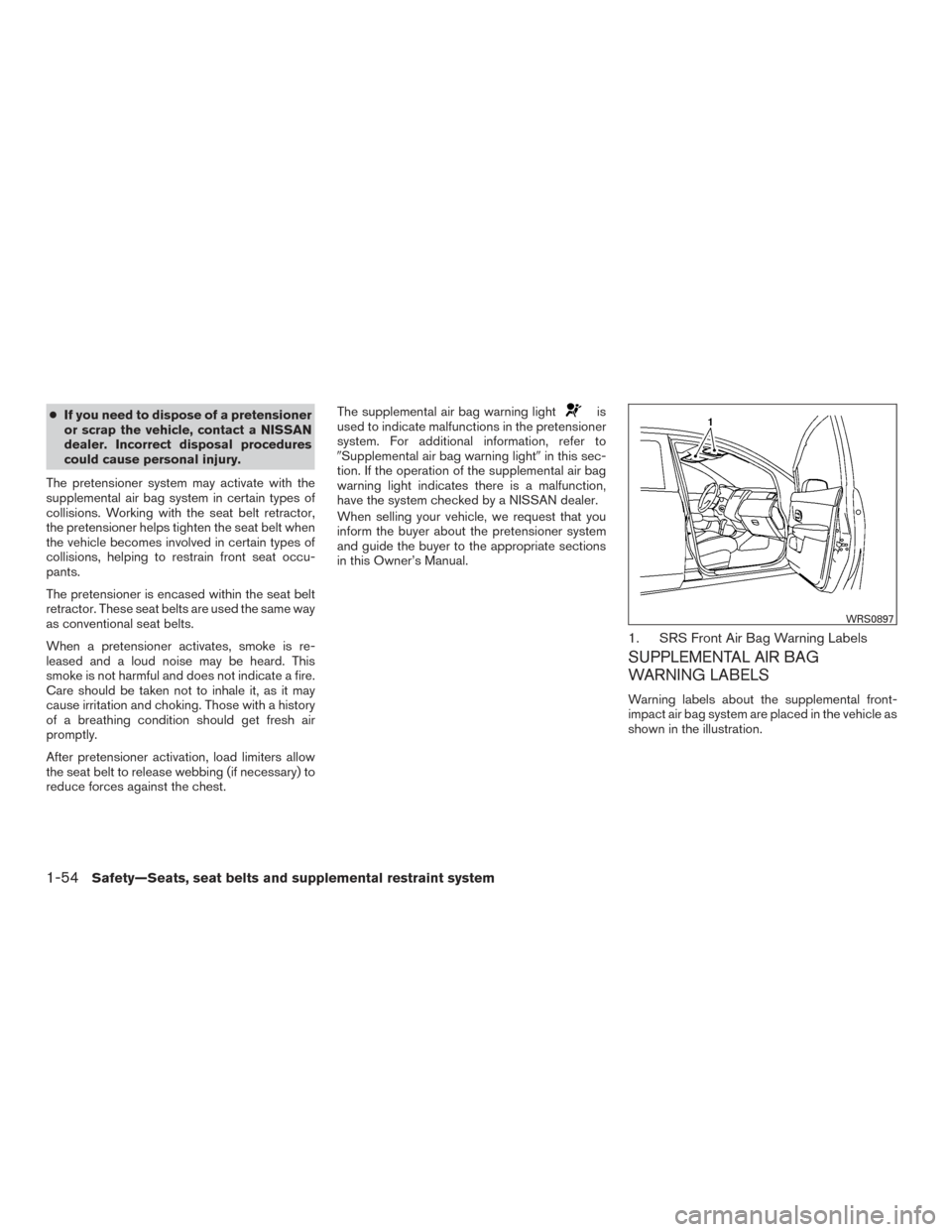

●If you need to dispose of a pretensioner
or scrap the vehicle, contact a NISSAN
dealer. Incorrect disposal procedures
could cause personal injury.
The pretensioner system may activate with the
supplemental air bag system in certain types of
collisions. Working with the seat belt retractor,
the pretensioner helps tighten the seat belt when
the vehicle becomes involved in certain types of
collisions, helping to restrain front seat occu-
pants.
The pretensioner is encased within the seat belt
retractor. These seat belts are used the same way
as conventional seat belts.
When a pretensioner activates, smoke is re-
leased and a loud noise may be heard. This
smoke is not harmful and does not indicate a fire.
Care should be taken not to inhale it, as it may
cause irritation and choking. Those with a history
of a breathing condition should get fresh air
promptly.
After pretensioner activation, load limiters allow
the seat belt to release webbing (if necessary) to
reduce forces against the chest. The supplemental air bag warning lightis
used to indicate malfunctions in the pretensioner
system. For additional information, refer to
Supplemental air bag warning light in this sec-
tion. If the operation of the supplemental air bag
warning light indicates there is a malfunction,
have the system checked by a NISSAN dealer.
When selling your vehicle, we request that you
inform the buyer about the pretensioner system
and guide the buyer to the appropriate sections
in this Owner’s Manual.
1. SRS Front Air Bag Warning Labels
SUPPLEMENTAL AIR BAG
WARNING LABELS
Warning labels about the supplemental front-
impact air bag system are placed in the vehicle as
shown in the illustration.
WRS0897
1-54Safety—Seats, seat belts and supplemental restraint system
Page 72 of 402

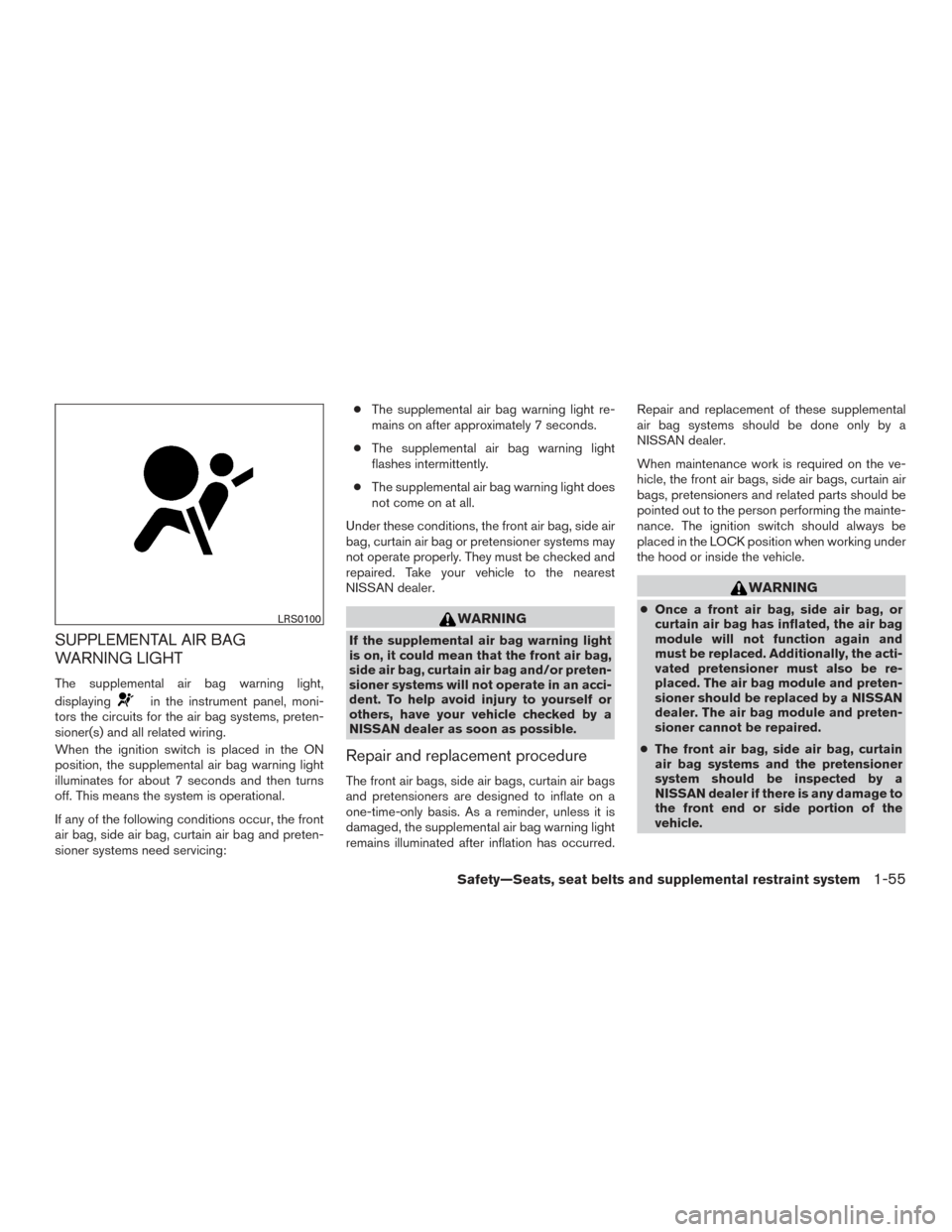

SUPPLEMENTAL AIR BAG
WARNING LIGHT
The supplemental air bag warning light,
displaying
in the instrument panel, moni-
tors the circuits for the air bag systems, preten-
sioner(s) and all related wiring.
When the ignition switch is placed in the ON
position, the supplemental air bag warning light
illuminates for about 7 seconds and then turns
off. This means the system is operational.
If any of the following conditions occur, the front
air bag, side air bag, curtain air bag and preten-
sioner systems need servicing: ●
The supplemental air bag warning light re-
mains on after approximately 7 seconds.
● The supplemental air bag warning light
flashes intermittently.
● The supplemental air bag warning light does
not come on at all.
Under these conditions, the front air bag, side air
bag, curtain air bag or pretensioner systems may
not operate properly. They must be checked and
repaired. Take your vehicle to the nearest
NISSAN dealer.
WARNING
If the supplemental air bag warning light
is on, it could mean that the front air bag,
side air bag, curtain air bag and/or preten-
sioner systems will not operate in an acci-
dent. To help avoid injury to yourself or
others, have your vehicle checked by a
NISSAN dealer as soon as possible.
Repair and replacement procedure
The front air bags, side air bags, curtain air bags
and pretensioners are designed to inflate on a
one-time-only basis. As a reminder, unless it is
damaged, the supplemental air bag warning light
remains illuminated after inflation has occurred. Repair and replacement of these supplemental
air bag systems should be done only by a
NISSAN dealer.
When maintenance work is required on the ve-
hicle, the front air bags, side air bags, curtain air
bags, pretensioners and related parts should be
pointed out to the person performing the mainte-
nance. The ignition switch should always be
placed in the LOCK position when working under
the hood or inside the vehicle.
WARNING
●
Once a front air bag, side air bag, or
curtain air bag has inflated, the air bag
module will not function again and
must be replaced. Additionally, the acti-
vated pretensioner must also be re-
placed. The air bag module and preten-
sioner should be replaced by a NISSAN
dealer. The air bag module and preten-
sioner cannot be repaired.
● The front air bag, side air bag, curtain
air bag systems and the pretensioner
system should be inspected by a
NISSAN dealer if there is any damage to
the front end or side portion of the
vehicle.LRS0100
Safety—Seats, seat belts and supplemental restraint system1-55
Page 73 of 402

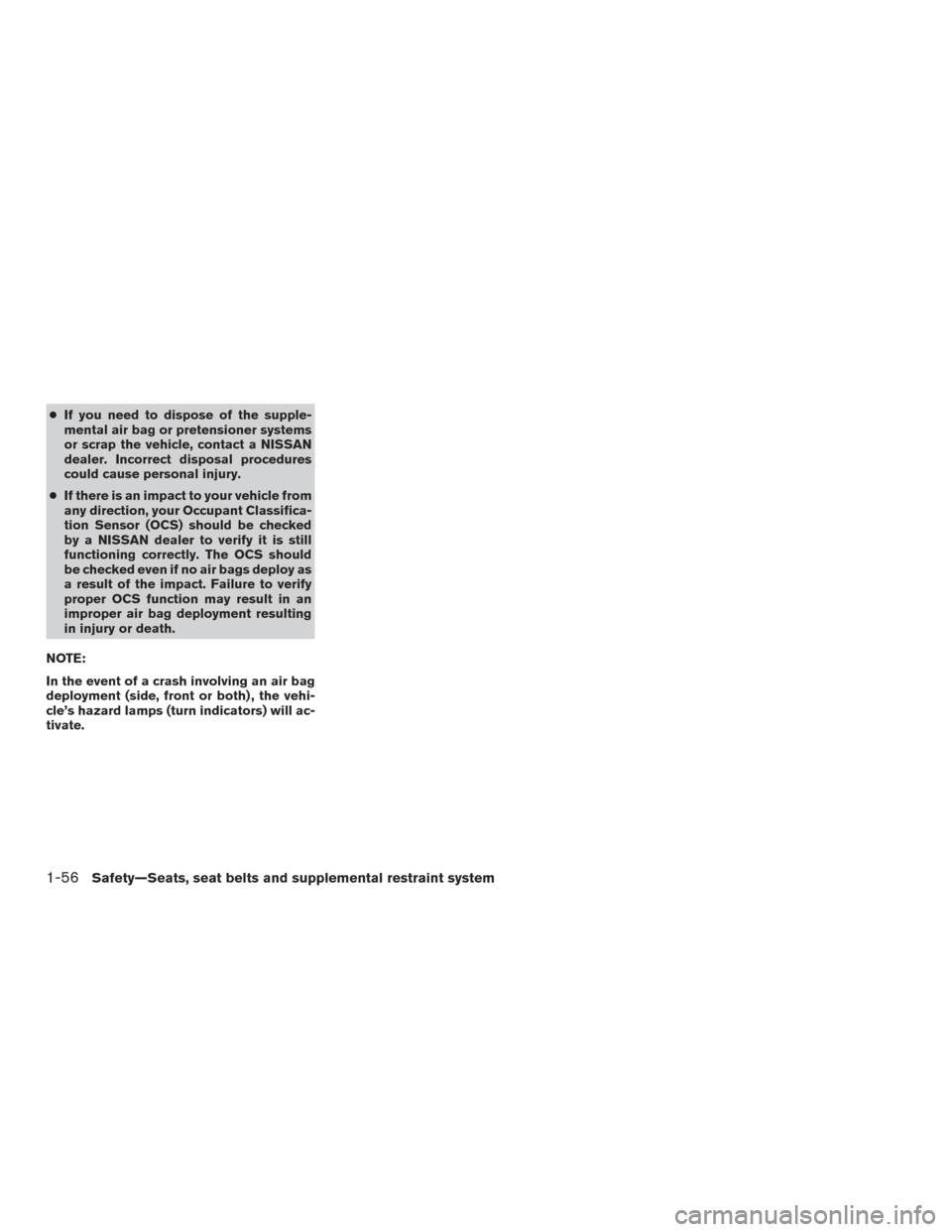

●If you need to dispose of the supple-
mental air bag or pretensioner systems
or scrap the vehicle, contact a NISSAN
dealer. Incorrect disposal procedures
could cause personal injury.
● If there is an impact to your vehicle from
any direction, your Occupant Classifica-
tion Sensor (OCS) should be checked
by a NISSAN dealer to verify it is still
functioning correctly. The OCS should
be checked even if no air bags deploy as
a result of the impact. Failure to verify
proper OCS function may result in an
improper air bag deployment resulting
in injury or death.
NOTE:
In the event of a crash involving an air bag
deployment (side, front or both) , the vehi-
cle’s hazard lamps (turn indicators) will ac-
tivate.
1-56Safety—Seats, seat belts and supplemental restraint system
Page 74 of 402

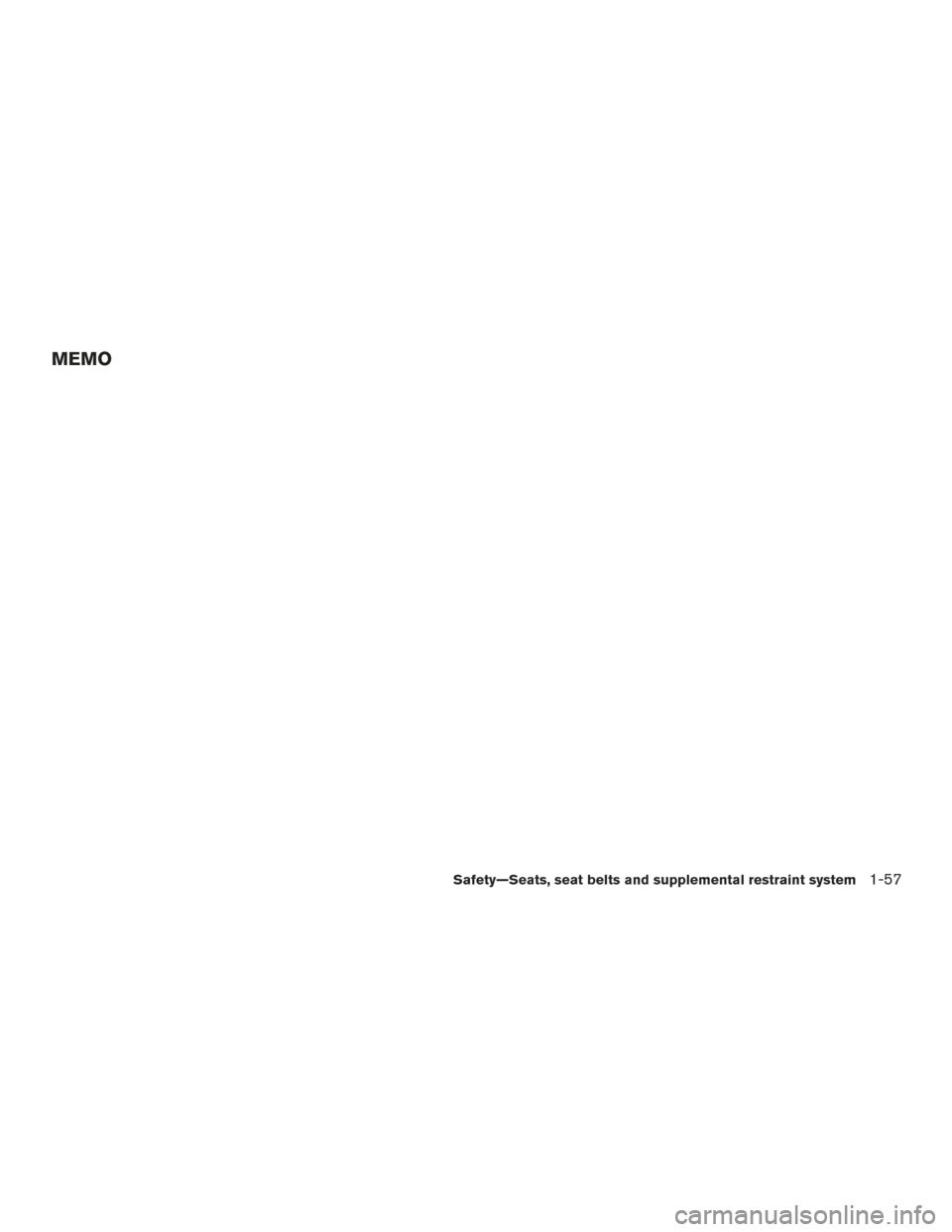

MEMO
Safety—Seats, seat belts and supplemental restraint system1-57
Page 75 of 402

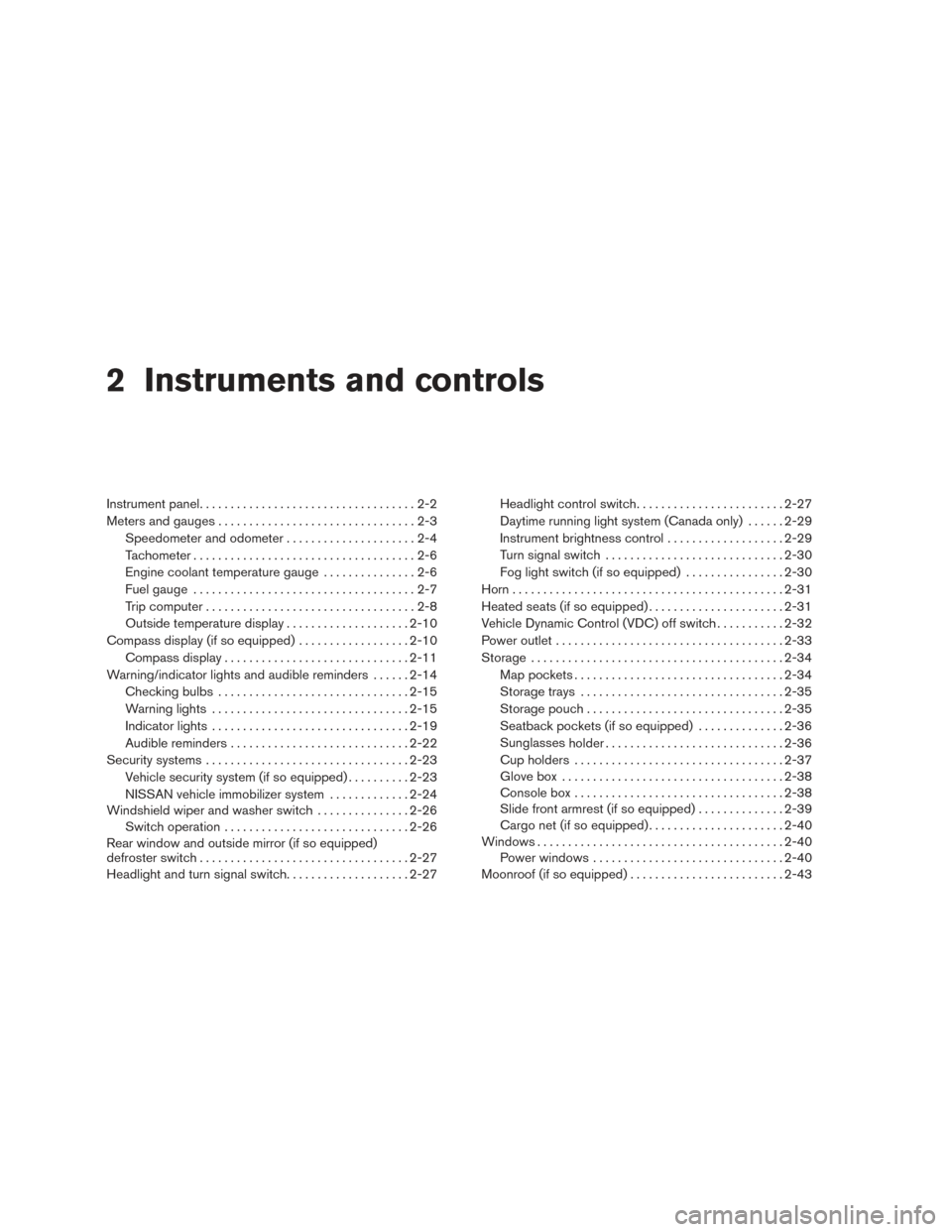

2 Instruments and controls

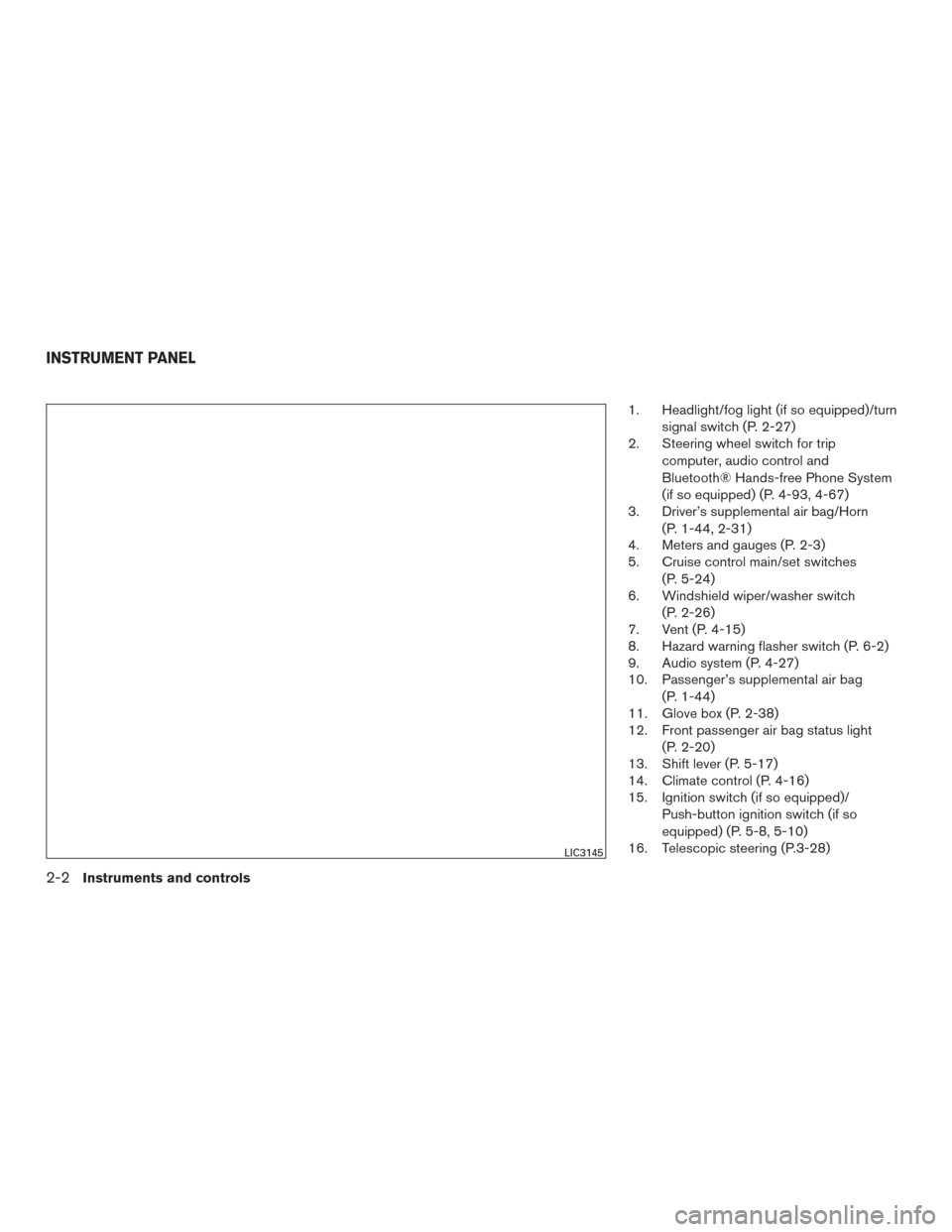

Instrument panel...................................2-2

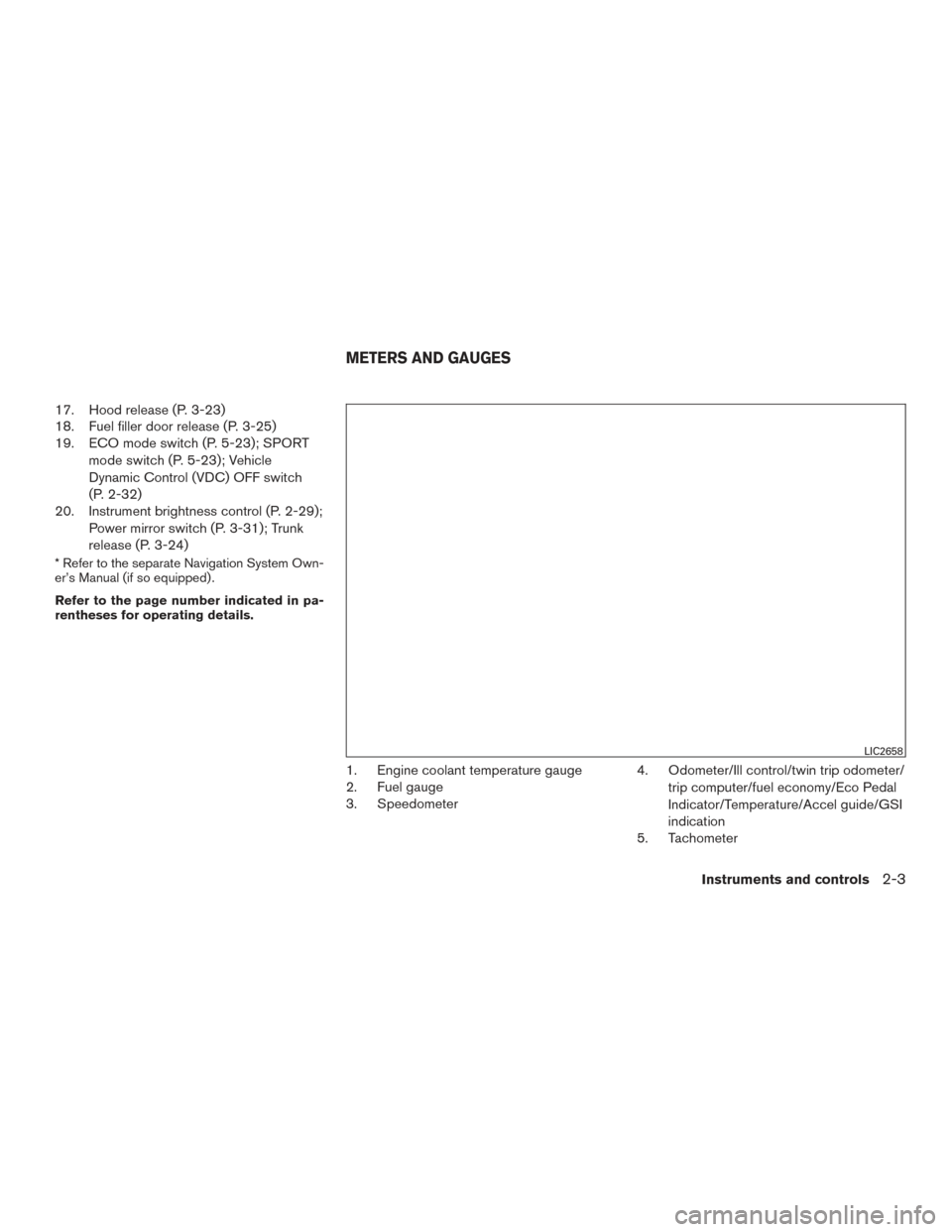

Meters and gauges ................................2-3

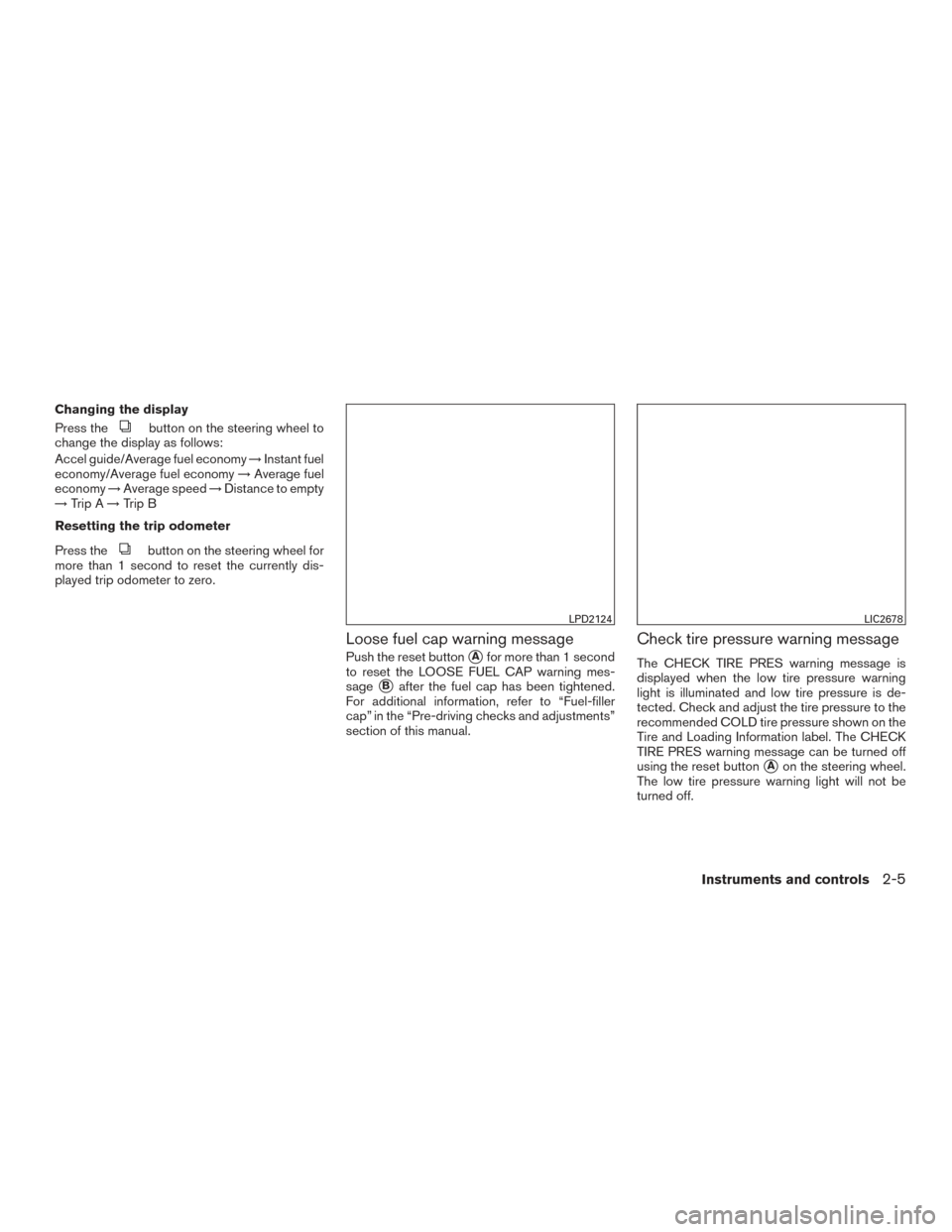

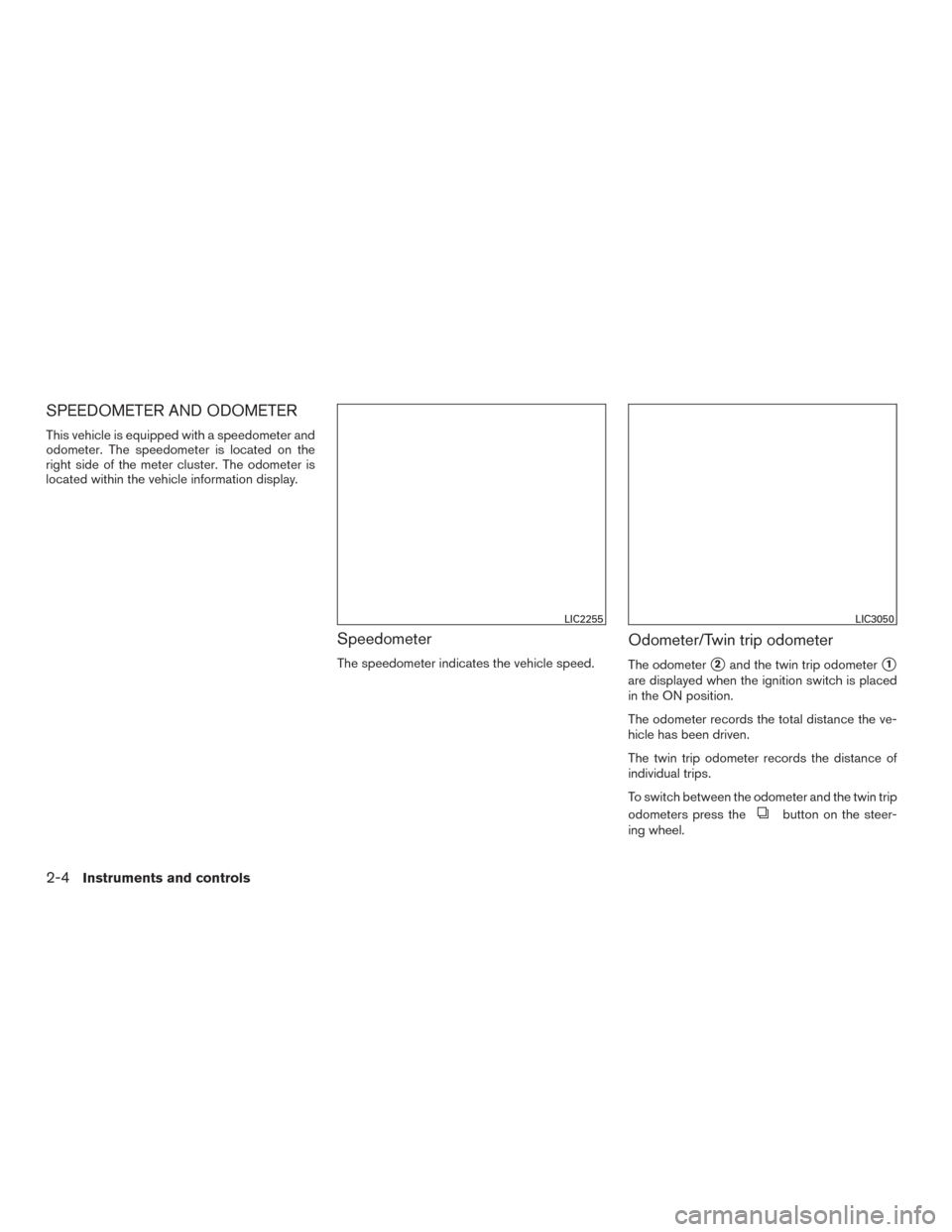

Speedometer and odometer .....................2-4
Tachometer ....................................2-6
Engine coolant temperature gauge ...............2-6
Fuel gauge ....................................2-7
Trip computer ..................................2-8
Outside temperature display ....................2-10
Compass display (if so equipped) ..................2-10
Compass display .............................. 2-11
Warning/indicator lights and audible reminders ......2-14
Checking bulbs ............................... 2-15
Warning lights ................................ 2-15
Indicator lights ................................ 2-19
Audible reminders ............................. 2-22
Security systems ................................. 2-23
Vehicle security system (if so equipped) ..........2-23
NISSAN vehicle immobilizer system .............2-24
Windshield wiper and washer switch ...............2-26
Switch operation .............................. 2-26
Rear window and outside mirror (if so equipped)
defroster switch .................................. 2-27
Headlight and turn signal switch ....................2-27Headlight control switch
........................ 2-27
Daytime running light system (Canada only) ......2-29
Instrument brightness control ...................2-29
Turn signal switch ............................. 2-30
Fog light switch (if so equipped) ................2-30
Horn ............................................ 2-31
Heated seats (if so equipped) ......................2-31
Vehicle Dynamic Control (VDC) off switch ...........2-32
Power outlet ..................................... 2-33
Storage ......................................... 2-34
Map pockets .................................. 2-34
Storage trays ................................. 2-35
Storage pouch ................................ 2-35
Seatback pockets (if so equipped) ..............2-36
Sunglasses
holder ............................. 2-36
Cup holders .................................. 2-37
Glove box .................................... 2-38
Console box .................................. 2-38
Slide front armrest (if so equipped) ..............2-39
Cargo net (if so equipped) ......................2-40
Windows ........................................ 2-40
Power windows ............................... 2-40
Moonroof (if so equipped) ......................... 2-43
Page 76 of 402

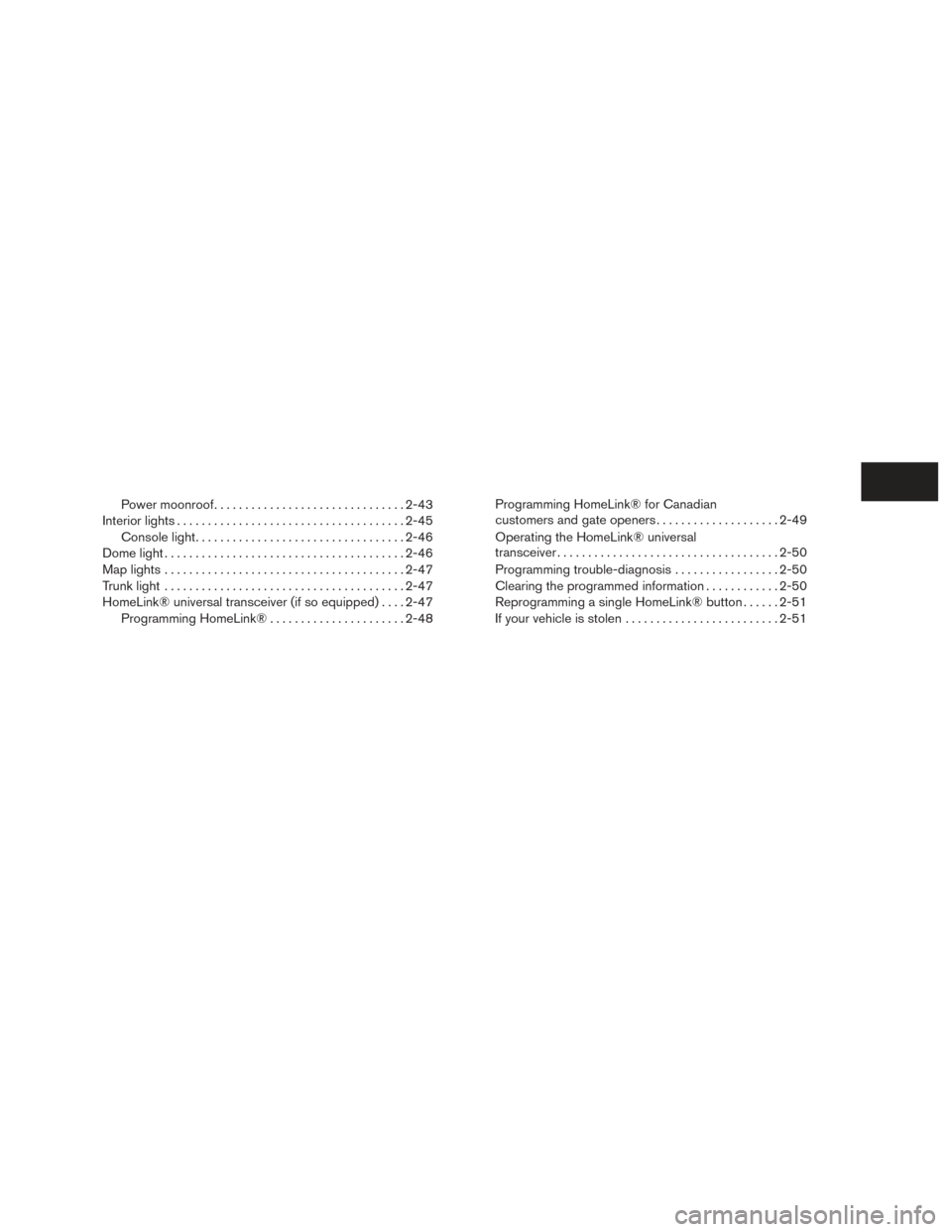

Power moonroof............................... 2-43

Interior lights ..................................... 2-45
Console light .................................. 2-46
Dome light ....................................... 2-46
Map lights ....................................... 2-47
Trunk light ....................................... 2-47
HomeLink® universal transceiver (if so equipped) . . . . 2-47 Programming HomeLink® ......................2-48Programming HomeLink® for Canadian
customers and gate openers
....................2-49
Operating the HomeLink® universal
transceiver .................................... 2-50
Programming trouble-diagnosis .................2-50
Clearing the programmed information ............2-50
Reprogramming a single HomeLink® button ......2-51
If your vehicle is stolen ......................... 2-51
Page 77 of 402
1. Headlight/fog light (if so equipped)/turnsignal switch (P. 2-27)
2. Steering wheel switch for trip
computer, audio control and
Bluetooth® Hands-free Phone System
(if so equipped) (P. 4-93, 4-67)
3. Driver’s supplemental air bag/Horn
(P. 1-44, 2-31)
4. Meters and gauges (P. 2-3)
5. Cruise control main/set switches
(P. 5-24)
6. Windshield wiper/washer switch
(P. 2-26)
7. Vent (P. 4-15)
8. Hazard warning flasher switch (P. 6-2)
9. Audio system (P. 4-27)
10. Passenger’s supplemental air bag
(P. 1-44)
11. Glove box (P. 2-38)
12. Front passenger air bag status light
(P. 2-20)
13. Shift lever (P. 5-17)
14. Climate control (P. 4-16)
15. Ignition switch (if so equipped)/
Push-button ignition switch (if so
equipped) (P. 5-8, 5-10)
16. Telescopic steering (P.3-28)
LIC3145
INSTRUMENT PANEL
2-2Instruments and controls
Page 78 of 402
17. Hood release (P. 3-23)
18. Fuel filler door release (P. 3-25)
19. ECO mode switch (P. 5-23); SPORTmode switch (P. 5-23); Vehicle
Dynamic Control (VDC) OFF switch
(P. 2-32)
20. Instrument brightness control (P. 2-29);
Power mirror switch (P. 3-31); Trunk
release (P. 3-24)
* Refer to the separate Navigation System Own-
er’s Manual (if so equipped) .
Refer to the page number indicated in pa-
rentheses for operating details.
1. Engine coolant temperature gauge
2. Fuel gauge
3. Speedometer 4. Odometer/Ill control/twin trip odometer/
trip computer/fuel economy/Eco Pedal
Indicator/Temperature/Accel guide/GSI
indication
5. Tachometer
LIC2658
METERS AND GAUGES
Instruments and controls2-3
Page 79 of 402
SPEEDOMETER AND ODOMETER
This vehicle is equipped with a speedometer and
odometer. The speedometer is located on the
right side of the meter cluster. The odometer is
located within the vehicle information display.
Speedometer
The speedometer indicates the vehicle speed.
Odometer/Twin trip odometer
The odometer2and the twin trip odometer1
are displayed when the ignition switch is placed
in the ON position.
The odometer records the total distance the ve-
hicle has been driven.
The twin trip odometer records the distance of
individual trips.
To switch between the odometer and the twin trip
odometers press the
button on the steer-
ing wheel.
LIC2255LIC3050
2-4Instruments and controls
Page 80 of 402
Changing the display
Press the
button on the steering wheel to
change the display as follows:
Accel guide/Average fuel economy →Instant fuel
economy/Average fuel economy →Average fuel
economy →Average speed →Distance to empty
→ Trip A →Trip B
Resetting the trip odometer
Press the
button on the steering wheel for
more than 1 second to reset the currently dis-
played trip odometer to zero.
Loose fuel cap warning message
Push the reset buttonAfor more than 1 second
to reset the LOOSE FUEL CAP warning mes-
sage
Bafter the fuel cap has been tightened.
For additional information, refer to “Fuel-filler
cap” in the “Pre-driving checks and adjustments”
section of this manual.
Check tire pressure warning message
The CHECK TIRE PRES warning message is
displayed when the low tire pressure warning
light is illuminated and low tire pressure is de-
tected. Check and adjust the tire pressure to the
recommended COLD tire pressure shown on the
Tire and Loading Information label. The CHECK
TIRE PRES warning message can be turned off
using the reset button
Aon the steering wheel.
The low tire pressure warning light will not be
turned off.
LPD2124LIC2678
Instruments and controls2-5
