Page 91 of 478

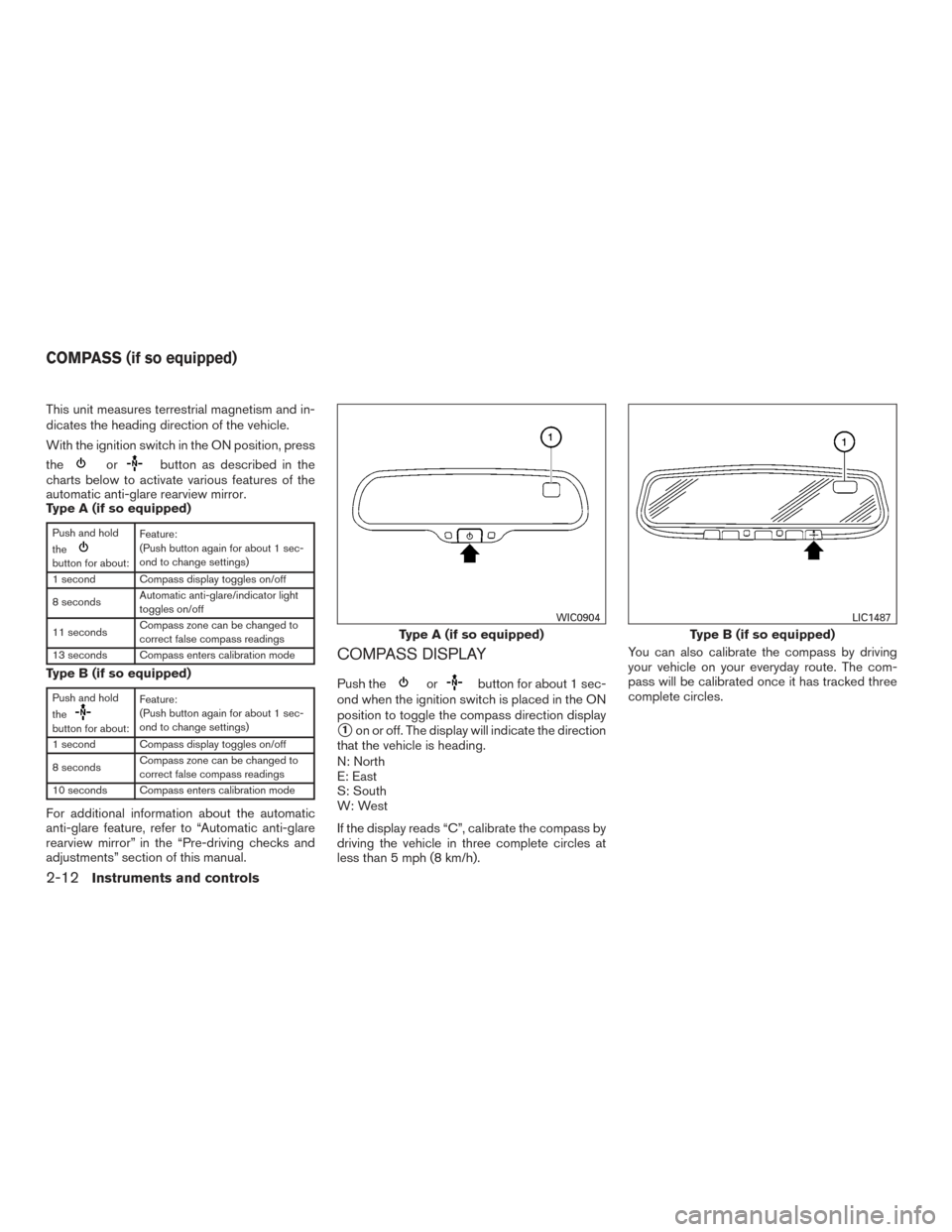

NISSAN SENTRA 2016 B17 / 7.G Owners Manual This unit measures terrestrial magnetism and in-
dicates the heading direction of the vehicle.
With the ignition switch in the ON position, press
the
orbutton as described in the
charts below to activ

Page 92 of 478

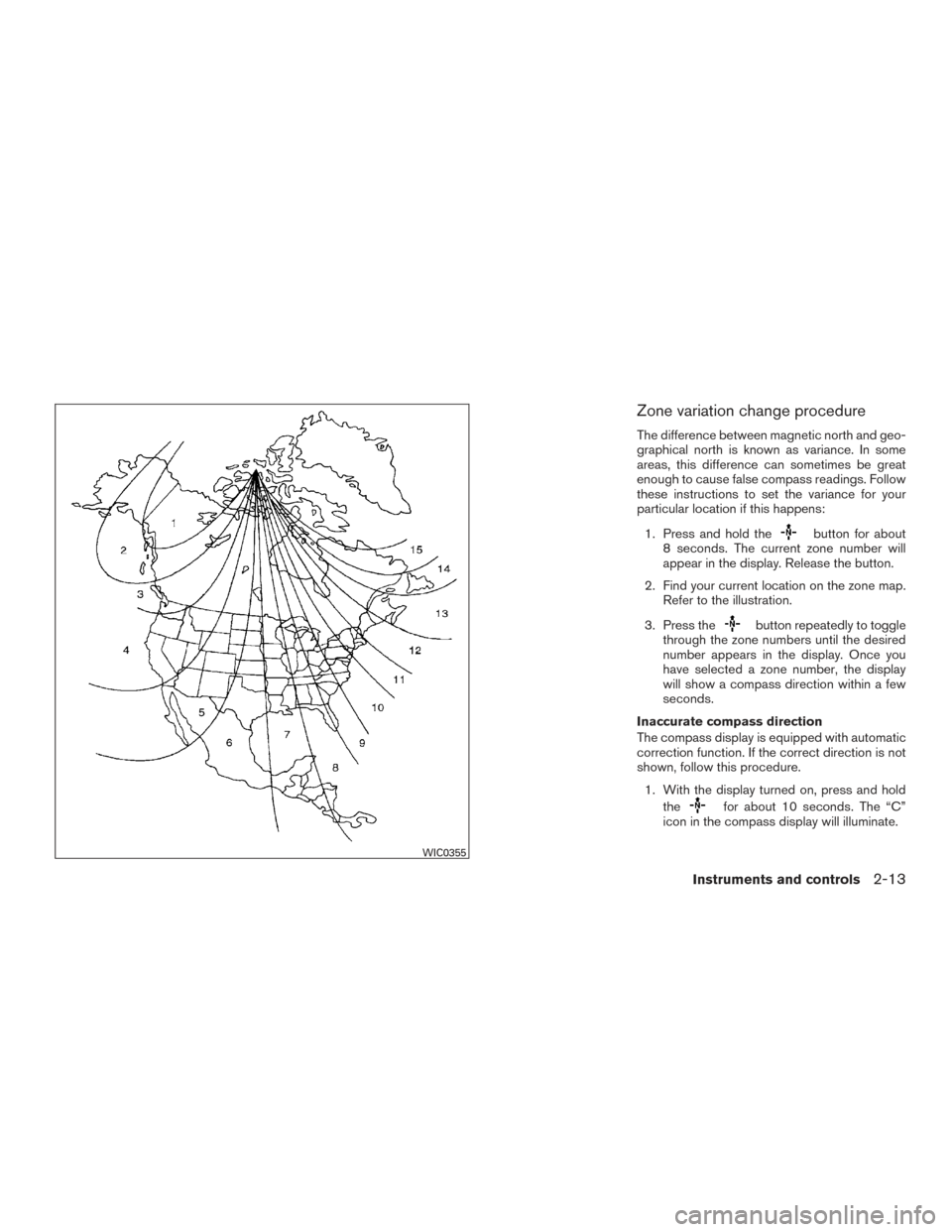

NISSAN SENTRA 2016 B17 / 7.G Owners Manual Zone variation change procedure
The difference between magnetic north and geo-
graphical north is known as variance. In some
areas, this difference can sometimes be great
enough to cause false compass

Page 93 of 478

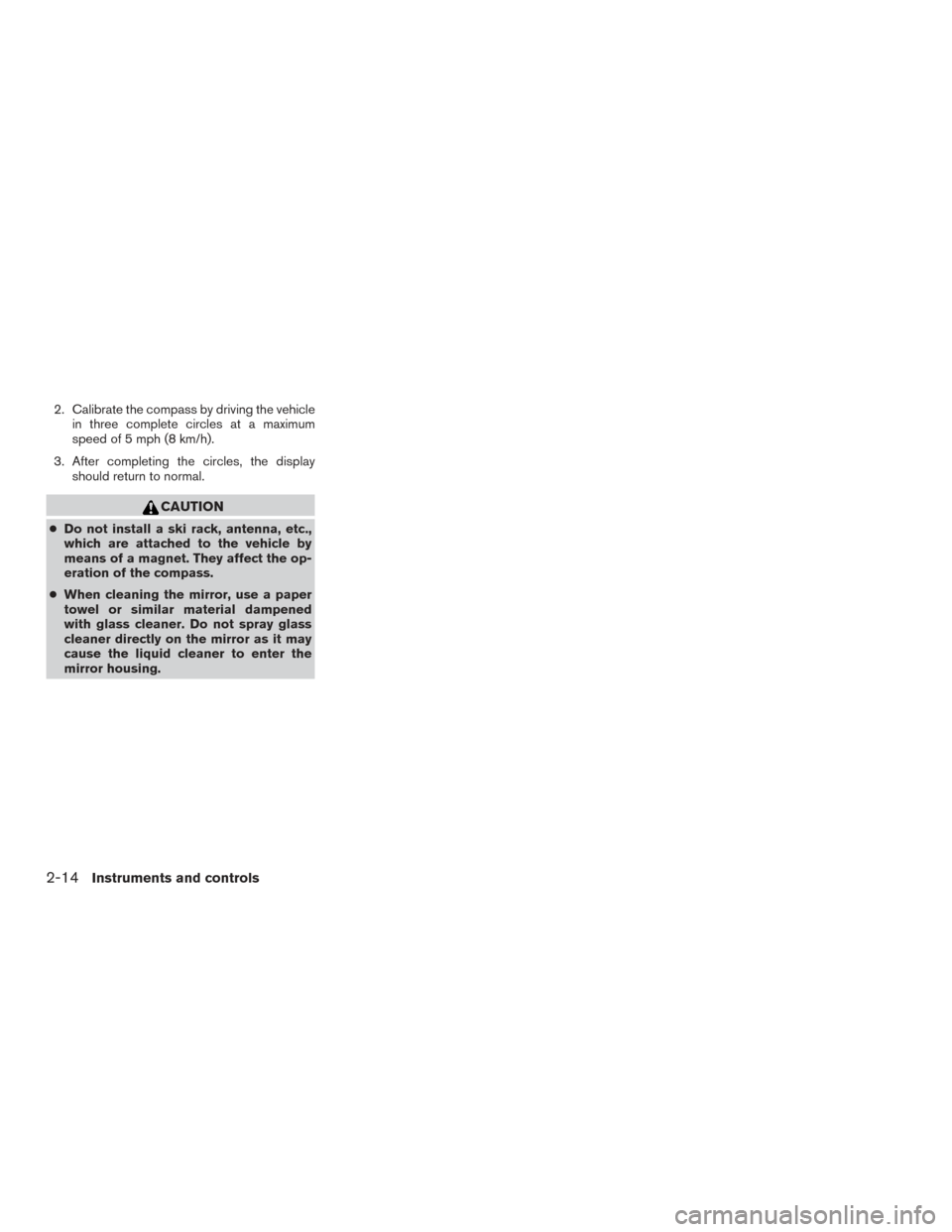

NISSAN SENTRA 2016 B17 / 7.G Owners Manual 2. Calibrate the compass by driving the vehiclein three complete circles at a maximum
speed of 5 mph (8 km/h).
3. After completing the circles, the display should return to normal.
CAUTION
●Do not i

Page 94 of 478

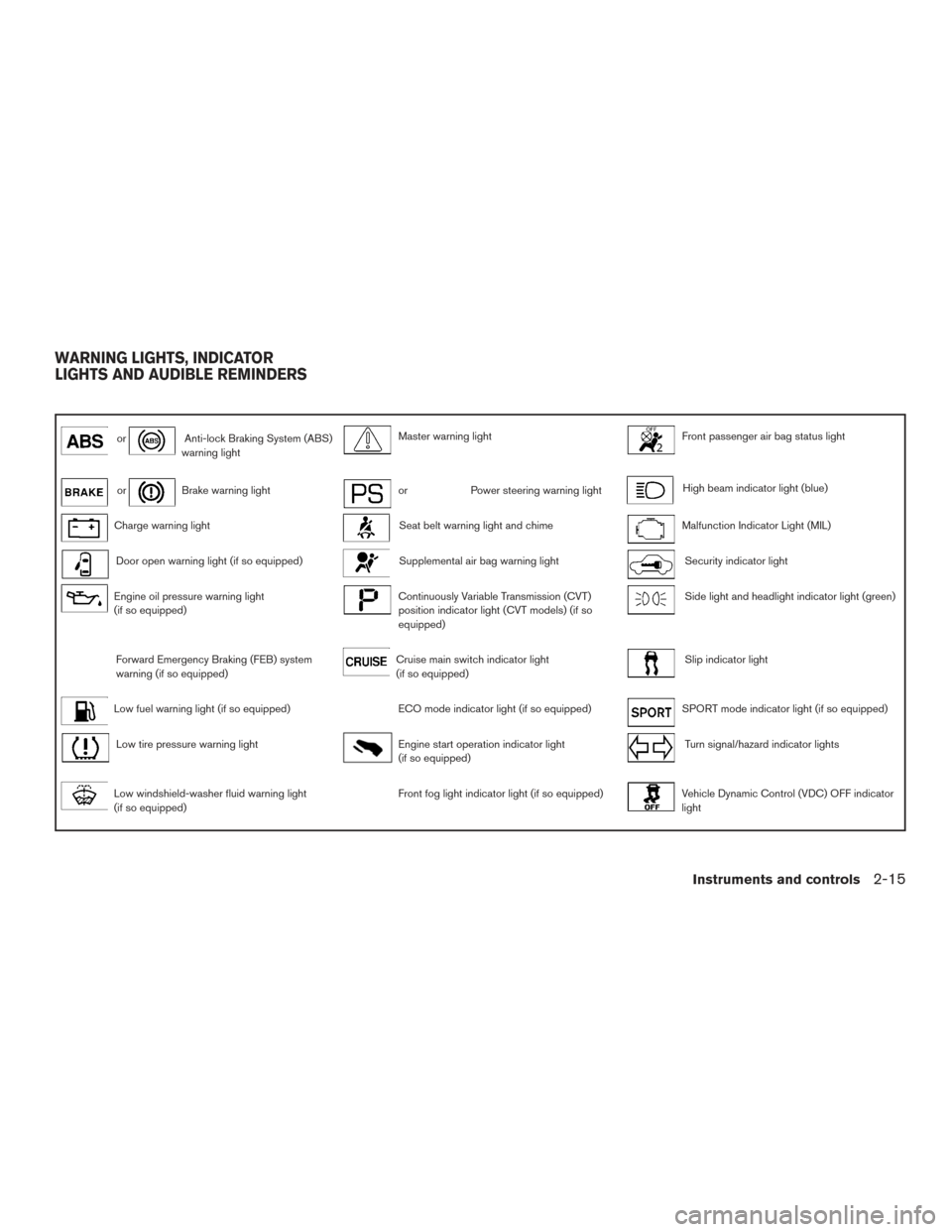

NISSAN SENTRA 2016 B17 / 7.G Owners Manual orAnti-lock Braking System (ABS)
warning lightMaster warning lightFront passenger air bag status light
orBrake warning lightorPower steering warning lightHigh beam indicator light (blue)
Charge warnin

Page 95 of 478

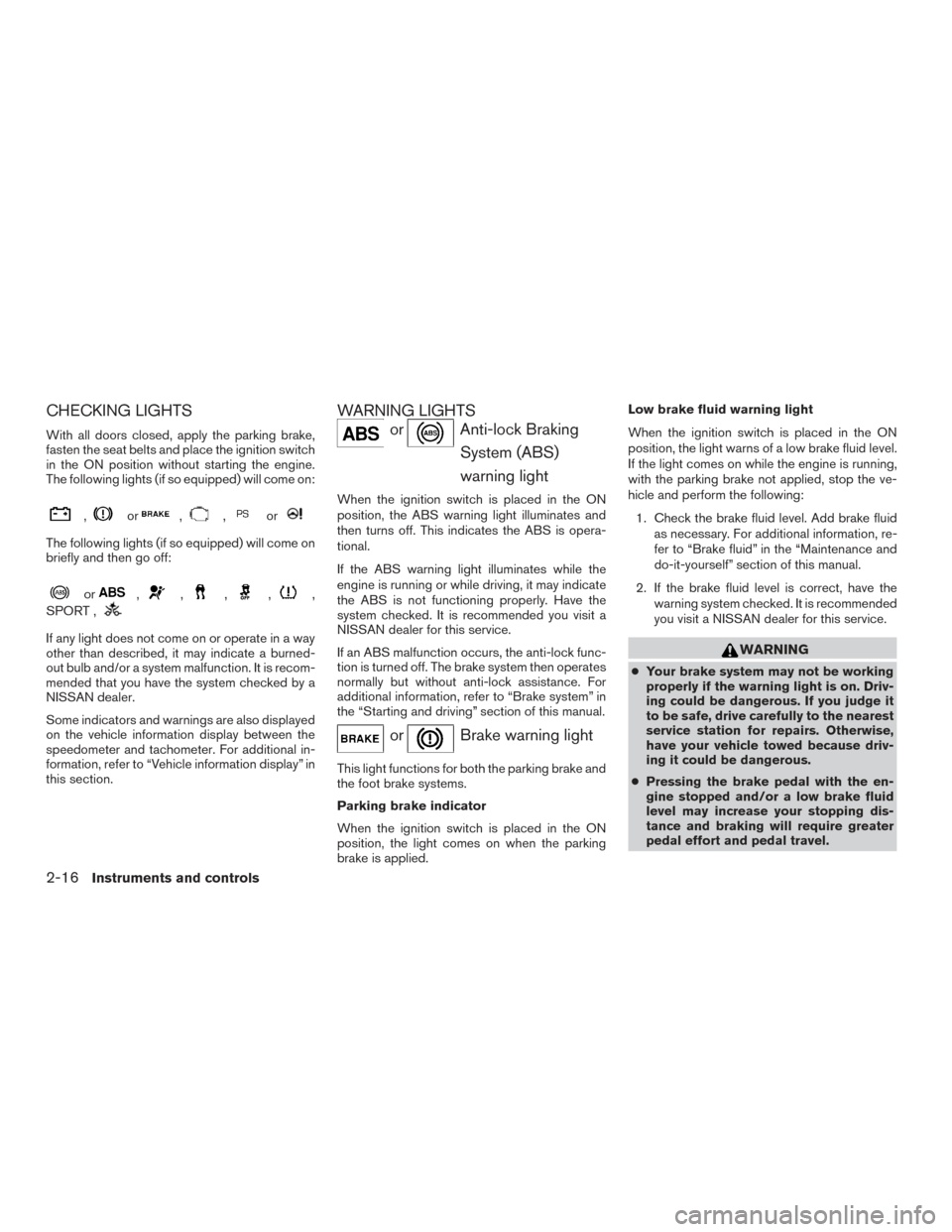

NISSAN SENTRA 2016 B17 / 7.G Owners Manual CHECKING LIGHTS
With all doors closed, apply the parking brake,
fasten the seat belts and place the ignition switch
in the ON position without starting the engine.
The following lights (if so equipped

Page 96 of 478

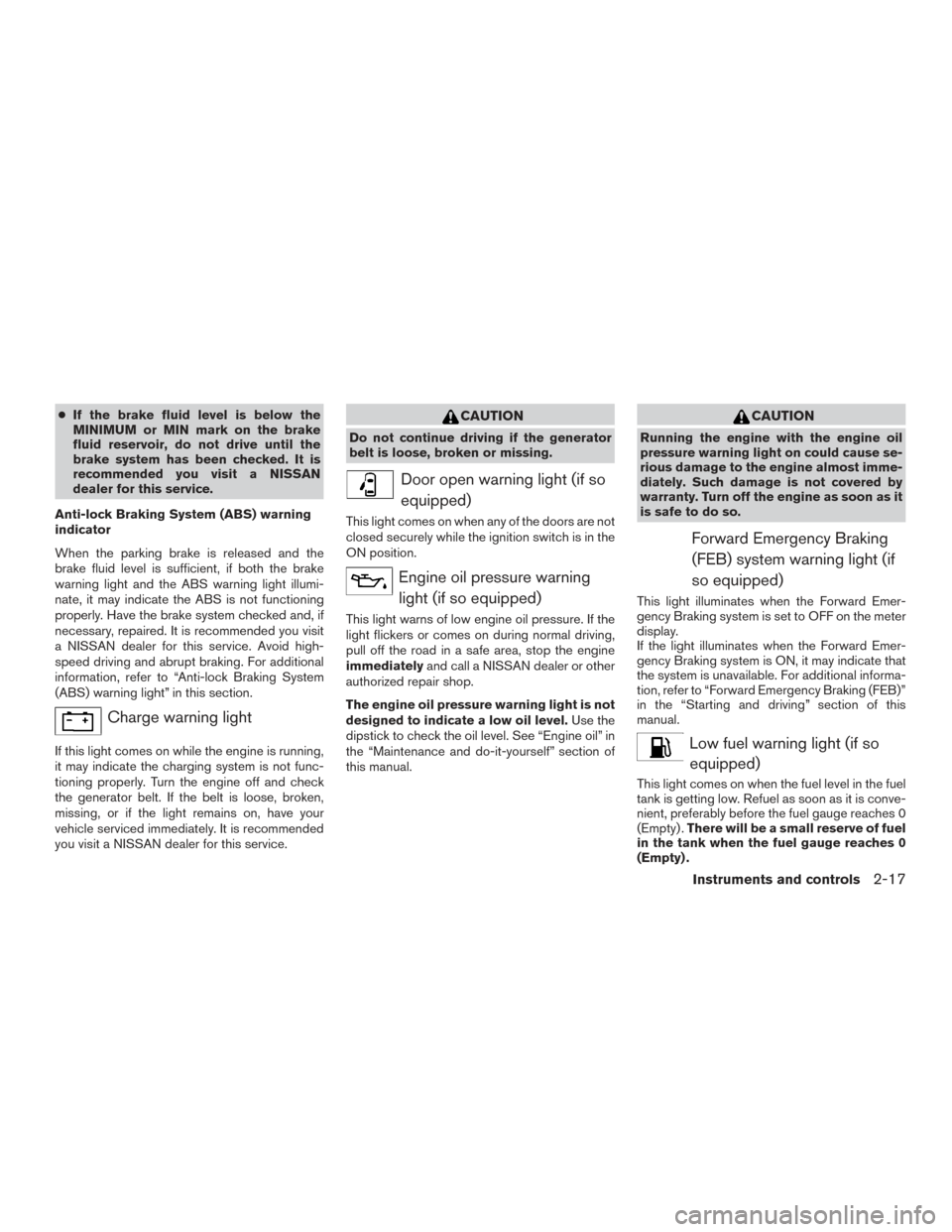

NISSAN SENTRA 2016 B17 / 7.G Owners Manual ●If the brake fluid level is below the
MINIMUM or MIN mark on the brake
fluid reservoir, do not drive until the
brake system has been checked. It is
recommended you visit a NISSAN
dealer for this se

Page 97 of 478

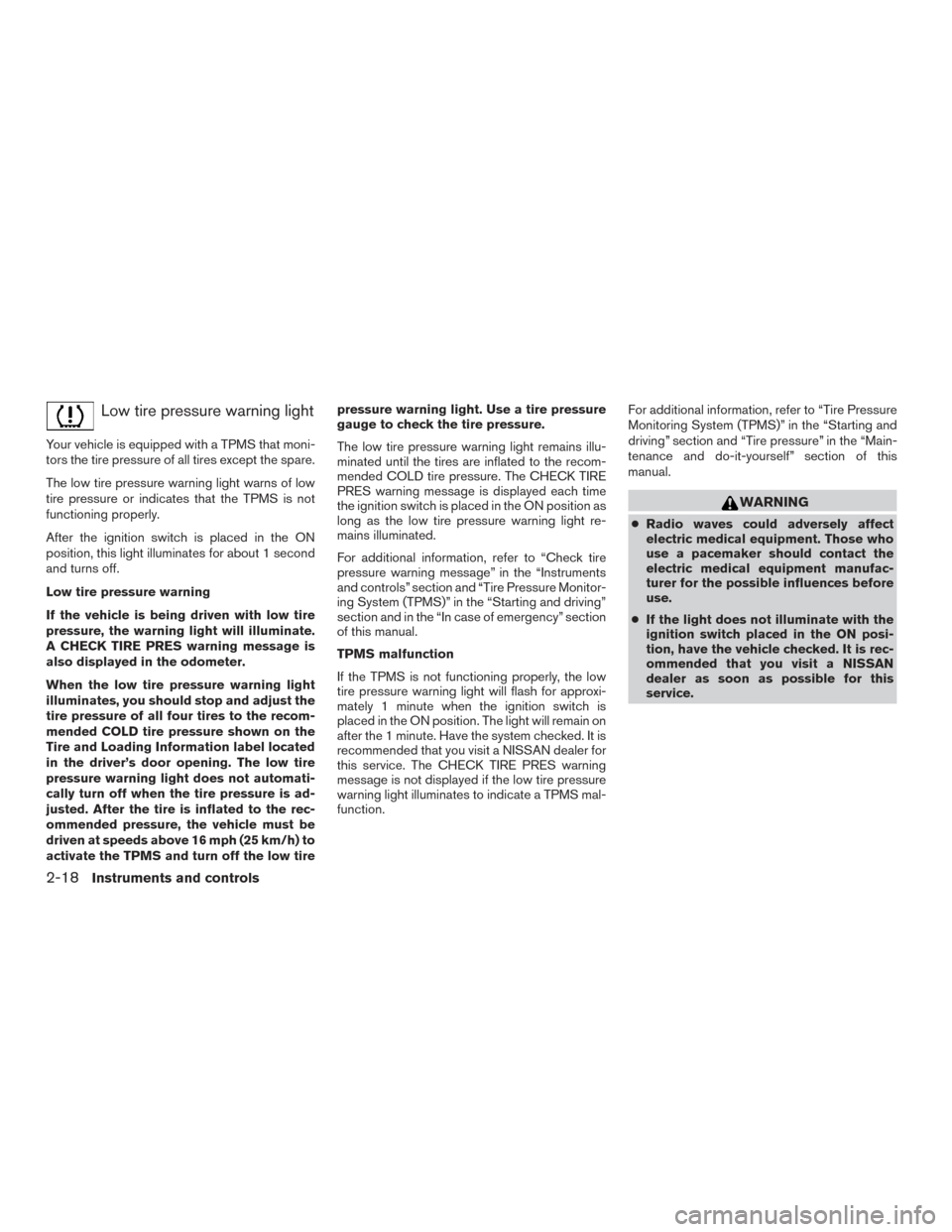

NISSAN SENTRA 2016 B17 / 7.G Owners Manual Low tire pressure warning light
Your vehicle is equipped with a TPMS that moni-
tors the tire pressure of all tires except the spare.
The low tire pressure warning light warns of low
tire pressure or

Page 98 of 478

NISSAN SENTRA 2016 B17 / 7.G Owners Manual ●If the light illuminates while driving,
avoid sudden steering maneuvers or
abrupt braking, reduce vehicle speed,
pull off the road to a safe location and
stop the vehicle as soon as possible.
Drivi

Page 99 of 478

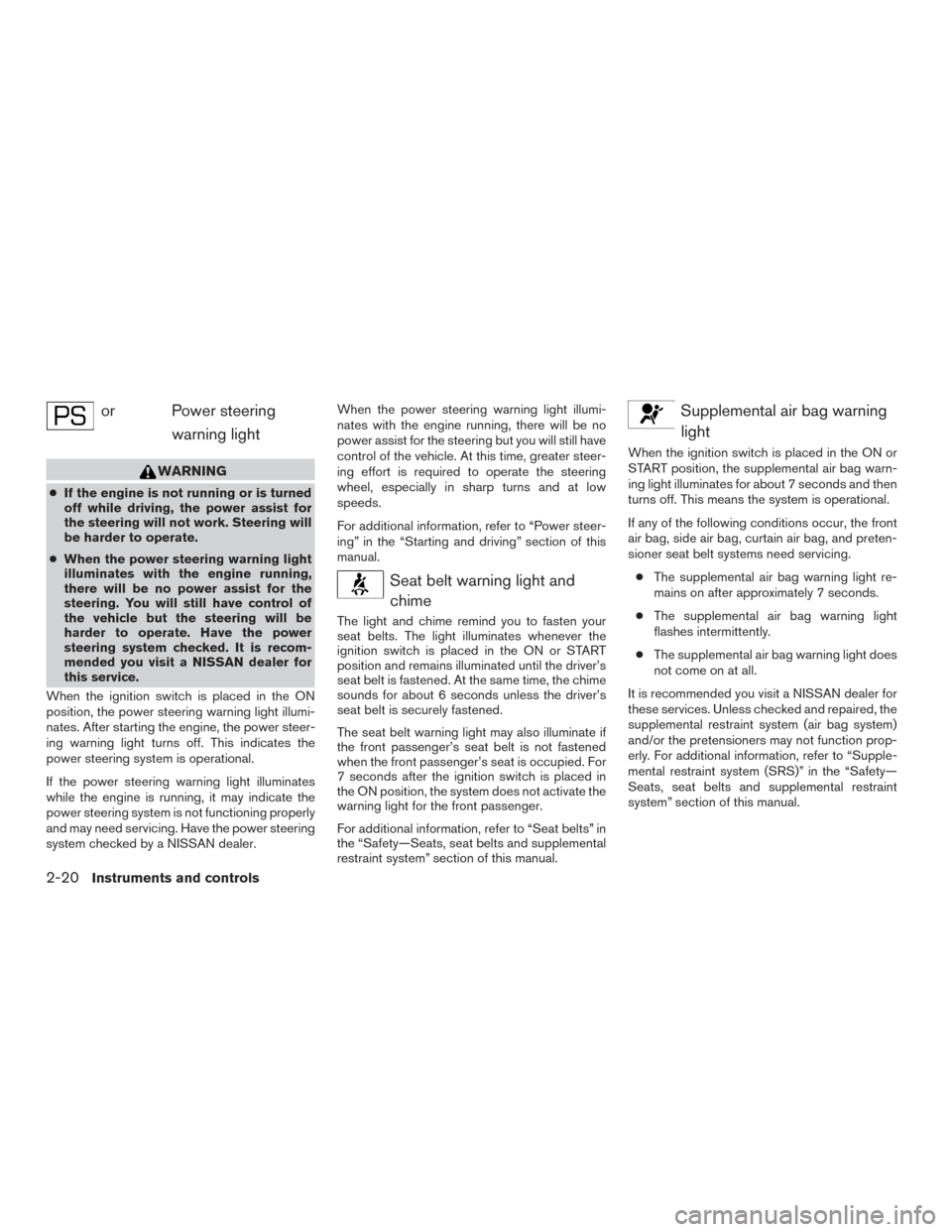

NISSAN SENTRA 2016 B17 / 7.G Owners Manual orPower steeringwarning light
WARNING
● If the engine is not running or is turned
off while driving, the power assist for
the steering will not work. Steering will
be harder to operate.
● When the

Page 100 of 478

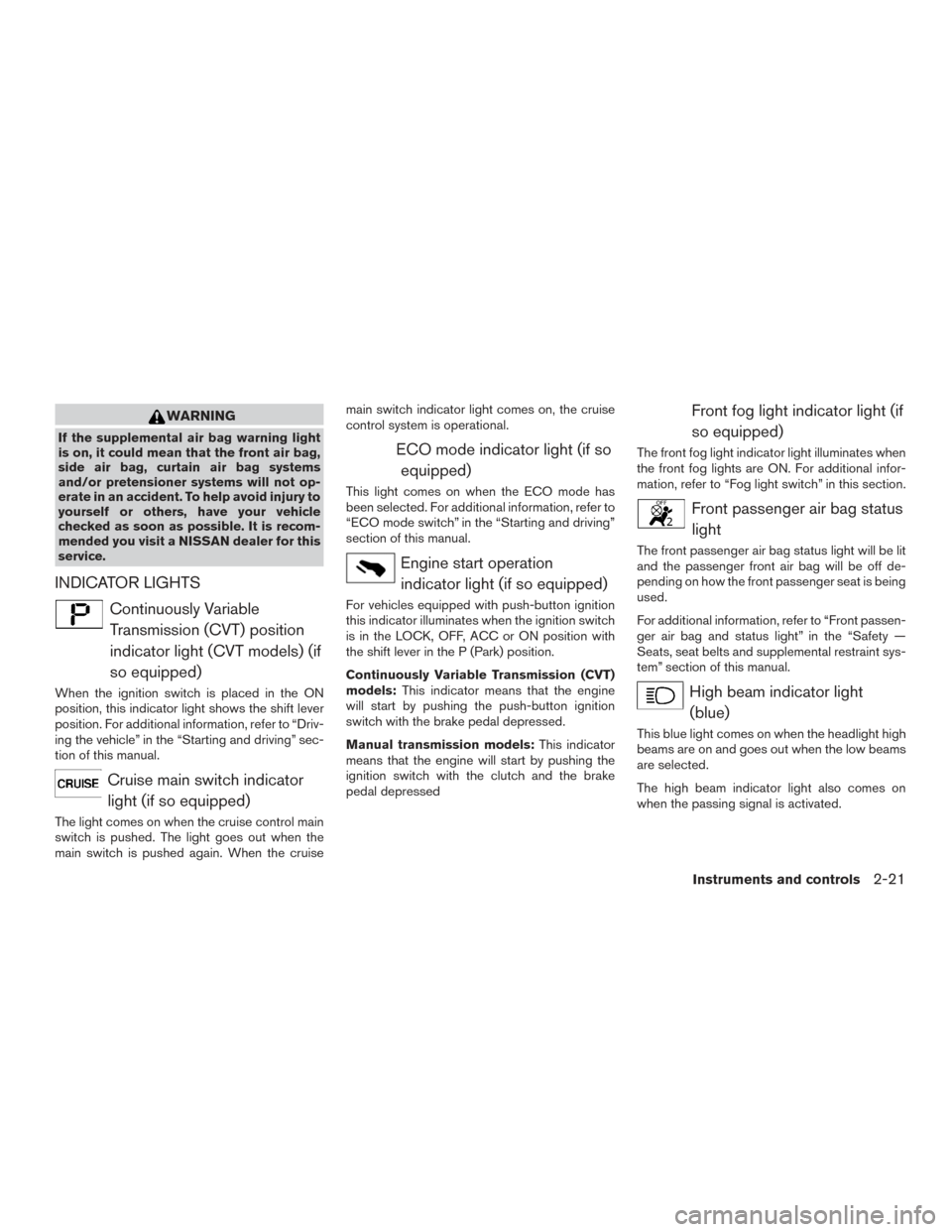

NISSAN SENTRA 2016 B17 / 7.G Owners Manual WARNING
If the supplemental air bag warning light
is on, it could mean that the front air bag,
side air bag, curtain air bag systems
and/or pretensioner systems will not op-
erate in an accident. To h
