Page 411 of 478

NISSAN SENTRA 2016 B17 / 7.G Owners Manual 5. If the fuse is openC, replace it with an
equivalent good fuse
D.
6. Push the fuse box cover to install.
If a new fuse also opens, have the electrical
system checked and repaired. It is recommende

Page 412 of 478

NISSAN SENTRA 2016 B17 / 7.G Owners Manual CAUTION
Be careful not to allow children to swallow
the battery or removed parts.
KEY FOB (if so equipped)
Replace the battery in the key fob as follows:1. Remove the screw
A. 2. Insert a small screw

Page 413 of 478

NISSAN SENTRA 2016 B17 / 7.G Owners Manual ●The operational range of the key fob
extends to approximately 33 ft (10 m)
from the vehicle. This range may vary
with conditions.
Operation is subject to the following two
conditions: (1) This devi

Page 414 of 478

NISSAN SENTRA 2016 B17 / 7.G Owners Manual NISSAN INTELLIGENT KEY® (if so
equipped)
Replace the battery in the Intelligent Key as fol-
lows:1. Remove the mechanical key from the Intelli- gent Key.
2. Insert a small flathead screwdriver
Ainto

Page 415 of 478

NISSAN SENTRA 2016 B17 / 7.G Owners Manual Note:
Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to op-
erate the equipment.
For Canada:
This device complies with In

Page 416 of 478

NISSAN SENTRA 2016 B17 / 7.G Owners Manual 1. Rotate the (high beam) coverAcounter-
clockwise to access the (high beam) bulb
socket
C. Rotate the bulb socketCcoun-
terclockwise and remove bulb.
2. Rotate the (low beam) cover
B(if so
equipp

Page 417 of 478

NISSAN SENTRA 2016 B17 / 7.G Owners Manual Replacing the fog light bulb
CAUTION
●High pressure halogen gas is sealed
inside the halogen bulb. The bulb may
break if the glass envelope is scratched
or the bulb is dropped.
● When handling the

Page 418 of 478

NISSAN SENTRA 2016 B17 / 7.G Owners Manual 5. Remove by pulling straight off the fog light.Do not shake or rotate the bulb when remov-
ing it.
6. Install the new bulb in the reverse order of removal.EXTERIOR AND INTERIOR LIGHTS
Item Wattage (W

Page 419 of 478

NISSAN SENTRA 2016 B17 / 7.G Owners Manual 1. Map light
2. Room light
3. Door mirror turn signal light (if soequipped)
4. Headlight assembly
5. Fog light (if so equipped)
6. High-mount stop light
7. Trunk light
8. License plate light
9. Rear c

Page 420 of 478

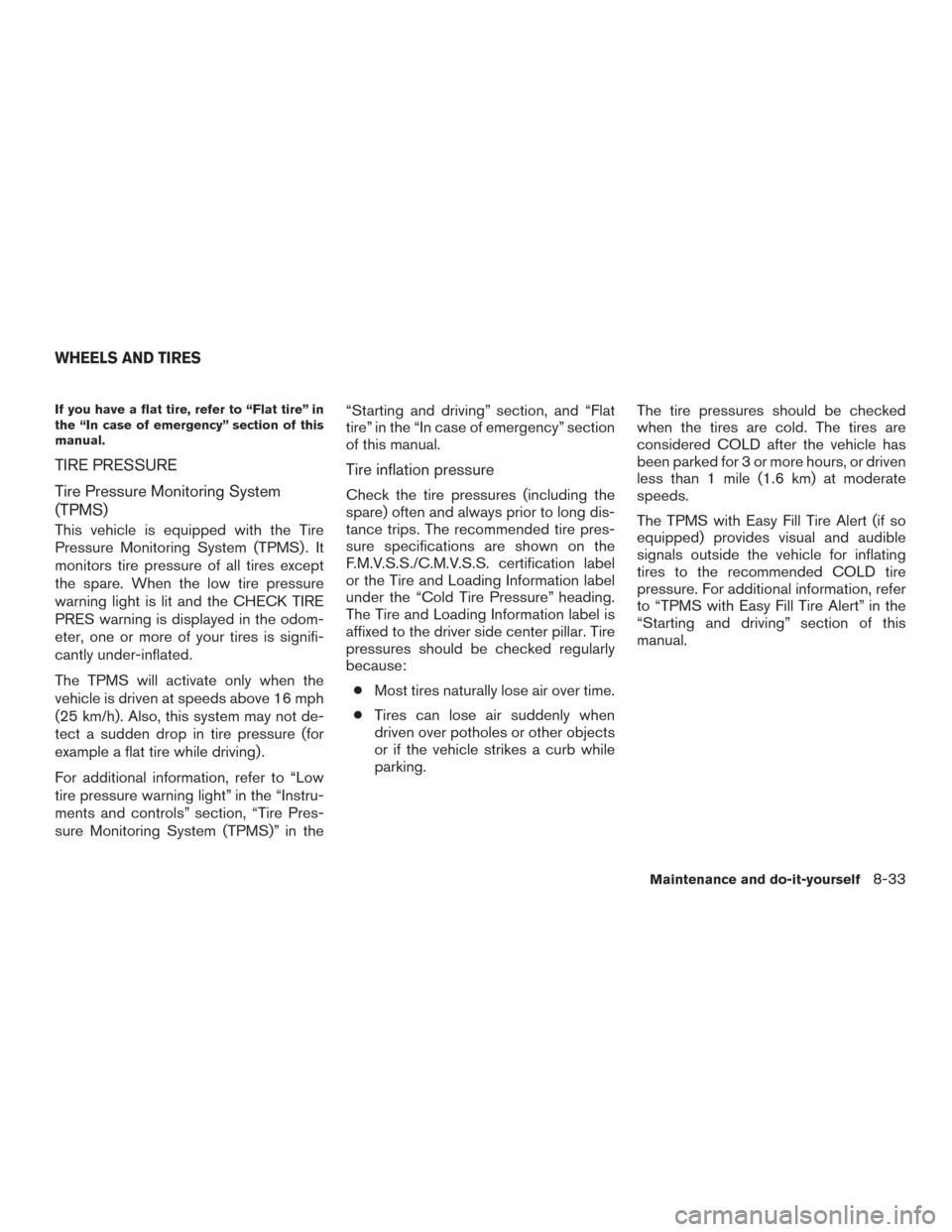

NISSAN SENTRA 2016 B17 / 7.G Owners Manual If you have a flat tire, refer to “Flat tire” in
the “In case of emergency” section of this
manual.
TIRE PRESSURE
Tire Pressure Monitoring System
(TPMS)
This vehicle is equipped with the Tire
