engine NISSAN SENTRA 2017 B17 / 7.G Quick Reference Guide

NEW SYSTEM FEATURESDrive Modes........................................................................\
.... 2
NissanConnectSM Services Powered by SiriusXM® (if so equipped) . . . . . . . . . . . . . . . . . . . .2
RearView Monitor (if so equipped) ..................................................... 4
Blind Spot Warning (BSW) with Rear Cross Traffic Alert (RCTA) (if so equipped) .......4
Forward Emergency Braking (FEB) (if so equipped) ................................... 5
Siri® Eyes Free (if so equipped) ......................................................... 5
SiriusXM Travel Link and SiriusXM Traffic (if so equipped) ............................. 5
ESSENTIAL INFORMATION Tire Pressure Monitoring System (TPMS) with Easy-Fill Tire Alert (if so equipped) .... 7
Loose Fuel Cap ........................................................................\
. 8
Fuel-filler Door .......................................................................\
.. 8
Clock Set/Adjustment ................................................................. 8
FIRST DRIVE FEATURESNissan Intelligent Key® System (if so equipped) ....................................... 11
Trunk Lid Release Switch .............................................................. 11
Front Power Seat Adjustments (if so equipped for driver’s seat) ..................... 12
Outside Mirror Control Switch ........................................................ 12
Starting/Stopping the Engine ........................................................ 13
Headlight Control Switch ............................................................. 13
Wiper and Washer Switch ............................................................. 14
Heater and Air Conditioner (automatic) (if so equipped) ............................. 15
FM/AM/SiriusXM® Satellite Radio (if so equipped) with CD Player ....................17
USB (Universal Serial Bus) Connection Port/Aux Jack and iPod® Interface .......... 18
Cruise Control (if so equipped) ........................................................ 18
Intelligent Cruise Control (ICC) (if so equipped) .......................................19
SYSTEM GUIDE
Vehicle Information Display (if so equipped) ..........................................21
Hands-free Text Messaging Assistant (if so equipped) ............................... 22
NissanConnect
SM Mobile Apps (if so equipped) ....................................... 22
Bluetooth® Hands-free Phone System ............................................... 24
• System Operating Tips ........................................................... 24
Bluetooth® System without Navigation (if so equipped) ............................. 25
Bluetooth® System with Navigation (if so equipped) .................................26
Navigation System (if so equipped) ................................................... 28
HomeLink® Universal Transceiver (if so equipped) ....................................29
TABLE OF CONTENTS
Additional information about your vehicle is also available in your Owner’s Manual,
Navigation System Owner’s Manual and at www.NissanUSA.com.
Please see your Owner’s Manual for important safety information and system
operation limitations.
• A cellular telephone should not be used for any purpose while driving so full attention may
be given to vehicle operation.
• Always wear your seat belt.
• Supplemental air bags do not replace proper seat belt usage.
• Children 12 and under should always ride in the rear seat properly secured in child restraints
or seat belts according to their age and weight.
• Do not drink and drive.
For more information, refer to the “Safety — Seats, seat belts and supplemental restraint system
(section 1)”, the “Monitor, climate, audio, phone and voice recognition systems (section 4)” and the
“Starting and driving (section 5)” of your Owner’s Manual.
2434454_17b_Sentra_US_pQRG_101416.indd 410/14/16 10:59 AM

7
ESSENTIAL INFORMATION
TIRE PRESSURE MONITORING SYSTEM (TPMS) WITH
EASY-FILL TIRE ALERT (if so equipped)
A CHECK TIRE PRES (if so equipped) warning
message will appear in the trip computer 1
and the low tire pressure warning light
2 will
illuminate when one or more tires are low in
pressure and air is needed.
• The tire pressures should be checked when
the tires are cold. The tires are considered
cold af ter the vehicle has been parked for 3
hours or more or driven less than 1 mi (1.6 km)
at moderate speeds.

Af ter tire pressures are adjusted, drive the vehicle
at speeds above 16 mph (25 km/h). The CHECK
TIRE PRES (if so equipped) warning message and low tire
pressure warning light
2 will extinguish.

When adding air to an under-inflated tire, the TPMS with Easy-Fill Tire
Alert provides visual and audible signals to help you inflate the tire to the
recommended COLD tire pressure.

To use the Easy-Fill Tire Alert system (if so equipped):
1. Move the shif t lever to the P (PARK) position and apply the parking brake.
2. Place the ignition switch in the ON position. Do not start the engine.
3. Add air to the under-inflated tire, and within a few seconds, the hazard warning
lights will start flashing.
4. When the designated tire pressure is reached, the horn will beep once and the
hazard warning lights will stop flashing.
5. Repeat this procedure for any additional under-inflated tires.

When the low tire pressure warning light 2 flashes for approximately 1 minute
and then remains on, the TPMS is not functioning properly. Have the system
checked. It is recommended you visit a Nissan dealer for this service.

Tire pressure rises and falls depending on the heat caused by the vehicle’s
operation and the outside temperature. Low outside temperature can lower
the temperature of the air inside the tire, which can cause a lower tire inflation
pressure. This may cause the low tire pressure warning light
2 to illuminate. If
the warning light illuminates, check the tire pressure in your tires.
• Check the tire pressures (including the spare tire) of ten and always prior to long
distance trips.

The Tire and Loading Information label contains valuable information. Please refer
to the “Technical and consumer information (section 10)” of your Owner’s Manual
for the location of the Tire and Loading Information label.
Please see your Owner’s Manual for important safety information, system limitations, and additional
operating and feature information.
For more information, refer to the “Instruments and controls (section 2)”, the “Starting and driving
(section 5)” and the “Do-it-yourself (section 8)” of your Owner’s Manual.
1
CHECK
TIRE
PRES2
2434454_17b_Sentra_US_pQRG_101416.indd 710/14/16 10:59 AM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

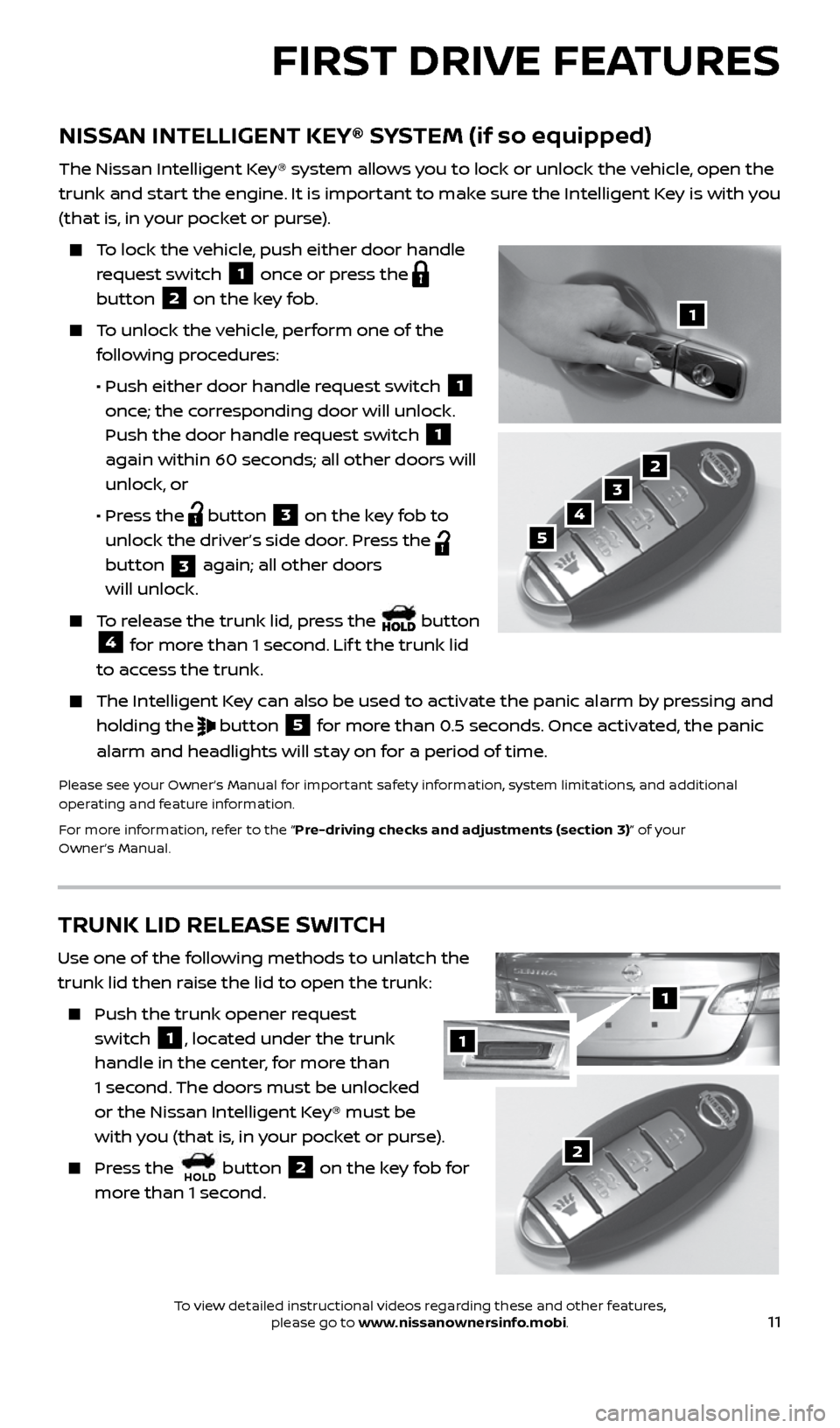

11
NISSAN INTELLIGENT KEY® SYSTEM (if so equipped)
The Nissan Intelligent Key® system allows you to lock or unlock the vehicle, open the
trunk and start the engine. It is important to make sure the Intelligent Key is with you
(that is, in your pocket or purse).

To lock the vehicle, push either door handle
request switch
1 once or press the
button
2 on the key fob.

To unlock the vehicle, perform one of the
following procedures:
• Push either door handle request switch
1
once; the corresponding door will unlock.
Push the door handle request switch
1
again within 60 seconds; all other doors will
unlock, or
• Press the
button 3 on the key fob to
unlock the driver’s side door. Press the

button
3 again; all other doors
will unlock.

To release the trunk lid, press the button 4 for more than 1 second. Lif t the trunk lid
to access the trunk.

The Intelligent Key can also be used to activate the panic alarm by pressing and
holding the
button 5 for more than 0.5 seconds. Once activated, the panic
alarm and headlights will stay on for a period of time.
Please see your Owner’s Manual for important safety information, system limitations, and additional
operating and feature information.
For more information, refer to the “Pre-driving checks and adjustments (section 3)” of your
Owner’s Manual.
1
2
3
4
5
FIRST DRIVE FEATURES
TRUNK LID RELEASE SWITCH
Use one of the following methods to unlatch the
trunk lid then raise the lid to open the trunk:

Push the trunk opener request
switch
1, located under the trunk
handle in the center, for more than
1 second. The doors must be unlocked
or the Nissan Intelligent Key® must be
with you (that is, in your pocket or purse).

Press the HOLD button 2 on the key fob for
more than 1 second.2
1
1
2434454_17b_Sentra_US_pQRG_101416.indd 1110/14/16 10:59 AM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

13
STARTING/STOPPING THE ENGINE
CONTINUOUSLY VARIABLE TRANSMISSION
(Nissan Intelligent Key® models only -
if so equipped)

It is important to make sure the Intelligent
Key is with you (that is, in your pocket
or purse).

Depress the brake pedal.
• If the brake pedal is not depressed,
pushing the ignition switch once enters the ACC mode.
• If the ignition switch is pushed a second time, the vehicle will enter
the ON mode.

Move the shif t lever to the P (PARK) position.

Press the ignition switch START/STOP button to start the engine.
MANUAL TRANSMISSION (if so equipped)

Depress the brake pedal.

Depress the clutch pedal to the floor.

Move the shif t lever to the N (NEUTRAL) position.

Turn the key to the S TA R T position.
TURNING THE ENGINE OFF

For a manual transmission, apply the brake pedal, depress the clutch pedal,
place the vehicle in 1 (FIRST) gear, apply the parking brake and turn the
ignition off.

For a Continuously Variable Transmission (CVT models) (if so equipped), apply
the brake pedal, move the shif t lever to the P (PARK) position, apply the parking
brake and press the ignition switch START/STOP button.
Please see your Owner’s Manual for important safety information, system limitations, and additional
operating and feature information.
For more information, refer to the “Starting and driving (section 5)” of your Owner’s Manual.
HEADLIGHT CONTROL SWITCH
HEADLIGHT CONTROL
Turn the headlight control switch to the
position 1 to turn on the front parking, tail,
license plate and instrument panel lights. Turn
the switch to the
position 2 to turn on
the headlights.
AUTOLIGHT SYSTEM

The autolight system will automatically turn
the headlights on when it is dark and off when it is light. The system will keep the
headlights on for a period of time af ter you turn the ignition off and all doors
are closed.
1
2
3
2434454_17b_Sentra_US_pQRG_101416.indd 1310/14/16 10:59 AM
