mirror NISSAN SENTRA 2019 Owner´s Manual

1. Engine hood (P. 3-25)
2. Wiper and washer switch (P. 2-38)
3. Windshield (P. 8-19)
4. Power windows (P. 2-55)
5. Door locks (P. 3-5)Key fob (if so equipped) (P. 3-8)
NISSAN Intelligent Key®
(if so equipped) (P. 3-11)
Keys (P. 3-2)
6. Mirrors (P. 3-31)
7. Tire pressure (P. 8-34) Flat tire (P. 6-3)
Tire chains (P. 8-34)
8. Headlight and turn signal switch
(P. 2-40)
Replacing bulbs (P. 8-29)
Daytime Running Lights (DRL)
(if so equipped) (P. 2-40)
9. Fog light switch (if so equipped)
(P. 2-40)
Daytime Running Lights (DRL)
(if so equipped) (P. 2-40)
Refer to the page number indicated in
parentheses for operating details.
LII2427
EXTERIOR FRONT
Illustrated table of contents0-3

1. Moonroof (if so equipped) (P. 2-58)
2. Interior lights (P. 2-59)
3. Sun visors (P. 3-30)
4. Rearview mirror (P. 3-31)
5. Glove box (P. 2-49)
6. Cup holders (P. 2-49)
7. Parking brake (P. 5-25)
8. Console box (P. 2-49)
9. Rear armrest (if so equipped) (P. 1-2)Cup holders (if so equipped)
(P. 2-49)
Refer to the page number indicated in
parentheses for operating details.
LII2472
PASSENGER COMPARTMENT
Illustrated table of contents0-5

11. Front passenger supplemental airbag (P. 1-43)
12. Glove box (P. 2-49)
13. Shif t lever (P. 5-17)
14. Climate controls (P. 4-20, 4-28)
15. Ignition switch (if so equipped)
(P. 5-9)
Push-button ignition switch (if so
equipped) (P. 5-11)
16. Tilt/Telescopic steering (P. 3-30)
17. Hood release (P. 3-25) Fuel filler door release (P. 3-27)
18. ECO mode switch (if so equipped)
(P. 5-26)
Vehicle Dynamic Control (VDC) OFF
switch (P. 2-47)
SPORT mode switch
(if so equipped) (P. 5-26)
19. Instrument brightness control
(P. 2-40)
Power mirror switch (P. 3-31)
Trunk release (P. 3-26)
Refer to the page number indicated in
parentheses for operating details.
Illustrated table of contents0-7

2 Instruments and controls
Instrument panel................................2-2
Meters and gauges ..............................2-3
Speedometer and odometer .................2-4
Tachometer .................................. 2-7
Engine coolant temperature gauge .......... 2-7
Fuel gauge ...................................2-8
Trip computer (if so equipped) ................2-9
Outside temperature display ................2-12
Warning lights, indicator lights and audible
reminders ...................................... 2-13
Checking lights .............................. 2-14
Warning lights ............................... 2-14
Indicator lights .............................. 2-20
Audible reminders ........................... 2-23
Vehicle information display (if so equipped) .....2-24
How to use the vehicle information
display ...................................... 2-24
Startup display .............................. 2-24
Settings ..................................... 2-25
Vehicle information display warnings
and indicators ............................... 2-31
Security systems ............................... 2-35
Vehicle security system (if so equipped) .....2-35
NISSAN Vehicle Immobilizer System .........2-37 Wiper and washer switch
.......................2-38
Switch operation ............................ 2-38
Rear window and outside mirror
(if so equipped) defroster switch ................2-40
Headlight and turn signal switch ...............2-40
Headlight control switch .....................2-40
Daytime Running Lights (DRL) system
(Type A) (if so equipped) .....................2-43
Daytime Running Lights (DRL) system
(Type B) (if so equipped) .....................2-43
LED Daytime Running Lights (DRL)
system (Type C — NISMO) (if so
equipped) ................................... 2-44
Instrument brightness control ...............2-44
Turn signal switch ........................... 2-44
Fog light switch (if so equipped) .............2-45
Horn ........................................... 2-46
Heated seat switches (if so equipped) ..........2-46
V
ehicle Dynamic Control (VDC) OFF switch ......2-47
E-call (SOS) switch (if so equipped) ..............2-48
Power outlet .................................... 2-48
Storage ........................................ 2-49
Front-door pockets .......................... 2-49
Console side pockets (if so equipped) ........2-49

11. Front passenger supplemental airbag (P. 1-43)
12. Glove box (P. 2-49)
13. Shif t lever (P. 5-17)
14. Climate controls (P. 4-20, 4-28)
15. Ignition switch (if so equipped)
(P. 5-9)
Push-button ignition switch
(if so equipped) (P. 5-11)
16. Tilt/Telescopic steering (P. 3-30)
17. Hood release (P. 3-25) Fuel filler door release (P. 3-27)
18. ECO mode switch (if so equipped)
(P. 5-26)
Vehicle Dynamic Control (VDC) OFF
switch (P. 2-47)
SPORT mode switch (if so
equipped) (P. 5-26)
19. Instrument brightness control
(P. 2-40)
Power mirror switch (P. 3-31)
Trunk release (P. 3-26)
Refer to the page number indicated in
parentheses for operating details.
1. Tachometer
2. Coolant temperature gauge
3. Warning and indicator lights
4. Fuel gauge
5. Speedometer 6. Odometer
Twin trip odometer
Trip computer
Fuel Economy
ECO mode indicator (if so equipped)Outside temperature display
Type A (if so equipped)
LIC3415
METERS AND GAUGES
Instruments and controls2-3

To defrost the rear window glass and out-
side mirror (if so equipped), start the engine
and push the rear window defroster switch
on. The rear window defroster indicator
light on the switch comes on. Push the
switch again to turn the defroster off.
The rear window defroster automatically
turns off af ter approximately 15 minutes.
CAUTION
When cleaning the inner side of the rear
window, be careful not to scratch or
damage the rear window defroster.
HEADLIGHT CONTROL SWITCH
Lighting
1Rotate the switch to theposition,
and the front parking, tail, license plate,
and instrument panel lights will come
on.
2Rotate the switch to theposition,
and the headlights will come on and all
the other lights remain on.
Type A (if so equipped)
LIC2324
Type B (if so equipped)
LIC2650
Type A (if so equipped)
LIC3240
REAR WINDOW AND OUTSIDE
MIRROR (if so equipped)
DEFROSTER SWITCH HEADLIGHT AND TURN SIGNAL
SWITCH
2-40Instruments and controls

3 Pre-driving checks and adjustments
Keys.............................................3-2NISSAN Intelligent Key® (if so equipped) .......3-2
NISSAN Vehicle Immobilizer System
keys..........................................3-4
Doors ...........................................3-5
Locking with key ..............................3-5
Locking with inside lock knob .................3-6
Locking with power door lock switch .........3-6
Automatic door locks (if so equipped) ........ 3-7
Child safety rear door lock .................... 3-7
Remote keyless entry system (if so equipped) . . . 3-8 How to use remote keyless entry
system .......................................3-9
NISSAN Intelligent Key® (if so equipped) ..........3-11
Operating range ............................. 3-13
Door locks/unlocks precaution ..............3-14
NISSAN Intelligent Key® Operation ...........3-14
How to use the remote keyless entry
function ..................................... 3-18
Warning lights and audible reminders .......3-21
Warning signals ............................. 3-21
Troubleshooting guide (Continuously
Variable Transmission only) ..................3-23Troubleshooting guide
(manual transmission only)
..................3-24
Hood ........................................... 3-25
Trunk lid ........................................ 3-26
Trunk lid release switch ......................3-26
Interior trunk lid release .....................3-26
Interior trunk access ........................ 3-27
Fuel-filler door .................................. 3-27
Opener operation ........................... 3-27
Fuel-filler cap ................................ 3-28
Steering wheel ................................. 3-30
Tilt operation ................................ 3-30
Telescopic operation ........................ 3-30
Sun visors ...................................... 3-30
Vanity mirrors ............................... 3-31
Mirrors ......................................... 3-31
Manual anti-glare rearview mirror
(if so equipped) .............................. 3-31
Automatic anti-glare rearview mirror
(if so equipped) .............................. 3-31
Outside mirrors ............................. 3-32

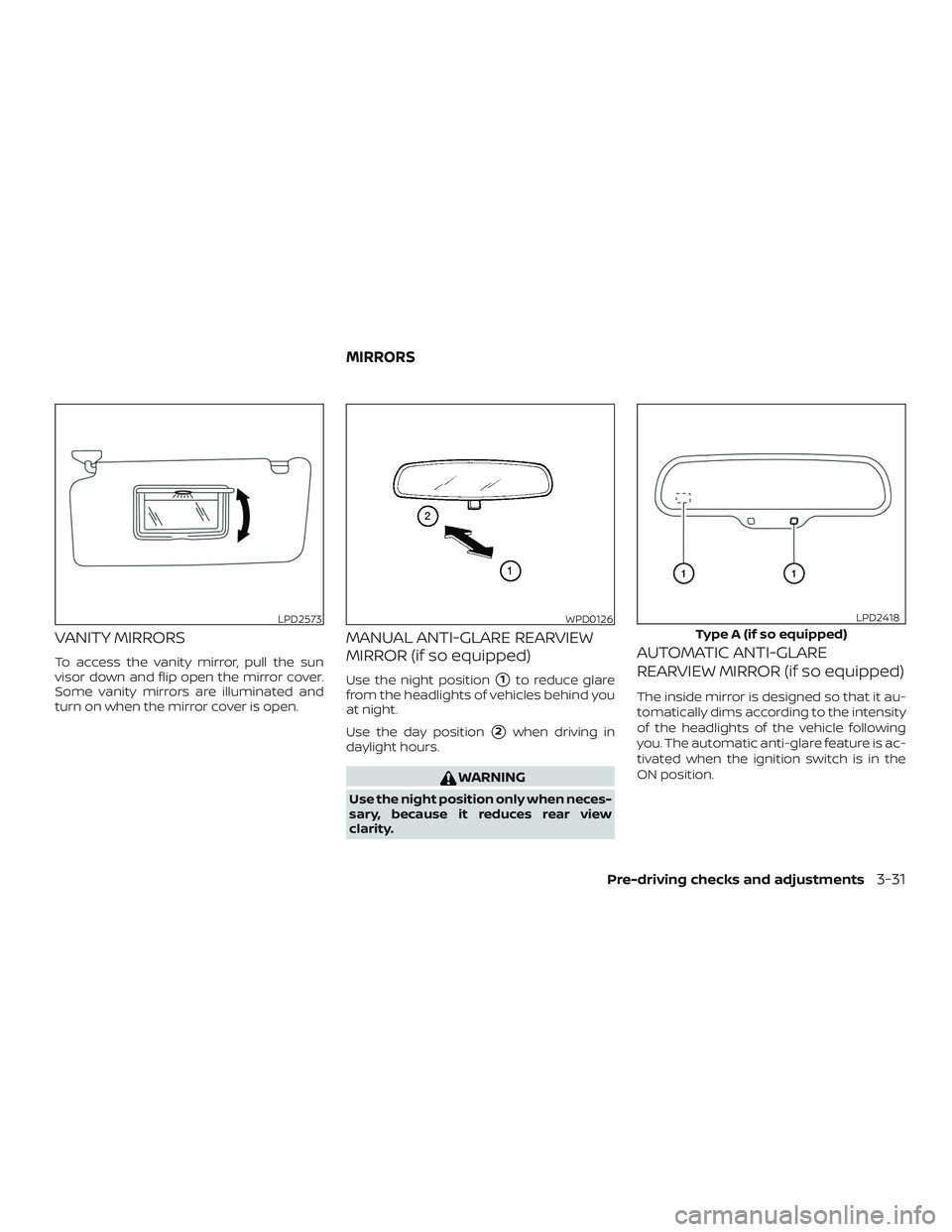

VANITY MIRRORS
To access the vanity mirror, pull the sun
visor down and flip open the mirror cover.
Some vanity mirrors are illuminated and
turn on when the mirror cover is open.
MANUAL ANTI-GLARE REARVIEW
MIRROR (if so equipped)
Use the night position1to reduce glare
from the headlights of vehicles behind you
at night.
Use the day position
2when driving in
daylight hours.
WARNING
Use the night position only when neces-
sary, because it reduces rear view
clarity.
AUTOMATIC ANTI-GLARE
REARVIEW MIRROR (if so equipped)
The inside mirror is designed so that it au-
tomatically dims according to the intensity
of the headlights of the vehicle following
you. The automatic anti-glare feature is ac-
tivated when the ignition switch is in the
ON position.
LPD2573WPD0126
Type A (if so equipped)
LPD2418
MIRRORS
Pre-driving checks and adjustments3-31

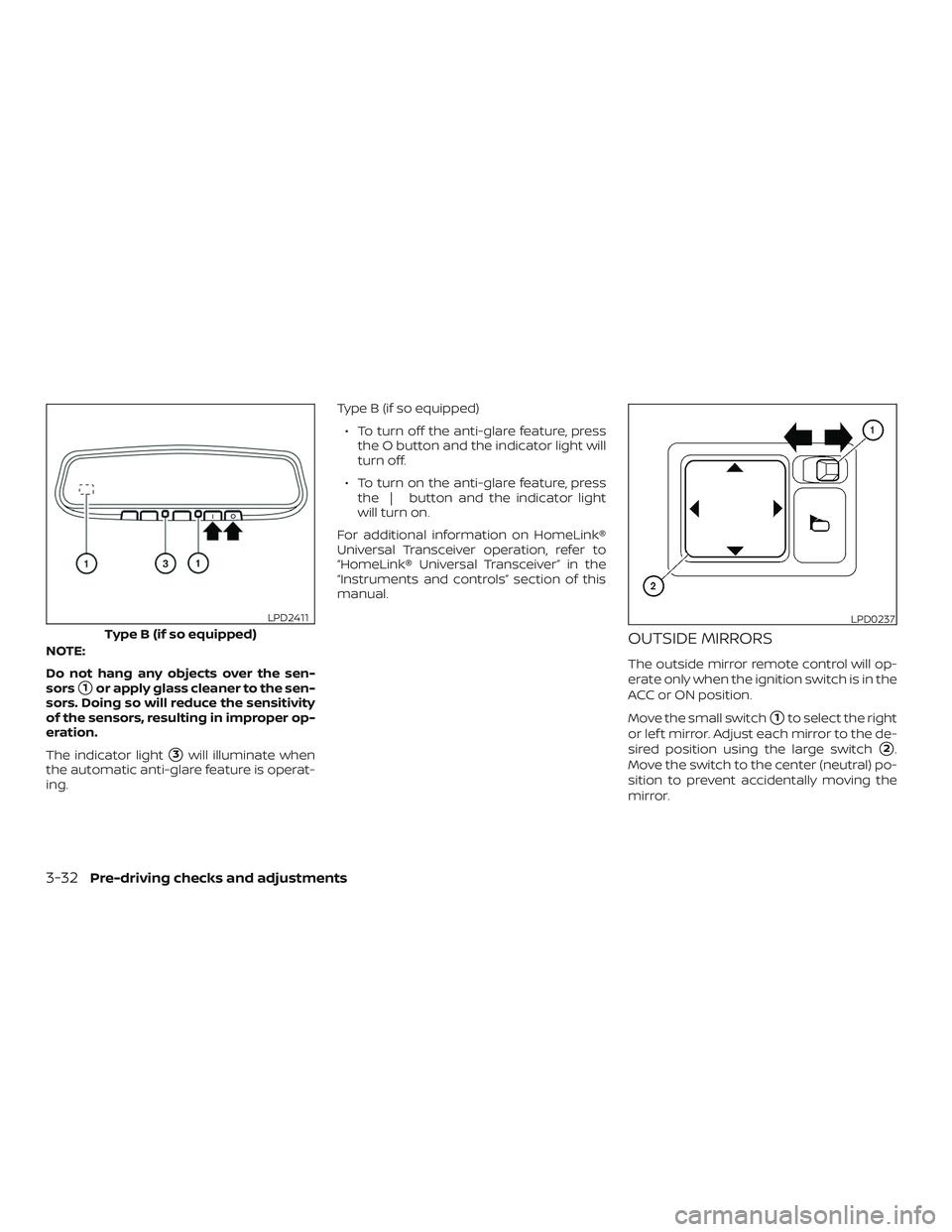

NOTE:
Do not hang any objects over the sen-
sors
1or apply glass cleaner to the sen-
sors. Doing so will reduce the sensitivity
of the sensors, resulting in improper op-
eration.
The indicator light
3will illuminate when
the automatic anti-glare feature is operat-
ing. Type B (if so equipped)
∙ To turn off the anti-glare feature, press the O button and the indicator light will
turn off.
∙ To turn on the anti-glare feature, press the | button and the indicator light
will turn on.
For additional information on HomeLink®
Universal Transceiver operation, refer to
“HomeLink® Universal Transceiver” in the
“Instruments and controls” section of this
manual.
OUTSIDE MIRRORS
The outside mirror remote control will op-
erate only when the ignition switch is in the
ACC or ON position.
Move the small switch
1to select the right
or lef t mirror. Adjust each mirror to the de-
sired position using the large switch
2.
Move the switch to the center (neutral) po-
sition to prevent accidentally moving the
mirror.
Type B (if so equipped)
LPD2411LPD0237
3-32Pre-driving checks and adjustments

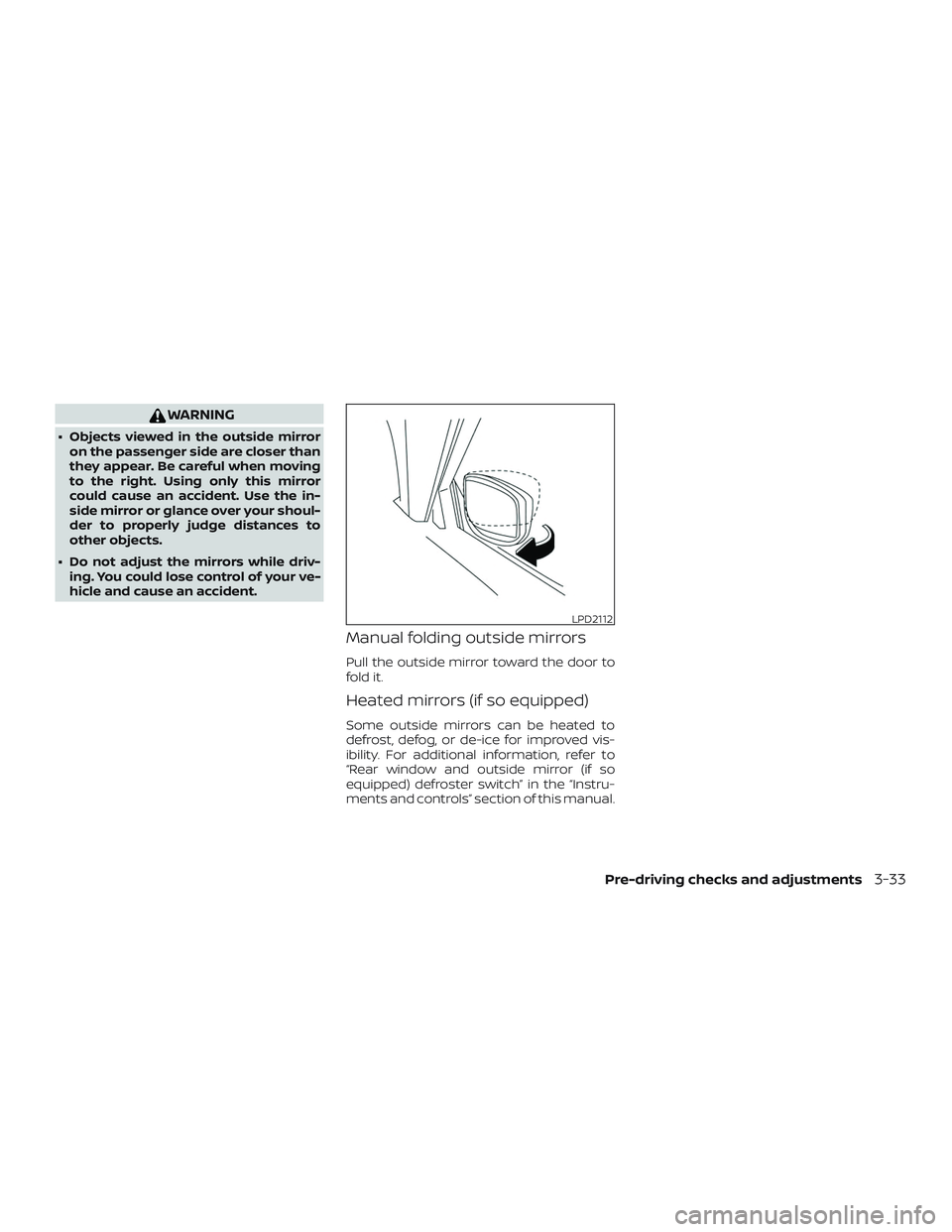

WARNING
∙ Objects viewed in the outside mirroron the passenger side are closer than
they appear. Be careful when moving
to the right. Using only this mirror
could cause an accident. Use the in-
side mirror or glance over your shoul-
der to properly judge distances to
other objects.
∙ Do not adjust the mirrors while driv- ing. You could lose control of your ve-
hicle and cause an accident.
Manual folding outside mirrors
Pull the outside mirror toward the door to
fold it.
Heated mirrors (if so equipped)
Some outside mirrors can be heated to
defrost, defog, or de-ice for improved vis-
ibility. For additional information, refer to
“Rear window and outside mirror (if so
equipped) defroster switch” in the “Instru-
ments and controls” section of this manual.
LPD2112
Pre-driving checks and adjustments3-33
