NISSAN TEANA 2003  Service Manual DTC P1217 ENGINE OVER TEMPERATURE
EC-219
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC

Cooling Fan Relay Operation
The ECM controls cooling fan relays in the IPDM E/R through CAN communication line.
COMPONENT DESC

Page 1502 of 3502

NISSAN TEANA 2003  Service Manual EC-220
[QR]
DTC P1217 ENGINE OVER TEMPERATURE

CAUTION:
When a malfunction is indicated, be sure to replace the coolant. Refer to CO-10, "
Changing Engine
Coolant" . Also, replace the engine oil. Ref

Page 1503 of 3502

NISSAN TEANA 2003  Service Manual DTC P1217 ENGINE OVER TEMPERATURE
EC-221
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC

 WITHOUT CONSULT-II
1. Check the coolant level in the reservoir tank and radiator.
Allow engine to cool before checking coolan

Page 1504 of 3502

NISSAN TEANA 2003  Service Manual EC-222
[QR]
DTC P1217 ENGINE OVER TEMPERATURE

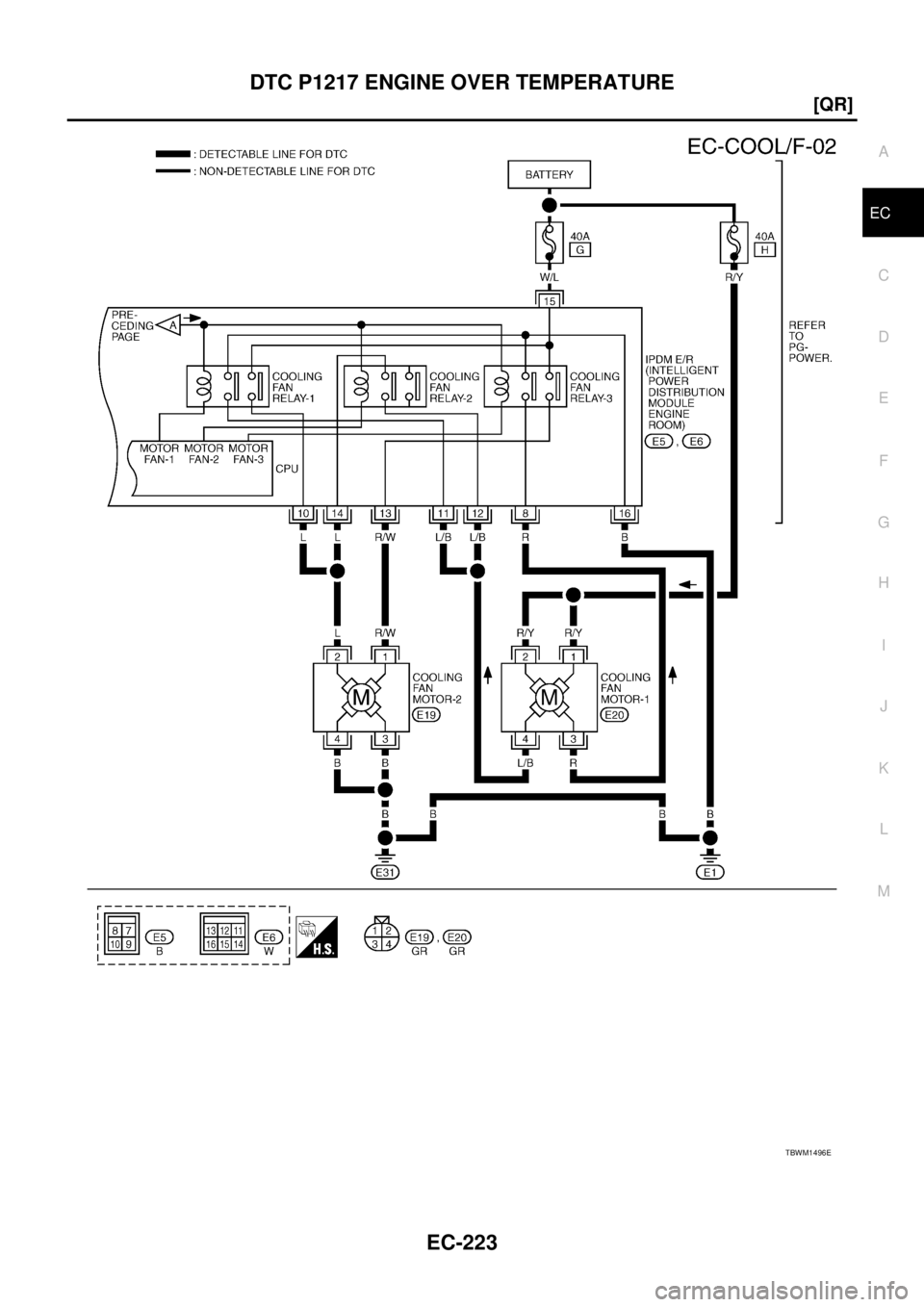

Wiring DiagramBBS005GB
TBWM1495E

Page 1505 of 3502

NISSAN TEANA 2003  Service Manual DTC P1217 ENGINE OVER TEMPERATURE
EC-223
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC

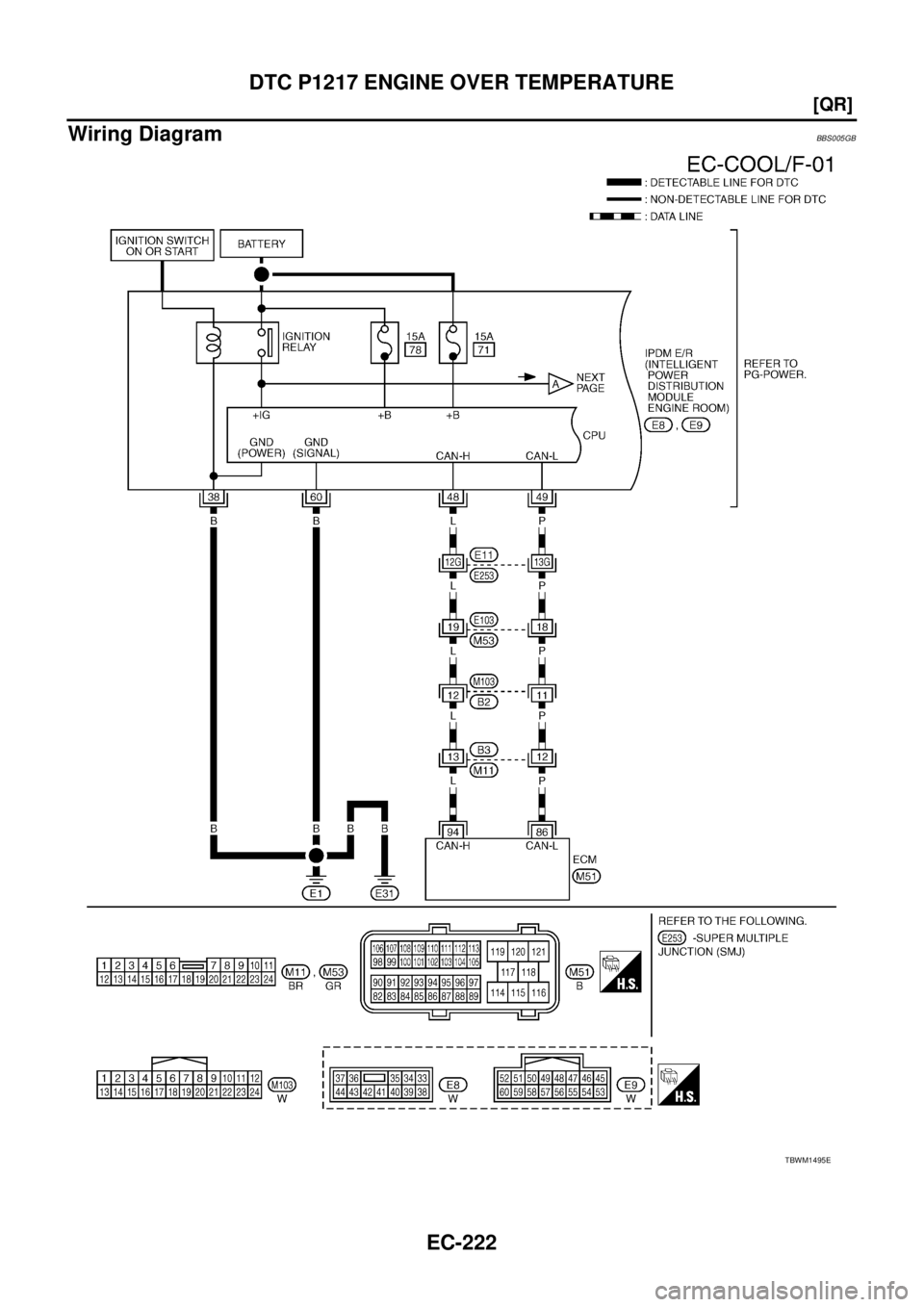

TBWM1496E

Page 1506 of 3502

NISSAN TEANA 2003  Service Manual EC-224
[QR]
DTC P1217 ENGINE OVER TEMPERATURE

Diagnostic ProcedureBBS005GC
1. INSPECTION START
Do you have CONSULT-II?
Ye s  o r  N o
Yes >> GO TO 2.
No >> GO TO 3.
2. CHECK COOLING FAN OPERATION
 W

Page 1507 of 3502

NISSAN TEANA 2003  Service Manual DTC P1217 ENGINE OVER TEMPERATURE
EC-225
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC

5. CHECK COMPONENT PARTS
Check the following.
Radiator cap (Refer to CO-14, "Checking Radiator Cap" .)
Thermostat (Refer to

Page 1508 of 3502

NISSAN TEANA 2003  Service Manual EC-226
[QR]
DTC P1217 ENGINE OVER TEMPERATURE

4. CHECK COOLING FAN MOTOR-1 CIRCUIT-I
1. Disconnect cooling fan motor-1 harness connector.
2. Check voltage between cooling fan motor-1 terminals 1, 2

Page 1509 of 3502

NISSAN TEANA 2003  Service Manual DTC P1217 ENGINE OVER TEMPERATURE
EC-227
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC

7. CHECK COOLING FAN MOTOR-2 CIRCUIT-I
1. Disconnect cooling fan motor-2 harness connector.
2. Check harness continuity betwee

Page 1510 of 3502

NISSAN TEANA 2003  Service Manual EC-228
[QR]
DTC P1217 ENGINE OVER TEMPERATURE

*1: Turn the ignition switch ON.
*2: Engine running at 3,000 rpm for 10 minutes.
*3: Drive at 90 km/h (55 MPH) for 30 minutes and then let idle for 10 m
Trending: alternator, four wheel drive, disc brake, Front cover, wheel alignment, GI 10, ad blue
