NISSAN TEANA 2003 Service Manual

GROUND
PG-37
C
D
E
F
G
H
I
J
L
MA
B
PG

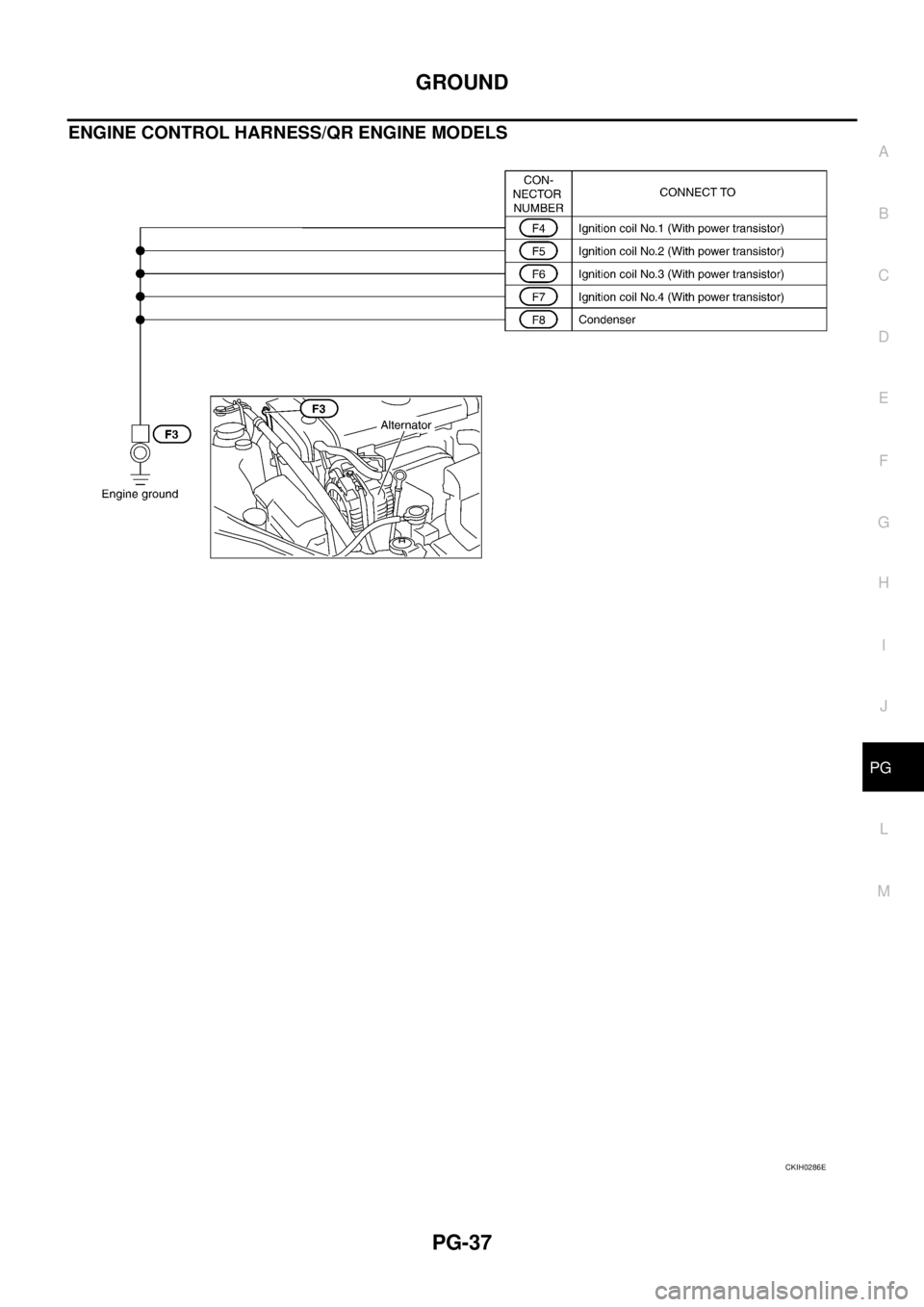

ENGINE CONTROL HARNESS/QR ENGINE MODELS
CKIH0286E

PG-38
GROUND

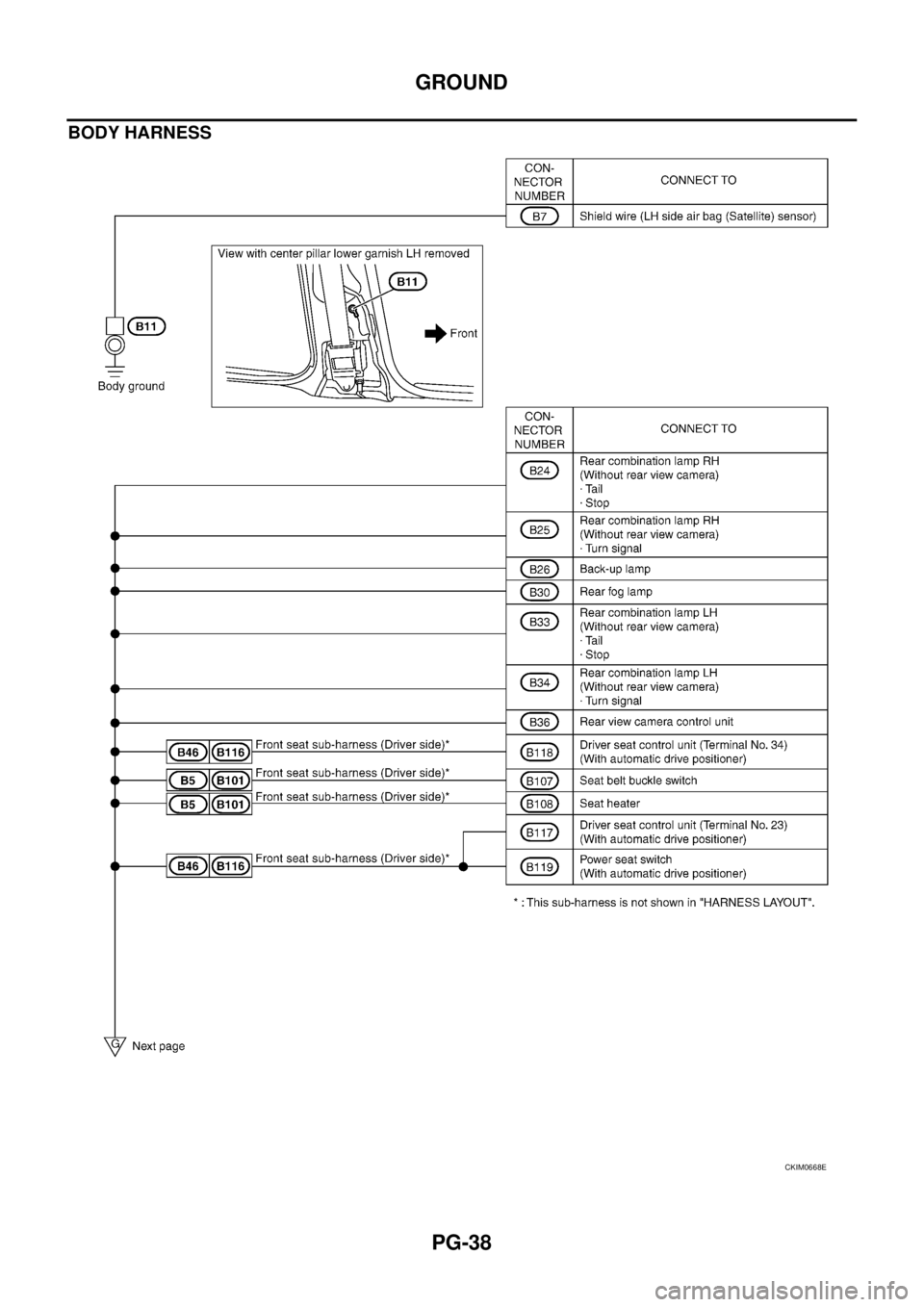

BODY HARNESS
CKIM0668E

GROUND
PG-39
C
D
E
F
G
H
I
J
L
MA
B
PG

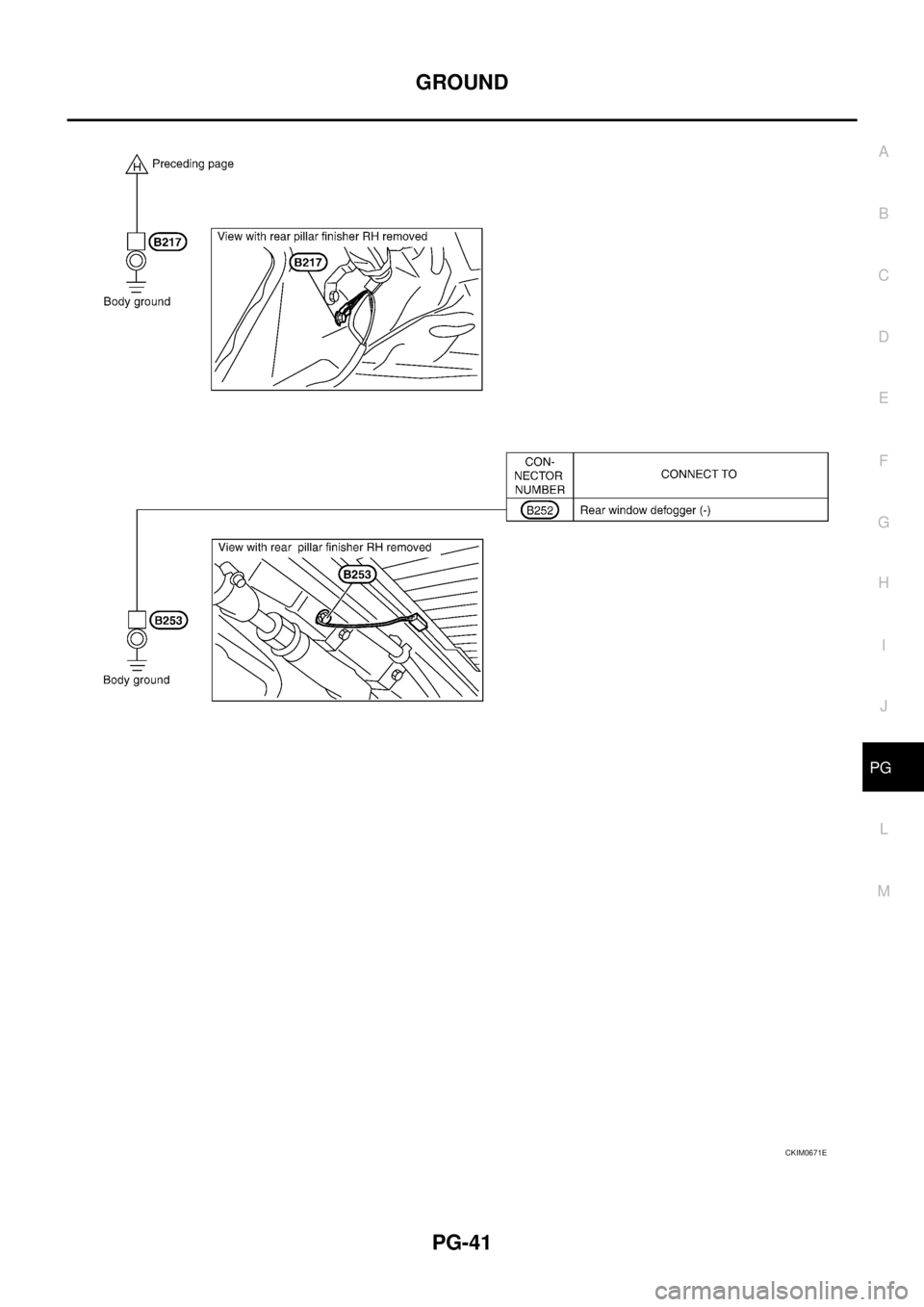

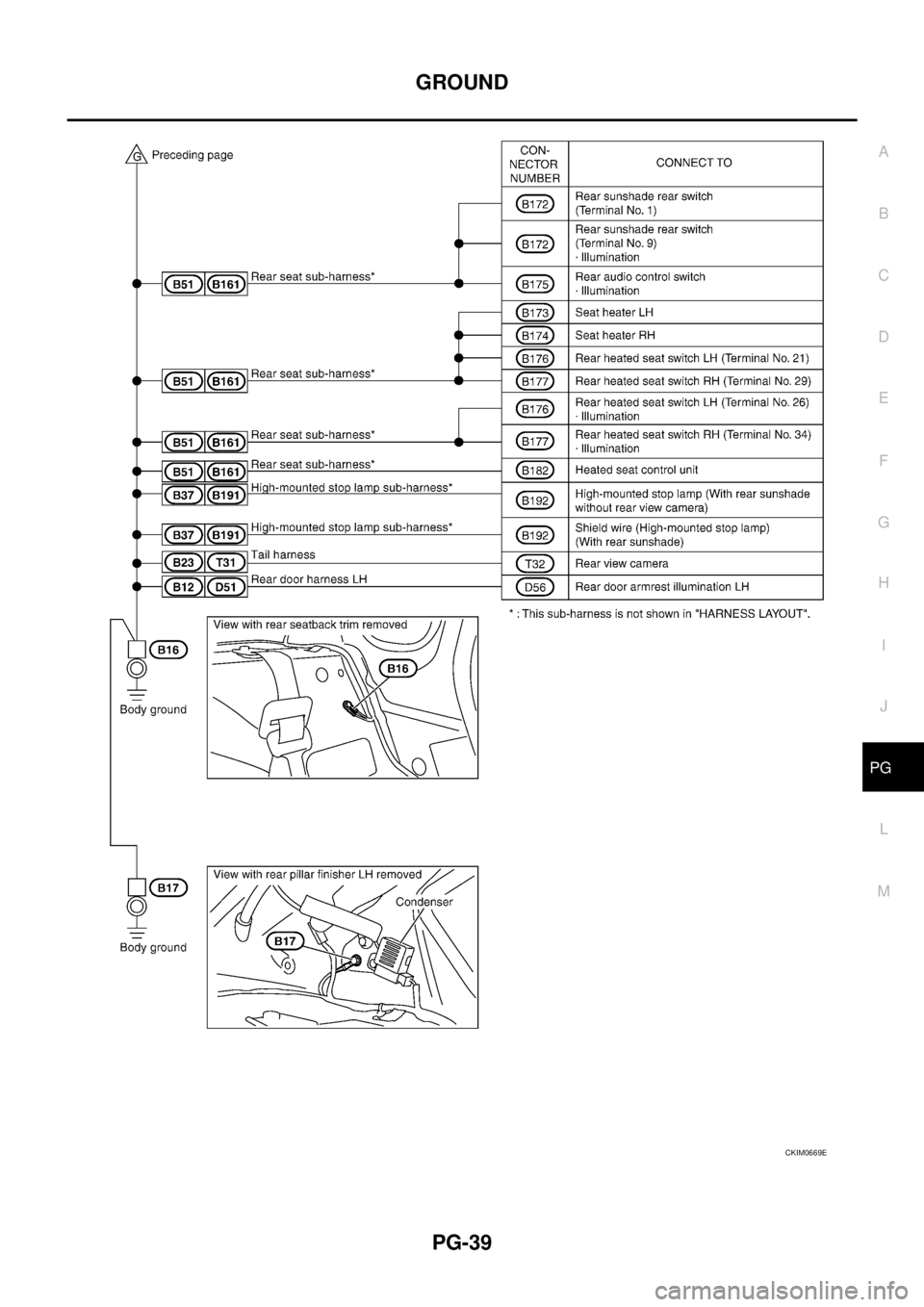

CKIM0669E

PG-40
GROUND

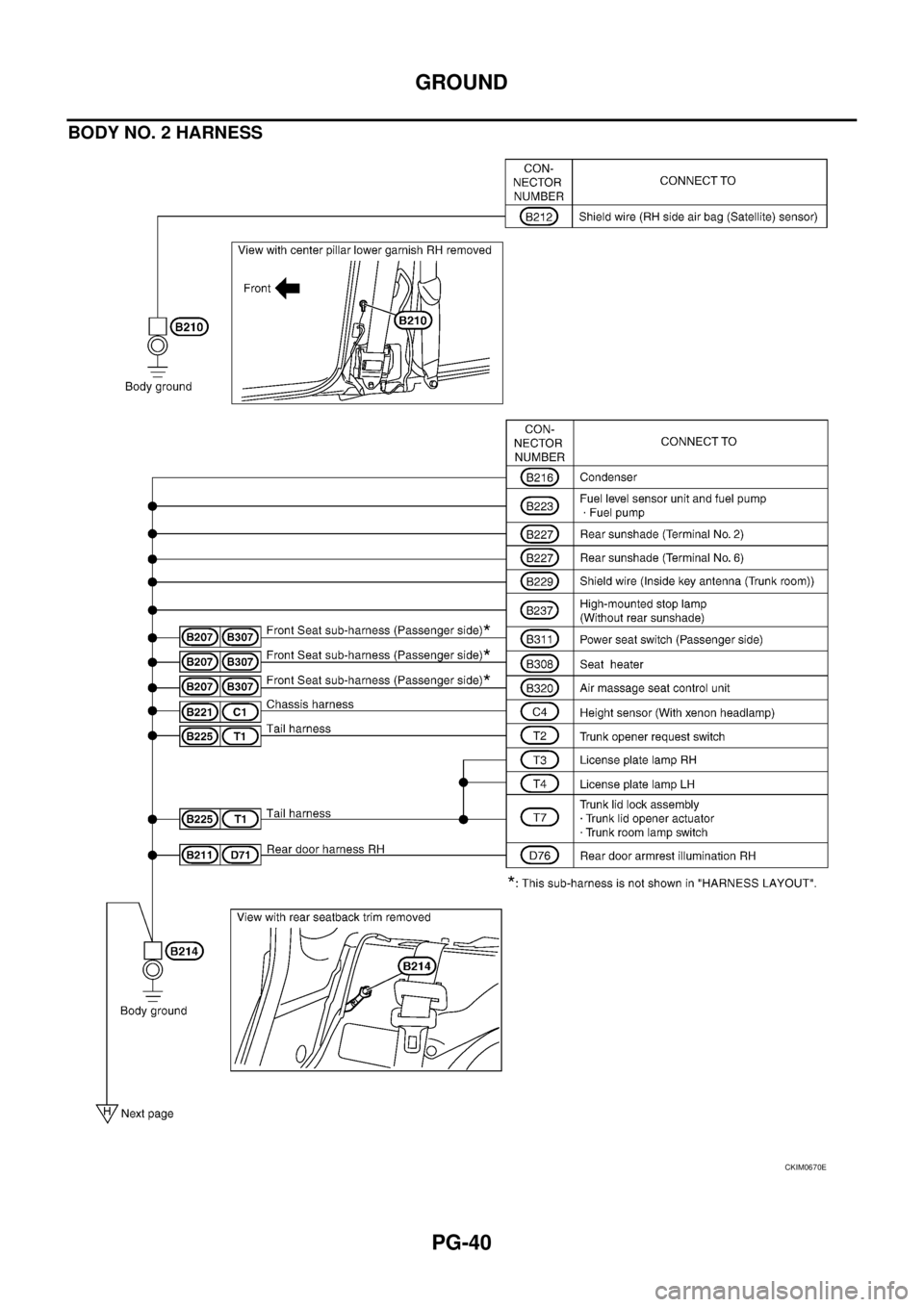

BODY NO. 2 HARNESS
CKIM0670E

GROUND
PG-41
C
D
E
F
G
H
I
J
L
MA
B
PG

CKIM0671E

PG-42
HARNESS

HARNESS PFP:00011
Harness Layout BKS0024Z
HOW TO READ HARNESS LAYOUT
The following Harness Layouts use a map style grid to help locate
connectors on the figures:

Main Harness

Engine Room Harness

Engine Control Harness

Body Harness

Body No. 2 Harness
To Use the Grid Reference
1. Find the desired connector number on the connector list.
2. Find the grid reference.
3. On the figure, find the crossing of the grid reference letter column and number row.
4. Find the connector number in the crossing zone.
5. Follow the line (if used) to the connector.
CONNECTOR SYMBOL
Main symbols of connector (in Harness Layout) are indicated in the below.
SEL252V
CKIT0108E

HARNESS
PG-43
C
D
E
F
G
H
I
J
L
MA
B
PG

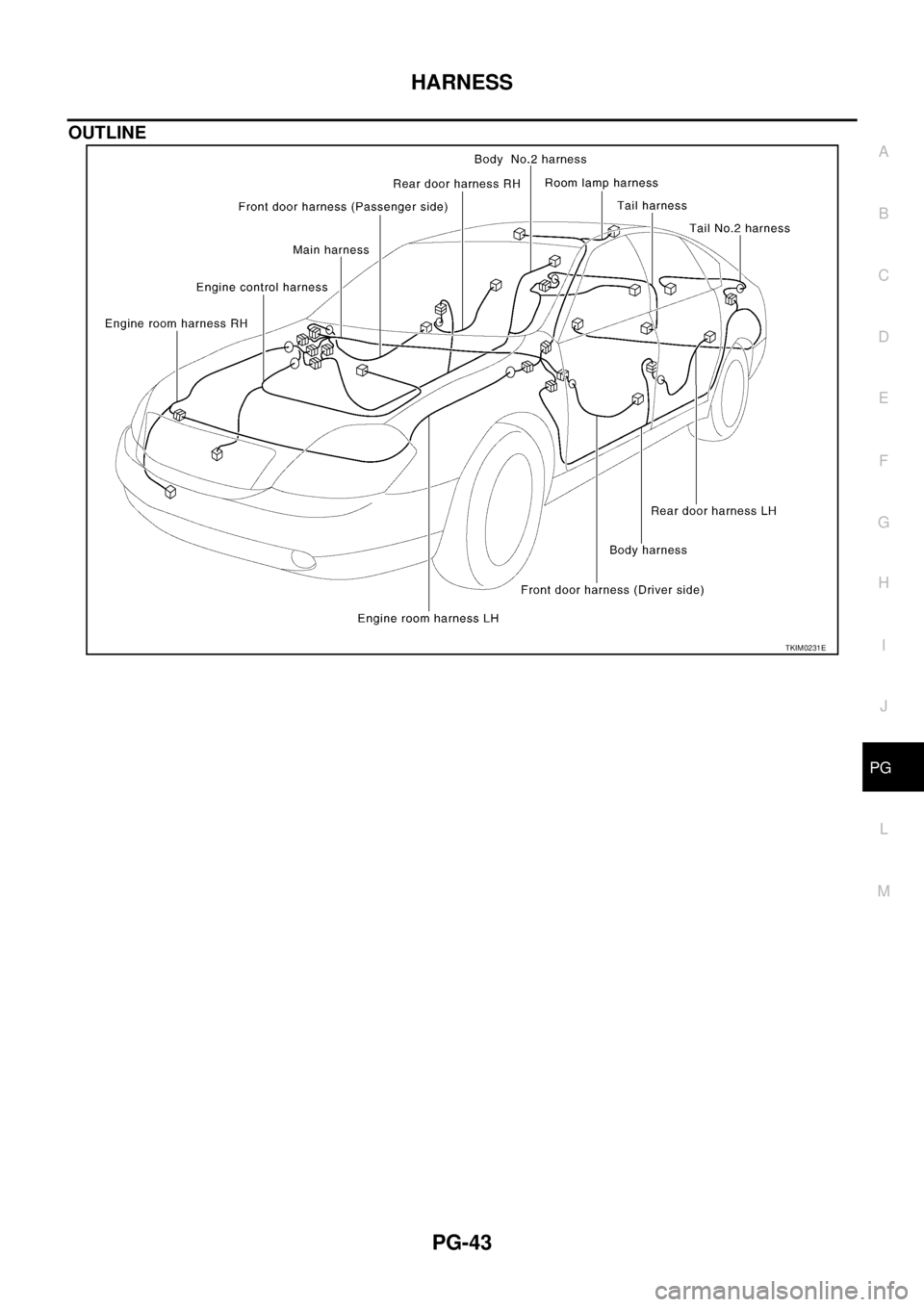

OUTLINE
TKIM0231E

PG-44
HARNESS

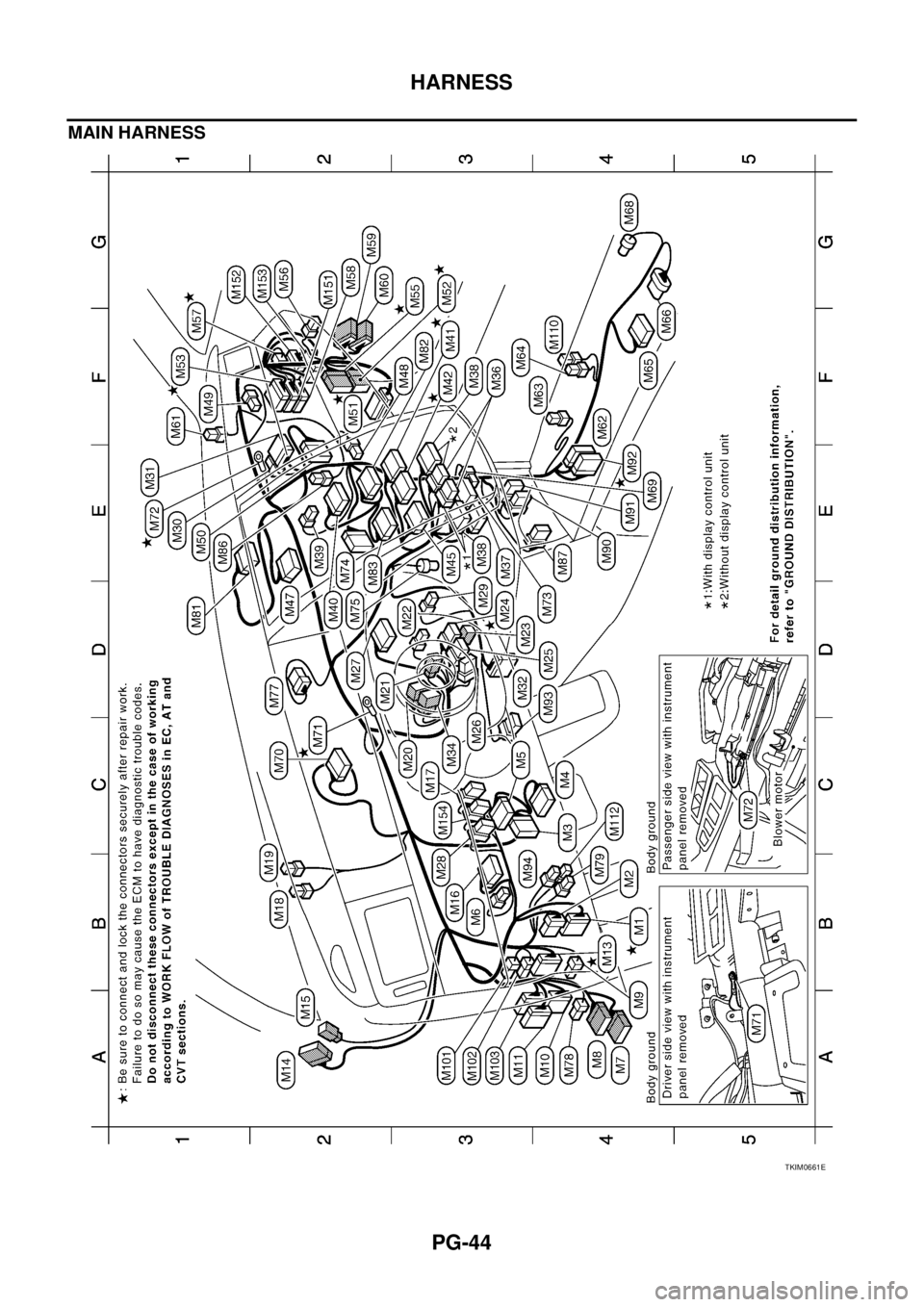

MAIN HARNESS
TKIM0661E

HARNESS
PG-45
C
D
E
F
G
H
I
J
L
MA
B
PG

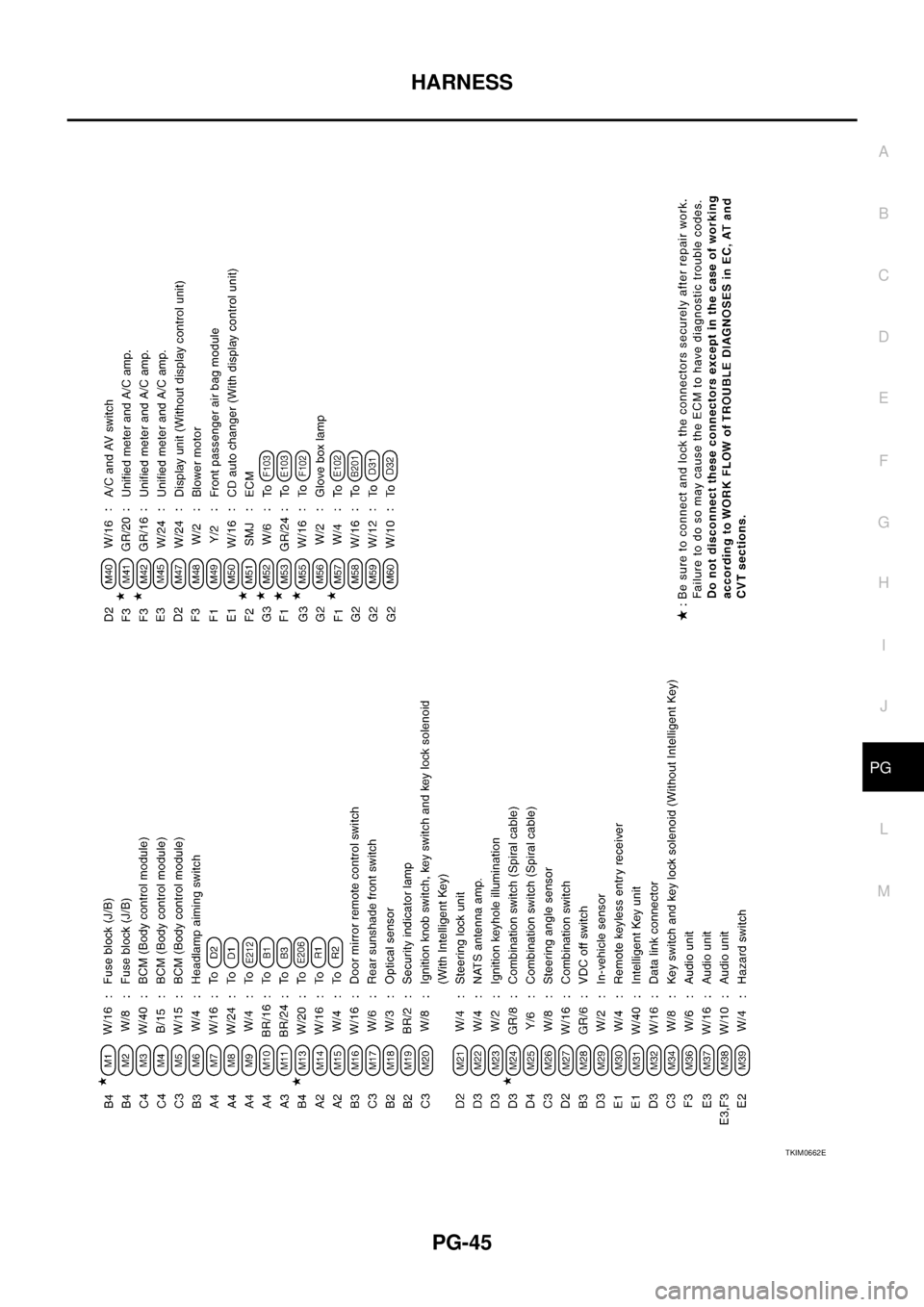

TKIM0662E

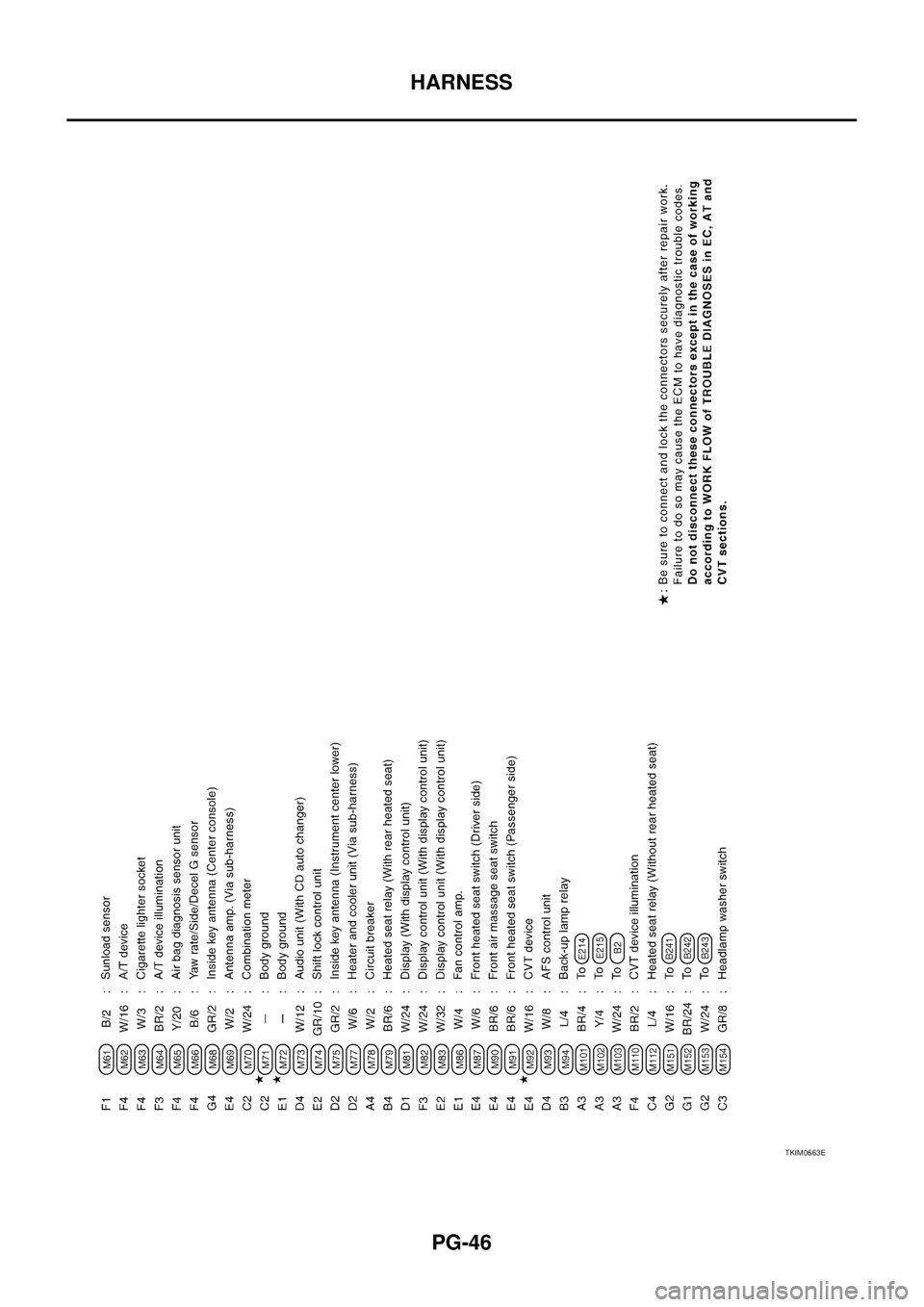

PG-46
HARNESS

TKIM0663E
