After disconnecting the CONSULT vehicle interface (VI) from the data link connector, the ignition must
be cycled OFF → ON (for at least 5 seconds) → OFF. If this step is not performed, the BCM may not go
to ”sleep mode”, potentiall y causing a discharged battery and a no-start condition.
DATA MONITOR
Support Item Setting Description
DOOR LOCK-UNLOCK SET On* Automatic door locks function ON.
Off Automatic door locks function OFF.
HORN CHIRP SET Off
Horn chirp function can be changed in this mode.
On*
HAZARD LAMP SET MODE4* Lock and Unlock
Hazard warning lamp function can be changed in this mode.
MODE3 Lock Only
MODE2 Unlock Only
MODE1 OFF
AUTO LOCK SET MODE3 1 min
Auto locking function can be changed in this mode.
MODE2 OFF
MODE1* 5 min
PANIC ALRM SET MODE3 1.5 sec
Panic alarm operation can be changed in this mode.
MODE2 OFF
MODE1* 0.5 sec
PW DOWN SET MODE3 5 sec
Keyfob power window down can be changed in this mode.
MODE2 OFF
MODE1* 3 sec
Monitor Item [Unit] Description
PUSH SW [On/Off] Indicates condition of push-button ignition switch.
ENGINE STATE [STOP/STALL/CRANK/RUN] Indicates engine status received from ECM on CAN communication line.
VEH SPEED 1 [km/h] Indicates vehicle speed signal received from ABS on CAN communication line.
TURN SIGNAL R [On/Off]
Indicates condition of combination switch.
TURN SIGNAL L [On/Off]
TAIL LAMP SW [On/Off]
HI BEAM SW [On/Off]
HEAD LAMP SW 1 [On/Off]
HEAD LAMP SW 2 [On/Off]
PASSING SW [On/Off]
AUTO LIGHT SW [On/Off]
FR FOG SW [On/Off]
DOOR SW-DR [On/Off] Indicates condition of front door switch LH.
DOOR SW-AS [On/Off] Indicates condition of front door switch RH.
DOOR SW-RR [On/Off] Indicates condition of rear door switch RH.
DOOR SW-RL [On/Off] Indicates condition of rear door switch LH.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 37 of 4801
![NISSAN TEANA 2014 Service Manual
BCS-22
< SYSTEM DESCRIPTION >[BCM]
DIAGNOSIS SYSTEM (BCM)
After disconnecting the CONSULT vehicle interface (VI)
from the data link connector, the ignition must
be cycled OFF → ON (for at least 5](/img/5/57390/w960_57390-36.png "NISSAN TEANA 2014 Service Manual
BCS-22
< SYSTEM DESCRIPTION >[BCM]
DIAGNOSIS SYSTEM (BCM)
After disconnecting the CONSULT vehicle interface (VI)
from the data link connector, the ignition must
be cycled OFF → ON (for at least 5")
BCS-22
< SYSTEM DESCRIPTION >[BCM]
DIAGNOSIS SYSTEM (BCM)
After disconnecting the CONSULT vehicle interface (VI)
from the data link connector, the ignition must
be cycled OFF → ON (for at least 5 seconds) → OFF. If this step is not performed, the BCM may not go
to ”sleep mode”, potentially causing a di scharged battery and a no-start condition.
DATA MONITOR
INTELLIGENT KEY
INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY)INFOID:0000000009462006
CAUTION:
After disconnecting the CONSULT vehicle interface (VI) from the data link connector, the ignition must
be cycled OFF → ON (for at least 5 seconds) → OFF. If this step is not performed, the BCM may not go
to ”sleep mode”, potentially causing a di scharged battery and a no-start condition.
SELF DIAGNOSTIC RESULT
Refer to BCS-52, "DTC Index".
DATA MONITOR
Monitor Item [Unit] Description
FAN ON SIG [On/Off] Indicates condition of fan switch.
AIR COND SW [On/Off] Indicates condition of A/C switch.
Monitor Item [Unit] Main Description
REQ SW -DR [On/Off] ×Indicates condition of door request switch LH.
REQ SW -AS [On/Off] ×Indicates condition of door request switch RH.
REQ SW -BD/TR [On/Off] ×Indicates condition of trunk opener request switch.
PUSH SW [On/Off] Indicates condition of push-button ignition switch.
SHFTLCK SLNID PER SPLY [On/Off] ×Indicates condition of power supply to shiftlock solenoid.
BRAKE SW 1 [On/Off] ×Indicates condition of brake switch.
BRAKE SW 2 [On/Off] Indicates condition of brake switch.
DETE/CANCL SW [On/Off] ×Indicates condition of P (park) position.
SFT PN/N SW [On/Off] ×Indicates condition of P (park) or N (neutral) position.
UNLK SEN -DR [On/Off] ×Indicates condition of door unlock sensor.
PUSH SW -IPDM [On/Off] Indicates condition of push-button ignition switch received from IPDM E/R
on CAN communication line.
IGN RLY1 -F/B [On/Off] Indicates condition of ignition relay 1 received from IPDM E/R on CAN
communication line.
DETE SW -IPDM [On/Off] Indicates condition of detent switch received from TCM on CAN communi-
cation line.
SFT PN -IPDM [On/Off] Indicates condition of P (park) or N (neutral) position from TCM on CAN
communication line.
SFT P -MET [On/Off] Indicates condition of P (park) position from TCM on CAN communication
line.
SFT N -MET [On/Off] Indicates condition of N (neutral) position from IPDM E/R on CAN commu-
nication line.
ENGINE STATE [STOP/START/CRANK/RUN] ×Indicates condition of engine state from ECM on CAN communication line.
VEH SPEED 1 [mph/km/h] ×Indicates condition of vehicle speed signal received from ABS on CAN
communication line.
VEH SPEED 2 [mph/km/h] ×Indicates condition of vehicle speed signal received from combination
meter on CAN communication line.
DOOR STAT -DR [LOCK/READY/UNLK] ×Indicates condition of driver side door status.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 38 of 4801
![NISSAN TEANA 2014 Service Manual
BCS
DIAGNOSIS SYSTEM (BCM)BCS-23
< SYSTEM DESCRIPTION > [BCM]
C
D E
F
G H
I
J
K L
B
A
O P
N
ACTIVE TEST
DOOR STAT -AS [LOCK/READY/UNLK]
×Indicates condition of passenger side door status.
DOOR STA](/img/5/57390/w960_57390-37.png "NISSAN TEANA 2014 Service Manual
BCS
DIAGNOSIS SYSTEM (BCM)BCS-23
< SYSTEM DESCRIPTION > [BCM]
C
D E
F
G H
I
J
K L
B
A
O P
N
ACTIVE TEST
DOOR STAT -AS [LOCK/READY/UNLK]
×Indicates condition of passenger side door status.
DOOR STA")
BCS
DIAGNOSIS SYSTEM (BCM)BCS-23
< SYSTEM DESCRIPTION > [BCM]
C
D E
F
G H
I
J
K L
B
A
O P
N
ACTIVE TEST
DOOR STAT -AS [LOCK/READY/UNLK]
×Indicates condition of passenger side door status.
DOOR STAT -RR [LOCK/READY/UNLK] ×Indicates condition of rear right side door status.
DOOR STAT -RL [LOCK/READY/UNLK] ×Indicates condition of rear left side door status.
ID OK FLAG [Set/Reset] Indicates condition of Intelligent Key ID.
PRMT ENG STRT [Set/Reset] Indicates condition of engine start possibility.
PRMT RKE STRT [Set/Reset] Indicates condition of engine start possibility from Intelligent Key.
I-KEY OK FLAG [Key ON/Key OFF] ×Indicates condition of Intelligent Key OK flag.
PRBT ENG STRT [Set/Reset] Indicates condition of engine start prohibit.
ID AUTHENT CANCEL TIMER [STOP] Indicates condition of Intelligent Key ID authentication.
ACC BATTERY SAVER [STOP] Indicate s condition of battery saver.
CRNK PRBT TMR [On/Off] In dicates condition of crank prohibit timer.
AUT CRNK TMR [On/Off] Indicates condition of automatic engine crank timer from Intelligent Key.
CRNK PRBT TME [sec] I ndicates condition of engine crank prohibit time.
AUTO CRNK TME [sec] Indicates co ndition of automatic engine crank time from Intelligent Key.
CRANKING TME [sec] Indicates condition of engine cranking time from Intelligent Key.
DETE SW PWR [On/Off] Indicates condition of detent switch voltage.
ACC RLY -REQ [On/Off] Indicates condition of accessory relay control request.
RKE OPE COUN1 [0-19] ×When remote keyless entry receiver receives the signal transmitted while
operating on Intelligent Key, the numerical value start changing.
RKE OPE COUN2 [0-19] ×When remote keyless entry receiver receives the signal transmitted while
operating on Intelligent Key, the numerical value start changing.
TRNK/HAT MNTR [On/Off] Indicates condition of trunk room lamp switch.
RKE-LOCK [On/Off] Indicates condition of lock signal from Intelligent Key.
RKE-UNLOCK [On/Off] Indicates condition of unlock signal from Intelligent Key.
RKE-TR/BD [On/Off] Indicates condition of trunk open signal from Intelligent Key.
RKE-PANIC [On/Off] Indicates condition of panic signal from Intelligent Key.
RKE-MODE CHG [On/Off] Indicates condition of mode change signal from Intelligent Key. Monitor Item [Unit] Main Description
Test Item Description
INTELLIGENT KEY LINK (CAN) This test is able to check Intelligent Key iden
tification number [Off/ID No1/ID N02/ID No3/ID
No4/ID No5].
INT LAMP This test is able to check interior room lamp operation [On/Off].
FLASHER This test is able to check hazard lamp operation [LH/RH/Off].
HORN This test is able to check horn operation [On].
BATTERY SAVER This test is able to check battery saver operation [On/Off].
TRUNK/BACK DOOR This test is able to check trunk actuator operation [Open].
OUTSIDE BUZZER This test is able to check In telligent Key warning buzzer operation [On/Off].
INSIDE BUZZER This test is able to check combination meter warning chime operation [Take Out/Knob/Key/
Off].
INDICATOR This test is able to check combination meter warning lamp operation [KEY ON/KEY IND/Off].
IGN CONT2 This test is able to check ignition relay-2 control operation [On/Off].
ENGINE SW ILLUMI This test is able to check push-bu tton ignition switch START indicator operation [On/Off].
PUSH SWITCH INDICATOR This test is able to check push-button ignition switch indicator operation [On/Off].
ACC CONT This test is able to check ac cessory relay control operation [On/Off].
IGN CONT1 This test is able to check ignition relay-1 control operation [On/Off].
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 39 of 4801
![NISSAN TEANA 2014 Service Manual
BCS-24
< SYSTEM DESCRIPTION >[BCM]
DIAGNOSIS SYSTEM (BCM)
WORK SUPPORT
ST CONT LOW This test is able to check starter control relay operation [On/Off].
IGNITION RELAY This test is able to ignition r](/img/5/57390/w960_57390-38.png "NISSAN TEANA 2014 Service Manual
BCS-24
< SYSTEM DESCRIPTION >[BCM]
DIAGNOSIS SYSTEM (BCM)
WORK SUPPORT
ST CONT LOW This test is able to check starter control relay operation [On/Off].
IGNITION RELAY This test is able to ignition r")
BCS-24
< SYSTEM DESCRIPTION >[BCM]
DIAGNOSIS SYSTEM (BCM)
WORK SUPPORT
ST CONT LOW This test is able to check starter control relay operation [On/Off].
IGNITION RELAY This test is able to ignition relay operation [On/Off].
REVERSE LAMP TEST This test is able to check reverse lamp illumination operation [On/Off].
TRUNK/LUGGAGE LAMP TEST This test is able to check cargo lamp illumination operation [On/Off].
KEYFOB PW TEST This test is able to check power wind ow operation using the Intelligent Key [Off/DOWN/UP].
SHIFTLOCK SOLENOID TEST This test is able to check shift lock solenoid operation [On/Off]. Test Item Description
Support Item Setting Description
IGN/ACC BATTERY SAVER On* Battery saver function ON.
Off Battery saver function OFF.
REMOTE ENGINE STARTER On* Remote engine start function ON.
Off Remote engine start function OFF.
ANSWERBACK I-KEY LOCK UNLOCK BUZZER Buzzer reminder function by door lock/unlock request switch ON.
HORN Horn chirp reminder function by door lock request switch ON.
Off* No reminder function by door lock/unlock request switch.
INVALID This mode is not used.
ANSWERBACK KEYLESS LOCK UN-
LOCK On
Buzzer or horn chirp reminder when doors are locked/unlocked with
Intelligent Key.
Off* No buzzer or horn chirp reminder when doors are locked/unlocked
with Intelligent Key.
ANSWER BACK On* Horn chirp reminder when doors are locked with Intelligent Key.
Off No horn chirp reminder when doors are locked with Intelligent Key.
RETRACTABLE MIRROR SET On Retractable mirror set ON.
Off* Retractable mirror set OFF.
CONFIRM KEY FOB ID — Intelligent Key ID code can check.
LOCK/UNLOCK BY I-KEY On* Door lock/unlock function from Intelligent Key ON.
Off Door lock/unlock function from Intelligent Key OFF.
ENGINE START BY I-KEY On* Engine start function from Intelligent Key ON.
Off Engine start function from Intelligent Key OFF.
TRUNK/GLASS HATCH OPEN On* Buzzer reminder function by trunk opener request switch ON.
Off Buzzer reminder function by trunk opener request switch OFF.
INTELLIGENT KEY LINK SET On Intelligent Key link set ON.
Off* Intelligent Key link set OFF.
SHORT CRANKING OUTPUT Start70 msec
Starter motor operation duration times.
100 msec
200 msec
End —
INSIDE ANT DIAGNOSIS — This function allows inside key antenna self-diagnosis.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 47 of 4801
![NISSAN TEANA 2014 Service Manual
BCS-32
< ECU DIAGNOSIS INFORMATION >[BCM]
BCM (BODY CONTROL MODULE)
CONFIRM ID2The key ID does not match the second key ID registered to BCM. Yet
The key ID matches the second key ID registered to B](/img/5/57390/w960_57390-46.png "NISSAN TEANA 2014 Service Manual
BCS-32
< ECU DIAGNOSIS INFORMATION >[BCM]
BCM (BODY CONTROL MODULE)
CONFIRM ID2The key ID does not match the second key ID registered to BCM. Yet
The key ID matches the second key ID registered to B")
BCS-32
< ECU DIAGNOSIS INFORMATION >[BCM]
BCM (BODY CONTROL MODULE)
CONFIRM ID2The key ID does not match the second key ID registered to BCM. Yet
The key ID matches the second key ID registered to BCM. DONE
CONFIRM ID1 The key ID does not match the first key ID registered to BCM. Yet
The key ID matches the first key ID registered to BCM. DONE
CRANKING TME Engine start timer duration. sec
CRNK PRBT TME Engine start prohibit timer duration. sec
CRNK PRBT TMR When the engine start prohibit timer is OFF. Off
When the engine start prohibit timer is ON. On
DETE SW -IPDM When selector lever is in P position Off
When selector lever is in any position other than P On
DETE SW PWR When BCM is not supplying power to detent switch. Off
When BCM is supplying power to detent switch. On
DETE/CANCL SW When selector lever is in P position Off
When selector lever is in any position other than P On
DOOR STAT-AS Passenger door LOCK status LOCK
Passenger door UNLOCK status UNLK
Wait with selective UNLOCK operation (5 seconds) READY
DOOR STAT-DR Driver door LOCK status LOCK
Driver door UNLOCK status UNLK
Wait with selective UNLOCK operation (5 seconds) READY
DOOR STAT-RL Rear left door LOCK status LOCK
Rear left door UNLOCK status UNLK
Wait with selective UNLOCK operation (5 seconds) READY
DOOR STAT-RR Rear right door LOCK status LOCK
Rear right door UNLOCK status UNLK
Wait with selective UNLOCK operation (5 seconds) READY
DOOR SW-AS Front door RH closed Off
Front door RH opened On
DOOR SW-BK Trunk closed Off
Trunk opened On
DOOR SW-DR Front door LH closed Off
Front door LH opened On
DOOR SW-RL Rear door LH closed Off
Rear door LH opened On
DOOR SW-RR Rear door RH closed Off
Rear door RH opened On
ENGINE STATE Engine stopped STOP
While the engine stalls STALL
At engine cranking CRANK
Engine running RUN
FA N O N S I G Blower motor fan switch OFF Off
Blower motor fan switch ON On
FR FOG SW Front fog lamp switch OFF Off
Front fog lamp switch ON On
Monitor Item Condition Value/Status
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 65 of 4801
![NISSAN TEANA 2014 Service Manual
BCS-50
< ECU DIAGNOSIS INFORMATION >[BCM]
BCM (BODY CONTROL MODULE)
Fail Safe
INFOID:0000000009462017
DTC Inspection Priority ChartINFOID:0000000009462018
If some DTCs are displayed at the same time,](/img/5/57390/w960_57390-64.png "NISSAN TEANA 2014 Service Manual
BCS-50
< ECU DIAGNOSIS INFORMATION >[BCM]
BCM (BODY CONTROL MODULE)
Fail Safe
INFOID:0000000009462017
DTC Inspection Priority ChartINFOID:0000000009462018
If some DTCs are displayed at the same time,")
BCS-50
< ECU DIAGNOSIS INFORMATION >[BCM]
BCM (BODY CONTROL MODULE)
Fail Safe
INFOID:0000000009462017
DTC Inspection Priority ChartINFOID:0000000009462018
If some DTCs are displayed at the same time, perfo rm inspections one by one based on the following priority
chart.
137
(V) Ground Driver and fuel door
unlock Output Front door LH UNLOCK (actuator is acti-
vated) Battery voltage
Other than UNLOCK (actu-
ator is not activated) 0V
138 (V) Ground Rear door battery Input Push-button ignition switch OFF Battery voltage
139 (W) Ground Fusible link battery
power Input Push-button ignition switch OFF Battery voltage
140
(LG) Ground
Power window igni-
tion power supply Output Push-button ignition switch ON Battery voltage
141 (V) Ground Power window bat-
tery power supply Output Push-button ignition switch OFF Battery voltage
142
(BR) Ground Front door battery Input Push-button ignition switch OFF Battery voltage
143 (B) Ground Ground 1 — Push-button ignition switch ON 0V
Te r m i n a l N o .
(Wire color) Description
Condition Va l u e
(Approx.)
Signal name Input/
Output
(+) (-)
Display contents of CONS ULT Fail-safe Cancellation
B2190: NATS ANTENNA AMP Inhibit engine cranking Erase DTC
B2191: DIFFERENCE OF KEY Inhibit engine cranking Erase DTC
B2192: ID DISCORD BCM-ECM Inhibit engine cranking Erase DTC
B2193: CHAIN OF BCM-ECM Inhibit engine cranking Erase DTC
B2195: ANTI-SCANNING Inhibit engine cranking Ignition switch ON → OFF
B2560: STARTER CONT RELAY Inhibit engine cranking 500 ms after the following CAN signal communication status has
become consistent
• Starter control relay signal
• Starter relay status signal
B2562: LO VOLTAGE Inhibit engine cranking 100 ms after the power supply voltage increases to more than 8.8 V
B2608: STARTER RELAY Inhibit engine cranking 500 ms after the following signal communication status becomes
consistent
• Starter motor re lay control signal
• Starter relay status signal (CAN)
B260A: IGNITION RELAY Inhibit engine cranking 500 ms after the following conditions are fulfilled
• IGN relay (IPDM E/R) control signal: OFF (Battery voltage)
• Ignition ON signal (CAN to IPDM E/R): OFF (Request signal)
• Ignition ON signal (CAN from IPDM E/R): OFF (Condition signal)
B2617: STARTER RELAY CIRC Inhibit engine cranking 1 second after the starter motor
relay control inside BCM becomes
normal
B2618: BCM Inhibit engine cranking 1 second after the ignition relay (IPDM E/R) control inside BCM be-
comes normal
B261E: VEHICLE TYPE Inhibit engine cranking BCM initialization
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 181 of 4801
![NISSAN TEANA 2014 Service Manual
DIAGNOSIS SYSTEM [ABS ACTUATOR AND ELECTRIC UNIT (CONTROL
UNIT)]
BRC-35
< SYSTEM DESCRIPTION > [VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
N
O P
× : Applicable
–: Not applicable N POSI SIG
(On/O](/img/5/57390/w960_57390-180.png "NISSAN TEANA 2014 Service Manual
DIAGNOSIS SYSTEM [ABS ACTUATOR AND ELECTRIC UNIT (CONTROL
UNIT)]
BRC-35
< SYSTEM DESCRIPTION > [VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
N
O P
× : Applicable
–: Not applicable N POSI SIG
(On/O")
DIAGNOSIS SYSTEM [ABS ACTUATOR AND ELECTRIC UNIT (CONTROL
UNIT)]
BRC-35
< SYSTEM DESCRIPTION > [VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
N
O P
× : Applicable
–: Not applicable N POSI SIG
(On/Off) ––
×Neutral position (On/Off) judged by transmission
range switch signal.
P POSI SIG
(On/Off) ––
×Park position (On/Off) judged by transmission range
switch signal.
ACCEL POS SIG
(%) ×
– ×Throttle valve open/close status judged by CAN com-
munication signal is displayed.
SIDE G-SENSOR
(m/s
2) ×
– ×Transverse acceleration detected by side G-sensor is
displayed.
STR ANGLE SIG
(deg) ×
– ×Steering angle detected by steering angle sensor is
displayed.
PRESS SENSOR
(bar) ×
– ×Brake pressure detected by pressure sensor is dis-
played.
EBD SIGNAL
(On/Off) ––
×EBD operation (On/Off) status is displayed.
ABS SIGNAL
(On/Off) ––
×ABS operation (On/Off) status is displayed.
TCS SIGNAL
(On/Off) ––
×TCS operation (On/Off) status is displayed.
VDC SIGNAL
(On/Off) ––
×VDC operation (On/Off) status is displayed.
EBD FAIL SIG
(On/Off) ––
×EBD fail signal (On/Off) status is displayed.
ABS FAIL SIG
(On/Off) ––
×ABS fail signal (On/Off) status is displayed.
TCS FAIL SIG
(On/Off) ––
×TCS fail signal (On/Off) status is displayed.
VDC FAIL SIG
(On/Off) ––
×VDC fail signal (On/Off) status is displayed.
CRANKING SIG
(On/Off) ––
×The input state of the key SW START position signal
is displayed.
FLUID LEV SW
(On/Off) ×
– ×Brake fluid level switch (On/Off) status is displayed.
PARK BRAKE SW
(On/Off) ×
– ×Park brake switch (On/Off) status is displayed.
USV[FL-RR]
(On/Off) ——
×Primary side USV solenoid valve (On/Off) status is
displayed.
USV[FR-RL]
(On/Off) ——
×Secondary side USV solenoid valve (On/Off) status is
displayed.
HSV[FL-RR]
(On/Off) ——
×Primary side HSV solenoid valve (On/Off) status is
displayed.
HSV[FR-RL]
(On/Off) ——
×Secondary side HSV solenoid valve (On/Off) status is
displayed.
V/R OUTPUT
(On/Off) ——
×Valve relay operation signal (On/Off) status is dis-
played.
M/R OUTPUT
(On/Off) ——
×Motor relay operation signal (On/Off) status is dis-
played.
ENGINE RPM
(tr/min) ×
– ×Engine speed judged by CAN communication signal
is displayed.
Item
(Unit) Data monitor item selection
Remarks
ECU INPUT
SIGNALS MAIN
SIGNALS SELECTION
FROM MENU
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 186 of 4801
![NISSAN TEANA 2014 Service Manual
BRC-40
< ECU DIAGNOSIS INFORMATION >[VDC/TCS/ABS]
ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)
R POSI SIGTransmission range switch signal ON/OFF
condition CVT shift position = R position On
CVT s](/img/5/57390/w960_57390-185.png "NISSAN TEANA 2014 Service Manual
BRC-40
< ECU DIAGNOSIS INFORMATION >[VDC/TCS/ABS]
ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)
R POSI SIGTransmission range switch signal ON/OFF
condition CVT shift position = R position On
CVT s")
BRC-40
< ECU DIAGNOSIS INFORMATION >[VDC/TCS/ABS]
ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)
R POSI SIGTransmission range switch signal ON/OFF
condition CVT shift position = R position On
CVT shift position = other than R position Off
N POSI SIG Transmission range switch signal ON/OFF
condition CVT shift position = N position On
CVT shift position = other than N position Off
P POSI SIG Transmission range switch signal ON/OFF
condition CVT shift position = P position On
CVT shift position = other than P position Off
ACCEL POS SIG Throttle actuator opening/closing is dis-
played (linked with accelerator pedal) Accelerator pedal not depressed (ignition
switch is ON) 0 %
Depress accelerator pedal (ignition
switch is ON) 0 - 100 %
SIDE G-SENSOR Transverse G detected by side G sensor Vehicle stopped
Approx. 0 m/s
2
Vehicle turning rightNegative value
(m/s2)
Vehicle turning left Positive value
(m/s
2)
STR ANGLE SIG Steering angle detected by steering angle
sensor Straight-ahead Approx. 0
°
Steering wheel turned –720 to 720 °
PRESS SENSOR Brake fluid pressure detected by pressure
sensor With ignition switch turned ON and brake
pedal released Approx. 0 bar
With ignition switch turned ON and brake
pedal depressed –40 to 300 bar
EBD SIGNAL EBD operation EBD is active On
EBD is inactive Off
ABS SIGNAL ABS operation ABS is active On
ABS is inactive Off
TCS SIGNAL TCS operation TCS is active On
TCS is inactive Off
VDC SIGNAL VDC operation VDC is active On
VDC is inactive Off
EBD FAIL SIG EBD fail-safe signal In EBD fail-safe On
EBD is normal Off
ABS FAIL SIG ABS fail-safe signal In ABS fail-safe On
ABS is normal Off
TCS FAIL SIG TCS fail-safe signal In TCS fail-safe On
TCS is normal Off
VDC FAIL SIG VDC fail-safe signal In VDC fail-safe On
VDC is normal Off
CRANKING SIG Crank operation Crank is active On
Crank is inactive Off
FLUID LEV SW Brake fluid level switch When brake fluid level switch ON On
When brake fluid level switch OFF Off
PARK BRAKE SW Parking brake switch Parking brake switch is active On
Parking brake switch is inactive Off
Monitor item Display content
Data monitor
Condition Reference value in
normal operation
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 425 of 4801
![NISSAN TEANA 2014 Service Manual
WATER PUMPCO-45
< REMOVAL AND INSTALLATION > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
CO
NP
O
4. Remove cowl top extension. Refer to
EXT-24, "Removal and Installation".
5. Remove the front road wheel and t](/img/5/57390/w960_57390-424.png "NISSAN TEANA 2014 Service Manual
WATER PUMPCO-45
< REMOVAL AND INSTALLATION > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
CO
NP
O
4. Remove cowl top extension. Refer to
EXT-24, \"Removal and Installation\".
5. Remove the front road wheel and t")
WATER PUMPCO-45
< REMOVAL AND INSTALLATION > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
CO
NP
O
4. Remove cowl top extension. Refer to
EXT-24, "Removal and Installation".
5. Remove the front road wheel and tire (RH). Refer to WT-55, "Adjustment"
.
6. Remove the fender protector (RH). Refer to EXT-26, "FENDER PROTECTOR : Removal and Installation"
.
7. Drain coolant from the radiator. Refer to CO-36, "Changing Engine Coolant"
.
CAUTION:
Perform when the engine is cold.
8. Disconnect coolant reservoir hose and remove coolant reservoir tank. Refer to CO-40, "Exploded View"
.
9. Drain the power steering fluid reservoir. Refer to ST-30, "Draining and Refilling"
.
10. Remove the power steering oil pump. Refer to ST-38, "Removal and Installation"
.
11. Support engine and remove the RH engine insulator and bracket. Refer to EM-220, "Exploded View"
.
12. Set No. 1 cylinder at TDC on its compression stroke. • Align pointer with TDC mark on crankshaft pulley.
13. Remove drive belt. Refer to EM-134, "Removal and Installation"
.
14. Remove the drive belt auto-tensioner assembly. Refer to EM-135, "Removal and Installation of Drive Belt
Auto-tensioner".
15. Remove water drain plug (A) and copper sealing washer (B) to drain coolant from engine.
CAUTION:
Do not reuse copper sealing washers.
16. Disconnect RH valve timing control connectors and remo ve valve timing control cover (bank 1). Refer to
EM-182, "Exploded View"
.
17. Remove water pump cover. Refer to CO-44, "Exploded View"
.
18. Remove the timing chain tensioner (primary) as follows:
a. Pull the lever (C) down to release the plunger stopper tab (B).
b. Insert the stopper pin A into the tensioner body hole to hold the lever (C) and keep the plunger stopper tab (B) released.
NOTE:
An allen wrench [(1.2 mm (0.047 in)] is used for a stopper pin A
as an example.
c. Compress the plunger (D) into the tensioner body (1) by press- ing the slack guide (2).
d. Keep the slack guide (2) pressed and lock the plunger (D) in by pushing the stopper pin A through the lever (C) and into the
chain tensioner body hole.
e. Remove timing chain tensioner bolts and then remove the timing chain tensioner. CAUTION:
Be careful not to drop timing chain te nsioner bolts inside timing chain case.
19. Remove the three water pump bolts (A). Make a gap between water pump sprocket (1) and timing chain, by carefully turning
crankshaft pulley (2) counterclockwise until timing chain loosens
on water pump sprocket (1).
: Front
AWBIA1202GB
AWBIA0903ZZ
AWBIA0904ZZ
Revision: November 20132014 Altima NAM
Page 427 of 4801
![NISSAN TEANA 2014 Service Manual

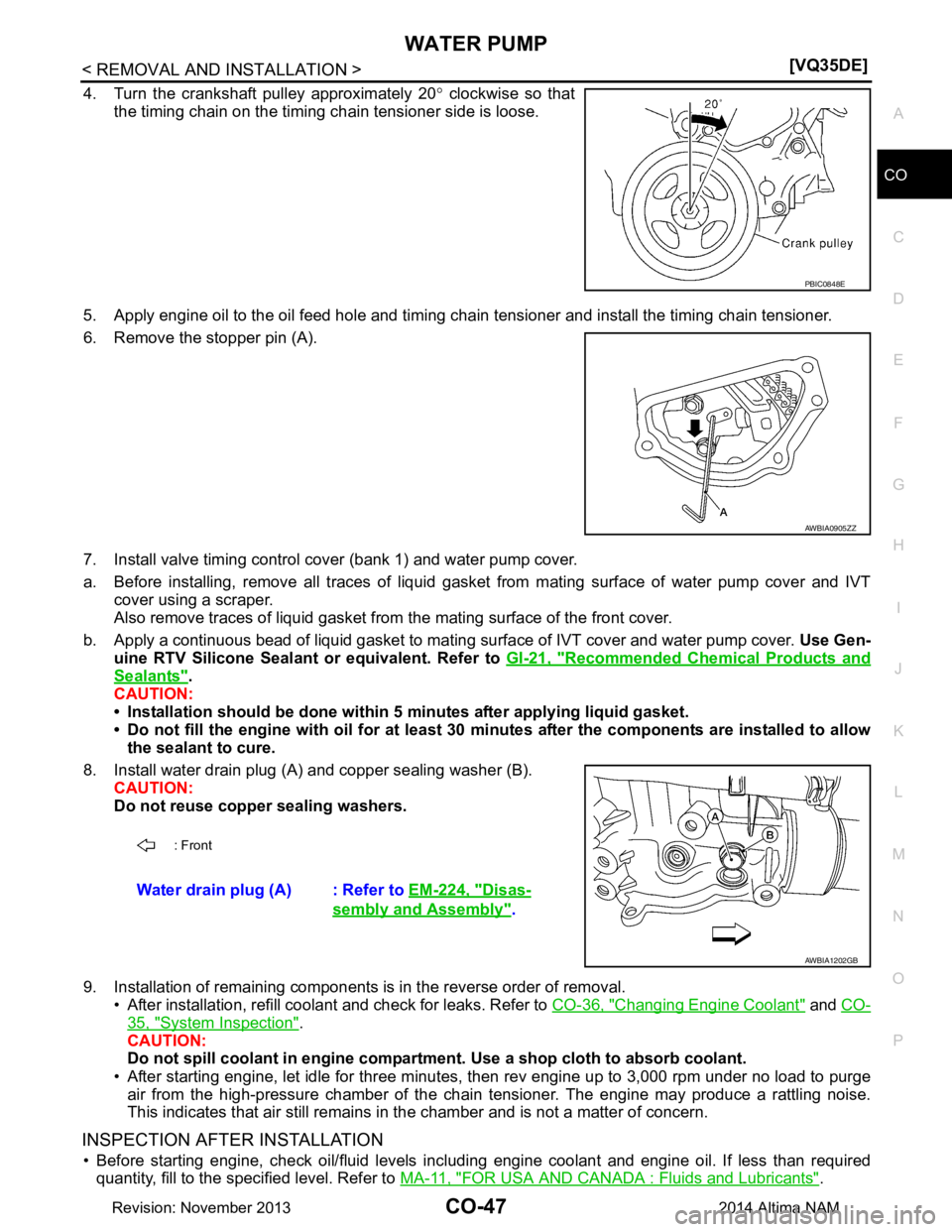

WATER PUMPCO-47
< REMOVAL AND INSTALLATION > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
CO
NP
O
4. Turn the crankshaft pulley approximately 20
° clockwise so that
the timing chain on the timing chain tension](/img/5/57390/w960_57390-426.png "NISSAN TEANA 2014 Service Manual
WATER PUMPCO-47
< REMOVAL AND INSTALLATION > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
CO
NP
O
4. Turn the crankshaft pulley approximately 20
° clockwise so that
the timing chain on the timing chain tension")
WATER PUMPCO-47
< REMOVAL AND INSTALLATION > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
CO
NP
O
4. Turn the crankshaft pulley approximately 20
° clockwise so that
the timing chain on the timing chain tensioner side is loose.
5. Apply engine oil to the oil feed hole and timing chain tensioner and install the timing chain tensioner.
6. Remove the stopper pin (A).
7. Install valve timing control cover (bank 1) and water pump cover.
a. Before installing, remove all traces of liquid gasket from mating surface of water pump cover and IVT cover using a scraper.
Also remove traces of liquid gasket from the mating surface of the front cover.
b. Apply a continuous bead of liquid gasket to mating surface of IVT cover and water pump cover. Use Gen-
uine RTV Silicone Sealant or equivalent. Refer to GI-21, "Recommended Chemical Products and
Sealants".
CAUTION:
• Installation should be done within 5 minutes afte r applying liquid gasket.
• Do not fill the engine with oil for at least 30 minutes after the co mponents are installed to allow
the sealant to cure.
8. Install water drain plug (A) and copper sealing washer (B). CAUTION:
Do not reuse copper sealing washers.
9. Installation of remaining components is in the reverse order of removal. • After installation, refill coolant and check for leaks. Refer to CO-36, "Changing Engine Coolant"
and CO-
35, "System Inspection".
CAUTION:
Do not spill coolant in en gine compartment. Use a sh op cloth to absorb coolant.
• After starting engine, let idle for three minutes, then rev engine up to 3,000 rpm under no load to purge air from the high-pressure chamber of the chai n tensioner. The engine may produce a rattling noise.
This indicates that air still remains in the chamber and is not a matter of concern.
INSPECTION AFTER INSTALLATION
• Before starting engine, check oil/fluid levels incl uding engine coolant and engine oil. If less than required
quantity, fill to the specified level. Refer to MA-11, "FOR USA AND CANADA : Fluids and Lubricants"
.
PBIC0848E
AWBIA0905ZZ
: Front
Water drain plug (A) : Refer to EM-224, "Disas-
sembly and Assembly".
AWBIA1202GB
Revision: November 20132014 Altima NAM
