seat adjustment NISSAN TITAN 2008 Owners Manual

Table of
ContentsIllustrated table of contents
Safety—Seats, seat belts and supplemental restraint system
Instruments and controls
Pre-driving checks and adjustments
Display screen, heater, air conditioner, audio and phone systems
Starting and driving
In case of emergency
Appearance and care
Maintenance and do-it-yourself
Technical and consumer information
Index
0
1
2
3
4
5
6
7
8
9
10
ProCarManuals.com

17. Power outlet/Cigarette lighter
(accessory) (P. 2-39/P. 2-41)
18. Heated seat switch (if so equipped)
(P. 2-36)
19. Storage compartment (P. 2-41)
20. Vehicle dynamic control (VDC) off
switch (if so equipped) (P. 2-37)
21. Tow mode switch (P. 2-39)
22. Electronic locking rear differential
(E-Lock) system switch (if so
equipped) (P.2-37)
23. Shift selector lever (console)
(if so equipped) (P. 5-14)
24. Hazard warning flasher switch (P. 2-35)
25. Front passenger air bag status light
(P. 1-55)
26. Power outlet (P. 2-39)
27. 4WD shift switch (if so equipped)
(P. 5-24)
28. Windshield wiper/washer switch
(P. 2-29)
29. Tilt steering wheel control (P. 3-12)
30. Cargo lamp switch (P. 2-35)
31. Rear sonar system off switch
(if so equipped) (P. 2-38)
32. Pedal position adjustment switch
(if so equipped) (P. 3-12)33. Rear power window switch
(if so equipped) (P. 2-52)
*: Refer to the separate Navigation System Own-
er’s Manual (if so equipped) .
See the page number indicated in paren-
theses for operating details.
Illustrated table of contents0-7
ZREVIEW COPYÐ2008 Titan(tzw)
Owners ManualÐUSA_English(nna)
10/11/07Ðdebbie
X
ProCarManuals.com

1 Safety—Seats, seat belts and
supplemental restraint system
Seats............................................1-2
Front manual captain’s chair seat adjustment
(if so equipped)................................1-2
Front manual bench seat adjustment
(if so equipped)................................1-3
Front power seat adjustment
(if so equipped)................................1-5
Head restraint adjustment.......................1-6
Front-seat Active Head Restraints................1-7
Armrests (if so equipped)........................1-8
Flexible seating.................................1-9
Seat belts.......................................1-13
Precautions on seat belt usage..................1-13
Child safety...................................1-15
Pregnant women..............................1-17
Injured persons................................1-17
Three-point type seat belt with retractor..........1-17
Two-point type seat belt without retractor
(center of the front bench seat)
(if so equipped)...............................1-20Seat belt extenders............................1-22
Seat belt maintenance.........................1-22
Child restraints...................................1-23
Precautions on child restraints..................1-23
Lower Anchors and Tethers for CHildren
system (LATCH)...............................1-25
Top tether strap child restraint..................1-27
Child restraint installation using LATCH..........1-28
Child restraint installation using the seat
belts.........................................1-32
Booster seats....................................1-41
Precautions on booster seats...................1-41
Booster seat installation........................1-43
Supplemental restraint system.....................1-46
Precautions on supplemental restraint
system.......................................1-46
Supplemental air bag warning labels.............1-61
Supplemental air bag warning light..............1-61
ZREVIEW COPYÐ2008 Titan(tzw)
Owners ManualÐUSA_English(nna)
10/11/07Ðdebbie
X
ProCarManuals.com

WARNING
cDo not ride in a moving vehicle when
the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and receive
neck or other serious injuries. You
could also slide under the lap belt and
receive serious internal injuries.cFor the most effective protection when
the vehicle is in motion, the seat should
be upright. Always sit well back in the
seat with both feet on the floor and
adjust the seat properly. See “Precau-
tions on Seat Belt Usage” later in this
section.
cAfter adjustment, gently rock in the seat
to make sure it is securely locked.
cDo not leave children unattended inside
the vehicle. They could unknowingly ac-
tivate switches or controls. Unattended
children could become involved in seri-
ous accidents.
FRONT MANUAL CAPTAIN’S CHAIR
SEAT ADJUSTMENT (if so equipped)
ARS1152
SEATS
1-2Safety—Seats, seat belts and supplemental restraint system
ZREVIEW COPYÐ2008 Titan(tzw)
Owners ManualÐUSA_English(nna)
10/11/07Ðdebbie
X
ProCarManuals.com

Forward and backward
Pull the lever up and hold it while you slide the
seat forward or backward to the desired position.
Release the lever to lock the seat in position.
Reclining
To recline the seatback, pull the lever up and lean
back. To bring the seatback forward, pull the lever
up and lean your body forward. Release the lever
to lock the seatback in position.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. See “Precautions on seat belt usage” later
in this section. Also, the seatback can be reclined
to allow occupants to rest when the vehicle is
stopped and the transmission is in P (Park) .
FRONT MANUAL BENCH SEAT
ADJUSTMENT (if so equipped)
LRS0419LRS0420
Safety—Seats, seat belts and supplemental restraint system1-3
ZREVIEW COPYÐ2008 Titan(tzw)
Owners ManualÐUSA_English(nna)
10/11/07Ðdebbie
X
ProCarManuals.com

Forward and backward
Pull the lever up and hold it while you slide the
seat forward or backward to the desired position.
Release the lever to lock the seat in position.
Reclining
To recline the seatback, pull the lever up and lean
back. To bring the seatback forward, pull the lever
up and lean your body forward. Release the lever
to lock the seatback in position.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit (see “Precautions on seat belt usage” later
in this section) . Also, the seatback can be re-
clined to allow occupants to rest when the ve-
hicle is stopped and the transmission is in P
(Park) .
WRS0847LRS0427
1-4Safety—Seats, seat belts and supplemental restraint system
ZREVIEW COPYÐ2008 Titan(tzw)
Owners ManualÐUSA_English(nna)
10/11/07Ðroot
X
ProCarManuals.com

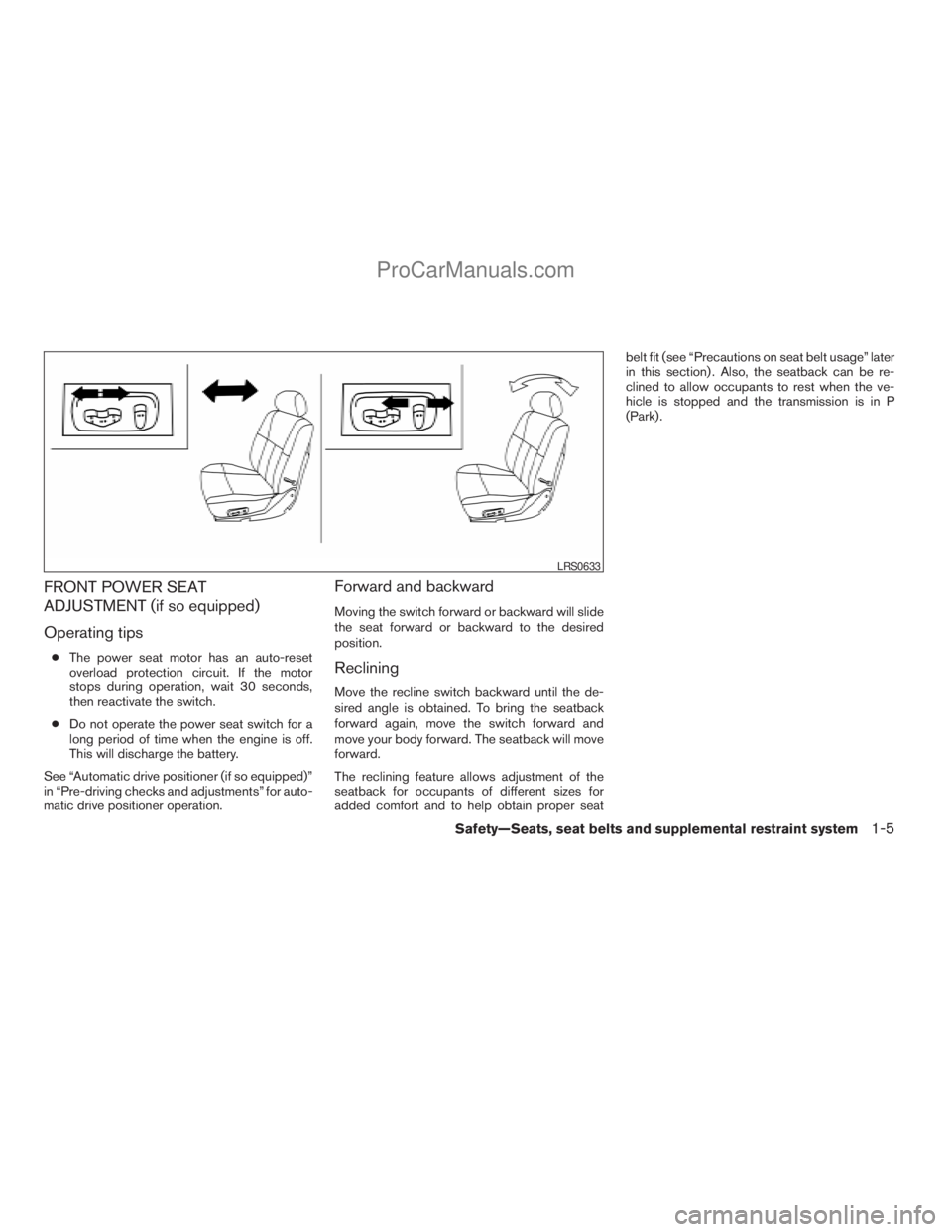

FRONT POWER SEAT
ADJUSTMENT (if so equipped)
Operating tips
cThe power seat motor has an auto-reset
overload protection circuit. If the motor
stops during operation, wait 30 seconds,
then reactivate the switch.
cDo not operate the power seat switch for a
long period of time when the engine is off.
This will discharge the battery.
See “Automatic drive positioner (if so equipped)”
in “Pre-driving checks and adjustments” for auto-
matic drive positioner operation.
Forward and backward
Moving the switch forward or backward will slide
the seat forward or backward to the desired
position.
Reclining
Move the recline switch backward until the de-
sired angle is obtained. To bring the seatback
forward again, move the switch forward and
move your body forward. The seatback will move
forward.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seatbelt fit (see “Precautions on seat belt usage” later
in this section) . Also, the seatback can be re-
clined to allow occupants to rest when the ve-
hicle is stopped and the transmission is in P
(Park) .
LRS0633
Safety—Seats, seat belts and supplemental restraint system1-5
ZREVIEW COPYÐ2008 Titan(tzw)
Owners ManualÐUSA_English(nna)
10/11/07Ðroot
X
ProCarManuals.com

Seat lifter (if so equipped for driver’s
seat)
Push the front or rear end of the switch up or
down to adjust the angle and height of the seat
cushion.
Lumbar support (driver’s seat)
The lumbar support feature provides lower back
support to the driver. Move the lever up or down
to adjust the seat lumbar area.
HEAD RESTRAINT ADJUSTMENT
To raise the head restraint, pull it up. To lower,
push and hold the lock knob and push the head
restraint down.
The head restraints on the rear bench seat are
removable. The front seat head restraints are not
removable.
LRS0634LRS0635LRS0286
1-6Safety—Seats, seat belts and supplemental restraint system
ZREVIEW COPYÐ2008 Titan(tzw)
Owners ManualÐUSA_English(nna)
10/11/07Ðroot
X
ProCarManuals.com

WARNING
Head restraints should be adjusted prop-
erly as they may provide significant pro-
tection against injury in an accident. Do
not remove them. Check the adjustment
after someone else uses the seat.
Adjust the head restraint so the center is level
with the center of your ears.
FRONT-SEAT ACTIVE HEAD
RESTRAINTS
WARNING
cAlways adjust the head restraints prop-
erly as specified in this section. Failure
to do so can reduce the effectiveness of
the Active Head Restraint.
cActive Head Restraints are designed to
supplement other safety systems. Al-
ways wear seat belts. No system can
prevent all injuries in any accident.
WRS0134SPA1025
Safety—Seats, seat belts and supplemental restraint system1-7
ZREVIEW COPYÐ2008 Titan(tzw)
Owners ManualÐUSA_English(nna)
10/11/07Ðroot
X
ProCarManuals.com

Shoulder belt height adjustment (front
outboard seats)
The shoulder belt anchor height should be ad-
justed to the position best for you. (See “Precau-
tions on seat belt usage” earlier in this section.)
To adjust, pull out
s1the adjustment button and
move the shoulder belt anchor
s2to the desired
position, so the belt passes over the center of the
shoulder. The belt should be away from your face
and neck, but not falling off your shoulder. Re-
lease the adjustment button to lock the shoulder
belt anchor into position.
WARNING
cAfter adjustment, release the adjust-
ment button and try to move the shoul-
der belt anchor up and down to make
sure it is securely fixed in position.
cThe shoulder belt anchor height should
be adjusted to the position best for you.
Failure to do so may reduce the effec-
tiveness of the entire restraint system
and increase the chance or severity of
injury in an accident.
TWO-POINT TYPE SEAT BELT
WITHOUT RETRACTOR (center of
the front bench seat) (if so equipped)Front seats
LRS0242LRS0642
