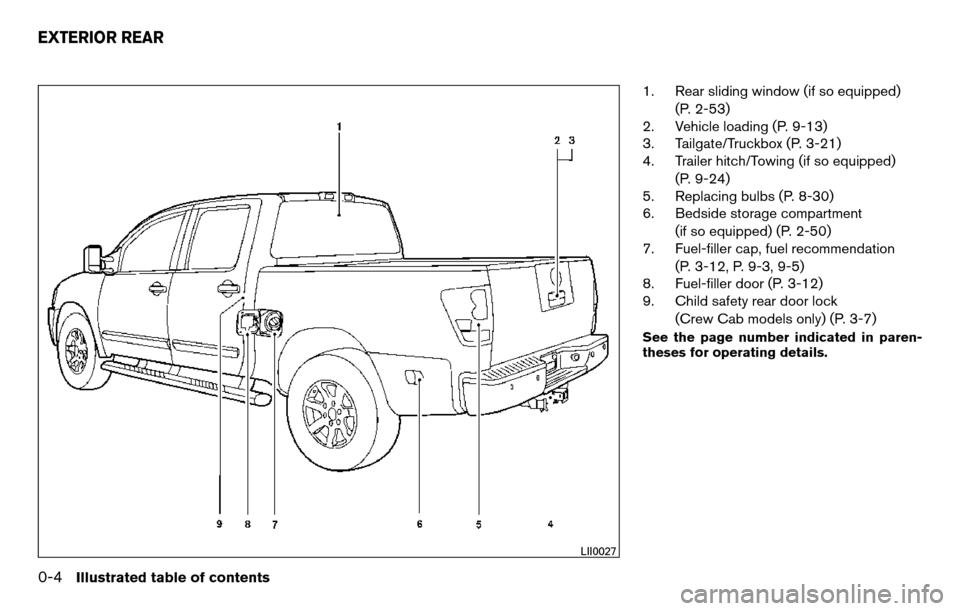

1. Rear sliding window (if so equipped)(P. 2-53)
2. Vehicle loading (P. 9-13)
3. Tailgate/Truckbox (P. 3-21)
4. Trailer hitch/Towing (if so equipped)
(P. 9-24)
5. Replacing bulbs (P. 8-30)
6. Bedside storage compartment
(if so equipped) (P. 2-50)
7. Fuel-filler cap, fuel recommendation
(P. 3-12, P. 9-3, 9-5)
8. Fuel-filler door (P. 3-12)
9. Child safety rear door lock
(Crew Cab models only) (P. 3-7)
See the page number indicated in paren-
theses for operating details.
LII0027
EXTERIOR REAR
0-4Illustrated table of contents
Page 12 of 458

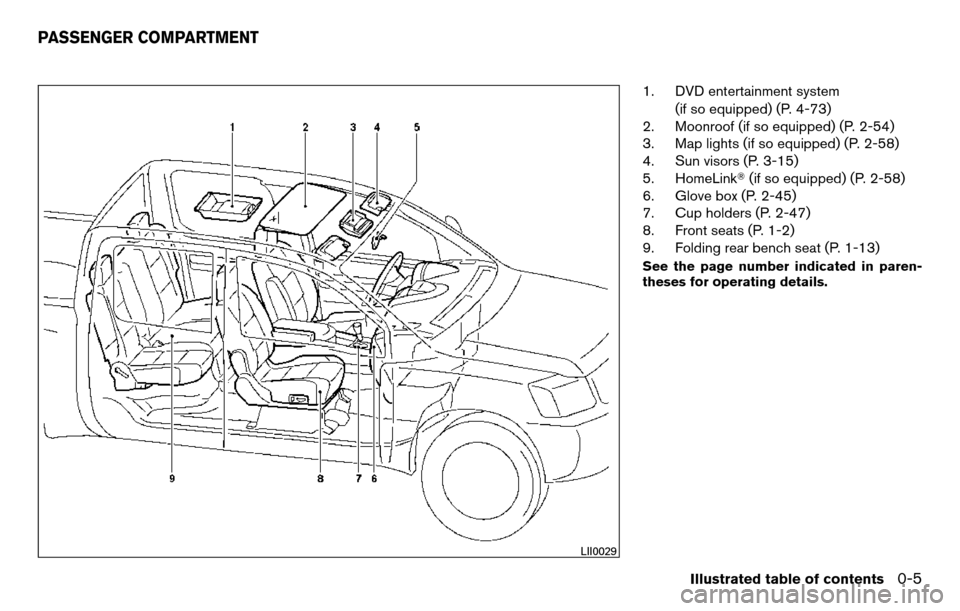

1. DVD entertainment system(if so equipped) (P. 4-73)
2. Moonroof (if so equipped) (P. 2-54)
3. Map lights (if so equipped) (P. 2-58)
4. Sun visors (P. 3-15)
5. HomeLink (if so equipped) (P. 2-58)
6. Glove box (P. 2-45)
7. Cup holders (P. 2-47)
8. Front seats (P. 1-2)
9. Folding rear bench seat (P. 1-13)
See the page number indicated in paren-
theses for operating details.
LII0029
PASSENGER COMPARTMENT
Illustrated table of contents0-5
Page 13 of 458

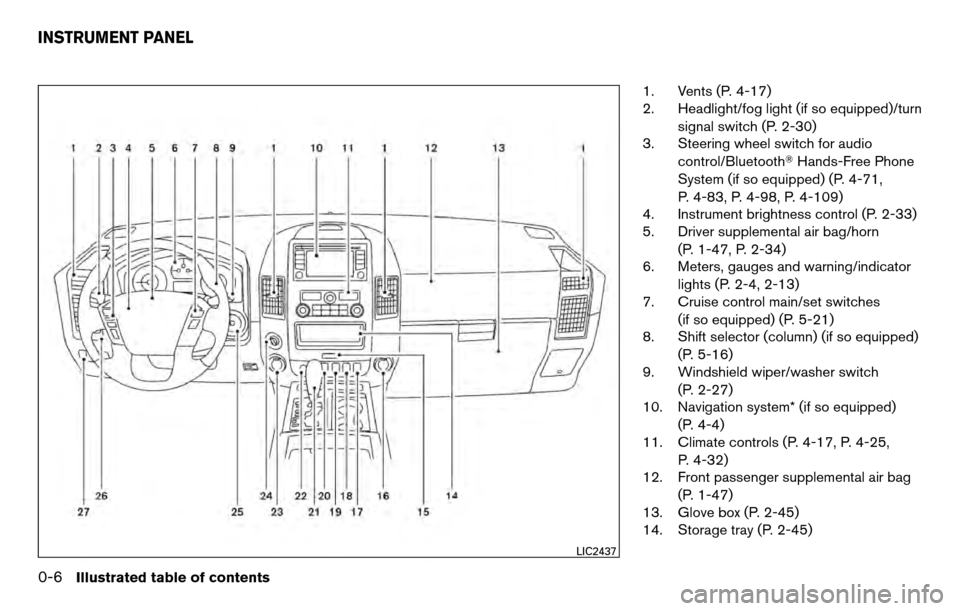

1. Vents (P. 4-17)
2. Headlight/fog light (if so equipped)/turnsignal switch (P. 2-30)
3. Steering wheel switch for audio
control/Bluetooth Hands-Free Phone
System (if so equipped) (P. 4-71,
P. 4-83, P. 4-98, P. 4-109)
4. Instrument brightness control (P. 2-33)
5. Driver supplemental air bag/horn
(P. 1-47, P. 2-34)
6. Meters, gauges and warning/indicator
lights (P. 2-4, 2-13)
7. Cruise control main/set switches
(if so equipped) (P. 5-21)
8. Shift selector (column) (if so equipped)
(P. 5-16)
9. Windshield wiper/washer switch
(P. 2-27)
10. Navigation system* (if so equipped)
(P. 4-4)
11. Climate controls (P. 4-17, P. 4-25,
P. 4-32)
12. Front passenger supplemental air bag
(P. 1-47)
13. Glove box (P. 2-45)
14. Storage tray (P. 2-45)
LIC2437
INSTRUMENT PANEL
0-6Illustrated table of contents
Page 14 of 458

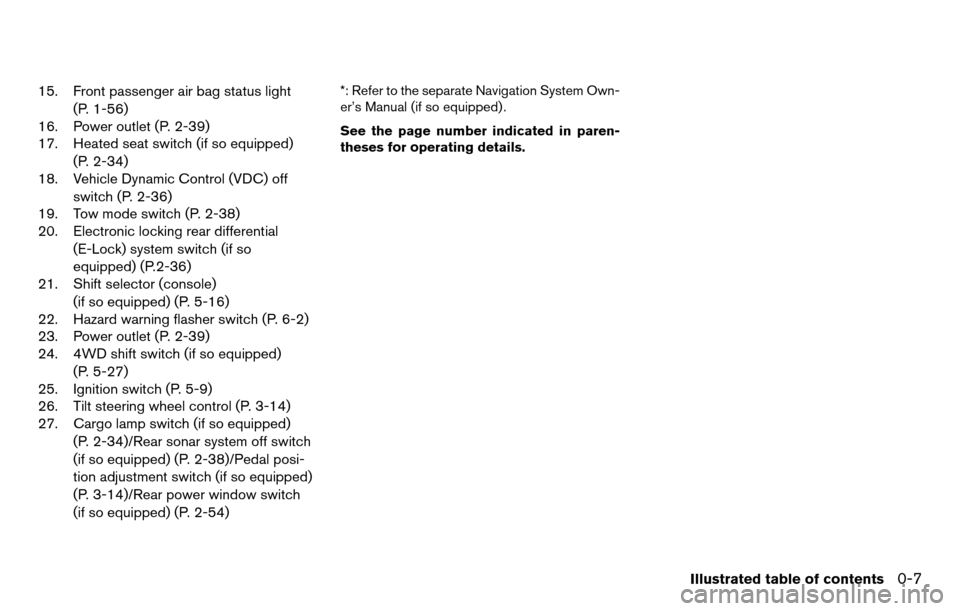

15. Front passenger air bag status light(P. 1-56)
16. Power outlet (P. 2-39)
17. Heated seat switch (if so equipped)
(P. 2-34)
18. Vehicle Dynamic Control (VDC) off
switch (P. 2-36)
19. Tow mode switch (P. 2-38)
20. Electronic locking rear differential
(E-Lock) system switch (if so
equipped) (P.2-36)
21. Shift selector (console)
(if so equipped) (P. 5-16)
22. Hazard warning flasher switch (P. 6-2)
23. Power outlet (P. 2-39)
24. 4WD shift switch (if so equipped)
(P. 5-27)
25. Ignition switch (P. 5-9)
26. Tilt steering wheel control (P. 3-14)
27. Cargo lamp switch (if so equipped)
(P. 2-34)/Rear sonar system off switch
(if so equipped) (P. 2-38)/Pedal posi-
tion adjustment switch (if so equipped)
(P. 3-14)/Rear power window switch
(if so equipped) (P. 2-54)*: Refer to the separate Navigation System Own-
er’s Manual (if so equipped) .
See the page number indicated in paren-
theses for operating details.
Illustrated table of contents0-7
Page 15 of 458

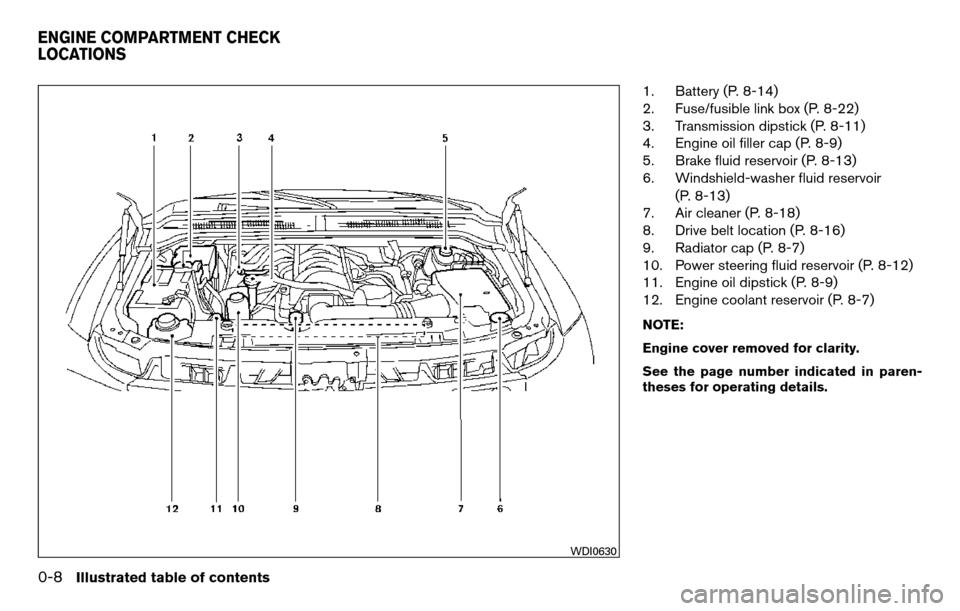

1. Battery (P. 8-14)
2. Fuse/fusible link box (P. 8-22)
3. Transmission dipstick (P. 8-11)
4. Engine oil filler cap (P. 8-9)
5. Brake fluid reservoir (P. 8-13)
6. Windshield-washer fluid reservoir(P. 8-13)
7. Air cleaner (P. 8-18)
8. Drive belt location (P. 8-16)
9. Radiator cap (P. 8-7)
10. Power steering fluid reservoir (P. 8-12)
11. Engine oil dipstick (P. 8-9)
12. Engine coolant reservoir (P. 8-7)
NOTE:
Engine cover removed for clarity.
See the page number indicated in paren-
theses for operating details.
WDI0630
ENGINE COMPARTMENT CHECK
LOCATIONS
0-8Illustrated table of contents
Page 16 of 458

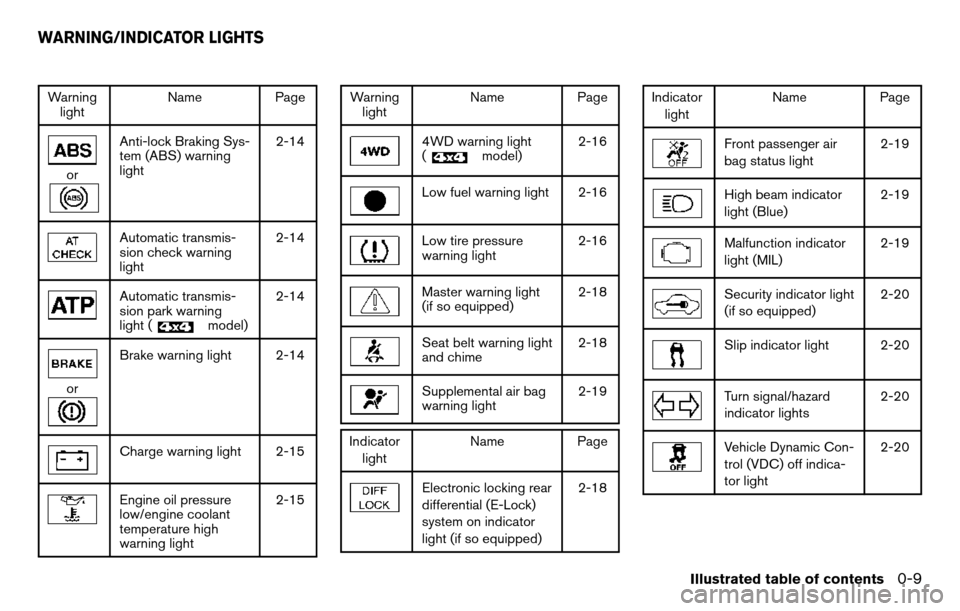

Warninglight Name
Page
or
Anti-lock Braking Sys-
tem (ABS) warning
light 2-14
Automatic transmis-
sion check warning
light2-14
Automatic transmis-
sion park warning
light (
model)2-14
or
Brake warning light 2-14
Charge warning light 2-15
Engine oil pressure
low/engine coolant
temperature high
warning light 2-15
Warning
light Name
Page
4WD warning light
(model)2-16
Low fuel warning light 2-16
Low tire pressure
warning light 2-16
Master warning light
(if so equipped)2-18
Seat belt warning light
and chime2-18
Supplemental air bag
warning light2-19
Indicator
light Name
Page
Electronic locking rear
differential (E-Lock)
system on indicator
light (if so equipped) 2-18
Indicator
light Name
Page
Front passenger air
bag status light 2-19
High beam indicator
light (Blue)2-19
Malfunction indicator
light (MIL)2-19
Security indicator light
(if so equipped)2-20
Slip indicator light 2-20
Turn signal/hazard
indicator lights2-20
Vehicle Dynamic Con-
trol (VDC) off indica-
tor light2-20
WARNING/INDICATOR LIGHTS
Illustrated table of contents0-9
Page 17 of 458
MEMO
0-10Illustrated table of contents
Page 18 of 458

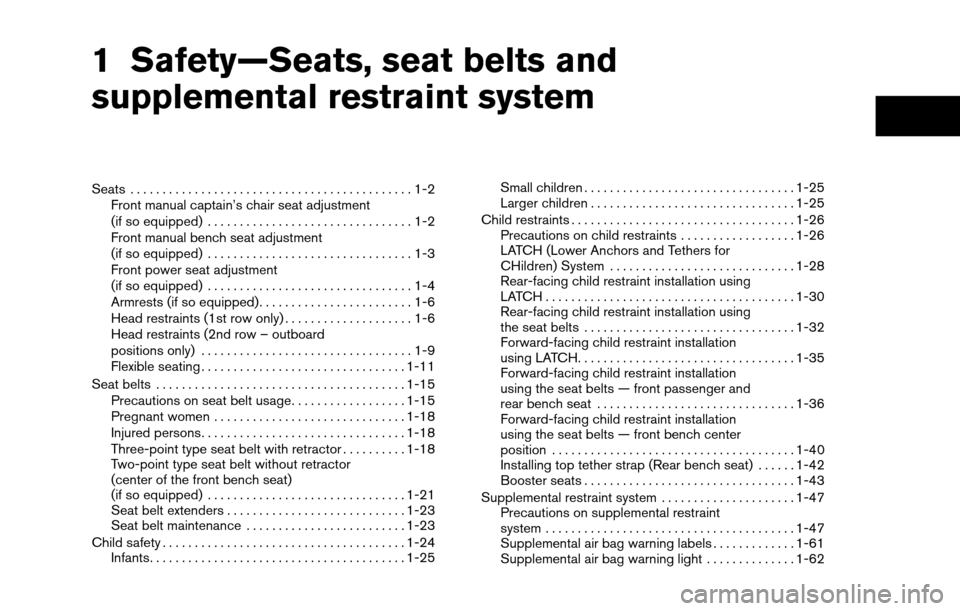

1 Safety—Seats, seat belts and
supplemental restraint system
Seats ............................................1-2
Front manual captain’s chair seat adjustment
(if so equipped) ................................1-2
Front manual bench seat adjustment
(if so equipped) ................................1-3
Front power seat adjustment
(if so equipped) ................................1-4
Armrests (if so equipped) ........................1-6
Head restraints (1st row only) ....................1-6
Head restraints (2nd row – outboard
positions only) .................................1-9
Flexible seating ................................ 1-11
Seat belts ....................................... 1-15
Precautions on seat belt usage ..................1-15
Pregnant women .............................. 1-18
Injured persons ................................ 1-18
Three-point type seat belt with retractor ..........1-18
Two-point type seat belt without retractor
(center of the front bench seat)
(if so equipped) ............................... 1-21
Seat belt extenders ............................ 1-23
Seat belt maintenance ......................... 1-23
Child safety ...................................... 1-24
Infants ........................................ 1-25Small children
................................. 1-25
Larger children ................................ 1-25
Child restraints ................................... 1-26
Precautions on child restraints ..................1-26
LATCH (Lower Anchors and Tethers for
CHildren) System ............................. 1-28
Rear-facing child restraint installation using
LATCH....................................... 1-30
Rear-facing child restraint installation using
the seat belts . . ............................... 1-32
Forward-facing child restraint installation
using LATCH. . . ............................... 1-35
Forward-facing child restraint installation
using the seat belts — front passenger and
rear bench seat ............................... 1-36
Forward-facing child restraint installation
using the seat belts — front bench center
position ...................................... 1-40
Installing top tether strap (Rear bench seat) ......1-42
Booster seats ................................. 1-43
Supplemental restraint system .....................1-47
Precautions on supplemental restraint
system ....................................... 1-47
Supplemental air bag warning labels .............1-61
Supplemental air bag warning light ..............1-62
Page 19 of 458
WARNING
●Do not ride in a moving vehicle when
the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and receive
neck or other serious injuries. You
could also slide under the lap belt and
receive serious internal injuries. ●
For the most effective protection when
the vehicle is in motion, the seat should
be upright. Always sit well back in the
seat with both feet on the floor and
adjust the seat properly. See “Precau-
tions on seat belt usage” later in this
section.
● After adjustment, gently rock in the seat
to make sure it is securely locked.
● Do not leave children unattended inside
the vehicle. They could unknowingly ac-
tivate switches or controls. Unattended
children could become involved in seri-
ous accidents. ●
The seatback should not be reclined
any more than needed for comfort. Seat
belts are most effective when the pas-
senger sits well back and straight up in
the seat. If the seatback is reclined, the
risk of sliding under the lap belt and
being injured is increased.
CAUTION
When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or damage.
FRONT MANUAL CAPTAIN’S CHAIR

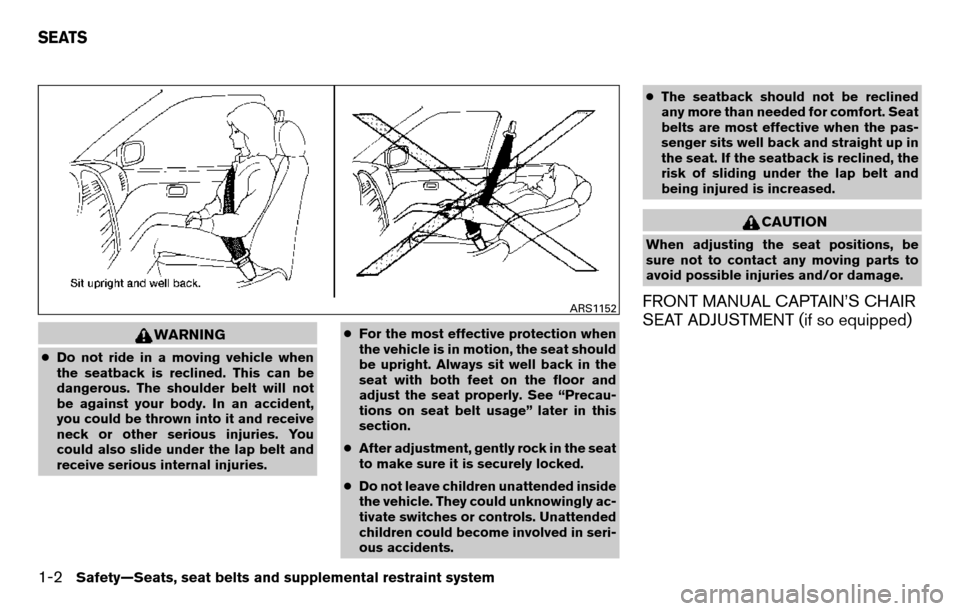

SEAT ADJUSTMENT (if so equipped)ARS1152
SEATS
1-2Safety—Seats, seat belts and supplemental restraint system
Page 20 of 458

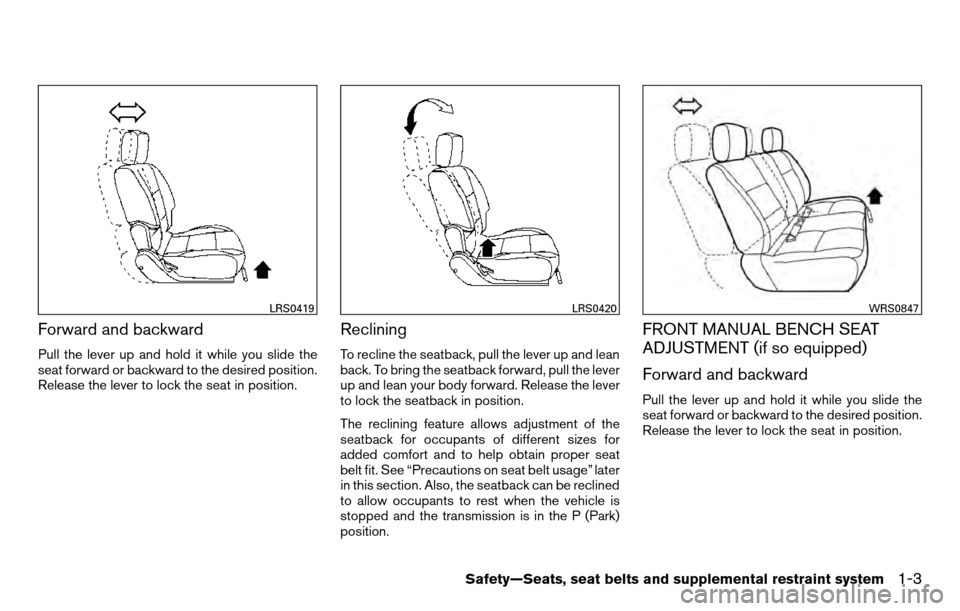

Forward and backward
Pull the lever up and hold it while you slide the
seat forward or backward to the desired position.
Release the lever to lock the seat in position.
Reclining
To recline the seatback, pull the lever up and lean
back. To bring the seatback forward, pull the lever
up and lean your body forward. Release the lever
to lock the seatback in position.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. See “Precautions on seat belt usage” later
in this section. Also, the seatback can be reclined
to allow occupants to rest when the vehicle is
stopped and the transmission is in the P (Park)
position.
FRONT MANUAL BENCH SEAT
ADJUSTMENT (if so equipped)
Forward and backward
Pull the lever up and hold it while you slide the
seat forward or backward to the desired position.
Release the lever to lock the seat in position.
LRS0419LRS0420WRS0847
Safety—Seats, seat belts and supplemental restraint system1-3
