Page 19 of 457
1. DVD entertainment system(if so equipped) (P. 4-69)
2. Power moonroof (if so equipped)
(P. 2-58)
3. Map lights (if so equipped) (P. 2-61)
4. Sun visors (P. 3-15)
5. HomeLink® Universal Transceiver
(if so equipped) (P. 2-61)
6. Glove box (P. 2-46)
7. Cup holders (P. 2-46)
8. Front seats (P. 1-2)
9. Folding rear bench seat (P. 1-2)
See the page number indicated in paren-
theses for operating details.
LII0029
PASSENGER COMPARTMENT
Illustrated table of contents0-5
Page 31 of 457
Seat lifter (driver’s seat)
Push the front or rear end of the switch up or
down to adjust the angle and height of the seat
cushion.
Lumbar support (driver’s seat)
The lumbar support feature provides adjustable
lower back support to the driver. Push the switch
forward or backward to adjust the seatback lum-
bar area.ARMRESTS (if so equipped)
To use the center armrest on the bench seats,
pull on the tab in the center of the seat and fold it
down to the resting position.
WRS0164LRS2637
Front bench seat
LRS0425
Safety—Seats, seat belts and supplemental restraint system1-5
Page 32 of 457
FLEXIBLE SEATING
WARNING
●Never allow anyone to ride in the cargo
area or on the rear seats when they are
in the fold-down position. In a collision,
people riding in these areas without
proper restraints are more likely to be
seriously injured or killed.
● Do not allow people to ride in any area
of your vehicle that is not equipped with
seats and seat belts. Be sure everyone
in your vehicle is in a seat and using a
seat belt properly.
● Do not allow more than one person to
use the same seat belt.
● Do not fold down the rear seats when
occupants are in the rear seat area or
any luggage is on the rear seats.
– Make sure that the seat path is clear before moving the seat.
– Be careful not to allow hands or feet to get caught or pinched in the seat. ●
Head restraints/headrests should be
adjusted properly as they may provide
significant protection against injury in
an accident. Always replace and adjust
them properly if they have been re-
moved for any reason.
● If the head restraints/headrests are re-
moved for any reason, they should be
securely stored to prevent them from
causing injury to passengers or damage
to the vehicle in case of sudden braking
or an accident.
● When returning the seatbacks to the
upright position, be certain they are
completely secured in the latched posi-
tion. If they are not completely secured,
passengers may be injured in an acci-
dent or sudden stop.
● Properly secure all cargo to help pre-
vent it from sliding or shifting. Do not
place cargo higher than the seatbacks.
In a sudden stop or collision, unsecured
cargo could cause personal injury.
Rear bench seat
LRS2576
1-6Safety—Seats, seat belts and supplemental restraint system
Page 33 of 457
Folding the rear bench seat up
To fold the rear bench seat up for storage capac-
ity behind the front seats or to remove the jacking
tools from the storage area:1. Lift up on the lever, located on the side of the seat, while lifting the front of the seat cush-
ion up. 2. Fold the bottom of the seat cushion toward
the back of the vehicle until it locks in place. 3. Repeat this process to raise and secure the
seat cushion on the other side of the vehicle
for maximum storage capacity.
To return the rear bench seat to a seating posi-
tion, reverse the process. Make sure to prop-
erly push the seat cushion down into place.
LRS2577LRS2578LRS2579
Safety—Seats, seat belts and supplemental restraint system1-7
Page 34 of 457
WARNING
●When the vehicle is being used to carry
cargo, properly secure all cargo to help
prevent it from sliding or shifting. Do
not place cargo higher than the seat-
backs. In a sudden stop or collision,
unsecured cargo could cause personal
injury.
● Do not allow people to ride in any area
of your vehicle that is not equipped with
seats and seat belts. Be sure everyone
in your vehicle is in a seat and using a
seat belt properly. Never ride in the rear
seat unless the seat bottom cushions
are in place and latched.
● When returning the seatbacks to the
upright position, be certain they are
completely secured in the latched posi-
tion. If they are not completely secured,
passengers may be injured in an acci-
dent or sudden stop.
Folding the rear bench seat down
The rear bench seat can be tilted forward to
access the child restraint anchor point locations.
To tilt the seatback forward, pull the strap up
1
and tilt the seatback. The child restraint anchor
points
2can be accessed behind the rear
bench seatback.
WARNING
Never allow anyone to ride in the cargo
area or on the rear seat when it is in the
fold-down position. Use of these areas by
passengers without proper restraints
could result in serious injury in an acci-
dent or sudden stop.
WRS0920
1-8Safety—Seats, seat belts and supplemental restraint system
Page 35 of 457
WARNING
Head restraints/headrests supplement
the other vehicle safety systems. They may
provide additional protection against in-
jury in certain rear end collisions. Adjust-
able head restraints/headrests must be
adjusted properly, as specified in this sec-
tion. Check the adjustment after someone
else uses the seat. Do not attach anything
to the head restraint/headrest stalks or
remove the head restraint/headrest. Do
not use the seat if the head
restraint/headrest has been removed. If
the head restraint/headrest was removed,
reinstall and properly adjust the head
restraint/headrest before an occupant
uses the seating position. Failure to fol-
low these instructions can reduce the ef-
fectiveness of the head
restraints/headrests. This may increase
the risk of serious injury or death in a
collision.The illustration shows the seating positions
equipped with head restraints/headrests.
Indicates the seating position is equipped with
a head restraint.
Indicates the seating position is equipped with
a headrest.
+ Indicates the seating position is not equipped
with a head restraint or headrest (if applicable) .
● Your vehicle is equipped with a head
restraint/headrest that may be integrated,
adjustable or non-adjustable.
Folding front seat
LRS2020
Front bucket seat
LRS2633
HEAD RESTRAINTS/HEADRESTS
Safety—Seats, seat belts and supplemental restraint system1-9

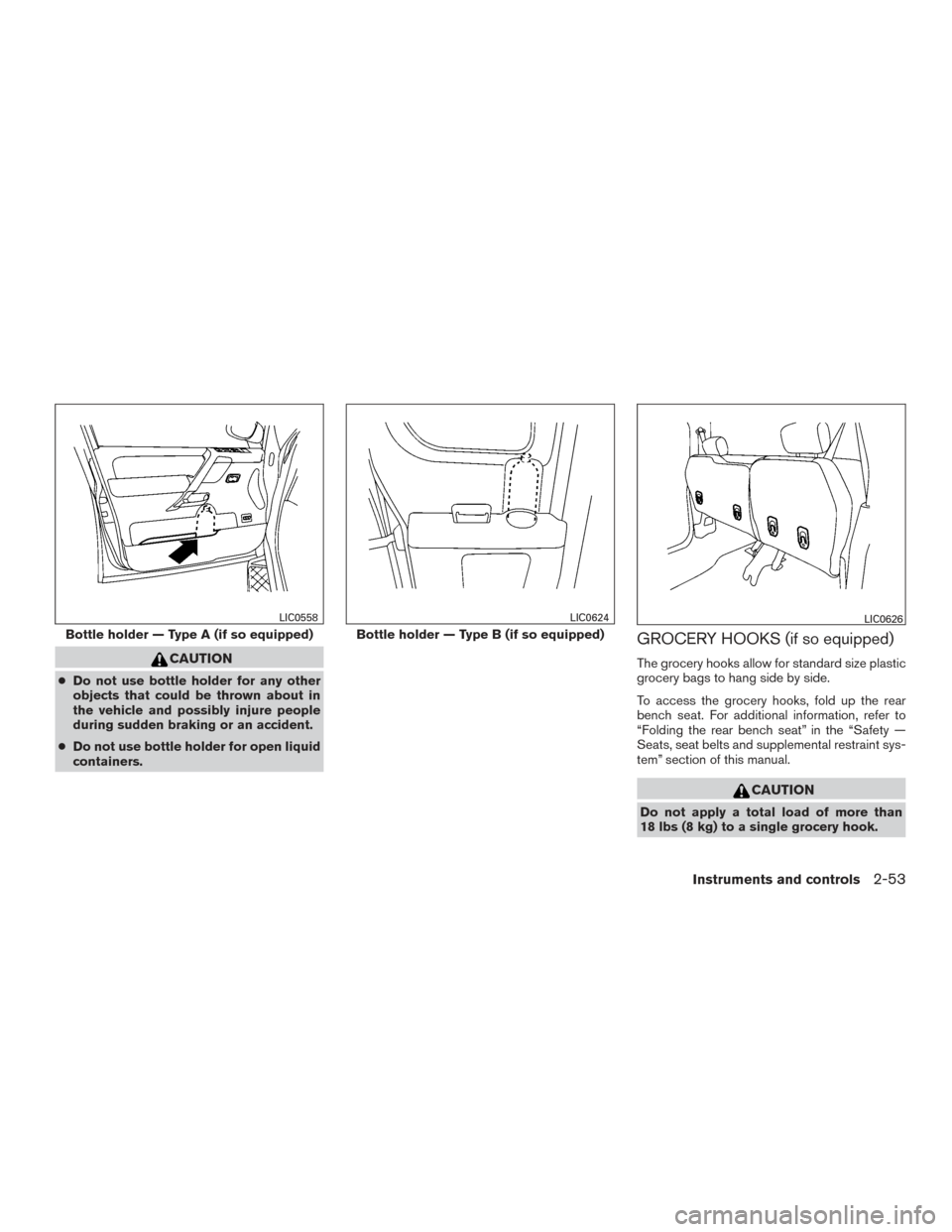

Page 147 of 457
CAUTION
●Do not use bottle holder for any other
objects that could be thrown about in
the vehicle and possibly injure people
during sudden braking or an accident.
● Do not use bottle holder for open liquid
containers.
GROCERY HOOKS (if so equipped)
The grocery hooks allow for standard size plastic
grocery bags to hang side by side.
To access the grocery hooks, fold up the rear
bench seat. For additional information, refer to
“Folding the rear bench seat” in the “Safety —
Seats, seat belts and supplemental restraint sys-
tem” section of this manual.
CAUTION
Do not apply a total load of more than
18 lbs (8 kg) to a single grocery hook.
Bottle holder — Type A (if so equipped)
LIC0558
Bottle holder — Type B (if so equipped)
LIC0624LIC0626
Instruments and controls2-53
Page 338 of 457
A. Blocks
B. Flat tire
Blocking wheels
Place suitable blocks at both the front and back
of the wheel diagonally opposite the flat tire to
prevent the vehicle from moving when it is jacked
up.
WARNING
Be sure to block the wheel as the vehicle
may move and result in personal injury.
Getting the spare tire and tools
1. Fold up the rear bench seat. For additionalinformation, refer to “Folding the rear bench
seat” in the “Safety – Seats, seat belts and
supplemental restraint system” section of
this manual.
2. Remove the tool kit.
3. Collapse the jack to remove it from the stor-age location by inserting the wheel-nut
wrench into the jack screw at the top of the
jack as shown. Turn the wheel-nut wrench
counterclockwise until the jack screw be-
comes loose. Then loosen the jack with your
fingers until the jack is free.
4. Remove the jack.
LCE2142LCE2183
6-4In case of emergency
