isofix NISSAN TITAN 2015 1.G Owners Manual

CAUTION
A child restraint in a closed vehicle can
become very hot. Check the seating sur-
face and buckles before placing a child in
the child restraint.
This vehicle is equipped with a universal child
restraint anchor system, referred to as the LATCH
(Lower Anchors and Tethers for CHildren) sys-
tem. Some child restraints include rigid or
webbing-mounted attachments that can be con-
nected to these anchors. For additional informa-
tion, refer to “LATCH (Lower Anchors and Teth-
ers for CHildren) system” in this section.
If you do not have a LATCH compatible child
restraint, the vehicle seat belts can be used.
Several manufacturers offer child restraints for
infants and children of various sizes. When se-
lecting any child restraint, keep the following
points in mind: ● Choose only a restraint with a label certifying
that it complies with Federal Motor Vehicle
Safety Standard 213 or Canadian Motor
Vehicle Safety Standard 213.
● Check the child restraint in your vehicle to be
sure it is compatible with the vehicle’s seat
and seat belt system. ●
If the child restraint is compatible with your
vehicle, place your child in the child restraint
and check the various adjustments to be
sure the child restraint is compatible with
your child. Choose a child restraint that is
designed for your child’s height and weight.
Always follow all recommended procedures.
● If the combined weight of the child and child
restraint is less than 65 lbs (29.5 kg) , you
may use either the LATCH anchors or the
seat belt to install the child restraint (not both
at the same time) .
● If the combined weight of the child and child
restraint is greater than 65 lbs (29.5 kg) , use
the vehicle’s seat belt (not the lower an-
chors) to install the child restraint.
● Be sure to follow the child restraint manufac-
turer’s instructions for installation.
All U.S. states and Canadian provinces or
territories require that infants and small
children be restrained in an approved child
restraint at all times while the vehicle is
being operated. Canadian law requires the
top tether strap on forward-facing child re-
straints be secured to the designated an-
chor point on the vehicle.
LATCH (Lower Anchors and Tethers
for CHildren) SYSTEM
Your vehicle is equipped with special anchor
points that are used with the LATCH system
compatible child restraints. This system may also
be referred to as the ISOFIX or ISOFIX compat-
ible system. With this system, you do not have to
use a vehicle seat belt to secure the child re-
straint unless the combined weight of the child
and child restraint exceeds 65 lbs (29.5 kg) . If the
combined weight of the child and child restraint is
greater than 65 lbs (29.5 kg) use the vehicles
seat belt (not the lower anchors) to install the
LATCH system lower anchor locations
LRS0429
Safety—Seats, seat belts and supplemental restraint system1-27

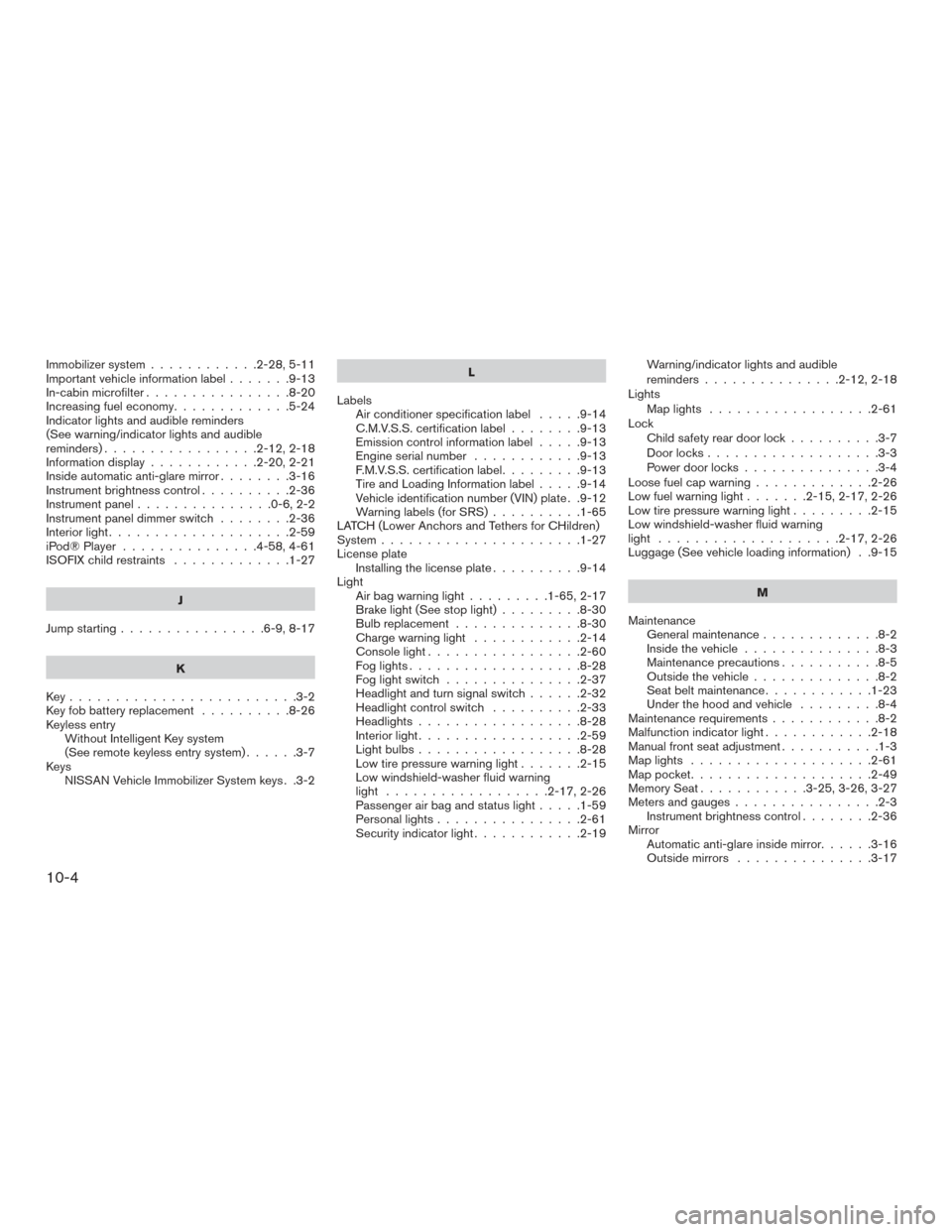

Immobilizer system............2-28,5-11
Important vehicle information label .......9-13
In-cabin microfilter ................8-20
Increasing fuel economy .............5-24
Indicator lights and audible reminders
(See warning/indicator lights and audible
reminders).................2-12,2-18
Informationdisplay............2-20,2-21
Inside automatic anti-glare mirror ........3-16
Instrument brightness control ..........2-36
Instrument panel ...............0-6,2-2
Instrument panel dimmer switch ........2-36
Interiorlight....................2-59
iPod®Player ...............4-58,4-61
ISOFIX child restraints .............1-27
J
Jump starting ................6-9,8-17
K
Key.........................3-2
Key fob battery replacement ..........8-26
Keyless entry Without Intelligent Key system
(See remote keyless entry system) ......3-7
Keys NISSAN Vehicle Immobilizer System keys . .3-2 L
Labels Air conditioner specification label .....9-14
C.M.V.S.S. certification label ........9-13
Emission control information label .....9-13
Engine serial number ............9-13
F.M.V.S.S. certification label .........9-13
Tire and Loading Information label .....9-14
Vehicle identification number (VIN) plate . .9-12
Warning labels (for SRS) ..........1-65
LATCH (Lower Anchors and Tethers for CHildren)
System ......................1-27
License plate Installing the license plate ..........9-14
Light Air bag warning light .........1-65,2-17
Brake light (See stop light) .........8-30
Bulbreplacement..............8-30
Charge warning light ............2-14
Consolelight.................2-60
Foglights...................8-28
Foglightswitch ...............2-37
Headlight and turn signal switch ......2-32
Headlight control switch ..........2-33
Headlights..................8-28
Interiorlight..................2-59
Lightbulbs..................8-28
Low tire pressure warning light .......2-15
Low windshield-washer fluid warning
light ..................2-17,2-26
Passenger air bag and status light .....1-59
Personal lights ................2-61
Security indicator light ............2-19 Warning/indicator lights and audible
reminders
...............2-12,2-18
Lights Maplights ..................2-61
Lock Child safety rear door lock ..........3-7
Door locks ...................3-3
Power door locks ...............3-4
Loose fuel cap warning .............2-26
Low fuel warning light .......2-15,2-17,2-26
Low tire pressure warning light .........2-15
Low windshield-washer fluid warning
light ....................2-17,2-26
Luggage (See vehicle loading information) . .9-15
M
Maintenance General maintenance .............8-2
Insidethevehicle...............8-3
Maintenance precautions ...........8-5
Outside the vehicle ..............8-2
Seat belt maintenance ............1-23
Under the hood and vehicle .........8-4
Maintenance

requirements ............8-2
Malfunction indicator light ............2-18
Manual front seat adjustment ...........1-3
Maplights ....................2-61
Mappocket....................2-49
Memory Seat ............3-25,3-26,3-27
Meters and gauges ................2-3
Instrument brightness control ........2-36
Mirror Automatic anti-glare inside mirror ......3-16
Outside mirrors ...............3-17
10-4
