oil capacities NISSAN TITAN 2015 1.G Owners Manual

CAUTION
Be careful not to burn yourself. The engine
oil may be hot.6. Clean and reinstall the drain plug and a new washer. Securely tighten the drain plug with
a wrench. Do not use excessive force.
Drain plug tightening torque: 34 N·m (26 ft-lb)
7. Refill engine with recommended oil through the oil filler opening, then install the oil filler
cap securely.
For additional information on drain and refill
capacity, refer to “Recommended
fluids/lubricants and capacities” in the
“Technical and consumer information” sec-
tion of this manual.
The drain and refill capacity depends on the
oil temperature and drain time. Use these
specifications for reference only. Always use
the dipstick to determine when the proper
amount of oil is in the engine.
8. Start the engine. Check for leakage around the drain plug and oil filter. Correct as re-
quired. 9. Turn the engine off and wait more than
10 minutes. Check the oil level with the
dipstick. Add engine oil if necessary.
2WD (if so equipped)
LDI2627
Maintenance and do-it-yourself8-11

9 Technical and consumer information
Recommended fluids/lubricants and capacities.......9-2
Fuel recommendation
(without Flexible Fuel Vehicle option) ..............9-4
Flexible fuel vehicle (FFV) fuel
recommendation (if so equipped) .................9-6
Engine oil and oil filter recommendations ..........9-7
Air conditioner system refrigerant and oil
recommendations ..............................9-8
Specifications .....................................9-9
Engine ........................................9-9
Wheels and tires .............................. 9-10
Dimensions and weights .......................9-10
When traveling or registering your vehicle in
another country .................................. 9-12
Vehicle identification .............................. 9-12
Vehicle identification number (VIN) plate .........9-12
Vehicle identification number
(chassis number) .............................. 9-12
Engine serial number ........................... 9-13
F.M.V.S.S./C.M.V.S.S. certification label ..........9-13
Emission control information label ...............9-13
Tire and loading information label ................9-14
Air conditioner specification label ................9-14
Installing front license plate ........................9-14
Vehicle loading information ........................9-15Terms
........................................ 9-15
Vehicle load capacity .......................... 9-15
Securing the load .............................. 9-17
Utili-track™ channel system (if so equipped) ......9-18
Loading tips .................................. 9-23
Truck-camper loading information ..................9-23
Crew Cab Models ............................. 9-23
King Cab models .............................. 9-23
Special Body vehicles .......................... 9-23
Location for center of gravity ....................9-24
Vehicle load weight capacity ....................9-25
Measurement of weights .......................9-25
Towing a trailer ................................... 9-25
Maximum load limits ........................... 9-26
Towing load/specification .......................9-29
Towing safety .................................
9-32
Flat

towing .................................... 9-41
Snow plow ...................................... 9-41
Uniform tire quality grading ........................9-41
Emission control system warranty ..................9-42
Reporting safety defects .......................... 9-43
Readiness for inspection/maintenance (I/M) test .....9-44
Event Data Recorders (EDR) .......................9-44
Owner’s Manual/Service Manual order information . . . 9-45

The following are approximate capacities. The actual refill capacities may be slightly different. When refilling, follow the procedure
described in the “Maintenance and do-it-yourself” section to determine the proper refill capacity.
Capacity (Approximate)Recommended Fluids and Lubricants
US measure Imp measure Liter
Fuel 28 gal23-1/4 gal 105.8 L • For additional information, refer to “Fuel Recommendation (without Flexible
Fuel Vehicle Option)” or “Flexible Fuel Vehicle (FFV) Fuel Recommendation”
in this section.
Engine oil Drain and refill
VK56DE With oil filter
change 6-7/8 qt
5-3/4 qt6.5 L• Engine oil with API Certification Mark
• Viscosity SAE 5W-30
• For additional information, refer to “Engine oil and oil filter recommenda-
tions” in this section.
Without oil
filter change 6-1/2 qt
5-1/2 qt6.2 L
Cooling system With reservoir 3-1/4 2-5/8 gal12.2 L • Pre-diluted Genuine NISSAN Long Life Antifreeze/Coolant (blue) or
equivalent
Transfer oil 2-1/8 qt1-3/4 qt2.0 L• Genuine NISSAN Matic D ATF recommended
•Using fluid other than Genuine NISSAN Matic D ATF will cause deteriora-
tion in driveability and transfer durability, and may damage the transfer case,
which is not covered by the NISSAN new vehicle limited warranty.
Automatic transmission fluid Refill to the proper level according to the instructions inthe “Maintenance and do-it-yourself” section. •Genuine NISSAN Matic S ATF
•If Genuine NISSAN Matic S ATF is not available, Genuine NISSAN Matic J
ATF may also be used. Using automatic transmission fluid other than Genu-
ine NISSAN Matic S or J ATF will cause deterioration in driveability and au-
tomatic transmission durability, and may damage the automatic
transmission, which is not covered by the warranty.
Power steering fluid (PSF) • Genuine NISSAN PSF or equivalent
• DEXRON™ VI type ATF may also be used.
Brake fluid • Genuine NISSAN Super Heavy Duty Brake Fluid or equivalent DOT 3
• Available in mainland USA through a NISSAN dealer.
RECOMMENDED FLUIDS/
LUBRICANTS AND CAPACITIES
9-2Technical and consumer information

Fuel consumption
Because E-85 fuel contains less energy per gal-
lon than gasoline, you will experience an increase
in fuel consumption. You can expect your fuel
mileage to decrease by about 30% compared to
gasoline operation.
Replacement parts
Many components in your Flexible Fuel Vehicle
(FFV) are designed to be compatible with etha-
nol. Always be sure that your vehicle is serviced
with correct ethanol compatible parts.
CAUTION
Replacing fuel system components with
non-ethanol compatible components can
damage your vehicle and may also affect
the warranty coverage.
Maintenance
If you operate your vehicle using E-85 fuel, follow
the correct maintenance log shown in the
“NISSAN Service and Maintenance Guide”.
CAUTION
Do not use ethanol mixture greater than
85% in your vehicle. It will cause difficulty
in cold starting and may affect drivability.
ENGINE OIL AND OIL FILTER
RECOMMENDATIONS
Selecting the correct oil
It is essential to choose the correct grade, quality
and viscosity engine oil to ensure satisfactory
engine life and performance. For additional infor-
mation, refer to “Recommended fluids/lubricants
and capacities” in this section. NISSAN recom-
mends the use of an energy conserving oil in
order to improve fuel economy.
Select only engine oils that meet the American
Petroleum Institute (API) certification or Interna-
tional Lubricant Standardization and Approval Committee (ILSAC) certification and SAE vis-
cosity standard. These oils have the API certifica-
tion mark on the front of the container. Oils which
do not have the specified quality label should not
be used as they could cause engine damage.Oil additives
NISSAN does not recommend the use of oil
additives. The use of an oil additive is not neces-
sary when the proper oil type is used and main-
tenance intervals are followed.
Oil which may contain foreign matter or has been
previously used should not be used.
LTI2061
Technical and consumer information9-7

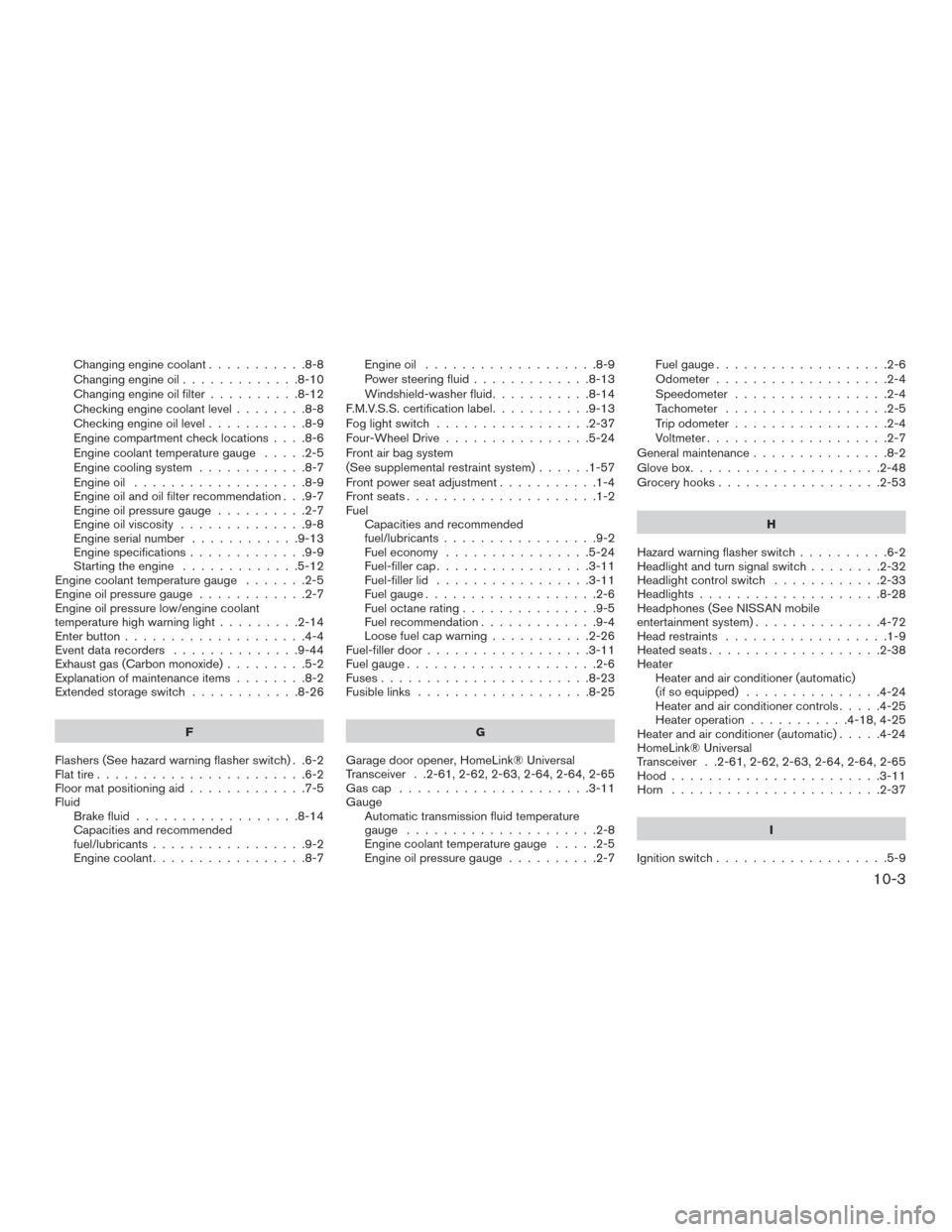

Changing engine coolant...........8-8
Changing engine oil .............8-10
Changing engine oil filter ..........8-12
Checking engine coolant level ........8-8
Checking engine oil level ...........8-9
Engine compartment check locations ....8-6
Engine coolant temperature gauge .....2-5
Engine cooling system ............8-7
Engine oil ...................8-9
Engine oil and oil filter recommendation . . .9-7
Engine oil pressure gauge ..........2-7
Engine oil viscosity ..............9-8
Engine serial number ............9-13
Engine specifications .............9-9
Starting the engine .............5-12
Engine coolant temperature gauge .......2-5
Engineoilpressuregauge............2-7
Engine oil pressure low/engine coolant
temperature high warning light .........2-14
Enterbutton....................4-4
Event data recorders ..............9-44
Exhaust gas (Carbon monoxide) .........5-2
Explanation of maintenance items ........8-2
Extendedstorageswitch ............8-26
F
Flashers (See hazard warning flasher switch) . .6-2
Flat tire .......................6-2
Floor mat positioning aid .............7-5
Fluid Brake fluid ..................8-14
Capacities and recommended
fuel/lubricants .................9-2
Engine coolant .................8-7 Engine oil
...................8-9
Power steering fluid .............8-13
Windshield-washer fluid ...........8-14
F.M.V.S.S. certification label ...........9-13
Foglightswitch .................2-37
Four-Wheel Drive ................5-24
Front air bag system
(See supplemental restraint system) ......1-57
Front power seat adjustment ...........1-4
Frontseats.....................1-2
Fuel Capacities and recommended
fuel/lubricants .................9-2
Fuel economy ................5-24
Fuel-filler cap .................3-11
Fuel-filler lid .................3-11
Fuel gauge ...................2-6
Fuel octane rating ...............9-5
Fuel recommendation .............9-4
Loose fuel cap warning ...........2-26
Fuel-filler door ..................3-11
Fuelgauge.....................2-6
Fuses.......................8-23
Fusiblelinks ...................8-25
G
Garage door opener, HomeLink® Universal
Transceiver . .2-61, 2-62, 2-63, 2-64, 2-64, 2-65
Gascap .....................3-11
Gauge Automatic transmission fluid temperature
gauge .....................2-8
Engine coolant temperature gauge .....2-5
Engine oil pressure gauge ..........2-7 Fuelgauge...................2-6
Odometer
...................2-4
Speedometer .................2-4
Tachometer ..................2-5
Trip odometer .................2-4
Voltmeter ....................2-7
General

maintenance ...............8-2
Glovebox.....................2-48
Groceryhooks..................2-53
H
Hazard warning flasher switch ..........6-2
Headlightandturnsignalswitch........2-32
Headlightcontrolswitch ............2-33
Headlights....................8-28
Headphones (See NISSAN mobile
entertainment system) ..............4-72
Head restraints ..................1-9
Heated seats ...................2-38
Heater Heater and air conditioner (automatic)
(if so equipped) ...............4-24
Heater and air conditioner controls .....4-25
Heater operation ...........4-18,4-25
Heater and air conditioner (automatic) .....4-24
HomeLink® Universal
Transceiver . .2-61, 2-62, 2-63, 2-64, 2-64, 2-65
Hood.......................3-11
Horn .......................2-37
I
Ignition switch ...................5-9
10-3

Rearview...................3-16
Vanity mirror .................3-15
Moonroof .....................2-58
N
NISSAN mobile entertainment system
(MES) .........4-69,4-70,4-71,4-72,4-76
NISSAN vehicle immobilizer system . . .2-28, 5-11
NISSAN voice recognition system .......4-98
O
Octanerating(Seefueloctanerating)......9-5
Odometer .....................2-4
Oil Capacities and recommended
fuel/lubricants .................9-2
Changing engine oil .............8-10
Changing engine oil filter ..........8-12
Checking engine oil level ...........8-9
Engine oil ...................8-9
Engine oil and oil filter recommendation . . .9-7
Engine oil pressure low/engine coolant
temperature high warning light .......2-14
Engine oil viscosity ..............9-8
Oneshotcall...............4-82,4-93
Outside mirrors .................3-17
Overhead console ................2-50
Overheat Ifyourvehicleoverheats...........6-11
Owner’s manual order form ...........9-45
Owner’s manual/service manual order
information ....................9-45 P
Parking Parking brake operation ...........5-20
Parking/parking on hills ...........5-32
Pedal position adjustment ............3-14
Personallights..................2-61
Power Front seat adjustment .............1-4
Power door locks ...............3-4
Power outlet ..............2-42,2-44
Power rear windows .............2-56
Power steering fluid .............8-13
Power steering system ...........5-33
Power windows ...............2-54
Rear power windows ............2-56
Power inverter switch ..............2-40
Power outlet ................2-42,2-44
Power steering ..................5-33
Power steering fluid ...............8-13
Precautions Maintenance precautions ...........8-5
On-pavement and off-road driving
precautions ..................5-5
Precautions on booster
seats...........1-25,1-32,1-39,1-46
Precautions on child
restraints .........1-25,1-32,1-39,1-46
Precautions on seat belt usage .......1-14
Precautions on supplemental restraint
system ....................1-50
Precautions when starting and
driving ...................5-2,5-7
Pre-tensioner seat belt system .........1-64
Programmablefeatures..............4-7 Push starting
...................6-11
R
Radio AM-FM radio with compact disc
(CD)player..................4-35
CarphoneorCBradio ...........4-79
FM/AM radio with compact disc
(CD)player..................4-35
FM-AM radio with compact disc
(CD)player..................4-39
FM/AM radio with compact disc
(CD)player..................4-39
FM/AM/SAT radio with compact disc (CD)
player .................4-43,4-48
Steering wheel audio control switch . . . .4-67
Readiness for inspection maintenance
(I/M)
test.....................9-44
Rear power windows ..............2-56
Rear sliding window ...............2-57
Rear sonar system ................5-38
Rear sonar system off switch ..........2-41
Rearview mirror .................3-16
RearView Monitor ......4-10,4-11,4-13,4-14
Rear window and outside mirror defroster
switch.......................2-31
Recorders Eventdata..................9-44
Refrigerant recommendation ...........9-8
Registering your vehicle in another country . .9-12
Remote controller (See NISSAN mobile
entertainment system) ..............4-71
Remote keyless entry system ...........3-7
Reporting safety defects (US only) .......9-43
10-5

RECOMMENDED FUEL (without
Flexible Fuel Vehicle [FFV] option):
Use unleaded regular gasoline with an octane
rating of at least 87 AKI (Anti-Knock Index) num-
ber (Research octane number 91) .
CAUTION
●Only vehicles with the E-85 filler door
label can operate on E-85. Fuel system
or other damage can occur if E-85 is
used in vehicles that are not designed
to run on E-85.
● Using a fuel other than that specified
could adversely affect the emission
control system, and may also affect the
warranty coverage.
● Under no circumstances should a
leaded gasoline be used, because this
will damage the three-way catalyst. ●
Do not use E-15 or E-85 fuel in your
vehicle. Your vehicle is not designed to
run on E-15 or E-85 fuel. Using E-15 or
E-85 fuel in a vehicle not specifically
designed for E-15 or E-85 fuel can ad-
versely affect the emission control de-
vices and systems of the vehicle. Dam-
age caused by such fuel is not covered
by the NISSAN new vehicle limited
warranty.
● U.S. government regulations require
ethanol dispensing pumps to be identi-
fied by a small, square, orange and
black label with the common abbrevia-
tion or the appropriate percentage for
that region.
For additional information, refer to “Recom-
mended fluids/lubricants and capacities” in the
“Technical and consumer information” section of
this manual.
FLEXIBLE FUEL VEHICLE (FFV)
FUEL RECOMMENDATION (if so
equipped):
If your vehicle is equipped as a Flexible Fuel
vehicle (FFV) your vehicle is designed to use
(E-85) Fuel Ethanol, “Regular” unleaded regular
gasoline or any percentage of the two fuels com-
bined.
CAUTION
● Using a fuel other than that specified
could adversely affect the emission
control system, and may also affect the
warranty coverage.
● Under no circumstances should a
leaded gasoline be used, because this
will damage the three-way catalyst.
For additional information, refer to “Recom-
mended fluids/lubricants and capacities” in the
“Technical and consumer information” section of
this manual.
ENGINE OIL RECOMMENDATION:
● Genuine NISSAN engine oil or equivalent.
● Engine oil with API Certification Mark.
● Viscosity SAE 5W-30
For additional information, refer to “Engine oil and
oil filter recommendations” in the “Technical and
consumer information” section of this manual.
GAS STATION INFORMATION
