Page 511 of 636

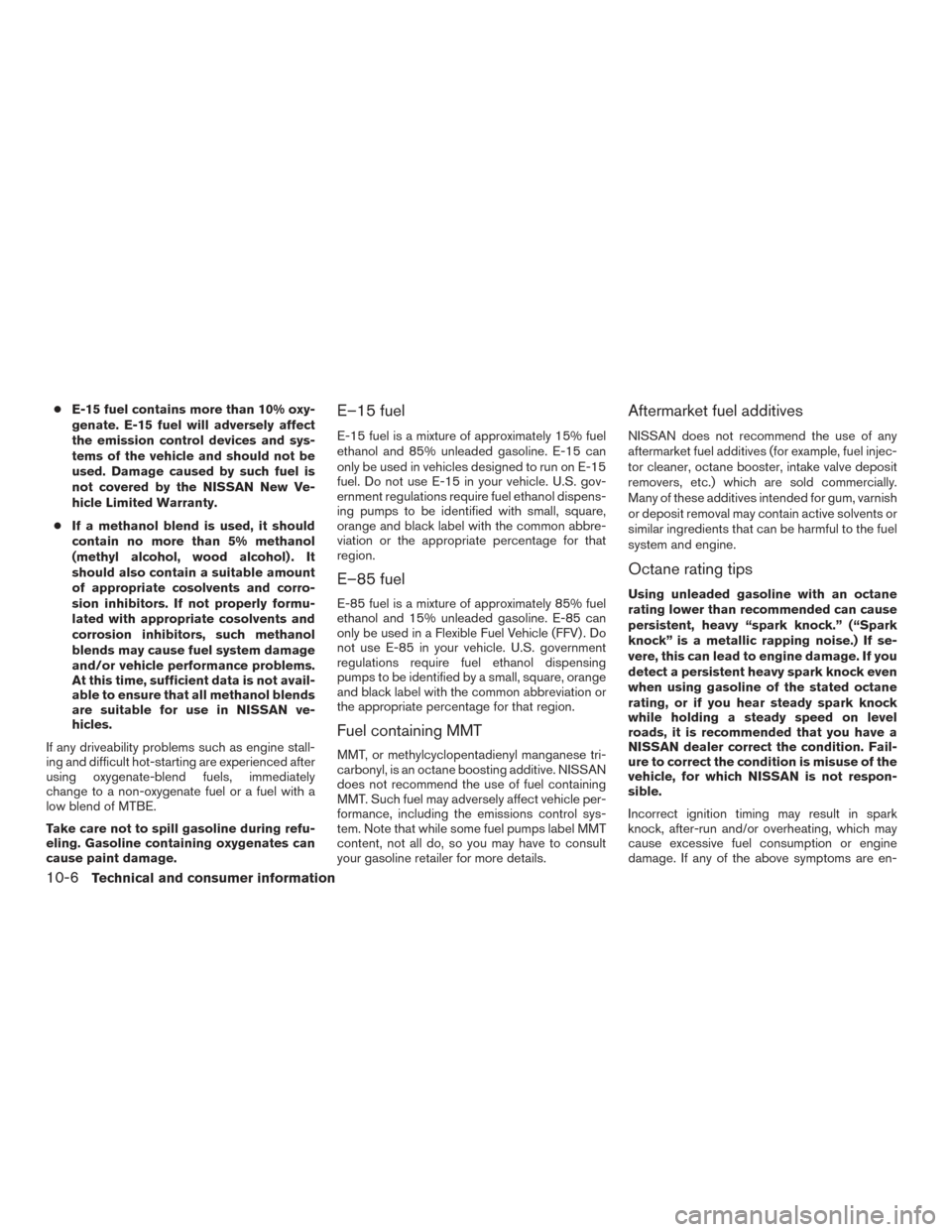

NISSAN TITAN 2016 2.G Owners Manual ●E-15 fuel contains more than 10% oxy-
genate. E-15 fuel will adversely affect
the emission control devices and sys-
tems of the vehicle and should not be
used. Damage caused by such fuel is
not cov

Page 512 of 636

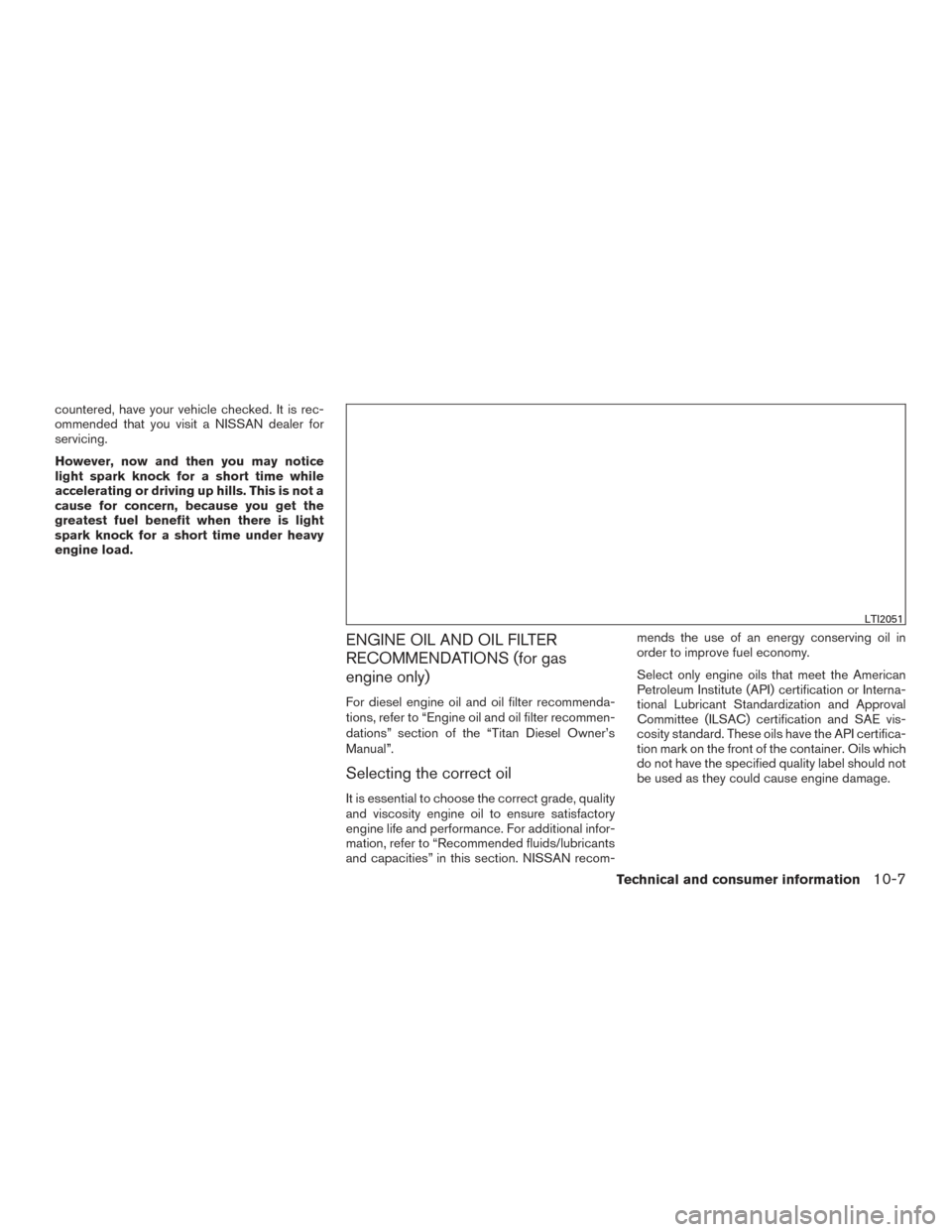

NISSAN TITAN 2016 2.G Owners Manual countered, have your vehicle checked. It is rec-
ommended that you visit a NISSAN dealer for
servicing.
However, now and then you may notice
light spark knock for a short time while
accelerating or dr

Page 513 of 636

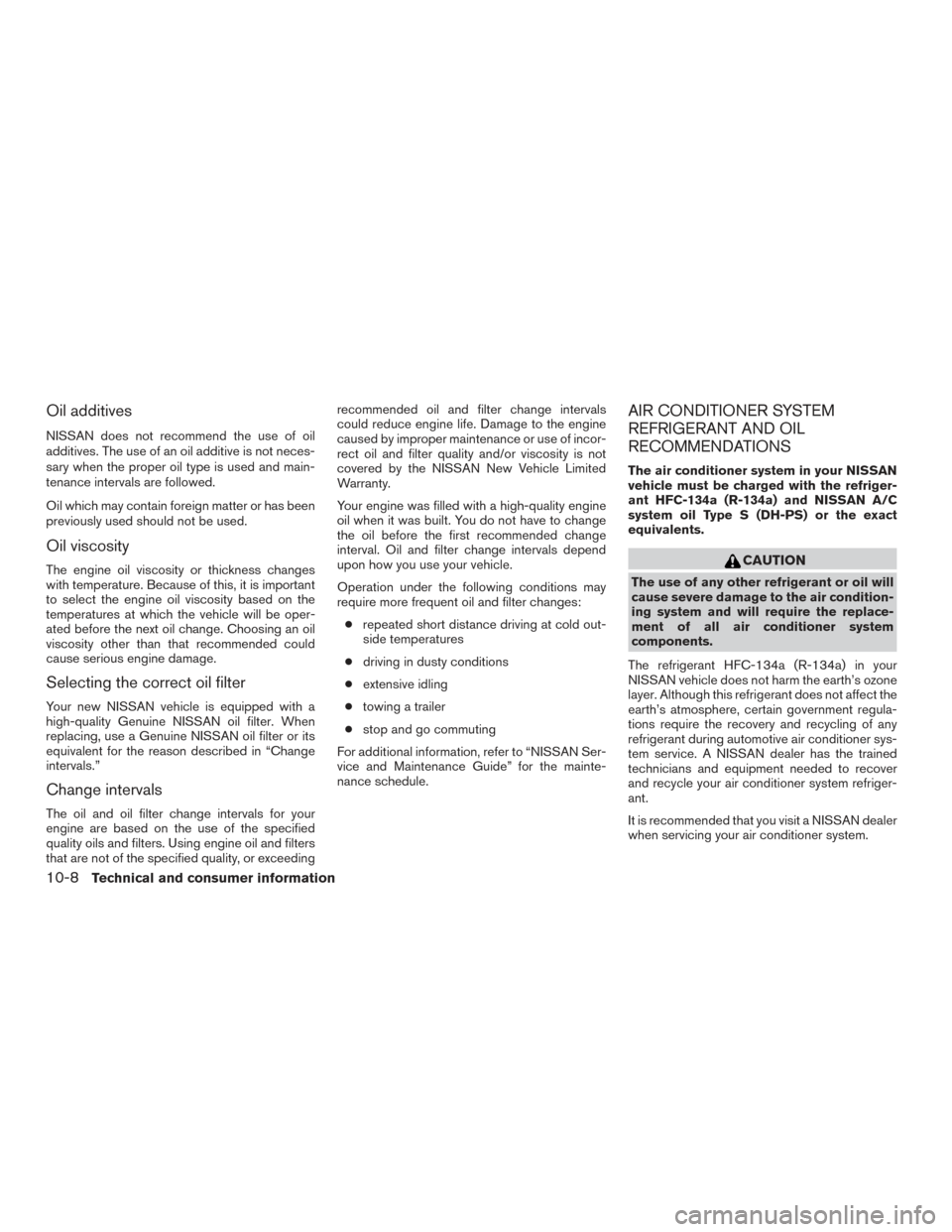

NISSAN TITAN 2016 2.G Owners Manual Oil additives
NISSAN does not recommend the use of oil
additives. The use of an oil additive is not neces-
sary when the proper oil type is used and main-
tenance intervals are followed.
Oil which may

Page 514 of 636

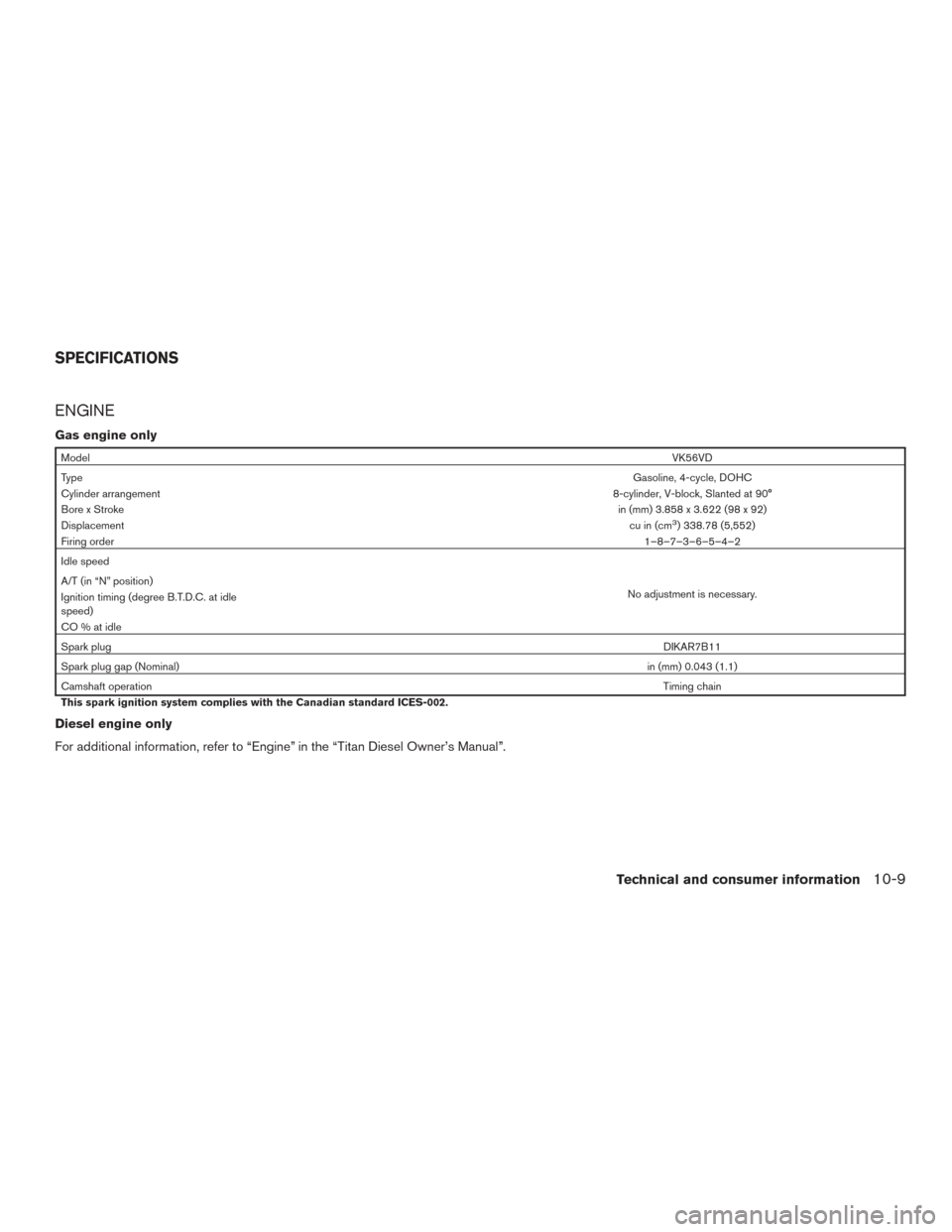

NISSAN TITAN 2016 2.G Owners Manual ENGINE
Gas engine only
ModelVK56VD
Type Gasoline, 4-cycle, DOHC
Cylinder arrangement 8-cylinder, V-block, Slanted at 90°
Bore x Stroke in (mm) 3.858 x 3.622 (98 x 92)
Displacement cu in (cm
3) 338.78

Page 515 of 636

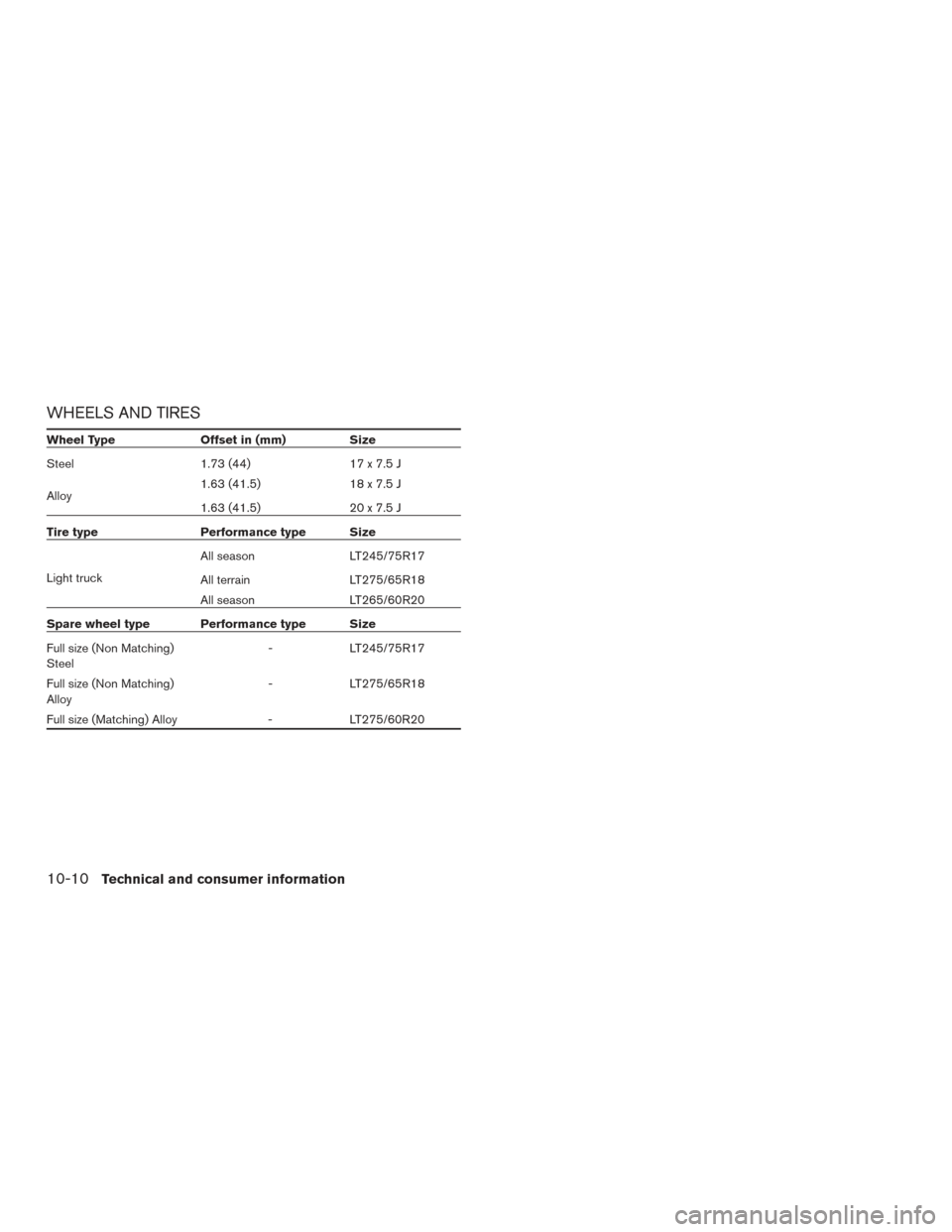

NISSAN TITAN 2016 2.G Owners Manual WHEELS AND TIRES
Wheel TypeOffset in (mm)Size
Steel 1.73 (44)17 x 7.5 J
Alloy 1.63 (41.5)
18 x 7.5 J
1.63 (41.5) 20 x 7.5 J
Tire type Performance type Size
Light truck All season
LT245/75R17
All terra

Page 516 of 636

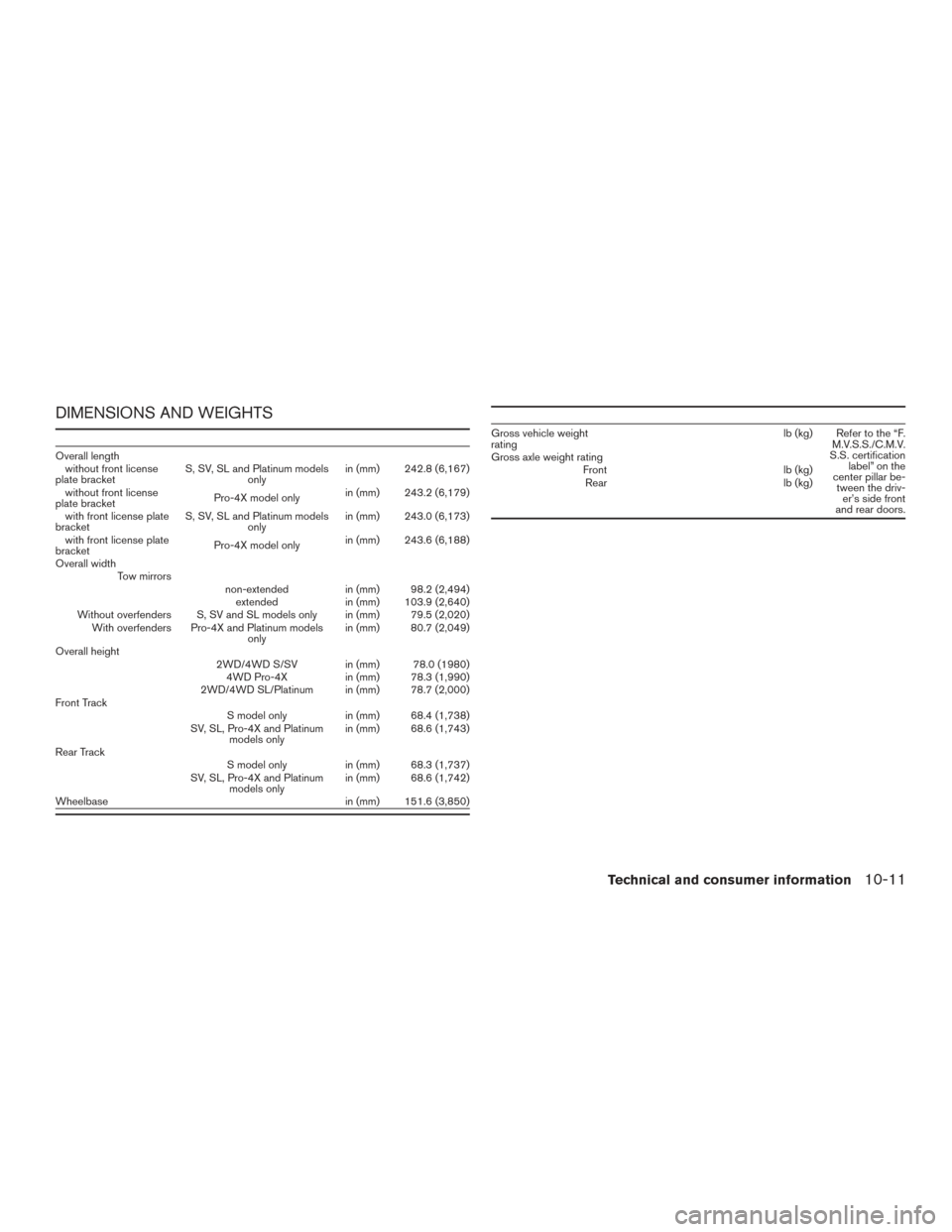

NISSAN TITAN 2016 2.G Owners Manual DIMENSIONS AND WEIGHTS
Overall lengthwithout front license
plate bracket S, SV, SL and Platinum models
only in (mm) 242.8 (6,167)
without front license
plate bracket Pro-4X model onlyin (mm) 243.2 (6,

Page 517 of 636

NISSAN TITAN 2016 2.G Owners Manual When planning to drive your NISSAN ve-
hicle in another country,you should first find
out if the fuel available is suitable for your vehi-
cle’s engine.
Using fuel with an octane rating that is too

Page 518 of 636

NISSAN TITAN 2016 2.G Owners Manual ENGINE SERIAL NUMBER
The engine serial number is stamped on the
engine as shown.
F.M.V.S.S./C.M.V.S.S.
CERTIFICATION LABEL
The Federal/Canadian Motor Vehicle Safety
Standard (F.M.V.S.S./C.M.V.S.S.) ce

Page 519 of 636

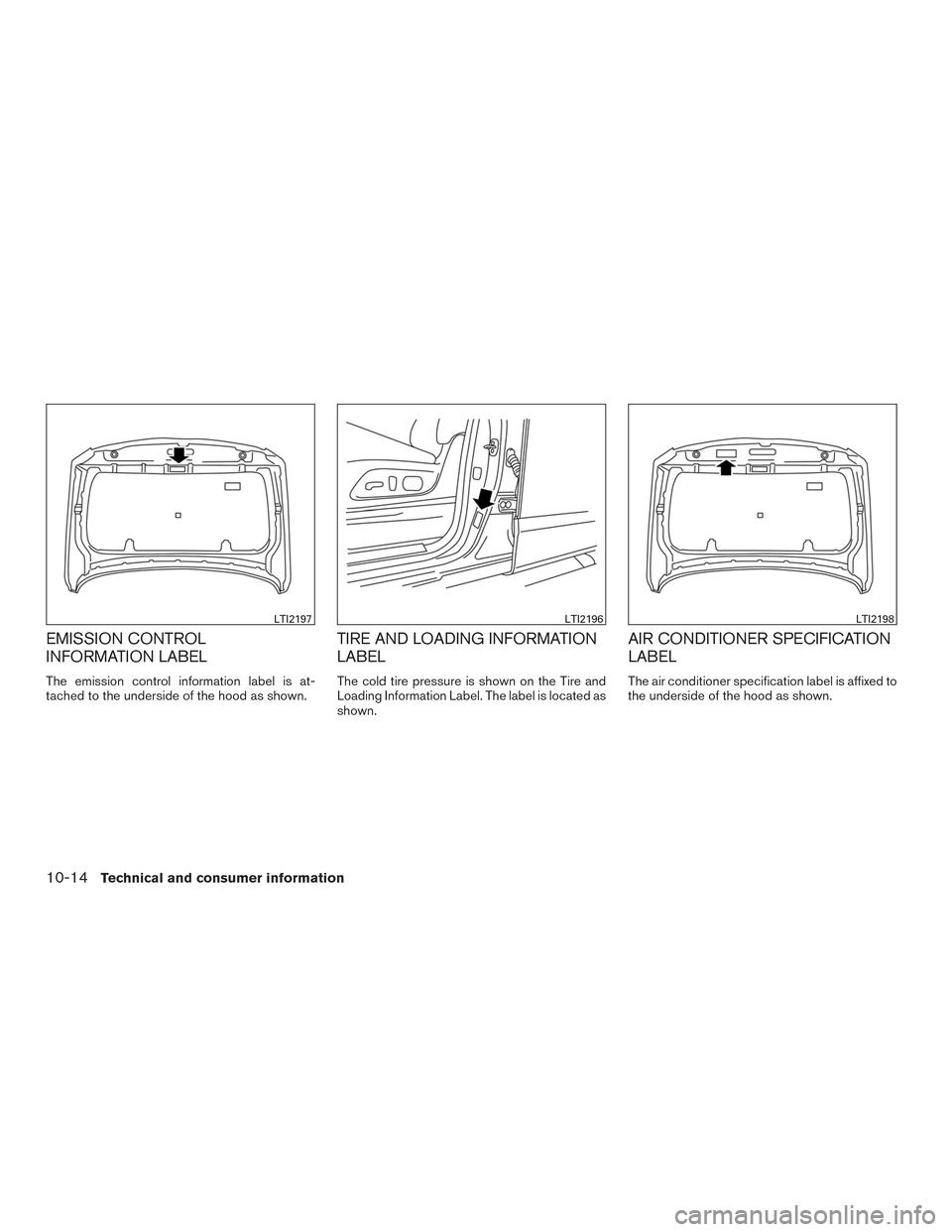

NISSAN TITAN 2016 2.G Owners Manual EMISSION CONTROL
INFORMATION LABEL
The emission control information label is at-
tached to the underside of the hood as shown.
TIRE AND LOADING INFORMATION
LABEL
The cold tire pressure is shown on the

Page 520 of 636

NISSAN TITAN 2016 2.G Owners Manual Use the following steps to mount the front license
plate:1. Attach the license plate bracket on the skid plate at the location marked (small dimple)
using self-tapping screws. Use the following steps
