The parking sensor (sonar) , MOD, or RCTA sys-
tems will be turned on automatically under the
following conditions:● When the ignition switch is switched from
the OFF position to the ON position.
● When the shift lever is shifted into the R
(Reverse) position.
● When the vehicle speed increases to 6 mph
(10 km/h) and decreases.
The automatic turning on function can be turned
on and off for these systems in the vehicle infor-
mation display (if so equipped) . For additional
information, refer to “Settings” in the “Instrument
and controls” section of this manual.
For additional information, refer to “Front and rear
sonar system” or “Rear Cross Traffic Alert
(RCTA)” in the “Starting and driving” section of
this manual, or the “Moving Object Detection
(MOD)” in the “Monitor, climate, audio, phone
and voice recognition systems” section of this
manual. Tow mode should be used when pulling a heavy
trailer or hauling a heavy load. Driving the vehicle
in the tow mode with no trailer/load or light
trailer/light load will not cause any damage. How-
ever, fuel economy may be reduced, and the
transmission/engine driving characteristics may
feel unusual.
Push the tow mode switch to activate tow mode.
The TOW indicator light illuminates when tow
mode is selected. Push the tow mode switch
again to turn tow mode off.
Tow mode is automatically canceled when the
ignition switch is placed in the OFF position.For additional information, refer to “Tow mode” in
the “Technical and consumer information” sec-
tion of this manual.
LIC3381
TOW MODE SWITCH (if so equipped)
2-68Instruments and controls

The E-call (SOS) system switch is used in com-
bination with a NissanConnectSMServices sub-
scription to call for assistance in case of an
emergency.
Pushing the switch will (with a paid subscription)
reach a Response Specialist that will provide
assistance based on the situation described by
the vehicle’s occupant. For additional informa-
tion, or to enroll your vehicle, refer to
www.NissanUSA.com/connect or call
855–426–6628. The TBCU on the instrument panel allows the
driver to adjust the braking force applied to the
trailer brakes.
For additional information, refer to “Towing a
trailer” in the “Technical and consumer informa-
tion” section of this manual.12V OUTLETS
The power outlets are for powering electrical
accessories such as cellular telephones.
The power outlets located on the instrument
panel and inside the center armrest (if so
equipped) are powered only when the ignition
switch is placed in the ACC or ON position.
Open the cap to use a power outlet.
CAUTION
●
The outlet and plug may be hot during
or immediately after use.
LIC3376LIC3382
Instrument panel
LIC3383
E-CALL (SOS) SWITCH (if so
equipped) TRAILER BRAKE CONTROLLER UNIT
(TBCU) (if so equipped)POWER OUTLETS
Instruments and controls2-69

●Only certain power outlets are designed
for use with a cigarette lighter unit. Do
not use any other power outlet for an
accessory lighter. It is recommended
that you visit a NISSAN dealer for addi-
tional information.
● Do not use with accessories that exceed
a 12 volt, 120W (10A) power draw.
● Do not use double adapters or more
than one electrical accessory.
● Use power outlets with the engine run-
ning to avoid discharging the vehicle
battery.
● Avoid using power outlets when the air
conditioner, headlights, or rear window
defroster (if so equipped) is on. ●
Before inserting or disconnecting a
plug, be sure the electrical accessory
being used is turned OFF.
● Push the plug in as far as it will go. If
good contact is not made, the plug may
overheat or the internal temperature
fuse may open.
● When not in use, be sure to close the
cap. Do not allow water or any other
liquid to contact the outlet.
Inside center console (if so equipped)
LIC3385
2-70Instruments and controls

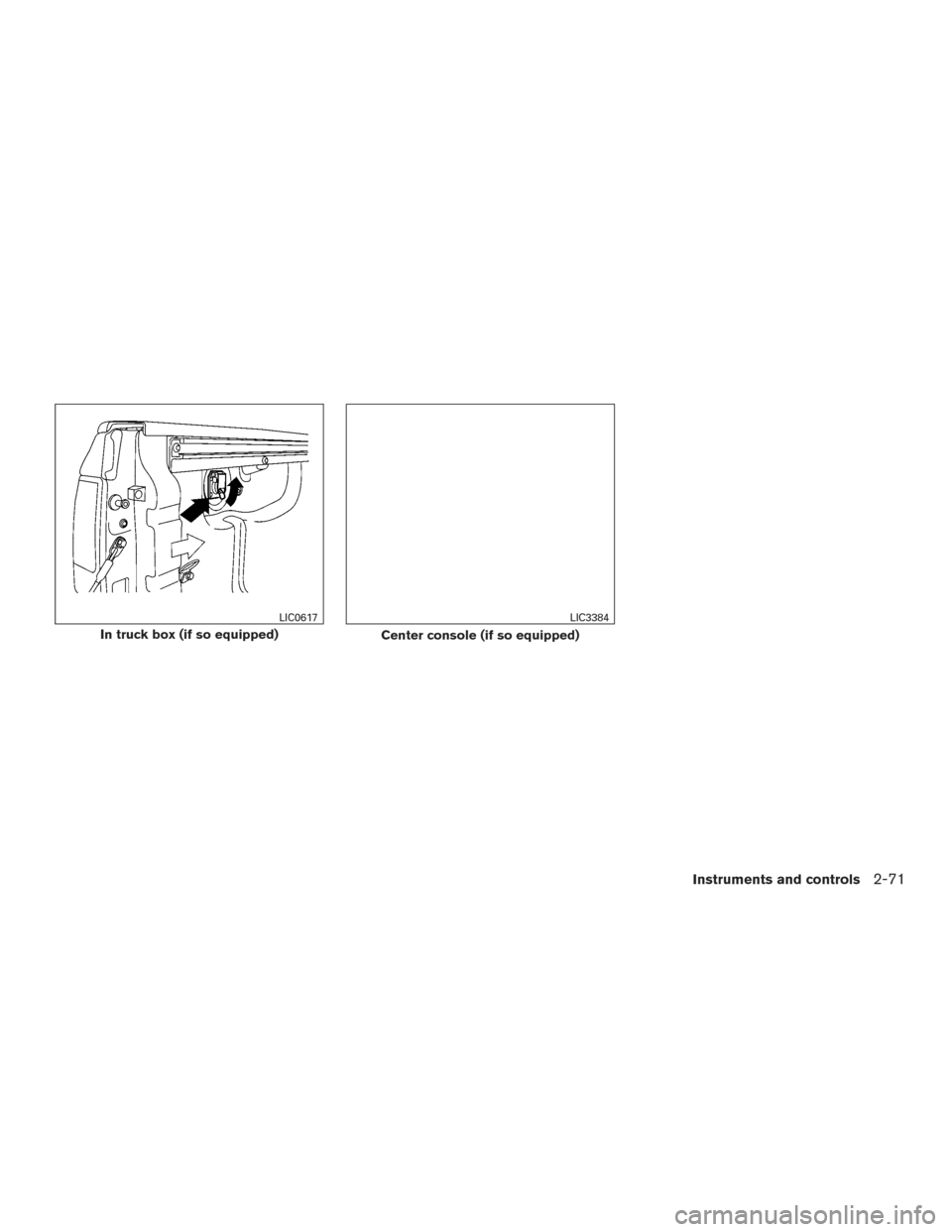

In truck box (if so equipped)
LIC0617
Center console (if so equipped)
LIC3384
Instruments and controls2-71

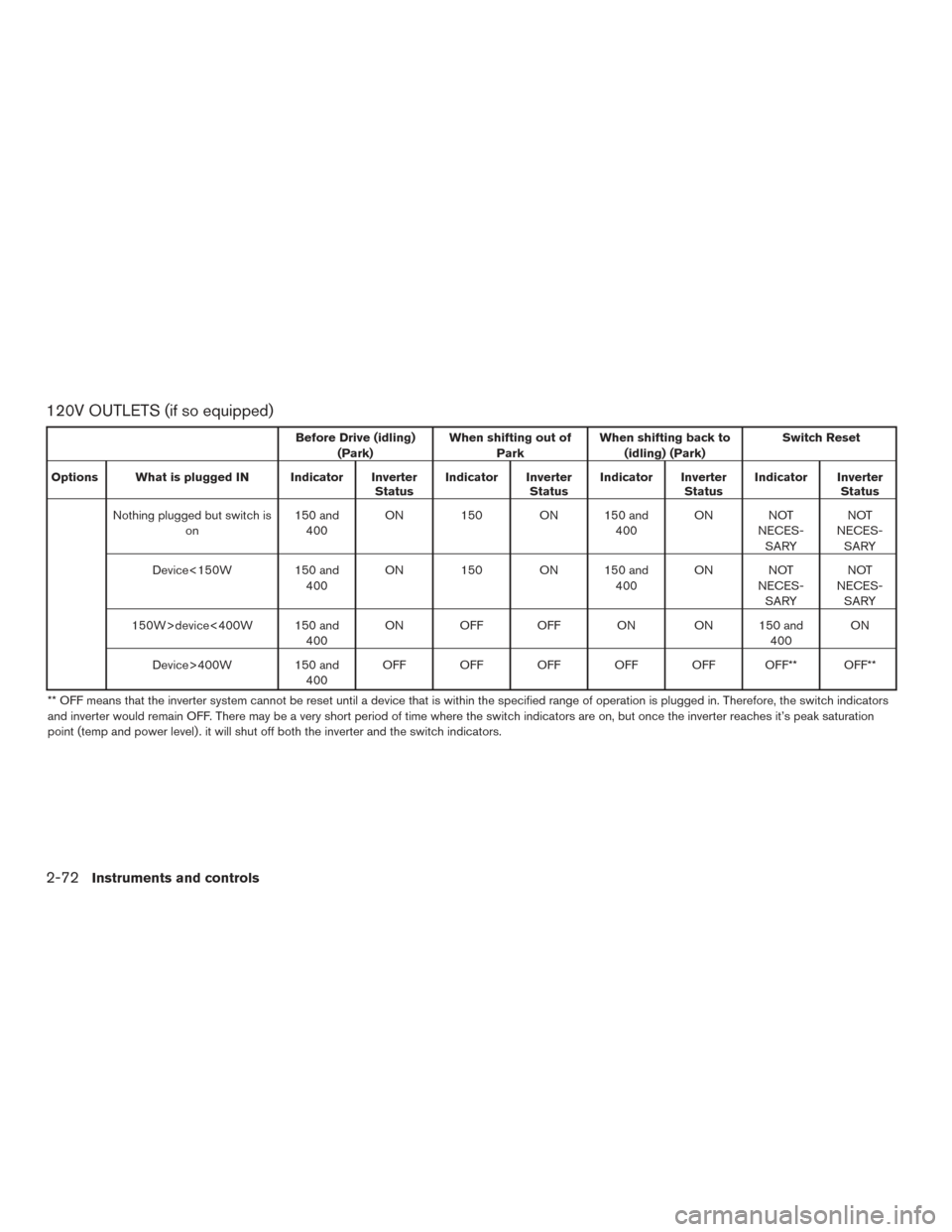

120V OUTLETS (if so equipped)
Before Drive (idling)(Park) When shifting out of
Park When shifting back to
(idling) (Park) Switch Reset
Options What is plugged IN Indicator Inverter StatusIndicator Inverter
StatusIndicator Inverter
StatusIndicator Inverter
Status
Nothing plugged but switch is on 150 and
400 ON 150 ON 150 and
400ON NOT
NECES-SARY NOT
NECES- SARY
Device<150W 150 and
400 ON 150 ON 150 and
400ON NOT
NECES-SARY NOT
NECES- SARY
150W>device<400W 150 and 400ON OFF OFF ON ON 150 and
400ON
Device>400W 150 and
400 OFF OFF OFF OFF OFF OFF** OFF**
** OFF means that the inverter system cannot be reset until a device that is within the specified range of operation is plugged in. Therefore, the switch indicators
and inverter would remain OFF. There may be a very short period of time where the switch indicators are on, but once the inverter reaches it’s peak satura tion
point (temp and power level) . it will shut off both the inverter and the switch indicators.
2-72Instruments and controls

Do not use the outlet located in the truck box with
accessories that exceed 120 volt. Do not use
double adapters or more than one electrical ac-
cessory. When the dual wall bed liner is installed
(if so equipped) , the power outlet is still acces-
sible through the access door in the bed liner.
CAUTION
●Operation of the 120 volt system with
the ignition in the ON position and the
engine not running (idle) will drain the
battery charge. This could lead to a
dead battery or no start condition.
● The outlet and plug may be hot during
or immediately after use.
● Use power outlets with the engine run-
ning to avoid discharging the vehicle
battery.
● Do not use double adaptors or more
than one electrical accessory.
● Avoid using power outlets when the air
conditioner, headlights or rear window
defroster is on.
● Before inserting or disconnecting a
plug, be sure the electrical accessory
being used is turned OFF. ●
Push the plug in as far as it will go. If
good contact is not made, the plug may
overheat or the internal temperature
fuse may open.
● When not in use, be sure to close the
cap. Do not allow water or any other
liquid to contact the outlet.

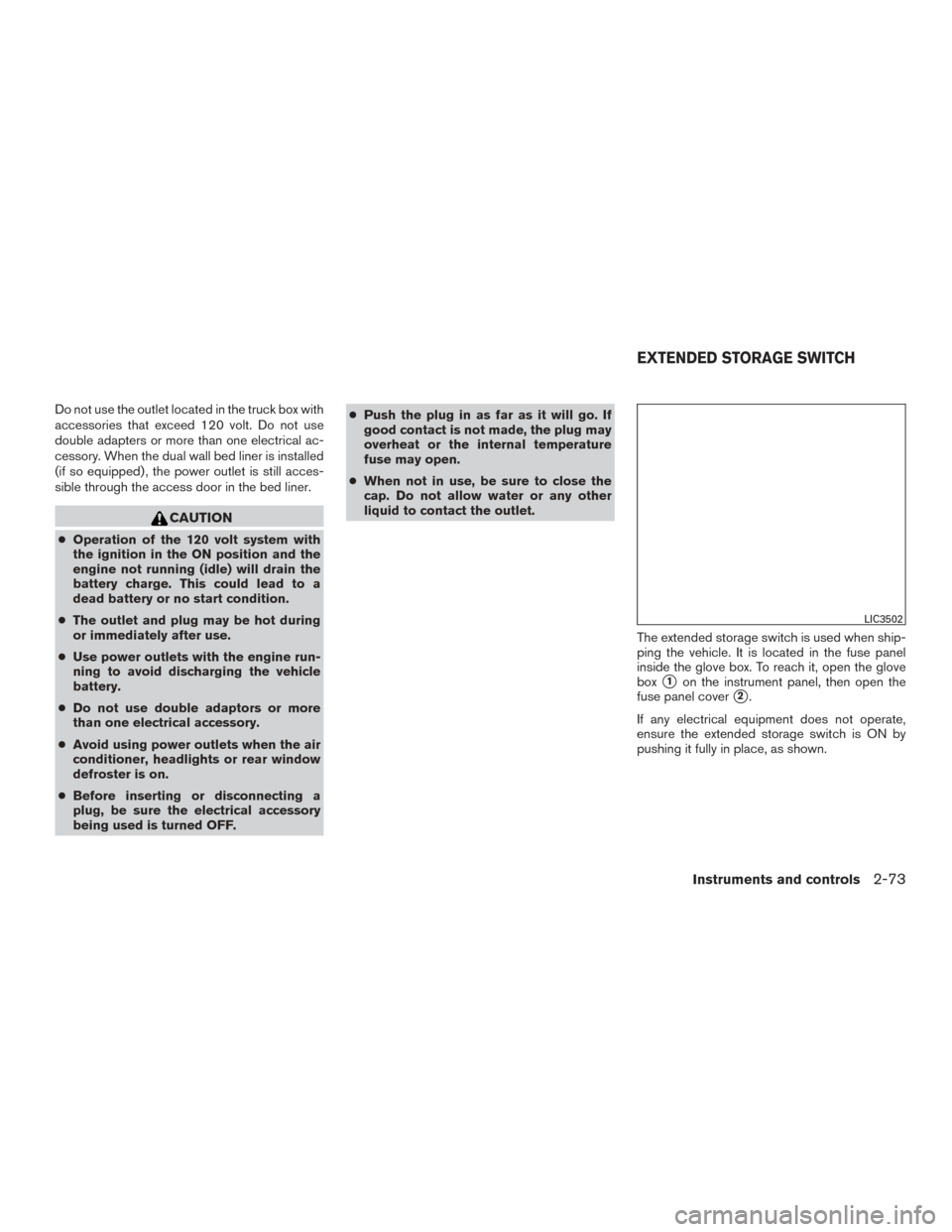

The extended storage switch is used when ship-
ping the vehicle. It is located in the fuse panel
inside the glove box. To reach it, open the glove
box
1on the instrument panel, then open the
fuse panel cover
2.
If any electrical equipment does not operate,
ensure the extended storage switch is ON by
pushing it fully in place, as shown.
LIC3502
EXTENDED STORAGE SWITCH
Instruments and controls2-73

FRONT-DOOR POCKETSPulled position
LIC3266
Pushed position
LIC3268LIC3397
STORAGE
2-74Instruments and controls

CONSOLE SIDE POCKETSSEATBACK POCKETS (if so equipped)
The seatback pocket(s) may be located on the
back of the driver’s and/or passenger’s seat,
there may be one or two pockets equipped. The
pockets can be used to store maps.
WARNING
To ensure proper operation of the passen-
ger’s NISSAN Advanced Air Bag System,
please observe the following items:
●Do not allow a passenger in the rear
seat to push or pull on the seatback
pocket or head restraint/headrest. ●
Do not place heavy loads heavier than
2.2 lbs. (1 kg) on the seatback, head
restraint/headrest or in the seatback
pocket.
LIC3388LIC0575
Instruments and controls2-75

UNDER-SEAT STORAGE (if so
equipped)
To access the storage bin, lift the bench seat
toward the rear of the vehicle, then lift the cover
the same direction. The cover may be locked
1
if so equipped.
CAUTION
To avoid damaging the tray under the seat,
cargo in the trays should not exceed
20 pounds (9.08kg) .To adjust the divider
1, pull it straight up and
reposition it to the desired location, sliding it
straight down.
Both sides of the storage bin, under the rear seat
on the driver’s and passenger’s sides, operate
similarly. They can be accessed simultaneously
or independently of each other.
Further, to create a flat floor space for storage,
rather than access the storage bin, lift the bench
seat as before, then lift the tab
2and rotate the
bin cover toward the front of the vehicle. Use the
tab as a leg to support the cover as the new floor
space. Cargo can be secured to the extended floor with
bungee cords. Secure the bungee cords to the
loops in the extended floor.
CAUTION
●
To avoid damaging the extended floor,
the weight secured should not exceed
247 lbs (112 kg) .
● To avoid damaging the bungee hook
loops, do not exceed 35 lbs (16 kg) of
force to any given loop.
Rear seat (driver’s side shown)
LIC3407LIC3408
2-76Instruments and controls

CONSOLE BOX STORAGE TRAYS
(if so equipped)GLOVE BOX
Open the glove box by pulling the handle.
Use the master key to lock or unlock the glove box
lock. The valet key cannot be used to lock or
unlock the glove box lock.
WARNING
Keep glove box lid closed while driving to
help prevent injury in an accident or a
sudden stop.
CONSOLE BOX (if so equipped)
WARNING
The center console box should not be
used while driving so full attention may be
given to vehicle operation.
LIC3406LIC3386LIC3399
