NISSAN TITAN 2019 Owner´s Manual

∙ When cleaning the seat, never usegasoline, benzine, thinner, or any
similar materials.
∙ If any malfunctions are found or the heated seat does not operate, turn
the switch off and have the system
checked. It is recommended that you
visit a NISSAN dealer for this service.

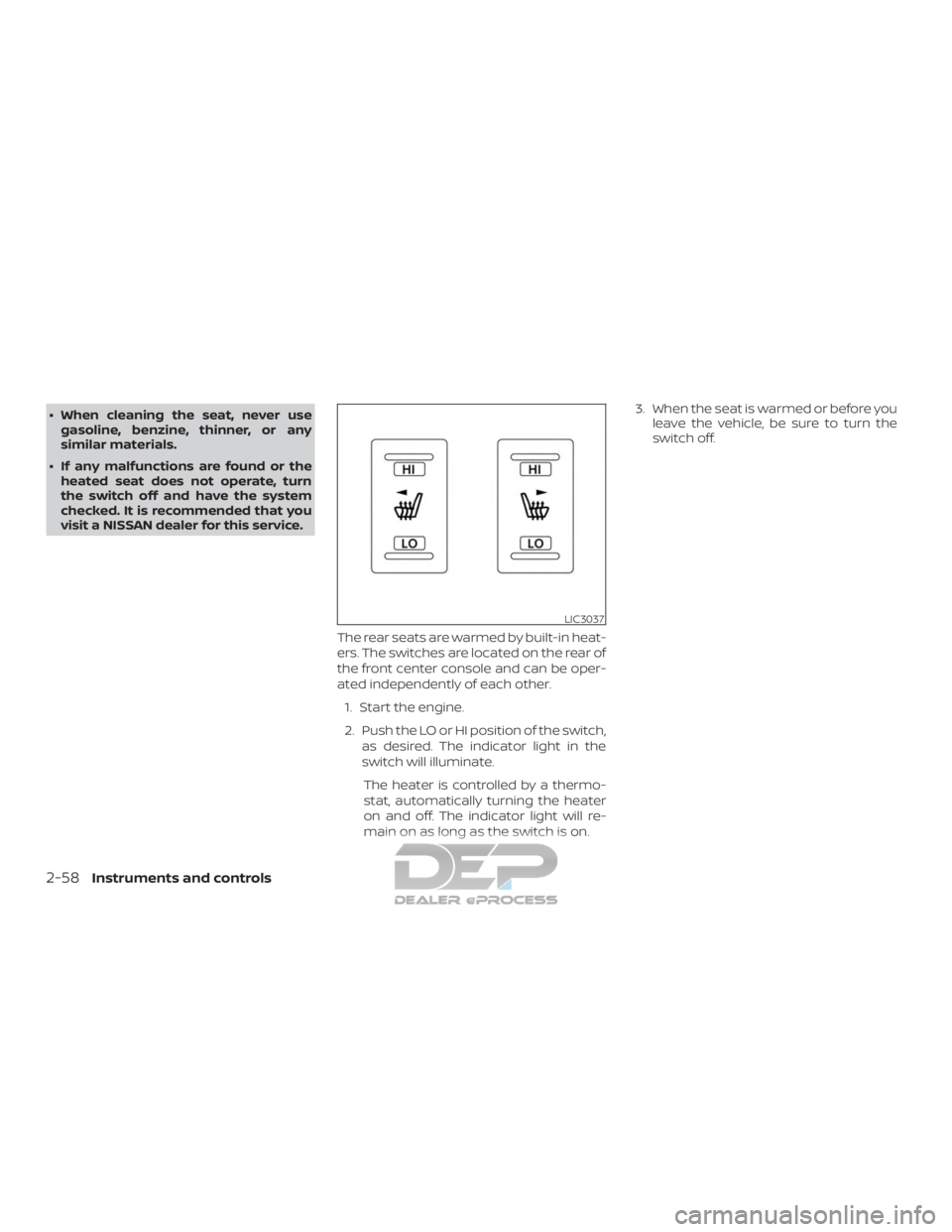

The rear seats are warmed by built-in heat-
ers. The switches are located on the rear of
the front center console and can be oper-
ated independently of each other.1. Start the engine.
2. Push the LO or HI position of the switch, as desired. The indicator light in the
switch will illuminate.
The heater is controlled by a thermo-
stat, automatically turning the heater
on and off. The indicator light will re-
main on as long as the switch is on. 3. When the seat is warmed or before you
leave the vehicle, be sure to turn the
switch off.
LIC3037
2-58Instruments and controls

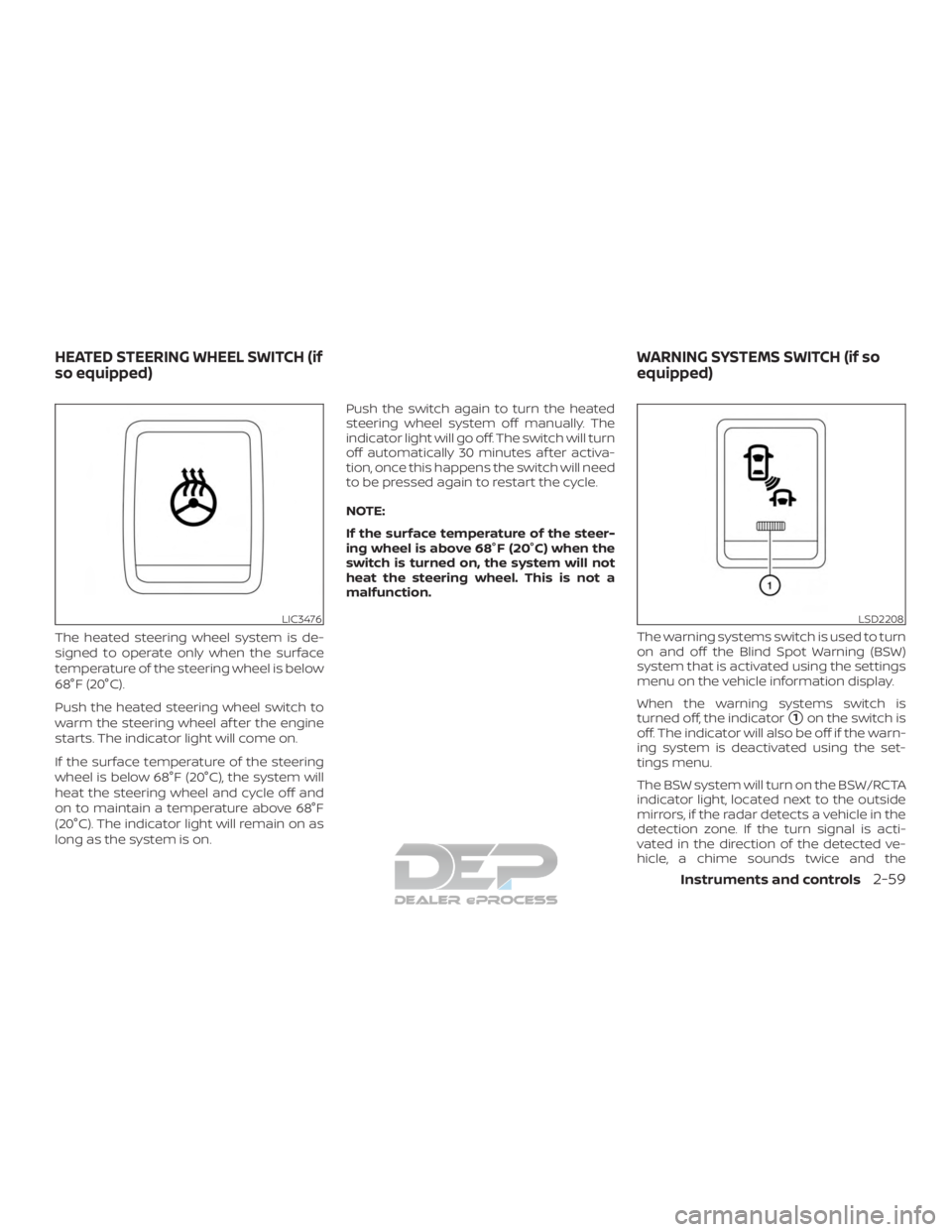

The heated steering wheel system is de-
signed to operate only when the surface
temperature of the steering wheel is below
68°F (20°C).
Push the heated steering wheel switch to
warm the steering wheel af ter the engine
starts. The indicator light will come on.
If the surface temperature of the steering
wheel is below 68°F (20°C), the system will
heat the steering wheel and cycle off and
on to maintain a temperature above 68°F
(20°C). The indicator light will remain on as
long as the system is on.Push the switch again to turn the heated
steering wheel system off manually. The
indicator light will go off. The switch will turn
off automatically 30 minutes af ter activa-
tion, once this happens the switch will need
to be pressed again to restart the cycle.
NOTE:
If the surface temperature of the steer-
ing wheel is above 68°F (20°C) when the
switch is turned on, the system will not
heat the steering wheel. This is not a
malfunction.
The warning systems switch is used to turn
on and off the Blind Spot Warning (BSW)
system that is activated using the settings
menu on the vehicle information display.
When the warning systems switch is
turned off, the indicator
1on the switch is
off. The indicator will also be off if the warn-
ing system is deactivated using the set-
tings menu.
The BSW system will turn on the BSW/RCTA
indicator light, located next to the outside
mirrors, if the radar detects a vehicle in the
detection zone. If the turn signal is acti-
vated in the direction of the detected ve-
hicle, a chime sounds twice and the
LIC3476LSD2208
HEATED STEERING WHEEL SWITCH (if
so equipped) WARNING SYSTEMS SWITCH (if so
equipped)
Instruments and controls2-59

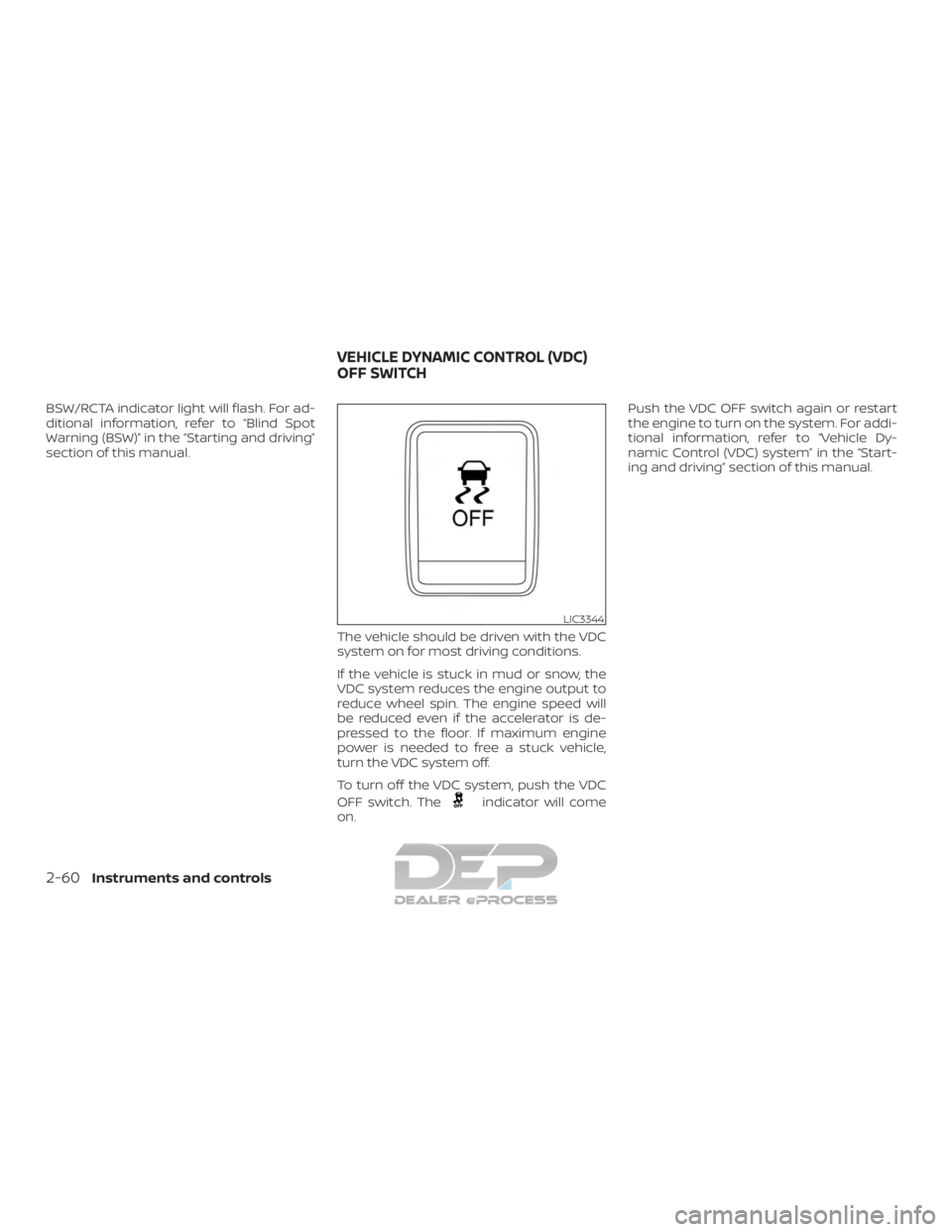

BSW/RCTA indicator light will flash. For ad-
ditional information, refer to “Blind Spot
Warning (BSW)” in the “Starting and driving”
section of this manual.The vehicle should be driven with the VDC
system on for most driving conditions.
If the vehicle is stuck in mud or snow, the
VDC system reduces the engine output to
reduce wheel spin. The engine speed will
be reduced even if the accelerator is de-
pressed to the floor. If maximum engine
power is needed to free a stuck vehicle,
turn the VDC system off.
To turn off the VDC system, push the VDC
OFF switch. The
indicator will come
on. Push the VDC OFF switch again or restart
the engine to turn on the system. For addi-
tional information, refer to “Vehicle Dy-
namic Control (VDC) system” in the “Start-
ing and driving” section of this manual.
LIC3344
VEHICLE DYNAMIC CONTROL (VDC)
OFF SWITCH
2-60Instruments and controls

WARNING
∙ Never rely solely on the hill descentcontrol system to control vehicle
speed when driving on steep downhill
grades. Always drive carefully when
using the hill descent control system
and decelerate the vehicle speed by
depressing the brake pedal if neces-
sary. Be especially careful when driv-
ing on frozen, muddy or extremely
steep downhill roads. Failure to con-
trol vehicle speed may result in a loss
of control of the vehicle and possible
serious injury or death. ∙ The hill descent control may not con-
trol the vehicle speed on a hill under
all load or road conditions. Always be
prepared to depress the brake pedal
to control vehicle speed. Failure to do
so may result in a collision or serious
personal injury.
CAUTION
When the hill descent control system
operates continuously for a long time,
the temperature of the brake pads may
increase and the hill descent control
system may be temporarily disabled
(the indicator light will blink). If the indi-
cator light does not come on continu-
ously af ter blinking, stop using the
system.
The hill descent control system is designed
to reduce driver workload when going
down steep hills. The hill descent control
system helps to control vehicle speed so
the driver can concentrate on steering the
vehicle.
To activate the hill descent control system: ∙ activate the 4H or 4LO switch,
∙ the transmission shif t lever must be in forward or reverse gear, ∙ the hill descent control system switch
must be ON.
The vehicle speed must be kept below
15 mph (25 km/h).
The hill descent control indicator light will
come on when the system is activated.
Also, the stop/tail lights illuminate while the
hill descent control system applies the
brakes to control vehicle speed.
You may hear a noise from under the hood
or feel a vibration from the actuator when it
is operating. This is normal and indicates
the hill descent control system is working
properly.
If the accelerator or brake pedal is de-
pressed while the hill descent control sys-
tem is on, the system will stop operating
temporarily. As soon as the accelerator or
brake pedal is released, the hill descent
control system begins to function again if
the hill descent control operating condi-
tions are fulfilled.
The hill descent control indicator light
blinks if the switch is on and all conditions
for system activation are not met or if the
system becomes disengaged for any rea-
son.
LIC3447
HILL DESCENT CONTROL SWITCH (if
so equipped)
Instruments and controls2-61

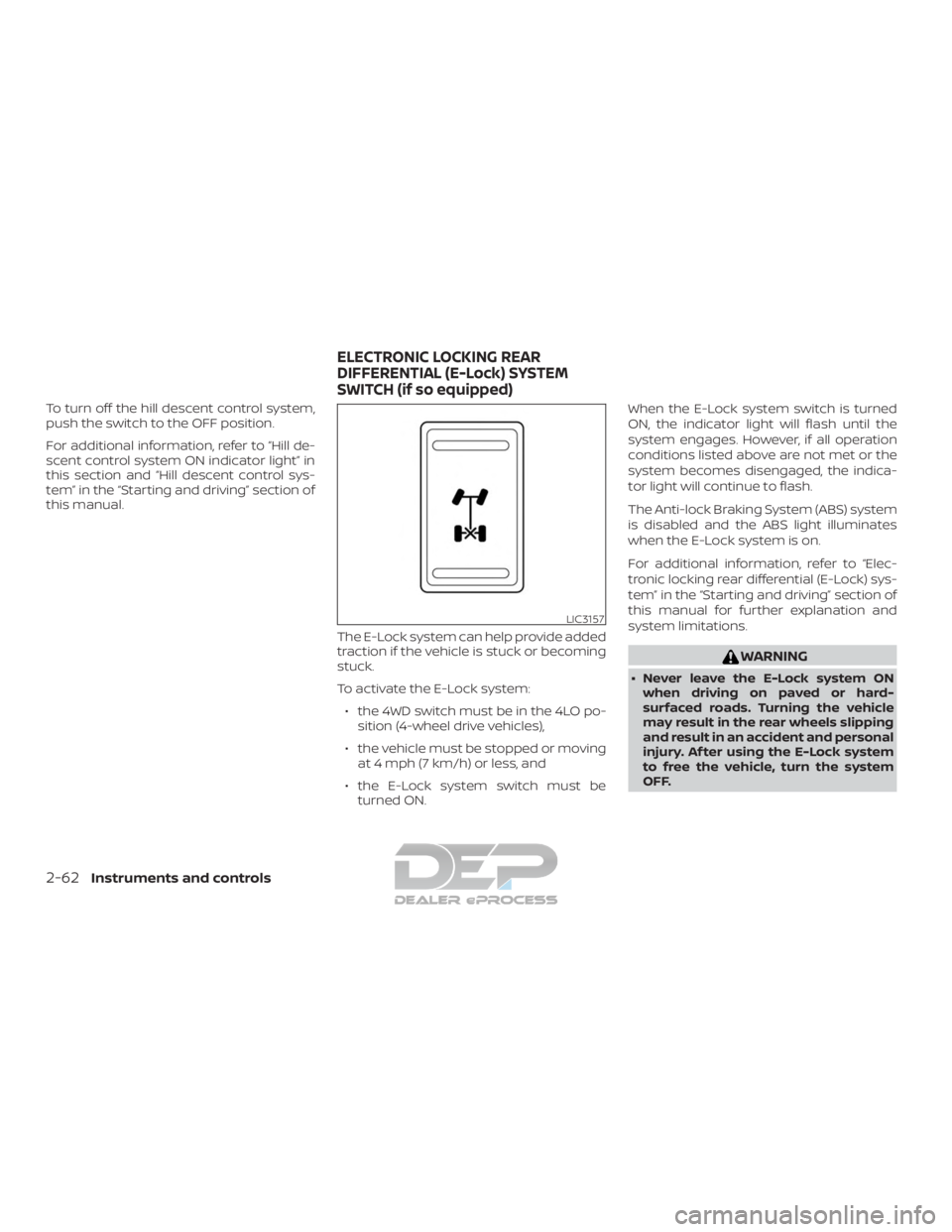

To turn off the hill descent control system,
push the switch to the OFF position.
For additional information, refer to “Hill de-
scent control system ON indicator light” in
this section and “Hill descent control sys-
tem” in the “Starting and driving” section of
this manual.The E-Lock system can help provide added
traction if the vehicle is stuck or becoming
stuck.
To activate the E-Lock system:∙ the 4WD switch must be in the 4LO po- sition (4-wheel drive vehicles),
∙ the vehicle must be stopped or moving at 4 mph (7 km/h) or less, and
∙ the E-Lock system switch must be turned ON. When the E-Lock system switch is turned
ON, the indicator light will flash until the
system engages. However, if all operation
conditions listed above are not met or the
system becomes disengaged, the indica-
tor light will continue to flash.
The Anti-lock Braking System (ABS) system
is disabled and the ABS light illuminates
when the E-Lock system is on.
For additional information, refer to “Elec-
tronic locking rear differential (E-Lock) sys-
tem” in the “Starting and driving” section of
this manual for further explanation and
system limitations.
WARNING
∙ Never leave the E-Lock system ON
when driving on paved or hard-
surfaced roads. Turning the vehicle
may result in the rear wheels slipping
and result in an accident and personal
injury. Af ter using the E-Lock system
to free the vehicle, turn the system
OFF.
LIC3157
ELECTRONIC LOCKING REAR
DIFFERENTIAL (E-Lock) SYSTEM
SWITCH (if so equipped)
2-62Instruments and controls

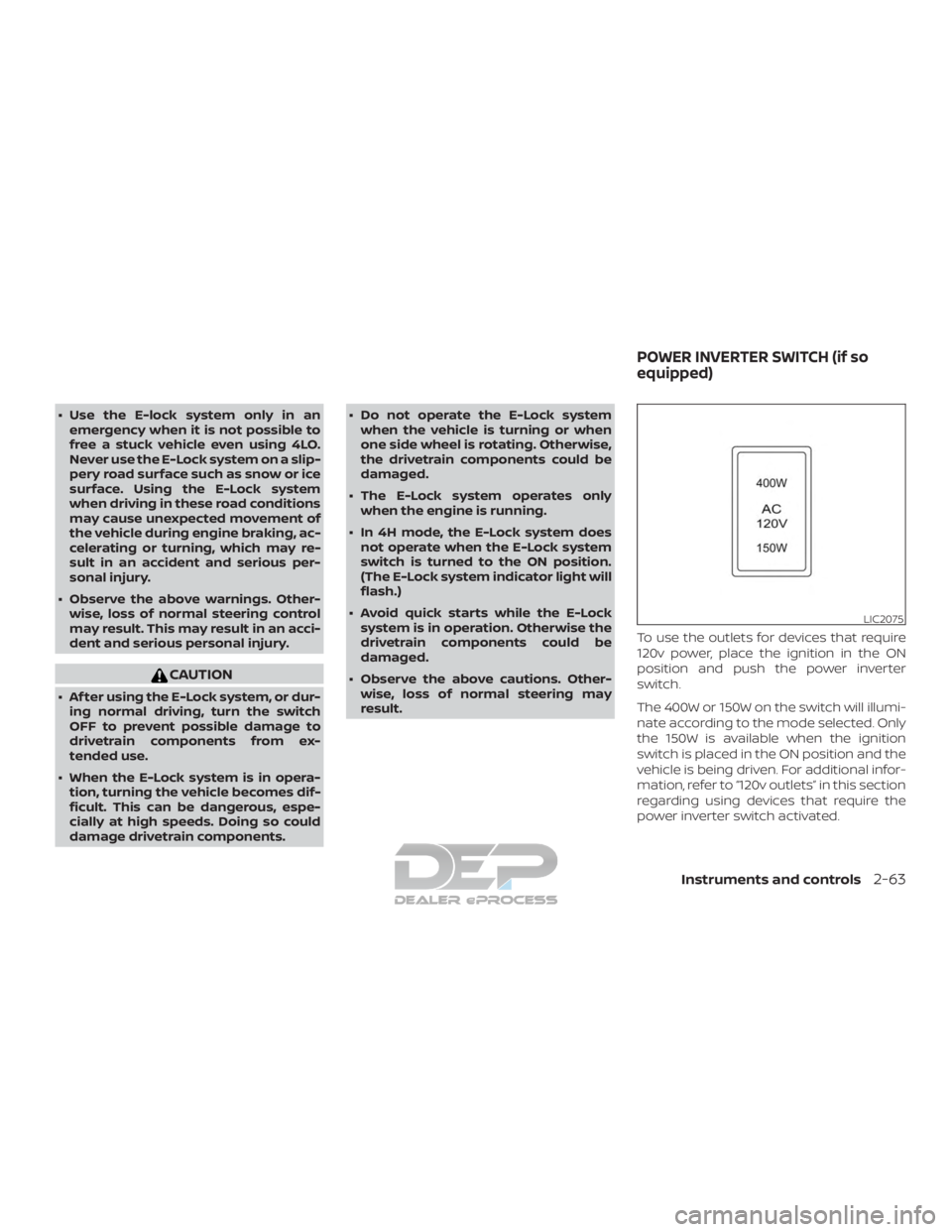

∙ Use the E-lock system only in anemergency when it is not possible to
free a stuck vehicle even using 4LO.
Never use the E-Lock system on a slip-
pery road surface such as snow or ice
surface. Using the E-Lock system
when driving in these road conditions
may cause unexpected movement of
the vehicle during engine braking, ac-
celerating or turning, which may re-
sult in an accident and serious per-
sonal injury.
∙ Observe the above warnings. Other- wise, loss of normal steering control
may result. This may result in an acci-
dent and serious personal injury.
CAUTION
∙ Af ter using the E-Lock system, or dur-ing normal driving, turn the switch
OFF to prevent possible damage to
drivetrain components from ex-
tended use.
∙ When the E-Lock system is in opera- tion, turning the vehicle becomes dif-
ficult. This can be dangerous, espe-
cially at high speeds. Doing so could
damage drivetrain components. ∙ Do not operate the E-Lock system
when the vehicle is turning or when
one side wheel is rotating. Otherwise,
the drivetrain components could be
damaged.
∙ The E-Lock system operates only when the engine is running.
∙ In 4H mode, the E-Lock system does not operate when the E-Lock system
switch is turned to the ON position.
(The E-Lock system indicator light will
flash.)
∙ Avoid quick starts while the E-Lock system is in operation. Otherwise the
drivetrain components could be
damaged.
∙ Observe the above cautions. Other- wise, loss of normal steering may
result. To use the outlets for devices that require
120v power, place the ignition in the ON
position and push the power inverter
switch.
The 400W or 150W on the switch will illumi-
nate according to the mode selected. Only
the 150W is available when the ignition
switch is placed in the ON position and the
vehicle is being driven. For additional infor-
mation, refer to “120v outlets” in this section
regarding using devices that require the
power inverter switch activated.
LIC2075
POWER INVERTER SWITCH (if so
equipped)
Instruments and controls2-63

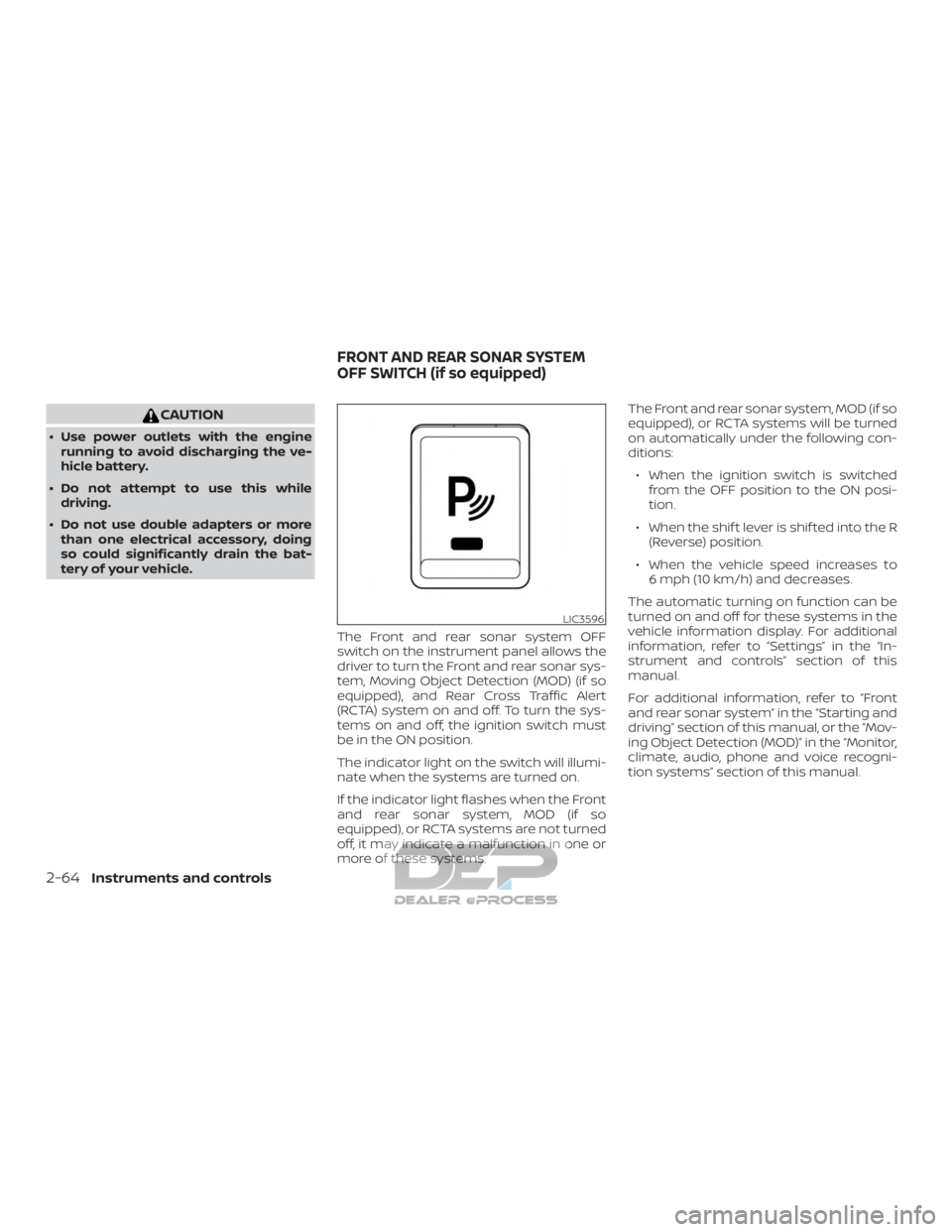

CAUTION
∙ Use power outlets with the enginerunning to avoid discharging the ve-
hicle battery.
∙ Do not attempt to use this while driving.
∙ Do not use double adapters or more than one electrical accessory, doing
so could significantly drain the bat-
tery of your vehicle.
The Front and rear sonar system OFF
switch on the instrument panel allows the
driver to turn the Front and rear sonar sys-
tem, Moving Object Detection (MOD) (if so
equipped), and Rear Cross Traffic Alert
(RCTA) system on and off. To turn the sys-
tems on and off, the ignition switch must
be in the ON position.
The indicator light on the switch will illumi-
nate when the systems are turned on.
If the indicator light flashes when the Front
and rear sonar system, MOD (if so
equipped), or RCTA systems are not turned
off, it may indicate a malfunction in one or
more of these systems. The Front and rear sonar system, MOD (if so
equipped), or RCTA systems will be turned
on automatically under the following con-
ditions:
∙ When the ignition switch is switched from the OFF position to the ON posi-
tion.
∙ When the shif t lever is shif ted into the R (Reverse) position.
∙ When the vehicle speed increases to 6 mph (10 km/h) and decreases.
The automatic turning on function can be
turned on and off for these systems in the
vehicle information display. For additional
information, refer to “Settings” in the “In-
strument and controls” section of this
manual.
For additional information, refer to “Front
and rear sonar system” in the “Starting and
driving” section of this manual, or the “Mov-
ing Object Detection (MOD)” in the “Monitor,
climate, audio, phone and voice recogni-
tion systems” section of this manual.
LIC3596
FRONT AND REAR SONAR SYSTEM
OFF SWITCH (if so equipped)
2-64Instruments and controls

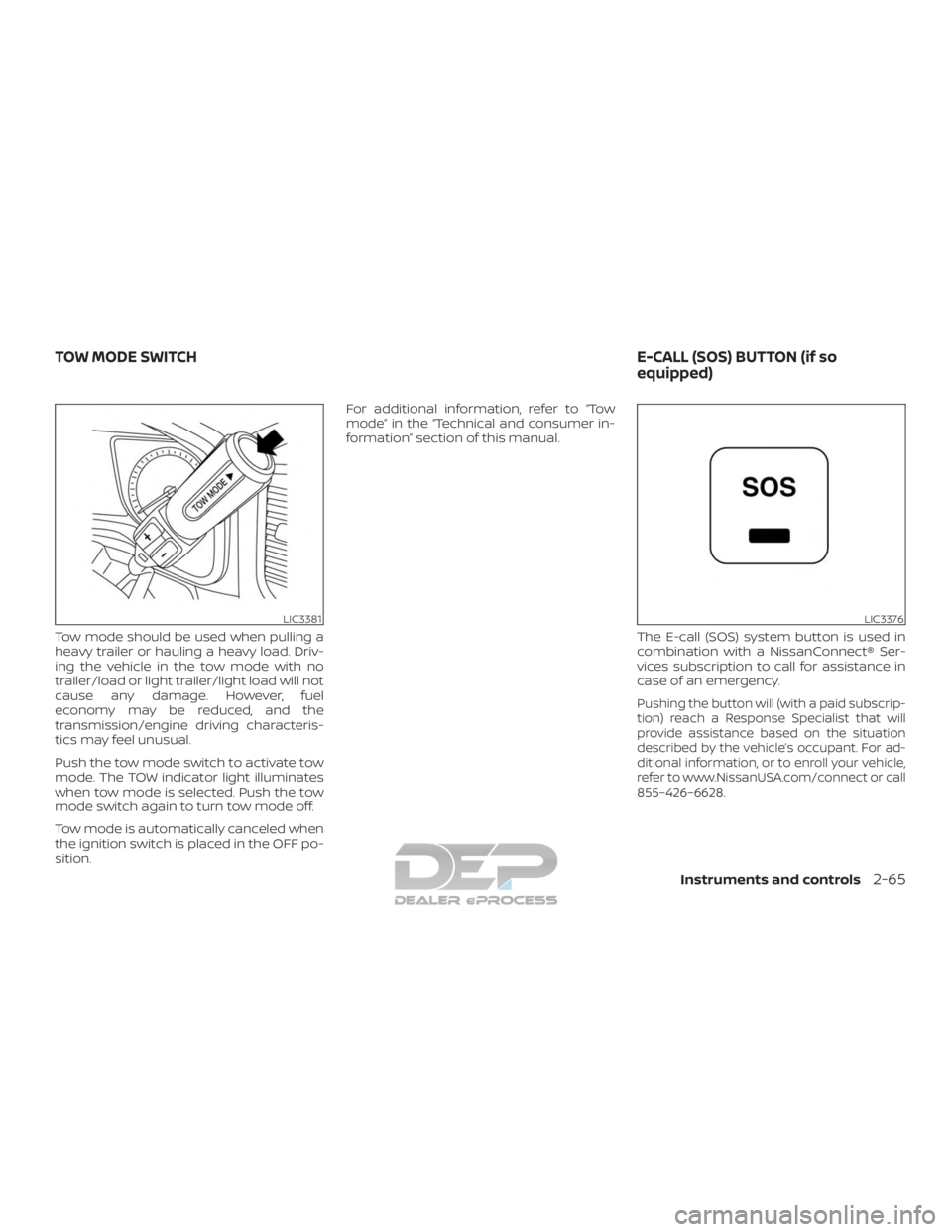

Tow mode should be used when pulling a
heavy trailer or hauling a heavy load. Driv-
ing the vehicle in the tow mode with no
trailer/load or light trailer/light load will not
cause any damage. However, fuel
economy may be reduced, and the
transmission/engine driving characteris-
tics may feel unusual.
Push the tow mode switch to activate tow
mode. The TOW indicator light illuminates
when tow mode is selected. Push the tow
mode switch again to turn tow mode off.
Tow mode is automatically canceled when
the ignition switch is placed in the OFF po-
sition.For additional information, refer to “Tow
mode” in the “Technical and consumer in-
formation” section of this manual.
The E-call (SOS) system button is used in
combination with a NissanConnect® Ser-
vices subscription to call for assistance in
case of an emergency.
Pushing the button will (with a paid subscrip-
tion) reach a Response Specialist that will
provide assistance based on the situation
described by the vehicle’s occupant. For ad-
ditional information, or to enroll your vehicle,
refer to www.NissanUSA.com/connect or call
855–426–6628.
LIC3381LIC3376
TOW MODE SWITCH E-CALL (SOS) BUTTON (if so
equipped)
Instruments and controls2-65

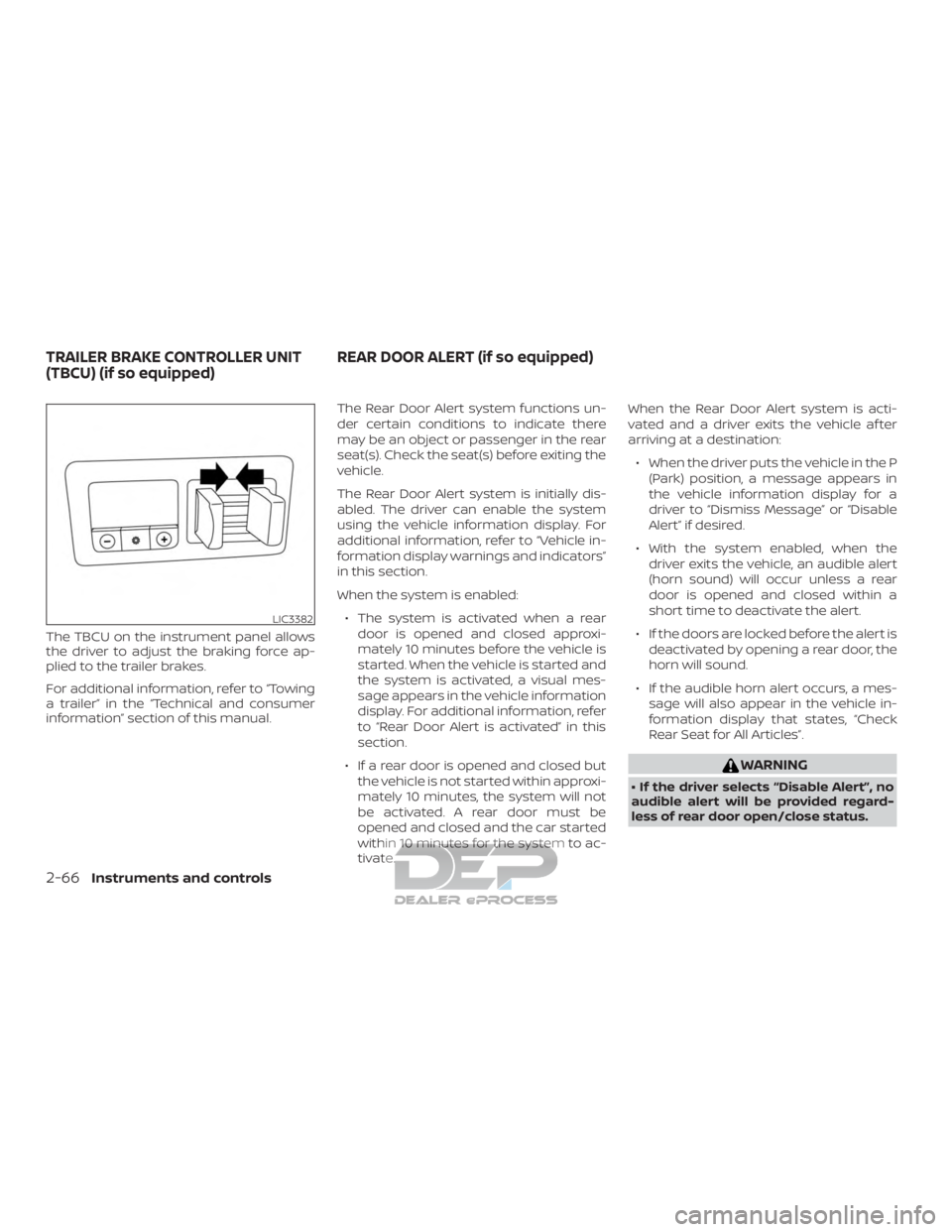

The TBCU on the instrument panel allows
the driver to adjust the braking force ap-
plied to the trailer brakes.
For additional information, refer to “Towing
a trailer” in the “Technical and consumer
information” section of this manual.The Rear Door Alert system functions un-
der certain conditions to indicate there
may be an object or passenger in the rear
seat(s). Check the seat(s) before exiting the
vehicle.
The Rear Door Alert system is initially dis-
abled. The driver can enable the system
using the vehicle information display. For
additional information, refer to “Vehicle in-
formation display warnings and indicators”
in this section.
When the system is enabled:
∙ The system is activated when a rear door is opened and closed approxi-
mately 10 minutes before the vehicle is
started. When the vehicle is started and
the system is activated, a visual mes-
sage appears in the vehicle information
display. For additional information, refer
to “Rear Door Alert is activated” in this
section.
∙ If a rear door is opened and closed but the vehicle is not started within approxi-
mately 10 minutes, the system will not
be activated. A rear door must be
opened and closed and the car started
within 10 minutes for the system to ac-
tivate. When the Rear Door Alert system is acti-
vated and a driver exits the vehicle af ter
arriving at a destination:
∙ When the driver puts the vehicle in the P (Park) position, a message appears in
the vehicle information display for a
driver to “Dismiss Message” or “Disable
Alert” if desired.
∙ With the system enabled, when the driver exits the vehicle, an audible alert
(horn sound) will occur unless a rear
door is opened and closed within a
short time to deactivate the alert.
∙ If the doors are locked before the alert is deactivated by opening a rear door, the
horn will sound.
∙ If the audible horn alert occurs, a mes- sage will also appear in the vehicle in-
formation display that states, “Check
Rear Seat for All Articles”.
WARNING
• If the driver selects “Disable Alert”, no
audible alert will be provided regard-
less of rear door open/close status.
LIC3382
TRAILER BRAKE CONTROLLER UNIT
(TBCU) (if so equipped) REAR DOOR ALERT (if so equipped)
2-66Instruments and controls

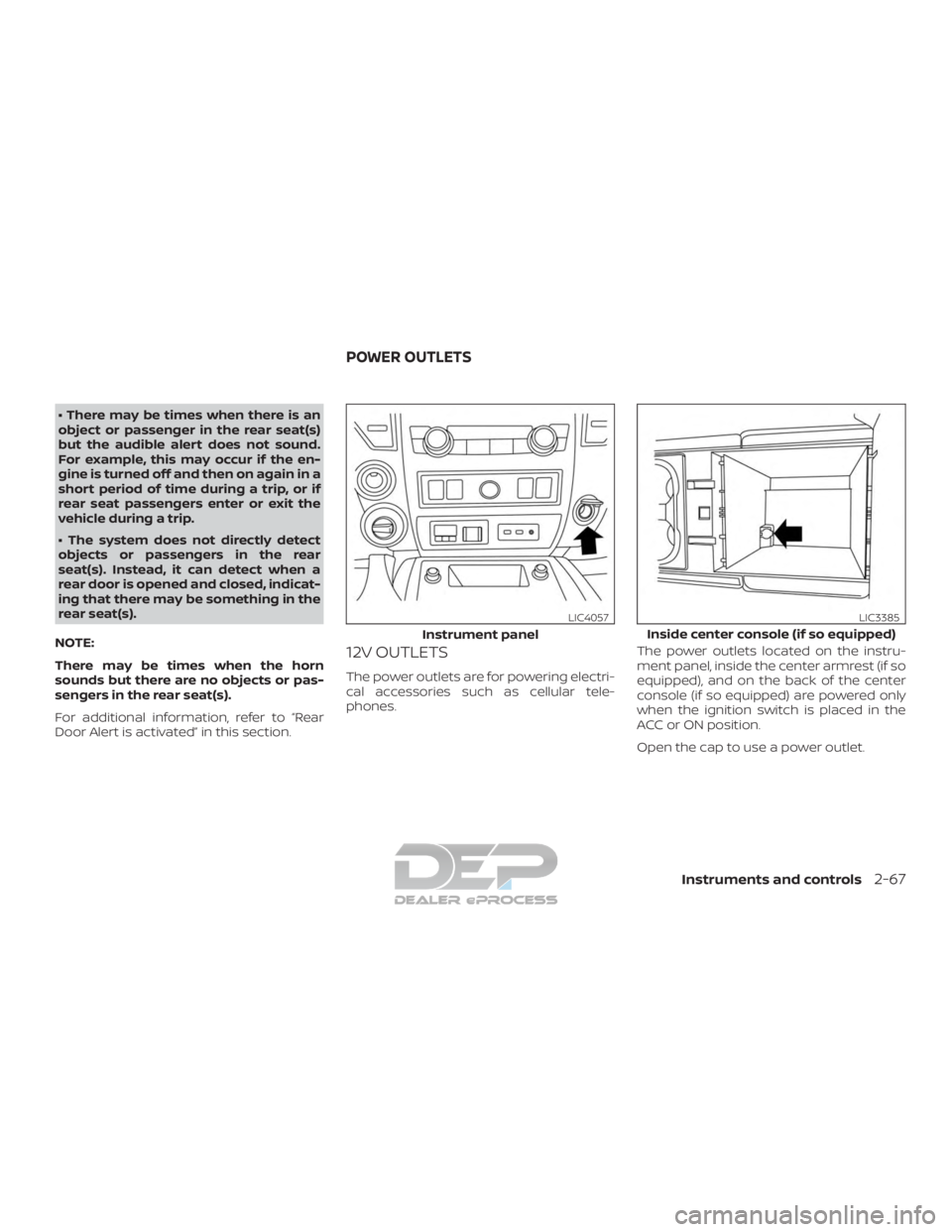

• There may be times when there is an
object or passenger in the rear seat(s)
but the audible alert does not sound.
For example, this may occur if the en-
gine is turned off and then on again in a
short period of time during a trip, or if
rear seat passengers enter or exit the
vehicle during a trip.
• The system does not directly detect
objects or passengers in the rear
seat(s). Instead, it can detect when a
rear door is opened and closed, indicat-
ing that there may be something in the
rear seat(s).
NOTE:
There may be times when the horn
sounds but there are no objects or pas-
sengers in the rear seat(s).
For additional information, refer to “Rear
Door Alert is activated” in this section.
12V OUTLETS
The power outlets are for powering electri-
cal accessories such as cellular tele-
phones. The power outlets located on the instru-
ment panel, inside the center armrest (if so
equipped), and on the back of the center
console (if so equipped) are powered only
when the ignition switch is placed in the
ACC or ON position.
Open the cap to use a power outlet.
Instrument panel
LIC4057
Inside center console (if so equipped)
LIC3385
POWER OUTLETS
Instruments and controls2-67
