NISSAN TITAN 2023 Owners Manual

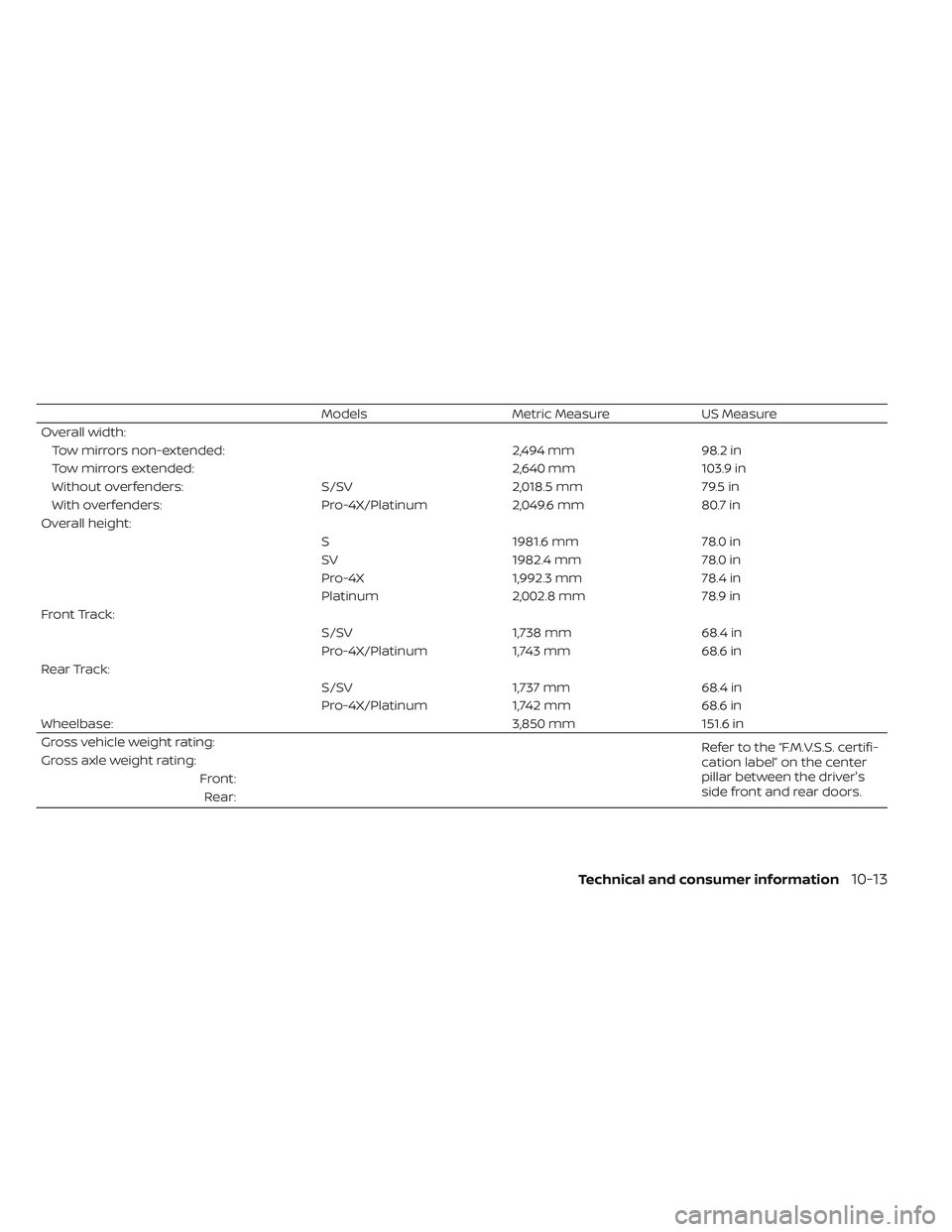

ModelsMetric MeasureUS Measure
Overall width: Tow mirrors non-extended: 2,494 mm98.2 in
Tow mirrors extended: 2,640 mm103.9 in
Without overfenders: S/SV2,018.5 mm79.5 in
With overfenders: Pro-4X/Platinum2,049.6 mm80.7 in
Overall height: S1981.6 mm78.0 in
SV 1982.4 mm78.0 in
Pro-4X 1,992.3 mm78.4 in
Platinum 2,002.8 mm78.9 in
Front Track: S/SV1,738 mm68.4 in
Pro-4X/Platinum 1,743 mm68.6 in
Rear Track: S/SV1,737 mm68.4 in
Pro-4X/Platinum 1,742 mm68.6 in
Wheelbase: 3,850 mm151.6 in
Gross vehicle weight rating: Refer to the “F.M.V.S.S. certifi-
cation label” on the center
pillar between the driver's
side front and rear doors.
Gross axle weight rating:
Front:Rear:
Technical and consumer information10-13

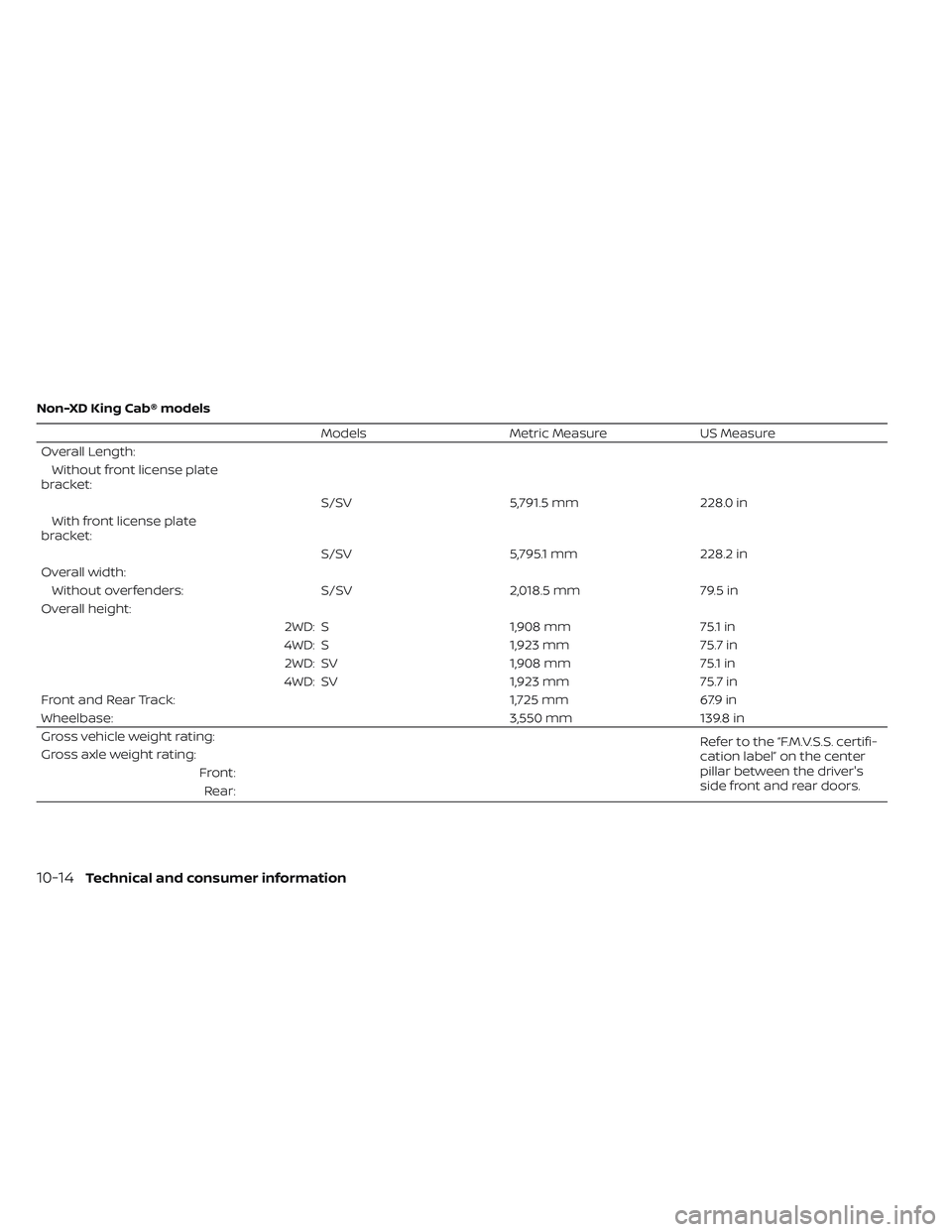

Non-XD King Cab® models
ModelsMetric Measure US Measure
Overall Length: Without front license plate
bracket:
S/SV5,791.5 mm 228.0 in
With front license plate
bracket:
S/SV5,795.1 mm 228.2 in
Overall width: Without overfenders: S/SV2,018.5 mm 79.5 in
Overall height: 2WD: S1,908 mm75.1 in
4WD: S 1,923 mm75.7 in
2WD: SV 1,908 mm75.1 in
4WD: SV 1,923 mm75.7 in
Front and Rear Track: 1,725 mm67.9 in
Wheelbase: 3,550 mm139.8 in
Gross vehicle weight rating: Refer to the “F.M.V.S.S. certifi-
cation label” on the center
pillar between the driver's
side front and rear doors.
Gross axle weight rating:
Front:Rear:
10-14Technical and consumer information

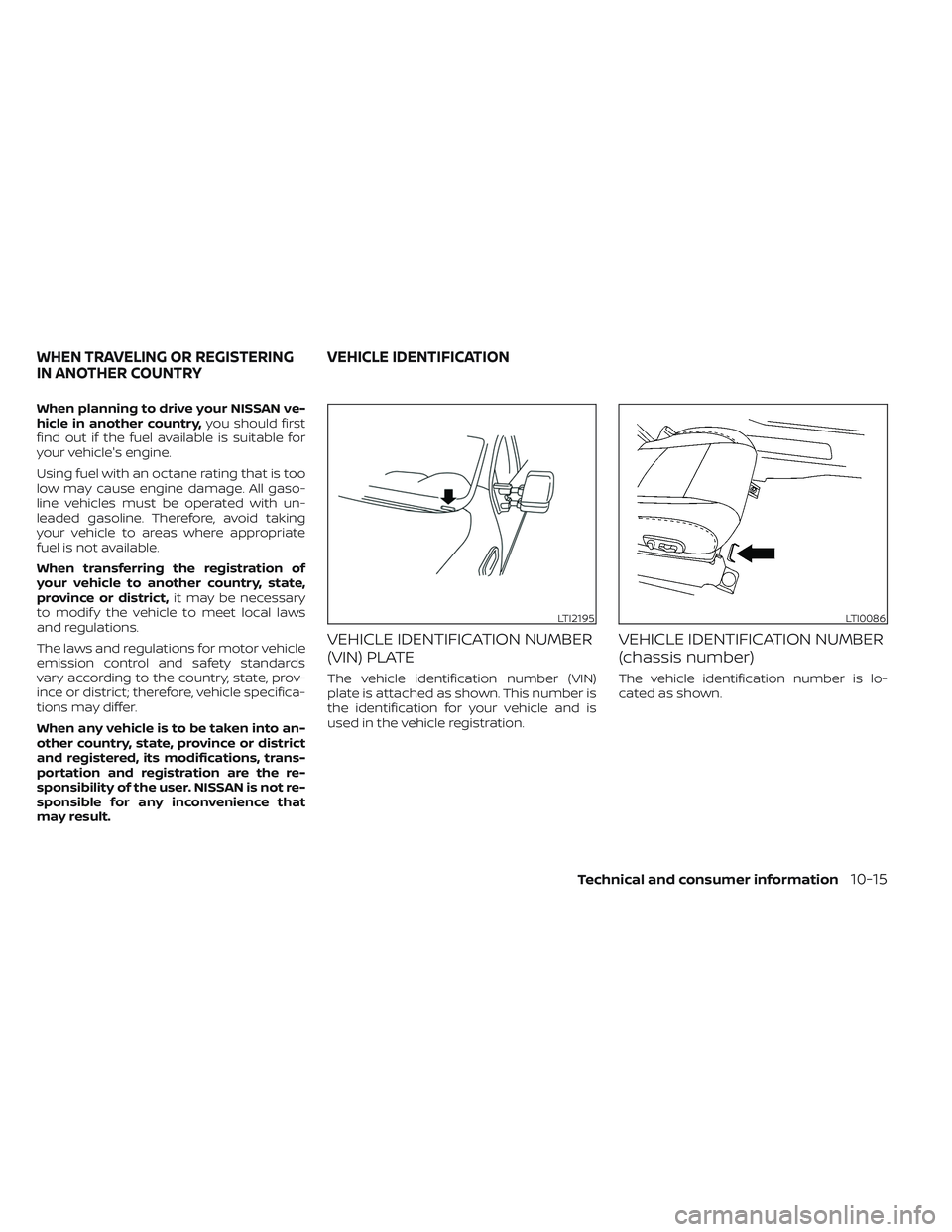

When planning to drive your NISSAN ve-
hicle in another country,you should first
find out if the fuel available is suitable for
your vehicle's engine.
Using fuel with an octane rating that is too
low may cause engine damage. All gaso-
line vehicles must be operated with un-
leaded gasoline. Therefore, avoid taking
your vehicle to areas where appropriate
fuel is not available.
When transferring the registration of
your vehicle to another country, state,
province or district, it may be necessary
to modif y the vehicle to meet local laws
and regulations.
The laws and regulations for motor vehicle
emission control and safety standards
vary according to the country, state, prov-
ince or district; therefore, vehicle specifica-
tions may differ.
When any vehicle is to be taken into an-
other country, state, province or district
and registered, its modifications, trans-
portation and registration are the re-
sponsibility of the user. NISSAN is not re-
sponsible for any inconvenience that
may result.
VEHICLE IDENTIFICATION NUMBER
(VIN) PLATE
The vehicle identification number (VIN)
plate is attached as shown. This number is
the identification for your vehicle and is
used in the vehicle registration.
VEHICLE IDENTIFICATION NUMBER
(chassis number)
The vehicle identification number is lo-
cated as shown.
LTI2195LTI0086
WHEN TRAVELING OR REGISTERING
IN ANOTHER COUNTRY VEHICLE IDENTIFICATION
Technical and consumer information10-15

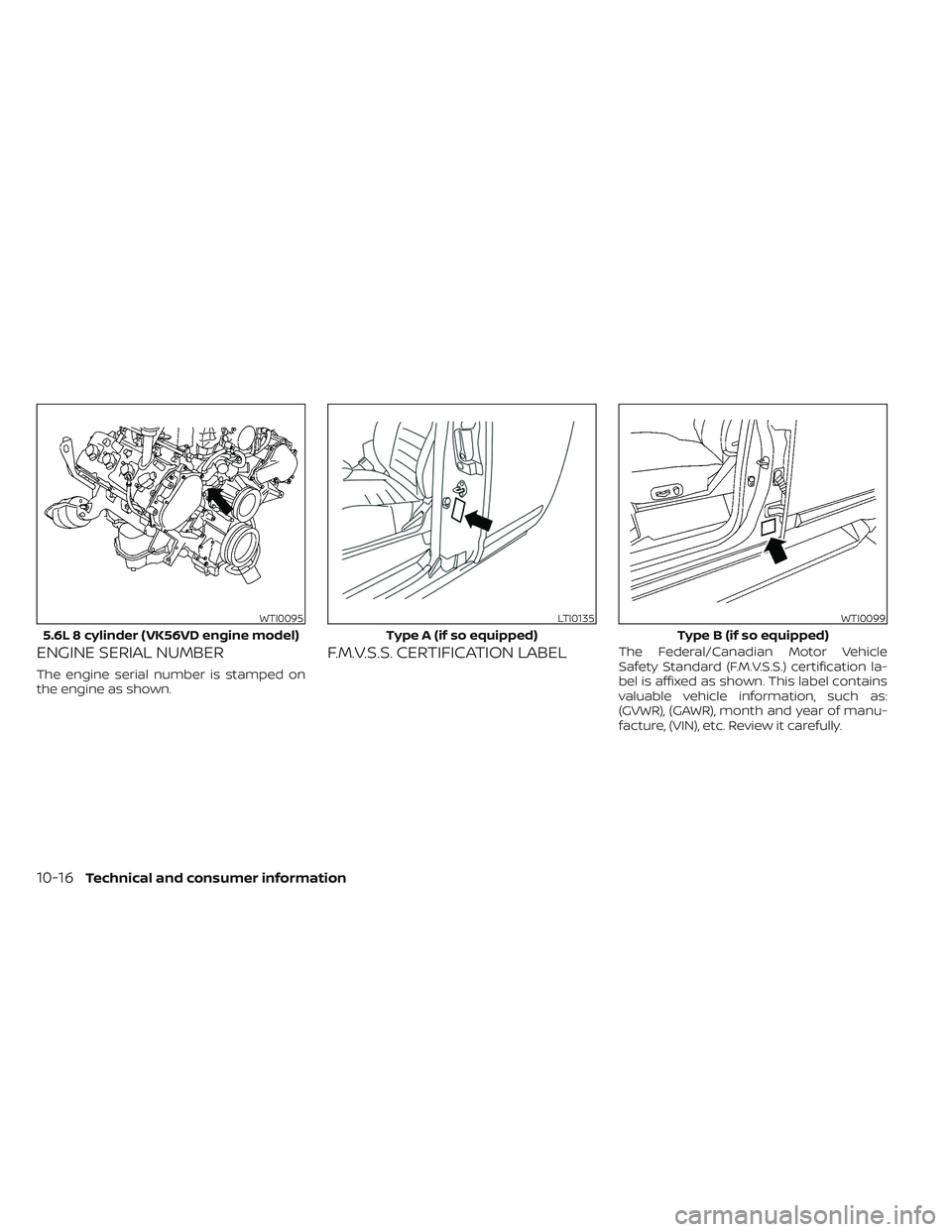

ENGINE SERIAL NUMBER
The engine serial number is stamped on
the engine as shown.
F.M.V.S.S. CERTIFICATION LABELThe Federal/Canadian Motor Vehicle
Safety Standard (F.M.V.S.S.) certification la-
bel is affixed as shown. This label contains
valuable vehicle information, such as:
(GVWR), (GAWR), month and year of manu-
facture, (VIN), etc. Review it carefully.
WTI0095
5.6L 8 cylinder (VK56VD engine model)
LTI0135
Type A (if so equipped)
WTI0099
Type B (if so equipped)
10-16Technical and consumer information

EMISSION CONTROL
INFORMATION LABELThe emission control information label is
attached to the underside of the hood as
shown.TIRE AND LOADING INFORMATION
LABEL
LTI2197
XD models
LTI2242
Except XD models
LTI2480
Type A (if so equipped)
Technical and consumer information10-17

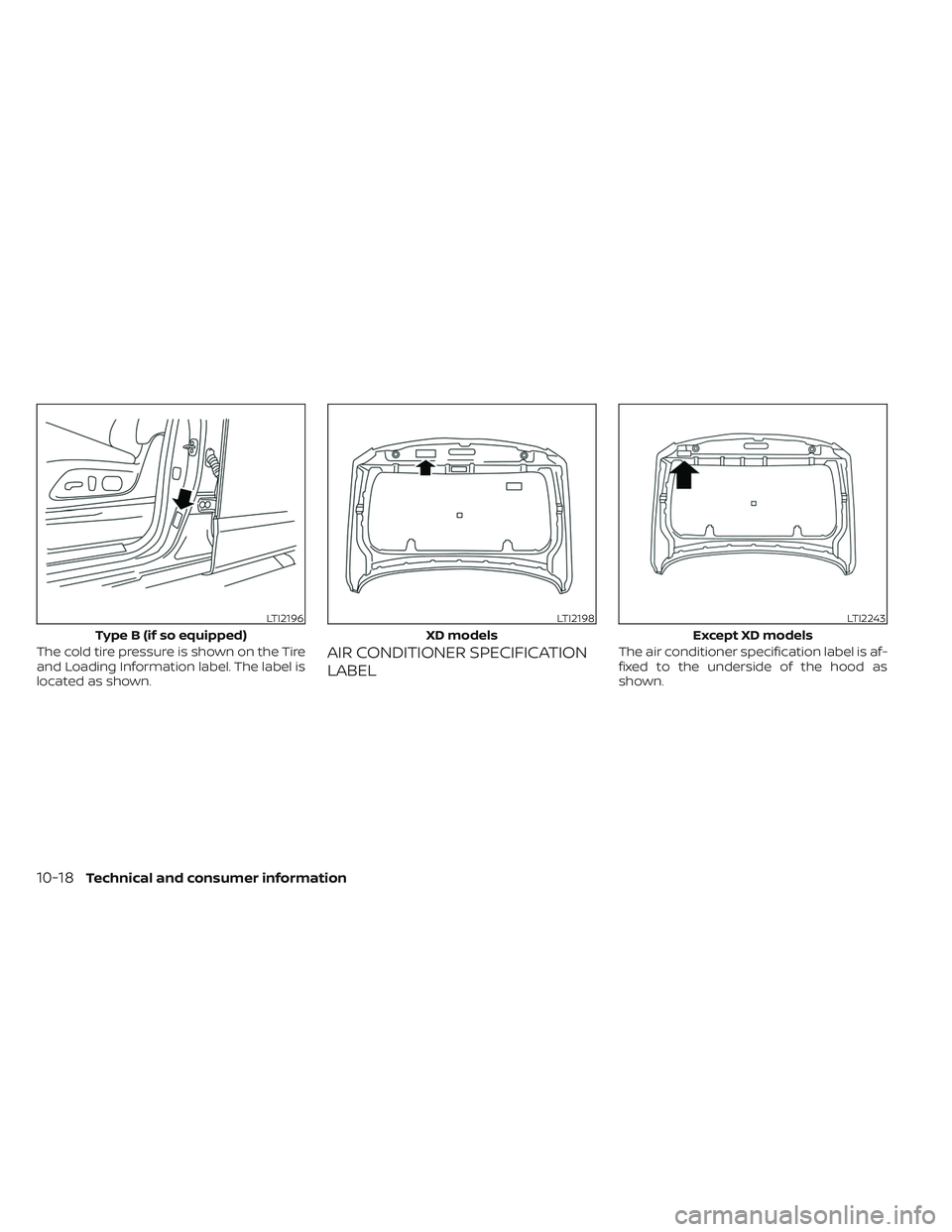

The cold tire pressure is shown on the Tire
and Loading Information label. The label is
located as shown.AIR CONDITIONER SPECIFICATION
LABELThe air conditioner specification label is af-
fixed to the underside of the hood as
shown.
LTI2196
Type B (if so equipped)
LTI2198
XD models
LTI2243
Except XD models
10-18Technical and consumer information

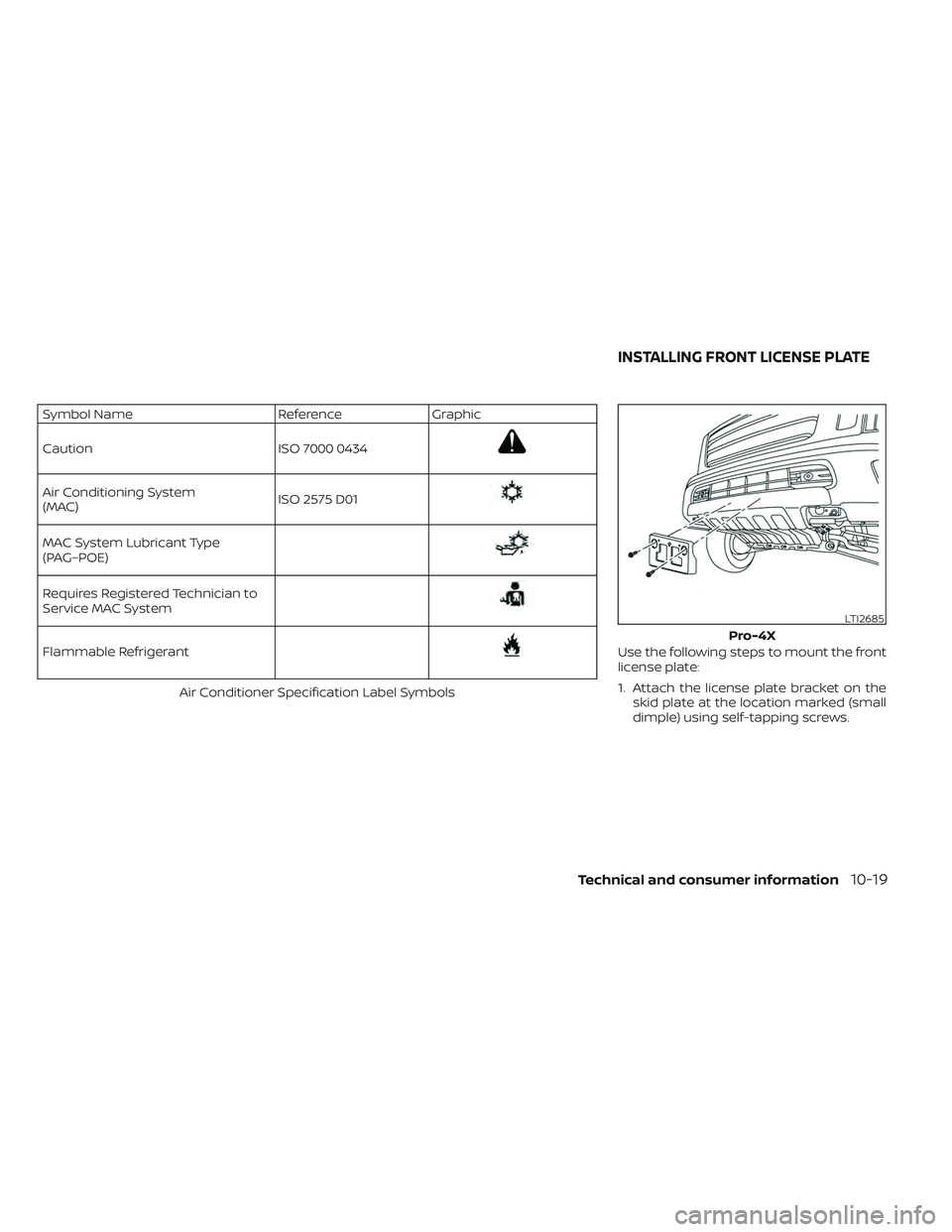

Symbol NameReferenceGraphic
Caution ISO 7000 0434
Air Conditioning System
(MAC)ISO 2575 D01
MAC System Lubricant Type
(PAG–POE)
Requires Registered Technician to
Service MAC System
Flammable Refrigerant
Air Conditioner Specification Label Symbols Use the following steps to mount the front
license plate:
1. Attach the license plate bracket on the
skid plate at the location marked (small
dimple) using self-tapping screws.
LTI2685
Pro-4X
INSTALLING FRONT LICENSE PLATE
Technical and consumer information10-19

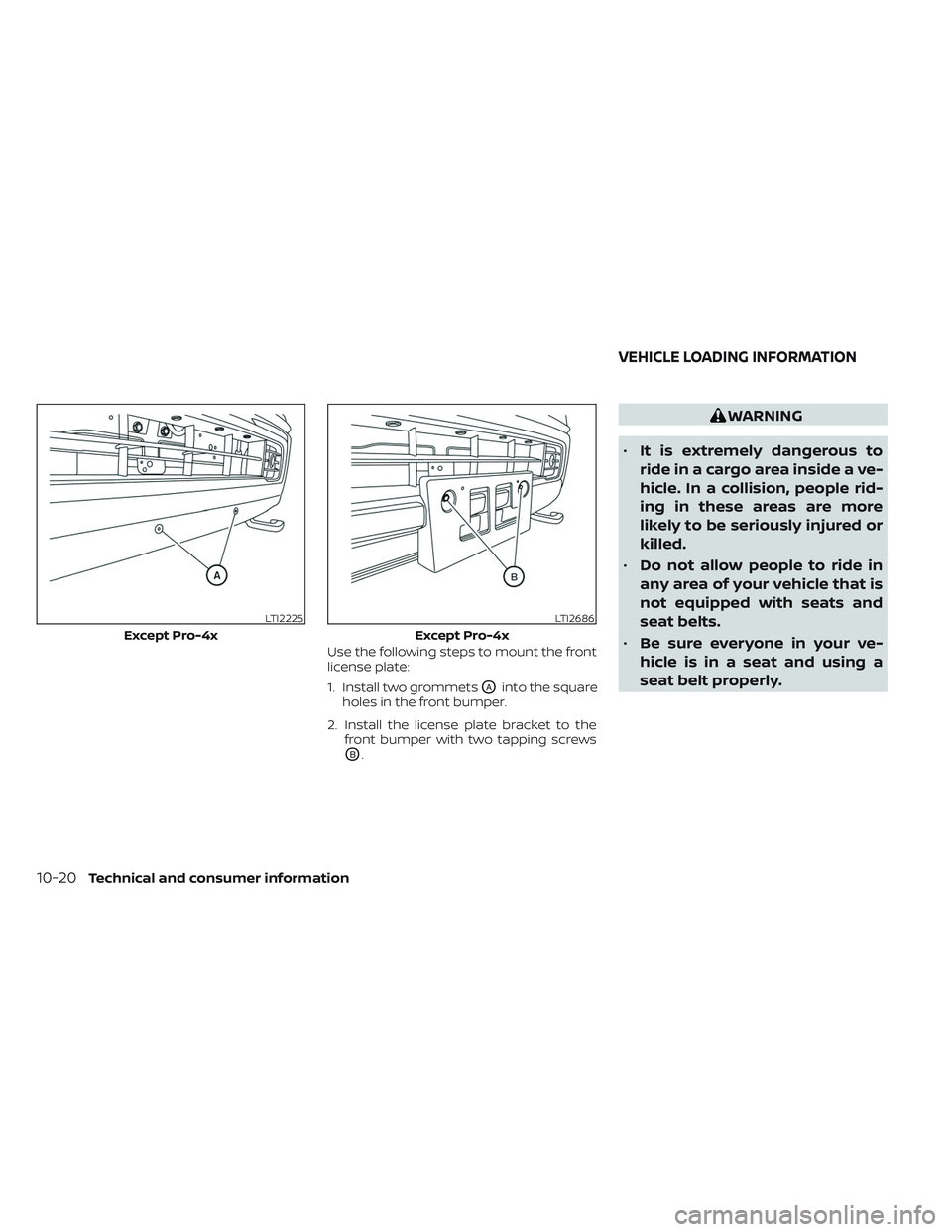

Use the following steps to mount the front
license plate:
1. Install two grommets
OAinto the square
holes in the front bumper.
2. Install the license plate bracket to the front bumper with two tapping screws
OB.
WARNING
• It is extremely dangerous to
ride in a cargo area inside a ve-
hicle. In a collision, people rid-
ing in these areas are more
likely to be seriously injured or
killed.
• Do not allow people to ride in
any area of your vehicle that is
not equipped with seats and
seat belts.
• Be sure everyone in your ve-
hicle is in a seat and using a
seat belt properly.
LTI2225
Except Pro-4x
LTI2686
Except Pro-4x
VEHICLE LOADING INFORMATION
10-20Technical and consumer information

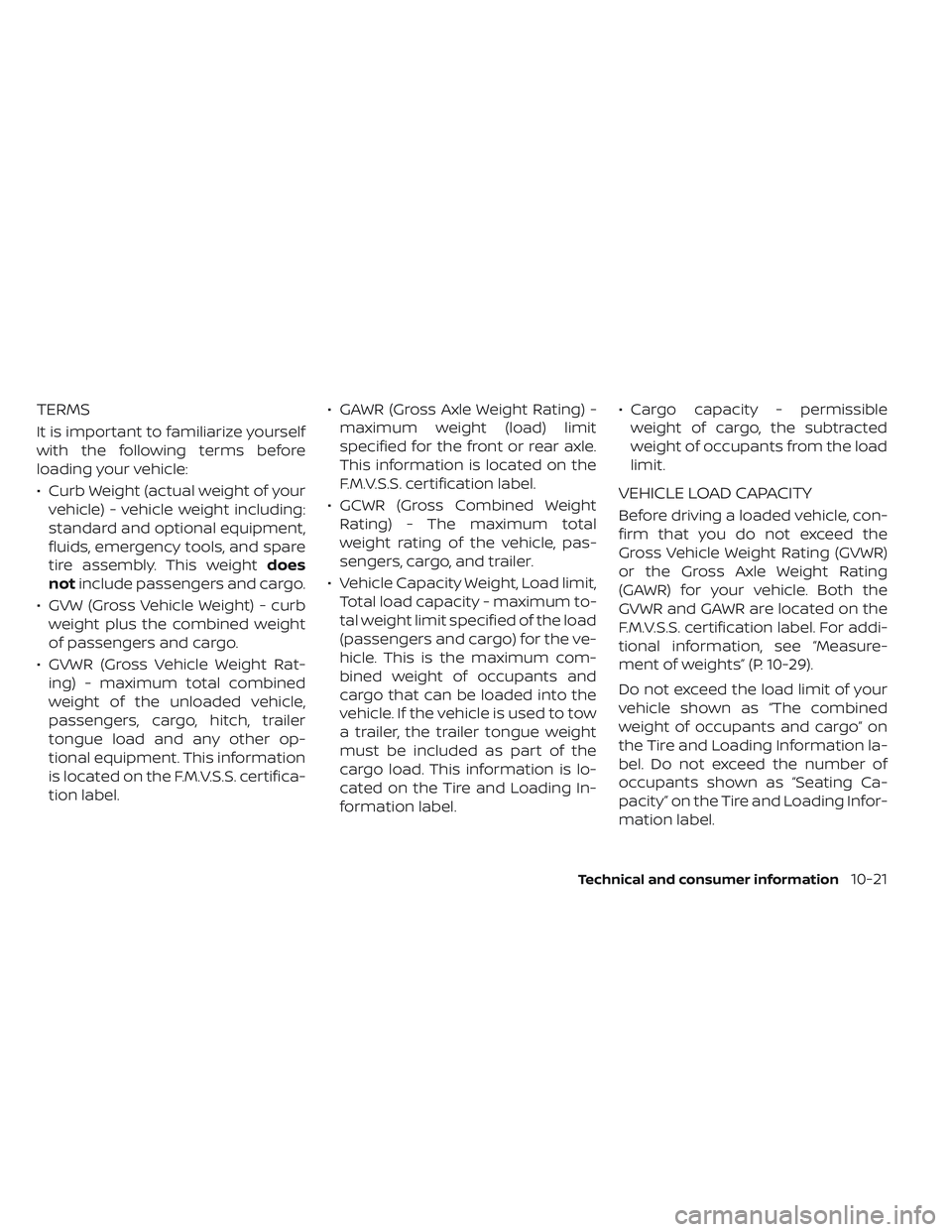

TERMS
It is important to familiarize yourself
with the following terms before
loading your vehicle:
• Curb Weight (actual weight of yourvehicle) - vehicle weight including:
standard and optional equipment,
fluids, emergency tools, and spare
tire assembly. This weight does
not include passengers and cargo.
• GVW (Gross Vehicle Weight) - curb weight plus the combined weight
of passengers and cargo.
• GVWR (Gross Vehicle Weight Rat- ing) - maximum total combined
weight of the unloaded vehicle,
passengers, cargo, hitch, trailer
tongue load and any other op-
tional equipment. This information
is located on the F.M.V.S.S. certifica-
tion label. • GAWR (Gross Axle Weight Rating) -
maximum weight (load) limit
specified for the front or rear axle.
This information is located on the
F.M.V.S.S. certification label.
• GCWR (Gross Combined Weight Rating) - The maximum total
weight rating of the vehicle, pas-
sengers, cargo, and trailer.
• Vehicle Capacity Weight, Load limit, Total load capacity - maximum to-
tal weight limit specified of the load
(passengers and cargo) for the ve-
hicle. This is the maximum com-
bined weight of occupants and
cargo that can be loaded into the
vehicle. If the vehicle is used to tow
a trailer, the trailer tongue weight
must be included as part of the
cargo load. This information is lo-
cated on the Tire and Loading In-
formation label. • Cargo capacity - permissible
weight of cargo, the subtracted
weight of occupants from the load
limit.
VEHICLE LOAD CAPACITY
Before driving a loaded vehicle, con-
firm that you do not exceed the
Gross Vehicle Weight Rating (GVWR)
or the Gross Axle Weight Rating
(GAWR) for your vehicle. Both the
GVWR and GAWR are located on the
F.M.V.S.S. certification label. For addi-
tional information, see “Measure-
ment of weights” (P. 10-29).
Do not exceed the load limit of your
vehicle shown as “The combined
weight of occupants and cargo” on
the Tire and Loading Information la-
bel. Do not exceed the number of
occupants shown as “Seating Ca-
pacity” on the Tire and Loading Infor-
mation label.
Technical and consumer information10-21

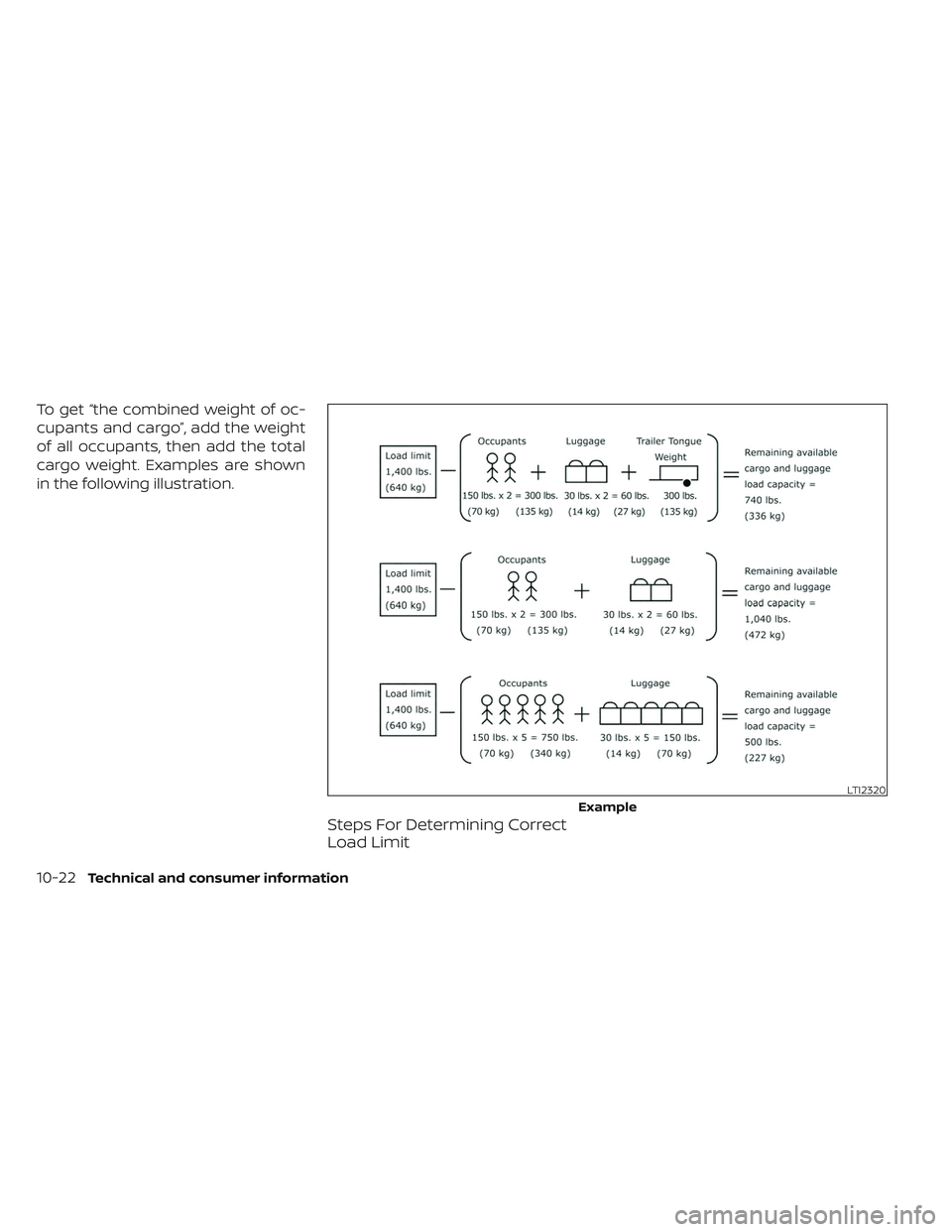

To get “the combined weight of oc-
cupants and cargo”, add the weight
of all occupants, then add the total
cargo weight. Examples are shown
in the following illustration.
Steps For Determining Correct
Load Limit
LTI2320
Example
10-22Technical and consumer information
