NISSAN TITAN XD 2017 Owners Manual

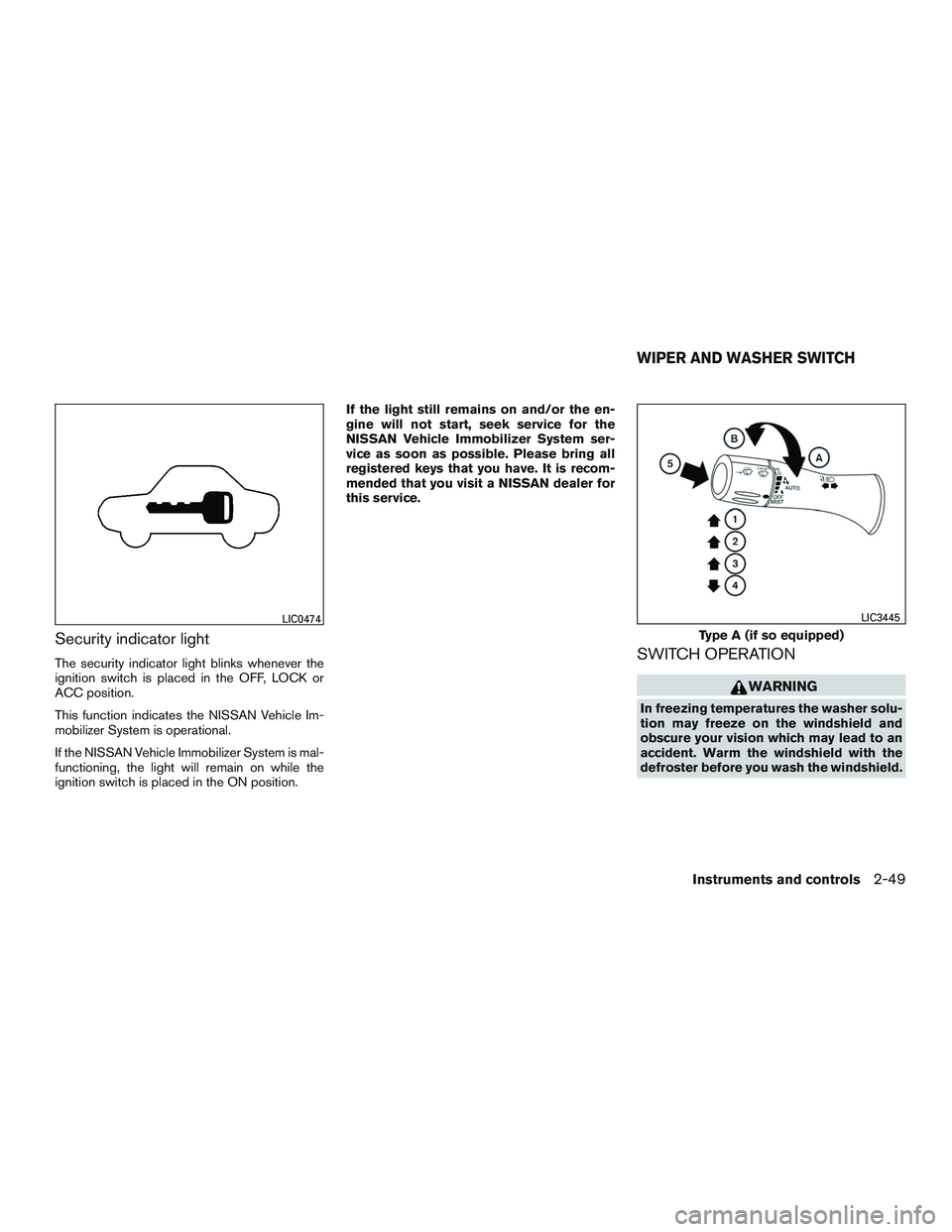

Security indicator light
The security indicator light blinks whenever the
ignition switch is placed in the OFF, LOCK or
ACC position.
This function indicates the NISSAN Vehicle Im-
mobilizer System is operational.
If the NISSAN Vehicle Immobilizer System is mal-
functioning, the light will remain on while the
ignition switch is placed in the ON position.If the light still remains on and/or the en-
gine will not start, seek service for the
NISSAN Vehicle Immobilizer System ser-
vice as soon as possible. Please bring all
registered keys that you have. It is recom-
mended that you visit a NISSAN dealer for
this service.SWITCH OPERATION

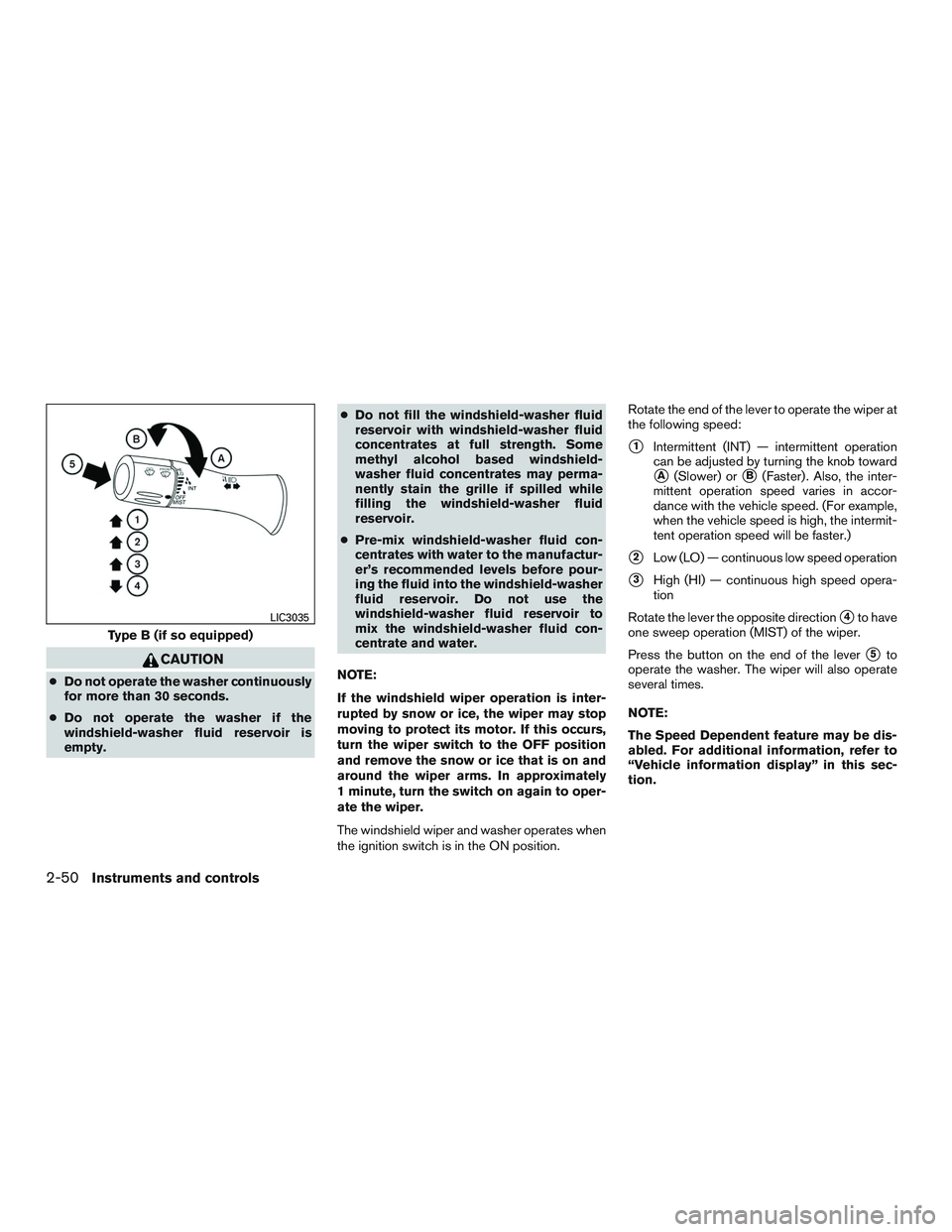

CAUTION
●Do not operate the washer continuously
for more than 30 seconds.
● Do not operate the washer if the
windshield-washer fluid reservoir is
empty. ●
Do not fill the windshield-washer fluid
reservoir with windshield-washer fluid
concentrates at full strength. Some
methyl alcohol based windshield-
washer fluid concentrates may perma-
nently stain the grille if spilled while
filling the windshield-washer fluid
reservoir.
● Pre-mix windshield-washer fluid con-
centrates with water to the manufactur-
er’s recommended levels before pour-
ing the fluid into the windshield-washer
fluid reservoir. Do not use the
windshield-washer fluid reservoir to
mix the windshield-washer fluid con-
centrate and water.
NOTE:
If the windshield wiper operation is inter-
rupted by snow or ice, the wiper may stop
moving to protect its motor. If this occurs,
turn the wiper switch to the OFF position
and remove the snow or ice that is on and
around the wiper arms. In approximately
1 minute, turn the switch on again to oper-
ate the wiper.
The windshield wiper and washer operates when
the ignition switch is in the ON position. Rotate the end of the lever to operate the wiper at
the following speed:
1Intermittent (INT) — intermittent operation
can be adjusted by turning the knob toward
A(Slower) orB(Faster) . Also, the inter-
mittent operation speed varies in accor-
dance with the vehicle speed. (For example,
when the vehicle speed is high, the intermit-
tent operation speed will be faster.)
2Low (LO) — continuous low speed operation
3High (HI) — continuous high speed opera-
tion
Rotate the lever the opposite direction
4to have
one sweep operation (MIST) of the wiper.
Press the button on the end of the lever
5to
operate the washer. The wiper will also operate
several times.
NOTE:
The Speed Dependent feature may be dis-
abled. For additional information, refer to
“Vehicle information display” in this sec-
tion.

RAIN-SENSING AUTO WIPER
SYSTEM (if so equipped)

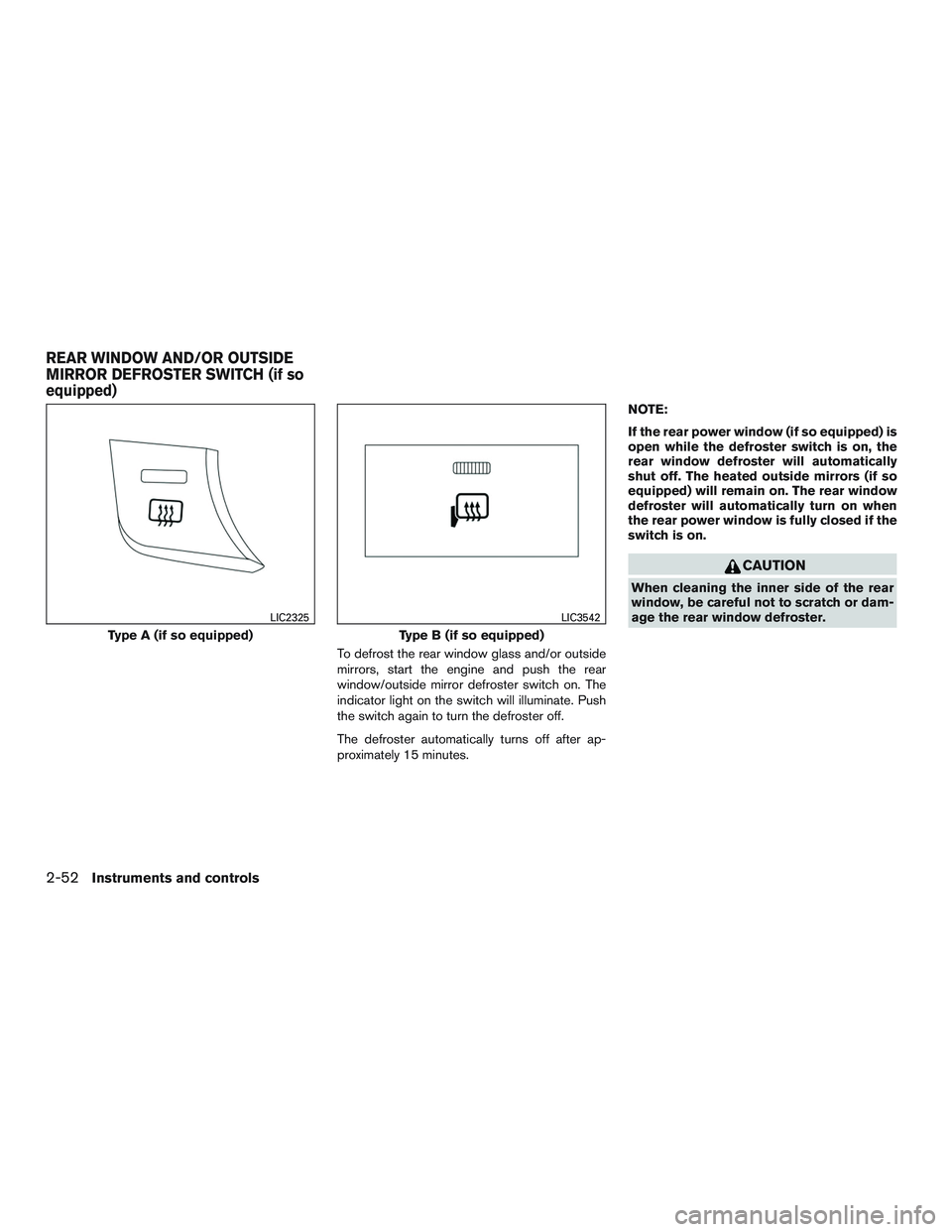

To defrost the rear window glass and/or outside
mirrors, start the engine and push the rear
window/outside mirror defroster switch on. The
indicator light on the switch will illuminate. Push
the switch again to turn the defroster off.
The defroster automatically turns off after ap-
proximately 15 minutes.NOTE:
If the rear power window (if so equipped) is
open while the defroster switch is on, the
rear window defroster will automatically
shut off. The heated outside mirrors (if so
equipped) will remain on. The rear window
defroster will automatically turn on when
the rear power window is fully closed if the
switch is on.

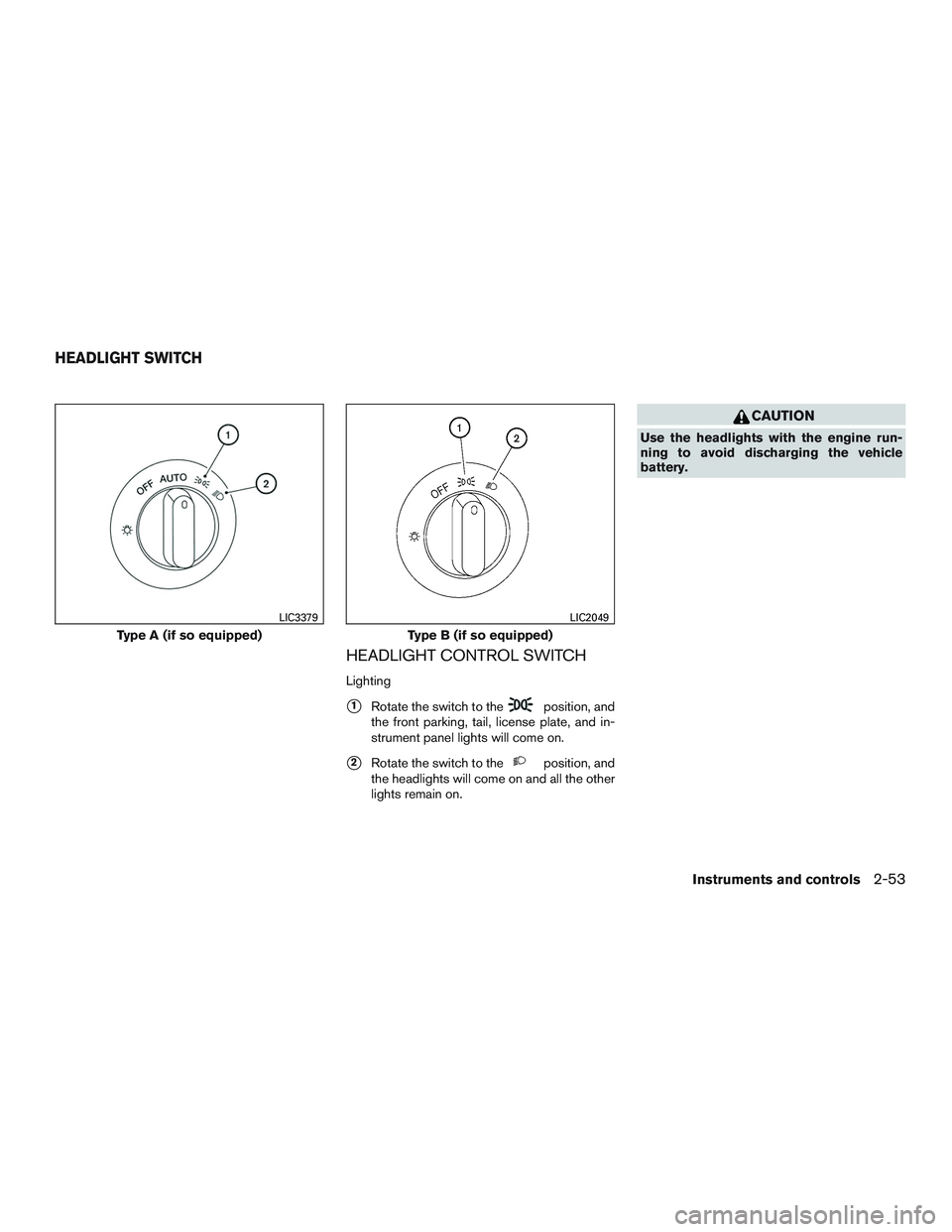

HEADLIGHT CONTROL SWITCH
Lighting
1Rotate the switch to the

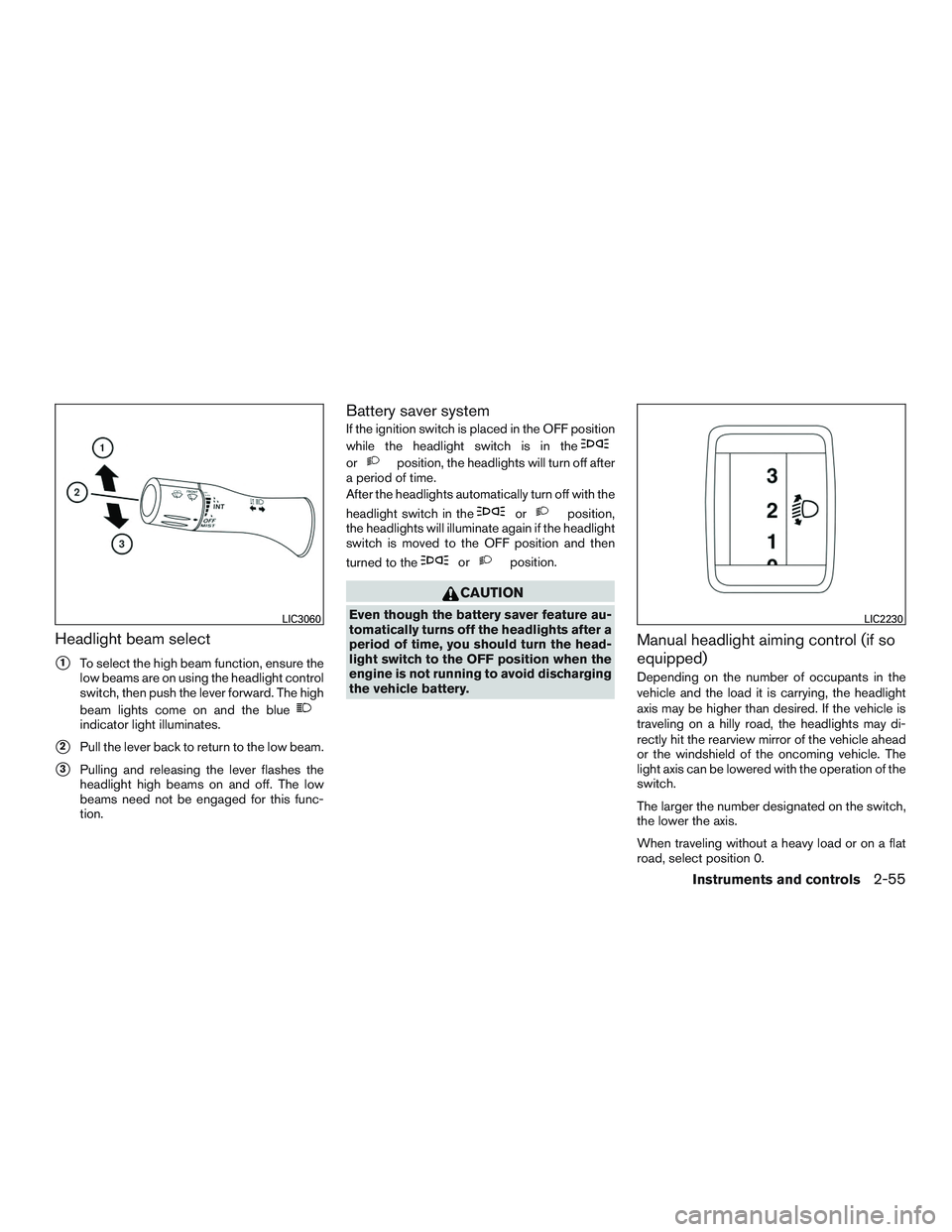

Headlight beam select
1To select the high beam function, ensure the
low beams are on using the headlight control
switch, then push the lever forward. The high
beam lights come on and the blue

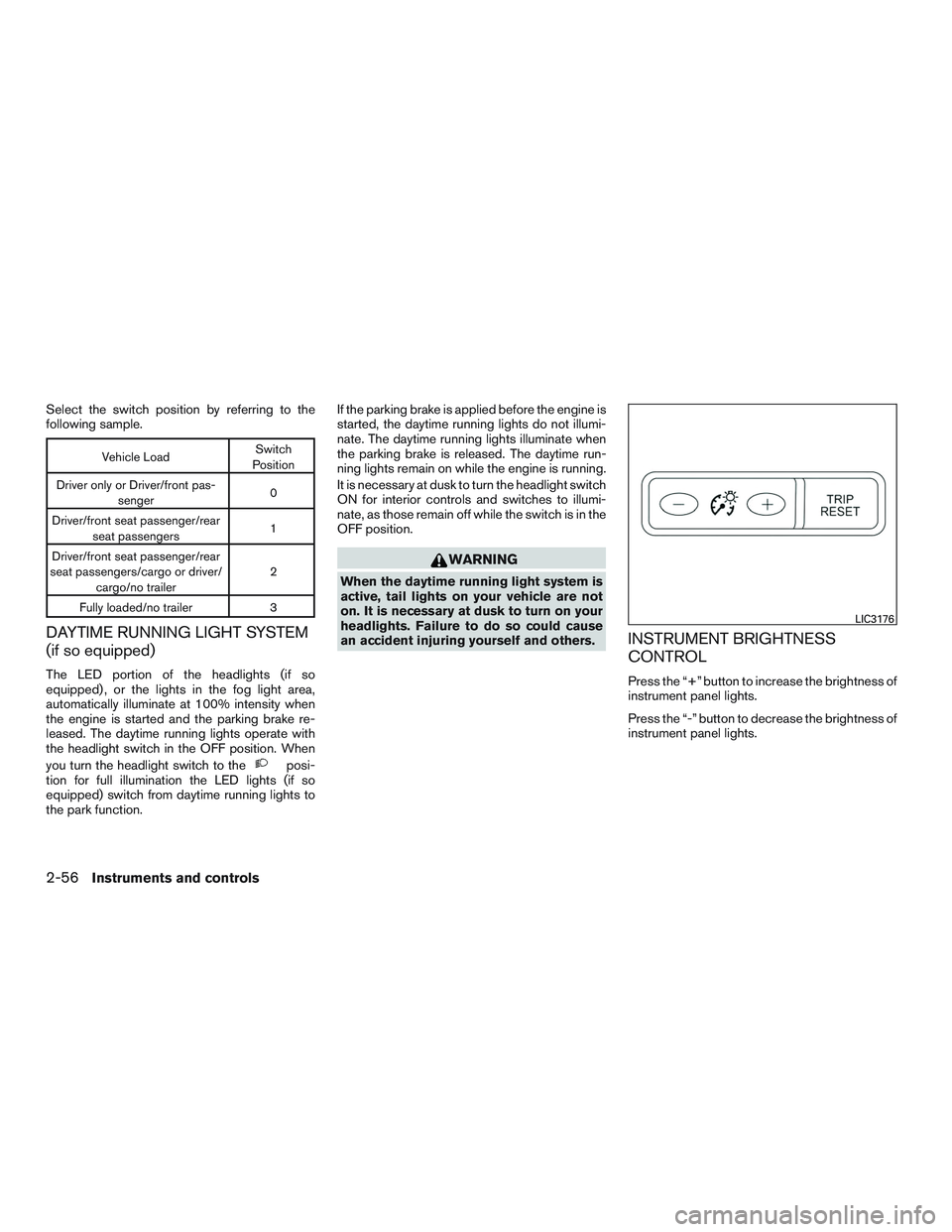

Select the switch position by referring to the
following sample.
