NISSAN TITAN XD 2017 Owners Manual

For additional information on proper truck box
loading, refer to “Vehicle loading information” in
the “Technical and consumer information” sec-
tion of this manual.

7. Remove the tailgate. For additional informa-tion, refer to “Removing the tailgate” in this
section.

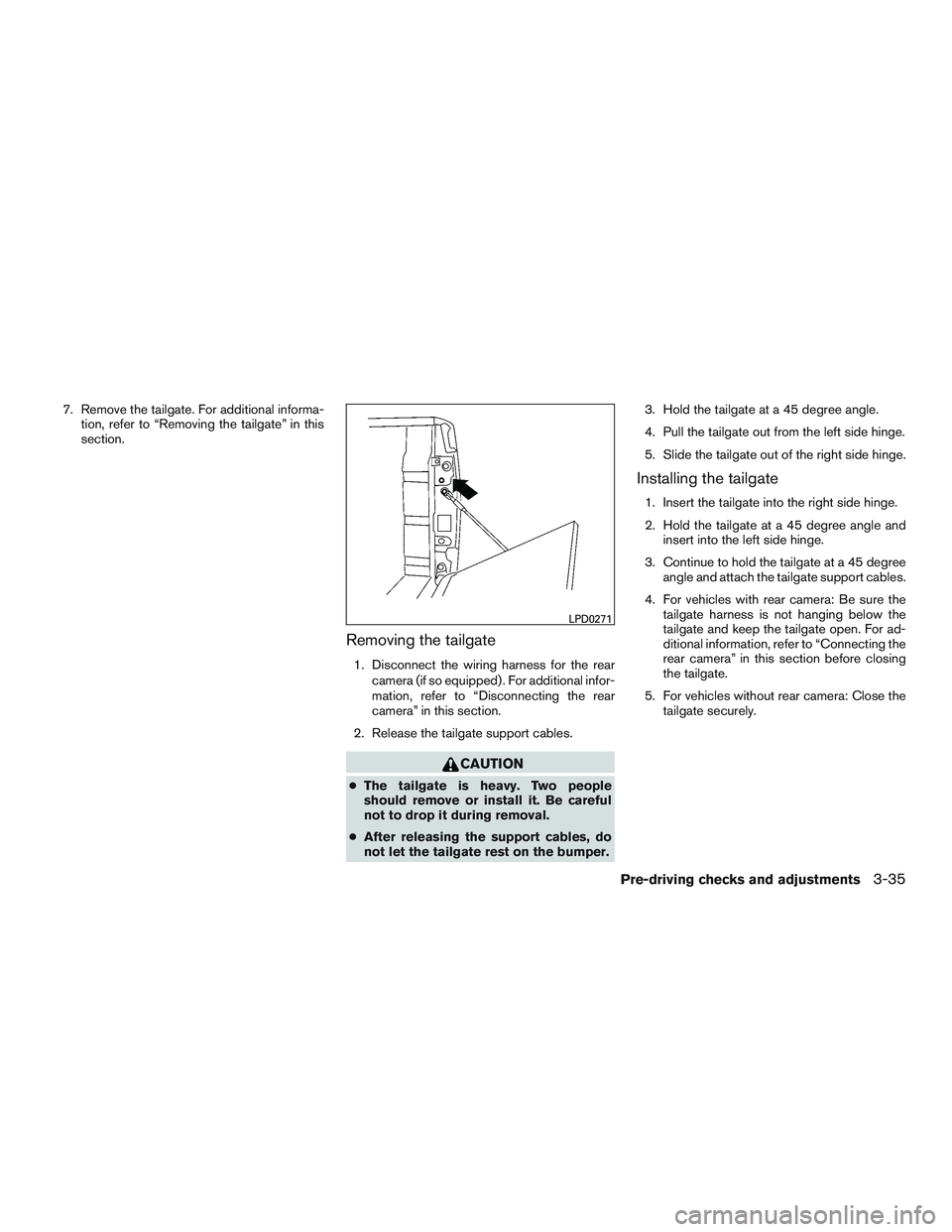

Removing the tailgate
1. Disconnect the wiring harness for the rear
camera (if so equipped) . For additional infor-
mation, refer to “Disconnecting the rear
camera” in this section.
2. Release the tailgate support cables.

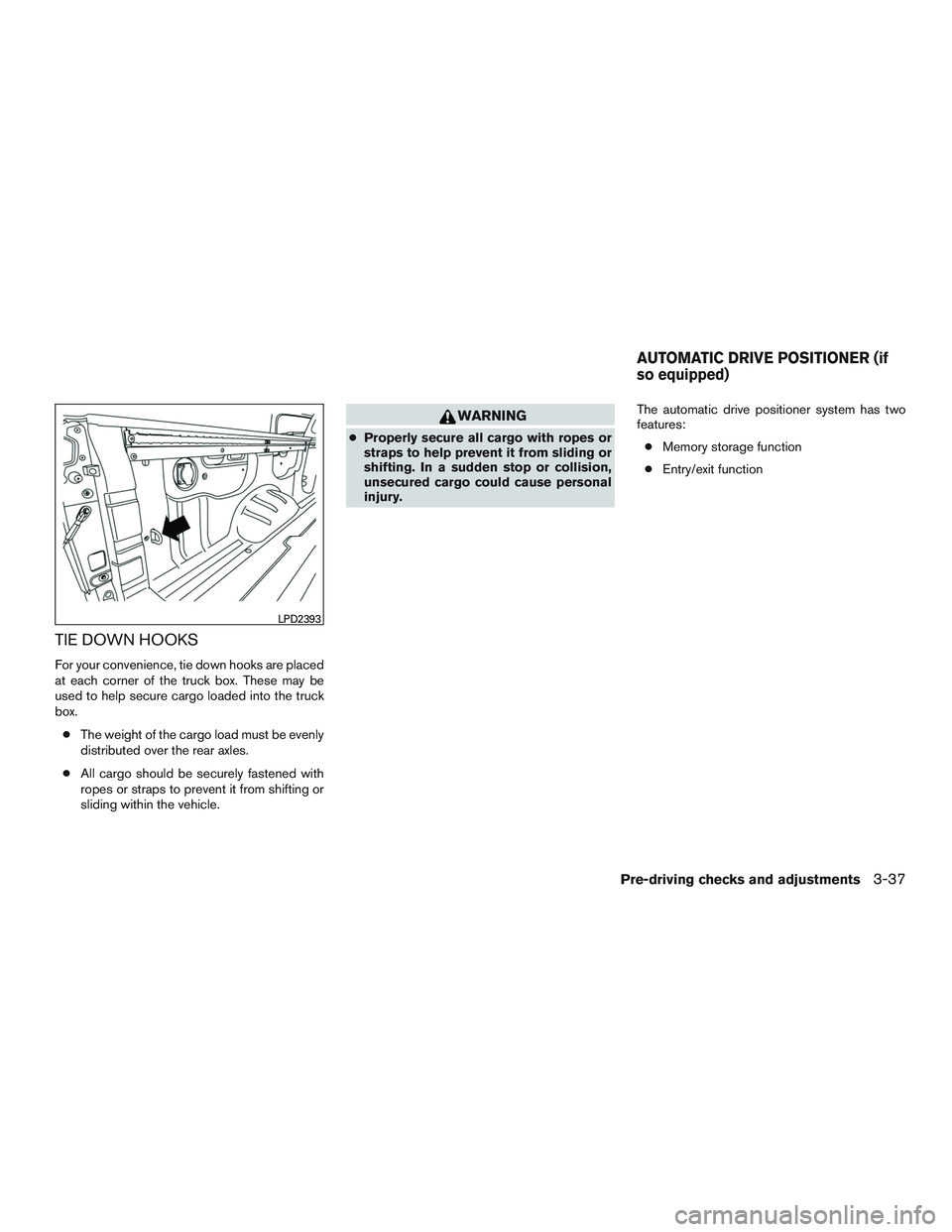

TIE DOWN HOOKS
For your convenience, tie down hooks are placed
at each corner of the truck box. These may be
used to help secure cargo loaded into the truck
box.● The weight of the cargo load must be evenly
distributed over the rear axles.
● All cargo should be securely fastened with
ropes or straps to prevent it from shifting or
sliding within the vehicle.
